Caple WI156 User manual

Undercounter Wine Cabinet
Instruction Manual
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
WI156
WI157

2 3Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference
CONTENTS
Introduction 3
Safety Instructions 4
Environmental Protection 7
Installation 8
Operating Your Wine Cabinet 10
Control Panel 11
How To Change The Door Opening 12
Installing The Handle 13
Installing The Full Height Plinth Grille 13
Fitting A Kitchen Plinth 14
Wine Bottle Stacking 15
Installation Dimensions 15
Installing The Top Fixing Bracket 16

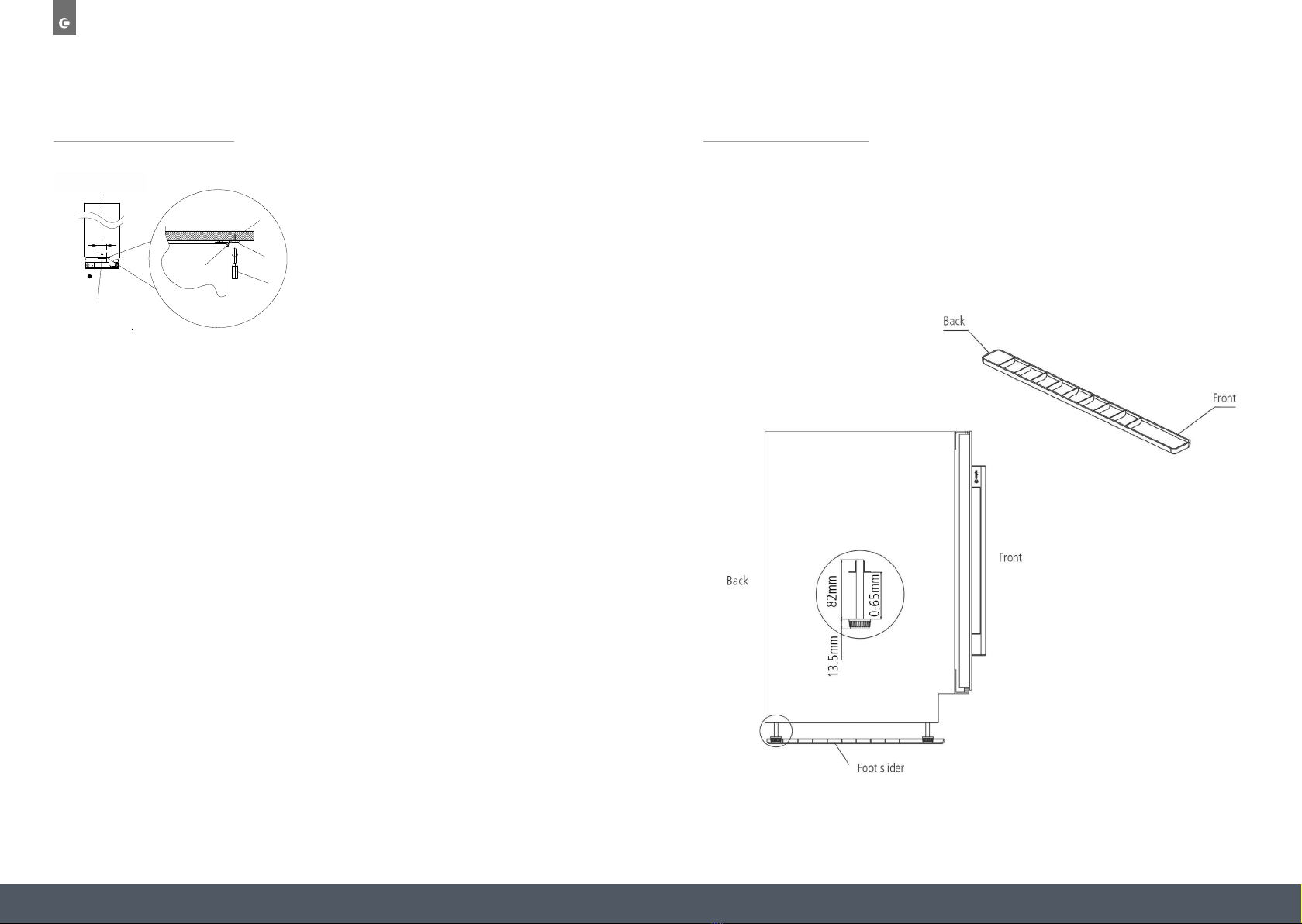

Using The Foot Sliders 17
Care and Maintenance 18
Troubleshooting 20
Recommended Temperatures 21
Caple Contact Details 24
INTRODUCTION
Thank you for choosing this Caple Wine Cabinet.
To ensure that you get the best results from your new wine cabinet, we strongly suggest that
you read this instruction manual thoroughly before use. If treated with care, your Caple product
should give you years of trouble-free use.
To register ownership, please ensure you complete and return the guarantee card supplied with
the appliance or visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with all the required information related to
the installation, use and maintenance of the appliance.
Please read this manual carefully before using your appliance. It contains important safety
advice; it explains how to use and look after your appliance so that it will provide you with
many years of reliable service.
Should a fault arise, please first consult the “Troubleshooting” section. You can often rectify
minor problems yourself, thus saving unnecessary service costs.
Please keep this manual in a safe place and pass it on to new owners for their information
and safety.

4 5Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference
WARNINGS
-To prevent damaging the door gasket, make sure the
door is fully open when pulling shelves out of the
rail compartment.
-The appliance must be positioned so that the plug is
accessible. Release the electric cord and move your
cabinet to its final location. Do not move your cabinet
while loaded with wine as you may distort the body.
-The wine cabinet should be installed in a suitable place
in order to avoid touching the compressor.
-After unpacking, make sure that the appliance is in
perfect order. If you have any doubt, do not use it and
contact your retailer.
-If the supply cord is damaged, it must be replaced by
a Caple service agent or a similarly qualified person in
order to avoid a hazard.
-This product is not designed for commercial use, it is a
household appliance only.
-It is not intended to be used in:
› Staff kitchen areas in shops, offices and other
working environments.
› Bed and breakfast type environments.
› By clients in hotels, motels and any other residential
type environments.
-This appliance is intended to be used exclusively for
the storage of wine.
IMPORTANT
Caple cannot be held liable for any non compliance with
these instructions.
ELECTRICAL SHOCK HAZARD
-Read all instructions before using the wine cabinet.
-DANGER or WARNING: Risk of child entrapment.
-Before you throw away your old wine cabinet: Take off
the door, leaving the shelves in place so that children
cannot easily climb inside.
-Never allow children to operate, play with, or crawl
inside the appliance.
-Never clean appliance parts with flammable fluids. The
fumes can create a fire hazard or explosion.
-Do not store or use gasoline or any other flammable
vapours and liquids in the vicinity of this or any other
appliance. The fumes can create a fire hazard
or explosion.
-The refrigerant of this appliance is R600a, flammable
and explosive articles should not be put in or near the
cabinet, to avoid the risk of fire or explosion.
-Cleaning and user maintenance shall not be made by
children without supervision.
-When positioning the appliance, ensure the supply
cord is not trapped or damaged.

6 7Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
-This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance.
-Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
-Do not use plug adapter.
-Store wine in sealed bottles.
-Do not overload the cabinet.
-Do not open the door unless necessary.
-Do not cover shelves with aluminium foil or any other
shelf material which may prevent air circulation.
-Should the wine cabinet be stored without use for long
periods it is suggested, after careful cleaning, to leave
the door ajar to allow air to circulate inside the cabinet
in order to avoid possible formations of condensation,
mould or odours.
-Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
-Do not damage the refrigerant circuit.
-Do not use electrical appliances inside the storage
compartments of the appliance,unless they are the type
recommended by the manufacturer.

8 9Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference
INSTALLATION
BEFORE USING YOUR WINE CABINET
› Remove the exterior and interior packing.
IMPORTANT:
Before connecting the wine cabinet to the power source, let it stand upright for at least 12
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
› Clean the interior surface with lukewarm water using a soft cloth.
Make sure to turn the unit off and unplug it from the outlet.
NOTE
To protect the appliance in transit and delivery the door is packed tightly against the cabinet.
When first installed this can mean the door seal appears thinner on one side of the door due to
compression, this is normal and once out of the box it will relax over a short period of time and
the door will return to the normal position. If you wish to speed up the process you can gently
warm the seal with a hair dryer on a low temperature setting. This can help relax the seal
helping it return to normal thickness a little faster.
INSTALLATION OF YOUR WINE CABINET
› Place your wine cabinet on a floor that is strong enough to support it when it is
fully loaded.
› To level your wine cabinet, adjust the front levelling leg at the bottom of the cabinet.
› Ensure it is perfectly level, as this will minimise any vibrations.
› This appliance uses flammable refrigerant. Never damage the cooling pipework
during transportation.
› Locate the wine cooler away from direct sunlight and sources of heat (ovens, hobs, heaters,
radiators, etc.). Never clean appliance parts with flammable fluids. The fumes can create
a fire hazard or explosion. When disposing your appliance, please choose an authorised
disposal site.
› Avoid locating the unit in moist areas.
› It is fitted with a power cord having an earth wire terminating in a 13amp plug.
› Ensure the product is correctly ventilated (see page; 13 & 14).
› Consult a qualified electrician or service engineer if the earthing instructions are not
completely understood.
› Plug the wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) pin from the plug. Any questions
concerning power and/or grounding should be directed toward a certified electrician or
Caple service.
WARNING:
Incorrect earthing can result in the risk of electric shock.

10 11Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference
OPERATING YOUR WINE CABINET
Please use the cabinet within ambient temperatures between 16-32ºC, if the ambient
temperature is higher or lower than this, it will cause the temperature to fluctuate in the
cabinet, possibly preventing it from reaching 5-18ºC.
SETTING THE TEMPERATURE
Set the desired cooling temperature by pressing the up and down keys. Each press of the keys
will scroll through the available temperature settings in increments of 1°C.
The temperature setting can be adjusted from 5°C to 18°C
To view the actual temperature at anytime press and hold either up or down for approximately
5 seconds, the actual temperature will temporarily flash in the LED display for 5 seconds. After
this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
NOTE
If the unit is unplugged, power lost or turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the wine cabinet will
not start.
When you use the wine cabinet for the first time or you restart the cabinet after having been
shut off for a long time, there could be a few degrees variance between the temperature you
select and the one indicated on the LED readout. This is normal and it is due to the length of
the activation time. Once the wine cabinet has been running for a few hours everything will be
back to normal.
CONTROL PANEL
BUTTONS
Light - Used to switch the internal light on/off
Power - To switch the appliance on/off
(press and hold this button for approximately 3 seconds)
Up - Used to raise the temperature in 1ºC increments
Down - Used to lower the temperature in 1ºC increments
TEMPERATURE ALARM
If inner temperature is higher than 23ºC, “HI” is shown in the display panel, and the alarm
sounds after one hour continuously. It warns you that the inner temperature is too high.
If inner temperature is lower than 0ºC, “LO” is shown in the display panel, the alarm sounds
and the malfunction indicator lights at the same time.
INTERNAL LIGHT
In order to reduce energy consumption, the LED light within this wine cabinet will automatically
switch off after 10 minutes. If you would prefer the LED light to remain on continuously, this
is possible. Please press and hold the light key for 5 seconds, the display will show “LP”. After
4 seconds the display will revert back to normal and the light will remain on until manually
switched off.
If you would like to revert back and conserve energy (recommended), press and hold the light
key for 5 seconds, the display will show “LF”. After 4 seconds the display will revert back to
normal, and the light will automatically switch off after 10 minutes.
CONTROL PANEL

12 13Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference
HOW TO CHANGE THE DOOR OPENING
This appliance has reversible doors but is delivered with a right hinged door. The left hand
hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit
follow the directions below:
5
How to change the door opening
This appliance has reversible doors but is delivered with a right hinged door. The left hand
hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit.
1. Lower hinge (Right) 2 . Screws 3 .Door axis
4. Door 5. Top hinge (Right) 6. Hinge Screws
7. Top hinge (Left) 8. Hole cover 9. Lower hinge (Left)
10. Door limit device 11. Screw
1. Open the door to a 90 degrees angle, take out the 2 screws (2) from lower door axis (3),
remove the door (4), Remove the axis plate (3) from the door, (Fig. A).
2. Unscrew the screw (11) located underneath the door frame and the limit device (10), and
relocate it at left end side of the door frame. (Fig. A/B)
3. Take out the 3 hinge screws (6) from the top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at
left top of cabinet with 3 screws. (Fig. D)
5. Following the above procedure, install the spare lower hinge to the left (9). (Fig. E)
6. Install and aligned the door.
7. Insert the plastic caps to cover the holes(8).
1. Lower hinge (Right)
4. Door
7. Top hinge (Left)
10. Door limit device
2 . Screws
5. Top hinge (Right)
8. Hole cover
11. Screw
3 .Door axis
6. Hinge Screws
9. Lower hinge (Left)
1. Open the door to a 90 degrees angle, take out the 2 screws (2) from lower door axis (3),
remove the door (4), Remove the axis plate (3) from the door, (Fig. A).
2. Unscrew the screw (11) located underneath the door frame and the limit device (10), and
relocate it at left end side of the door frame. (Fig. A/B)
3. Take out the 3 hinge screws (6) from the top hinge (right) (5) and remove it. (Fig. C)
4. Remove decorative nail (8) from left top of cabinet and install spare top hinge (Left) (7) at
left top of cabinet with 3 screws. (Fig. D)
5. Following the above procedure, install the spare lower hinge to the left (9). (Fig. E)
6. Install and aligned the door.
7. Insert the plastic caps to cover the holes(8).
INSTALLING THE FULL HEIGHT PLINTH GRILLE
Take out the full height plinth grille and the brackets from the accessories box. Fix the brackets
to the cabinet with screws provided and fix both sides of the grille to the brackets with the 2
supplied screws as shown in below diagram.
NOTE: To be installed
with a 150mm plinth
height.
If you wish to reduce
your plinth height, the
smaller, slot-on plinth
grille (see page 14)
should be used.
INSTALLING THE HANDLE
Remove the door gasket on the drilled holes side to install the handle (see below drawing).
Fix the handle to the screws and push the gasket back into place.
Visit our caple website to view a ‘How to video’ at WWW.CAPLE.CO.UK
Scan the QR code below to
access the ‘How to video’

14 15Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference
FITTING A KITCHEN PLINTH
This model is also supplied with a slot on plinth grille if the previous method/grille is not
preferred. A H75mm vent slot is required in the plinth to ensure air is able to ventilate correctly.
See diagram below.
WINE BOTTLE STACKING
Stores max. 8 Bordeaux style bottles 750ml.
JG7(820高度）
无缝门 拼接门
1
1
1
1
1
1
1
1
+
+
+
+
+
+
+
=
8
INSTALLATION DIMENSIONS
DIMENSIONS
547mm
min. 825mm
150mm
145mm
min. 557mm
inc door
820-885mm
730mm
120mm
6
Installation dimensions
3355
a
b
c
d
a
547

16 17Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference
FIXING THE TOP FIXING BRACKET
After installing the wine cabinet, please open the door, adjust the fixing bracket (a) and fix this
in position with three screws (c) using a screwdriver (d) into the work surface (b).
a) Top fixing bracket
b) Work surface
c) Screw
d) Screwdriver
This bracket will keep the product secure and help prevent it moving when in use.
6
Installation dimensions
3
3
5
5
a
b
c
d
a
547
USING THE FOOT SLIDERS
If you want to adjust the height over 820mm, please install the product using the foot sliders
provided. These are provided to help prevent the feet catching on the floor when sliding the
appliance into the aperture. Place the back foot in the location marked ‘Back’ below and the
front foot in the location marked ‘Front’. Once fitted to both sides of the wine cabinet the
appliance can be gently positioned into the aperture, taking care not to place excess pressure
on the feet when locating the cabinet.

18 19Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference
CARE AND MAINTENANCE
CLEANING YOUR WINE CABINET
› Turn off the power, unplug the appliance, and remove all items including shelves and rack.
› Wash the inside surfaces with a warm water and baking soda solution. The solution should
be about 2 tablespoons of baking soda to 2 pints of water.
› Wash the shelves with a mild detergent solution.
› Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
› Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe
dry with a clean soft cloth.
NOTE
Please take care when cleaning the plinth grille as this may contain sharp edges
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimise the number of times the door is opened. If the power is going to
be off for a longer period of time, you need to take the proper steps to protect your contents.
HOLIDAY
SHORT HOLIDAYS: Leave the wine cabinet operating during holidays of less than three weeks.
LONG HOLIDAYS: If the appliance will not be used for several months, remove all items and
turn off the appliance. Clean and dry the interior thoroughly. To prevent
odour and mould growth, leave the door open slightly (blocking it open
if necessary).
MOVING YOUR WINE CABINET
› Remove all items.
› Securely tape down all loose items (shelves) inside your appliance.
› Turn the adjustable leg up to the base to avoid damage.
› Tape the door shut.
› Be sure the appliance stays secure in the upright position during transportation. Also
protect outside of appliance with a blanket, or similar item.
ENERGY SAVING TIPS
The wine cabinet should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.

20 21Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
The wine cabinet does not operate Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
The wine cabinet is not cold enough Check the temperature control setting.
External environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
The compressor turns on and
off frequently
The room temperature is hotter than normal.
A large amount of contents has been added to the wine cabinet.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The light does not work Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”.
Vibrations Check that the appliance is level and installed on a flat, even surface
The wine cabinet seems to make too
much noise.
The rattling noise may come from the flow of the refrigerant, which is
normal. As each cycle ends, you may hear gurgling sounds caused by the
flow of refrigerant in your wine cabinet.
Contraction and expansion of the inside walls may cause popping and
crackling noises.
The wine cabinet is not level.
The door will not close properly The wine cabinet is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
If the above table has not solved the problem please contact Caple Service by phone on
0117 938 7420 or by email [e-mail]
You can solve many common wine cabinet problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling
CAPLE SERVICE.
DEFROSTING/CONDENSATION
Your wine cabinet is designed with an “Auto-cycle” defrost system. When the RUN cycle is
OFF, the refrigerated surface of the wine cabinet (interior rear wall) defrosts automatically. The
defrosted water is channelled into a drain pan which is located at the back of the cabinet next
to the compressor from where it evaporates.
BEVERAGE RECOMMENDED
TEMPERATURE
Champagne NV, Sparkling 6˚C
Champagne Vintage 10˚C
Dry White Semillon, Sauvignon Blanc 8˚C
Dry White Gewürztraminer, Riesling 10˚C
Dry White Chardonnay 10˚C
Vintage Chardonnay 14˚C
Sweet White Sauternes Monbazillac, Late
Harvest ice wine 10˚C
Sweet whites vintage Sauternes 14˚C
Beaujolais 13˚C
Red Pinot Noir 16˚C
Vintage Pinot Noir red 18˚C
Red Cabernet, Merlot, French, Australian,
New Zealand, Chilean, Argentinean, Italian,
Spanish, Californian
18˚C
Red Grenache, Syrah 16˚C
RECOMMENDED TEMPERATURES
RECOMMENDED STORAGE TEMPERATURES:
RECOMMENDED DRINKING TEMPERATURES:
BEVERAGE RECOMMENDED
TEMPERATURE
For storing all types of wines 12˚C to 14˚C

22 23Instruction manual Wi156 Wi157 Instruction manual Wi156 Wi157Please keep this instruction manual for future reference Please keep this instruction manual for future reference

Caple Service
Fourth Way
Avonmouth
Bristol
BS11 8DW
T: 0117 938 1900
E: [e-mail]
www.caple.co.uk
