Caple CM104 User manual

1
MODEL: CM104-5-6
Microwave Oven Owner's Manual
Please read these instructions carefully before installing and operating the oven. Keep them for
further reference.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference.
SERIAL NO.

2
PRECAUTIONSTOAVOIDPOSSIBLEEXPOSURE
TOEXCESSIVEMICROWAVEENERGY
1. Do not attempt to operate this oven with the door open since open-door operation
can result in harmful exposure to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven
door close properly and that there is no damage to the :
a. Door ( bent ),
b. Hinges and latches (broken or loosened).
4. Door seals and sealing surfaces.
5. The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
CONTENT
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY .......................................................................................................................................2
SPECIFICATION ...........................................................................................................................2
INSTALLATION..............................................................................................................................2
GROUNDING INSTRUCTIONS ....................................................................................................2
RADIO INTERFERENCE ..............................................................................................................3
IMPORTANT SAFETY INSTRUCTIONS.......................................................................................3
MICROWAVE COOKING PRINCIPLES........................................................................................4
UTENSILS GUIDE.........................................................................................................................5
PART NAMES................................................................................................................................5
CONTROL PANEL.........................................................................................................................6
HOW TO SET THE OVEN CONTROLS........................................................................................7
SETTING THE CLOCK ...................................................................................................................7
MICROWAVE COOKING ................................................................................................................7
GRILL..............................................................................................................................................7
COMBINATION 1 ............................................................................................................................8
COMBINATION 2 ............................................................................................................................8
AUTO DEFROST ............................................................................................................................8
AUTO MENU...................................................................................................................................8
EXPRESS COOKING .....................................................................................................................9
SETTING TIMER...........................................................................................................................10
CHILD LOCK.................................................................................................................................10
SPECIAL FEATURE......................................................................................................................10
CLEANING AND CARE...............................................................................................................10
BEFORE YOU CALL FOR SERVICE..........................................................................................11

2
Power Consumption: 230V~50Hz, 1400W(Microwave)
230V, 1000W(Heater)
Rated Microwave Power Output: 900W
Operation Frequency: 2450MHz
Outside Dimensions: 305mm(H)×508mm(W)×410mm(D)
Oven Cavity Dimensions: 215mm(H)×350mm(W)×330mm(D)
Oven Capacity: 23Litres
Cooking Uniformity: Turntable System{Φ314mm}
Net Weight: Approx.16.5kg
*All data subject to verification by available data on the nameplate of the oven.
1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door
seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity
or on the door. If there is any damage, do not operate the oven and contact qualified service
personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the
heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near
combustible materials.
5. For correct operation, the oven must have sufficient airflow.Allow 20cm of space above the
oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the
appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over
any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a
grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In
S
SP PE EC CI IF FI IC CA AT TI IO ON NS S* *
I
IN NS ST TA AL LL LA AT TI IO ON N
G
GR RO OU UN ND DI IN NG GI IN NS ST TR RU UC CT TI IO ON NS S

3
the event of an electrical short circuit, grounding reduces risk of electric shock by providing an
escape wire for the electric current. It is recommended that a separate circuit serving only the oven
be provided. Using a high voltage is dangerous and may result in a fire or other accident causing
oven damage.
WARNING Improper use of the grounding plug can result in a risk of electric shock.
Notes:
If you have any questions about the grounding or electrical instructions, consult a qualified
electrician or service person.
Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal
injury resulting from failure to observe the electrical connection procedures.
The wires in this cable main are colored in accordance with the following code:
Green and Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
1. Operation of the microwave oven can cause interference to your radio, TV, or similar
equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:
a. Clean door and sealing surface of the oven.
b. Reorient the receiving antenna of radio or television.
c. Relocate the microwave oven with respect to the receiver.
d. Move the microwave oven away from the receiver.
e. Plug the microwave oven into a different outlet so that microwave oven and receiver are on
different branch circuits.
When using electrical appliance basic safety precautions should be followed, including the
following:
WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to
excessive microwave energy:
1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook
or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if
it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the
R
RA AD DI IO OI IN NT TE ER RF FE ER RE EN NC CE E
I
IM MP PO OR RT TA AN NT TS SA AF FE ET TY YI IN NS ST TR RU UC CT TI IO ON NS S

4
manufacturer or its service agent or a similarly qualified person in order to avoid a hazard
5. WARNING: Only allow children to use the oven without supervision when adequate
instructions have been given so that the child is able to use the oven in a safe way and
understands the hazards of improper use.
6. To reduce the risk of fire in the oven cavity:
a. When heating food in plastic or paper container, keep an eye on the oven due to the
possibility of ignition.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order
to stifle any flames.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils
or food in the cavity when not in use.
7. WARNING: Liquid or other food must not be heated in sealed containers since they are liable
to explode.
8. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be
taken when handle the container.
9. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin
burns.
10. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since
they may explode even after microwave heating has ended.
11. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before
cooking.
12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature
should be checked before serving in order to avoid burns.
13. Cooking utensils may become hot because of heat transferred from the heated food.
Potholders may be needed to handle the utensil.
14. Utensils should be checked to ensure that they are suitable for use in microwave oven.
15. WARNING: It is hazardous for anyone other than a trained person to carry out any service or
repair operation which involves the removal of any cover which gives protection against
exposure to microwave energy.
1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed.
Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and
hamburgers. Large items like roasts must be turned over at least once.
M
MI IC CR RO OW WA AV VE EC CO OO OK KI IN NG GP PR RI IN NC CI IP PL LE ES S

5
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from
the center of the dish to the outside.
1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass
through the container and heat the food.
2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be
used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal
fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends
to overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be
careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.
The list below is a general guide to help you select the correct utensils.
Cookware Microwave Grill Combination Cooking
Heat–Resistant Glass Yes Yes Yes
Non Heat–Resistant Glass No No No
Heat–Resistant Ceramics Yes Yes Yes
Microwave–Safe Plastic Dish Yes No No
Kitchen Paper Yes No No
Metal Tray No Yes No
Metal Rack No Yes No
Aluminum Foil & Foil Containers No Yes No
1. Door Safety Lock System
2. Oven Window
3. Oven Air Vent
4. Shaft
5. Roller Ring
6. Glass Tray
7. Control Panel
8. grill heater
9. metal rack
U
UT TE EN NS SI IL LS SG GU UI ID DE E
P
PA AR RT TN NA AM ME ES S

6

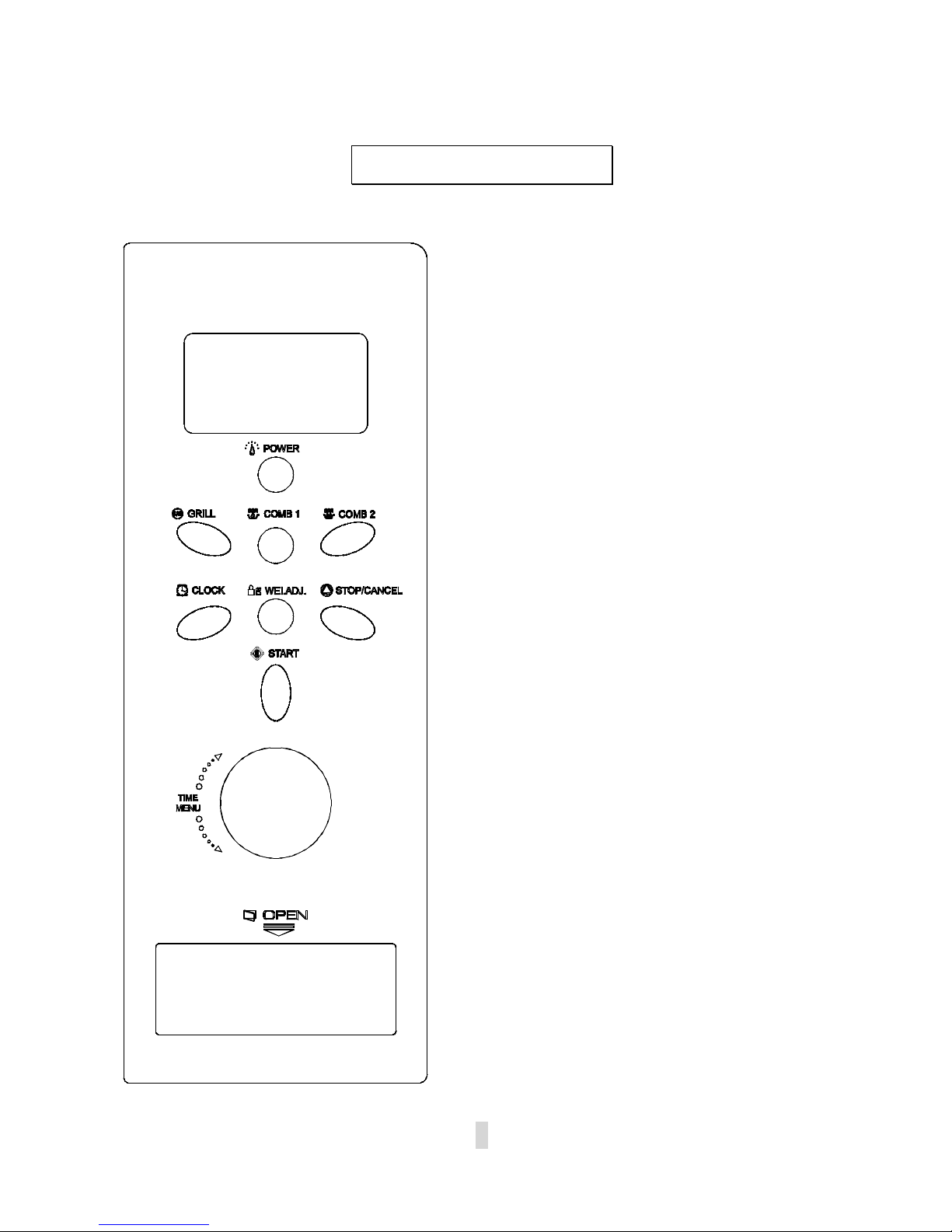

POWER
Touch this pad a number of times to set
microwave cooking power level.
GRILL
Press this pad to set a grill-cooking program up
to 60 minutes.
COMB1/COMB2
Press either of these two pads to set a
combination-cooking program with microwave
and grill power
TIME/MENU
Turn the dial to set the oven clock time or input
cooking time.
Turn the timer/menu dial to select an
auto-cooking menu including auto defrost.
WEI. ADJ.
After choosing an auto-cooking menu, use it to
specify food weights or number of servings.
CLOCK
Touch this pad to start setting the oven clock
and ending by touching it again.
START
Touch to start a cooking program.
Simply touch it a number of times to begin
express cooking without previously setting
power level and cooking time.
STOP/CANCEL
Press to cancel setting or reset the oven before
setting a cooking program.
Press once to temporarily stop cooking, or twice
to cancel cooking altogether.
It is also used for setting child lock.
C
CO ON NT TR RO OL LP PA AN NE EL L

7
Each time a button is pressed, a beep will sound to acknowledge the press.
SETTING THE CLOCK
When the oven is first plugged in, the display shows “1:01”, this is a 12-hour clock. To check the
time while the oven is operating, press the CLOCK button, then the time will be displayed for 5
seconds in the display.
FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30 (A.M. or P.M.).
Press STOP/CANCEL button.
Press CLOCK button.
Turn TIME/MENU to set 8 o’clock.
Press CLOCK button.
Turn TIME/MENU to set 30 min.
Press CLOCK to confirm the setting.
MICROWAVE COOKING
For microwave cooking, just press the POWER pad a number of times to select a cooking power
level, and then use the TIME/MENU dial to set a desired cooking time. The longest cooking time is
60 minutes.
Select power level by pressing the POWER button.
PRESS POWER BUTTON DISPLAY COOKING POWER
once 100 100%
twice 80 80%
3 times 60 60%
4 times 40 40%
5 times 20 20%
6 times (setting timer) 0 0
For example, suppose you want to cook for 1 minute at 60% of microwave power.
Press STOP/CANCEL button to reset the oven.
Press POWER button 3 times.
Turn TIME/MENU to 1:00.
Press START button.
GRILL
The longest cooking time is 60 minutes. The grill cooking is particularly useful for thin slices of meat,
steaks, chops, kebabs, sausages of piece of chicken. It is also suitable for hot sandwiches and au
gratin dishes.
H
HO OW WT TO OS SE ET TT TH HE EO OV VE EN NC CO ON NT TR RO OL LS S

8
For example, suppose you want to grill for 12 minutes.
Press STOP/CANCEL button.
Press GRILL button.
Turn the TIME/MENU to 12:00.
Press START button.
COMBINATION 1
The longest cooking time is 60 minutes.
30% time for microwave cooking, 70% for grill cooking. Use for fish, potatoes or au gratin.
FOR EXAMPLE: Suppose you want to set combination 1 cooking for 25 minutes.
Press STOP/CANCEL button.
Press COM1 button.
Turn TIME/MENU to 25:00.
Press START button.
COMBINATION 2
The longest cooking time is 60 minutes.
55% time for microwave cooking, 45% for grill cooking. Use for puddings omelettes, baked potatoes
and poultry.
FOR EXAMPLE: Suppose you want to set combination 2 cooking for 12 minutes.
Press STOP/CANCEL button.
Press COM 2 button.
Turn TIME/MENU to 12:00.
Press START button.
AUTO DEFROST
The oven could be used to defrost meat, poultry, and seafood. The defrosting time and power level
are automatically set once the food category and the weight are programmed. The frozen food
weight ranges from 100g to 4000g.
FOR EXAMPLE: Suppose you want to defrost 600g of shrimp.
Press STOP/CANCEL button.
Turn TIME/MENU dial to defrost setting by turning the dial until it have passed the 9th auto
cook menu, and then turn the dial again to indicate weight 600g.
Press START button.
AUTO MENU
For the following foods or cooking operation, you do not need to input cooking power and time. Try
to focus on telling the oven what you want to cook and how much the food weighs. You can do so
by turning the TIME/MENU dial to select a food/operation category, then press the WEI.ADJ. pad to
indicate the number of servings or approximate weights of food you are about to cook. The oven

9
starts to work after you touching the START pad.
You may need to turn food over at the middle of cooking time to obtain uniform cooking.
For example, to cook 400g of fish..
Press STOP/CANCEL button.
Turn MENU dial to fish cooking, which is the item 6 on the auto-menu.
Press WEI. ADJ. pad 8 times to indicate weights 400g.
Press START button.
Press WEIGHT ADJ., to indicate weights or number of servings
AUTO COOK
MENU 1 2 3 4 5 6 7 8 9
1. Coffee/Soup 1cup 1soup 2 soup
2. Rice 80g 100g 120g
3. Spaghetti 100g 200g 300g
4. Potatoes 150g 300g 450g 600g
5. Reheating 70g 140g 210g 280g 320g 350g 380g 420g 450g
6. Fish 50g 100g 150g 200g 250g 300g 350g 400g 450g
7. Chicken 800g 1000g 1200g 1300g 1400g 1500g 1700g 1800g 2000g
8. Beef/Mutton 300g 500g 800g 1000g 1200g 1300g 1800g
9. Skewered
Meat 80g 100g 150g 200g 300g 400g 500g 600g 700g
10. Auto Defrost
However, please remember that the result of auto cooking depends on factors such as the shape
and size of food, your personal preference as to the doneness of certain foods and even how well
you happen to place the food in the oven. If you find the result at any rate not quite satisfactory,
please adjust the cooking time a little bit accordingly.
EXPRESS COOKING
The oven will operate at HIGH power (100% power output) for EXPRESS cooking program.
With each press of the START button you can program the oven for the following settings:
TIME PRES START BUTTON
0:30 once
1:00 twice
1:30 thrice
… …
12:00 15 times
For example, to set the oven to cook for 2 minutes using this feature:.
Press STOP/CANCEL button.
Press START button 4 times, the oven starts working immediately at full power.

10
SETTING TIMER
The minute timer will enable you to set a countdown time. The oven light, turntable, and cooling fan
are in operation, but there is no microwave radiation. You may use this feature in case you want to
timing cooking operation.
For example, suppose you want to set timer for 3 minutes.
Press STOP/CANCEL button.
Press POWER button 6 times
Turn TIME/MENU to 3:00.
Press START button.
CHILD LOCK
Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will
show up on display screen, and the oven can not be operated while the CHILD LOCK is set.
To set the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds, a beep sounds
and LOCK indicator lights.
To cancel the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds until lock
indicator on display goes off.
SPECIAL FEATURE
AUTO REMINDER
After a cooking or defrosting program has completed, the oven will automatically continue to sound
three beeps every two minutes until the oven door is opened or the CANCEL button is pressed.
1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls,
wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of
spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating
parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a
damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning
the control panel, leave oven door open to prevent oven from accidentally turning on.
C
CL LE EA AN NI IN NG GA AN ND DC CA AR RE E

11
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This
may occur when the microwave oven is operated under high humidity conditions. In such case,
it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy
water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply
wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild
sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be
sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one
lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a
soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it
replaced.
IF THE OVEN FAILS TO OPERATE
1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the
outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating
properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system.
Otherwise, the microwave energy will not flow into the oven.
IF NONE OF THE ABOVE RECTIFY THE SITUATION, THEN CONTACT A QUALIFIED
TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
B
BE EF FO OR RE EY YO OU UC CA AL LL LF FO OR RS SE ER RV VI IC CE E
