Caple CM118 User manual

Instruction manual for combination microwave oven
Model code: CM118
Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk

Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions(LxWxH):
Net Weight:
Specifications
Rated Input Power(Grill):
Rated Input Power(Convection):
230V~50Hz
1450W
900W
25L
315mm
Approx. kg
595 4
1100W
2500W
2
CM118
73 460mm
20.6
(a) Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent person.
If the apparatus is not maintained in a good state of cleanliness, its surface could
be degraded and affect the lifespan of the apparatus and lead to a dangerous
situation.
ADDENDUM
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY

3
IMPORTANT SAFETY INSTRUCTIONS
WARNING To reduce the risk of fire, electric shock, injury to persons
or exposure to excessive microwave oven energy when
using your appliance, follow basic precautions, including
the following:
1. Warning: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
2. Warning: It is hazardous for anyone other
than a competent person to carry out any
service or repair operation that involves
the removal of a cover which gives
protection against exposure to microwave
energy.
3. This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
4. Keep the appliance and its cord out of
5. Only use utensils suitable for use in
microwave ovens.
6. The oven should be cleaned regularly and
any food deposits should be removed.
7. Read and follow the specific:"PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
9. If smoke is emitted, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage
purposes. Do not store items, such as
bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles
from paper or plastic containers/bags
before placing them in the oven.

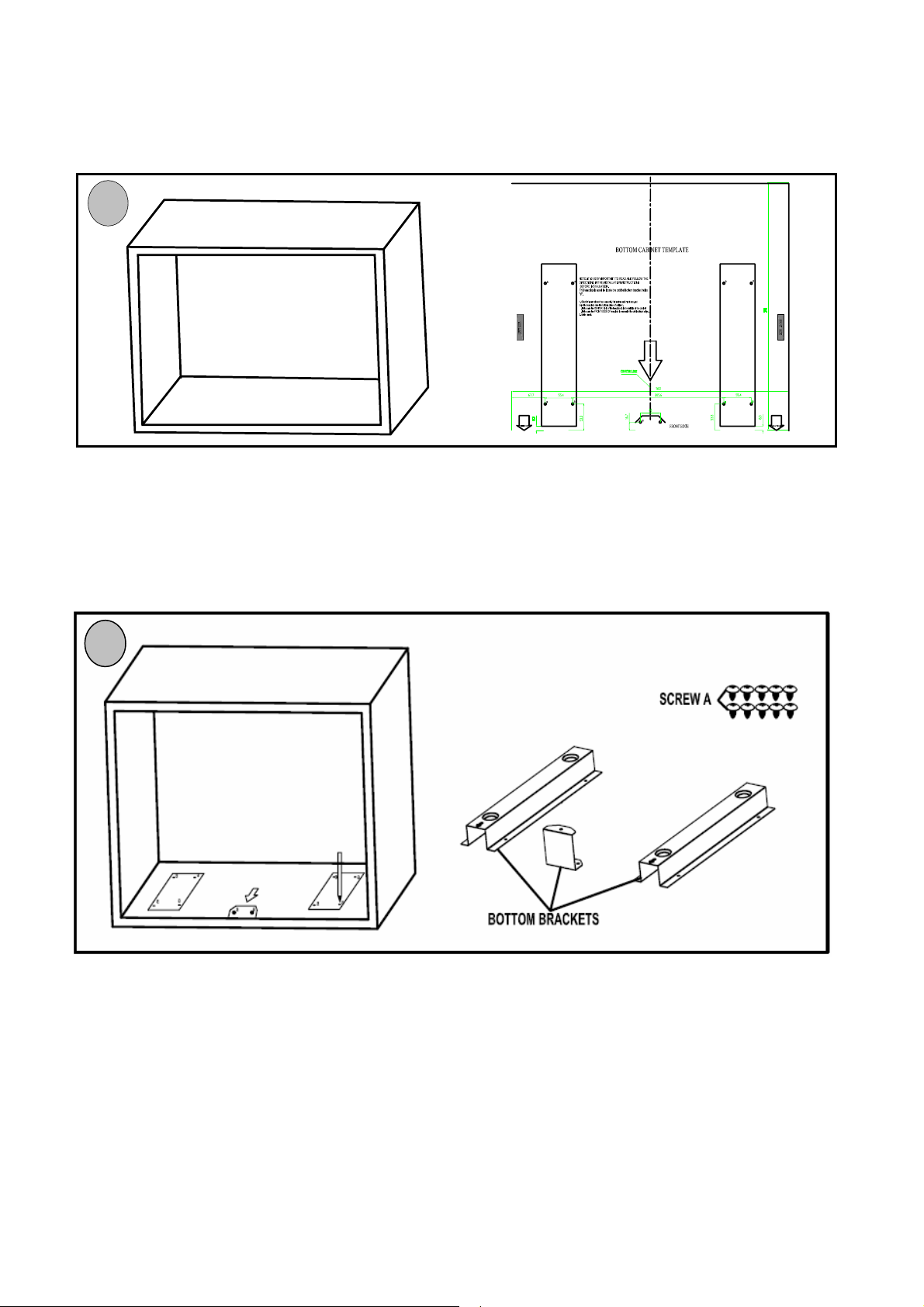

13. Install or locate this oven only in
accordance with the installation
instructions provided.
14. Eggs in the shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
15.This appliance is intended to be used in
household and similar applications such
as:
-staff kitchen areas in shops, offices and
other working environments;
-by clients in hotels, motels and other
residential type environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance
outdoors.
18. Do not use this oven near water, in a
wet basement or near a swimming
pool.
19. The temperature of accessible surfaces
may be high when the appliance is
operating. The surfaces are liable to get
hot during use. Keep cord away from
heated surface, and do not cover any
events on the oven.
20. Do not let cord hang over edge of table
or counter.
21. Failure to maintain the oven in a clean
condition could lead to deterioration
of the surface that could adversely
affect the life of the appliance and
possibly result in a hazardous situation.
22. The contents of feeding bottles and
baby food jars shall be stirred or shaken
and the temperature checked before
consumption, in order to avoid burns.
knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children unless they are
older than 8 and supervised.
reach of children less than 8 years.

4
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore
care must be taken when handling the container.
24.The appliance is not intended for use by persons (including children) with reduced
physical , sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
25.Children should be supervised to ensure that they do not play with the appliance.
26.The appliances are not intended to be operated by means of an external timer or
separate remote-control system.
27. Accessible parts may become hot during use. Young children should be kept away.
28.Steam cleaner is not to be used.
29 During use the appliance becomes hot. Care should be taken to avoid touching heating
elements inside the oven.
30. Only use the temperature probe recommended for this oven.(for ovens provided with a
facility to use a temperature-sensing probe.)
31. WARNING: The appliance and its accessible parts become hot during use.Care should
be taken to avoid touching heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
32. Only use the temperature probe recommended for this oven.(for ovens provided with a
facility to use a temperature-sensing probe.)
33. The microwave oven must be operated with the decorative door open.(for ovens with a
decorative door.)
34.surface of a storage cabinet can get hot.

5
DANGER
Electric Shock Hazard
Touching some of the interna components
can cause serious personal injury or death.
Do not disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in
electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
To Reduce the Risk of Injury to Persons
Grounding Installation
CLEANING
Be sure to unplug the appliance from the
power supply.
1. Clean the cavity of the oven after using
with a slightly damp cloth.
2. Clean the accessories in the usual way
in soapy water.
3. The door frame and seal and
neighbouring parts must be cleaned
carefully with a damp cloth when they
are dirty.
1. A short power-supply cord is provided
to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is
used:
1)The marked electrical rating of the cord
set or extension cord should be at least as
great as the electrical rating of the appliance.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current. This appliance is
equipped with a cord having a grounding
wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or
serviceman if the grounding instructions
are not completely understood or if doubt
exists as to whether the appliance is
properly grounded. If it is necessary to
use an extension cord , use only a 3-wire
extension cord.
2)The extension cord must be a grounding-
type 3-wire cord.
3)The long cord should be arranged so that
it will not drape over the counter top or
tabletop where it can be pulled on by
children or tripped over unintentionally.
4. Do not use harsh abrasive cleaners
or sharp metal scrapers to clean the
oven door glass since they can
scratch the surface, which may
result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the
cavity walls that the food cooked can
touch:
Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100%
microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.

CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a compentent person
to carry out any service or repair
operation that involves the removal
of a cover which gives protection
against exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
6

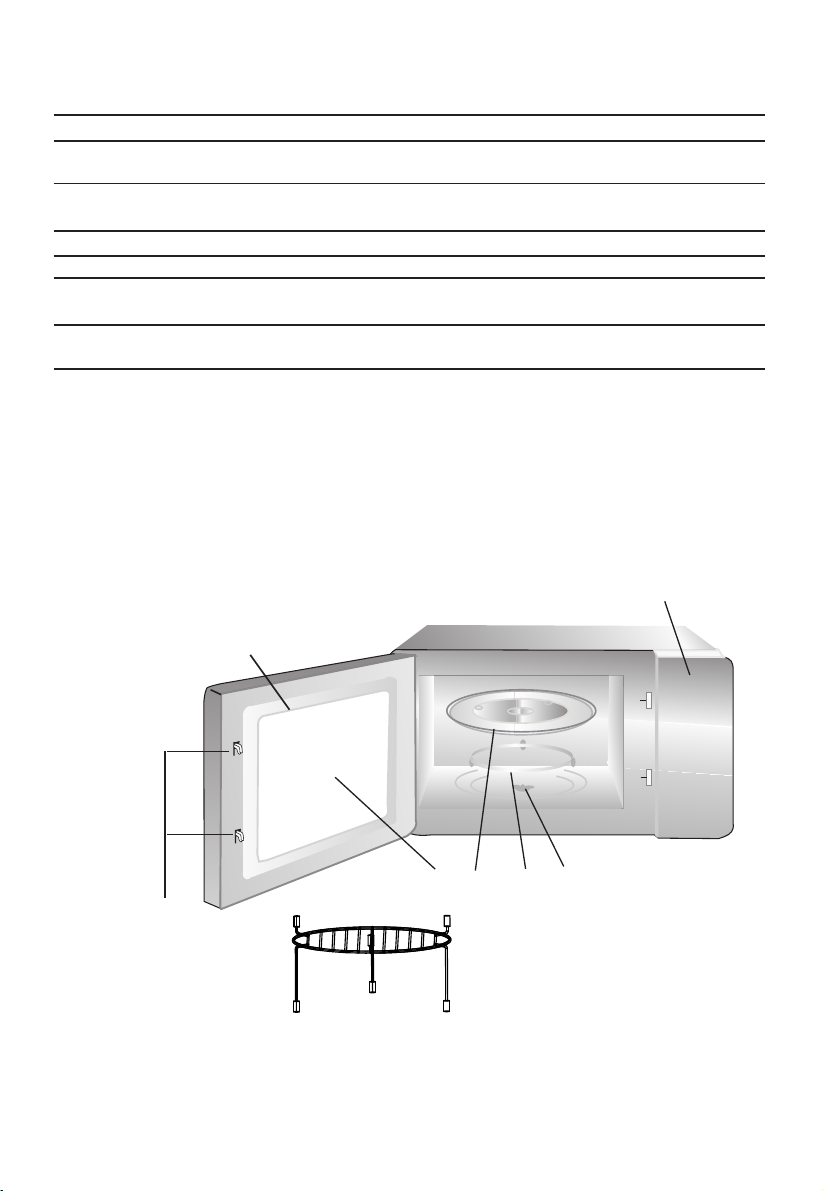

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
CB
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Grill Rack( Only for Grill series )
7

Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both
glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorised service
centre.
Turntable Installation
Turntable shaft
The accessible surface
may be hot during
operation.

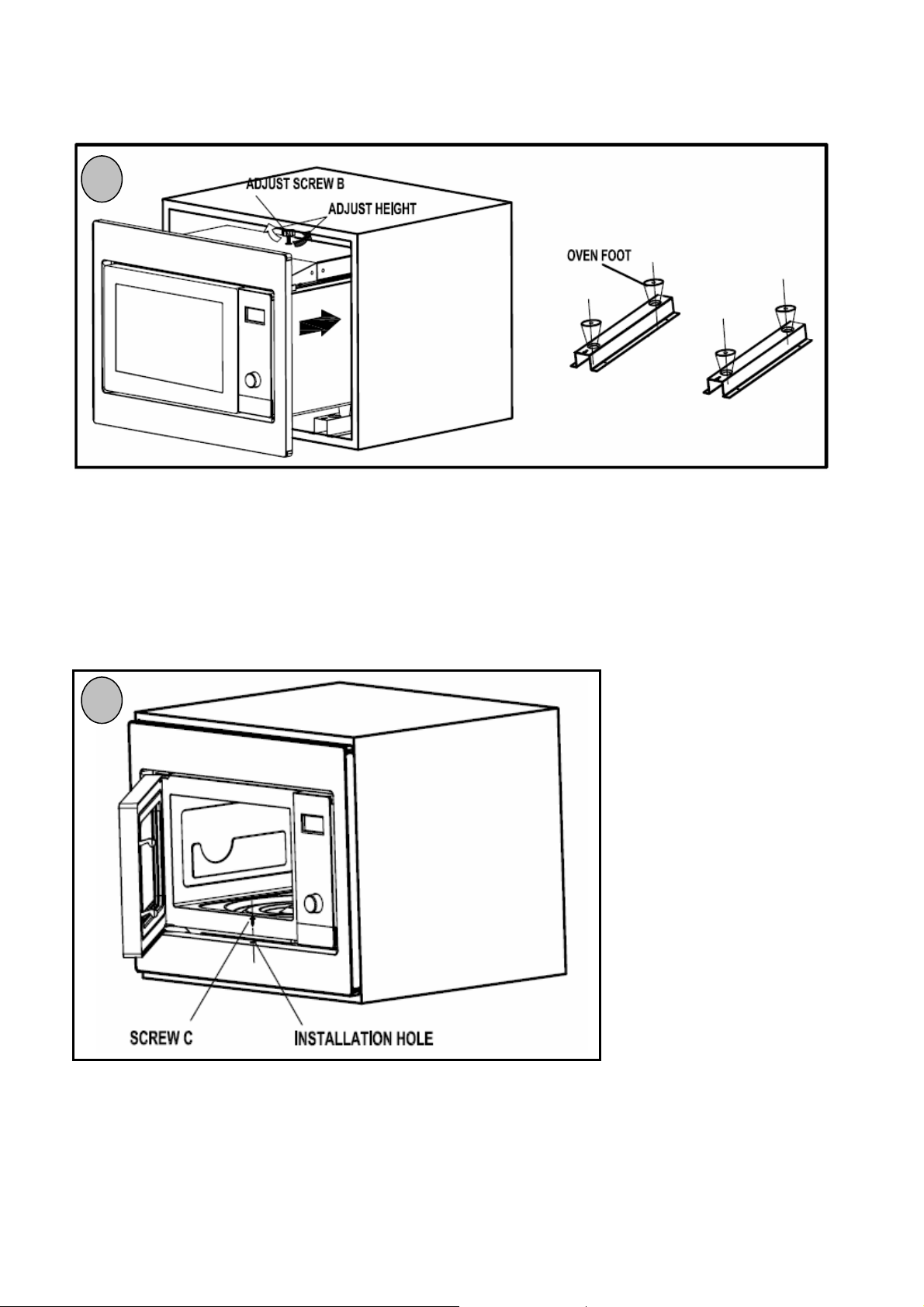

Installation and connection
1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only
.It is not intended for counter-top use or for
use inside a cupboard.
3. Please observe the special installation instructions.
4.The appliance can be installed in a 60cm wide wall-mounted cupboard(at least55cm
deep and 85cm off the floor).
5.The appliance is fitted with a plug and must only be connected to a properly installed
earthed socket.
6.The mains voltage must correspond to the voltage specified on the rating plate.
7.The socket must be installed and connecting cable must only be replaced by a
qualified electrician.If the plug is no longer accessible following installation,an
all-pole disconnecting device must be present on the installation side with a contact
gap of at lease 3mm.
8.Adapters,multi-way strips and extension leads must not be used. Overloading can
result in a risk of fire.
8

2. Microwave Cooking
9
This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
When the microwave oven is on,the oven will display "0:00", buzzer will ring once.
2) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour)
or 1--12(12-hour).
3) Press " CLOCK/PRE-SET ", the minute figures will flash.
5) Press " CLOCK/PRE-SET" to finish clock setting. ":" will flash.
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press " STOP/CLEAR ", the oven
will go back to the previous status automatically.
1) Press " CLOCK/PRE-SET " to choose 12-hour or 24-hour.
OPERATION INSTRUCTION
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Microwave Power Chart
Press
Microwave Power
Once Twice Thrice 4 times 5 times
80% 50% 30% 10%100%
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
1) Press the "MICROWAVE " key once, and "P100" display.
2) Press " MICROWAVE" for times or turn " " to select the microwave
power from 100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
1.Clock Setting

3. Grill Cooking
4. Combination Cooking
5. Convection Cooking(With preheating funtion)
10
1) Press the "GRILL/COMBI. " key once, and "G-1" display.
2) Press " GRILL/COMBI." for times or turn " " to select the grill power.
Stop turning when "G-1" displays.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
Instructions Microwave Grill
Display Convection
1
2
3
4
1) Press the "GRILL/COMBI. " key once, and "G-1" display.
2) Press " GRILL/COMBI." for times or turn " " to select the grill power.
Stop turning when "C-1","C-2","C-3" or "C-4" displays.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
C-1
C-2
C-3
C-4
The convection cooking can let you cook the food as a traditional oven. Microwave is not
used. It is recommended that you should preheat the oven to the appropriate temperature
before placing the food in the oven.
Note: Combination instructions
Note:If half the grill time passes, the oven will sound twice to tell you to turn the food over.
You can just leave it continue cooking. But in order to have a better effect of grilling
food, you should turn the food over, close the door, and then press
"START/+30SEC./CONFIRM" to continue cooking.

11
6. Convection Cooking( Without pre-heating function)
7.Multi-Stage Cooking
Up to three stages can be set. If one stages is defrosting, it should be put in the first stage.
The buzzer will ring once after each stage and the next stage will begin.
Note: Auto menu and preheating cannot be set as one of the multi-stage.
1) Press the "CONVECTION " key once, "140" flash.
2) Keep pressing "CONVECTION" or turn " " to select the convection function.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature.
4) Press the " START/+30SEC./CONFIRM " to start preheating.When the
preheating temperature arrives, the buzzer will sound twice to remind you to
put the food into the oven. The preheated temperature is displayed and will flash.
5) Put the food into the oven and close the door.
Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
6) Press the " START/+30SEC./CONFIRM " key to start cooking.
1) Press the "CONVECTION " key once, "140" flash.
2) Keep pressing "CONVECTION" or turn " " to select the convection function.
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature
4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
5) Press the " START/+30SEC./CONFIRM " key to start cooking.
Note:the temperature can be chosen from 140 degrees to 230 degrees.
Note: a. Cooking time cannot be input until the preheating temperature is reached.
When the temperature is reached the door must be opened to input the cooking time.
b. If the time is not input in 5 minutes, the oven will stop preheating. The buzzer will
sound five times and turn back to standby.
Example: if you want to defrost the food for 5 minutes, then to cook with 80%
microwave power for 7 minutes. The steps are as following:
1) Press "W.T./TIME DEFROST " twice, the screen will display "dEF2";
2) Turn " " to adjust the defrost time of 5 minutes;
3) Press"MICROWAVE" once;
4) Press " MICROWAVE" for times or turn " " till "P80" display;
Note:the temperature can be chosen from 140 degrees to 230 degrees.

9. Auto Menu
8. Pre-set Function
1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Three stagescan be set . Defrosting should not be set in
preset function.Auto menu can be set single stage only.
12
5) Press " CLOCK/PRE-SET ", the minute figures will flash.
6) Turn " " to adjust the minute figures, the input time should be within 0--59.
4) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour)
or 1--12(12-hour).
7) Press " START/+30SEC./CONFIRM " to finish setting. ":" will light, buzzer will
ring twice when the time arrives, then cooking will start automatically.
3) Press " CLOCK/PRE-SET ", current time displays and the hour figures flash.
1) In waiting state, turn " " right to choose the function wanted,
and "A1","A2","A3"...."A10" will be displayed.
2) Press "START/ +30 SEC./CONFIRM" to confirm the menu you need.
3) Turn " " to choose the weight of menu,and "g" indicator will light.
4) Press "START/ +30 SEC./CONFIRM" to start cooking.
Example: if you want to cook with 80% microwave power for 7 minutes.
a. Press"MICROWAVE" once;
b. Press " MICROWAVE" for times or turn " " to choose 80% microwave power till
"P80" display;
c. Press "START/+30SEC./CONFIRM" to confirm;
d. Turn " " to adjust the cooking time of 7 minutes;
After the above steps, please do not press " START/+30SEC./CONFIRM ". Then
do as following:
Note: clock must be set first. Otherwise,pre-set function will not work.
eral minutes, the buzzer sounds
twice to remind you to put the cake into the oven. After putting the cake in the oven, please
press "Start/+30Sec./Confirm"again. The timer will count down, and the cake will be
cooked perfectly.
5) Press "START/+30SEC./CONFIRM" to confirm;
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press "START/+30SEC./CONFIRM" to start cooking.
Note: When you choose A8 cake, please do not put the cake into the oven at the begining.
The oven needs to be preheated to 180 degree first. After sev

13
Auto menu Chart
Menu Weight(g) Power
A6
Pasta
A1
Reheat
A2
Potato
A3
Meat
A4
Vegetable
A5
Fish
A7
Soup
150
250
350
450
600
1 (about 230g)
2 (about 460g)
3 (about 690g)
150
300
450
600
150
350
500
150
250
350
450
650
50(with water 450g)
100(with water 800g)
150(with water 1200g)
200
400
600
475
200
300
400
500
750
1000
1200
A8 Cake
A9
Pizza
A10
Chicken
150
250
350
450
600
1
2
3
150
300
450
600
150
350
500
150
250
350
450
650
50
100
150
200
400
600
475
200
300
400
500
750
1000
1200
Display
100%
100%
Preheat at 180 degrees
80%
C-4
100%
80%
100%
C-4
100%

12. Speedy Cooking
11. Defrost by Time
10. Defrost by W.T.
13. Speedy Microwave Cooking
14
14. Inquiring Function
(1) In cooking, press"MICROWAVE","GRILL/ COMBI."or " CONVECTION", the current
power will be displayed for 2-3 seconds.
The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.
(3) During cooking, press "CLOCK/PRE-SET" to check the current time. It will be displayed
for 2-3 seconds.
1) In standby, press "START/+30SEC./CONFIRM" key to cook with 100% power
level for 30 seconds. Each press on the same key can increase 30 seconds. The
maximum cooking time is 95 minutes.
1) Press " W.T./TIME DEFROST " key twice, the oven will display "dEF2"
2) Turn " " to select the cooking time. The maximum setting time is 95 minutes.
3) Press " START/+30SEC./CONFIRM" key to start defrosting.
" " and " " indicators will flash .
1) Press "W.T./TIME DEFROST" pad once,the oven will display "dEF1",.
3) Press "START/+30SEC./CONFIRM" key to start defrosting
" " and " " indicators will flash and "g" indicator will go out.
2) Turn " " to select the weight of food.At the same time, "g" will lights,
The weight should be 100-2000g.
2) During microwave,grill,convection and combination states, press
"START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds.
Each press on the same key can increase 30 seconds.
In standby, turn " " left to choose cooking time directly then press
"START/+30SEC./CONFIRM" key to cook with 100% microwave power.
This program can be set as one of multi-stage.
Note: this function cannot work under defrost, auto menu and multi-stage
cooking.
Note:if the food weight is no more than 200 grams,please place the food at the edge of the
glass turntable but not the centreto be defrosted.
(2) In pre-set state,press " CLOCK/PRE-SET " to set the time for delay start cooking.

15
16. Specification
(1) The buzzer will sound once when turning the knob at the beginning;
(2) "START/+30 SEC./CONFIRM" must be pressed to continue cooking if the door is opened
during cooking;
(3) Once the cooking programme has been set , "START/+30 SEC./CONFIRM" is not pressed
in 5 minutes, The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once.
(5) The buzzer will sound five times to remind you when cooking is finished.
15. Lock-out Function for Children
Lock: In standby, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting entering into the children-lock state and " " indicator will light. LED will display
current time or 0:00.
Lock quitting: When locked, press "STOP/CLEAR" for 3 seconds, there will be a long "beep"
denoting that the lock is released, and " " indicator will disapear.
by efficient press, inefficient press will be no respons .e

Trouble shooting
According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points
where available.
It is forbidden to run the unit without any food inside.
It is very dangerous.
16
on a cool
vents ,but
of oven

B. Prepare the Cabinet.
1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the
template on the bottom plane of cabinet.
2. Make marks on the bottom plane of cabinet according to marks “a” of the
template.
2
1

3. Remove the BOTTOM CABINET TEMPLATE, and fix the BOTTOM
BRACKETS with SCREW A.
C. Prepare the oven.
4
3
4. Fix SCREW B on the UPPER AIR TUNNEL of the oven.

D. Install the oven.
5. Install the oven into the cabinet.
zAdjust the height of SCREW B to keep 1mm gap between the SCREW B
and the top plane of cabinet.
zMake sure that the OVEN FEET are aligned with the grooves of brackets
when install the oven into the cabinet.
zDo not trap or kink the power cord.
6. Open the door; fix the oven to the cabinet with SCREW C at the
INSTALLATION HOLE of TRIM KIT.
5
6
