Caple CM126 User manual

Instruction manual for combi microwave
Model code: CM126
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Read this instruction manual carefully before using
your microwave.
If you follow the instructions, your appliance will provide
you with many years of good service.
www.caple.co.uk

Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions(LxWxH):
Net Weight:
Specifications
Rated Input Power(Grill):
Rated Input Power(Convection):
CM126
230V~50Hz
1450W
900W
25L
315mm
Approx. kg
1100W
2500W
21.5
(a) Do not attempt to operate this oven with the door
open as this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any objects between the oven front face
and the door or allow soiling or cleaner residue to
accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by a
competent engineer.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
CAUTION
TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
2
mm595 486 460

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
1. Warning: Liquids and other foods must not be heated
in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than
8 and supervised.
4. Keep the appliance and its cord out of reach of
children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food
deposits should be removed.
7. Read and follow the specific: "PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8. When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of ignition.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
3

9. If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes.
Do not store items, such as bread, cookies, etc. inside
the oven.
12. Remove wire twist-ties and metal handles from
paper or plastic containers/bags before placing them in
the oven.

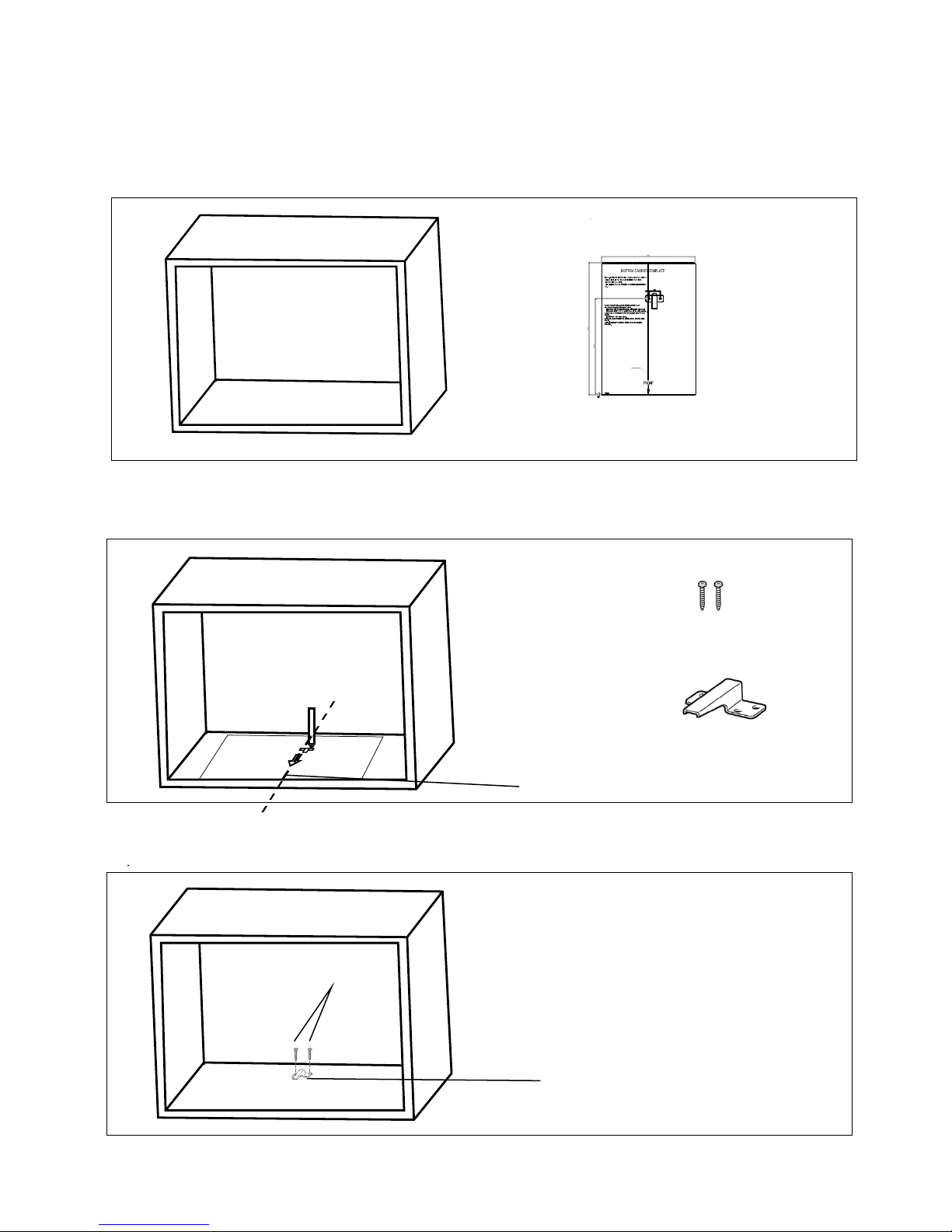

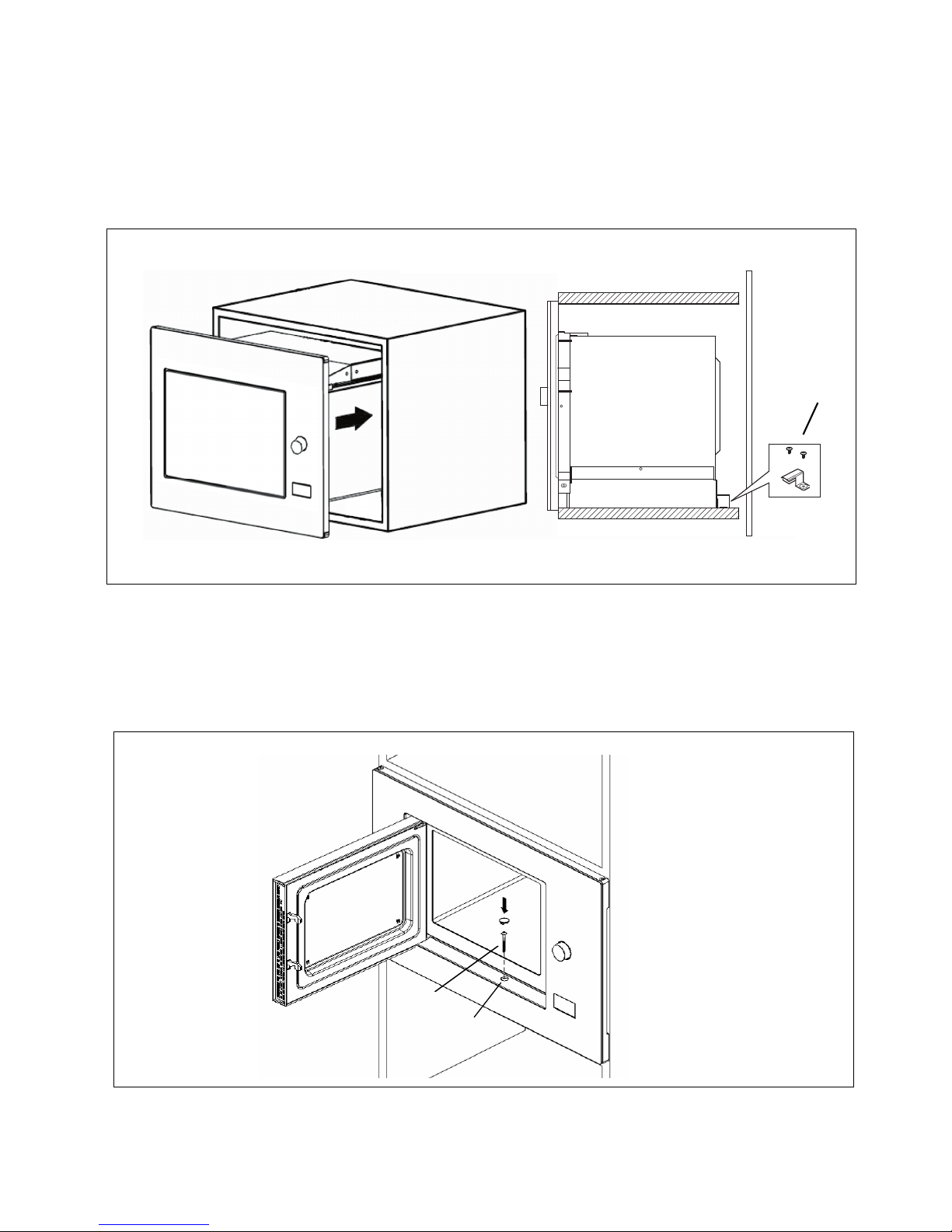

13. Install or locate this oven only in accordance with the
installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
15.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
16. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement
or near a swimming pool.
19. The temperature of accessible surfaces may be high
when the appliance is operating. The surfaces are liable
to get hot during use. Keep cord away from heated
surface, and do not cover any vents on the oven.
4

20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
22.The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be taken
when handling the container.
24.The appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
25.Children should be supervised to ensure that they do
not play with the appliance.
26.The appliances are not intended to be operated by
means of an external timer or separate remote-control
system.
27. Accessible parts may become hot during use.
Young children should be kept away.
28.Steam cleaner is not to be used.
29.During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
30.Only use the temperature probe recommended for
temperature-sensing probe.)
this oven.(for ovens provided with a facility to use a
5

31.WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
32.The microwave oven must be operated with the
decorative door open.(for ovens with a decorative door.)
33.Surface of a storage cabinet can get hot.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
6

DANGER
Electric shock hazard
Touching some of the internalcomponents
can cause serious personal injury or death.
Do not disassemble this appliance.
WARNING
Electric shock hazard
Improper use of the grounding can result in
electric shock. Do not plug into an outlet until the
appliance is properly installed and grounded.
To reduce the risk of injury
Gounding Installation
CLEANING
Be sure to unplug the appliance from the
power supply before any cleaning.
1. Clean the cavity of the oven after using
with a slightly damp cloth.
2. Clean the accessories in the usual way
in soapy water.
3. The door frame,seal and neighbouring
parts must be cleaned carefully with a
damp cloth when they are dirty.
1. A short power-supply cord is provided
to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is
used:
1)The marked electrical rating of the cord
set or extension cord should be at least as
great as the electrical rating of the appliance.
This appliance must be grounded. In the
event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current. This appliance is
equipped with a cord having a grounding
wire with a grounding plug. The plug must
be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or engineer
if the grounding instructions are not
completely understood or if doubt exists
as to whether the appliance is properly
grounded. If it is necessary to use an
extension cord, only use a 3-wire
extension cord.
2)The extension cord must be a grounding-
type 3-wire cord.
3)The long cord should be arranged so that
it will not drape over the counter top or
tabletop where it can be pulled on by
children or tripped over unintentionally.
4. Do not use harsh abrasive cleaners
or sharp metal scrapers to clean the
oven door glass since they can
scratch the surface, which may
result in shattering of the glass.
5. Cleaning Tip:
For easier cleaning of the cavity walls:
Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100%
microwave power for 10 minutes.
Wipe the oven clean using a soft, dry cloth.
7

CAUTION
Personal Injury Hazard
It is hazardous for anyone
other than a compentent engineer
to carry out any service or repair
operation that involves the removal
of a cover which gives protection
against exposure to microwave
energy.
Utensil test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
Materials you can use in a microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of a browning dish must
be at least 3/16 inch (5mm) above the turntable. Incorrect usage may
cause the turntable to break.
Microwave-safe only. Follow the manufacturer's instructions. Do not
use cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with a metal tie.
Make slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave the microwave
oven unattended while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labelled as "Microwave Safe". Some plastic containers soften, as the
food inside gets hot. "Boiling bags" and tightly closed plastic bags
should be slit, pierced or vented as directed by the package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
UTENSILS See the instructions on "Materials you can use in a
microwave oven or to be avoided in a microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
8

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Materials to be avoided in a microwave oven
Utensils Remarks
Aluminum tray
Food cartonswith
metal handles
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
F
G
A
C B
ED
SETTING UP YOUR MICROWAVE
Parts and accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes supplied with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Grill Rack ( Only to be used in grill/convection
function and be placed on the glass tray )
9

Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the
glass tray upside down. The glass
tray should never be restricted.
b. Both the
glass tray and turntable ring assembly
must always be used during cooking.
c.
d.
All food and containers of food are always to be
placed on the glass tray for cooking.
If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized Caple
service center.
Turntable Installation
Turntable shaft
The accessible surface
may be hot during
operation.
Installation and connection
1.This appliance is only intended for domestic use.
2.This oven is intended for built-in use only.It is not intended for counter-top use or for
use inside a cupboard.
3. Please observe the detailed installation instructions.
4.The appliance can be installed in a 60cm wide wall-mounted cupboard(at least55cm
deep and 85cm off the floor).
5.The appliance is fitted with a plug and must only be connected to a properly installed
earthed socket.
6.The mains voltage must correspond to the voltage specified on the rating plate.
7.The socket must be installed and connecting cable must only be replaced by a
qualified electrician.If the plug is no longer to accessible following installation,an
all-pole disconnecting device must be present on the installation side with a contact
gap of at lease 3mm.
8.Adapters,multi-way strips and extension leads must not be used. Overloading can
result in a risk of fire.
10

11
 

                
             
           
             
             
           
!  " #$
%       

%       
Installation Instructions
Please Read the Manual Carefully Before Installation
min
550
450
600
+8
+2
560
(45)
(45)
A. Built-in furniture

12
B.Prep are the cabi inet
put the template on the bottom plane of cabinet.
1. Read the instruction on the BOTTOM CANINET TEMPLATE ,
2. Make the marks on the bottom plane of cabinet according to marks"a" of
of the template
aa
CENTER LINE
FRONT EDGE
LEFT EDGE
T EDGERIGH
3. Remove the bottom cabinet template and fix the bracket with screw A.
aa
Screw A
Bracket
Bracket
Screw A
Centre line

13
C .Install the oven
4. Install the oven to the cabinet
- Make sure the back of the oven is locked by bracket.
- Do not trap or kink the power cord.
5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole.
Then fix the Trim-kit plastic cover to the installation hole.
Installation Hole
Screw B
Screw A

2. Microwave Cooking
OPERATION INSTRUCTIONS
This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
When the microwave oven is switched on, the oven will display "0:00", a buzzer will
ring once.
2) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour)
or 1--12(12-hour).
3) Press " CLOCK/PRE-SET ", the minute figures will flash.
5) Press " CLOCK/PRE-SET" to finish setting the clock. ":" will flash.
Note: 1) If the clock is not set, it will not function when powered up.
2) During the process of clock setting, if you press " STOP/CLEAR ", the oven
will go back to the previous status automatically.
1) Press " CLOCK/PRE-SET " to choose 12-hour or 24-hour.
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Microwave Power Chart
Press
Microwave Power
Once Twice Thrice 4 times 5 times
80% 50% 30% 10%100%
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
1) Press the "MICROWAVE " key once, and "P100" display.
2) Press " MICROWAVE" a few times or turn " " to select the microwave
power from 100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
1.Setting the clock
14

3. Grill Cooking
4. Combination Cooking
5. Convection Cooking (with preheating funtion)
1) Press the "GRILL/COMBI. " key once, and "G-1" display.
2) Press " GRILL/COMBI." for times or turn " " to select the grill power.
Stop turning when "G-1" displays.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
Instructions Microwave Grill
Display Convection
1
2
3
4
1) Press the "GRILL/COMBI. " key once, and "G-1" display.
2) Press " GRILL/COMBI." a few times or turn "
" to select the grill power.
Stop turning when "C-1","C-2","C-3" or "C-4" displays.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
C-1
C-2
C-3
C-4
The convection cooking can let you to cook the food as a traditional oven,the microwave
function is not used. It is recommended that you should preheat the oven to the appropriate
temperature before placing the food in the oven.
Note: Combination instructions
Note:If half the grill time passes, the oven will sound twice to tell you to turn the food over.
You can just leave it continue cooking. But in order to have a better effect of grilling
food, you should turn the food over, close the door, and then press
"START/+30SEC./CONFIRM" to continue cooking.
15
Note: C-1 & C-2 maintains a 160-165℃ internal temperature
C-3 & C-4 maintains a 195-200℃ internal temperature

6. Convection Cooking (without pre-heating function)
7.Multi-Stage Cooking
Two cooking stages can be set. If one stages is defrosting, it should be input in the first
stage. The buzzer will ring once after each stage and the next stage will begin.
Note: Auto menu and preheating cannot be set as one of the multi-stage options.
1)
2)
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature.
4) Press the " START/+30SEC./CONFIRM " to start preheating.When the required
preheating temperature is reached, the buzzer will sound twice to remind you to
put the food into the oven. The preheated temperature is displayed and flashes.
5) Put the food into the oven and close the door.
Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
6) Press the " START/+30SEC./CONFIRM " key to start cooking.
1)
2)
3) Press the " START/+30SEC./CONFIRM " to confirm the temperature
4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)
5) Press the " START/+30SEC./CONFIRM " key to start cooking.
Note: a. Cooking time cannot be input until the preheating temperature is reached.
If the temperature arrives, door must be opened to input the cooking time.
b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer will sound
five times and turn back to the standby state.
Example: if you want to defrost the food for 5 minutes, then to cook with 80%
microwave power for 7 minutes. The steps are as following:
1) Press "W.T./TIME DEFROST " twice, the screen will display "dEF2";
2) Turn " " to adjust the defrost time of 5 minutes;
3) Press"MICROWAVE" once;
4) Press " MICROWAVE" for times or turn " " till "P80" display;
Press the "CONVECTION " key once, "130" flash.
Keep pressing "CONVECTION" or turn " " to select the convection function.
Note:the temperature can be selected from 130 degrees to 220 degrees.
Press the "CONVECTION " key once, "130" flash.
Keep pressing "CONVECTION" or turn " " to select the convection function.
Note: the temperature can be selected from 130 degrees to 220 degrees.
16

9. Auto Menu
8. Pre-set Function
1) Set the clock first. (Consult the instructions for setting the clock)
2) Input the cooking program. T s can be set at most. Defrosting should not
be set in preset function. The auto menu can be set for single stage cooking only.
5) Press " CLOCK/PRE-SET ", the minute figures will flash.
6) Turn " " to adjust the minute figures, the input time should be within 0--59.
4) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour)
or 1--12(12-hour).
7) Press " START/+30SEC./CONFIRM " to finish setting. ":" will illuminate, the
buzzer will ring twice when the time arrives, then cooking will start automatically.
3) Press " CLOCK/PRE-SET ", current time displays and the hour figures flash.
1) In the standby state, turn " " right to select the required function,
and "A1","A2","A3"...."A10" will be displayed.
2) Press "START/ +30 SEC./CONFIRM" to confirm the menu you need.
3) Turn " " to choose the weight of menu, and "g" indicator will light.
4) Press "START/ +30 SEC./CONFIRM" to start cooking.
Example: if you want to cook with 80% microwave power for 7 minutes.
a. Press"MICROWAVE" once;
b. Press " MICROWAVE" for times or turn " " to choose 80% microwave power till
"P80" display;
c. Press "START/+30SEC./CONFIRM" to confirm;
d. Turn " " to adjust the cooking time of 7 minutes;
After the above steps, please do not press " START/+30SEC./CONFIRM ". Then
do as following:
Note: The clock must be set first. Otherwise the pre-set function will not work.
Note: When you choose A8 cake, please do not put the cake into the oven at the begining.
The oven needs to be preheated to 180 degreesfirst. After sevarel minutes, the buzzer
sounds twice to remind you to put the cake into the oven. After putting the cake in the oven,
please press "Start/+30Sec./Confirm"again. The timer will count down, and the cake will be
cooked perfectly.
5) Press "START/+30SEC./CONFIRM" to confirm;
6) Turn " " to adjust the cooking time of 7 minutes;
7) Press "START/+30SEC./CONFIRM" to start cooking.
wo stage
17

Auto menu Chart
Menu Weight(g) Power
A6
Pasta
A1
Reheat
A2
Potato
A3
Meat
A4
Vegetable
A5
Fish
A7
Soup
150
250
350
450
600
1 (about 230g)
2 (about 460g)
3 (about 690g)
150
300
450
600
150
350
500
150
250
350
450
650
50(with water 450g)
100(with water 800g)
150(with water 1200g)
200
400
600
475
200
300
400
500
750
1000
1200
A8 Cake
A9
Pizza
A10
Chicken
150
250
350
450
600
1
2
3
150
300
450
600
150
350
500
150
250
350
450
650
50
100
150
200
400
600
475
200
300
400
500
750
1000
1200
Display
100%
100%
Preheat at 180 degrees
80%
C-4
100%
80%
100%
C-4
100%
18

12. Speed cooking
11. Defrost by Time
10. Defrost by oeight (W.T)
13. Speed microwave cooking
14. Inquiring function
(1) In a cooking mode, press"MICROWAVE","GRILL/ COMBI."or " CONVECTION", and the
current power will be displayed for 2-3 seconds.
(2) In pre-set state, press " CLOCK/PRE-SET " to inquire the time for delay start cooking.
The pre-set time will flash for 2-3 seconds, the oven will then revert back to the clock display.
(3) During the cooking state, press "CLOCK/PRE-SET" to check the current time. It will be
displayed for 2-3 seconds.
1) In standby mode, press "START/+30SEC./CONFIRM" key to cook with 100% power
level for 30 seconds. Each press on the same key can increase 30 seconds. The
maximum cooking time is 95 minutes.
1) Press " W.T./TIME DEFROST " key twice, the oven will display "dEF2"
2) Turn "
" to select the cooking time. The maximum allowed set time is 95 minutes.
3) Press " START/+30SEC./CONFIRM" key to start defrosting.
" " and " " indicators will flash .
1) Press "W.T./TIME DEFROST" pad once,the oven will display "dEF1",.
3) Press "START/+30SEC./CONFIRM" key to start defrosting
" " and " " indicators will flash and "g" indicator will go out.
2) Turn " " to select the weight of food. At the same time, "g" will illuminate.
The weight should be 100-2000g.
2) During microwave, grill, convection and combination states, press
"START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds.
Each press on the same key can increase 30 seconds.
In standby mode, turn " " left to choose the cooking time then press
"START/+30SEC./CONFIRM" key to cook with 100% microwave power.
This program can be set as one of the multi-stage options.
Note: this function does not work in the defrost mode, auto menu and multi-
stage cooking.
Note: If the food weight is no more than 200 grams, please place the food to be defrosted
at the edge of the glass turntable and not the center.
19
