Ceiling Hood
Instruction Manual
CE902SS/
CE902WH

2Instruction manual CE902SS/CE902WH Please keep this instruction manual for future reference
CONTENTS
Warnings 3
Environmental Protection 8
Opening the Panel 10
Installation 11
Remote Control 14
Timing 18
Cleaning and Maintenance 19
Caple Contact Details 20

3Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference
WARNING
The appliance is not intended for use by young children
or infirm persons without supervision. Young children
should be supervised to ensure they do not play with the
appliance.
The extracted air can’t be conveyed through or into a
duct used to let out fumes from appliances fed by energy
other than electric power (eg. centralized heating,
radiators, water heaters, etc.).
To evacuate the air outlet, please comply with the
pertaining rules given by competent authorities.

4Instruction manual CE902SS/CE902WH Please keep this instruction manual for future reference
-Provide the room with an adequate aeration when a
cooker hood and appliances fed by energy other than
electric power (gas, oil, or coal stoves, etc.) are
used simultaneously.
-The cooker hood, when evacuating the extracted air,
could generate a negative pressure in the room which
can’t exceed the limit of 0.04 mbar, in order to avoid
the suck of exhausts deriving from the heat source.
Therefore the room should be provided with air-intakes
to allow a constant flow of fresh air.
-If the rating label in the cooker-hood does show the
symbol the appliance is built in class 11° and it does
not need the earth connection. If the rating label in the
cooker hood does not show the symbol
, the appliance is built in class I° and it needs the
earth connection.
-When performing the electrical connections on the
appliance, please make sure that the current tap is
provided with earth connection and that voltage values
correspond to those indicated on the label placed
inside the appliance itself.
-Before carrying out any cleaning or maintaining
operations, the appliance needs to be removed from
the electric grid.

5Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference
-If the appliance is not provided with a non-separable
flexible cable and plug, or with another device ensuring
omnipolar disconnections from the grid, with an
opening distance between the contacts of at least
3 mm, then such disconnecting devices must be
supplied within the fixed installation.
-If the appliance is endowed with a supply cord and a
plug, the appliance has to be put in a place where the
plug can be reached easily.
-The use of materials which can burst into flames
should be avoided in close proximity of the appliance
-When frying, please pay particular attention to fire risk
due to oil grease. Being highly inflammable, fried oil is
especially dangerous.
-Do not use uncovered electric grills. In order to avoid
possible fire risk, all instructions for grease filter
cleaning and for removing eventual grease deposits
should be strictly followed.
-This appliance complies with all relevant local and
national safety requirements. Inappropriate use can,
however, lead to personal injury and damage
to property.
-The cooker hood is not intended for outdoor use.
-It must only be used as a domestic appliance to extract
vapours and remove odours from cooking. Any other
usage is not supported by the manufacturer and could
be dangerous.

6Instruction manual CE902SS/CE902WH Please keep this instruction manual for future reference
-Where a recirculation cooker hood is fitted above a gas
hob, please ensure that there is an adequate supply of
fresh air into the room in which it is installed. Please
seek the advice of a qualified gas fitter (e.g. GasSafe in
the UK) if necessary.
-Children under 8 years of age must be kept away from
the cooker hood unless they are constantly supervised.
-Children 8 years and older may only use the cooker
hood unsupervised if they have been shown how
to use it safely and recognise and understand the
consequences of incorrect operation.
-The electrical safety of this appliance can only be
guaranteed when correctly earthed. It is essential
that this standard safety requirement is met. If in any
doubt please have the electrical installation tested by a
qualified electrician.
-Do not connect the appliance to the mains electricity
supply by a multi-socket unit or an extension lead.
These are a fire hazard and do not guarantee the
required safety of the appliance.
-The cooker hood can get very hot during cooking due
to heat rising from the hob.
-Do not touch the housing or the grease filters until the
cooker hood has cooled down.

7Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference
APPROPRIATE USE:
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.

8Instruction manual CE902SS/CE902WH Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date
of purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together
with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.

9Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference
CE DECLARATIONS OF CONFORMITY
Radio Equipment Directive (RED) 2014/53/EU.
This Declaration is issued under the sole responsibility of the manufacturer.
Hereby, Caple declares that the radio equipment included in the product is in compliance with
the RED directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available on our website www.caple.co.uk.
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our
website www.caple.co.uk

10 Instruction manual CE902SS/CE902WH Please keep this instruction manual for future reference

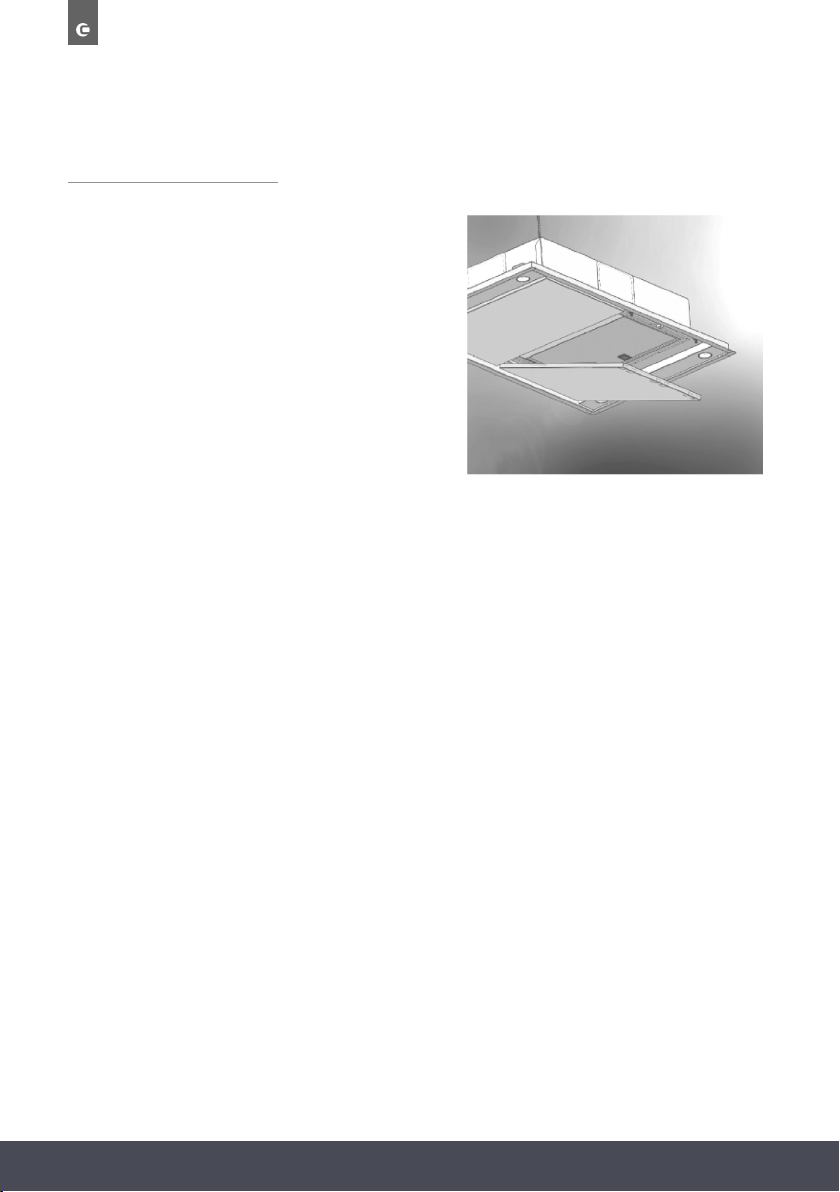

OPENING THE PANEL
It is possible to open the steel panels, which
cover the grease filters, by pulling the side
of them gently as shown in Fig.1. To achieve
the complete opening of the panels, you
need to release the safety chains by using the
appropriate spring catches.
To work correctly, it is recommended to install
the product at a maximum distance of 2000-
2100mm, from the floor level.
Before proceeding with the installation of the
appliance, check that all the components are not
damaged, otherwise please contact your retailer and do not continue with the installation.
Use an air outlet pipe with a maximum length of no more than 5 metres. Reduce the number of
bends in the duct as each bend reduces the suction efficiency equivalent to 1 linear meter.
(E.g. If 2 90° bends are used, the length of the duct should not exceed 3 meters in length).
Avoid abrupt changes of direction.
Use a duct with a diameter of 150mm constant over the entire length.
Use a duct of recognised and approved material.
For more information on venting, please see our ‘Extraction & Ventilation guide’ available at
www.caple.co.uk
FIG.1

11Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference
INSTALLATION
Fit a false ceiling with an opening of 865 x 405mm with a minimum distance of 270mm
between the ceiling and the false ceiling.
It is possible to select the side of the hood where the extracted air can be discharged.
After choosing the most suitable position, prepare the ducting. An air outlet connection piece,
with a diameter of 150mm is provided with the appliance. Install the connection piece to the
selected side.
Leave any unused exhaust outlets closed.

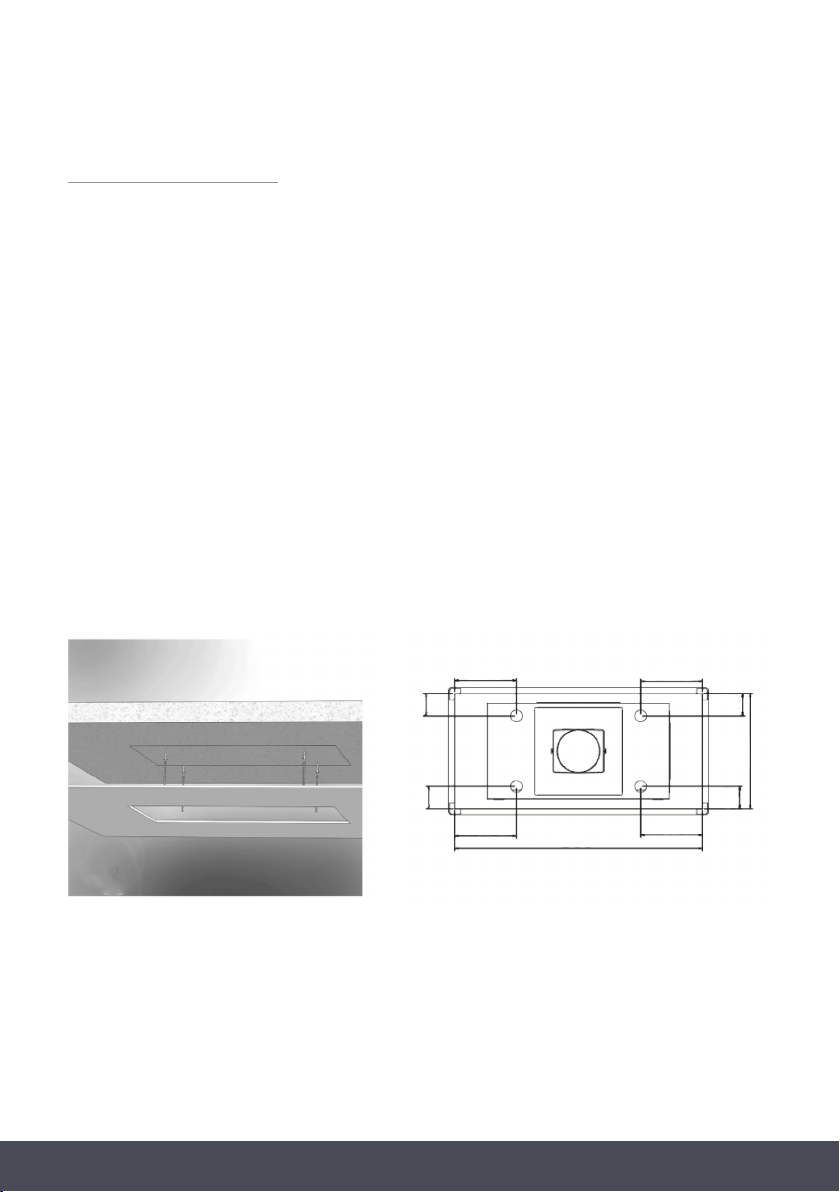

Draw the outline of the hole to house the ceiling mounted hood on the solid ceiling (Fig.2).
Make 4 holes in the ceiling according to the dimensions shown in (Fig.3). Place the metric
plugs provided in the holes.
Open the stainless steel panels, following the instructions in ‘Opening the Panels’ and remove
the grease filters in order to avoid damaging them and to allow installation.
Open the stainless steel panels, following the instructions in ‘Opening the Panels’ and remove
the grease filters in order to avoid damaging them and to allow installation.
FIG.2 FIG.3
215 215
860
215 215
400
78
78
78
78

12 Instruction manual CE902SS/CE902WH Please keep this instruction manual for future reference
FIG.4 FIG.5
FIG.6
Screw the threaded bars provided into the plugs (Fig.4); the threaded bars are 250mm long
and serve to install the ceiling mounted hood at a distance from the solid ceiling of between
270mm and 370mm (Fig.5).
If the hood is installed with a lateral air outlet, fit a false ceiling with an opening that has a
minimum gap of 210mm between the ceiling and the false ceiling (Fig.6); in case of a larger
gap between the hood and the ceiling, you need to use longer threaded bars.
Make the electrical connections and connect the air outlet pipe.

13Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference
Place the ceiling-mounted hood into the niche, by inserting the threaded bars into the holes
(Fig.7). The outer edge of the hood needs to be perfectly flush with the false ceiling.
Insert the plates and nuts provided into the threaded bars, making sure to tighten them
securely (Fig.8); refit the grease filters and filter cover panels.
FIG.7 FIG.8
FIG.9
Connect the internal motor or the external motor’s cable to the terminal board found inside the
plastic box of the wiring. The cables are colour coded, ensure you respect the cables colours
when performing the electrical connection (Fig.9).

14 Instruction manual CE902SS/CE902WH Please keep this instruction manual for future reference
REMOTE CONTROL
Remote control used for the remote operation of Caple hoods:
TECHNICAL DATA
Alkaline battery powered: 12V mod. 27A
Operating frequency: 433.92 Mhz
Combinations: 32.768
Max. consumption: 25 mA
Operating temperature: -20 ÷ + 55 °C
Dimensions: 120 x 45 x 15 mm
OPERATION
The remote is equipped with 5 buttons for cooker hood management, as specified below:
Light ON/OFF command.
Motor ON (speed level 1) / OFF command.
Reduce speed.
Increase speed.
10-minute timer.
INITIAL OPERATING CONDITION
The manufacturer supplies the control unit ready to be used with preset codes.

15Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference
STANDARD CONFIGURATION:
Standard configuration requires all cooker hood remote controls to be provided with the same
transmission code. In the event two cooker hoods radio control system are installed in the same
room or nearby, each system may affect the operation of the another. Therefore, the code of
one radio control system must be changed.

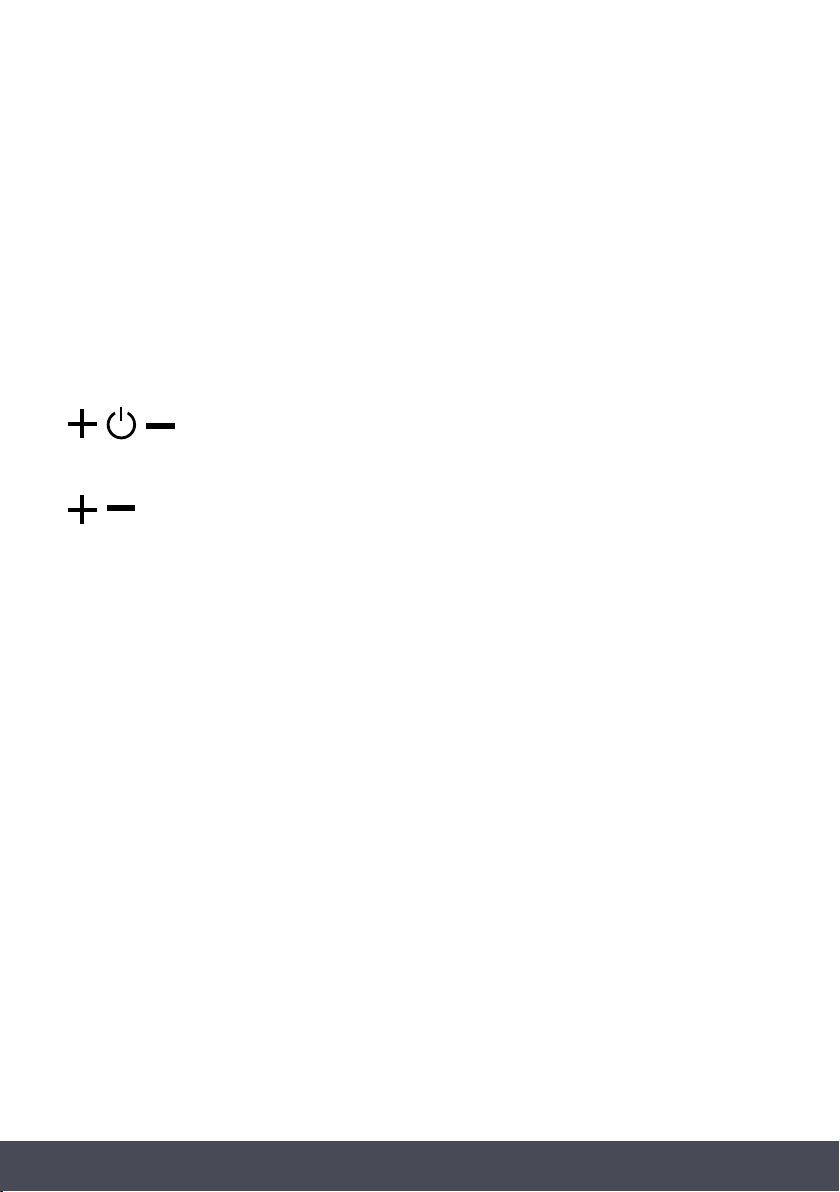

GENERATING A NEW TRANSMISSION CODE:
The remote control system is provided with preset codes. Should new codes be required,
proceed as follows: Simultaneously press buttons:
for two seconds. When LED’s light on, press buttons:
(within 5 seconds). LED’s flashing 3 times indicate the procedure is completed.
WARNING:
This operation permanently deletes the preset codes.

16 Instruction manual CE902SS/CE902WH Please keep this instruction manual for future reference
LEARNING THE NEW TRANSMISSION CODE
Once the transmission code is changed in the remote
control unit, the electronic central unit of the cooker
hood must be made to set the new code in the
following way:
Press the main power-off button on the hood (fig.10)
and then restore power to the electronic control unit.
Within the next 15 seconds, press the Light Button to
synchronise the central unit with the code.
DIMMABLE LIGHTS FUNCTION
This function provides for lights dimmability, ranging
from 20% to 100%, by continuously pressing the light key on the remote control.
Functions are the following:
› Hood light off - press the light key - light on at 100%.
› Light on at 100% - press the light key - light off.
› Light on at 100% - continuously press the light key - brightness reduction.
› Releasing the key during reduction or increase - light keeps the luminous intensity reached.
› Light on - dimmed - continuously press the light key - brightness is inverted if compared to
the previous function.
Instruction manual CE1101 | CE902
Please keep this instruction manual for future reference
11
6
8
10
7
9
11
CE1101_CE902_Instruction manual.indd 11 04/04/2018 13:51
FIG.10

17Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference

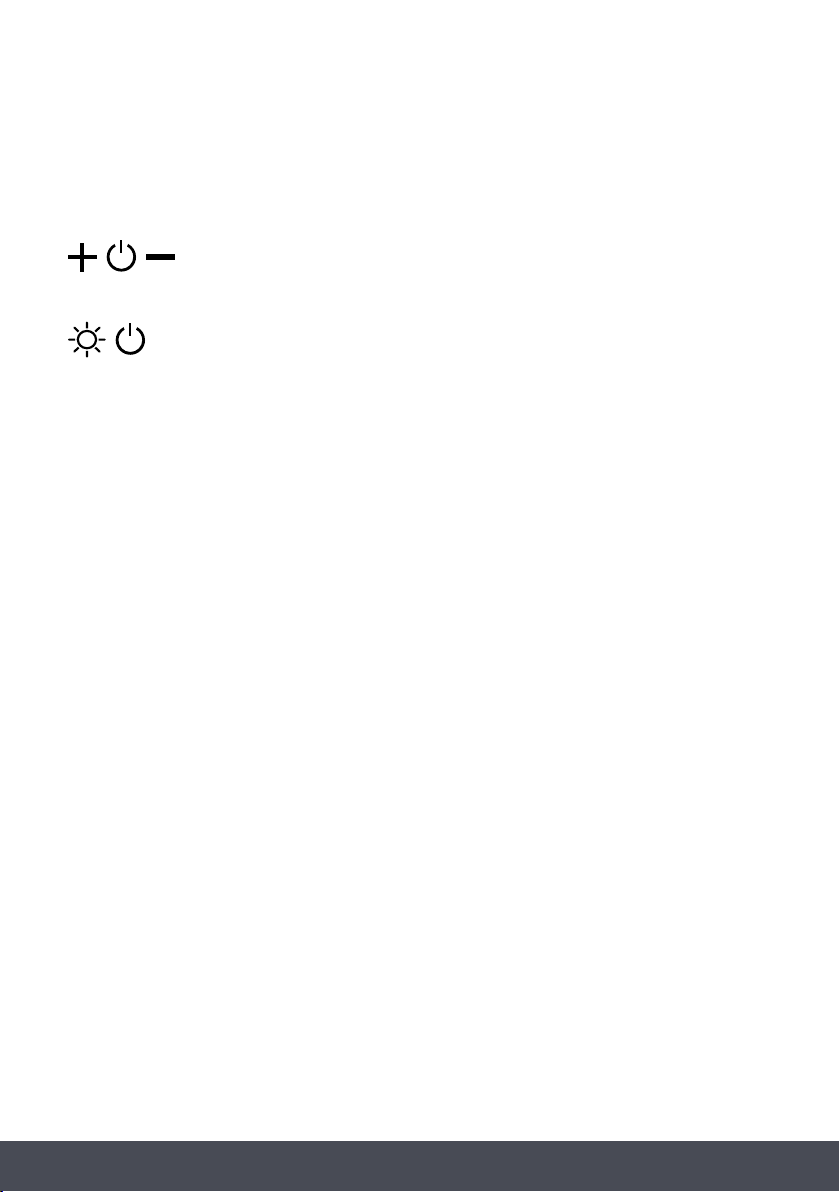

RESET OF THE FACTORY CONFIGURATION:
To restore the Factory configuration, follow the procedure described below: simultaneously
press buttons
for 2 seconds. When LED’s light on, press buttons
(within 5 seconds). LED’s flashing 6 times indicate the procedure is completed.
WARNING:
This operation permanently deletes the preset codes.
EMERGENCY BUTTON:
In the event that the remote control does not work, use the emergency button to switch the
appliance off.
After any necessary repairs have been performed, reset the emergency button.
WARNING:
The battery should be replaced every year to guarantee the optimal range of the transmitter.
To replace the battery, take the plastic lid off, remove the battery and replace it with a new one,
observing the correct battery polarities. Used batteries should be discarded in special
collection bins.
WARNING:
Any adjustments or modifications which have not been expressly approved by the holder of
the legal conformity certificate may invalidate the user’s rights relating to the operation of the
device.
The products are endowed with an electronic device which automatically switches the product
off after 4 hours working from the last operation.

18 Instruction manual CE902SS/CE902WH Please keep this instruction manual for future reference
TIMING
› This product is equipped with intelligent electronics which include a timer device for speed
controls when the air capacity exceeds 650m³/h. Internal motor models, with maximum air
capacity higher than 650m³/h, are equipped with a timer device that automatically switches
the speed from 4th to 3rd speed, after 5 minutes operation.
› External motor models are equipped with remote motors that, as for internal motor
versions, include a timer device that switches down the speed when it exceeds 650 m³/h.
(See External Motors Instructions). Remote motors, whose air capacity exceeds 650m³/h
at both 4th and 3rd speed, will have the following by default timer control functions: The
speed is automatically switched from 4th to 2nd speed, after 6 minutes operation.
› If the appliance is working at 3rd speed, it is automatically switched to 2nd speed, after
7 minutes operation. Operation speeds can also be changed during operation. The energy
consumption of the appliance in standby mode is lower than 0.5W.

19Instruction manual CE902SS/CE902WHPlease keep this instruction manual for future reference
CLEANING AND MAINTENANCE
Careful maintenance ensures smooth operation
and long-lasting performance. Special care must
be taken with the grease filter. To access the
filter, open the glass panels by gently pulling the
side of the panel as shown in figure 11. Remove
the grease filter by pulling its handle. To replace
the grease filter after cleaning, fulfil the same
operation in reverse order.
ATTENTION:
After refastening the stainless steel panel make
sure that it is properly fixed.
Warm water and neutral detergents are recommended to clean the appliance, while abrasive
products should be avoided. Once cleaned, dry with a soft cloth. For steel appliances
specialised detergents are recommended (please follow the instructions mentioned on the
product itself to obtain the desired results).
REPLACING THE LED LIGHT
Using an appropriate tool, remove the LED bar from its
seat (refer to fig.12) and disconnect it electronically using
the appropriate connector.
To purchase a replacement light, Contact Caple Service:
T - 0117 938 7420
E - [e-mail]
Instruction manual CE1101 | CE902
Please keep this instruction manual for future reference
12
12
14
16
13
15
CE1101_CE902_Instruction manual.indd 12 04/04/2018 13:51
FIG.11
FIG.12

Caple Service
Fourth Way
Avonmouth
Bristol
BS11 8DW
T: 0117 938 1900
E: [e-mail]
www.caple.co.uk
