Caple TSCH601 User manual

Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
Telescopic Hood
Instruction Manual
TSCH601

Instruction manual TSCH601
2Please keep this instruction manual for future reference
CONTENTS
Introduction 3
Safety Instructions 4
Environmental Protection 10
Installation 11
Installing the Charcoal Filter 15
Operation 16
Care and Maintenance 17
Troubleshooting 19
Product Dimensions 20
Caple Contact Details 24

Instruction manual TSCH601 3
Please keep this instruction manual for future reference
INTRODUCTION
Thank you for choosing this Caple telescopic hood.
To ensure that you get the best results from your
new extractor, we strongly suggest that you read this
instruction manual thoroughly before use. If treated with
care, your Caple extractor should give you years of trouble-
free use.
To register ownership, please ensure you complete and
return the guarantee card supplied with the appliance or
visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with
all the required information related to the installation, use
and maintenance of the appliance.
This hood is designed to extract unpleasant odours from
the kitchen; it is not intended to extract steam. In order
to operate the unit correctly and safely, please read this
instruction manual carefully before installation and use.
The cooker hood uses high quality materials and is made
with a streamlined design. Equipped with an electric
motor and centrifugal fan, it provides strong extraction
with low noise. It also features non-stick grease filters and
an easy installation.

Instruction manual TSCH601
4Please keep this instruction manual for future reference
IMPORTANT
This appliance must only be used for the purpose it is
intended. Other types of use are not permitted and may
prove dangerous. Caple will not be held liable for any
damage caused by the incorrect use of the appliance.
Do not use any accessories or attachments not
recommended by Caple as this may result in fire, electric
shock or injury.
To protect against fire, electrical shock and injury to
persons, do not immerse cords or plugs in water or any
other liquid.
Never touch the appliance with wet or damp hands.
Never pull the power cable as you could damage it. If the
appliance is faulty, do not attempt to repair it. Isolate it
from the mains electric supply and contact Caple Service
either by phone [phone] or
email [e-mail]
Keep all packaging (including plastic bags, polystyrene
foam etc) out of the reach and away from children.
Do not rest large or unstable objects on any part of
the appliance.

Instruction manual TSCH601 5
Please keep this instruction manual for future reference
IMPORTANT
Caple cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product.
Please note that Caple reserve the right to invalidate
the guarantee supplied with this product following
incorrect installation or misuse of the appliance. Under no
circumstances should any external covers be removed for
servicing or maintenance except by suitably
qualified personnel.

Instruction manual TSCH601
6Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
-Never let children operate the machine.
-The cooker hood is for home use only, not suitable for
barbecuing, restaurants or other commercial purposes.
-The cooker hood and its filter should be cleaned regularly
in order to keep in good working condition.
-Clean the cooker hood according to the instruction
manual to reduce the risk of fire.
-When using a gas hob, do not leave naked flames under
the extractor.
-Before connecting this appliance check that the power
supply cord is not damaged.
-If the room where the hood is to be used contains a fuel
burning appliance such as a central heating boiler then
its flue must be of the sealed or balanced flue type. If
other types of flue or appliances are fitted ensure that
there is an adequate supply of air to the room. other
types of flue or appliances are fitted ensure that there is
an adequate supply of air to the room.
-The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
-Regulations concerning the discharge of air have to be
conformed to.
-Do not flambé under the cooker hood.
-Never leave frying pans unattended during use as over-
heated fats and oils may catch fire.

Instruction manual TSCH601 7
Please keep this instruction manual for future reference
-To ensure the best performance, we recommend
switching on the extractor 15 minutes before cooking
and leave it running 15 minutes after. This will ensure
that the air in the kitchen is being circulated before
cooking commences and the air is being cleaned after
cooking has finished.
-The performance of your extractor will vary depending
on a number of factors. These include type of extraction,
room volume, length of ducting, ventilation available and
the cleanliness of the filters.
-This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
-Children should be supervised to ensure that they do not
play with the appliance.
-Cleaning and user maintenance must not be made by
children without supervision.
-Never immerse the appliance in water.
-To avoid all risk, if the power cable is damaged, it must
only be replaced by a Caple appointed engineer.

Instruction manual TSCH601
8Please keep this instruction manual for future reference
-Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved.
-Children must not play with this appliance.
-When not in use and before cleaning, always isolate the
appliance from the electrical supply.
WARNING
Only plug this unit into a properly earthed outlet. If in
doubt seek advice from a suitably qualified engineer.
-Failure to follow these instructions can result in death,
fire, or electrical shock.
-This appliance must be connected to the mains by a
competent person. We recommend that the appliance is
connected by a qualified electrician who is a member of
the N.I.C.E.I.C who will comply with the I.E.E and local
regulations. Electrical information can be found on the
rating plate.

Instruction manual TSCH601 9
Please keep this instruction manual for future reference
APPROPRIATE USE:
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.

Instruction manual TSCH601
10 Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date of
purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our
website www.caple.co.uk.

Instruction manual TSCH601 11
Please keep this instruction manual for future reference
INSTALLATION
PREPARE FOR THE INSTALLATION:

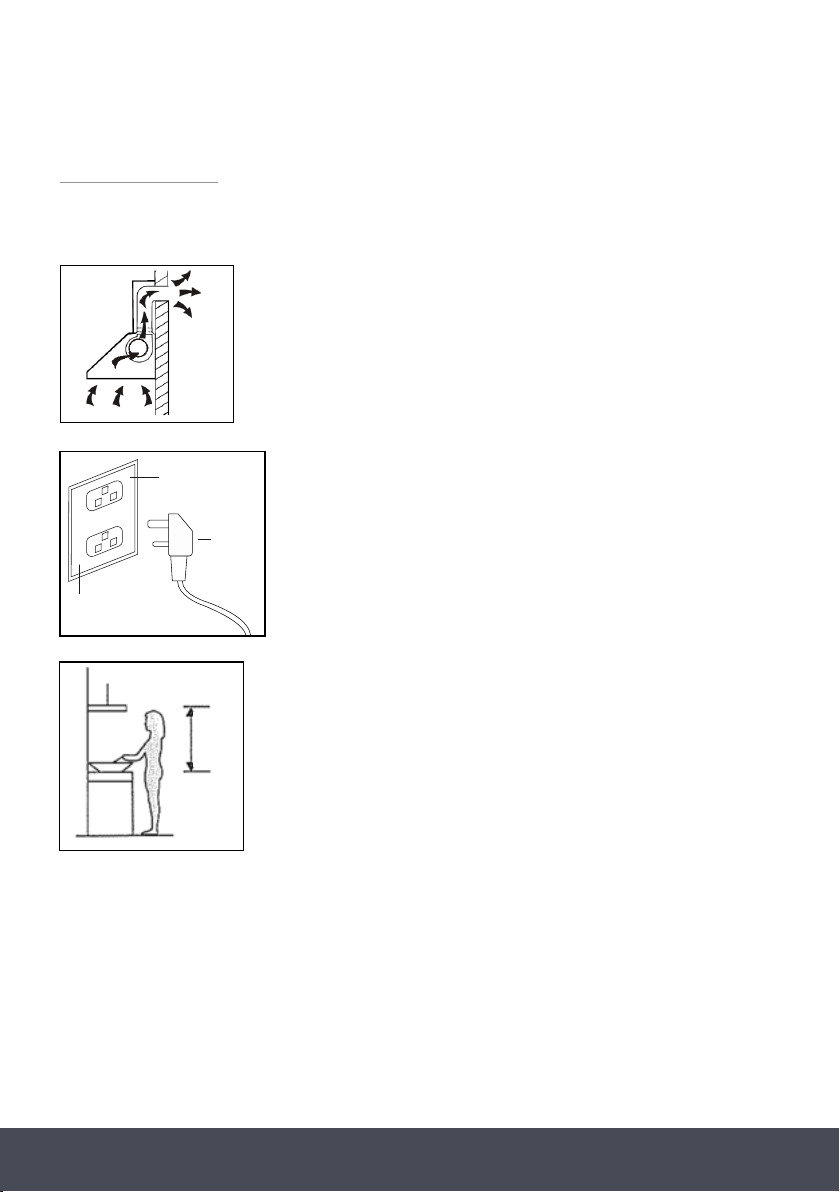

If you have an outlet to the outside, your cooker hood can be connected
as per the below picture by means of an extraction duct with an interior
diameter of 150mm.
Before installation, turn the unit off and unplug it from
the outlet.
The cooker hood should be placed at a minimum distance of
65~76cm above the hob. It is the manufacturer of the hob who
determines the clearance required and the clearance quoted by
the hob manufacturer must be followed. In the absence of any
instructions supplied with a gas hob the minimum distance between
the hob and the hood must be
at least 760mm.
The width of the extractor hood must correspond with at least the width of the hob fitted below.
When installed above a gas hob or range cooker, do not use all the gas burners simultaneously
for prolonged periods of time at the maximum setting (max. 15mins). There can be a risk of burns
if the housing or extractor surfaces become hot, and there is also a risk that the extractor can
become damaged due to excessive heat. If 3 or more burners are used simultaneously.
Never operate the gas hob without pans situated on the burners as the excess heat can damage
the extractor.
4


 
 

 
 
            
          
            




Earthed Outlet Box
Earthed Plug
Earthed Outlet
4

 
 
 

 
 
            
          
            





Instruction manual TSCH601
12 Please keep this instruction manual for future reference
INSTALLATION TYPE ONE

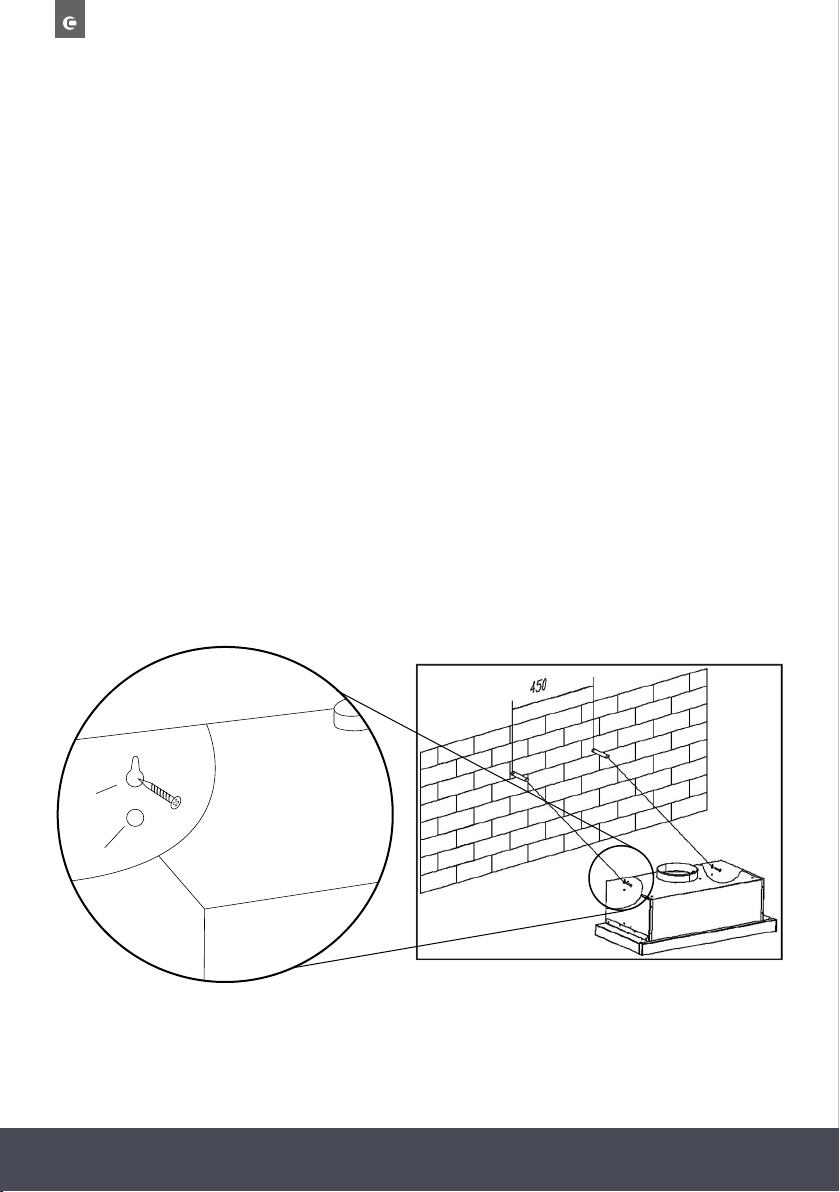

1. To install onto the wall, drill 2 holes of Ø8mm in a suitable place according with the centre
distance of hole in the back of the cooker hood.
2. Insert the wall plugs into the holes.
3. Insert the screws into the wall plugs and tighten. Put the cooker hood onto the
tightened screws.
4. Mark position for the safety screw holes onto the wall and remove the cooker hood.
5. Drill 2 holes of Ø8mm and insert wall plugs into holes.
6. Place the cooker hood onto the tightened screws (see a.).
7. Fix the cooker hood with the safety screws. The two holes are positioned on the back casing,
with diameter of 6mm (see b.)
8. Attach the one-way valve to the cooker hood.
AA
B

Instruction manual TSCH601 13
Please keep this instruction manual for future reference
INSTALLATION TYPE TWO
› Drill 4 holes of 6mm diameter at the bottom of the hanging cupboard.
› Fix the one way valve to the cooker hood, then install the cooker hood on the bottom of the
hanging cupboard, tighten the hood with the enclosed 4 screws supplied.
NOTE:
The ducting is an optional accessory, it is not supplied.
Remove the protection film before installation.

Instruction manual TSCH601
14 Please keep this instruction manual for future reference







RBQDVRÄOKTFR
ÄRBQDVR
ÄÄÄÄ/TSÄSGDÄV@KKÄAQ@BJDSÄNMSNÄSGDÄV@KKÄSGDÄLLÄDCFDÄO@MDKÄEHWDRÄSNÄSGDÄV@KKÄ
@MCÄSGDÄLLÄDCFDÄO@MDKÄRTOONQSRÄSGDÄGNNCÄANCXÄ*DDOÄ@ÄCHRS@MBDÄNEÄ
LLÄADSVDDMÄANSSNLÄNEÄSGDÄAQ@BJDSÄ@MCÄANSSNLÄNEÄB@AHMDSÄ

450
INSTALLATION TYPE THREE - Using the bracket
› Put the wall bracket onto the wall, the 40mm edge panel fixes to the wall and the 30mm edge
panel supports the hood body. Keep a distance of 199mm between bottom of the bracket and
bottom of the cabinet.
› After the wall bracket is fixed, fit the hood base to the wall bracket with 4*8mm screws. Based
on the cabinets width, it allows 22mm adjustment back and forth.
› Fix the hood into the bottom of the cabinet with the 4*30mm screws.


 
 
 







RBQDVÄGNKDR
UHDVÄEQNLÄ
ÄRBQDVR
ÄRBQDVR 3NOÄUHDV
ESDQÄSGDÄV@KKÄAQ@BJDSÄHRÄEHWDCÄÄEHWÄSGDÄGNNCÄA@RDÄSNÄSGDÄV@KKÄAQ@BJDSÄVHSGÄLLÄ
RBQDVRÄ!@RDCÄNMÄB@AHMDSRÄVHCSGÄHSÄ@KKNVRÄLLÄ@CITRSLDMSÄA@BJÄ@MCÄENQSG
%HWÄSGDÄGNNCÄHMSNÄANSSNLÄNEÄSGDÄB@AHMDSÄVHSGÄSGDÄLLÄRBQDVR




 
 
 







RBQDVÄGNKDR
UHDVÄEQNLÄ
ÄRBQDVR
ÄRBQDVR 3NOÄUHDV
ESDQÄSGDÄV@KKÄAQ@BJDSÄHRÄEHWDCÄÄEHWÄSGDÄGNNCÄA@RDÄSNÄSGDÄV@KKÄAQ@BJDSÄVHSGÄLLÄ
RBQDVRÄ!@RDCÄNMÄB@AHMDSRÄVHCSGÄHSÄ@KKNVRÄLLÄ@CITRSLDMSÄA@BJÄ@MCÄENQSG
%HWÄSGDÄGNNCÄHMSNÄANSSNLÄNEÄSGDÄB@AHMDSÄVHSGÄSGDÄLLÄRBQDVR


450

Instruction manual TSCH601 15
Please keep this instruction manual for future reference

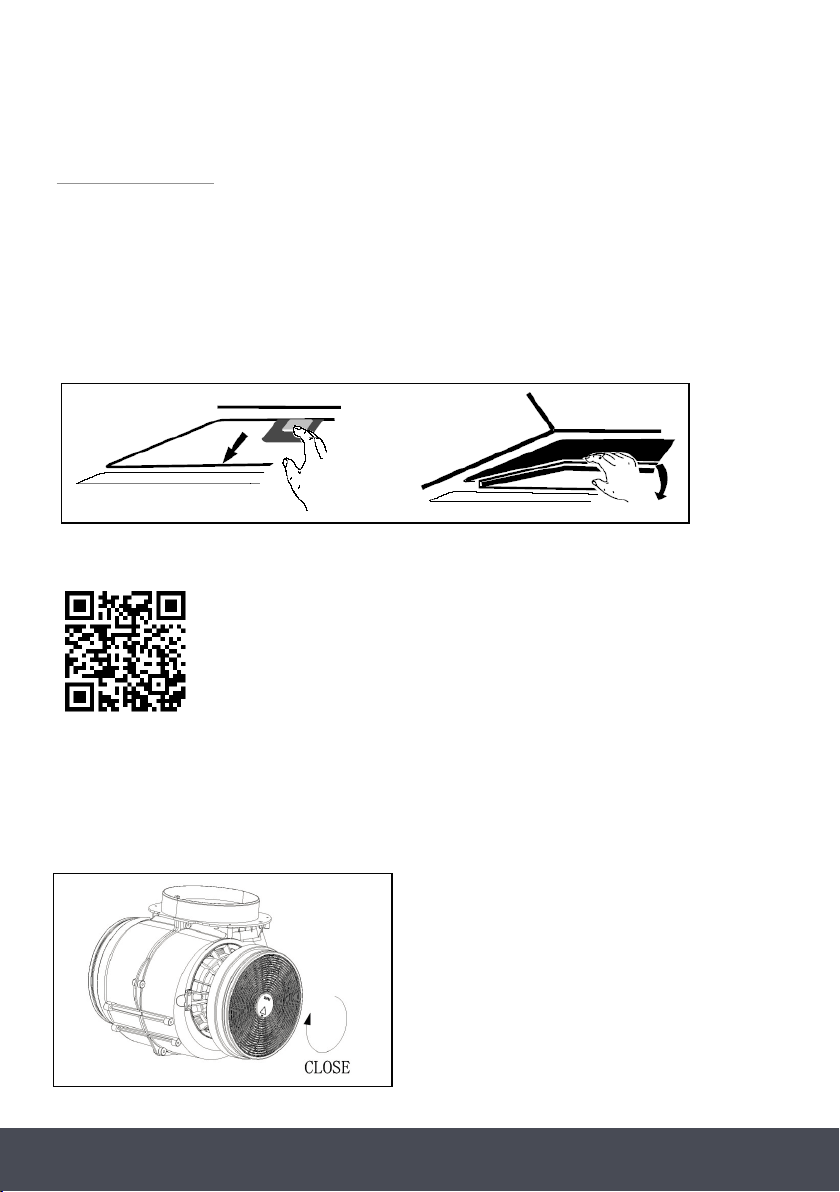

INSTALLING THE CHARCOAL FILTER (CAP60CF)
If you are not externally venting this extractor, you will require the CAP60CF recirculating filters to
use this extractor in recirculation mode (not included). To install these, firstly pull the retractable
front panel out to expose both aluminium grease filters. Remove these grease filters by pressing
the release button and pulling downwards as shown below.
Fit the charcoal filter onto the side of the motor and turn it in a clockwise direction to lock into
place. Repeat the same on the other side.
Scan the QR Code to access the ‘How To’ video.
NOTE:
Make sure the filter is securely locked. Otherwise, it may loosen and be dangerous.
When using a charcoal filter, the extraction power may be slightly reduced.
We recommend replacing these filters
every 6 months. Replacement filters (CAP60CF)
can be purchased directly
from www.caple.co.uk
Instruction manual TSCH601
Please keep this instruction manual for future reference
12
Installing the charcoal filter (CAP60CF)
If you are not externally venting this extractor, you will require the CAP60CF
recirculating filters to use this extractor in recirculation mode (not included). To
install these, firstly pull the retractable front panel out to expose both aluminum
grease filters. Remove these grease filters by pressing the release button and pulling
downwards as shown below.
Fit the charcoal filter onto the side of the motor and turn it in a clockwise direction
to lock into place. Repeat the same on the other side.
NOTE:
Make sure the filter is securely locked. Otherwise, it may loosen and be dangerous.
When using a charcoal filter, the extraction
power may be slightly reduced.
We recommend replacing these filters
every 6 months. Replacement filters
(CAP60CF) can be purchased directly
from www.caple.co.uk
9
 (CAP61CF)






 

 

We recommend replacing these filters every 6 months. Replacement
filters (CAP61CF) can be purchased directly from www.caple.co.uk
9
 (CAP61CF)






 

 

We recommend replacing these filters every 6 months. Replacement
filters (CAP61CF) can be purchased directly from www.caple.co.uk
TSCH601.indd 12 23/07/2018 15:28
Instruction manual TSCH601
Please keep this instruction manual for future reference
12
Installing the charcoal filter (CAP60CF)
If you are not externally venting this extractor, you will require the CAP60CF
recirculating filters to use this extractor in recirculation mode (not included). To
install these, firstly pull the retractable front panel out to expose both aluminum
grease filters. Remove these grease filters by pressing the release button and pulling
downwards as shown below.
Fit the charcoal filter onto the side of the motor and turn it in a clockwise direction
to lock into place. Repeat the same on the other side.
NOTE:
Make sure the filter is securely locked. Otherwise, it may loosen and be dangerous.
When using a charcoal filter, the extraction
power may be slightly reduced.
We recommend replacing these filters
every 6 months. Replacement filters
(CAP60CF) can be purchased directly
from www.caple.co.uk
9
 (CAP61CF)






 

 

We recommend replacing these filters every 6 months. Replacement
filters (CAP61CF) can be purchased directly from www.caple.co.uk
9
 (CAP61CF)






 

 

We recommend replacing these filters every 6 months. Replacement
filters (CAP61CF) can be purchased directly from www.caple.co.uk
TSCH601.indd 12 23/07/2018 15:28

Instruction manual TSCH601
16 Please keep this instruction manual for future reference
OPERATION

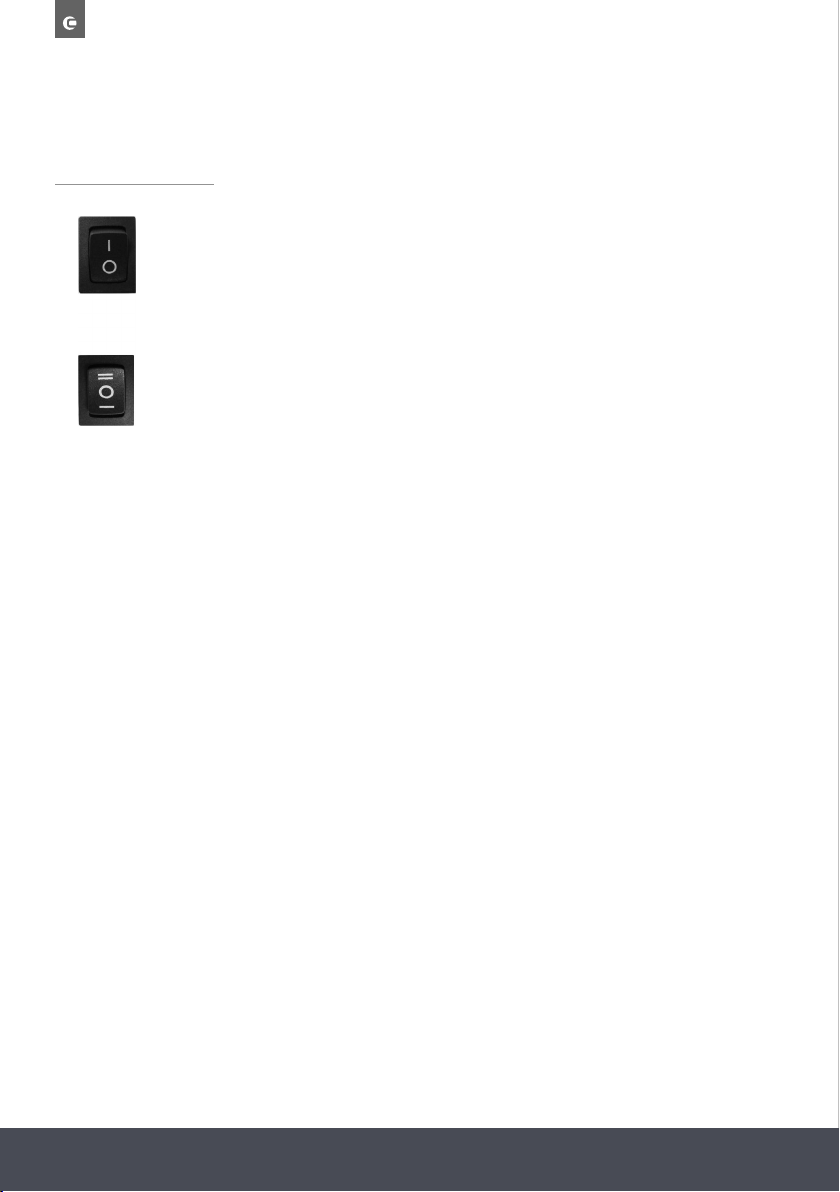

Light button: located on the left side of the hood,
switches the light on and off.
Speed button: located on the right side of the hood.
“=”: high speed level.
“-”: Low speed level.
“o”: Off.

Instruction manual TSCH601 17
Please keep this instruction manual for future reference
CARE AND MAINTENANCE
IMPORTANT:
Before cleaning or maintenance please switch off the electricity supply and remove the plug from
the wall.
REGULAR CLEANING
Use a soft damp cloth with lukewarm mildly soapy water or household cleaning detergent. Never
use metal pads, chemicals, abrasive material, abrasive cleaning creams or stiff brushes to clean
the appliance.
CLEANING THE GREASE FILTER
Clean the filter every month to help minimise the risk of fire. The filter collects grease, smoke and
dust, therefore the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the
grease residue (which is potentially flammable) will saturate the filter. It can be easily cleaned with
warm water and washing up liquid, alternatively the filters can be cleaned in your dishwasher.
Please ensure no other items are washed with the filters, they must be washed separately to
prevent food becoming trapped in the gauze. Cleaning the grease filters in the dishwasher may
lead to discolouration, this is normal and is a not a fault with the product.
REPLACING YOUR CHARCOAL FILTER
This only applies if you are using the hood in recirculation mode (not vented to the outside). The
charcoal filter traps your cooking odours and they need to be replaced, this can vary depending on
how frequently the cooker hood is used. We recommend replacing them at least every 6 months.
This extractor uses CAP60CF charcoal filters. Filters can be purchased directly
from www.caple.co.uk.

Instruction manual TSCH601
18 Please keep this instruction manual for future reference
Instruction manual TSCH601
Please keep this instruction manual for future reference
15
REPLACING THE BULB
TROUBLESHOOTING
Fault Cause Solution
The lights on, but
the fan does not
work
The fan blade is jammed Switch off the unit and contact
Caple Service. To be repaired by
qualified service personnel only.
The motor is damaged
The lights and fan
do not work
A blown fuse Replace the fuse
The power cord is loose Plug in to the power supply
again
Serious vibration
of the unit
The fan blade is damaged
Switch off the unit and contact
Caple Service. To be repaired by
qualified service personnel only
The fan motor is not fixed
tightly.
Switch off the unit and contact
Caple Service. To be repaired by
qualified service personnel only
The unit is not hung
correctly on the bracket
Take down the unit and check
whether the bracket is in the
correct location.
The extraction
performance is
not good
The filter requires
cleaning
Clean the grease filter as
directed in the ‘Care and
maintenance’ section. Replace
the charcoal filter (if in
recirculation mode)
If the above table has not solved the problem please contact Caple Service by
phone on 0117 938 7420 or by email [email protected]
7
 
 
 
   
TSCH601.indd 15 11/07/2018 14:31
1. Switch off and unplug the extractor
2. Remove the aluminium grease filter
3. Remove the LED light by squeezing the metal clips
4. Remove the clip cover by removing the lid (see
image a.)
5. Unclip the light fixing (b.) and remove
6. Replace the light with the same rated LED fitting
by following these instructions in reverse.
a.
b.
REPLACING THE BULB
NOTE:
The lights must be replaced by a qualified person.
1. Switch off and unplug the extractor.
2. Remove the aluminium grease filter.
3. Remove the LED light by squeezing the metal clips.
4. Remove the clip cover by removing the lid
(see image a.).
5. Unclip the light fixing (b.) and remove.
6. Replace the light with the same rated LED fitting by following these instructions in reverse.
LIGHT SOURCE ENERGY CLASS
This product contains a light source of energy efficiency class G.

Instruction manual TSCH601 19
Please keep this instruction manual for future reference
TROUBLESHOOTING
FAU LT CAUSE SOLUTION
The lights on, but the fan
does not work
The fan blade is jammed.
Switch off the unit and contact Caple Service. To
be repaired by qualified service personnel only.
The motor is damaged.
The lights and fan do
not work
A blown fuse. Replace the fuse.
The power cord is loose. Plug in to the power supply again.
Serious vibration of the unit
The fan blade is damaged. Switch off the unit and contact Caple Service. To
be repaired by qualified service personnel only.
The fan motor is not fixed tightly. Switch off the unit and contact Caple Service. To
be repaired by qualified service personnel only.
The unit is not hung correctly on
the bracket.
Take down the unit and check whether the
bracket is in the correct location.
The extraction performance
is not good
The filter requires cleaning. Clean the grease filter as directed in the ‘Care
and maintenance’ section. Replace the charcoal
filter (if in recirculation mode).
If the above table has not solved the problem please contact Caple Service by phone on
0117 938 7420 or by email [e-mail]

Instruction manual TSCH601
20 Please keep this instruction manual for future reference
PRODUCT DIMENSIONS
DIMENSIONS
510mm
598mm
278mm
450mm
40mm
200mm
20mm
150mm
TSCH601
