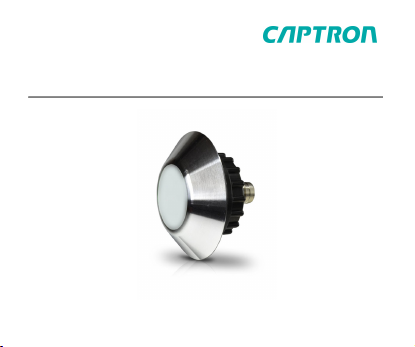

Captron CML1 User manual
CML1 / CDL1
Original Operating Instructions
CML1 / CDL1
CML1 / CDL1
Original Operating Instructions
CML1 / CDL1
This manual has been written for technicians/installers and operators
and should be kept for future reference. Read these operating
instructions carefully and make sure that you have fully understood
the contents before installing or working with the CML1 / CDL1.
Safety
General safety
All work on electrical systems or operating equipment may be
carried out only by a specially qualified electrician according to the
applicable electrotechnical regulations.
The safety of the system in which the indicator light is integrated is
the responsibility of the operator.
Notes and symbols used
Warning notes in relation to personal injury / material damage are
formulated according to the "SAFE” principle. This means they
contain information on the type and source of the hazard, potential
consequences as well as how to avoid and avert danger. The
following hazard classifications apply in the safety notes:
DANGER
Danger designates a hazardous situation, which, if
ignored, will lead to death or serious injury. The symbol
next to the warning indicates the type and source of the
danger.
WARNING
Warning designates a hazardous situation, which, if
ignored, may lead to death or serious injury. The symbol
next to the warning indicates the type and source of the
danger.
CAUTION
Caution designates a hazardous situation, which, if
ignored, may lead to injury. The symbol next to the
warning indicates the type and source of the danger.
NOTICE
Notice designates a situation, which may cause material
damages and impair the product’s function if attention is not
paid.
TIP
Tip provides additional useful information about the handling of
the product.
Symbol Meaning
4Avoiding and adverting danger in the warning note
►Instructions for action
All instructions to be followed within a procedure are
always listed in chronological order.
■List
WARNING
Improper work on electrical systems!
Electric shock can result in death or life-threatening
injuries.
4Before working on electrical systems, disconnect
them from their voltage supply and secure them
against being switched on again.
4Work on electrical installations should be carried
out only by qualified personnel in compliance
with local and national electrical regulations and
specifications.
Personnel qualifications
A qualified electrician is a person with suitable technical training,
expertise and experience as well as knowledge of relevant
standards, who can evaluate the work assigned to them
correspondingly and recognize potential risks.
Intended use
The indicator light is intended for use in accordance with the items
listed here, the values from the “Technical specifications” chapter and
the product description.
■Only connect the product to a limited energy source as per IEC
61010 or to an NEC class 2 power supply unit.
■Source current < 4 A at maximum operating voltage.
Reasonably foreseeable misuse
The indicator light is not suitable for:
•use as a safety component as per machinery directive 2006/42/
EC.
•use in potentially explosive atmospheres.
General description
The supplied indicator light can have options that differ from those
shown in this manual. This does not affect the function. The LEDs
are actuated differently depending on the pin configuration.
Technical specifications
Operating voltage 24 V (21.6 ...26.4 V)
Reverse polarity protection Protection of all cables/lines
(temporary)
Power consumption
CDL1
CTL1
Max. 20 mA at 24 V
Max. 30 mA at 24 V
Operating temperature -20...+50°C
Degree of protection IP Front IP69K
Relative air humidity Max. 95%, non-condensing
Dimensional drawing
Example representation plug, M8 4-pin
CML-1_9 /
CDL1-1_9
CML1-1_8 /
CDL1-1_8
CML1-6_8 / CDL1-6_8
CML1-1_8_/CPM20
CDL1-1_8_/CPM20
Drilling pattern
Drilling pattern
Connection
CML1-_7_...
200 mm single strands with wire end ferrules
Wire end ferrules with plastic collars DIN 46228
Wire cross-section strands 0.15 mm2
CML1-_5_...
Plug M8, 4-pin
CML1-_K_...
Terminal strip, 5-pin
Assembly
Requirements: Mounting surface is level and
clean.
► Disconnect the system from its voltage
supply and secure it against being
switched on again.
► Set the desired position of the indicator
light and drill the hole according to the
drilling pattern.

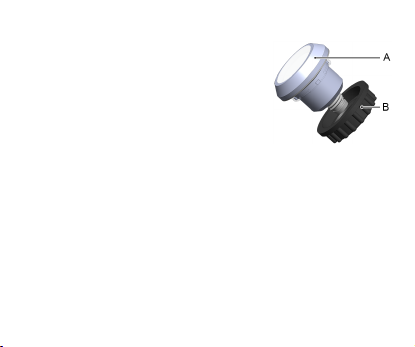

► Unscrew the lock nuts (B) from the
indicator light (A).
► Insert the indicator light into the prepared
hole and screw the lock nuts (B) back
on.
► Position the indicator light (A) and
tighten the lock nuts with max. 1 Nm.

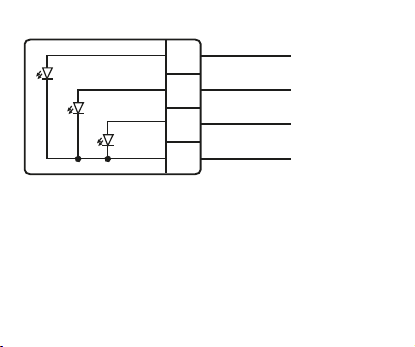

Connect CML1
Different colors are shown depending on CML1 actuation.
Pin assignment
4213
Indicator light color
24 V 0 V Red
24 V 0 V Green
24 V 0 V Blue
24 V 24 V 0 V Yellow*
24 V 24 V 0 V Violet
24 V 24 V 0 V Light blue
24 V 24 V 24 V 0 V White*
*Colors not technically pure
brown
white
black
blue
+VDC / LED 3
+VDC / LED 2
+VDC / LED 1
0V
3
1
2
4
LED1
LED2
LED3
Connect CDL1
Different colors are shown depending on CDL1 actuation.
white
black
blue
+VDC / LED 2
+VDC / LED 1
0V
3
2
4
LED1
LED2
Maintenance
Carry out the following maintenance operations at the specified
intervals.
Operation as needed annually
Clean the switch surface X
Check cable for integrity X
Operation as needed annually
Check screw connection for
tightness
X
NOTICE
Solvents contained in cleaning agents can attack the plastic
of the button!
4Clean the surface of the button with a neutral cleaning agent
or a damp microfiber cloth.
Disassembly
► Disconnect the system from its voltage supply and secure it
against being switched on again.
► Disconnect the electrical connection and remove the lock nuts.
Disposal
Different types of electrical and electronic components must be
recycled according to their type. All applicable statutory, state and
local laws and regulations must be complied with.
