Car-Interface CI-C2-MK-AUX User manual

Version 20.09.2017 CI-C2-MK-AUX
c.LOGiC Interface
CI-C2-MK-AUX
Compatible with BMW Professional navigation
systems
without iDrive (MK2-MK4)
Product features
• Full plug and play multimedia interface
• 2 AV-inputs with separate IR-control channels
• control of after-market devices, e.g. DVB-T tuner, DVD-player, DVD-changer, …
• after-market rear-view camera input (optional adapter is necessary)
• automatic switching to after-market rear-view camera input
• rear-view camera power (+12V max. 1A)
• Rear-seat-entertainment video-output for Video-sources connected to the c.LOGiC
• power-on remote-out trigger-signal (+12V max. 1A) to switch on connected devices
• video-in-motion

Version 20.09.2017 CI-C2-MK-AUX
Page1
Contents
1. Prior to Installation
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
2. Connection schema
3. Installation
3.1. Interconnecting interface-box and harnesses
3.2. Connections to the navigation computer or –if existing –to the TV-tuner
3.3. Connections to radio module
3.4. Connecting peripheral devices
3.4.1. AV-source(s)
3.4.2. Installing AV-source’s IR-sensor additionally
3.4.3. After-market rear-view camera
3.4.4. After-market rear-seat-entertainment
3.5. System settings/VI SETTINGS
3.5.1. Audio settings
3.5.2. Assigning device control for connected AV-source
3.5.3. Rear-view camera function
3.6. DIP switch settings
4. Operation
4.1. Activation of the video-in-motion function
4.2. Selecting the c.LOGiC as current AV-source
4.3. Switching to AV1 and AV2
4.4. Picture settings
4.5. Button assignment table
5. Specifications
Appendix A –Device control table

Version 20.09.2017 CI-C2-MK-AUX
Page2
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.

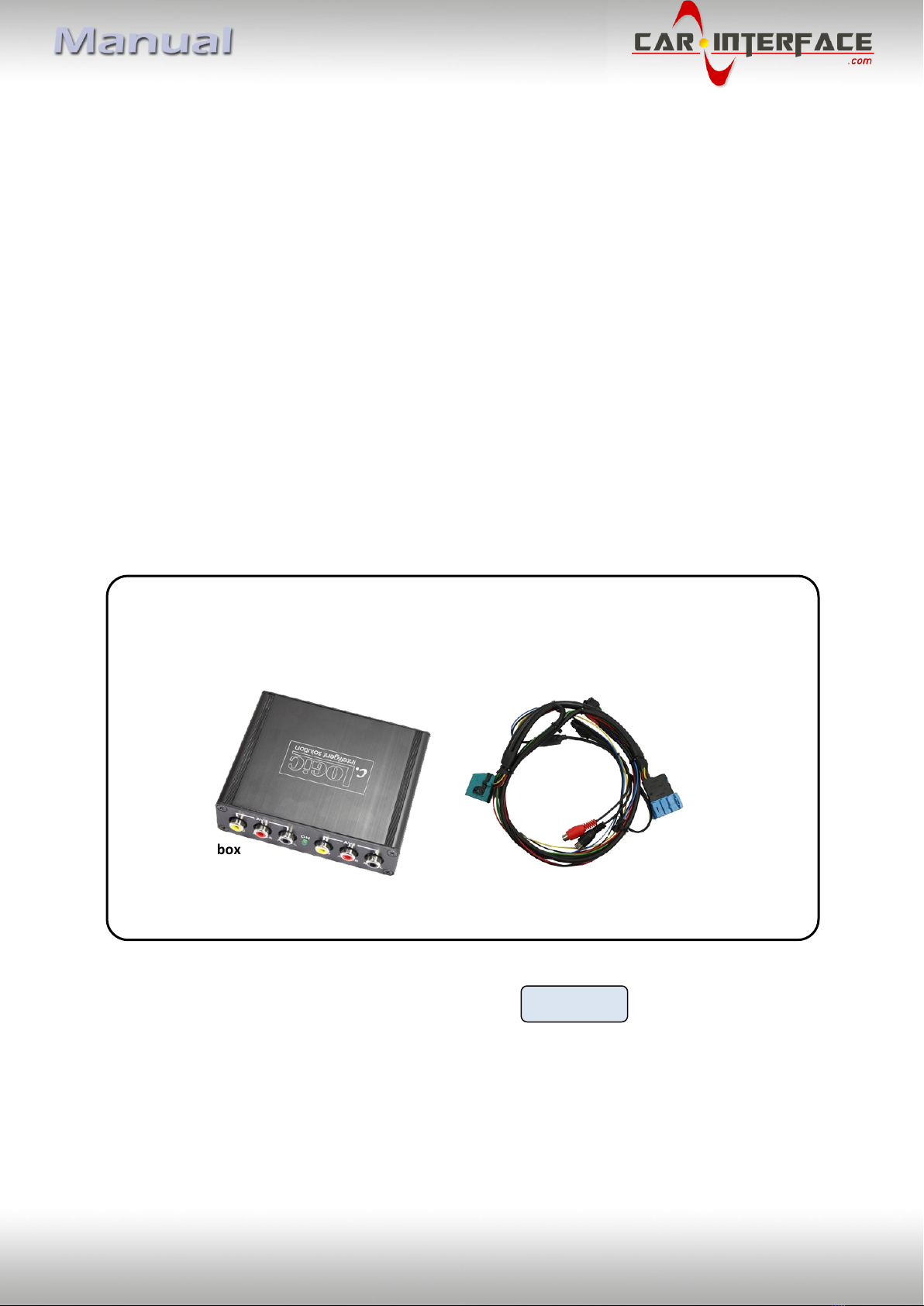

1.1. Delivery contents
If remote function for a peripheral device shall be used, additional an IR-
Remote cable and Y-adapter are needed, see chapter AV-source(s) .
Take down the SW-version and HW-version of the interface boxes, and store this
manual for support purposes.
Interface-box
C2C-M700
HW_____ SW_____
Harness
C3C-BM700

Version 20.09.2017 CI-C2-MK-AUX
Page3
1.2. Check compatibility of vehicle and accessories
Requirements
Vehicle 3series (E46), 5series (E39), 7series (E38), X5 (E53), X3 (E83), Z4
(E85/86)
with AUX-input at the radio module (from approx 10/2002)
Navigation Navigation system Professional without iDrive
(MK2-MK4)
Limitations
Factory-audio-AUX-input The factory audio-AUX-input is used for audio-insertion by the
c.LOGiC. Alternative use of the AUX-input is only possible by
additional switch-box integration.
After-market rear-view Compatible with NTSC-cameras only.
camera

Version 20.09.2017 CI-C2-MK-AUX
Page4

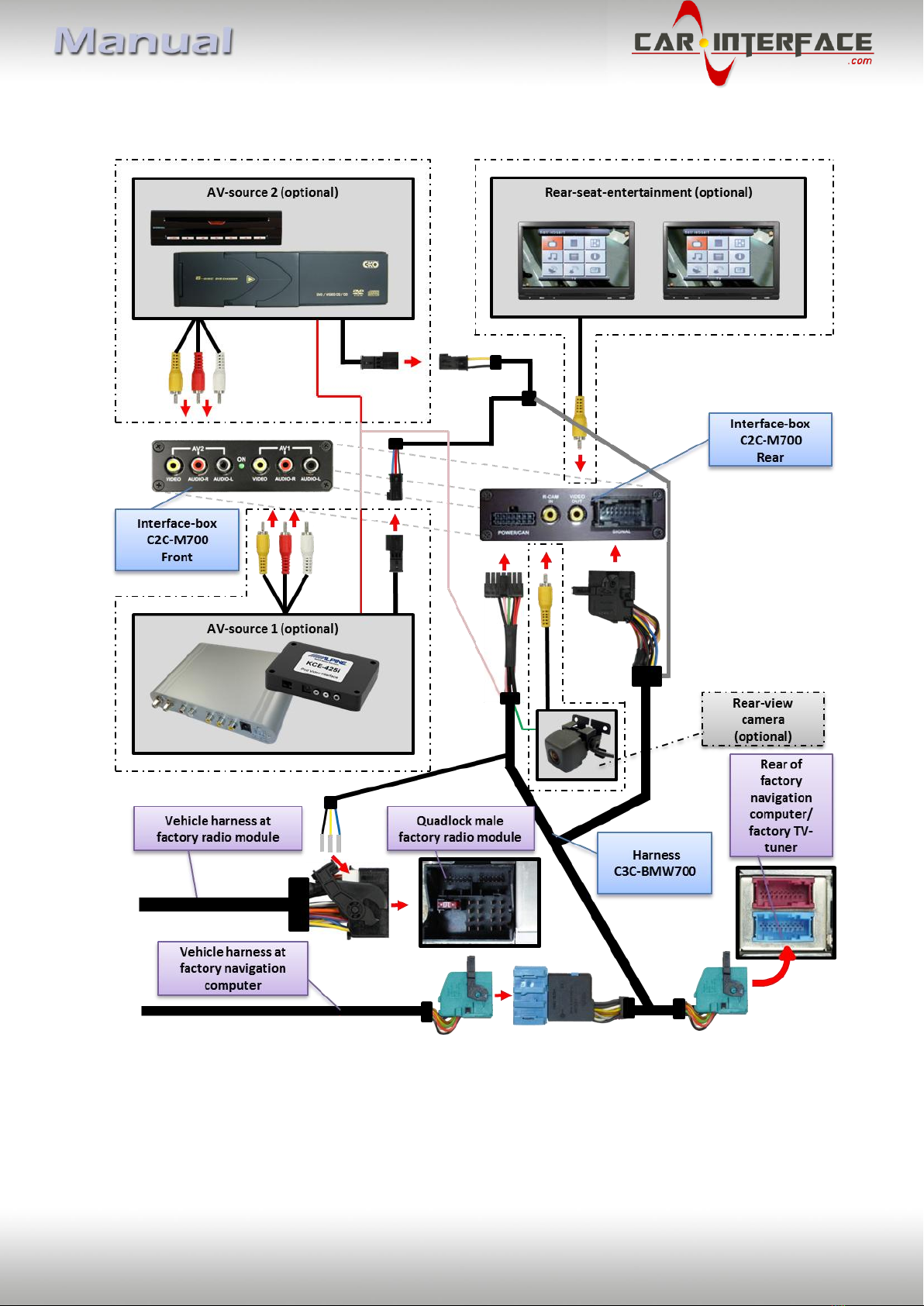

2. Connection schema

Version 20.09.2017 CI-C2-MK-AUX
Page5
3. Installation
Switch off ignition and disconnect the vehicle’s battery! If according to factory rules
disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in
sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a
resistor lead.
Place of installation is at the navigation computer or the factory TV-tuner (if existing and not
removed) and at the radio module.
If there is a factory TV-tuner inside the car, you have to connect the harness C3C-BM700 to
the TV-tuner and not to the navigation computer!

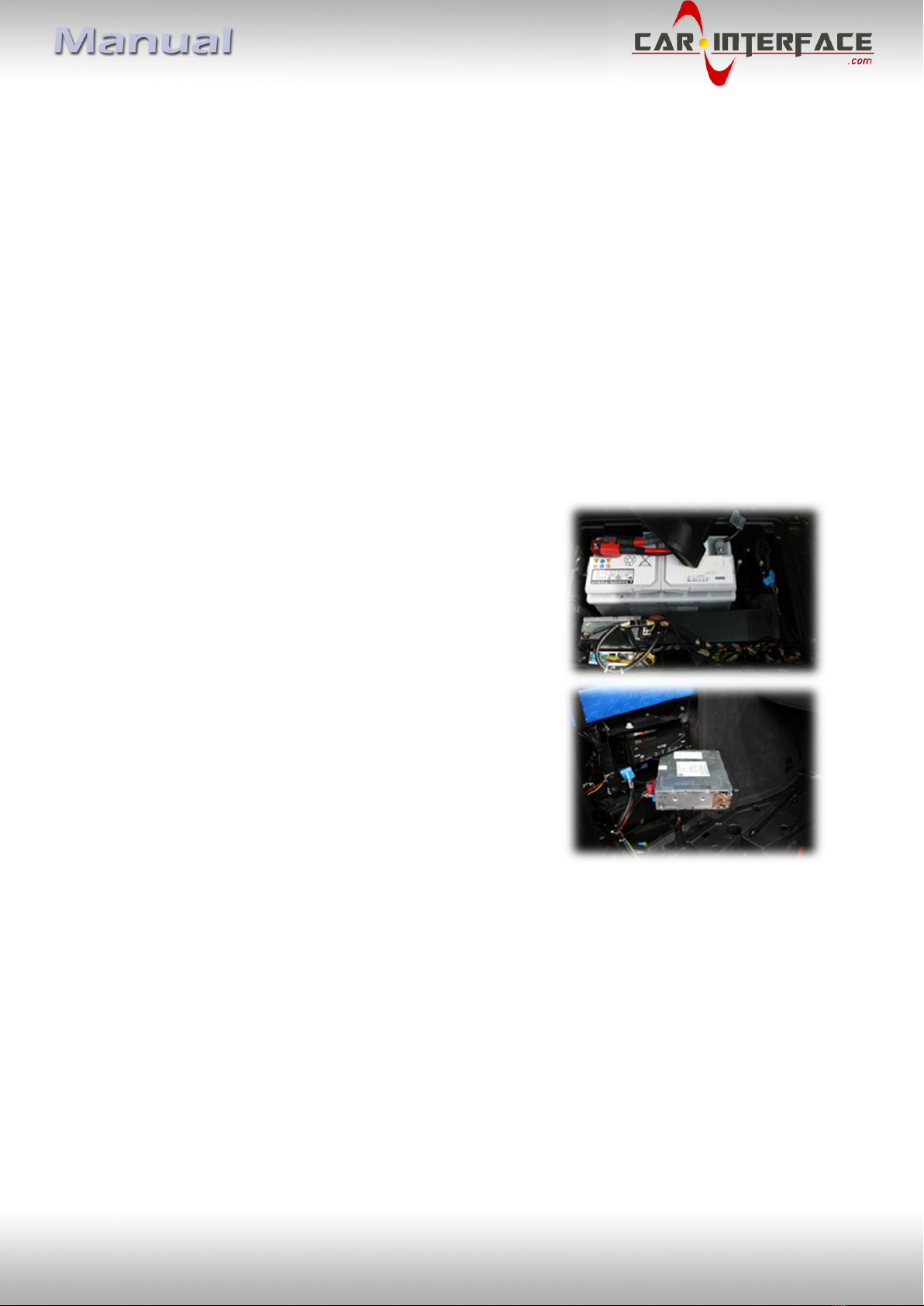

The radio module and navigation computer are located at the rear end for the 3series (E46),
5series (E39) and 7series (E38) on the left hand side the radio module of the 7series is
located behind lining in the car wing).
The X5 (E53) radio module is located underneath the
boot lining, next to the battery.
The navigation computer is located on the left hand side
behind the boot lining.

Version 20.09.2017 CI-C2-MK-AUX
Page6
3.1. Interconnecting interface-box and harnesses
Plug harness C3C-BM700 into 14pin of interface-box C2C-M700.
Plug female 18pin AMP connector of C3C-BM700 into male 18pin AMP connector of
interface-box C2C-M700.

Version 20.09.2017 CI-C2-MK-AUX
Page7
3.2. Connections to the navigation computer or –if existing –to the TV-tuner
If there is a factory TV-tuner inside the car, you have to connect the harness C3C-BM700 to
the TV-tuner and not to the navigation computer!

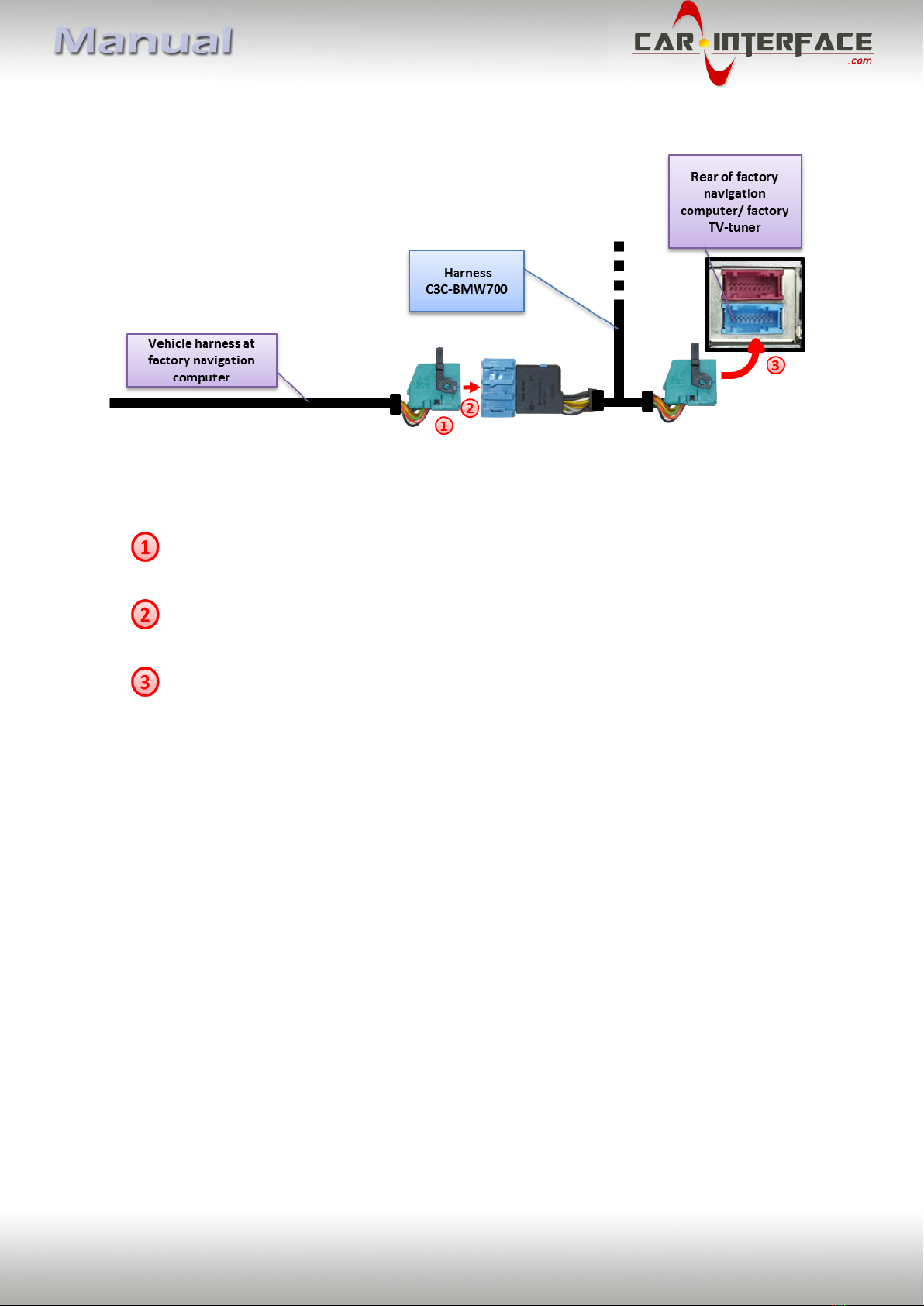

Disconnect blue female 18pin connector of vehicle harness from the back of the
navigation computer or the factory TV-tuner (if existing and not removed).
Plug blue male 18pin AMP connector of harness C3C-BM700 into blue female 18pin
AMP connector of vehicle harness.
Plug blue female 18pin AMP connector of harness C3C-BM700 into blue male 18pin
AMP connector of navigation computer or of the factory TV-tuner (if existing and not
removed).
Note: If an existing factory TV-tuner will be removed the optionally available harness CAB-
BMW200 is necessary!

Version 20.09.2017 CI-C2-MK-AUX
Page8
3.3. Connections to radio module
Loosen the female Quadlock connector to the radio module.
Loosen the black female 12pin connector from chamber B
of the female Quadlock connector.
Push the insert from female 12pin connector’s plastic cab
from the side.
Pin the audio cables of harness C3C-BM700 to the
dissambled vehicle’s female 12pin connector:
Yellow cable Pin 3
Blue cable Pin 4
Black cable Pin 10
If the chambers of the female 12pin connector are occupied,
isolate and remove the existing pins.
Push the black plastic cap onto the female 12pin connector
and insert it into the female Quadlock connector. Reconnect
the female Quadlock connector to the radio module.
Vehicle female
12pin connector
Vehicle female
12pin connector
Vehicle female
12pin connector
Quadlock Steckplatz
Radiomodul

Version 20.09.2017 CI-C2-MK-AUX
Page9
3.4. Connecting peripheral devices
It is possible to connect up to 2 after-market AV-sources, after-market rear-view camera and
rear-seat-entertainment to the c.LOGiC.
Before final installation of the peripheral devices, we recommend to test-run the c.LOGiC
functions to detect incompatibility of vehicle, navigation, factory accessories or peripheral
devices as soon as possible.
3.4.1. AV-source(s)
The c.LOGiC interface has the possibility to connect and remotely control by navigation
buttons up to 2 pre-programmed devices. The device list in the device control table shows
the pre-programmed remote channels and the related IR-remote cables STA-xxx which must
be ordered separately for the control of the device.

Version 20.09.2017 CI-C2-MK-AUX
Page10
Using the respective STA-xxx IR-control cable, interconnect the blue (yellow) female
3pin AMP connector of harness C3C-BM700 and the IR-port of the AV-source 1 (AV-
source 2).
Using an RCA-cable, interconnect the female RCA-port AV1 (AV2) of the interface-box
C2C-M700 with the AV-output of the AV-source 1 (AV-source 2).
The pink ACC-output wire (+12V max. 1A) of harness C3C-BMW0x can be connected
to the ACC-input wires of the connected devices to switch it on. It carries +12V when
the navigation computer is running.
3.4.2. Installing AV-source’s IR-sensor additionally
Additionally to the control via OEM navigation, it is possible to install the original IR-sensor
of a connected device. By using the respective Y-adapter (e.g. STA-Y35MM or STA-RJ12) for
the IR-Port of the connected device, the controls of navigation AND device’s IR-sensor can be
connected and used simultaneously. Installation of the IR-sensor is recommended as the
controls via navigation are limited, and not all functions may be covered.
3.4.3. After-market rear-view camera
Connect the video RCA of the after-market rear-view camera to the female RCA
connector R-CAM IN of interface-box C2C-M700.
Connect the green wire of C3C-BM700 to the camera power supply (+12V max. 1A)
The green wire is high (+12V) when reverse gear is engaged.
Note: Compatible with NTSC cameras only.

Version 20.09.2017 CI-C2-MK-AUX
Page11
3.4.4. After-Market rear-seat-entertainment
Using RCA-cables, connect the rear-seat-entertainment to the female RCA-connector
VIDEO OUT of interface-box C2C-M700.
Note: As the output is a full output, not shared with the video signal for the
navigation system, splitting the video with an RCA Y-cable might give a good enough
picture for two rear-seat-entertainment monitors. If not, or if connecting more than
two monitors, use a video splitter.
3.5. System settings/VI SETTINGS
You must make some settings in the “VI SETTINGS“ menu
to enable the c.LOGiC’s functions.
Press 3x the “MENU“ key to access the “VI
SETTINGS“ menu of the c.LOGiC.
Use the right knob to make changes
within the “VI SETTINGS“ menu.
Press 1x the “MENU“ key to exit the “VI
SETTINGS“ menu.

Version 20.09.2017 CI-C2-MK-AUX
Page12
3.5.1. Audio settings
It is necessary to set the audio settings to "AUX" and "CD
EMU OFF" to enable the c.LOGiC’s functions.
3.5.2. Assigning device control for connected AV-sources
Select control levels setup “CH1:RCxx” for AV1 and “CH2:
RCxx” for AV2 in the “VI SETTINGS“ menu and assign
related IR-codes as described in device control table by
turning the right knob.
Note: The IR-control channel CH1 is preset to RC-Code 41
compatible DVB-T tuners and CH2 is preset to RC-Code 09
for the usbLiNK.
3.5.3. Rear-view camera function
Set the rear-view camera setting to “RVC: ON“ to use the
rear-view camera input of the c.LOGiC. After the setting
the automatic switching to rear-view camera input is
activated when reverse gear is engaged.
Note: After the reverse gear is disengaged, the monitor
stays on camera video until the vehicle reaches a speed of
10 km/h. To leave the camera video press the right knob.

Version 20.09.2017 CI-C2-MK-AUX
Page13
3.6. DIP switch settings
The default DIP switch setting is (already set):
Check after installation the LED status on the C2C-M700
interface. For this, turn off the ignition. After about 1-5min.
the status LED should turn off. If the status LED should not
turn off, open the C2C-M700 housing, set the DIP switch
“3” to OFF and connect the open white/black wire from
C3C-M700 harness with ignition (+12V).
1+2 =OFF , 3 = ON
(default setting)
1+2+3 =OFF
(special case)

Version 20.09.2017 CI-C2-MK-AUX
Page14
4. Operation
4.1. Activation of the video-in-motion function
The video-in-motion function is permanently active without disturbing the navigation
performance.
4.2. Selecting the c.LOGiC as current AV-source

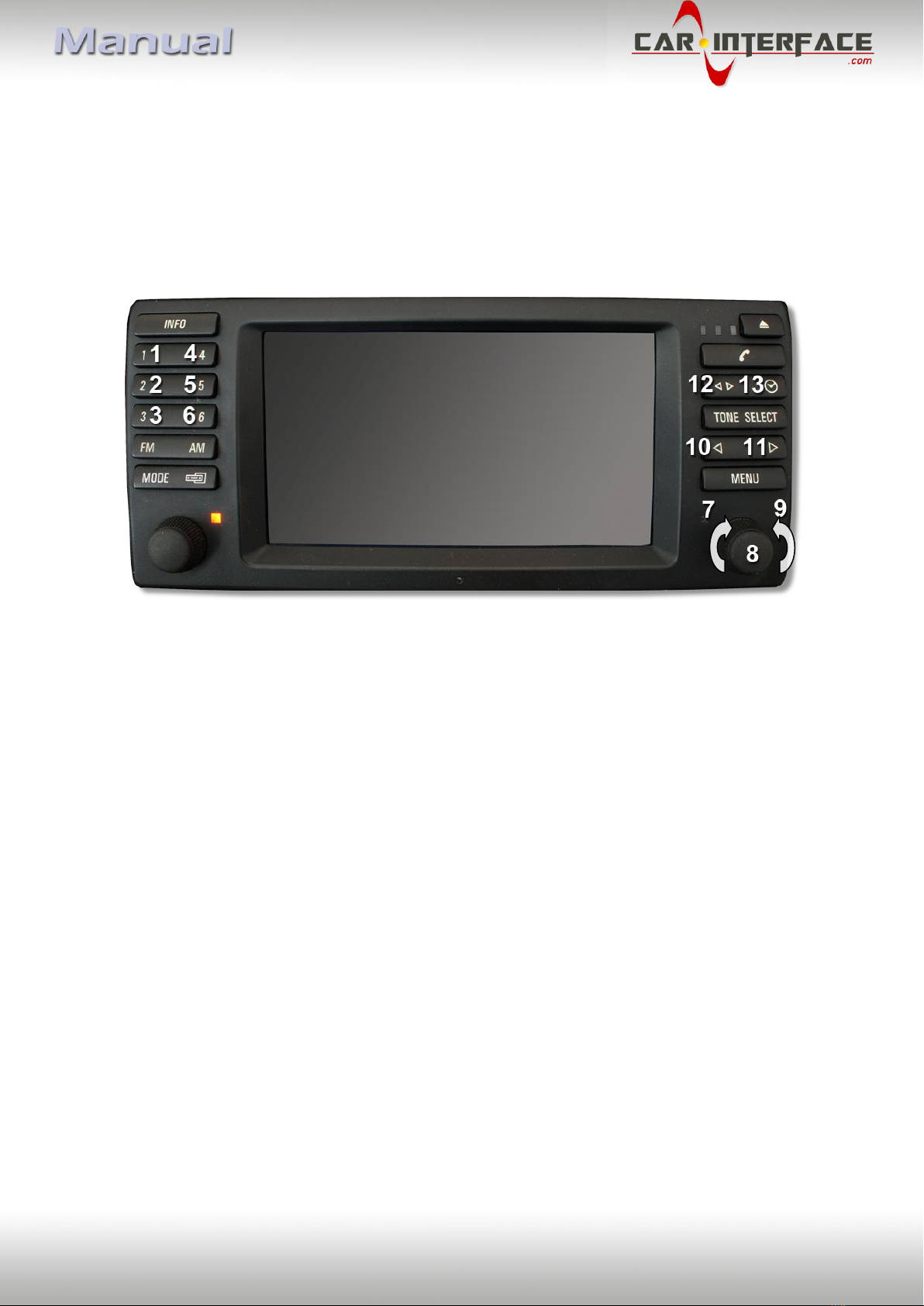

Selecting the c.LOGiC as current AV-source is activated by pressing the
“MODE”-button (depending on the current mode of the system, it has
to be pressed several times). After the first activation the system will
switch the picture after a few seconds from c.LOGiC-video to factory-
video by itself, the audio will still stay on c.LOGiC-audio. Use the
picture switch button to select between factory-video and c.LOGiC-
video. You can leave the c.LOGiC mode by pressing the “FM” or the “MODE” button.
4.3. Switching to AV1 and AV2
In c.LOGiC mode longpress station button „1” to switch to AV1 or longpress station button
“2” to switch to AV2.
4.4. Picture settings
The c.LOGiC has its own picture setting mode. In order to
enter this mode, set to “Video Set:ON“ in the “VI SETTINGS“
menu. After switching to the Video/Audio level the keys
"1 <> 4" , "2 <> 5" , "3 <> 6" can be used for picture settings.
(each with short keypress).
You can deactivate the picture setting mode
in the “VI SETTINGS“ or by turning off ignition.
MODE - picture switch
button button
Contrast
Colour saturation
Brightness

Version 20.09.2017 CI-C2-MK-AUX
Page15
4.5. Button assignment table
The button assignment table shows which functions of the connected devices can be
executed by navigation buttons. Once an AV-input is activated, the navigation button in the
left column will execute the function described in the corresponding device column. The
function description equals the remote control buttons of the device’s remote control. On
the additional device the writing may vary (e.g. AV instead of Source).

Version 20.09.2017 CI-C2-MK-AUX
Page16
Button assignment table c.LOGiC C2-MK-AUX
Navigation
button
DVB-T tuners
usbLiNK
DVD-player
DVD-
changer
iPod®-control
Analog-tuner
1
SOURCE
AV
AV
AV
Display
1 long
Selection TV/
image format
Selection
TV/
format
Selection TV/
image format
Selection TV/
format
Selection TV/
image format
Selection TV/
image format
2
OK / PLAY
PLAY
PLAY
PLAY
SCAN
2 long
Selection
AV2/
Image format
Selection
AV2/
format
Selection AV2/
Image format
Selection
AV2/
format
Selection AV2/
Image format
Selection AV2/
Image format
3
←
←
←
←
←
CH -
3 long
TEXT
EXIT
ZOOM
ZOOM
4
POWER
POWER
POWER
POWER
POWER
4 long
Interface
On/Off
Interface
On/Off
Interface
On/Off
Interface
On/Off
Interface
On/Off
Interface
On/Off
5
EXIT
MEDIA
>>
>>
>>
MUTE
5 long
SCAN
VOL +
PBC
PBC
6
→
→
→
→
→
CH +
6 long
EPG
VOL -
STOP
STOP
7
↑
↑
↑
↑
↑
VOL +
8
OK
OK / PLAY
PLAY
PLAY
PLAY/ENTER
SCAN
8 long
MENU
SETUP
SETUP
SETUP
LAMP
ADJUST
9
↓
↓
↓
↓
↓
VOL -
10
CH -
TRACK -
TRACK -
TRACK -
TRACK -
CH -
10 long
DISC
11
CH +
TRACK +
TRACK +
TRACK +
TRACK +
CH +
11 long
DISC
12
TITLE
TITLE
12 long
SUBTITLE
SUBTITLE
13
INFO
DISPLAY
DISPLAY
13 long
DTV/RADIO
AUDIO
AUDIO

Version 20.09.2017 CI-C2-MK-AUX
Page17
5. Specifications
Operation voltage 10.5 –14.8V DC
Stand-by power drain <1mA
Operation power drain 230mA
Power consumption 3W
Temperature range -30°C to +80°C
Weight 202g
Measurements (box only) B x H x T 90 x 30 x 105 mm
Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered
trademarks ® of their corresponding legal owners.
