Car-Interface RL4-NAC08 User manual

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Video-inserter
RL4-NAC08
Compatible with
Opel, Citroen, Peugeot and Toyota vehicles
with NAC or RCC infotainment
and 7inch or 8inch monitor
Video-inserter for front- and rear-view camera
and two additional video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for the rear-view camera (not available for all vehicles)
Activatable PDC (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Warning notes
1.4. Connection Video-Interface
1.5. Settings of the 8 Dip switches (black)
1.5.1. Adjustment –power supply output (dip 1)
1.5.2. Enabling the interface’s video inputs (dip 2-3)
1.5.3. Rear-view camera setting (dip 5)
1.5.4. Activating –front camera back switching (dip 6)
1.5.5. Choosing the corresponding head unit version (dip 8)
1.6. Settings of the 4 Dip switches (CAN function –red)
2. Installation
2.1. Place of installation –video interface
2.2. Connection schema
2.3. Connection - head-unit
2.3.1. Connection –picture signal cable
2.3.1.1. Low version head unit (1 x 4 PIN HSD)
2.3.1.2. High version head unit (2 x 4 PIN HSD)
2.3.2. Connection–Power / CAN
2.3.3. Installation with analogue connection (without CAN-Bus)
2.4. Power supply output
2.5. Connection - video sources
2.5.1. Audio insertion
2.5.2. After-market front camera
2.5.3. After-market rear-view camera
2.5.3.1. Case 1: Video-interface receives the reverse gear signal
2.5.3.2. Case 2: Video interface does not receive the reverse gear signal
2.6. Connection - external keypad
2.7. Picture settings and guide lines
3. Interface operation
3.1. By NAVI button
3.2. By external keypad
4. Specifications
5. FAQ –Trouble shooting
6. Technical support

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page4
Compatibility
1.2. Checking the compatibility
of vehicle and accessories
Brand
Compatible vehicles
Infotainment systems
Citroen
Berlingo (K9) since 09/2018,
C3 since 01/2017,
C3 Aircross since 11/2017,
C4 Cactus II since 01/2018 til 09/2020,
C4 (N) since about 2017 til 05/2018,
Grand (C4) SpaceTourer since model
year 2018,
C4 Picasso since model year 2017,
C4 X since 10/2022,
C5 Aircross since 12/2018,
Dispatch since model year 2016,
Jumpy since model year 2016
NAC or RCC with 7inch or 8inch touch
monitor. Continental or Bosch head-unit
For Continental High version an additional
cable CAB-HSD-MF026 might be required
Fiat
Doblo III (K9) since 06/2022,
Scudo III since 2021,
Ulysse III since 03/2022
RCC (Bosch)
Opel
Combo since model year 2018
Corsa F since 07/2019
Crossland X since model year 2017
Grandland X since model year 2017
Mokka B since 09/2020,
Vivaro C since 03/2019,
Zafira Life since 03/2019
Navi 5.0 IntelliLink 8inch (NAC low
Continental),
Multimedia Radio 7inch (RCC Bosch),
Multimedia Navi Pro 7inch,
Multimedia 8inch
Peugeot
208 since 02/2017 til 03/2019,
208 II since 06/2019,
2008 since 02/2017 til 06/2019,
2008 II since 11/2019,
308 II since 07/2017 til 06/2021,
3008 II since 10/2016,
508 since 02/2017 til 08/2018,
508 II since 10/2018,
5008 II since 02/2017,
Expert III since 03/2016,
Partner III since 06/2018,
Rifter since 09/2018,
Traveller since 09/2016
NAC or RCC with 7inch or 8inch touch
monitor. Continental or Bosch head-unit
For Continental High version an additional
cable CAB-HSD-MF026 might be required
Toyota
ProAce since model year 2016,
ProAce City since 04/2020
RCC (Bosch)

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page5
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For audio inserting, use the possibly existing factory audio-AUX-input or a
FM-modulator. If 2 AV-sources shall be connected to the infotainment, for
audio switching an additional electronic part is required.
Factory rear-view camera Automatic switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay the
switch-back, an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after
disengaging the reverse gear. A manually front camera switching is
possible by external keypad.
Video input signal NTSC video sources compatible only.
NAC high-version If the two HSD connectors cannot be separated for the reconnection of
the white HSD socket, the separately available cable CAB-HSD-MF026 can
optionally be connected here.
Guidelines and PDC Displayed guidelines and the optical PDC are not available in all vehicles.

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page6
1.3. Warning notes:
Damage to the head-unit is possible, if this RL4-NAC08 interface is installed to older
Citroen / Peugeot SMEG or SMEG+ head-units (by Magneti Marelli)! Use this RL4-NAC08
interface only on Citroen/Opel/Peugeot/Toyota head-units NAC (by Continental) or RCC
(Bosch). Designs and features –see the following pictures:

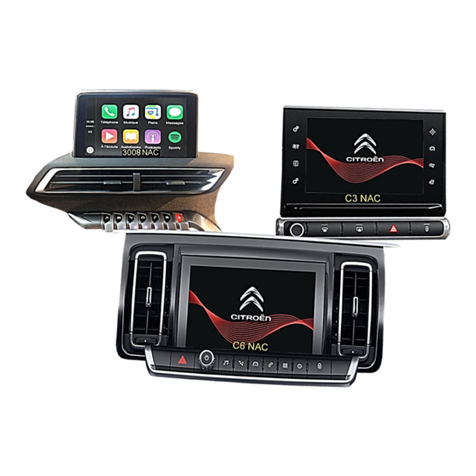

NAC-Systems
Furthermore, even when installed to the correct NAC systems, there is also damage to the
head-unit possible if:
-the 4pin HSD connectors of this harness are wrong-plugged
-the 4pin HSD harness is connected to the vehicle monitor
Prior to installation, the head-unit’s version has to be determined (see following page).

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page7
1.4. Checking the head unit’s version
Prior to installation, it has to be determined if whether the head-units version is a
low version head-unit
(single black male 4pin
HSD on backside)
Attention: Bosch Low Version requires different
Dip 8 switch position (see following chapters)
OR
high version head-unit
(double black male 4pin
HSD on the backside)
Please, carefully follow the manual for high or low version connection of the head-unit.
The monitor resolution (dip 8) is independent of the version of the head-unit. A low-
version head-unit can also have the high resolution.

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page8
1.5. Connectors - Video-Interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.
1.6. Settings of the 8 Dip switches (black)
Some settings have to be selected by the 8 dip-switches at the
video-interface. Dip position down is ON and position up is OFF.
*The front camera will automatically be switched for 10 seconds after disengaging the
reverse gear.
See the following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
Front camera
enabled
disabled
Power supply
output
(red wire)
+12V (max. 3A) when reverse gear
is engaged incl. 10 seconds delay
and +12V by manual switching to
front camera by keypad
+12V (max. 3A) ACC
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
Set to OFF
5
Rear-view cam type
after-market
factory or none
6
Frontcam
back-switching
for 10 seconds
enabled*
disabled
7
No function
Set to OFF
8
Monitor type
Low resolution monitor
High resolution monitor
If you do not know the resolution, test both settings.
Power reset after change of dip switches necessary.

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page9
1.6.1. Adjustment –power supply output (dip 1)
If set to ON, the video interfaces’ red wire will supply +12V (max 3A) with engaging the
reverse gear and additionally 10 more seconds delay for the time of the front camera’s back-
switching after the reverse gear has been disengaged. Furthermore, the red wire’s power
supply for the front cam becomes active with manually front camera switching (short press
of the external keypad).
If set to OFF, the video interfaces’ red wire will supply permanent +12V ACC (max 3A).
Description of the power supply output: see chapter “Power supply output”.
1.6.2. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed by switching through the interface’s video
sources. It is recommended to enable only the required inputs. Then the disabled inputs will
be skipped while switching through the video interfaces inputs.
1.6.3. Rear-view camera settings (dip 5)
If set to OFF, the interface switches to factory picture while the reverse gear is engaged to
display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input while the reverse gear is
engaged.
1.6.4. Activating –front camera back-switching (dip 6)
If set to ON, the interface switches for 10 seconds from the rear-view camera to the front
camera input after having disengaged the reverse gear. In addition, a manual switch-over to
the front camera input is possible via keypad (short press) from any image mode.
(Attend to correct adjustment of the power supply output (dip1)!
1.6.5. Head unit selection (Dip 8)
Dipswitch 8 is used to set the corresponding resolution of the factory monitor.
Dip switch position ON supports the low resolution monitor.
Dip switch position OFF supports the high resolution monitor.
Note: If you do not know the resolution, test both settings.
Note: Dip4 and 7 are out of function and have to be set to OFF.
After each Dip-switch-change a power-reset of the interface box has to be performed!

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page10
1.7. Settings of the 4 Dip switches (CAN function - red)
Dip position down is ON and position up is OFF.
Navigation / Sy5tem
Dip 1
Dip 2
Dip 3
Dip 4
NAC infotainments
OFF
OFF
OFF
OFF
Set all 4 dips to OFF.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
As with any installation of retrofit equipment, a stand-by test is neccessary after the
installation of the video interface, to ensure that the unit also switches off after reaching
the vehicle‘s sleep mode.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.
2.1. Place of installation –video-interface
The video-interface is performed to be installed at the head unit’s rear side.
Erfahrungswerte zu Einbauorten:
Radio/Navi in Peugeot 2008 FY 2019 vehicles: Directly behind the display.
Head Units in Peugeot 5008 and Opel Grandland X vehicles: Behind the centre console (for
this, remove the panel in the passenger footwell).

Version13.07.2023HW:CAM(V100)/(V52)RL4-NAC08
Page11
2.2. Connectionschema

Version13.07.2023HW:CAM(V100)/(V52)RL4-NAC08
Page12
2.3. Connectionstothehead-unit
Remove the vehicle’s head unit
2.3.1. Connection-picturesignal cable
2.3.1.1. Lowversionheadunit(1X4pinHSD)
Connectthewaterbluecolouredfemale4pinHSDconnector„to interface“
tothewaterbluecoloured4pinHSDconnectorofthevideointerface.
Disconnectthesinglefemale 4pinHSDconnectorof thevehicle
harnessattherearsideoftheheadunitand connect ittothe
male 4pinHSDconnectorof theenclosed4pinHSDharness.
Connectthewaterbluecolouredfemale4pinHSDconnector
tothepreviouslybecomefreeblack4pinHSDconnector atthe
rearsideof theheadunit.

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page13
2.3.1.2. High version head unit (4 X 4pin HSD)
Connect the single waterblue coloured female
4pin HSD connector of the 4pin HSD harness
to the waterblue coloured 4pin HSD connector
of the video interface.
Disconnect the vehicle harness’ female double 4pin HSD
connector at the head unit’s rearside, separate
the white 4pin HSD connector from the
black one and again connect the single
white 4pin HSD connector to the
head-unit’s same male 4pin HSD
connector, where it has been connected before.
Special case: If the two HSD connectors cannot be separated
for the reconnection of the white HSD socket, the cable
CAB-HSD-MF100 or CAB-HSD-MF026 can optionally be connected here.
Connect the female black single 4pin HSD connector to the waterblue coloured
male 4pin HSD connector of the 4pin HSD harness.
Connect the opposite waterblue coloured female 4pin HSD connector of the 4pin HSD
harness to the previously become free male 4pin HSD connector of the head-unit.
Attention: The picture’s representation of the double 4-pin HSD connector may be reversed.
Make sure that the white 4pin HSD connector is reconnected to the same position of the
head unit, where it has been connected before!

Version 13.07.2023 HW: CAM(V100)/(V52) RL4-NAC08
Page14
2.3.2. Connection –Power / CAN
Disconnect the female PSA Quadlock connector at the rearside of the head unit and click out the
green female 22pin connector of the female PSA Quadlock connector.
Connect the singel four cables of the POWER / CAN cable to +12V ACC/S-contact (terminal 15/86s)
and exactely to the 22pin connector’s shown chambers, as the vehicle’s cable colours may vary!
Connect the power / CAN cable’s female 10pin connector to the 10pin connector of the
video interface.

Version13.07.2023HW:CAM(V100)/(V52)RL4-NAC08
Page15
2.3.3. Installationwithanalogueconnection(withoutCAN-Bus)
Connectthefemale12pinconnectorofthe12pininterfacecabletothemale12pin
connector ofthevideointerface.
Connect the 12pin interface cable’s purple colouredwire ManualACC to+12VACC orto
+12VS-contactterminal86s+12V(e.g. glovecompartmentillumination).

Version13.07.2023HW:CAM(V100)/(V52)RL4-NAC08
Page16
2.4. Powersupplyoutput
TheredpowersupplyoutputACC/frontcamout12V(max3A) canbeusedtopower an
externalsource andhas adifferentassignmentdependingon theposition ofdipswitch1
(oftheblack8dips):
Dip
Function
Dip1 ON
+12V(max. 3A) whenreverse gearis engagedincl.10seconds
delay afterreversegearisdisengagedand
+12Vby manualswitchingtofrontcamera by keypad(short
press)
Dip1 OFF
+12V(max. 3A) simulatedACC(while CANhasactivity)

Version13.07.2023HW:CAM(V100)/(V52)RL4-NAC08
Page17
2.5. Connection- videosources
Itis possibletoconnecttwoafter-marketvideo-sources, anafter-marketrear-viewcamera
andanafter-marketfrontcameratothevideo-interface.
Connect the 12pin interface cable’s female 12pin connector to the male 12pin connector of
thevideo-interface.
ConnectthevideoRCAoftherear-view camera to the 12pin interface cable’s female
RCAconnector„Reverse V4.
Connect the front camera’s video RCA connector to the 12pin interface cable’s female
RCAconnector„Front V3“.
ConnectthevideoRCAoftheAV source 1and 2tothe12pininterfacecable’s female RCA
connector“Left (V1)” and”Right (V2)”.

Version13.07.2023HW:CAM(V100)/(V52)RL4-NAC08
Page18
2.5.1. Audioinsertion
This interface canonlyinsertvideosignals intothefactory infotainment.IfanAVsource is
connected,theaudioinsertionhas tobeperformedby a factoryauxinputor anFM
modulator.Theinsertedvideo-signal canbeactivatedsimultaneouslytoeach audio-modeof
thefactory infotainment.
If 2AV-sources shall beconnectedtotheinfotainment,foraudioswitchinganadditional
electronicpartisrequired.
2.5.2. After-marketfrontcamera
TheredpowersupplyoutputACC/frontcamout12V(max3A)canbeusedtopower
afrontcamera. IfDip1issettoON (oftheblack8dips),thepower supplyoutput
supplies +12V(max3A)whenthereversegearis engagedandadditionally
10secondsdelayafterreverse gearis disengaged.
Note: Inaddition,amanual switch-overtothefrontcamera inputis possible viakeypad
(shortpress)fromany imagemode.Thepower supplyoutputsupplies +12Vthen,too(if Dip
1is settoONandthefront camerainput isselected).

Version13.07.2023HW:CAM(V100)/(V52)RL4-NAC08
Page19
2.5.3. After-marketrear-viewcamera
Some vehicles haveadifferentreverse gearcode ontheCAN-buswhichthevideo-interface
is notcompatible with. Therefore,therearetwodifferent waysofinstallation. Ifthevideo
interface receives asignalof thereverse gear, thegreenwire“Reverse-OUT” ofthe20pin
cable shouldcarry +12Vwhile thereverse gearis engaged.
Note:Donot forget tosetdip5of thevideo-interface toON beforetesting.
2.5.3.1. Case 1: Videointerface receivesthereverse gearsignal
If theCAN-businterface receives+12Vonthegreenwire of the20pincablewhenreverse
gearis engaged,itwill automatically beswitchedtotherear-view camera input “Camera IN”
while reversegearis engaged.
The12Vpowersupplyfor therear-viewcamera(max3A) has tobetakenfromthe
greenwireof the20pincable toavoidanunnecessary,permanentpower supplyto
thecamera electronic.
Fortheoperation,both greencables “Reverse IN” and“Reverse OUT” have toremain
connected.

Version13.07.2023HW:CAM(V100)/(V52)RL4-NAC08
Page20
2.5.3.2. Case 2: Videointerface does notreceivethereverse gearsignal
If thevideointerfacedoes notreceive+12Von thegreenwireofthe20pincablewhen
reverse gearis engaged(not all vehicles arecompatible),anexternal switchingsignal from
the reverse gear light is required. As the reverse gear light’s power supply isn’t voltage-
stableall thetime, anordinary openrelay (e.g AC-RW-1230withwiringAC-RS5) orfilter(e.g.
AC-PNF-RVC)is required. Thediagram belowshowstheconnection typeoftherelay.
Disconnect the green cable’s pre-connectedmale- and femaleconnectorsofthe
20pincableandconnectthegreeninputcable “Reverse-IN” totheoutputconnector
(87) oftherelay.
Note: Not leasttoavoidshortcircuits,thebestsolutionshouldbe, tocrimpamale
4mm connector to the relay’s output cable and connect it to the green cable’s female
4mmconnector. Theoutput-cable“Reverse-OUT” remains disconnected as it’s out of
function.
Connect the Reverse light’s power-cabletocoil (85) and the vehicle’s ground to coil
(86) oftherelay.
Connecttheoutputconnector (87) of therelay totherear-view camera’s power-
cable, likeyoudidittothegreen“Reverse-IN” cable before.
Connect permanent power / 12V to the relay’s inputconnector(30).
