Car-Interface c.LOGiC CI-C2-MK-CD User manual

Version 20.09.2017 CI-C2-MK-CD
c.LOGiC Interface
CI-C2-MK-CD
Compatible with BMW Professional navigation
systems
without iDrive (MK2-MK4)
Product features
• Full plug and play multimedia interface
• 2 AV-inputs with separate IR-control channels
• control of after-market devices, e.g. DVB-T tuner, DVD-player, DVD-changer, …
• after-market rear-view camera input (optional adapter is necessary)
• automatic switching to after-market rear-view camera input
• rear-view camera power (+12V max. 1A)
• Rear-seat-entertainment video-output for Video-sources connected to the c.LOGiC
• power-on remote-out trigger-signal (+12V max. 1A) to switch on connected devices
• video-in-motion

Version 20.09.2017 CI-C2-MK-CD
Page1
Contents
1. Prior to Installation
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
2. Connection schema
3. Installation
3.1. Interconnecting interface-box and harnesses
3.2. Connections to the navigation computer or –if existing –to the TV-tuner
3.3. Connections to radio module
3.3.1. Exceptional Case –Vehicles with factory DSP amplifier
3.3.2. Radio module with Quadlock connector WITH factory CD-changer
3.3.3. Radio module with Quadlock connector WITHOUT factory CD-changer
3.3.4. Radio module with round-pin connector WITH factory CD-changer
3.3.5. Radio module with round-pin connector WITHOUT factory CD-changer
3.4. Connecting peripheral devices
3.4.1. AV-source(s)
3.4.2. Installing AV-source’s IR-sensor additionally
3.4.3. After-market rear-view camera
3.4.4. After-market rear-seat-entertainment
3.5. System settings/VI SETTINGS
3.5.1. Audio settings
3.5.2. Assigning device control for connected AV-source
3.5.3. Rear-view camera function
3.6. DIP switch settings
4. Operation
4.1. Activation of the video-in-motion function
4.2. Selecting the c.LOGiC as current AV-source
4.3. Switching to c.LOGiC and factory CD-changer
4.4. Switching to AV1 and AV2
4.5. Picture settings
4.6. Button assignment table
5. Specifications
Appendix A –Device control table

Version 20.09.2017 CI-C2-MK-CD
Page2
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
If remote function for a peripheral device shall be used, additional an IR-
Remote cable and Y-adapter are needed, see chapter AV-source(s) .
Take down the SW-version and HW-version of the interface boxes, and store this
manual for support purposes.

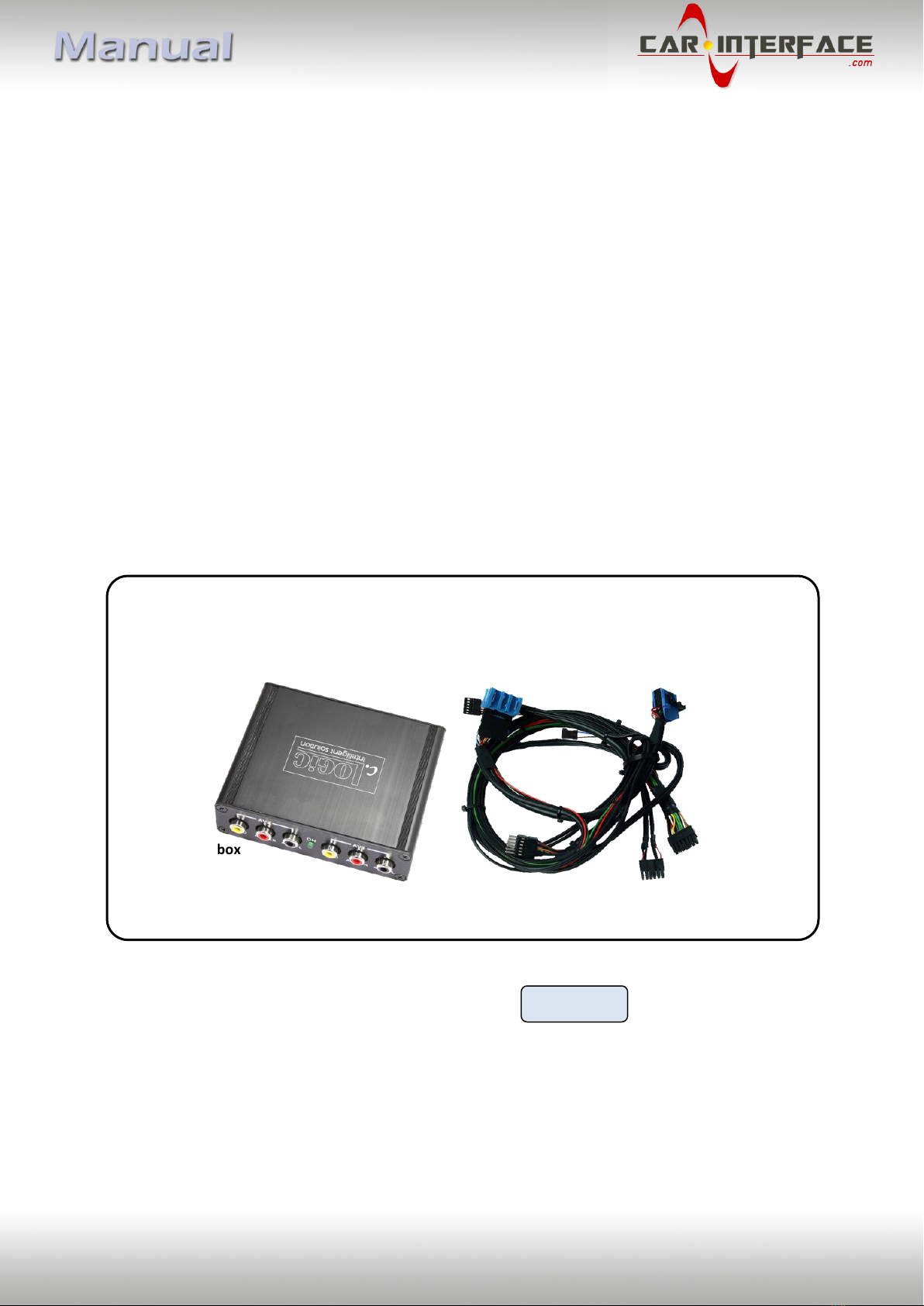

Interface-box
C2C-M700
HW_____ SW_____
Harness
C3C-BM701

Version 20.09.2017 CI-C2-MK-CD
Page3
1.2. Check compatibility of vehicle and accessories
Requirements
Vehicle 3series (E46), 5series (E39), 7series (E38), X5 (E53), X3 (E83), Z4
(E85/86)
without AUX-input at the radio module (till approx 09/2002),
Land Rover Range Rover (Vogue) L322 model years 2002-2005
Navigation Navigation system Professional without iDrive (MK2-MK4)
Navigation system Professional MK3 in Land Rover
Limitations
Factory DSP amplifier With an existing factory DSP amplifier see chapter 3.3.1. before
beginning the installation!
After-market rear-view BMW vehicles compatible with NTSC-cameras only.
camera

Version 20.09.2017 CI-C2-MK-CD
Page4

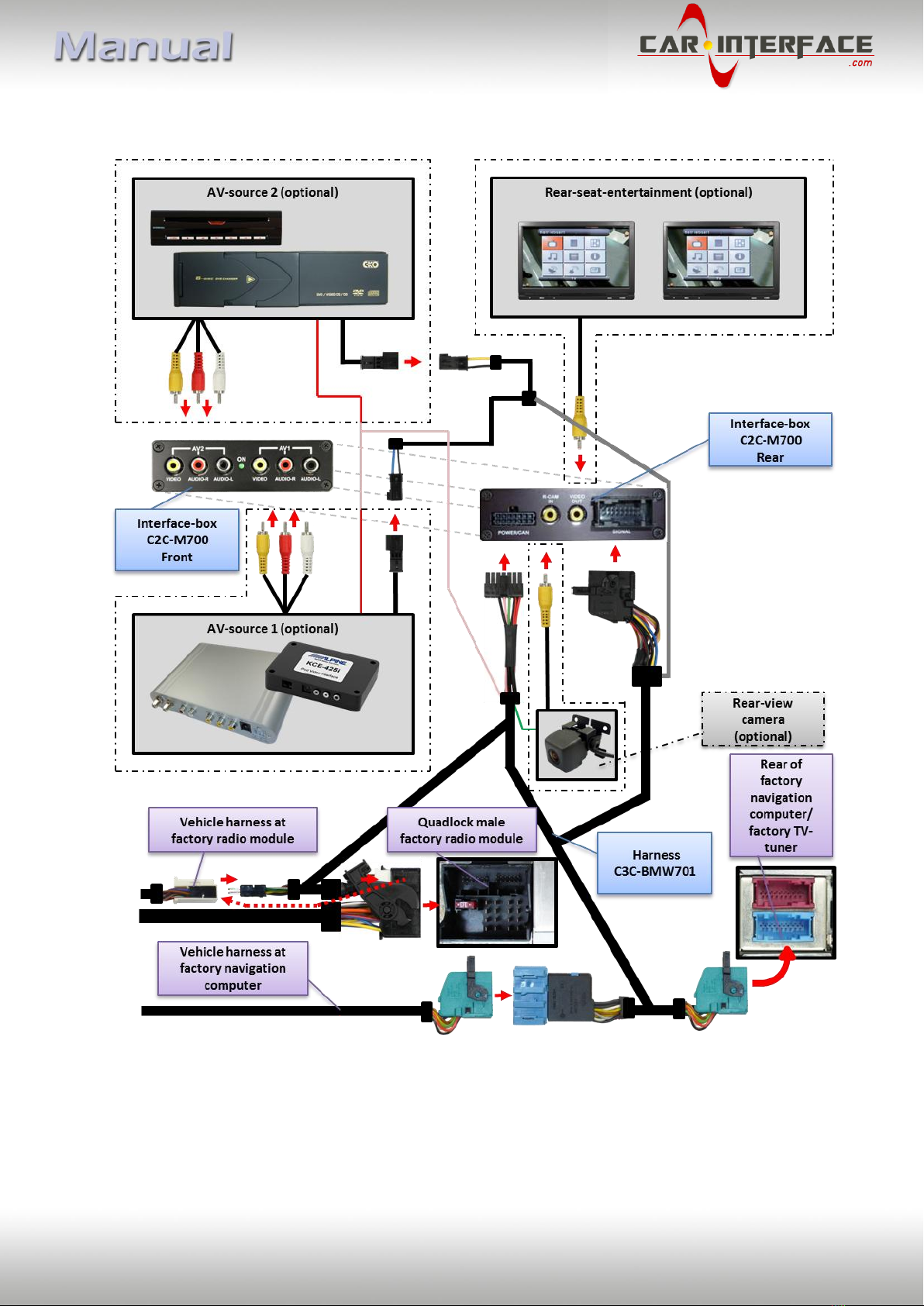

2. Connection schema

Version 20.09.2017 CI-C2-MK-CD
Page5
3. Installation
Switch off ignition and disconnect the vehicle’s battery! If according to factory rules
disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in
sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a
resistor lead.
Place of installation is at the navigation computer or the factory TV-tuner (if existing and not
removed) and at the radio module.
If there is a factory TV-tuner inside the car, you have to connect the harness C3C-BM701 to
the TV-tuner and not to the navigation computer!
The radio module and navigation computer are located at the rear end for the 3series (E46),
5series (E39) and 7series (E38) on the left hand side the radio module of the 7series is
located behind lining in the car wing).
The X5 (E53) radio module is located underneath the
boot lining, next to the battery.
The navigation computer is located on the left hand side
behind the boot lining.

Version 20.09.2017 CI-C2-MK-CD
Page6
3.1. Interconnecting interface-box and harnesses
Plug harness C3C-BM701 into 14pin of interface-box C2C-M700.
Plug female 18pin AMP connector of C3C-BM701 into male 18pin AMP connector of
interface-box C2C-M700.

Version 20.09.2017 CI-C2-MK-CD
Page7

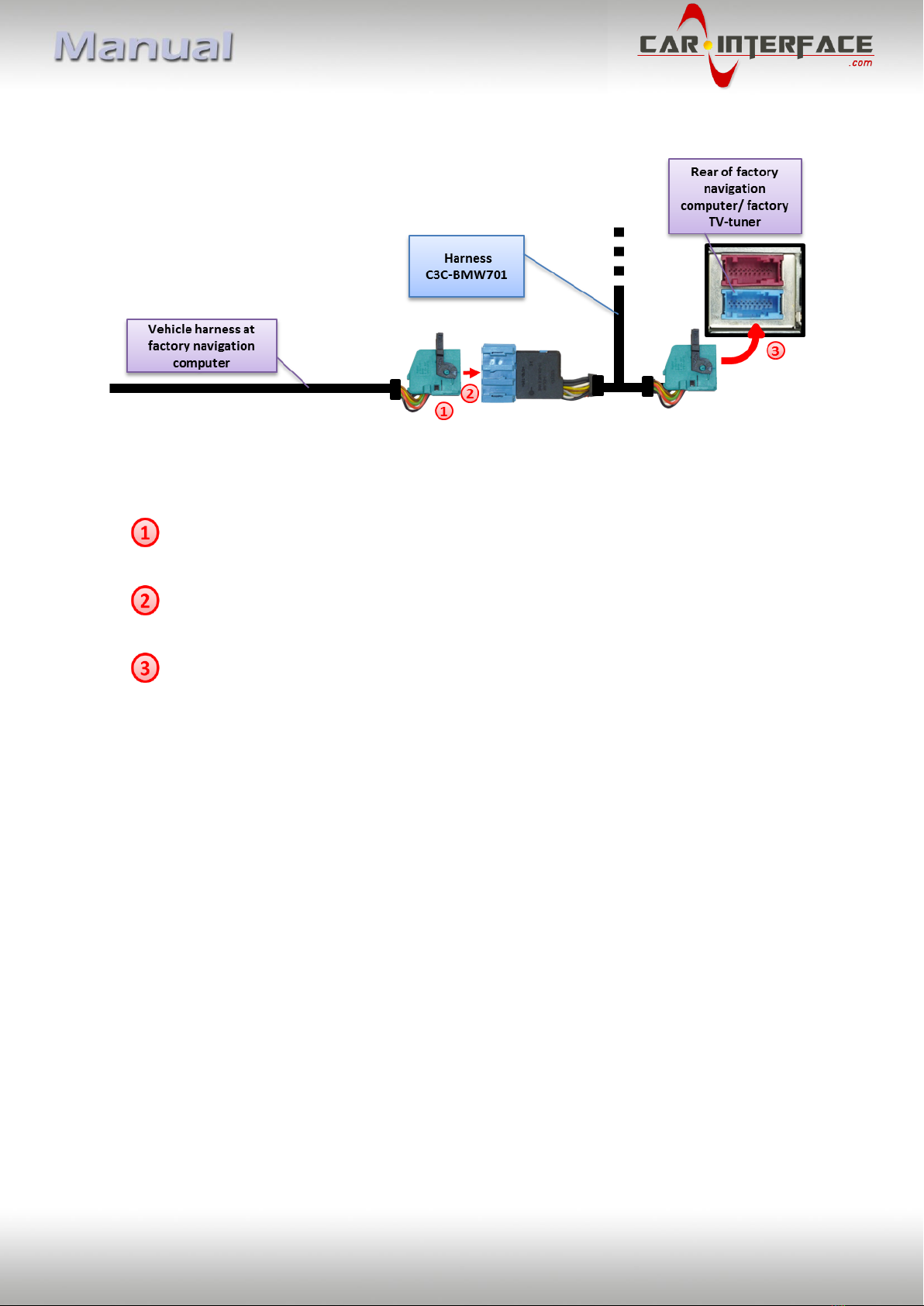

3.2. Connections to the navigation computer or –if existing –to the TV-tuner
If there is a factory TV-tuner inside the car, you have to connect the harness C3C-BM701 to
the TV-tuner and not to the navigation computer!
Disconnect blue female 18pin connector of vehicle harness from the back of the
navigation computer or the factory TV-tuner (if existing and not removed).
Plug blue male 18pin AMP connector of harness C3C-BM701 into blue female 18pin
AMP connector of vehicle harness.
Plug blue female 18pin AMP connector of harness C3C-BM701 into blue male 18pin
AMP connector of navigation computer or of the factory TV-tuner (if existing and not
removed).
Note: If an existing factory TV-tuner will be removed the optionally available harness
CAB-BMW200 is necessary!

Version 20.09.2017 CI-C2-MK-CD
Page8
3.3. Connections to radio module

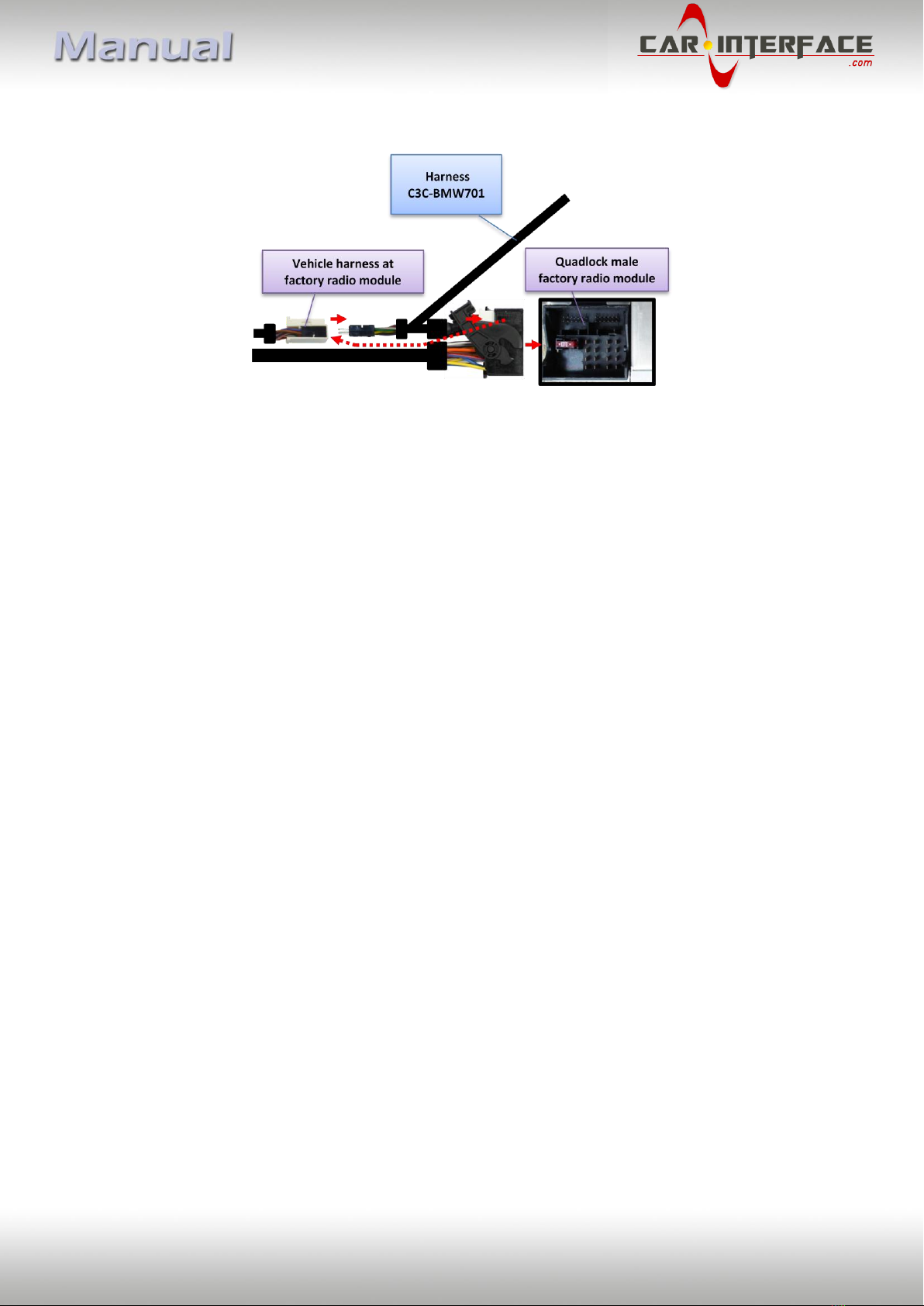

Picture exemplary for vehicles with Quadlock connector at factory radio module.
3.3.1. Exceptional case –Vehicles with factory DSP amplifier
If the vehicle is with factory DSP amplifier, it is possible, that the CD-changer sound is not
connected to the analogue input of the radio module, but to the digital input (44.1khz) of
the factory DSP amplifier. In this case an analogue-digital converter or a digital output
(44.1khz) of the source(s) is required and this part of the manual (connection at the radio
module) can be skipped.
If the factory CD-changer is installed, it is possible to check prior to installation of the
interface whether it is connected to the factory DSP amplifier with a digital coax cable. If no
factory CD-changer is installed, it is possible to check whether the factory DSP amplifier has a
digital connector (SMB). If so, it is only possible to check whether the system is coded to
analogue or digital by try-and-error.

Version 20.09.2017 CI-C2-MK-CD
Page9
3.3.2. Radio module with Quadlock connector WITH factory CD-changer
Loosen the female Quadlock connector to the radio module.
Loosen the white female 12pin connector from chamber A of the
female Quadlock connector.
Push the insert from female 12pin connector’s plastic cap
from the side.
Connect the female 12pin connector of the vehicle harness to the
male 12pin connector of harness C3C-BM701. Make sure that the
arrows on both black plastics are on the same side and pointing in
opposite directions.
Insert the female 12pin connector of harnessC3C-BM701 into the
white cap and connect it back into the female Quadlock connector.
Connect the female Quadlock connector back into the radio
module.
3.3.3. Radio module with Quadlock connector WITHOUT factory CD-changer
Installation is analogue to system with factory CD-changer. Only there is no female 12pin
connector on the vehicle harness. The male 12pin connector of harness C3C-BM701 is not
used and should be isolated.
Vehicle female
12pin connector
C3C-BM701
12pin connector
Vehicle
female 12pin
connector
Vehicle
female 12pin
connector
Buchse
C3C-BM701
female 12pin
connector

Version 20.09.2017 CI-C2-MK-CD
Page10

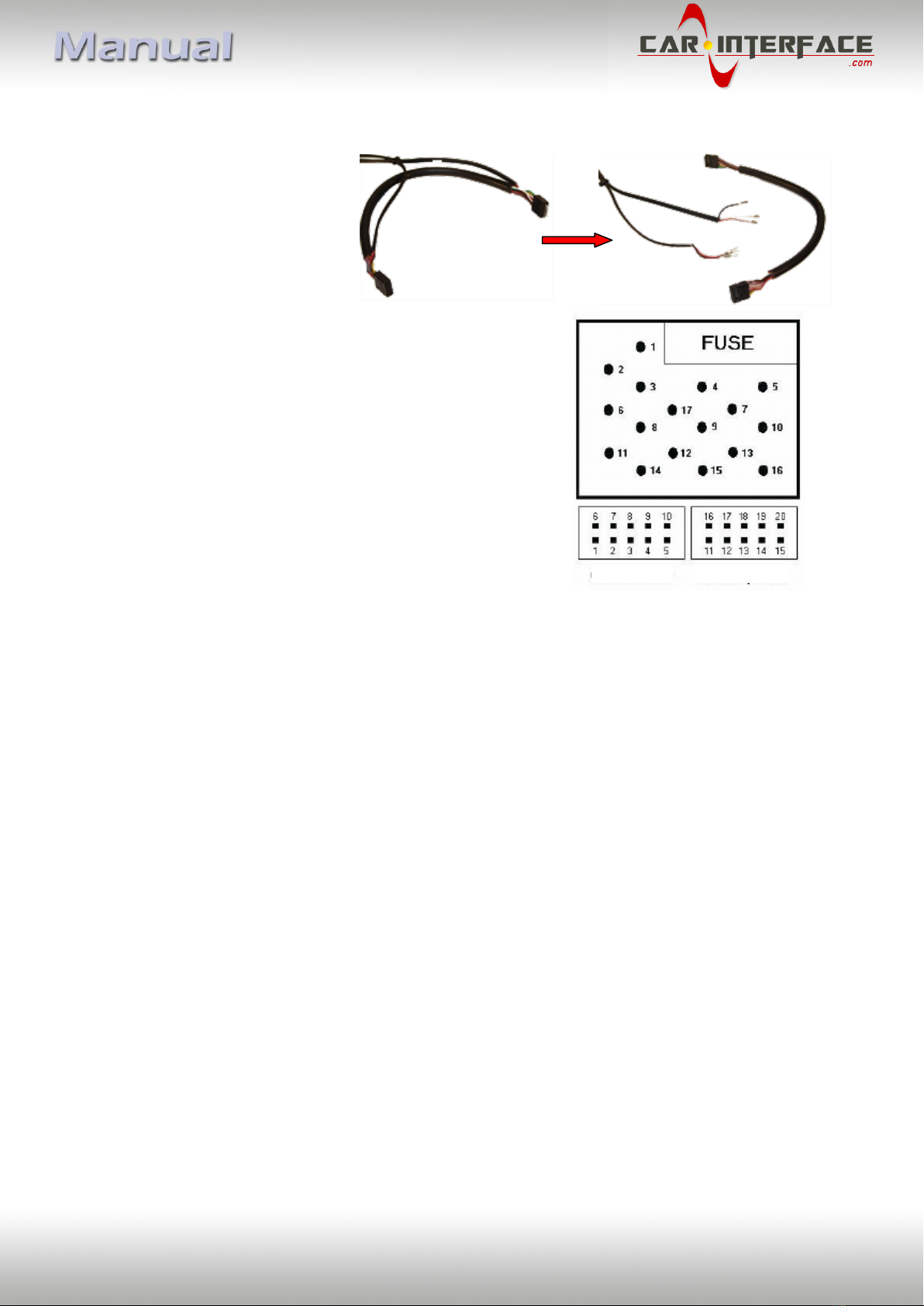

3.3.4. Radio module with round-pin connector WITH factory CD-changer
Disconnect the audio cable
from harness C3C-BM701
and remove pins from female
and male 12pin connector.
Loosen the female round-pin connector from the radio
module. Loosen the female 10pin CD-changer connector
of vehicle harness of the female round-pin connector.
Pin the female pins of the audio cable of harness
C3C-BM701into the female 10pin CD-changer connector
and connect the corresponding female pins of the vehicle
harness to the male pins of the audio cable of harness
C3C-BM701. Make sure to isolate all connections.
Use following assignments:
Interface Audio-cable Pin to female
10pinconnector
Red Pin 2
White Pin 1
Black Pin 6
Connect female 10pin CD-changer connector into female round-pin connector and female
round-pin connector back to the radio module.
3.3.5. Radio module with round-pin connector WITHOUT factory CD-changer
Installation is analogue to system with factory CD-changer installed. Only there is no female
10pin connector on the vehicles harness. Shorten the female 12pin connector for two
chambers (after expelling all the pins). Obeying the above pin-configuration, pin the female
pins of the audio cable of harness C3C-BM701 into the 10pin shortened female connector.
The male pins of the audio cable of harness C3C-BM701 are not used and should be isolated.
Connect female round-pin connector to radio module. Connect the shortened female10pin
connector of harness C3C-BM701 to the CD-changer port of the radio module while making
sure that the correct pins are used. Fasten the female 10pin connector in the round-pin
connector to avoid later disengagement.
CD-changer
Soundsystem

Version 20.09.2017 CI-C2-MK-CD
Page11
3.4. Connecting peripheral devices
It is possible to connect up to 2 after-market AV-sources, after-market rear-view camera and
rear-seat-entertainment to the c.LOGiC.
Before final installation of the peripheral devices, we recommend to test-run the c.LOGiC
functions to detect incompatibility of vehicle, navigation, factory accessories or peripheral
devices as soon as possible.
3.4.1. AV-source(s)
The c.LOGiC interface has the possibility to connect and remotely control by navigation
buttons up to 2 pre-programmed devices. The device list in the device control table shows
the pre-programmed remote channels and the related IR-remote cables STA-xxx which must
be ordered separately for the control of the device.

Version 20.09.2017 CI-C2-MK-CD
Page12
Using the respective STA-xxx IR-control cable, interconnect the blue (yellow) female
3pin AMP connector of harness C3C-BM701 and the IR-port of the AV-source 1 (AV-
source 2).
Using an RCA-cable, interconnect the female RCA-port AV1 (AV2) of the interface-box
C2C-M700 with the AV-output of the AV-source 1 (AV-source 2).
The pink ACC-output wire (+12V max. 1A) of harness C3C-BMW0x can be connected
to the ACC-input wires of the connected devices to switch it on. It carries +12V when
the navigation computer is running.
3.4.2. Installing AV-source’s IR-sensor additionally
Additionally to the control via OEM navigation, it is possible to install the original IR-sensor
of a connected device. By using the respective Y-adapter (e.g. STA-Y35MM or STA-RJ12) for
the IR-Port of the connected device, the controls of navigation AND device’s IR-sensor can be
connected and used simultaneously. Installation of the IR-sensor is recommended as the
controls via navigation are limited, and not all functions may be covered.
3.4.3. After-market rear-view camera
Connect the video RCA of the after-market rear-view camera to the female RCA
connector R-CAM IN of interface-box C2C-M700.
Connect the green wire of C3C-BM701 to the camera power supply (+12V max. 1A)
The green wire is high (+12V) when reverse gear is engaged.
Note: BMW vehicles compatible with NTSC cameras only.

Version 20.09.2017 CI-C2-MK-CD
Page13
3.4.4. After-Market rear-seat-entertainment
Using RCA-cables, connect the rear-seat-entertainment to the female RCA-connector
VIDEO OUT of interface-box C2C-M700.
Note: As the output is a full output, not shared with the video signal for the
navigation system, splitting the video with an RCA Y-cable might give a good enough
picture for two rear-seat-entertainment monitors. If not, or if connecting more than
two monitors, use a video splitter.
3.5. System settings/VI SETTINGS
You must make some settings in the “VI SETTINGS“ menu
to enable the c.LOGiC’s functions.
Press 3x the “MENU“ key to access the “VI
SETTINGS“ menu of the c.LOGiC.
Use the right knob to make changes
within the “VI SETTINGS“ menu.
Press 1x the “MENU“ key to exit the “VI
SETTINGS“ menu.

Version 20.09.2017 CI-C2-MK-CD
Page14
3.5.1. Audio settings
It is necessary to set some audio settings to use the c.LOGiC interface.
On vehicles WITH factory CD-changer
set the audio setting to "CD" and "CD EMU OFF“.
On vehicles WITHOUT factory CD-changer
set the audio setting to "CD" and "CD EMU ON".
3.5.2. Assigning device control for connected AV-sources
Select control levels setup “CH1:RCxx” for AV1 and “CH2:
RCxx” for AV2 in the “VI SETTINGS“ menu and assign
related IR-codes as described in device control table by
turning the right knob.
Note: The IR-control channel CH1 is preset to RC-Code 41
compatible DVB-T tuners and CH2 is preset to RC-Code 09
for the usbLiNK.
3.5.3. Rear-view camera function
Set the rear-view camera setting to “RVC: ON“ to use the
rear-view camera input of the c.LOGiC. After the setting
the automatic switching to rear-view camera input is
activated when reverse gear is engaged.
Note: After the reverse gear is disengaged, the monitor
stays on camera video until the vehicle reaches a speed of
10 km/h. To leave the camera video press the right knob.

Version 20.09.2017 CI-C2-MK-CD
Page15
3.6. DIP switch settings
The default DIP switch setting is (already set):
Check after installation the LED status on the C2C-M700
interface. For this, turn off the ignition. After about 1-5min.
the status LED should turn off. If the status LED should not
turn off, open the C2C-M700 housing, set the DIP switch
“3” to OFF and connect the open white/black wire from
C3C-M701 harness with ignition (+12V).
1+2 =OFF , 3 = ON
(default setting)
1+2+3 =OFF
(special case)

Version 20.09.2017 CI-C2-MK-CD
Page16
4. Operation
4.1. Activation of the video-in-motion function
The video-in-motion function is permanently active without disturbing the navigation
performance.
4.2. Selecting the c.LOGiC as current AV-source
Selecting the c.LOGiC as current AV-source is activated by pressing the
“MODE”-button (depending on the current mode of the system, it has
to be pressed several times). After the first activation the system will
switch the picture after a few seconds from c.LOGiC-video to factory-
video by itself, the audio will still stay on c.LOGiC-audio. Use the
picture switch button to select between factory-video and c.LOGiC-
video. You can leave the c.LOGiC mode by pressing the “FM” or the “MODE” button.
4.3. Switching to c.LOGiC and factory CD-changer
The c.LOGiC and the factory CD-changer share a common address. The factory CD-changer
can be used only when the c.LOGiC is switched off. To switch the c.LOGiC off or on longpress
station button “4”.
4.4. Switching to AV1 and AV2
In c.LOGiC mode longpress station button „1” to switch to AV1 or longpress station button
“2” to switch to AV2.
4.5. Picture settings

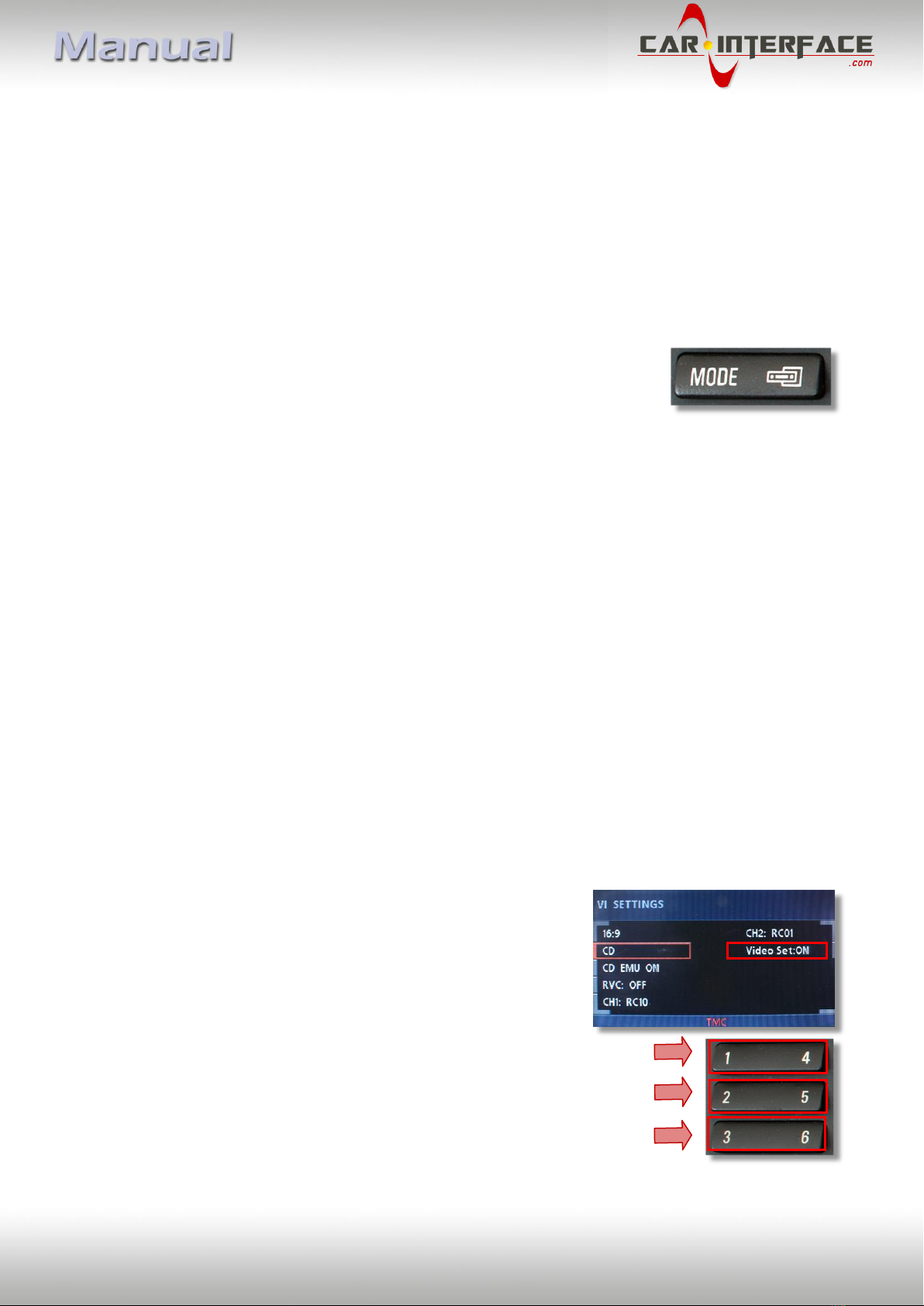

The c.LOGiC has its own picture setting mode. In order to
enter this mode, set to “Video Set:ON“ in the “VI SETTINGS“
menu. After switching to the Video/Audio level the keys
"1 <> 4" , "2 <> 5" , "3 <> 6" can be used for picture settings.
(each with short keypress).
You can deactivate the picture setting mode
in the “VI SETTINGS“ or by turning off ignition.
MODE - picture switch
button button
Contrast
Colour saturation
Brightness

Version 20.09.2017 CI-C2-MK-CD
Page17
4.6. Button assignment table
The button assignment table shows which functions of the connected devices can be
executed by navigation buttons. Once an AV-input is activated, the navigation button in the
left column will execute the function described in the corresponding device column. The
function description equals the remote control buttons of the device’s remote control. On
the additional device the writing may vary (e.g. AV instead of Source).

Version 20.09.2017 CI-C2-MK-CD
Page18
Button assignment table c.LOGiC C2-MK-CD
Navigation
button
DVB-T tuners
usbLiNK
DVD-player
DVD-
changer
iPod®-control
Analog-tuner
1
SOURCE
AV
AV
AV
Display
1 long
Selection TV/
image format
Selection
TV/
format
Selection TV/
image format
Selection TV/
format
Selection TV/
image format
Selection TV/
image format
2
OK / PLAY
PLAY
PLAY
PLAY
SCAN
2 long
Selection
AV2/
Image format
Selection
AV2/
format
Selection AV2/
Image format
Selection
AV2/
format
Selection AV2/
Image format
Selection AV2/
Image format
3
←
←
←
←
←
CH -
3 long
TEXT
EXIT
ZOOM
ZOOM
4
POWER
POWER
POWER
POWER
POWER
4 long
Interface
On/Off
Interface
On/Off
Interface
On/Off
Interface
On/Off
Interface
On/Off
Interface
On/Off
5
EXIT
MEDIA
>>
>>
>>
MUTE
5 long
SCAN
VOL +
PBC
PBC
6
→
→
→
→
→
CH +
6 long
EPG
VOL -
STOP
STOP
7
↑
↑
↑
↑
↑
VOL +
8
OK
OK / PLAY
PLAY
PLAY
PLAY/ENTER
SCAN
8 long
MENU
SETUP
SETUP
SETUP
LAMP
ADJUST
9
↓
↓
↓
↓
↓
VOL -
10
CH -
TRACK -
TRACK -
TRACK -
TRACK -
CH -
10 long
DISC
11
CH +
TRACK +
TRACK +
TRACK +
TRACK +
CH +
11 long
DISC
12
TITLE
TITLE
12 long
SUBTITLE
SUBTITLE
13
INFO
DISPLAY
DISPLAY
13 long
DTV/RADIO
AUDIO
AUDIO
Note: On vehicles with factory CD-changer the control by number keys 1-6 is only possible if
the CD-changer magazine is equipped with 6 discs!

Version 20.09.2017 CI-C2-MK-CD
Page19
5. Specifications
Operation voltage 10.5 –14.8V DC
Stand-by power drain <1mA
Operation power drain 230mA
Power consumption 3W
Temperature range -30°C to +80°C
Weight 202g
Measurements (box only) B x H x T 90 x 30 x 105 mm
Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered
trademarks ® of their corresponding legal owners.
