Car-Interface v.LINK VL2-MIB-3 User manual

Version23.11.2015
v.LiNKVideo-inserter
VL2-MIB-3
forVAGvehicleswith
MIBHigh/Standardinfotainmentsystems
with7”/8” or 5.8” monitors
Video-inserterwith2video+ RGB+ rear-viewcamerainputandCANcontrol
Productfeatures
Video-inserterforfactory-infotainmentmonitors
2video-inputsforafter-marketdevices (e.g.DVD-Player,DVB-T tuner, …)
Built-inaudio-switch(noaudio-insertion)
Rear-viewcameravideo-input
Automaticswitchingtorear-viewcamerainputonengagementofreverse gear
Activitableparkingguidelinesforrear-viewcamera
RGB-inputforafter-marketnavigation
Video-in-motion(ONLY forconnectedvideo-sources)
Compatiblewithfactoryrear-viewcamera
AV-inputsPAL/NTSCcompatible
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page2
Contents
1. Priortoinstallation
1.1.Deliverycontents
1.2.Checkingthecompatibilityofvehicleandaccessories
1.3.Boxesandconnectors
1.3.1.CAN-busbox
1.3.2.Video-Interface
1.3.2.1.Dip-switchsettings
1.3.2.2.Enabling the interface’s video inputs (dip1-3)
1.3.2.3.RGB-videoinputsignalselectionforafter-marketnavigation(Dip4)
1.3.2.4.Rear-viewcamerasetting(dip5)
1.3.2.5.Monitorselection(dip7-8)
1.4.Dip-switchsettings oftheCAN-box
2. Installation
2.1.Place ofinstallation
2.2.Connectionschema
2.3.Connectingvideo-interface andCAN-box
2.4.Connectiontothehead-unit
2.5.Connectingperipheraldevices
2.5.1.AftermarketRBGnavigation
2.5.2.Video-sourcestoAV1and AV2
2.5.3.Audio-switchandaudio-insertion
2.5.4.After-marketrear-viewcamera
2.5.4.1.Case1:CAN-boxdetectsreversegear
2.5.4.2.Case2:CAN-boxdoesnotdetectreversegear
2.5.4.3.Videosignalconnection

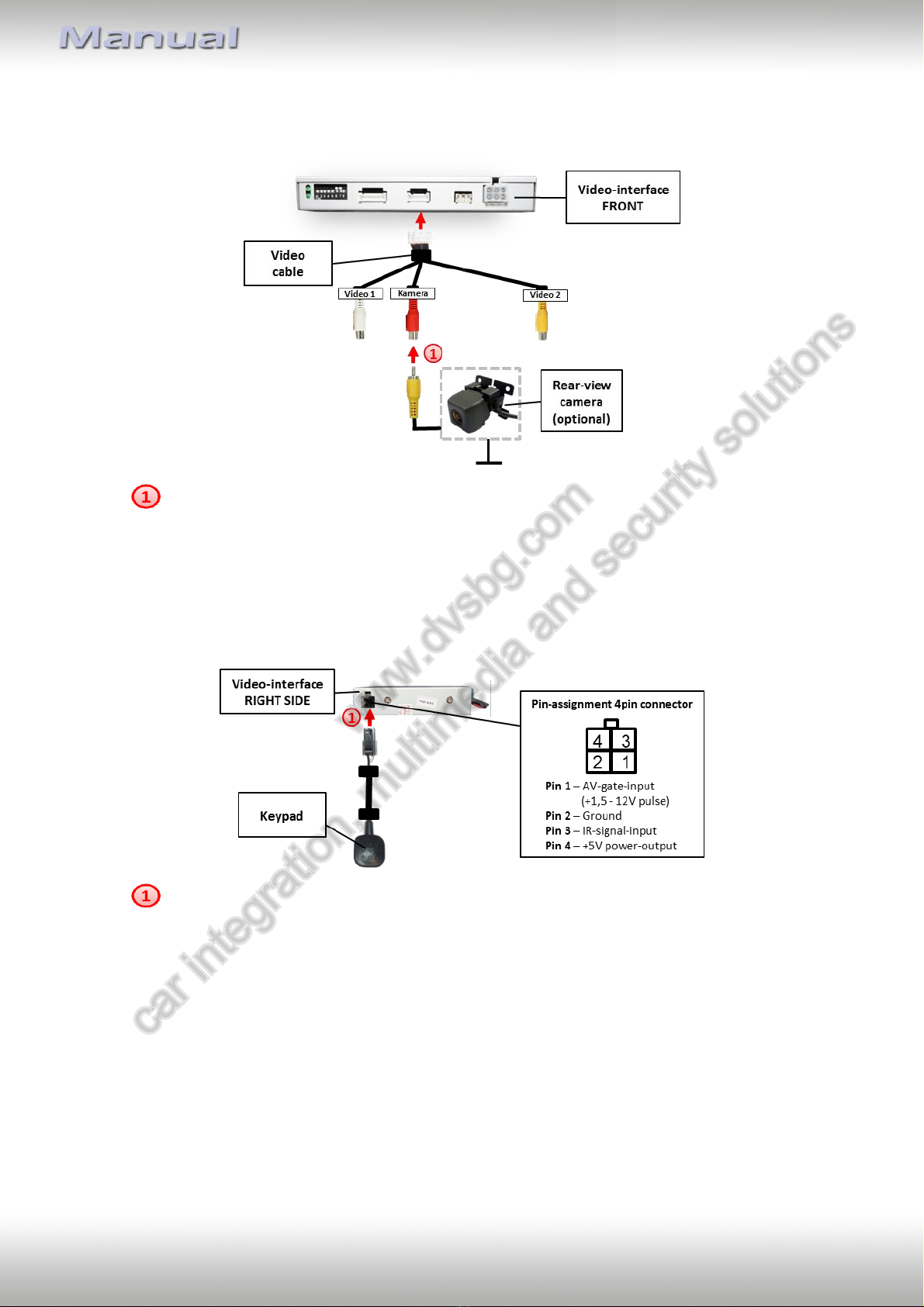

2.6.Connectingvideo-interface andkeypad
2.7.Picturesettings andguidelines
3. Interface operation
3.1.Byfactoryinfotainment button
3.2.Bykeypad
4. Specifications
5. Frequentlyasked questions
6. Technical support
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page3
LegalInformation
Bylaw,watchingmovingpictureswhiledrivingisprohibited,thedrivermustnotbe
distracted.Wedonotacceptanyliabilityformaterialdamageorpersonalinjuryresulting,
directlyorindirectly,frominstallationoroperationofthisproduct.Thisproductshouldonly
beusedwhilestandingortodisplayfixedmenusorrear-view-cameravideowhenthe
vehicleismoving,forexampletheMP3menuforDVDupgrades.
Changes/updates of the vehicle’s softwarecancausemalfunctionsoftheinterface.We
offerfreesoftware-updatesforourinterfacesforoneyearafterpurchase.Toreceiveafree
update,theinterfacemustbesentinatowncost.Laborcostforand otherexpenses
involvedwiththesoftware-updateswillnotberefunded.
1. Priorto installation
Readthemanualpriortoinstallation.
Technicalknowledgeisnecessaryforinstallation.Theplace ofinstallationmustbefreeof
moistureandawayfromheatsources.

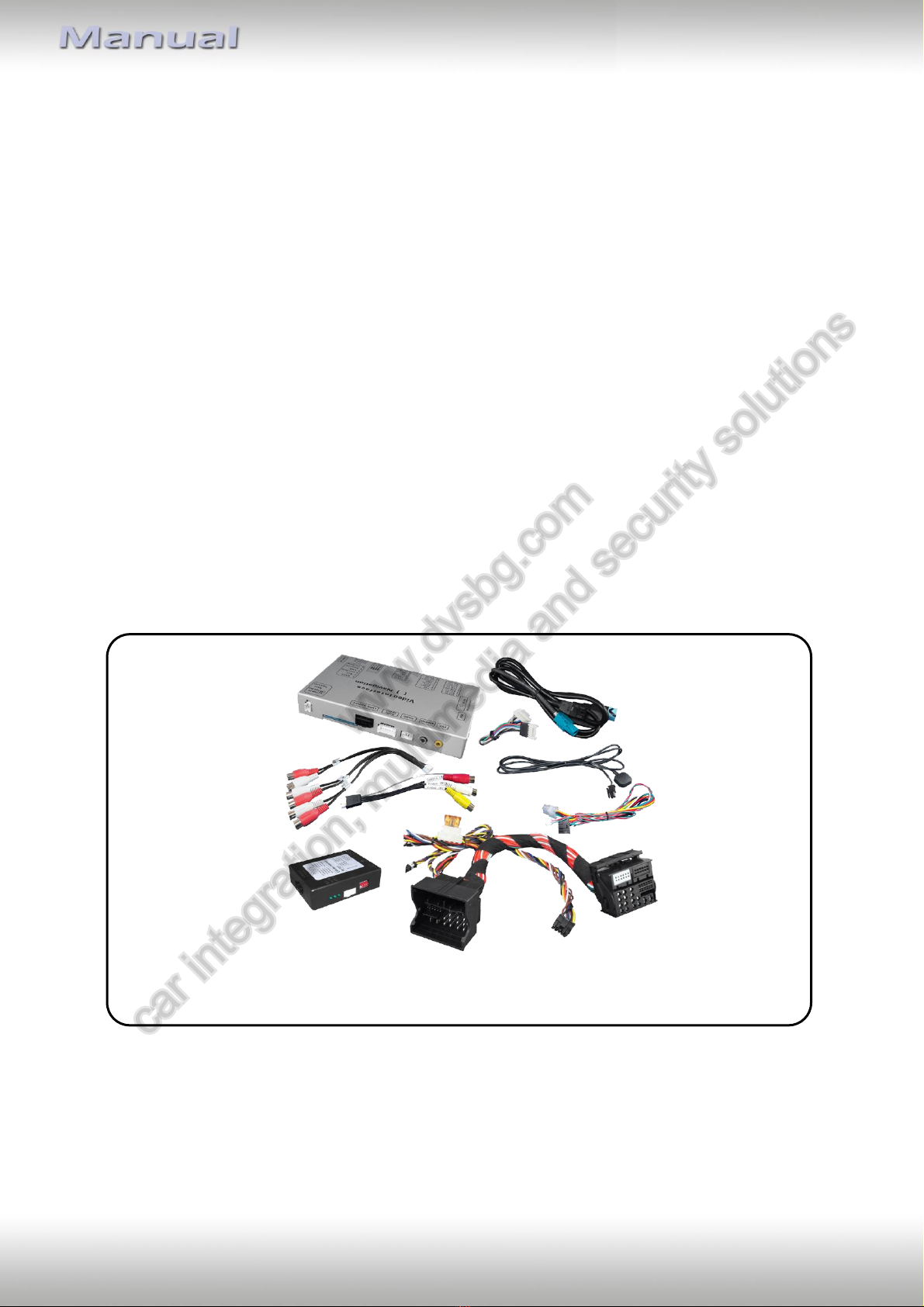

1.1. Deliverycontents
Takedowntheserialnumber oftheinterfaceand store thismanualforsupport
purposes:____________________
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page4
Requirements
VehicleAudiA3(8V),SeatLeon,SkodaOctavia3,VW Golf7,VWPolo5
(6C) andother vehicles with
Head-unit/monitorMIBHigh/Standardwith7”(Audi)respectively8”
(Seat/Skoda/VW) and 5.8” Monitor
Limitations
VideoonlyTheinterfaceinsertsONLYvideosignalsintotheinfotainment.
Forsound use thepossiblyexistingfactory-audio-AUX-input ora
FM-modulator.
Factoryrear-view camera Automaticswitch-backfrominserted videotofactory rear-view
camera onlywhilereversegear isengaged.Toextendthe switch-
backadditionalelectronicsisrequired.
1.2. Checkingthecompatibilityofvehicleand accessories
1.3. Boxes and connectors
1.3.1.CAN-busbox
TheCAN-busboxreadsdigitalsignalsfromtheCAN-busandconvertsthem forthevideo-
interface.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page5
1.3.2.Video-interface
Thevideo-interface convertstheconnectedafter-marketsourcesvideosignalstoanLVDS
signalwhichistheinsertedintothefactorymonitoroncertaintriggeroptions.
1.3.2.1.Dip-switchsettings
Some settings mustbeselectedbythedip-switchesonthe
videointerface.DippositiondownisONand positionup isOFF.
Seefollowingchaptersfordetailedinformation.
1.3.2.2.Enabling the interface’s video inputs (dip 1-3)
Onlytheenabledvideoinputscanbeaccessedwhenswitchingthroughthe interface’s video
sources.Itisrecommendedtoenableonlytherequiredinputsforthedisabledwillbe
skippedwhenswitchingthroughthevideointerfacesinputs.
Dip
Function
ON(down)
OFF (up)
1
RGB-input
enabled
disabled
2
CVBSAV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
RGB-inputresolution
VGA 800x480
RGBNTSC
400x240or480x240
5
Rear-viewcam type
after-market
factoryornone
6
Nofunction
-
setOFF
7
Nofunction
Nofuction
Tryall4possiblecombinationsofdip7and8tofind the
bestpicture(qualityandsize)
8
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page6
1.3.2.3.RGB-videoinputsignal selectionforafter-marketnavigation(Dip4)
Ifanafter-market RGB navigation or other RGB video source is connected, the source’s RGB
output signal must match the interface’s RGB video inputsetting.
1.3.2.4.Rear-viewcamerasetting(dip5)
IfsettoOFF,theinterface switchestofactoryLVDSpicturewhilethereversegearisengaged
todisplayfactoryrear-viewcameraorfactoryopticalparksystempicture.
IfsettoON,theinterfacewitchestoitsrear-viewcamerainputCAMwhilethereversegear
isengaged.
1.3.2.5.Monitorselection(dip7-8)
Dip7and 8areformonitor-specificvideosettings whichcannotbepredictedasevenwithin
thesamehead-unitversion,themonitorspecificationsmayvary.Itisnecessarytotryall
possiblecombinations(bothOFF,bothON,7OFF and8ON,7ON and8OFF)- whilea
workingvideosourceisconnectedtothechoseninputoftheinterface - toseewhich
combinationgivesthebestpicturequalityandsize(some maygivenopicture).Itispossible
tofirsthotplugthroughthedipcombinations,butifyoudonotexperienceanychangeof
pictureaftertryingall4options,retryanddisconnectedthe6pinpowerplugofthevideo-
boxbetweeneverychangeofthedipsetting.
Empirical value:
Vehicle/Navigation
Dip7
Dip8
7”/8“-monitor
OFF
OFF
5.8”- monitor
OFF
ON
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page7
1.4. Dip-switchsettingsoftheCAN-box
All4dip-switchesoftheCAN-boxhavenofunctionfornormaluse
andmustbebesettoOFF.
DippositiondownisONandpositionupisOFF.
Vehicle/Navigation
Dip1
Dip2
Dip3
Dip4
Allvehicles
OFF
OFF
OFF
OFF
Exception: BeiAnschluss derAfter-MarketNavigationNAV-FN900DüberdenRGB-Eingang
imAudiA3dientDip1zurEinstellungderSteuerungderNavigationüberdenWerks-
Controller.
NAV-FN900DinAudiA3by
RGB
Dip1
Dip2
Dip3
Dip4
Controlviacross onthe
display
ON
OFF
OFF
OFF
Directcontrol
OFF
OFF
OFF
OFF
2. Installation
Switch off ignition and disconnect the vehicle’s battery! The interface needsapermanent
12Vsource.Ifaccordingtofactoryrulesdisconnectingthebatteryistobeavoided,itis
usuallysufficienttoputthevehicleissleep-mode.Incase thesleep-modedoes notshow
success,disconnectthebatterywitharesistorlead.
Ifpowersource isnottakendirectlyfromthebattery,theconnectionhastobechecked
forbeingstart-up provenand permanent.
2.1. Place ofinstallation
Theinterface isinstalledonthebacksideofthehead-unit.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page8
2.2. Connectionschema
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page9
2.3. Connectingvideo-interface and CAN-box
Connectblackfemale10pinMicro-FitconnectoroftheQuadlockharnesstothemale
10pinMicro-FitconnectoroftheCAN-box.
Note:CheckLEDsonCAN-boxafterreconnectingthebattery,twomustbeon.
Connectwhitefemale6pinMolexconnectorofthe6pinto8pincabletothemale
6pinMolexconnectorofthevideo-interface.
Connectblackfemale8pinMicro-Fitconnectorofthe6pinto8pincabletomale8pin
Micro-FitconnectoroftheCAN-box.
Note:CheckLEDsonvideo-interface afterreconnectingthebattery,onemustbeon.
Note:Noliabilityforvehiclewirecoloursand pindefinition!
Possiblechangesbythevehiclemanufacturer.Thegiveninformationmustbeverifiedby
theinstaller.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page10

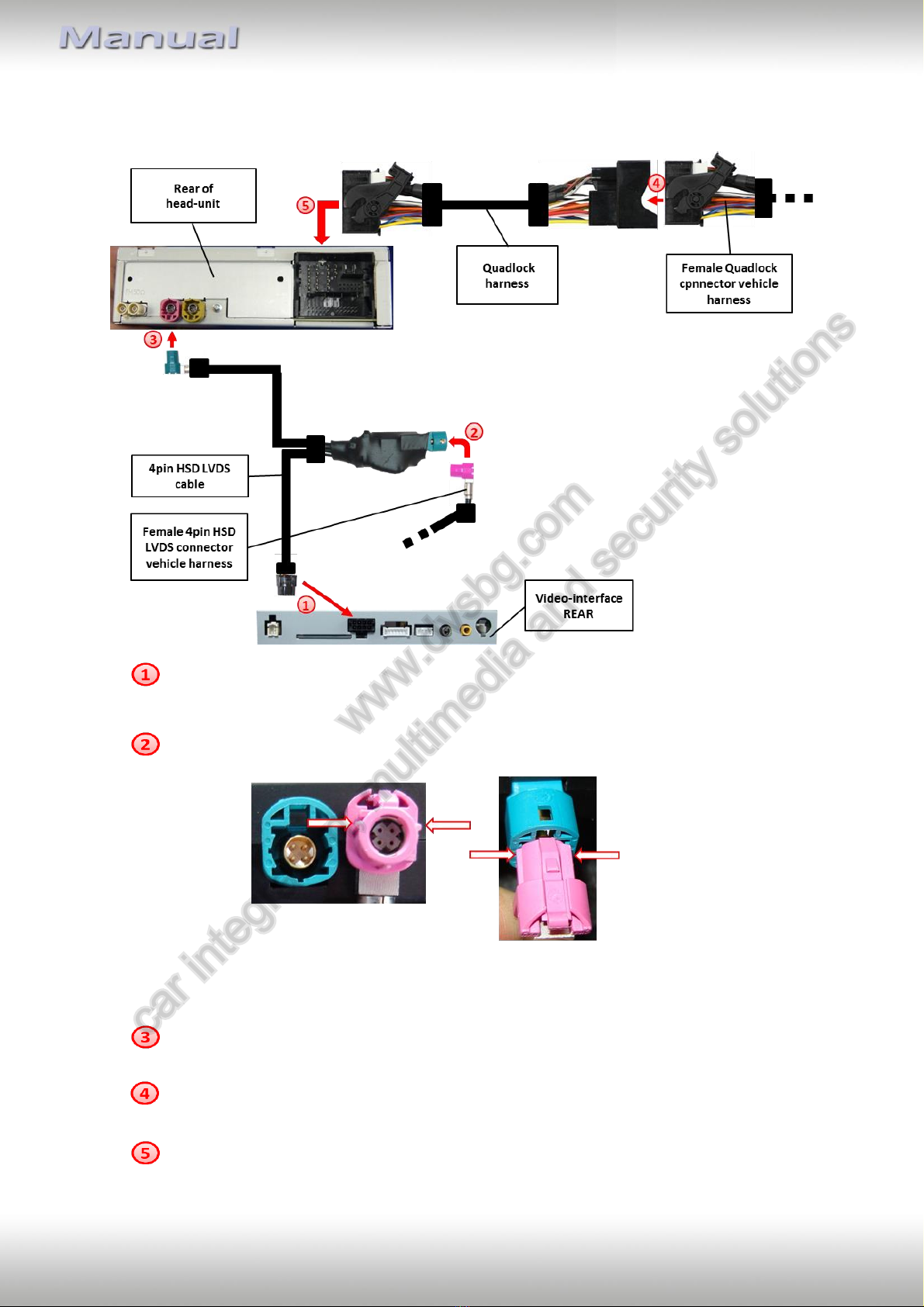

2.4. Connectionstothehead-unit
Removehead-unit.
Connectfemale8pinMicro-Fitconnectorofthe 4pin HSDLVDScabletomale8pin
Micro-Fitconnectorofthevideo-interface.
Removefemale4pinHSDLVDSconnectorfromtherearofthehead-unitandconnect
ittothemale4pinHSDLVDSconnectorofthe4pinHSDLVDScable.
Note:Themarkedlugofthefemale4pinHSDLVDSconnectorofthevehicleharness
hastobecutoffinsome vehicles!Thecolourofthefemale4pinHSDLVDSconnector
invehicles with 8” monitor is grey.
Connectfemale4pinconnectoroftheHSDLVDSinterface cabletothemale4pinHSD
LVDSconnectorofthehead-unit(pinkorgreyonVW).
RemovethefemaleQuadlockconnectorofthevehicleharnessfromtherearofthe
head-unitand connectittothemaleQuadlockconnectorofQuadlockharness.
ConnectfemaleQuadlockconnectorofQuadlockharnesstothemaleQuadlock
connectorofthehead-unit.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page11
2.5. Connectingperipheral devices
Itispossibletoconnectanafter-marketRGBnavigation(orotherRGBvideosource),2after-
marketAV-sourcesandanafter-marketrear-viewcameratothevideo-interface.
Beforefinal installationoftheperipheral devices,werecommend atest-runtodetect
incompatibilityofvehicleand interface.Duetochangesintheproductionofthevehicle
manufacturerisalwaysthepossibilityofincompatibility.

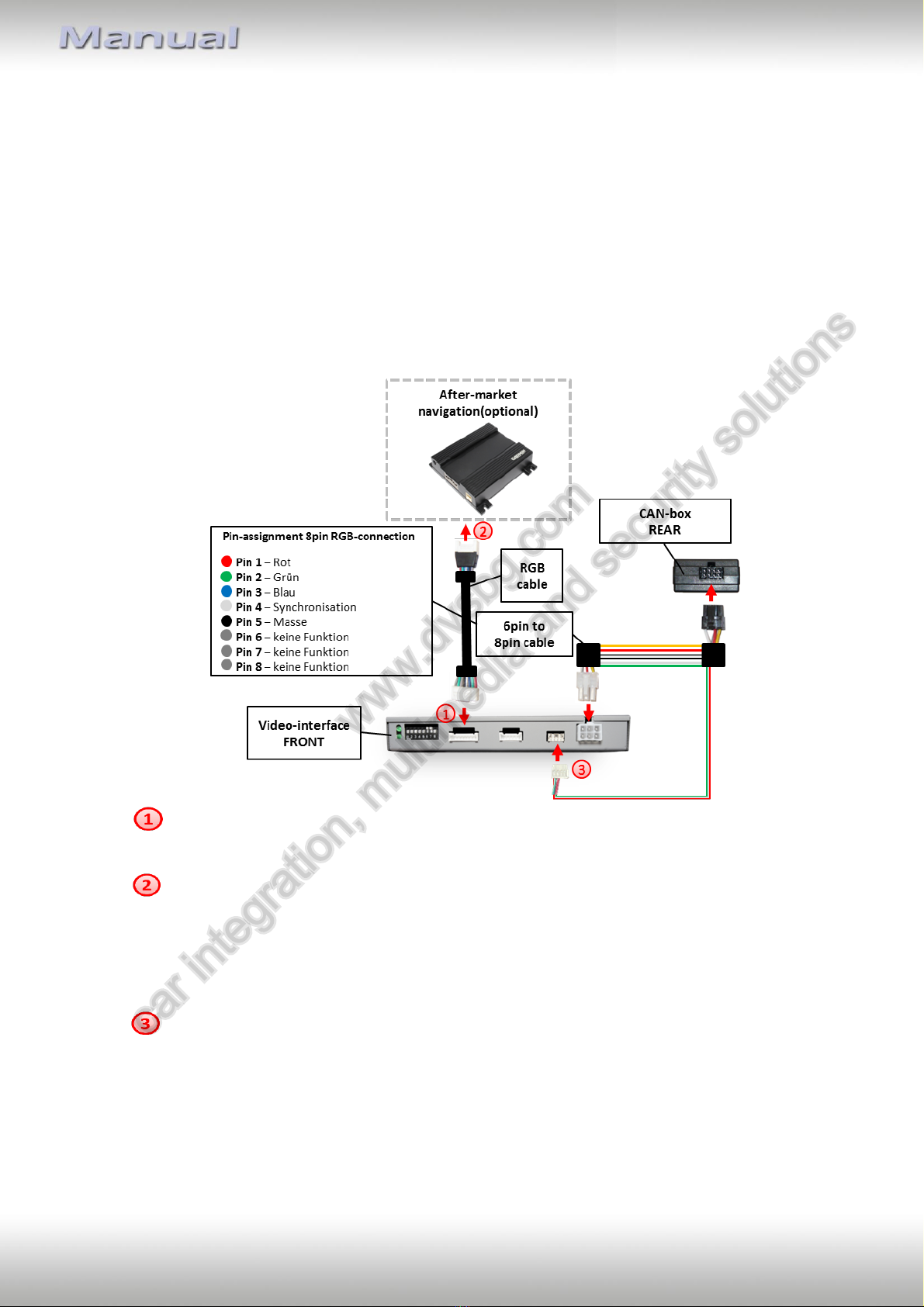

2.5.1.After-MarketRGBnavigation
Connectfemale8pinconnectoroftheRGBcabletothemale8pinconnectorofthe
video-interface.Theloosegreywireshavenofunctionandhavetobeisolated.
Connectmale6pinconnectoroftheRGBcabletotheafter-Marketnavigation.
IfconnectingtheaftermarketnavigationNAV-FN900Dthefactorytouch-screencan
beused. Please dothefollowingstep,too:
Connectfemale8pinconnectorof6pinto8pincableto8pinconnector(Ctrl)ofthe
video-interface.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page12
2.5.2.Video-sources toAV1and AV2
Connectfemale6pinconnectoroftheaudiocabletomale6pinconnectorofthe
video-interface.
ConnectvideoRCAoftheAV-source1tothefemaleRCAconnectorVideo1ofthe
videocable.
ConnectvideoRCAoftheAV-source 2tothefemaleRCAconnectorVideo2ofthe
videocable.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page13
2.6.1.Audio-switchand audioinsertion
Thisinterface canonlyinsertvideosignalsintothefactoryinfotainment andswitchaudio
signals.IfanAV-sourceisconnectedtoAV1orAV2,audioinsertionmustbedonebyfactory
audioAUX inputorFM-modulator to which the interface’s sound-switchoutputis
connected.WhentheinterfaceisswitchedfromAV1 toAV2,theaudiosignalisswitched
parallel to the corresponding video signal by the interface’s built-inaudio-switch.
Theinsertedvideo-signalcanbeactivatedsimoultaneouslytoeachaudio-modeofthe
factoryinfotainment.
Audiopins
Definition
½
AudioinputsignalR/LofsourceAV2
¾
AudioinputsignalR/LofsourceAV1
5/6
AudiooutputsignalR/LoffactoryaudioAUX
orFM-modulator
7
Ground
Note:IfonlyoneAV-sourceshallbeconnected,itispossibletoconnectthevideooutputof
theAV-sourcetothevideoinputAV1 ofthevideo-interfaceandtheaudiooutputoftheAV-
sourcedirectlytothepointofaudio-insertion(e.g.audioAUX input).
Connectfemale7pinconnectoroftheaudiocabletomale7pinconnectorofthe
video-interface.
Connecttheaudio-RCAofthepossiblyexistingfactoryAUX-inputortheFM-
modulatortothefemaleRCAportAV-Outoftheaudiocable.
Connecttheaudio-RCAoftheAV-source1tothefemaleRCAportAV1oftheaudio
cable.
Connecttheaudio-RCAoftheAV-source2tothefemaleRCAportAV2oftheaudio
cable.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page14
2.6.2.After-marketrear-viewcamera
Some vehicleshaveadifferentreversegearcodeontheCAN-buswhichtheincludedCAN-
boxisnotcompatiblewith.Thereforethereistwodifferentwaysofinstallation.IftheCAN-
boxcandetectthereversegearinthevehicle,thegreenwireofthe6pinto8pincable
shouldcarry+12Vwhilethereversegearisengaged.
Note:Donotforgettosetdip5ofvideo-interfacetoONbeforetesting.
2.6.2.1.Case 1:CAN-boxdetectsreverse gear
IftheCAN-businterface delivers+12V onthegreenwireofthe6pinto8pincablewhen
reversegearisengaged,thevideointerfacewillautomaticallybeswitchedtotherear-view
camerainputCAMwhilereversegearisengaged.
Additionally,the+12V(max.500mA) powersupplyfortherear-viewcameracanbe
takenfromthegreenwireofthe6pinto8pincable.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page15
2.6.2.2.Case 2:CAN-boxdoes notdetectreverse gear
IftheCAN-businterfacedoesnotdeliver+12Vonthegreenwireofthe6pinto8pincable
whenreversegearisengaged(notall vehiclesarecompatible) anexternalswitchingsignal
fromthereversegearlightisrequired.Asthereversegearlightsignalcontainselectronic
interference,anormallyopenrelay(e.gAC-RW-1230 withwiringAC-RS5)orfilter(e.g.AC-
PNF-RVC)isrequired.Belowschemashowstheuseofarelay(normallyopen).
Cutthegreencableofthe6pinto8pincableclosetotheattheblack8pinconnector.
Isolatetheshortendofthegreenwire(CAN-boxside).
Connectreversegearlightsignal/powertocoil(85)andgroundtocoil(86)ofrelais.
Connectrear-viewcamerapowerandgreenwire(videointerface side)of6pinto
8pincabletooutput(87)ofrelay.
Connectpermanentbatterypowertoinput(30)ofrelay.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page16
2.6.2.3.Videosignal connection
Connectthevideo-RCAoftheafter-marketrear-viewcameratothefemaleRCAport
ofthevideo-interface whichislabeledasCAM.
Note:Picturesettings forCAMinputmustbedoneinAV2.
2.7. Connectingvideo-interface and keypad
Connectthefemale4pinconnectorofthekeypadtothemale4pinconnectorofthe
video-interface.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page17
2.8. Picturesettingsand guidelines
Thepicturesettings areadjustedbythe3buttonsonthevideo-interface.PresstheMENU
buttontoopentheOSDsettings menuortoswitchtothenextmenuitem.PressUP and
DOWN changetheselectedvalue.Thebuttonsareembeddedinthehousingtoavoid
accidentalchangesduringorafterinstallation.Picturesettings mustbedoneseparatelyfor
RGB,AV1andAV2 whilethecorrespondinginputisselectedandvisibleonthemonitor.AV2
andCAMsharethesamesettings whichmustbeadjustedinAV2.
Note:TheOSDmenuisonlyshownwhenaworkingvideosourceisconnectedtothe
selectedvideo-inputoftheinterface.
Thefollowingsettings areavailable:
Contrast
Brightness
Saturation
PositionH(horizontal)
PositionV(vertical)
Guide-CNTRL (guidelinesON/OFF)
Note:IftheCAN-boxdoesnotsupporttheveryvehicle,theguide-linescannotbeused.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page18
3. Interfaceoperation
3.1. Byfactoryinfotainmentbutton
Oneofthefactoryinfotainment buttonsandtheexternalkeypadcanbeusedtoexecute
interface functions.
Skoda/Volkswagen
PressMENUbutton or shortpress keypadtoswitchthevideo-source
AudiA3
Press NAVIbuttonofthesteering-wheelorshortpress keypadtoswitchthevideo-source.
Eachpresswill switchtothenextenabledinput.Ifallinputsareenabledtheorderis:
Factoryvideo  RGB-in  videoIN1  videoIN2  factoryvideo  …
Inputswhicharenotenabledareskipped.Ifthesourcesareconnectedtotheaudiocable,
whenswitchingfromvideoIN1tovideoIN2,alsothesound willbeswitched.
Note:Thewhitewireofthe6pincablecanbeusedwitha+5-12V pulsetoswitchthevideo-
sourcesalternatively.
3.2. Bykeypad
Alternatively or additionally to the factory infotainment buttons the interface’s external
keypadcanbeusedtoswitchtheenabledinputs.
4. Specifications
BATT/ACCrange7V ~25V
Stand-bypowerdrain<10mA
Power0.7A@12V
Powerconsumption28.4W
Videoinput0.7V~1V
VideoinputformatsPAL/NTSC
RGB-videoamplitude0.7V with75 Ohmimpedance
Temperaturerange-40°Cto+85°C
Weight368g
Dimensions(boxonly)WxHxD154 x22 x92mm
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page19
5. Frequentlyaskedquestions
Foranytroubleswhichmayoccur,checkthefollowingtableforasolutionbeforerequesting
supportfromyourvendor.
Symptom
Reason
Possiblesolution
No picture/black
picture(factory
picture).
Notallconnectorshavebeen
reconnectedtofactoryhead-
unitormonitorafter
installation.
Connectmissingconnectors.
No poweronCAN-busbox (all
LEDCAN-busbox areoff).
CheckpowersupplyofCAN-busbox.CheckCAN-bus
connectionofCAN-busbox.
CAN-busbox connectedto
CAN-businwrongplace.
RefertothemanualwheretoconnectedtotheCAN-
bus.Ifnotmentioned,tryanotherplacetoconnectto
the CAN-bus.
No poweronvideo-interface
(allLEDvideo-interfaceare
off).
CheckwhetherCAN-busboxdelivers+12VACC onred
wireoutputof8pinto6pincable.Ifnotcut wireand
supplyACC +12Vdirectlytovideo-interface.
No picture/black
picture/white picture
(inserted picture)but
factorypictureisOK.
No picturefromvideosource.
Checkonothermonitorwhethervideo sourceisOK.
No video-sourceconnectedto
the selectedinterfaceinput.
Checksettingsdips1to3ofvideointerfacewhich
inputsareactivatedandswitchtocorresponding
input(s).
LVDScablespluggedinwrong
place.
Double-checkwhetherorderofLVDScablesisexactly
connected accordingtomanual.Pluggingintohead-
unitdoesnotworkwhen the manualsaystopluginto
monitorand viceversa.
Wrongmonitorsettingsof
video-interface.
Trydifferentcombinationsofdips7and8ofvideo-
interface.Unplug6pinpoweraftereachchange.
Insertedpicturetotally
wrongsizeorposition.
Insertedpicturedouble
or4timesonmonitor.
Insertedpicture
distorted,flickeringor
runningvertically.
Videosourcesoutputsetto
AUTOorMULTIwhichcauses
aconflictwiththeinterfaces
autodetection.
Set video sourceoutputfixedtoPALorNTSC.Itisbest
toset allvideo sourcestothesamestandard.
Iferroroccursonlyafter
sourceswitching:Connected
sourcesarenotsettothe
sameTVstandard.
Set allvideosourcestothesamestandard.
Someinterfacescanonly
handleNTSCinput.
CheckmanualwhetherthereisalimitationtoNTSC
mentioned.Ifyes,set sourcefixedtoNTSCoutput.
Insertedpictureb/w.
Insertedpicturequal.
bad.
Picturesettingshavenotbeen
adjusted.
Usethe3buttonsandtheinterface'sOSDtoadjustthe
picturesettingsforthecorrespondingvideoinput.
Insertedpicturesize
slightlywrong.
Insertedpicture
positionwrong.
Camerainputpicture
flickers.
Cameraisbeingtestedunder
fluorescentlightwhichshines
directlyintothecamera.
Testcameraundernaturallight outsidethegarage.
Camerainputpictureis
bluish.
Protectionstickernot
removedfromcameralens.
Remove protectionsticker.
www.dvsbg.com
car integration, multimedia and security solutions

Version23.11.2015VL2-MIB-2
Page20
Symptom
Reason
Possiblesolution
Camerainputpicture
black.
Camerapowertakendirectly
fromreversegearlamp.
Userelayorelectronicsto"clean"reversegearlamp
power.Alternatively,ifCAN-busboxiscompatible
with the vehicle,camerapowercanbetakenfrom
greenwireof6pinto8pincable.
Camerainputpicture
hasdistortion.
Camerainputpicture
settingscannotbe
adjusted.
Camerainputpicturesettings
canonlybe adjusted inAV2
mode.
Set dip3ofvideo-interfacetoON(ifnotinput AV2is
notalreadyactivated)and connectthecameratoAV2.
SwitchtoAV2andadjustsettings.Reconnectcamera
tocamerainputanddeactivateAV2ifnotused for
othersource.
Graphicsofacarin
camerainputpicture.
FunctionPDCisONinthe
interfaceOSD.
Incompatiblevehicles,the graphicswilldisplaythe
factoryPDCdistance.Ifnotworkingornotwanted,set
interfaceOSDmenuitemUI-CNTRLtoALLOFF.
Chinesesignsin
camerainputpicture
FunctionRETorALL isON
(functionforAsianmarket)in
the interfaceOSD.
Set interfaceOSDmenuitemUI-CNTRLtoALLOFF or
PDCON.
Notpossibletoswitch
videosourcesbyOEM
button.
CAN-businterfacedoesnot
supportthisfunctionfor
vehicle.
Useexternalkeypadorcutwhitewireof6pinto 8pin
cableandapply+12VimpulsesforAV-switching.
Pressedtooshort.
Forvideosourceswitchingalongerpressofabout 2.5
secondsisrequired.
Notpossibletoswitch
videosourcesby
externalkeypad.
SW-versionofinterfacedoes
notsupportexternalkeypad.
UseOEM-buttonorcutwhite wireof6pinto8pin
cableandapply+12VimpulsesforAV-switching.
Interfacedoesnot
switchtocamerainput
when reversegearis
engaged.
CAN-businterfacedoesnot
supportthisfunctionforthe
vehicles.
Cut thegreenwireofthe6pinto8pincableandapply
+12Vconstantfromreversegear-lampsignal.Use
relayto"clean"gearlamppower.
Interfaceswitches
video-sourcesby itself.
CAN-businterface
compatibilitytovehicleis
limited.
Cut thegrey wireof6pinto8pinandisolateboth
ends.Ifproblemstilloccurs,additionallycut the white
wireof6pinto8pincableandisolatebothends.
10R-035384
www.dvsbg.com
car integration, multimedia and security solutions
