Car-Interface CI-RL1-MIB2-E User manual

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Video inserter
CI-RL1-MIB2-E
(previous model CI-RL2-MIB2-E)
Compatible with
VW / SEAT / SKODA vehicles
with MIB2 Entry infotainment and 5inch monitor
Video-inserter with 2 video inputs and 1 rear-view camera input
Product features
Video-inserter for factory-infotainment systems
1 CVBS rear-view camera video-input
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
Automatic switching to rear-view camera input on engagement of the reverse gear
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. Connectors –video interface
1.4. Dip-switch settings
1.4.1. Enabling the interface’s video inputs (dip 2-3)
1.4.2. Rear-view camera setting (dip 5)
2. Installation
2.1. Place of installation
2.1.1. Place of Installation –video interface
2.1.2. Place of Installation –daughter PCB
2.2. Connection schema
2.3. Connecting video-interface –Power
2.4. Opening the factory monitor (not Skoda vehicles)
2.5. Connection of the 50pin ribbon cables
2.5.1. Warning notes, concerning the installation of ribbon cables
2.6. Closing the monitor’s rear-side.
2.7. Assembly - head unit, monitor and daughter PCB
2.8. Connection –picture signal cable
2.9. Installation –Skoda vehicles
2.9.1. Skoda monitor –removal and opening
2.9.2. Skoda monitor mainboard –disconnection and removal
2.9.3. Connection of the 50pin ribbon cables –Skoda
2.9.4. Reassembling –Skoda head unit and monitor
2.10. Connection –video sources
2.11. After-market rear-view camera
2.12. Audio insertion
2.13. Connection –video interface and external keypad
2.14. Picture settings
3. Video interface operation
4. Specifications
5. FAQ –Trouble Shooting-Interface function

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
No liability for vehicle wire colours and pin definition!
Changes by the vehicle manufacturer are possible. The given information has to be verified
by the installer.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page4
Requirements
Brand
Compatible vehicles
Infotainment
Seat
Ibiza (6P) model years 2016 –05/2017
Leon3 (5F) model year 2013-2017
Toledo4 (KG) model year 2016-2017
MIB2 Entry - Media System Touch Color –
with 5inch monitor
Skoda
Fabia3 (NJ) model years 10/2014-05/2017
Octavia3 (5E) model years 2012-2017
Rapid (NH1) model years 2016-2017
Superb3 (3V) model years 2015-2017
Yeti (5L) model years 2015-2016
MIB2 Entry - Radio Swing - 5 inch color
monitor and SD-slot without CD-drive
VW
Beetle (5C) model years since 2015-
Caddy4 (SA) model years 2016-2020
Golf7 Sportsvan model years 2014-2017
Polo5 (6C) model years 2014-2017
Scirocco3 (13) model years 2016-2018
Sharan (7N) model years since 2016
Touran (5T) model years 2016-2017
Transporter T6 (SG) 07/2015-10/2019
MIB2 Entry - Composition Color (Only LG
HU) - 5 inch monitor and CD-drive above
monitor or without CD-drive.
Limitations
Video only The interface inserts ONLY video signals into the infotainment. For inserting
Audio signals either the possibly existing factory audio-AUX-input or a FM-
modulator can be used. If 2 audio sources shall be connected to the
infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is
only possible while the reverse gear is engaged. To delay the switch-back an
additional electronic part is required.
Video input signal Only NTSC compatible.
1.2. Checking the compatibility of vehicle and accessories

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page5
1.3. Boxes and connectors
1.3.1. Video Interface
The video-interface converts the video signals of connected after-market sources in a factory
monitor compatible picture signal which is inserted in the factory monitor, by using separate
trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and
converts them for the video interface.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page6
1.3.2. Dip-switch settings
Some settings have to be selected by the dip-switches on the
video interface. Dip position down is ON and position up is OFF.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
See the following chapters for detailed information.
1.3.2.1. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed by switching through the interface’s video
sources. It is recommended to enable only the required inputs, because the disabled inputs
will be skipped while switching through the video interfaces inputs.
1.3.2.2. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged
to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input while the reverse gear is
engaged.
Note: Dips 1, 4, 6, 7 and 8 are out of function and have to be set to OFF.
Dip
Function
ON (down)
OFF (up)
1
No function
set to OFF
2
CVBS AV1-input
enabled
disabled
3
CVBS AV2-input
enabled
disabled
4
No function
set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
Set to OFF
7
8

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page7
2. Installation
To install the interface, first switch off the ignition and disconnect the vehicle’s battery.
Please read the owner`s manual of the car, regarding the battery`s disconnection! If
required, enable the car`s Sleep-mode (hibernation mode)
In case the sleep-mode does not succeed, the disconnection of the battery can be done
with a resistor lead.
If the necessary stabilized power supply for the interface is not taken directly from the
battery, the chosen connection has to be checked for being constantly stabile.
The interface needs a permanent 12V source!
2.1. Place of installation
2.1.1. Place of installation - interface-box
The interface is prepared to be connected behind the vehicle`s monitor and head-unit.
2.1.2. Place of installation - daughter PCB
The interface’s daughter PCB is prepared to be installed inside or outside the monitor
housing depending on the head unit.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page8
2.2. Connection schema

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page9
2.3. Connecting video-interface –Power
Connect the white female 6pin connector of the 6pin interface cable to the male 6pin
connector of the video interface.
Connect the yellow wire of the 6pin interface cable to +12V ACC (min.300mA).
Connect the black wire of the 6pin interface cable to the vehicle’s negative Ground.
Connect the red wire of the 6pin interface cable to +12V ACC.
The white wire of the 6pin interface cable switchest he video sources by a 12V
impulse for 2-3 seconds as an alternative to the external keypad.
Connect the green switching input wire of the 6-pin interface cable to the reversing
light, according to the connection diagram in the section "After-Market rear view
camera".
Note: The connection of the green wire (Reverse signal) will be described in chapter “After-
market rear-view camera”. The white wire will be used to switch the enabled video sources
(see chapter “video interface – operation”).
The possibly existing grey wire is out of function and has to be isolated.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page10
2.4. Opening the factory monitor (not Skoda vehicles)
Remove the vehicle’s head-unit.
Turn out both screws at the outer side of the top part of the head unit (red arrows)
and both screws at the bottom part of the head unit (red arrows). Remove the head
unit from the monitor and lay it aside.
Turn out the 7 screws (red arrows) at the rear side of the monitor and remove the
metal sheet to set free the mainboard’s ribbon cable base with the factory picture
signal cable.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page11
2.5. Connection of the 50pin ribbon cables
Fold upwards the black hinge of the factory ribbon cable base to unlock the original
brown colored 50pin ribbon cable of the factory PCB.
Carefully pull out the original 50pin ribbon cable in arrow direction.
Note: The original short ribbon cable is made by stiff material. To avoid any breakage it
mustn’t be folded back to much, either while the installation nor with the final assembly.
Connect the daughter PCB’s 50pin ribbon cable „CAR-IN“to the previously become
free 50pin ribbon cable base of the factory PCB. Make sure that the connector pins
are faced to the platinum.
After a check of its perfect position, close the ribbon cable base’s lock by folding
downwards the black hinge, to fix the connection again.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page12
Carefully lead the monitor’s brown colored 50pin
ribbon cable into the preassembled ribbon cable merger
of the daughter PCB’s 50pin ribbon cable “PNL-OUT”.
Make sure that the connector pins are faced to
the merger’s platinum.
After a check of its perfect position, close the
ribbon cable merger’s lock, by folding back
the black hinge, to fix the connection again.
To avoid any kind of vibration-caused short circuits
After the connection, it’s necessary to isolate both
sides of the merger with some kind of smooth issue
tape as shown in the picture beside.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page13
2.5.1. Warning notes, concerning the installation of ribbon cables
1) The contacting ends of ribbon cables always have to be installed in a straight and
precise 180° position to the connector. Each deviation from a perfect contact position will
curse faulty contact and even danger of short circuit
2) The ribbon cable’s contacting side always has to correspond to the contacting side of
the connector, concerning the mounting position.
3) Avoid cable contusion or cable injury caused by sharp-edged metal.
2.6. Closing the monitor’s rear-side.
Before leading the daughter PCB through the
monitor’s rear metal sheet, it’s further
necessary to save both sides of the ribbon
cables to avoid any kind of ribbon cable
breakage, caused by vibrations of the
metal parts. Use a smooth, but thin issue
tape because there will be lack of space
between the head unit’s and the
monitor’s housing.
Fix the monitor’s rear metal sheet by using the 7 screws.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page14

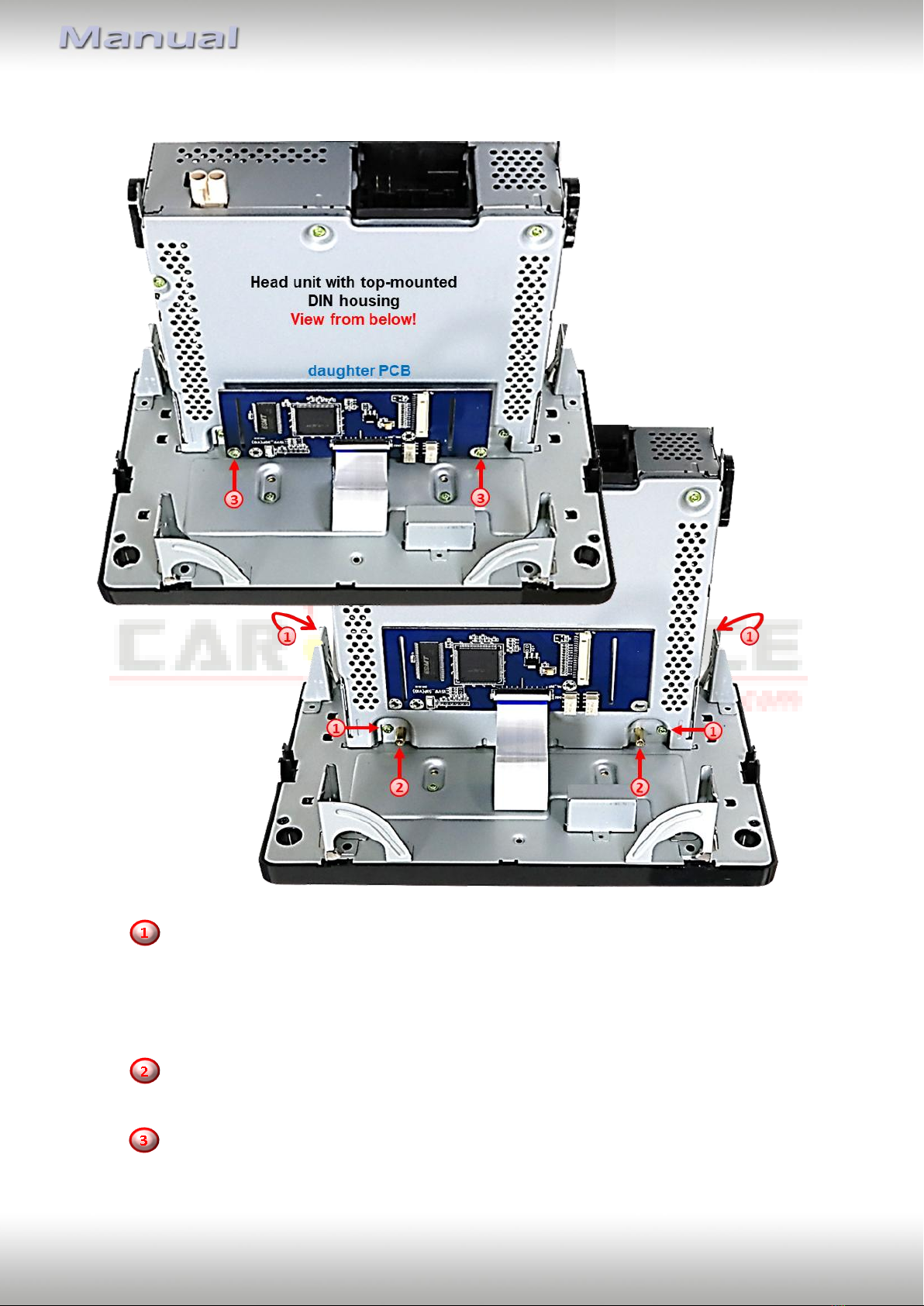

2.7. Assembly - head unit, monitor and daughter PCB
Carefully, plug the head unit into the monitor again and fix it with the 4 screws on its
top and its bottom.
Note: Take special care for the ribbon cables for they won’t be injured during the assembly
of both parts!
Change the original brass screws against the enclosed brass spacers at the position
that’s shown in the picture.
Fix the daughter PCB to the brass spacers in the head unit by using the original
screws.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page15
2.8. Connection of the picture signal cable
If not preassembled, connect the beige colored male 20pin connector (Monitor Side)
of the 20pin picture signal cable to the female 20pin connector of the daughter PCB.
Connect the opposite beige colored male 20pin connector (Box Side) of the picture
signal cable to the female 20pin connector of the video interface. Take care for
installing the picture signal cable in the right direction, as both connectors seem to be
identical. (Pay attention to the cable’s caption “MONITOR SIDE” and “BOX SIDE”)
2.9. Installation –Skoda vehicles.
For Skoda vehicles, the daughter PCB has to be installed inside the monitor. For that, it’s
necessary to separate the head unit housing from the monitor housing, for the required
disassemble of the monitor mainboard behind the monitor panel. Due to the limited space
inside the monitor housing, a shortening of the PCB is further required (see the following
procedures).

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page16
2.9.1. Skoda monitor –removal and opening.
Turn out both screws at the outer side of the top part of the head unit (red arrows)
and both screws at the bottom part of the head unit (red arrows). Separate the head
unit from the monitor and lay it aside.
Turn out the 8 screws (red arrows) at the rear-side of the monitor and remove the
metal sheet to set free the mainboard’s ribbon cable base with the factory picture
signal cable.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page17
2.9.2. Skoda monitor mainboard –disconnection and removal
Fold upwards the black hinge of the factory ribbon cable base to unlock the original
brown colored 50pin ribbon cable of the factory PCB.
Carefully pull out the original 50pin ribbon cable in arrow direction.
Note: The original short ribbon cable is made by very stiff material. To avoid any breakage
it mustn’t be folded back to much, either while the installation nor with the final assembly.
Disconnect the female 12pin connector from its 12pin SD card connector (keep
connected at mainboard).

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page18
Clipp out the monitor’s mainboard from the monitor’s front housing and put it aside
for setting free the monitor panel’s metal frame and the 50pin ribbon cable for its
connection to the daughter PCB.
Turn out the 4 screws and remove the monitor panel’s metal frame.
2.9.3. Connection of the 50pin ribbon cables –Skoda vehicles
Carefully, sever the 4 predetermined breaking points of the daughter PCB and
remove both side parts.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page19
Carefully lead the monitor’s brown colored 50pin ribbon cable into the preassembled ribbon
cable merger of the daughter PCB’s 50pin ribbon cable “PNL-OUT”. Make sure that the
connector pins are faced to the merger’s platinum.
After a check of its perfect position, close the ribbon cable merger’s lock, by folding back the
black hinge, to fix the connection again.
Fittingly, fold in the previously connected 50pin ribbon cable below the daughter PCB for
installing the PCB, facing with its rear-side to the monitor panel.
After leading through the 50pin ribbon cable „CAR-IN“ and the picture signal cable, install
the daughter PCB in the inner recess of the metal frame and fix the frame by using the 4
screws.

Version 03.02.2023 HW: CAM(V31)/(V10) CI-RL1-MIB2-E
Page20
Hold the factory mainboard in its right position, lead the daughter PCB’s 50pin ribbon
cable „CAR-IN“ through its recess and again, fix the mainboard with two screws.
Connect the daughter PCB’s 50pin ribbon cable to the factory mainboard’s free
ribbon cable base. Make sure that the connector pins are faced to the platinum.
After a check of its perfect position, close the ribbon cable base’s lock by folding
downwards the black hinge, to fix the connection again.
Reconnect the female 12pin connector to its 12pin SD card connector.
Note: Take special care for none-contacting of the PCB’s electronical components to any
other metal parts in the housing (isolate, where required!).
