Car-Interface CI-RL3-A15 User manual

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
r.LiNK Video-inserter
CI-RL3-A15

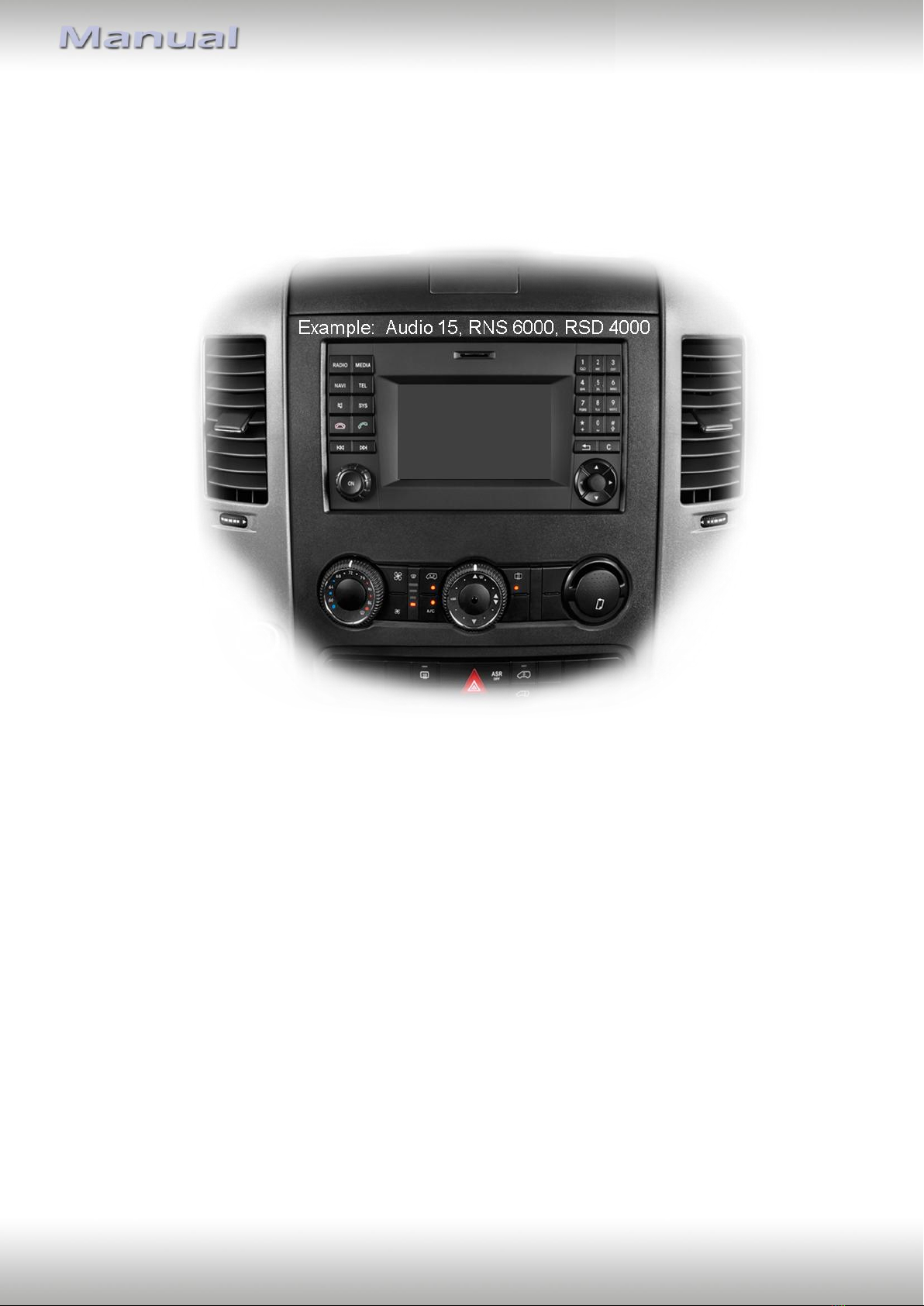

Compatible with
Mercedes Fahrzeuge mit Audio15 NTG2.5 / NTG5-447 Systemen
VW Fahrzeuge mit RNS6000 / RSD 4000 Systemen
Video-inserter with 2 video inputs + rear-view camera input
Product features
Video-inserter for factory infotainment monitors
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …)
Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Video-in-motion in drive mode (ONLY for connected video-sources)
Compatible with factory rear-view camera
AV-inputs PAL und NTSC compatible

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page2
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Checking the compatibility of vehicle and accessories
1.3. The video interface’s connectors
1.4. Settings of the 8 Dip switches (black)
1.4.1. Enabling the interface’s video inputs (dip 2-3)
1.4.2. Rear-view camera setting (dip 5)
1.5. Settings of the 4 Dip switches (CAN function –red)
2. Installation
2.1. Place of installation –video interface
2.2. Place of installation –daughter PCB
2.3. Connection schema
2.4. Connection to the head-unit –Ribbon cables
2.4.1. Warning notes, concerning the installation of ribbon cables
2.5. 20pin RGB digital cable –Connection and wiring
2.6. Connection to the head-unit and power connection
2.7. Connecting video sources
2.7.1. After-market rear-view camera
2.8. Connecting video-interface and keypad
2.9. Picture settings
3. Interface operation –external keypad
4. Specifications
5. FAQ –Trouble shooting

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page3
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. Apart from using this
product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-
camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).
Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to
one year after purchase we offer free software-updates for our interfaces. To receive a free
update, the interface has to be sent in at own cost. Wages for de-and reinstallation and
other expenditures involved with the software-updates will not be refunded.
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
Take down the serial number of the interface and store this manual for support
purposes: ____________________

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page4
Compatibility
Limitations
Video only The interface inserts ONLY video signals into the infotainment.
For audio inserting, use the possibly existing factory audio-AUX-input
or a FM-modulator.
Connecting 2 AV-sources If 2 AV-sources shall be connected to the infotainment the optional
audio switch SW-A2X1 is available, which is controlled by the video
interface.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view
camera is only possible while the reverse gear is engaged. To delay
the switch-back, an additional electronic part is required.
1.2. Checking the compatibility of vehicle and accessories
vehicle
Compatible vehicles
Infotainment systems
Mercedes
Sprinter (W906) since. 2015-, Vito
(W447) about 2015
Audio15 NTG2.5/NTG5-447
Only version with full DIN
cage behind front panel
VW
Crafter about 2015-2016
RNS6000
Only version with full DIN
cage behind front panel

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page5
1.3. Connection Video-Interface
The video-interface converts the connected after-market sources video signals into an RGB
digital signal which is inserted in the factory monitor using separate trigger options and it
reads vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video
interface.
1.4. Settings of the 8 Dip switches (black)
Some settings have to be selected by the 8 dip-switches of the
video-interface. Dip position down is ON and position up is OFF.
See the following chapters for detailed information.
Dip
Function
ON (down)
OFF (up)
1
No function
set to OFF
2
Video 1
enabled
disabled
3
Video 2
enabled
disabled
4
No function
set to OFF
5
Rear-view cam type
after-market
factory or none
6
No function
set to OFF
7
No function
set to OFF
8
No function
Set to OFF

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page6
1.4.1. Enabling the interface’s video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface’s video
sources. It`s recommended to enable only the required inputs for the disabled will be
skipped when switching through the video-interfaces inputs.
1.4.2. Rear-view camera setting (dip 5)
If set to OFF, the interface switches to factory RGB digital picture while the reverse gear is
engaged to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input “Camera-IN” while the
reverse gear is engaged.
Note: Dip 1, 4, 6, 7 and 8 are out of function and have to be set to OFF.
1.5. Settings of the 4 Dip switches (CAN function - red)
Dip position down is ON and position up is OFF.
Navigation / system
Dip 1
Dip 2
Dip 3
Dip 4
Mercedes
Audio15 NTG2.5/NTG5-447
OFF
OFF
OFF
OFF
VW
RNS6000
OFF
OFF
OFF
OFF

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page7
2. Installation
Switch off the ignition and disconnect the vehicle’s battery! The interface needs a
permanent 12V source. If -according to factory rules- a disconnection of the battery has to
be avoided, it should be sufficient to use the vehicle’s sleep-mode. In case, the sleep-mode
doesn’t succeed, the battery has to be disconnected with a resistor lead.
The Interface needs a permanent power supply! If power isn’t directly taken from the
battery, the connection’s power has to be checked for being start-up proven and
permanent.
2.1. Place of installation –video-interface
The video-interface shall be installed on the backside of the head-unit.
2.2. Place of installation –daughter PCB
The daughter PCB is performed to be installed on the rear side of the head unit’s monitor
instead of the original base plate

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page8

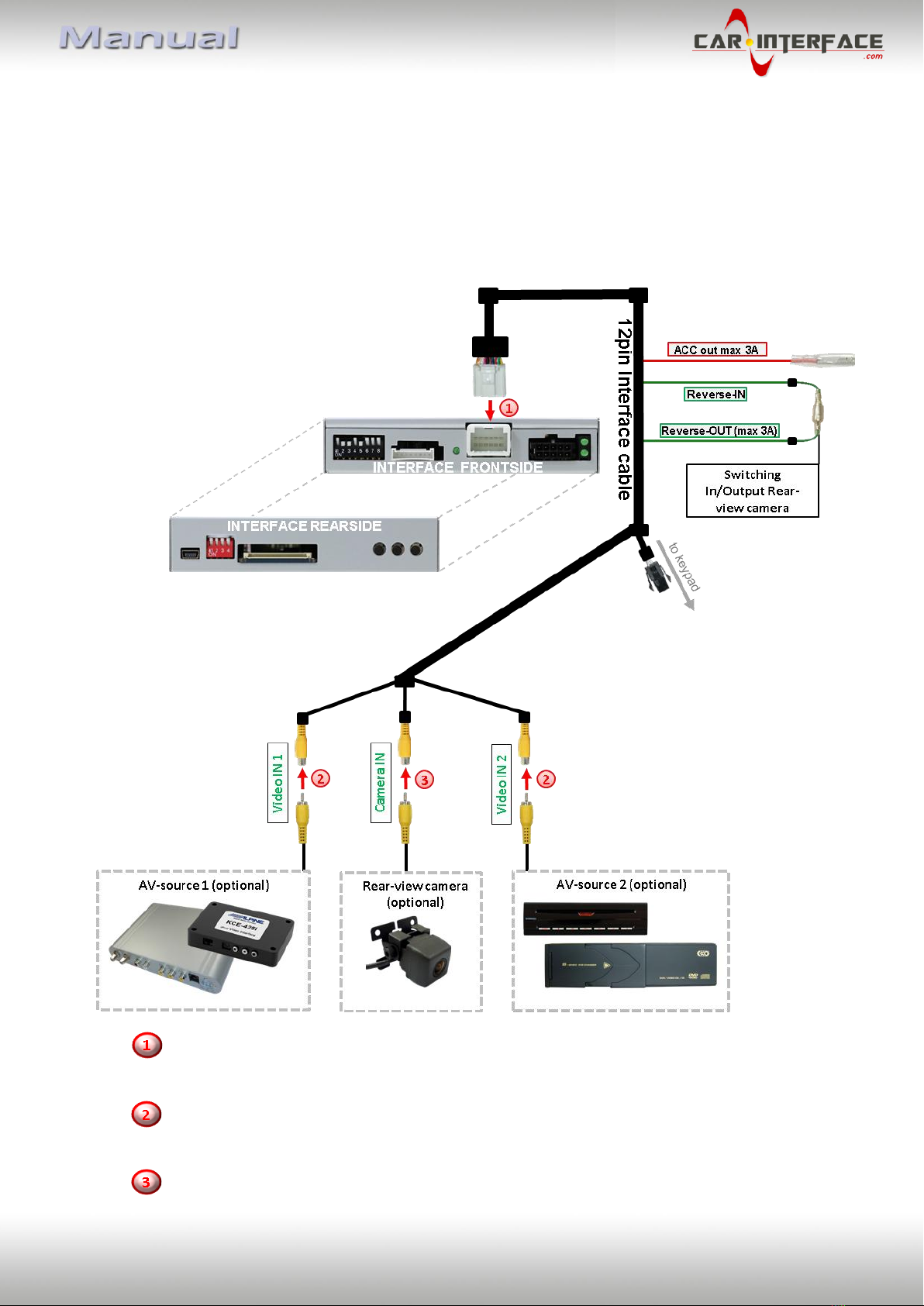

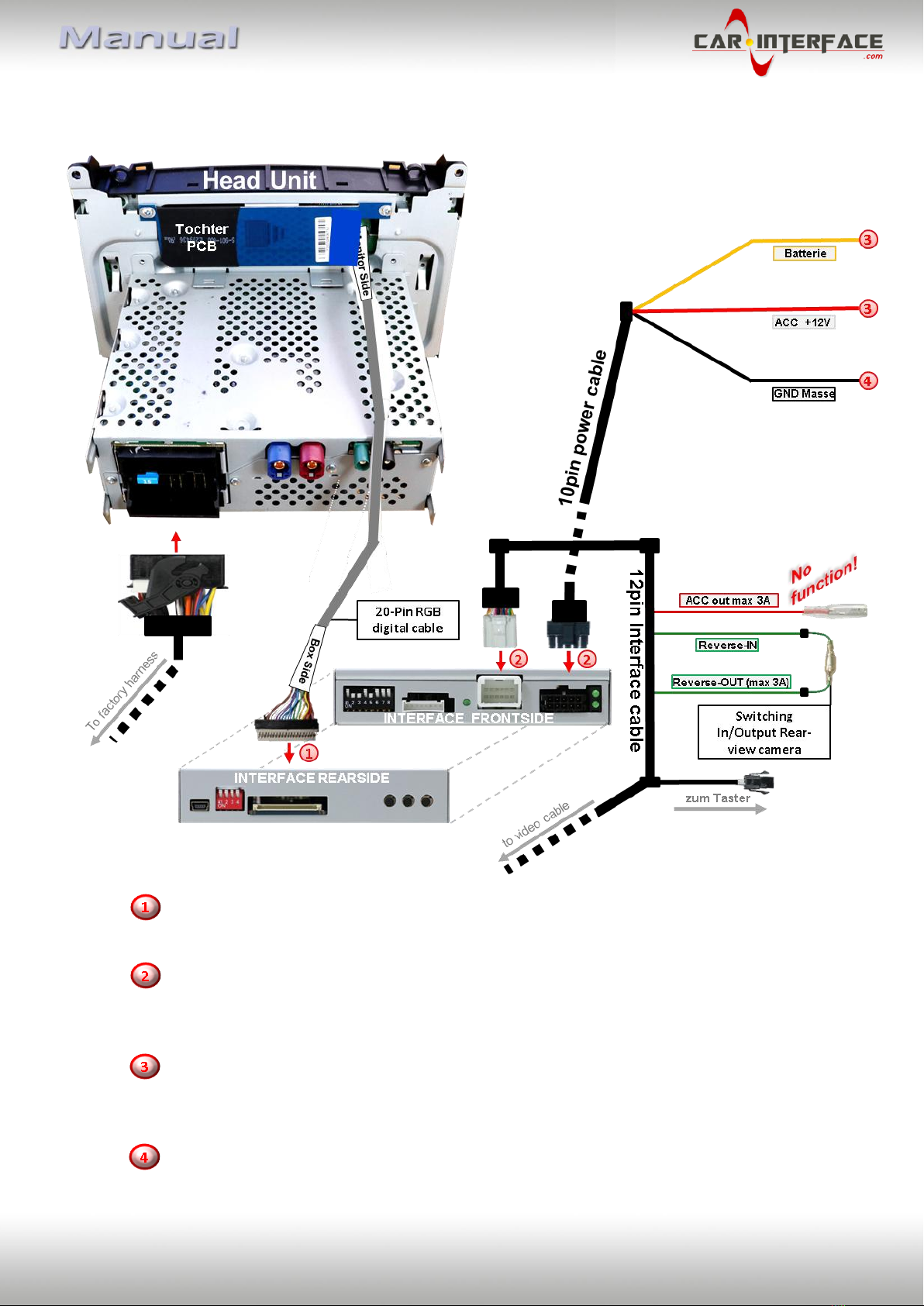

2.3. Connection schema

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page9
2.4. Connections to the head-unit –ribbon cables

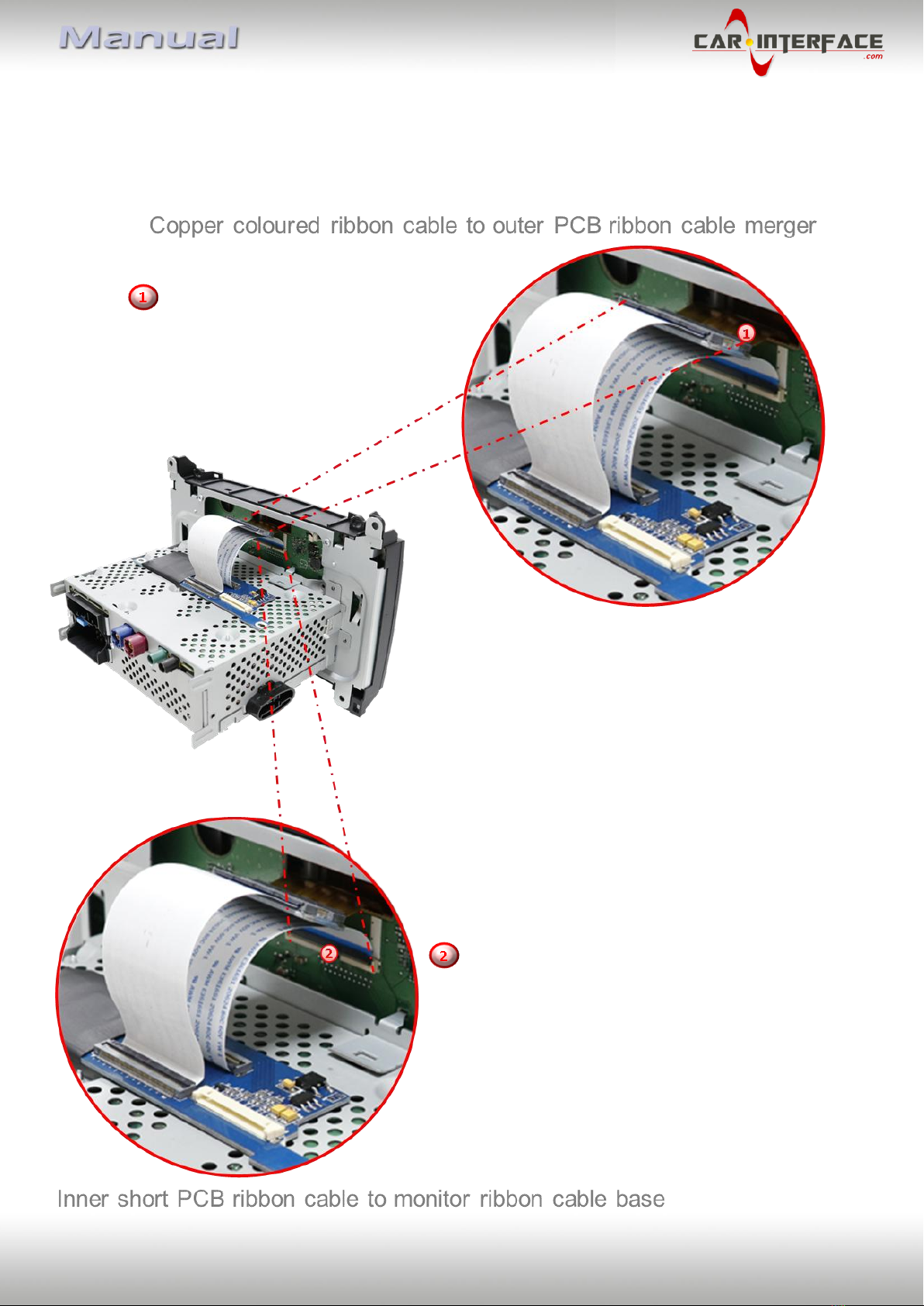

Remove the head-unit and further remove the original housing base plate on the rear side of
the monitor (4screws), to set free the 40pin ribbon cable.
Clip out the monitor’s original copper
coloured 40pin ribbon cable which is
connected at the head-unit
mainboard’s ribbon cable base and
connect it to the PCB’s outer
40pin ribbon cable merger.
Connect the daughter PCB’s pre-assembeled inner
40pin ribbon cable to the previously become free
ribbon cable base of the monitor mainboard.
Note: Heed the following warning notes
concerning installation of ribbon cables!

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page10
2.4.1. Warning notes, concerning the installation of ribbon cables:
1) The contacting ends of ribbon cables always have to be installed in a straight and
precise 180° position to the connector. Each deviation from a perfect contact position will
curse faulty contact and even danger of short circuit
2) The ribbon cable’s contacting sides always have to correspond to the contacting sides of
the connectors, concerning the mounting position.
3) Avoid cable contusion or cable injury caused by sharp-edged metal.

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page11
2.5. 20pin RGB digital cable –connection and wiring
Connect the male beige-coloured
20pin connector of the 20pin RGB
digital cable to the female 20pin
connector of the daughter PCB.
Pay special attention to the cable’s
direction because its connectors
both seem to be identical. (Strictly
respect the lables „MONITOR SIDE“
and „BOX SIDE“).
Position the daughter PCB at the
monitor’s rear-side and carefully
fold in the installed 40pin ribbon
cables into the monitor’s housing,
after leading out the grey coloured
40pin RGB digital cable at a suitable
place.
Fix the daughter PCB to the
monitor’s housing by using both
original screws.

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page12
2.6. Connection to the head-unit and Power connection
Connect the 20pin RGB digital cable’s female 20pin connector to the male 20pin
connector of the video-interface.
Connect the female 12pin connector of the 12pin interface cable to the 12pin
connector of the video interface and the 10pin connector beside to the female 10pin
connector of the 10pin power cable.
Connect the yellow and the red wire of the 10pin power cable both to +12V ACC
(Accessory power) or +12V S-contact terminal 86s (e.g. glove compartment
illumination).
Connect the single black wire of the 10pin power cable to vehicle’s negative ground.

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page13
2.7. Connecting the video sources
It is possible to connect two after-market AV-sources and one after-market rear-view
camera to the video-interface.
Before the final installation, we recommend a test-run of the interface. Due to changes in
the production of the vehicle manufacturer, there’s always the possibility of
incompatibility.
Connect the 12pin interface cable’s female 12pin connector to the interface’s male
12pin connector.
Connect the video RCAs of the AV-source 1 and AV source 2 to the female RCA
connectors “Video IN1”and “Video IN2” of the 12pin interface cable.
“
Connect the video RCA of the rearview camera to the female RCA connector “Camera
IN” of the video cable.

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page14
2.7.1. After-market rear-view camera
Note: Do not forget to set dip5 of the video-interface to ON before testing.
To automatically switch to the rear-view camera input while the reverse gear is engaged, an

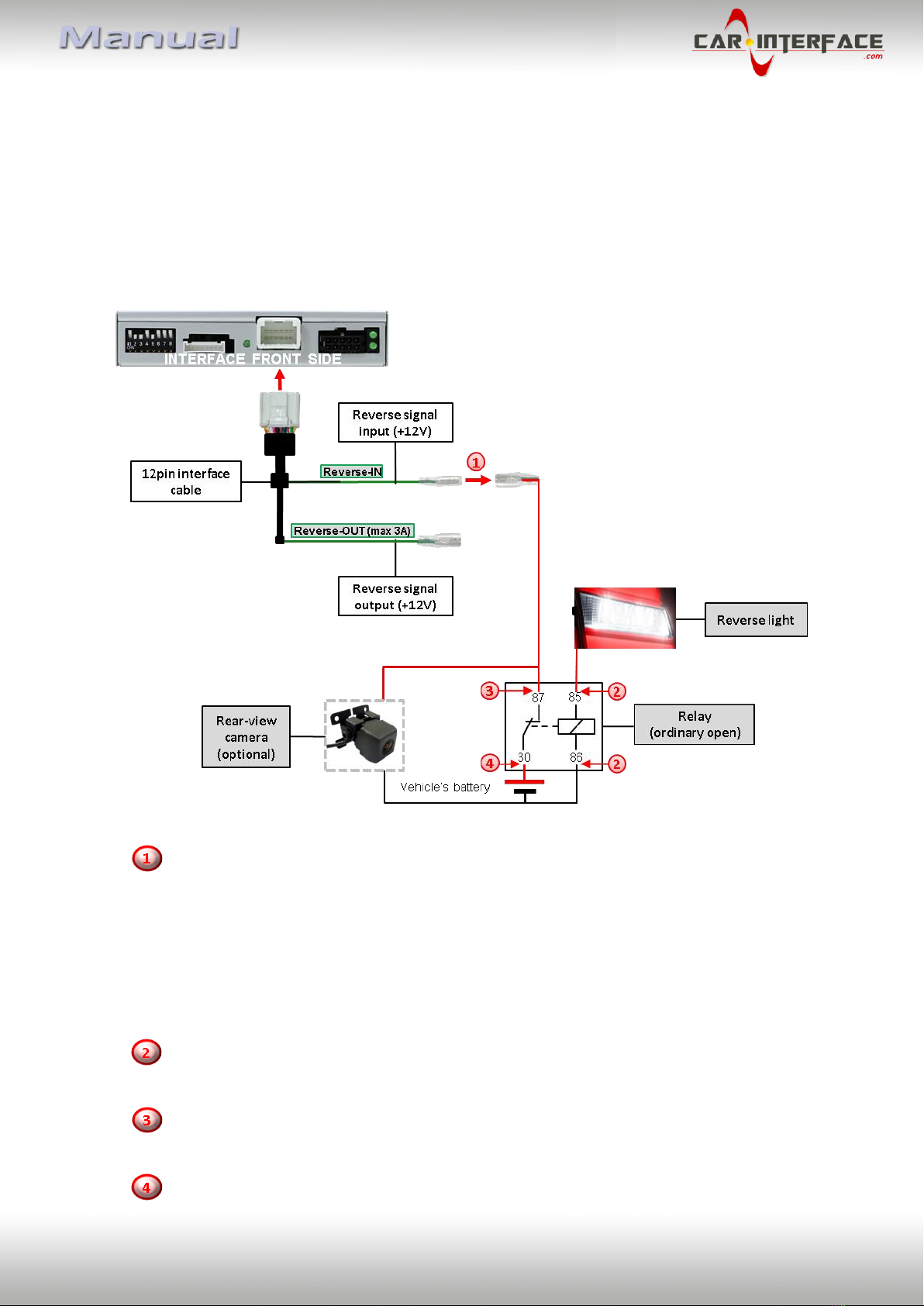

external switching signal from the reverse gear light is required. As the reverse gear light’s
power supply isn’t voltage-stable all the time, an ordinary open relay (e.g AC-RW-1230 with
wiring AC-RS5) or filter (e.g. AC-PNF-RVC) is required. The diagram below shows the
connection type of the relay.
Disconnect the green cable’s pre-connected male- and female connectors of the
12pin cable and connect the green input cable “Reverse-IN” to the output connector
(87) of the relay.
Note: Not least to avoid short circuits, the best solution should be, to crimp a male
4mm connector to the relay’s output cable and connect it to the green cable’s female
4mm connector. The output-cable “Reverse-OUT” remains disconnected as it’s out of
function.
Connect the Reverse light’s power-cable to coil terminal (85) and the vehicle’s ground
to coil terminal (86) of the relay.
Connect the output terminal (87) of the relay to the rear-view camera’s power-cable,
like you did it to the green “Reverse-IN” cable before.
Connect permanent power / 12V to the relay’s input terminal (30).

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page15
2.8. Connecting video-interface and keypad
Connect the keypad’s female 4pin connector to the video-interface’s male 4pin
connector.
Note: Even if the switching through several video sources by the keypad mightn’t be
required, the invisible connection and availability is strongly recommended.

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page16
2.9. Picture settings and guide lines
The picture settings adjustment can be done by the 3 buttons of the video-interface. Press
the MENU button to open the OSD settings menu. To switch to the next menu item, pressing
UP and DOWN will change the selected value. The buttons are embedded in the housing to
avoid accidental changes during or after installation. The picture settings have to be done
separately for AV1 and AV2 while the corresponding input is selected and visible on the
monitor.
Note: The OSD menu is only shown when a working video source is connected to the
selected video-input of the interface.
The following settings are available:
Contrast
Brightness
Saturation
Position H (horizontal)
Position V (vertical)
For the rearIR-AV1 (out of function)
IR-AV2 (out of function)
Guide-lines left (out of function)
Guide-lines right (out of function)
Guide lines (out of function)
Note: As the system doesn’t support the vehicle’s CAN, the guide-lines cannot be used.

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page17
3. Interface operation –external keypad
The switching of video sources is done by the external keypad. If, by dip switch setting, all
inputs are enabled, the order is the following:
Factory video  video IN1  video IN2  factory video  …
By dip switch deactivated inputs will be skipped.

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page18
4. Specifications
BATT/ACC range 7V - 25V
Stand-by power drain 135mA
Power 135mA @12V
Video input 0.7V –1V
Video input formats PAL/NTSC
RGB-video amplitude 0.7V with 75 Ohm impedance
Temperature range -40°C to +85°C
Dimensions Video-Box 118 x 23 x 86 mm (W x H x D)

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page19
5. FAQ –Trouble shooting Interface functions
For any troubles which may occur, check the following table for a solution before requesting
support from your vendor.
Symptom
Reason
Possible solution
No picture/black
picture (factory
picture).
Not all connectors have been
reconnected to factory head-
unit or monitor after
installation.
Connect missing connectors.
No power on CAN-bus box (all
LED CAN-bus box are off).
Check power supply of CAN-bus box. Check CAN-bus
connection of CAN-bus box.
CAN-bus box connected to
CAN-bus in wrong place.
Refer to the manual where to connected to the CAN-
bus. If not mentioned, try another place to connect to
the CAN-bus.
No power on video-interface
(all LED video-interface are
off).
Check whether CAN-bus box delivers +12V ACC on red
wire output of 8pin to 6pin cable. If not cut wire and
supply ACC +12V directly to video-interface.
No picture/black
picture/white picture
(inserted picture) but
factory picture is OK.
No picture from video source.
Check on other monitor whether video source is OK.
No video-source connected to
the selected interface input.
Check settings dips 1 to 3 of video interface which
inputs are activated and switch to corresponding
input(s).
LVDS cables plugged in wrong
place.
Double-check whether order of LVDS cables is exactly
connected according to manual. Plugging into head-
unit does not work when the manual says to plug into
monitor and vice versa.
Wrong monitor settings of
video-interface.
Try different combinations of dips 7 and 8 of video-
interface. Unplug 6pin power after each change.
Inserted picture totally
wrong size or position.
Inserted picture double
or 4 times on monitor.
Inserted picture
distorted, flickering or
running vertically.
Video sources output set to
AUTO or MULTI which causes
a conflict with the interfaces
auto detection.
Set video source output fixed to PAL or NTSC. It is best
to set all video sources to the same standard.
If error occurs only after
source switching: Connected
sources are not set to the
same TV standard.
Set all video sources to the same standard.
Some interfaces can only
handle NTSC input.
Check manual whether there is a limitation to NTSC
mentioned. If yes, set source fixed to NTSC output.
Inserted picture b/w.
Inserted picture qual.
bad.
Picture settings have not been
adjusted.
Use the 3 buttons and the interface's OSD to adjust the
picture settings for the corresponding video input.
Inserted picture size
slightly wrong.
Inserted picture
position wrong.
Camera input picture
flickers.
Camera is being tested under
fluorescent light which shines
directly into the camera.
Test camera under natural light outside the garage.
Camera input picture is
bluish.
Protection sticker not
removed from camera lens.
Remove protection sticker.

Version 19.01.2018 HW: CAM(V97)GO CI-RL3-A15
Page20
Symptom
Reason
Possible solution
Camera input picture
black.
Camera power taken directly
from reverse gear lamp.
Use relay or electronics to "clean" reverse gear lamp
power. Alternatively, if CAN-bus box is compatible
with the vehicle, camera power can be taken from
green wire of 6pin to 8pin cable.
Camera input picture
has distortion.
Camera input picture
settings cannot be
adjusted.
Camera input picture settings
can only be adjusted in AV2
mode.
Set dip 3 of video-interface to ON (if not input AV2 is
not already activated) and connect the camera to AV2.
Switch to AV2 and adjust settings. Reconnect camera
to camera input and deactivate AV2 if not used for
other source.
Graphics of a car in
camera input picture.
Function PDC is ON in the
interface OSD.
In compatible vehicles, the graphics will display the
factory PDC distance. If not working or not wanted, set
interface OSD menu item UI-CNTRL to ALLOFF.
Chinese signs in
camera input picture
Function RET or ALL is ON
(function for Asian market) in
the interface OSD.
Set interface OSD menu item UI-CNTRL to ALLOFF or
PDCON.
Not possible to switch
video sources by OEM
button.
CAN-bus interface does not
support this function for
vehicle.
Use external keypad or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Pressed too short.
For video source switching a longer press of about 2.5
seconds is required.
Not possible to switch
video sources by
external keypad.
SW-version of interface does
not support external keypad.
Use OEM-button or cut white wire of 6pin to 8pin
cable and apply +12V impulses for AV-switching.
Interface does not
switch to camera input
when reverse gear is
engaged.
CAN-bus interface does not
support this function for the
vehicles.
Cut the green wire of the 6pin to 8pin cable and apply
+12V constant from reverse gear-lamp signal. Use
relay to "clean" gear lamp power.
Interface switches
video-sources by itself.
CAN-bus interface
compatibility to vehicle is
limited.
Cut the grey wire of 6pin to 8pin and isolate both
ends. If problem still occurs, additionally cut the white
wire of 6pin to 8pin cable and isolate both ends.
10R-03 5384
Made in China
