Carbatec WL-B1220H User manual
CARBATEC.COM.AU 1
INSTRUCTIONS MANUAL
CARBATEC ELECTRONIC VARIABLE SPEED
BENCHTOP MINI LATHE
WL-B1220H
FOR TECHNICAL SUPPORT CALL 1800 658 111
2
WL-B1220H
V1
Carbatec has been a trusted brand for woodworking enthusiasts
and professionals across Australia and New Zealand, since 1987.
value and performance, making the latest features and technological
advancements more accessible to Aussie woodworkers.
Backed by our no-fuss after-sales care and warranty support,
you can trust Carbatec to keep you woodworking, as promised.
We look forward to sharing in your woodworking journey!
If you have any questions about our products or service,
please call us on 1800 658 111 or email us at info@carbatec.com.au
Find us on social media
facebook.com/Carbatec
instagram.com/Carbatec
youtube.com/CarbaTecToolsForWood
THANK YOU
FOR CHOOSING
CARBATEC.COM.AU
3
WL-B1220H
!
DO NOT use acetone, gasoline or lacquer thinner
to remove any protective coatings.
If any parts are missing, do not attempt to plug in
the power cord and turn “ON” the machine. The
machine can only be turned “ON” after all the
parts have been installed correctly.
!
1. Remove parts from all of the cartons
and lay them on a clean work surface.
2. Remove any protective materials and
coatings from the machine and from all of
the parts. The protective coatings can be
removed by spraying WD-40 on them and
to be redone several times before all of the
protective coatings are removed completely.
3. Compare the items above to verify that all
items are accounted for before discarding
the shipping box.
This machine will require a minimal amount of assembly.
A. Lathe with Banjo and faceplate installed ×1
B. Tool Rest ×1
C. Live Centre and Drive Centre ×1 each
D. Quill Handwheel Handle ×1
E. Magnetic Belt Door Catch (Optional) ×1
F. Allen Keys suited to machine ×3
G. Rubber Feet ×4
H. Knock-out bar and Spindle Spanner ×1 each
The following items are provided in one shipping carton:
WHAT’S IN THE BOX
WELCOME
H
G
F
E
DC
B
A
FOR TECHNICAL SUPPORT CALL 1800 658 111
4
WL-B1220H
DATE OF PURCHASE:
SERIAL NUMBER:
Record the serial number and date of
purchase in your manual for future
reference.
1
Made in China for:
CARBATEC PTY LTD
Brisbane - Australia
Model:
Voltage
Freq:
Phase:
Amp:
kW:
Speed:
Lot No.:
Serial No.:
Date:
QUALITY INSPECTED
Key information can be found on the
inspection panel, found on the rear of the
machine.
DUST COLLECTION: All woodworking machines require effective dust extraction
to ensure quality work and longevity of the machine itself. Failure to connect your
machine to a suitable dust collector may affect your warranty. The collector required
for your machine will depend on several factors including the type of machine and its
dust port connection, distance between collector and machine, type and frequency of
use and the material being worked. We recommend a dust collector that will provide
you a minimum airflow of 500-CFM when measured at the machine connection.
IMPORTANT
CARBATEC.COM.AU
5
WL-B1220H
CONTENTS
NOTE: The specifications, photographs, drawings and information in this manual
represent the current machine model when the manual was prepared. Changes and
improvements may be made at any time, with no obligation on the part of Carbatec to
modify previously delivered units. Reasonable care has been taken to ensure that the
information in this manual is correct, to provide you with the guidelines for the proper
safety, assembly and operation of this machine.
Introduction 2
What’s in the box 3
Key information 4
Safety instructions - General 6-10
Safety instructions - Woodlathe 11
Safety instructions - Electrical 12
Overview 13
Specications 14
Assembly 15
Adjustments 16-18
Operation 19
Wiring diagram & Exploded Parts 20
Parts list 21
Troubleshooting & Maintenance 22
Warranty 23
CONTENTS
FOR TECHNICAL SUPPORT CALL 1800 658 111
6
WL-B1220H
Carbatec products bearing the Regulatory Compliance Mark (RCM)
have been tested in accordance with applicable Australian/New Zealand
Standards to ensure their compliance with all mandatory standards and
registered as a responsible supplier with relevant Australian government
database.
!
!
!
!A safety alert symbol Indicates DANGER, WARNING, or CAUTION.
May be used in conjunction with other symbols or pictographs.
Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided,
could result in minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result
in property damage.
SYMBOL MEANING
Be sure to read and understand all safety instructions in this manual, including all safety
serious personal injury.
!
IMPORTANT! Safety is the single most important consideration in the operation of this
equipment. The following instructions must be followed at all times. Failure to follow all
There are certain applications for which this tool was designed. We strongly recommend
which it was designed. If you have any questions about its application, do not use the tool
until you have contacted us and we have advised you.
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols and the explanations with them deserve your careful attention and understanding.
The symbol warnings do not, by themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident prevention measures.
SAFETY INSTRUCTIONS
CARBATEC.COM.AU
7
WL-B1220H
!
!
Operating a power tool can be dangerous if
safety and common sense are ignored. The
operator must be familiar with the operation of
this machine. Read this manual to understand this
machine. DO NOT OPERATE this machine IF YOU
DO NOT FULLY UNDERSTAND the limitations of
this tool. DO NOT MODIFY this machine in any way.
BEFORE USING
THIS MACHINE
To avoid serious injury and damage to the tool,
read and follow all of the Safety and Operating
Instructions before operating the machine.
1. SOME DUST CREATED BY USING
POWER TOOLS CONTAINS CHEMICALS
known to cause cancer, birth defects, or
other reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and
other masonry products.
• Arsenic and chromium from chemically
treated lumber
Your risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to these
chemicals: work in a well ventilated area
and work with approved safety equipment,
such as those dust masks that are specially
GENERAL SAFETY
SAFETY
2. READ this entire manual. LEARN how to use
the tool for its intended applications.
3. GROUND ALL TOOLS. If the tool is supplied
with a 3-prong plug, it must be plugged into
a 3-contact electrical receptacle. The third
prong is used to ground the tool and provide
protection against accidental electric shock.
4. AVOID A DANGEROUS WORKING
ENVIRONMENT. Do not use electrical tools in
a damp environment or expose them to rain.
5. DO NOT USE electrical tools in the presence
of FLAMMABLE liquids or gases.
6. ALWAYS KEEP THE AREA CLEAN, well lit,
and organized. Do not work in an environment
debris, grease, and wax.
7. KEEP VISITORS AND CHILDREN AWAY. Do
not permit people to be in the immediate
work area, especially when the electrical tool
is operating.
8. DO NOT FORCE THE TOOL to perform an
operation for which it was not designed. It
will do a safer and higher quality job by only
performing operations for which the tool was
intended.
FOR TECHNICAL SUPPORT CALL 1800 658 111
8
WL-B1220H
9. WEAR PROPER CLOTHING.
Do not wear loose clothing, gloves, neckties,
or jewellery. These items can get caught in
the machine during operations and pull the
operator into the moving parts. The user
must wear a protective cover on their hair, if
hair is long, to prevent it from contacting any
moving parts.
10. CHILDPROOF THE WORKSHOP AREA by
removing switch keys, unplugging tools from
the electrical receptacles, and using padlocks.
11. ALWAYS UNPLUG THE TOOL FROM THE
ELECTRICAL RECEPTACLE
when making adjustments, changing parts or
performing any maintenance.
12. KEEP PROTECTIVE GUARDS IN PLACE AND
IN WORKING ORDER.
13. AVOID ACCIDENTAL STARTING. Make sure
that the power switch is in the “OFF” position
before plugging in the power cord to the
electrical receptacle.
14. REMOVE ALL MAINTENANCE TOOLS from
the immediate area prior to turning “ON”
the machine.
15. USE ONLY RECOMMENDED ACCESSORIES.
could cause serious injury to the operator
and cause damage to the tool. If in doubt,
check the instruction manual that comes with
that particular accessory.
GENERAL SAFETY
16. NEVER LEAVE A RUNNING TOOL
UNATTENDED. Turn the power switch to the
“OFF” position. Do not leave the tool until it
has come to a complete stop.
17. DO NOT STAND ON A TOOL. Serious injury
could result if the tool tips over, or you
accidentally contact the tool.
18. DO NOT STORE ANYTHING ABOVE OR
NEAR the tool where anyone might try to
stand on the tool to reach it.
19. MAINTAIN YOUR BALANCE. Do not extend
yourself over the tool. Wear oil resistant
debris, grease, and wax.
20. MAINTAIN TOOLS WITH CARE. Always
keep tools clean and in good working order.
Keep all blades and tool bits sharp, dress
grinding wheels and change other abrasive
accessories when worn.
21. EACH AND EVERY TIME, CHECK FOR
DAMAGED PARTS PRIOR TO USING THE
TOOL. Carefully check all guards to see that
they operate properly, are not damaged, and
perform their intended functions. Check for
alignment, binding or breaking of moving
parts. A guard or other part that is damaged
should be immediately repaired or replaced.
22. DO NOT OPERATE TOOL WHILE TIRED,
OR UNDER THE INFLUENCE OF DRUGS,
MEDICATION OR ALCOHOL.
CARBATEC.COM.AU
9
WL-B1220H
23. SECURE ALL WORK.
secure the work piece. This is safer than
attempting to hold the work piece with
your hands.
24. STAY ALERT, WATCH WHAT YOU ARE
DOING, AND USE COMMON SENSE WHEN
OPERATING A POWER TOOL. A moment of
inattention while operating power tools may
result in serious personal injury.
25. ALWAYS WEAR A DUST MASK TO
PREVENT INHALING DANGEROUS DUST
OR AIRBORNE PARTICLES, including wood
dust, crystalline silica dust and asbestos
dust. Direct particles away from face and
body. Always operate tool in well ventilated
dust collection system wherever possible.
permanent respiratory or other injury,
including silicosis (a serious lung disease),
cancer, and death. Avoid breathing dust, and
avoid prolonged contact with dust. Allowing
dust to get into your mouth or eyes, or lay on
your skin may promote absorption of harmful
approved respiratory protection appropriate
for the dust exposure, and wash exposed
areas with soap and water.
SAFETY
26. USE A PROPER EXTENSION CORD IN GOOD
CONDITION.
be avoided where possible. When using an
extension cord, be sure to have a cord heavy
enough to carry the current your product will
cord rated at less than your machine).
Longer run extensions will need heavier
duty extension cords. Only connect your
extension cord or machine to a receptacle
that accepts your plug and never modify your
plug to suit a receptacle.
FOR TECHNICAL SUPPORT CALL 1800 658 111
10
WL-B1220H
The device and packaging materials are not
toys! Children must not be allowed to play with
plastic bags, lm and small parts! There is a risk
of swallowing and suocation!
INTENDED USE
• The machine must only be used in
technically perfect condition in accordance
with its designated use and the instructions
set out in the operating manual, and
only by safety-conscious persons who
are fully aware of the risks involved in
operating the machine. Any functional
safety of the machine, should therefore
and maintenance instructions of the
manufacturer as well as the technical data
given in the calibrations and dimensions
must be adhered to.
• Relevant accident prevention regulations
and other, generally recognised safety-
technical rules must also be adhered to.
• The machine may only be used, maintained,
and operated by persons familiar with it and
instructed in its operation and procedures.
Arbitrary alterations to the machine release
the manufacturer from all responsibility for
any resulting damages.
• The machine may only be used with
original accessories and tools made by or
recommended by the manufacturer.
• Any other use exceeds authorisation. The
manufacturer is not responsible for any
damages resulting from unauthorized use;
risk is the sole responsibility of the operator.
!
NOTE: According to the applicable product liability
law the manufacturer of this device is not liable for
damages which arise on or in connection with this
device in case of:
• Improper handling
• Non-compliance with the instructions
for use
• Repairs by third party, non authorised skilled
workers
• Installation and replacement of non-genuine
spare parts
• Improper use
RECOMMENDATIONS:
• Read the entire text of the operating
instructions prior to the assembly and
operation of the device. These operating
instructions are intended to make it easier
for you to get familiar with your device and
utilise its intended possibilities of use.
• The operating instructions contain
important notes on how to work safely with
your machine and how to avoid dangers, and
increase the reliability and working life of
the machine.
• Retain and store these instructions near the
machine. The instructions must be read and
carefully observed by each operator prior to
starting the work.
• In addition to the safety notes contained
in the present operating instructions and
the special regulations of your country, the
generally recognised technical rules for the
operation of woodworking machines must
be observed.
CARBATEC.COM.AU
11
WL-B1220H
• Do not allow the turning tools to bite into
the wood. The wood could split or be thrown
from the lathe. Approach slowly with your
• Always position the tool rest above the
centerline of the lathe when shaping a piece
of stock.
•
only - do not use for general turning.
• your hands so that they will not
slip onto the workpiece.
• Do not place your turning tools on the bench
in a way such that you must reach over the
revolving workpiece to select them.
• remain in control of
the cutting tool at all times. Take special
precautions when shaping a section of stock
in which knots or voids are found.
• Complete the hand-sanding of workpieces
before you remove them from the lathe.
• Do not perform layout assembly or set
up work on the table while the lathe is in
operation.
• Use the recommended speed for any
material.
• Make sure the lathe has come to a complete
stop before touching the workpiece.
• Leave the work area only after the lathe’s
motor has come to a full stop.
• To avoid injury from accidental starting,
always turn the switch OFF and unplug the
wood lathe before installing or removing any
accessory or making any adjustment.
SPECIFIC TO LATHES
• This lathe is intended for use in dry
conditions, and for indoor use only.
• Wear a dust mask, safety goggles and ear
protection.
• Do NOT wear gloves, neckties or loose
clothing.
• Tighten all locks before operating.
• Do not mount a split workpiece.
• Never turn your lathe ON before clearing
the table of all objects (tools, scraps of
wood, other obstructions etc.).
• Read the warning label attached to the
wood lathe.
• Make sure there are no nails or foreign
objects in the part of the workpiece to be
turned.
• Remove all loose knots in the stock before
mounting it between the centers or on the
faceplate.
• Before attaching a workpiece to the
faceplate, rough it out to make it as round
as possible. This minimizes the vibrations
while the piece is being turned. Always
fasten the workpiece securely to the
faceplate. Failure to do so could result in the
workpiece being thrown from the lathe.
• lowest speed when starting a new
workpiece.
• When turning a workpiece, always rough the
wood to round form at slow speed. If the
lathe is run so fast that it vibrates, there is a
risk that the workpiece will be thrown or the
tool jerked from your hands.
• Always rotate the workpiece by hand
before turning on the motor. If the
workpiece strikes the tool rest, it could split
and be thrown out of the lathe.
SAFETY FOR LATHES
SAFETY
FOR TECHNICAL SUPPORT CALL 1800 658 111
12
WL-B1220H
FIG. BFIG. A
!
This tool must be grounded while in use to
protect the operator from electric shock. IN THE
EVENT OF A MALFUNCTION OR BREAKDOWN,
grounding provides the path of least resistance
for electric current and reduces the risk of electric
shock. This tool may be equipped with an electric
cord that has an equipment grounding conductor
and a grounding plug. The plug MUST Be plugged
into a matching electrical receptacle that is
properly installed and grounded in accordance
with ALL local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED.
the proper electrical receptacle installed by a
IMPROPER ELECTRICAL CONNECTION of the
equipment grounding conductor can result in
risk of electric shock. The conductor with the
green insulation (with or without yellow stripes)
is the equipment grounding conductor. DO NOT
connect the equipment grounding conductor to a
live terminal if repair or replacement of the electric
cord or plug is necessary.
CHECK WITH A QUALIFIED ELECTRICIAN
or service personnel if you do not completely
understand the grounding instructions, or if you
are not sure the tool is properly grounded.
Use only a 3-wire extension cord that has a
3-prong grounding plug and a 3-pole receptacle
that accepts the tool’s plug. Replace a damaged
or worn cord immediately.

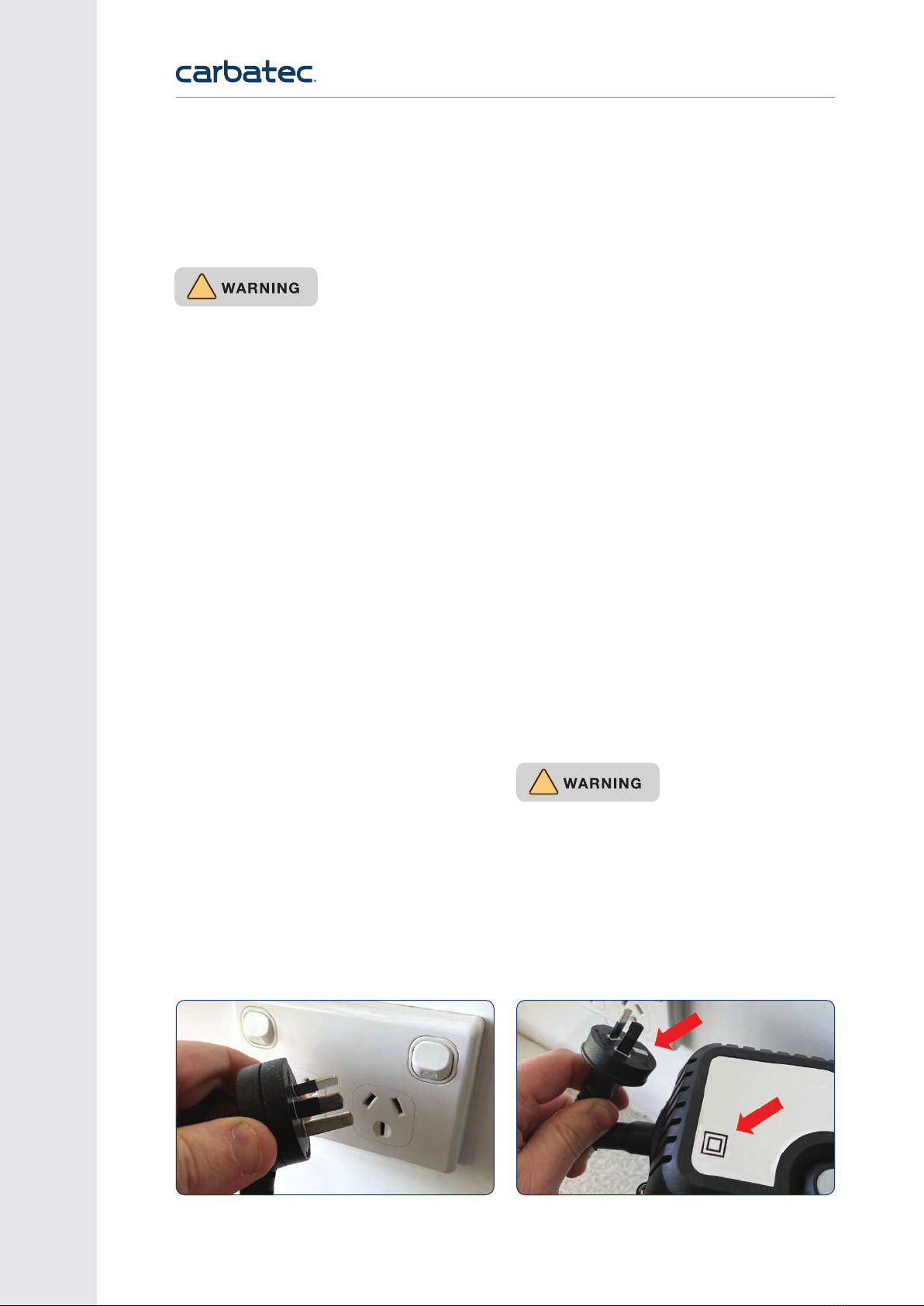

on a circuit that has an electrical receptacle as
shown in FIGURE A that shows a 10 Amp 3-wire
electrical plug and corresponding electrical
receptacle that has a grounding conductor.
with a two prong electrical plug, ensure it displays
the ‘Double Insulated’ logo shown in FIGURE B,
before connecting to a 3- wire receptacle.
Never modify the standard tted electrical
plugs to t your receptacle.
!
ELECTRICAL SAFETY
CARBATEC.COM.AU
13
WL-B1220H
O
N
M
L
K
J
I
H
G
F
E
D
CB
A

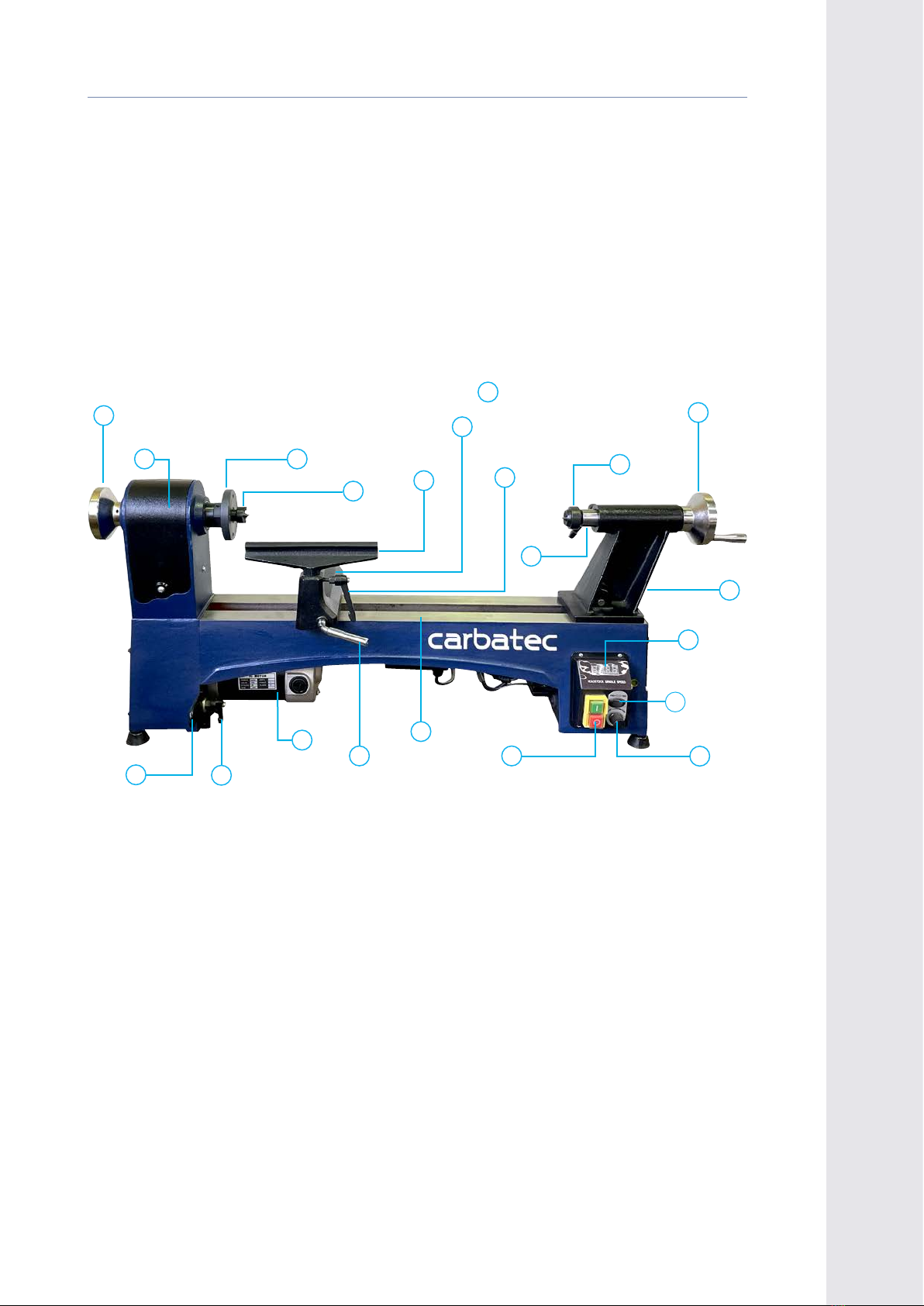

A. Spindle Handwheel
B. Belt Cover
C. Faceplate
D. Drive Centre
E. Tool Rest
F. Banjo
G. Tool Rest Locking Handle
H. Quill
I. Live Centre
J. Quill Feed Handwheel
K. Tailstock
L. Digital Speed Readout
M. Forward/Reverse Rotation Switch
N.
O.
P. Lathe Bed
Q. Banjo Locking Handle
R. Motor
S. Belt Tension Locking Handle
T. Belt Tension Release Lever
OVERVIEW
SAFETY — OVERVIEW
O
P
Q
R
S
T
FOR TECHNICAL SUPPORT CALL 1800 658 111
14
WL-B1220H
CODE
BRAND Carbatec
MODEL
Readout Benchtop Mini Lathe
MOTOR
SPEED
SPINDLE THREAD
SWING OVER BED CAPACITY
BETWEEN CENTER CAPACITY
MORSE TAPER
FACE PLATE 80 mm (3")
TOOL REST
DIRECTION Forward and reverse rotation
OVERALL SIZE (LxWxH) 1010 × 410 × 300 mm
WEIGHT 37 kg nett / 39 kg gross
MATERIAL Cast Iron
SPECIFICATIONS
CARBATEC.COM.AU
15
WL-B1220H
Fig. A1
Fig. A2
Fig. A3
A. ASSEMBLING THE
WOOD LATHE
1. This lathe is predominantly pre-assembled.
Remove the lathe from the carton with care.
Remove all protective wrapping and clean all
protective coatings from the lathe. You can
use various products to do this, including
Citrus Terpene, WD-40 and others. However,
depending on the product used, take care
around painted areas to avoid damage to the
Fig. A1
2. Your lathe has rubber feet included in the
pack. Find these and install in the threaded
holes under the machine. Release the banjo
locking lever and slide the banjo to an
appropriate location. Remove the tool rest
from its packaging, clean as per the lathe bed
and install the tool rest into the banjo, locking
in lowest position for now.
Fig. A2
3. If you intend to keep the faceplate on the
lathe, you can now install the drive centre
and live centre included with the machine by
simply cleaning, then sliding into the relative
goes into the headstock spindle, while the
live centre is placed in the tailstock quill. If
proceed to step B, Removing Faceplate.
set up and ready to operate! However, we
for tips on use, as well as follow our “Before
installed components.
Fig. A3
ASSEMBLY
SPECIFICATIONS — ASSEMBLY
FOR TECHNICAL SUPPORT CALL 1800 658 111
16
WL-B1220H
Fig. B3
B. REMOVING THE FACEPLATE
AND CENTRES.
1.
The faceplate features two grub screws that
loosened to remove the faceplate! Failure
to do so, or to loosen adequately could
would not be covered under warranty.

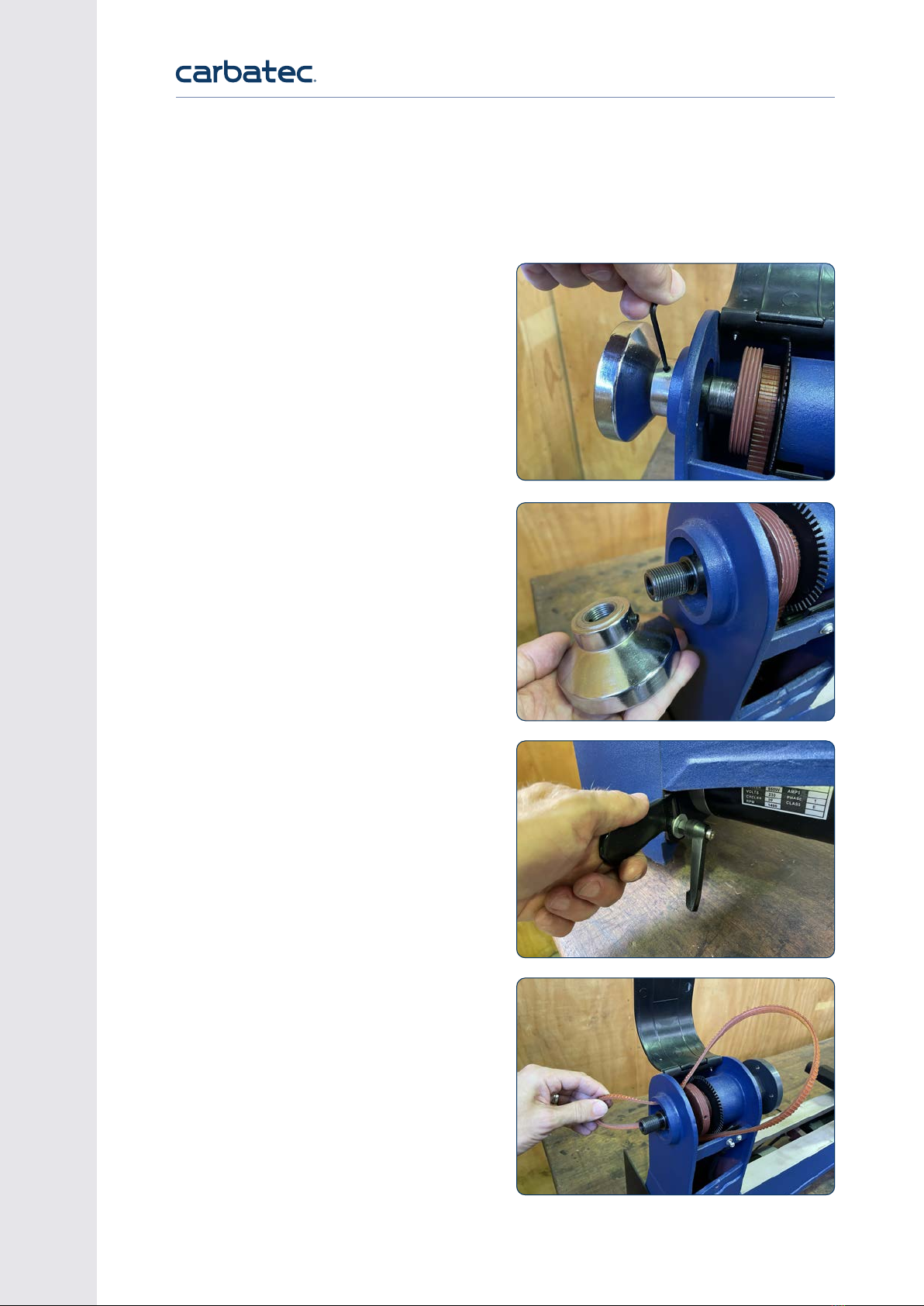

Fig. B1
2. Once the grub screws have been fully
loosened or removed, use the included
spindle spanner and knock out bar together,
to loosen the faceplate on the spindle, then
rotate the faceplate by hand anti-clockwise
to remove it. If you feel any resistance while
turning, double check you have loosened
both grubs screws adequately! DO NOT
Fig. B2
3. You can now install a chuck with the
appropriate spindle insert if you wish, or
simply insert your drive centre in the morse
faceplate again, it is very important to install
all the way until the shoulder of the faceplate
meets the shoulder on the spindle, then
ensure you lock into position using both grub
screws.
4. The drive and live centres on this lathe are
removed by using the “knock-out” bar. Both
the headstock spindle and the tailstock quill
have holes through them. Insert the knock-
out bar into these holes and ‘tap’ our your
centre carefully.
Fig. B3
Fig. B1
Fig. B2
ADJUSTMENTS
CARBATEC.COM.AU
17
WL-B1220H
Fig. C3
ADJUSTMENTS
Fig. C1
Fig. C2
C. CHANGING THE BELT SPEED
RANGE.
1.
open the belt door on the headstock and
using an ‘Allen Key’, the side panel to access
the belt pulleys.
Fig. C1
2. Loosen the belt tension handle and lift the
tension lever to release the belt tension. In
this position, move the belt from one pulley to
another. Always go from the larger pulley to
the belt on the upper and lower pulleys so the
belt is aligned vertically.
Fig. C2
3. After moving the belt, push the tension lever
down to re-apply tension to the belt, then
lock the tension locking lever. Hand turn the
spindle head to ensure everything looks right
and the machine turns smoothly.
Fig. C3
4. Close all belt cover doors and replace screws
to lock closed. Turn your lathe’s power on
and make sure that the machine is operating
through the steps again to assess where
any problem may be. If all is well, you will
through your electronic speed control knob.
FOR TECHNICAL SUPPORT CALL 1800 658 111
18
WL-B1220H
ADJUSTMENTS
Fig. D3
Fig. D4
D. CHANGING THE BELT
1. Open the upper and lower belt access doors.
Loosen the two set screws of the spindle
handwheel adequately and remove the
handwheel by turning clockwise - this is a
reverse threaded coupling.
Fig. D1, D2
2. Release the belt tension by unlocking the
belt tension lock lever, then lifting the tension
lever up.
Fig. D3
3. Remove the belt from the lower pulley
completely, so it is free to move up. Lift the
belt from the top and feed it through the gap
between the spindle and cast body. An Allen
key works as a ‘hook’ should you have any
trouble feeding it through.
Fig. D4
4. Reverse the procedure with a new belt,
feeding it through and into the belt cavity;
placing over the lower pulley onto the smaller
of the two steps; then feeding it onto the
matching upper pulley. Re-tension the belt
and lock in position. Thread the handwheel
back into place, remembering you will turn
this anti-clockwise to do so. Screw all the way
and lock the grub screws gently.
Fig. D1
Fig. D2
CARBATEC.COM.AU
19
WL-B1220H
Fig. E3
Fig. E4
Fig. E1
Fig. E2
E. BEFORE FIRST USE!
1.
conduct an inspection to ensure all is in
order. Check that your faceplate/chuck/drive
centre is properly installed and locked in
place, where relevant. Turn the machine on
without any timber mounted to ensure the
motor is operating smoothly. Test adjusting
the speed and if all is well, turn the machine
would occur during use. If necessary, adjust
the nut beneath the machine to toggle the
not move. Check that you have installed your
live centre in the tailstock if turning between
centres. Check that your tailstock locks down
to the bad adequately and adjust with the nut
below if required.
2. Mount your timber in a manner appropriate to
so that they are close to the timber, but not
touching. Rotate the spindle handwheel a full
360° to ensure the timber will not contact
the tool rest. Adjust the height of the tool
rest to be slightly above the centreline of the
adequately locked in position.

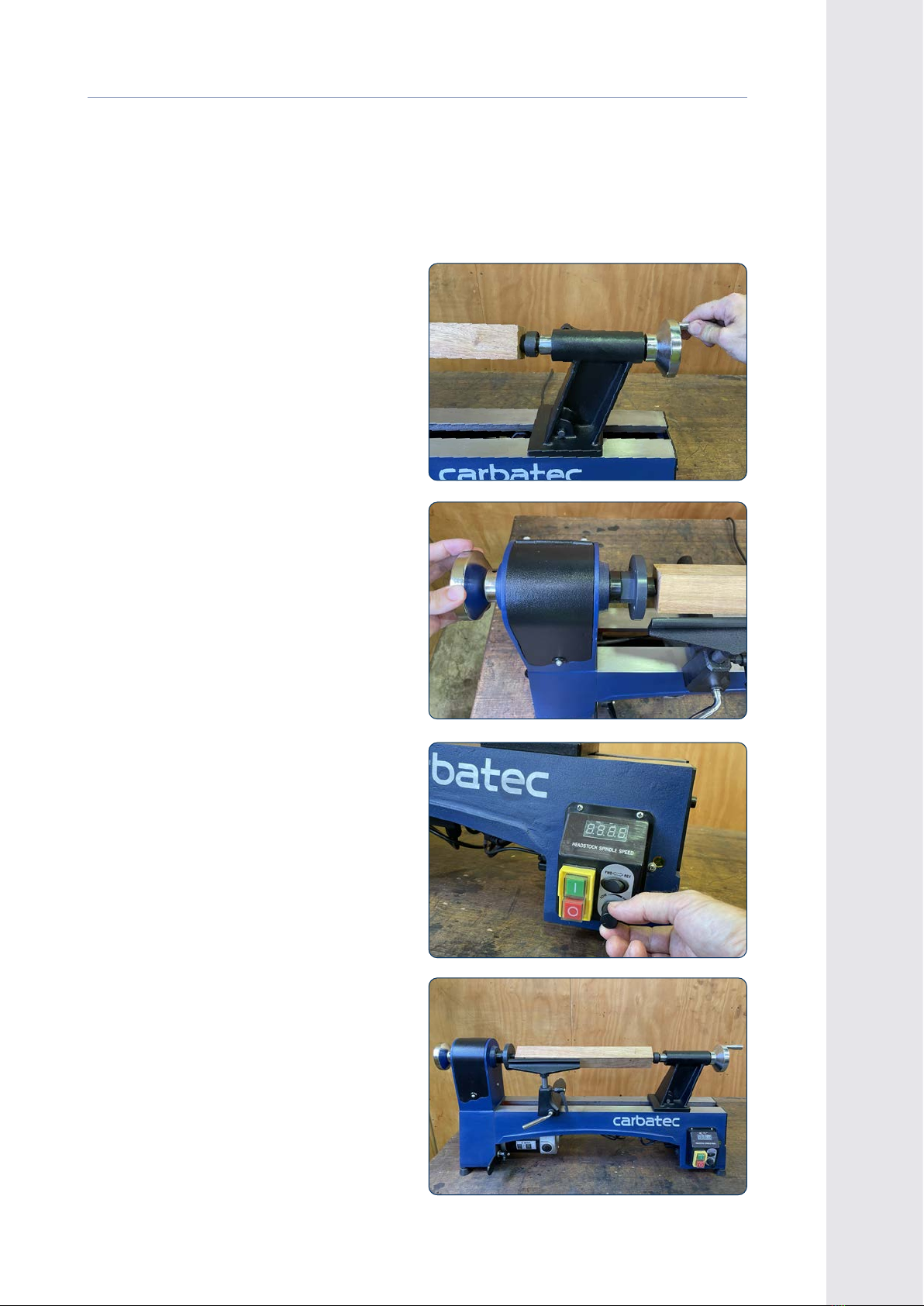

Fig. E1, E2
3. On your control panel, ensure your direction
switch is appropriately set (usually ‘Forward’)
and turn your speed control knob all the way
to the left or anti-clockwise, so you start
your machine in the slowest possible speed
working space around you and your lathe
and... you are ready to turn!
Fig. E3, E4
OPERATION
ADJUSTMENTS — OPERATION
FOR TECHNICAL SUPPORT CALL 1800 658 111
20
WL-B1220H
1 2 3 4
A
B
C
D
4321
D
C
B
ATitle
Number RevisionSize
A4
Date: 21-Sep-2022 Sheet of
File: E:\t调速\ts.ddb Drawn By:
A
-
+
MG1
MOTOR 950W
P1
230V/1PH/50HZ
ON/OFF
SPEED
CONTROLLER
PCB
SPEED DISPLAY
PCB
ELECTRICAL PARTS HOLDER
SW DPST
RDS
CW/CCW
SPEED
FILTER
YELLOW/GREEN
BROWN BROWN
BLUE BLUE
KEDU:KJD20
BROWN
BLUE
YELLOW/GREEN
WIRING DIAGRAM
PARTS DIAGRAM
Table of contents
Other Carbatec Lathe manuals
Popular Lathe manuals by other brands
HOLZMANN MASCHINEN
HOLZMANN MASCHINEN ED 300FD user manual
Central Machinery
Central Machinery 59116 Owner's manual & safety instructions
Jet
Jet GH-1440ZX operating instructions
Shopsmith
Shopsmith 10-ER owner's guide
tornos
tornos DECO 13a quick reference
WNT
WNT MNG rectangular Installation and operating instructions
