Carbine Cfb-hb User manual

INSTALLATION INTO METAL HOLLOW STYLE DOORS

CFB-HB FLIP BOLT MORTICE LOCK - HOLD BACK MODEL

Item No. Description QTY

1 Main Lock 1

2 Cover Plate 1

M4 x 16 CSK Screw 4

M4 x 6 CSK Screw 3

Retainer Pin 2

Bolt Packer 2

CFB-141A - Taper Bolt SS

Hinged Metal Hollow Style Door

Hinged Timber Door

(22mm bolt projection when installed)

CFB-142A - Hook Bolt Short SS

Sliding Metal Hollow Style Door

Sliding Timber Door

(28mm bolt projection when installed)

CFB-143A - Hook Bolt Long SS

Sliding Metal Hollow Style Door

Sliding Timber Door

(35mm bolt projection when installed)

The Next Generation in Locking

3 4 5 6

CFB-HB - Flip Bolt Mortice Lock - Hold Back Model

Provides the feature of hold back when installed with

CFB-CSL - Flip Bolt Mortice Lock - Concealed Short Lever.

2. ASSEMBLY OF FLIP BOLT INTO MORTICE LOCK

2A Remove transport tape

off the lock.

2C Securely tighten the round

bolt in the clockwise direction

using a 4mm allen key.

2B Insert chosen flip bolt

(sold separately) into lock.

*If necessary, insert bolt packers

into lock prior to flip bolt.

Bolt Packers (if required)

Only for CFB-141A - Taper Bolt SS

CFB-142A - Hook Bolt Short SS

Distributed in Australia by

LOCK AND KEY a division on the

DAVCOR GROUP PTY LTD ABN 95 003 562 598

This product has been manufactured in Taiwan

to Lock and Key Company specifications

This product is guaranteed to be free from defects in materials and

workmanship for a period of one (1) year from the date of original

purchase. This warranty is for replacement of product only and Lock

and Key Company does not accept responsibility for any direct or

consequential damage caused by this product or its use. This warranty

does not cover damage that results from faulty installation or usage,

alteration or modification of the product or tarnishing of the finish

including colour change due to weather, salt or chemical. Should this

product not perform satisfactorily in its intended application, return it

to place of purchase for replacement.

LOCK & KEY Phone: 1300 652 692 Web: www.locknkey.com.au Web: www. daveweb.com.au

NOTE

Please dispose of plastic

bags and other packaging

in a thoughtful manner

WARNING

Please keep contents

away from small children.

Suffocation Hazard.

Special Notes:

For installation together with CLS-FAB - Flip Bolt Latching Strike, please refer to installation instructions provided with CLS-FAB.

For installation together with CFB-OES - Oval Escape Turn, please refer to installation instructions provided with CFB-OES.

For installation together with CFB-OTS - Oval Turn Snib, please refer to installation instructions provided with CFB-OTS.

For installation together with CFB-OCEP - Oval Cylinder Rectangular Escutcheon, please refer to installation instructions provided with CFB-OCEP.

1. MORTICE LOCK BOLT SELECTION - Bolts are sold separately

Select bolt appropriate for application.

CFB-HB - Installation Instructions Revision 2 - 14th March 2019

The Next Generation in Locking

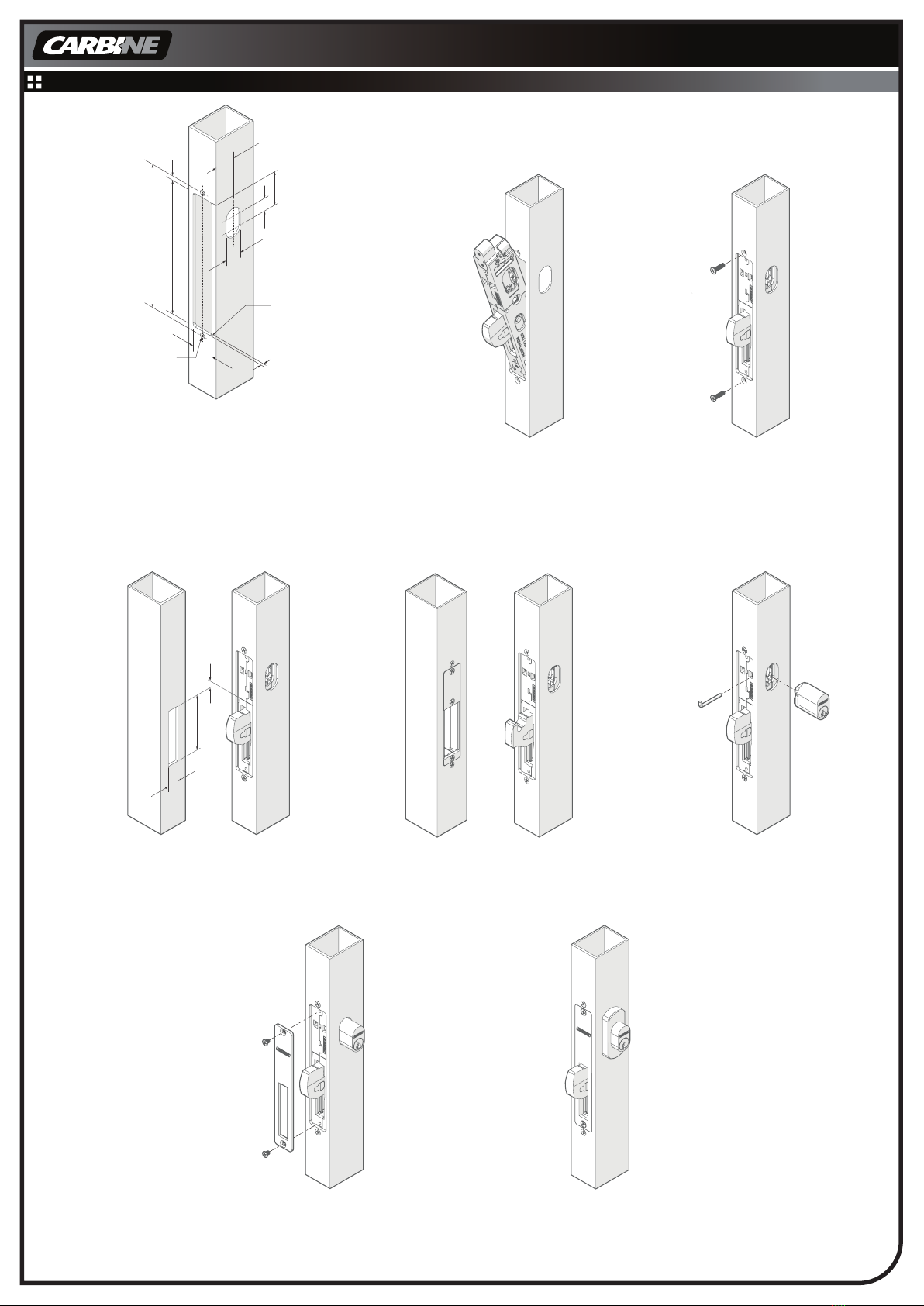

3. INSTALLATION OF THE MORTICE LOCK (METAL HOLLOW STYLE DOOR)

3A Prepare door by cutting openings for

fitment of cover plate and oval cylinder.

Please note: if installing together with:

●CFB-CSL - Flip Bolt Mortice Lock - Concealed Short lever

please refer to instructions provided with CFB-CSL.

3B Insert lock into door cavity.

Ensure bolt is extended.

3C Secure with

2x M4x16mm CSK Screws.

3D Measure and cut slot in door jamb.

*If retrofitting, ignore this step.

3E Insert oval key cylinder and secure

with retainer pin.

Test functionality of lock before fitting

cover plate.

*If required, fit bolt packers.

7.5

3F Insert cover plate into lock

and secure with

2x M4x6mm CSK Screws.

3G Complete installation with

CFB-OCEP

Carbine Oval Cylinder

Rectangular Escutcheon.

For installation requiring a

saver plate (sold seperately),

please refer to section 4.

167

156

25.4

5.5

Drill 2 x Ø4 holes

and Countersunk

Ø6 x 90°

DOOR EDGE

EXTRUSION

THICKNESS

20 + DOOR EDGE

EXTRUSION

THICKNESS

For hinged door For sliding door

For sliding doors use

Carbine CLS-FAB flip bolt latching strike,

for installation instructions refer to

instructions supplied with CLS-FAB

●CFB-EH - Flip Bolt Mortice Lock - Egress please refer to

instructions provided with CFB-EH.

CFB-HB - Installation Instructions Revision 2 - 14th March 2019

SAVER PLATE ONTO METAL HOLLOW STYLE DOORS

4. INSTALLATION OF THE MORTICE LOCK WITH SAVER PLATE ONTO METAL HOLLOW STYLE DOORS

Item No. Description QTY

1 Saver Plate 1

2 4

M4 x 16 CSK Screw

3 2

ST4.2 x 30 CSK Screw

4Single Mount Adaptor 2

5Plate Nut 2

The Next Generation in Locking

CFB-SP - FLIP BOLT MORTICE LOCK - TIMBER FACE PLATE KIT

(SOLD SEPARATELY)

Provides the components to mount Carbine CFB-D / CFB-HB Flip Bolt Mortice locks

onto damaged metal hollow style and timber doors.

4A Drill additional mounting holes.

Please note: if installing together with:

●CFB-CSL - Flip Bolt Mortice Lock - Concealed Short lever

please refer to instructions provided with CFB-CSL.

●CFB-EH - Flip Bolt Mortice Lock - Egress

please refer to instructions provided with CFB-EH.

Additional Mounting Holes

4B Insert lock into door cavity.

Ensure bolt is extended.

4C Secure with

2x M4x16mm CSK Screws

4D Insert oval key cylinder and secure

with retainer pin.

4E Measure and cut slot in door jamb.

*If retrofitting, ignore this step.

4G Insert saver plate over lock

and secure with

4x M4x16mm CSK Screws.

Test operation.

*If required, remove saver plate,

lock and fit bolt packers.

4H Complete installation with

CFB-OCEP

Carbine Oval Cylinder

Rectangular Escutcheon.

4F Remove

2x M4x16mm CSK Screws

7.5

167

203

156

25.4

5.5

Drill 4 x Ø4 holes

and Countersunk

Ø6 x 90°

23.5 20 + DOOR EDGE

EXTRUSION

THICKNESS

DOOR EDGE

EXTRUSION

THICKNESS

For hinged door For sliding door

For sliding doors use Carbine

CLS-FAB flip bolt latching strike,

for installation instructions refer

to instructions supplied with CLS-FAB.

CFB-HB - Installation Instructions Revision 2 - 14th March 2019

INSTALLATION INTO TIMBER DOORS

5B Unfasten designated

screws and remove both

double mount adaptors.

5A Supplied lock

configuration.

5C Insert plate nut into

single mount adaptor and

then insert single mount

adaptors into main lock.

5D Fasten screws tightly

back into designated position

and the lock is in its correct

configuration.

The Next Generation in Locking

6. INSTALLATION OF THE MORTICE LOCK WITH SAVER PLATE ONTO TIMBER DOORS - continues to next page

5. CHANGE OF CONFIGURATION OF MORTICE LOCK

6A Determine the functionality of the door.

Prepare door by cutting openings for

fitment of saver plate, lock and oval cylinder.

Cutout for saver plate

and oval cylinder Cutout for lock

190

16.5

6B Insert lock into door cavity.

Ensure bolt is extended.

6C Insert oval key cylinder and secure

with retainer pin.

22 72

25.4

223

203

Drill 2 x Ø3 holes

30mm in.

Item No. Description QTY

1 Saver Plate 1

2 4

M4 x 16 CSK Screw

3 2

ST4.2 x 30 CSK Screw

4Single Mount Adaptor 2

5Plate Nut 2

CFB-SP - FLIP BOLT MORTICE LOCK - TIMBER FACE PLATE KIT

(SOLD SEPARATELY)

Provides the components to mount Carbine CFB-D / CFB-HB Flip Bolt Mortice locks

onto damaged metal hollow style and timber doors.

345

CFB-HB - Installation Instructions Revision 2 - 14th March 2019

7. INSTALLATION INTO PATCH DOOR KIT

The Next Generation in Locking

6. INSTALLATION OF THE MORTICE LOCK WITH SAVER PLATE ONTO TIMBER DOORS - continued from last page

6D Insert saver plate into lock

and secure with

2x M4x16mm CSK Screws.

Secure lock to timber door with

2x ST4.2x30 CSK Screw.

6F Complete installation with

CFB-OCEP

Carbine Oval Cylinder

Rectangular Escutcheon.

6E Test lock operation.

*If required, remove lock and fit bolt packers

Refer to CLS-A02 - Flip Bolt Latching Strike -

Timber Face Plate Kit

installation instructions for sliding timber door

strike installation (if required).

7B Unfasten designated

screws and remove both

double mount adaptors.

7A Supplied configuration. 7C Insert single mount

adaptors into main lock.

7D Fasten screws tightly

back into designated position

and the lock is in its

alternative configuration.
