carbonit DUO-HP User manual

DUO-HP
Premium Drinking Water Filter
545057-e-180416
DISPOSAL OF THE FILTER CARTRIDGES
As the activated carbon of the CARBONIT® filter cartridges is made
of coconut shells, the used cartridges can simply be disposed of with
the general household waste.
OTHER PARTICULARS
If one does not adhere to this manual, then any and every warranty
claim is forfeited.
No liability can be assumed for the consequences of using filter
cartridges made by other manufacturers.
FURTHER INFORMATION
SUPPLIERS
Products of CARBONIT® Filtertechnik GmbH, amongst others
replacement filters and accessories, are stocked and sold by a
network of authorised resellers.
Further information on the topics of health and filtered drinking
water as well as on the range of products as well as the
reseller network can be found on our website:
„ www.carbonit.com / My Filter
MANUFACTURER
CARBONIT® Filtertechnik GmbH
Industriestraße 2
29410 Salzwedel / OT Dambeck
Germany
Date of issue: 16.04.2018
YOUR AUTHORISED RESELLER
ACTIVATED CARBON BLOCK FILTERS
Sintered activated carbon block filters as used in this system differ
fundamentally from:
p Table or can filters which do improve the water's flavour (and
partially the optics of the water as well) but can only remove
pollutants to a small degree.
p Extruded block filters which have to a very high degree agglu-
tinated (and therefore ineffective) activated carbon surfaces
based on the molten binders created during the manufacturing
process.
The high-quality activated carbon that is based on coconut shells
and used in the CARBONIT® block filters has a very high adsorption
capacity. Thereby, for example, substances such as chlorine, lead,
copper, pharmaceutical residues and hormone-related substances
are removed. The minerals stay in the drinking water.
USABLE FILTER CARTRIDGES
The DUO-HP, depending on the version, is equipped with filter
cartridges by the manufacturer. If needed, information on these
and alternative filter cartridges can be gotten from the authorised
CARBONIT® resellers or on our website.
REPLACEMENT INTERVALS & FILTER PERFORMANCE
The replacement interval of max. 6 months is highly recommended
due to hygienic reasons and is stipulated by DIN 1988 / DIN EN
1717. An earlier change within this time period can however
become necessary if the water flow has become noticeably less. This
is not a defect in the used filter but rather a pointer to the fact that
there are now more and more fine particles in the unfiltered water.
Replacement intervals and filter performance of the other usable
filter cartridges are listed in the respective documents or on our
website www.carbonit.com / My Filter.
CARE/MAINTENANCE
The filter housing is pretty much maintenance-free. When chang-
ing the filter cartridge it is recommended that one cleans it with a
soft cloth and some washing-up liquid; one should also check the
mechanical functions as well as the wear parts (seals, tubes etc.).
WEAR PARTS
p Filter cartridge: Please make sure to keep to the replacement
intervals.
p Seals/tubes: All seals and tubes are wear parts and, if necessary,
should be replaced.
IMPORTANT INFORMATION
USER MANUAL

Fresh spring water at home - with the DUO-HP manufactured by
CARBONIT® not a problem at all. In an instant a healthy thirst
quencher flows from one's water taps at home. The technology can
be installed easily and quickly.
The filter device CARBONIT® DUO-HP filters the tap water at the
point of extraction and is always hidden beneath the sink.
Check if the delivery is complete! (see scope of delivery)
Attention! Before connecting the DUO-HP to the water system: Switch
off the cold water supply at the angle valve and tighten all connections
of the pre-assembled components! Put the filter cartridges into the
filter cups (if not pre-assembled) and tighten the union nuts with the
supplied plastic wrench (a bit more than hand-tight).
Your drinking water is now ready for use!
To keep the filtered water clean and
fresh, the filter cartridges must be
replaced after six months.
6
Close the ball valve B and open tap
C so that the pressure in the filter unit
is released.
Then disconnect the hoses by
retracting the unlocking sleeves D of
the coupling and put the filter unit in
the sink.
7
To replace the filter cartridges,
place the installation
wrench onto the
union and loosen the screwed.
Unscrew the union nuts and remove
the filter cups.
8
Remove used filter cartridges and
insert the new filter cartridges and
reassemble everything in reverse order.
Important: The gasketed and internally
perforated side of the filter cartridges
(connection cover) must face upwards
when inserted into the filter cup.
For information on the initial operation
of the filter, see
5.2
. Make sure to
carry out a new leak test!
The DUO-HP can be used again!
Rinse the filter:
1. Open the angle valve A
2. Open the ball valve B
3. Open the tap C until bubble
free water emerges
4. Leak test! After completion
of the assembly and after
approx. 30 minutes check the
connections and the filter unit
for leaks.
5. To rinse, let water flow
through the filter for about five
minutes. Some carbon dust may
be rinsed out.
5
a)
separate tap
Mount the outlet hose without elbow to
the tap.
from
1
using the elbow.
4
Install the water outlet to the tap.
AVAILABLE VERSIONS OF THE DUO-HP
·Classic
parallel flow
Installation into the water line, incl. 2 filter cartridges
NFP Premium D, connection kit with quick coupling
·Lime
serial flow
Branch from the water line, incl. filter cartridges NFP Premium
and IK NF2, connection kit with quick coupling
· Special
serial flow
Branch from the water line, incl. filter cartridges NFP Premium
and pre-filter cartridge 1 µm, connection kit with quick coupling
· Basic
parallel or
serial flow
Branch from or installation into the water line, without filter
cartridges, connection kit with quick coupling
PRIOR TO INSTALLATION INSTALLATION OF THE FILTER
FILTER CARTRIDGE EXCHANGE
Before connecting the DUO-HP to the water supply system:
turn off the cold water supply (angle valve) and tighten and
secure all connections of the pre-assembled components!
After the installation, starting operations and changing filters one
should without fail undertake a leakage check and repeat this at least
once after 30 minutes. Only operate with could water!
parallel
flow
serial
flow
Connection
of nr.
1
on
off
close
Connection
of nr.
1
IN
OUT
a
a
b
bb)
existing tap
Mount the outlet hose to the connection
Open side of
the filter
cartridge!
B
B
D
C
A
B
D

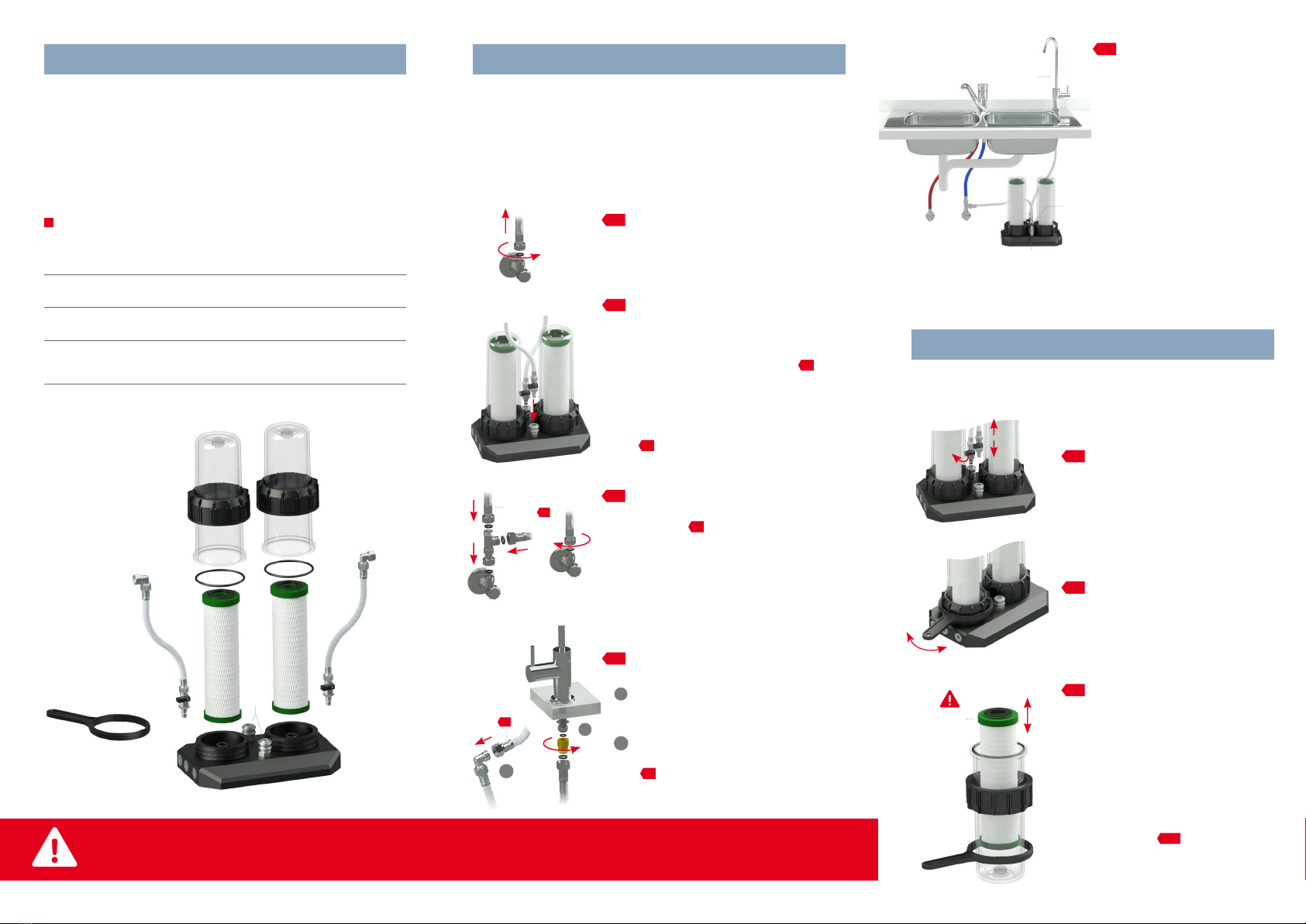

Scope of delivery
(depending on type,
portrayed here is the
version Classic)
open
close
1 Loosen the existing cold water line at the
angle valve (attention: close angle valve!)
The connection material is made to fit
3/8" threads.
2 Let the filter housing inlet hose snap into
the coupling by means of a quick coupling
plug on the "IN" side of the filter housing,
screw the other hose end tightly to angle
valve of the cold water supply (see 3 )
Attach the second hose that is provided to
the filter housing outlet "OUT" by means of
the quick coupling, connect the other end
(elbow) to existing or separate fittings
(see 4 ).
3 For serial flow, mount the T-piece to the
angle valve and also connect the loosened
connection of 1 as well as the inlet hose to
the T-piece.
For parallel flow, attach the inlet hose
directly to the angle valve.
The use of the elbow is optional
(unfavourable layout of the line,
compression fitting).
b
