SLS Series
Single Animal Livestock Scale
Owner’s Manual

1913-0609-0M Rev A •SLS Series Owner’s
2

1913-0609-0M Rev A •SLS Series Owner’s
3
TABLE OF CONTENTS
INTRODUCTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1
Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1
Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-
2
SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Livestock Pen and Gate Models - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Deck Only Models - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
SAFETY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
Safety Symbol Definitions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
GENERAL SAFETY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
ANIMAL SAFETY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-
6
LIFTING AND UNLOADING THE SCALE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
Lift the Scale - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
INSTALLATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-
8
Removing the Shipping Brackets - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-
8
Adjust the Support Feet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
OPERATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Gate Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Securing the Gate Before Weighing the Animal - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
TROUBLESHOOTING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
CALIBRATION PROCEDURE - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-
11
TRIM ADJUSTMENT - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
Single Load Cell - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
Two or More Load Cells - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
SCALE INTERCONNECTION DIAGRAM - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-
14
PARTS IDENTIFICATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
-
15
Livestock Pen and Gate Models - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
Deck Only Models - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
I

1913-0609-0M Rev A •SLS Series Owner’s
4
PRECAUTIONS
Before using this scale, read this manual
and pay special attention to all
"NOTIFICATION" symbols:
DANGER!
WARNING!
CAUTION!
COPYRIGHT
All rights reserved. Reproduction or use, without expressed written permission, of editorial or
pictorial content, in any manner, is prohibited. No patent liability is assumed with respect to the
use of the information contained herein.
DISCLAIMER
While every precaution has been taken in the preparation of this manual, the Seller assumes no
responsibility for errors or omissions. Neither is any liability assumed for damages resulting from
the use of the information contained herein. All instructions and diagrams have been checked
for accuracy and ease of application; however, success and safety in working with tools depend
largely upon individual accuracy, skill, and caution. For this reason, the Seller is not able to
guarantee the result of any procedure contained herein. Nor can they assume responsibility for
any damage to property or injury to persons occasioned from the procedures. Persons engaging
in the procedures do so entirely at their own risk.
FCC COMPLIANCE STATEMENT
This equipment generates uses, can radiate radio frequency, and if not installed and used in
accordance with the instruction manual, may cause interference to radio communications. It has
been designed within the limits for a Class A computing device pursuant to Subpart J of Part 15
of FCC rules to provide reasonable protection against such interference when operated in a
commercial environment. Operation of this equipment in a residential area may cause
interference in which case the user will be responsible to take whatever measures necessary to
correct the interference.
You may find the booklet “How to Identify and Resolve Radio-TV Interference Problems”
prepared by the Federal Communications Commission helpful. It is available from the U.S.
Government Printing Office, Washington, D.C. 20402. Request stock No. 001-000-00315-4.
II
Serial Number_______________________
Date of Purchase ____________________
Purchased Form_____________________
___________________________________
___________________________________
RETAIN THIS INFORMATION FOR FUTURE USE

1913-0609-0M Rev A •SLS Series Owner’s
1
INTRODUCTION
Thank you for selecting and purchasing Cardinal Scale’s SLS Series Single Animal Livestock
Scale. Your scale was built with quality and reliability and incorporates the latest technology and
innovative features for the weighing industry to meet your weighing needs for years to come.
The purpose of this manual is to provide you with a guide through the operation of your SLS
series single animal livestock scale. Please read it thoroughly before attempting to use your scale
and keep it handy for future reference

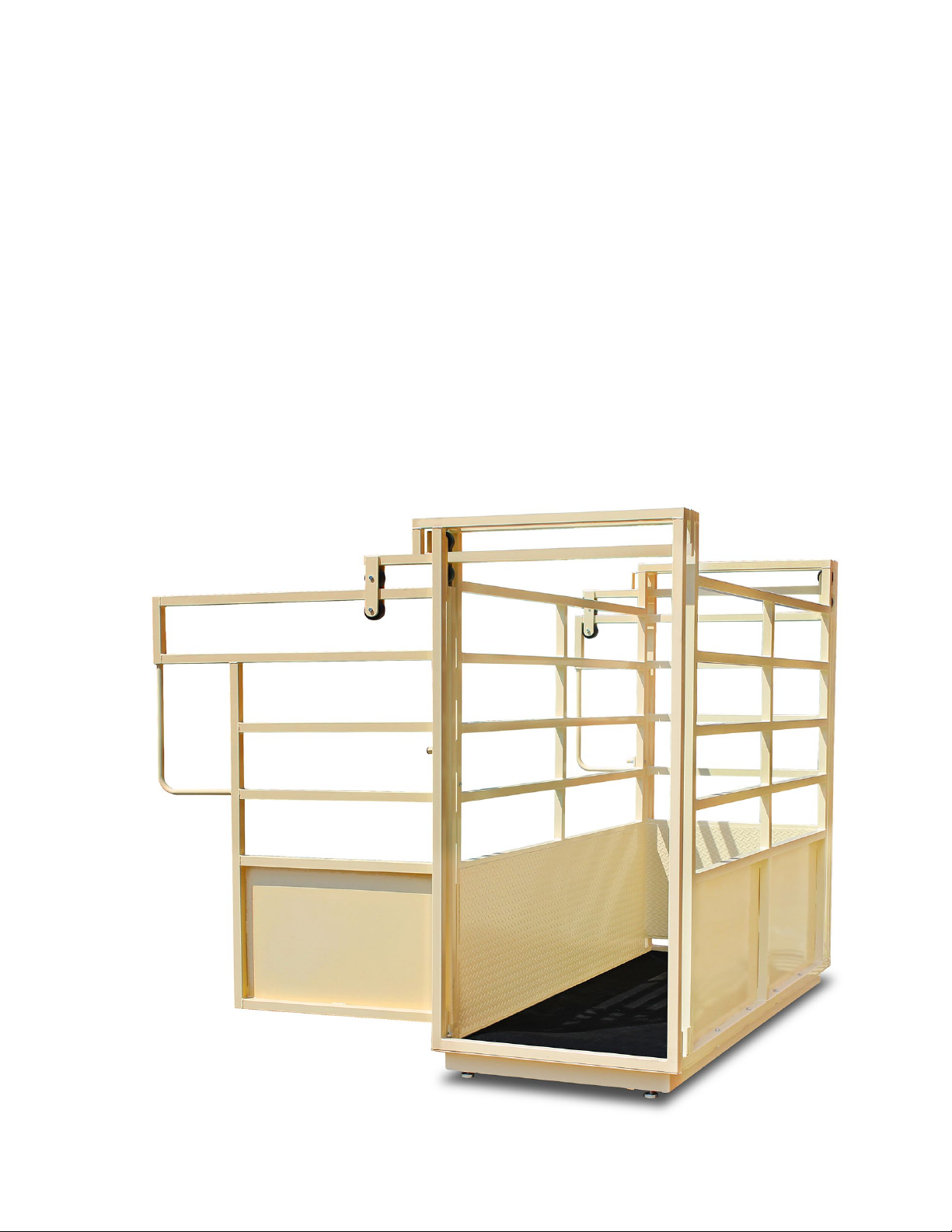

Overview
Cardinal Scale’s SLS series is an NTEP-certified steel deck single animal livestock scale offering
extreme durability and high-quality construction for weighing cattle, swine, horses, sheep, goats,
and more. With its adjustable support feet, the SLS can be used on any relatively flat and firm
surface. The unique easy-close slide-track gates increase efficiency for the operator and secures
the livestock inside the pen while weighing. The SLS series is available in varying widths and
lengths, both with and without the livestock pen, and is extremely accurate up to 2,500 lb x 0.5 lb
or 5,000 lb x 1 lb capacities.

1913-0609-0M Rev A •SLS Series Owner’s
2
INTRODUCTION, CONT.
Features
•Accurate to Within 1/2 LB
•Agricultural Products
•Available With or Without Livestock Pen and Dual Slide-Out Gates
•Heavy-Duty 5/8-Inch-Thick Rubber Mat Included
•Mild Steel Construction
•NTEP Legal for Trade
•Stainless Steel Load Cells
•Up to 5000 LB Capacity
•Varying Widths and Lengths Available
Options
•Box Panel Kits
•Remote Displays
•Ticket Printers
•Wi-Fi Connectivity
•Mobile Apps
•Weight Indicators
Multiple Cardinal Scale weight indicators can be used with the SLS series scale. For example,
the 190, 205, and 212GX. These indicators are all NTEP approved and feature StableSENSE®
digital filtering that filters out motion on the scale due to animal movement. This digital filtering
provides a stable weight display making weighing easier and quicker for the operator.

1913-0609-0M Rev A •SLS Series Owner’s
3
SPECIFICATIONS
Construction:
Mild steel 1.5-inch-square tubing all welded cage with rugged
checkered steel kick panel interior
Gates:
•Dual slide-out gates with a large exterior grab handle allow easy
loading and unloading
•Exterior rotating latch inaccessible to livestock for safety
Paint:
Anti-corrosion, baked-on polyester tan powder paint
Load Cells:
Four model TB 2,500 lb stainless steel specialty shear beam load
cells with adjustable support feet
Capacities/Divisions:
Available in either 2,500 x 0.5 lb or 5,000 lb x 1 lb
(dual range option also available)
NTEP Certificate of
Conformance:
Certificate number 13-083 (legal for trade)
Accuracy Class:
III
Platform Sizes:
30 x 96 in, 36 x 96 in, 36 x 120 in, 48 x 96 in, and 48 x 120 in
Platform Material:
Steel with rubberized non-skid mat
Mat Thickness:
5/8-inch thick high-quality heavy-duty rubber mat for sure footing
and noise reduction when weighing (included)
Deck Height:
5-inch step height for easy step-in and exit
Junction Box:
•
Easy access stainless steel junction box where the load cell wiring
merges and connects to the indicator
•Stainless steel flex conduit to protect the load cell wiring
Country of Origin:
USA

1913-0609-0M Rev A •SLS Series Owner’s
4
SPECIFICATIONS, CONT.

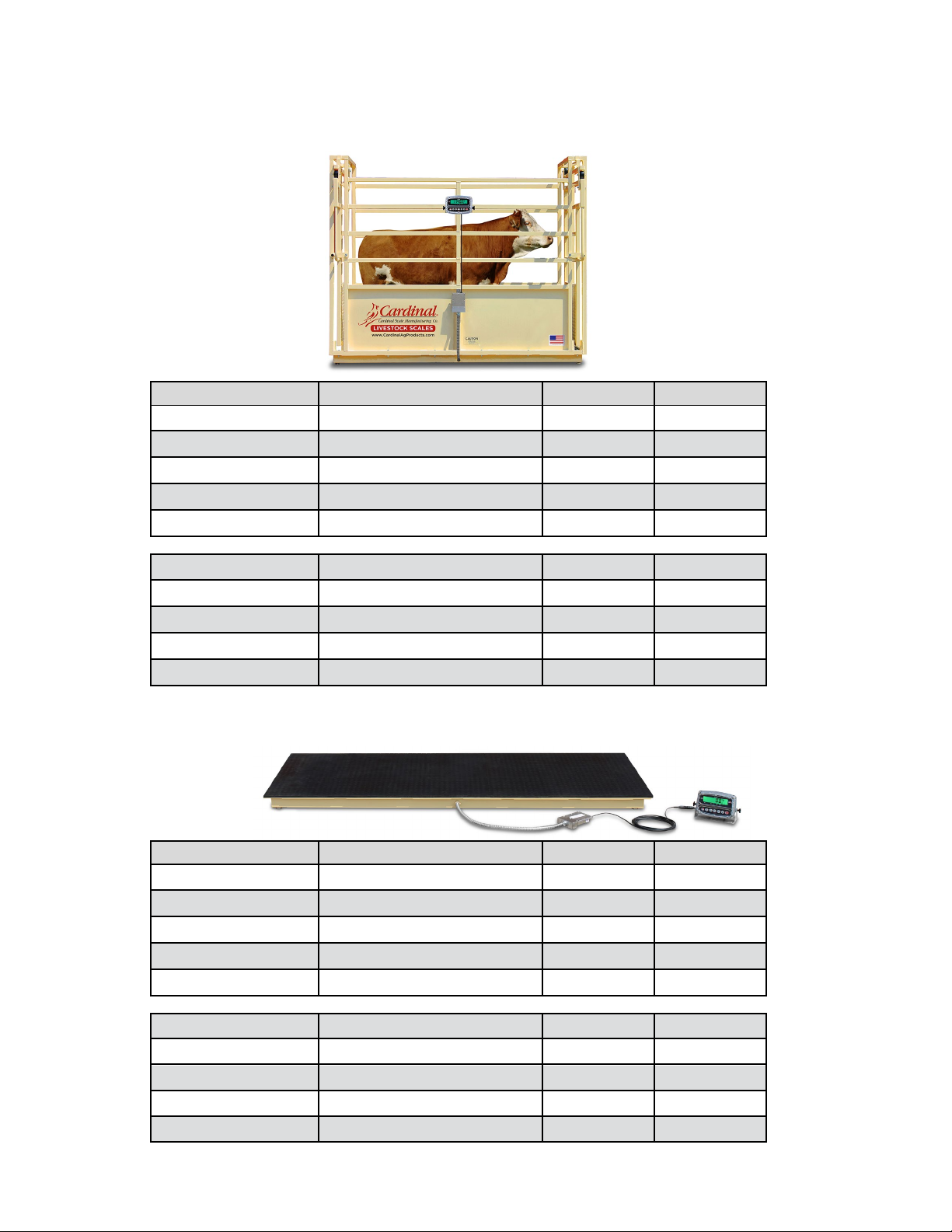

Livestock Pen and Gate Models
MODELS
Capacity / Division
Width
Length
2.53096-SLS
2,500 lb x 0.5 lb
30 in
96 in
2.53696-SLS
2,500 lb x 0.5 lb
36 in
96 in
2.536120-SLS
2,500 lb x 0.5 lb
36 in
120 in
2.54896-SLS
2,500 lb x 0.5 lb
48 in
96 in
2.548120-SLS
2,500 lb x 0.5 lb
48 in
120 in
53096-SLS
5,000 lb x 1 lb
30 in
96 in
53696-SLS
5,000 lb x 1 lb
36 in
96 in
536120-SLS
5,000 lb x 1 lb
36 in
120 in
54896-SLS
5,000 lb x 1 lb
48 in
96 in
548120-SLS
5,000 lb x 1 lb
48 in
120 in
Deck Only Models
MODELS
Capacity / Division
Width
Length
2.53096-SLS-D
2,500 lb x 0.5 lb
30 in
96 in
2.53696-SLS-D
2,500 lb x 0.5 lb
36 in
96 in
2.536120-SLS-D
2,500 lb x 0.5 lb
36 in
120 in
2.54896-SLS-D
2,500 lb x 0.5 lb
48 in
96 in
2.548120-SLS-D
2,500 lb x 0.5 lb
48 in
120 in
53096-SLS-D
5,000 lb x 1 lb
30 in
96 in
53696-SLS-D
5,000 lb x 1 lb
36 in
96 in
536120-SLS-D
5,000 lb x 1 lb
36 in
120 in
54896-SLS-D
5,000 lb x 1 lb
48 in
96 in
548120-SLS-D
5,000 lb x 1 lb
48 in
120 in

1913-0609-0M Rev A •SLS Series Owner’s
5
SAFETY
Safety Symbol Definitions
DANGER! Indicates an imminently hazardous situation that, if not avoided, will
result in death or severe injury.
WARNING! Indicates a potentially hazardous situation that, if not avoided could
result in severe injury or death.
CAUTION! Indicates a potentially hazardous situation that, if not avoided, may
result in minor or moderate injury.
IMPORTANT! Indicates information about procedures that, if not observed, could result in
damage to equipment.
GENERAL SAFETY
Do not operate or work on this equipment unless you have read and understood the instructions
and warnings in this manual. Failure to follow the instructions or observe the warnings could
result in injury or death. Contact Cardinal Scale Tech Support for replacement manuals. Proper
care is your responsibility.
WARNING! Failure to follow instructions or observe warnings may result in severe
injury or death.
•Do not allow children or inexperienced persons to operate this scale.
•Do not use it for purposes other than weighing.
•Do not place fingers into slots or possible pinch points.
•Do not place hands, feet, or any body part underneath the scale at any time. The scale could
be lowered, crushing body parts.
•Do not use this product if any of the components are cracked.
•Do not exceed the rated load limit of the unit.
•Do not make alterations or modifications to the unit.
•Do not remove or obscure warning labels.
•Keep hands, feet, and loose clothing away from moving parts.
•Always be certain when lowering the scale, that everyone is clear of scale.
•Be sure the gates are latched before transporting the scale.
•The weighing platform must be empty when the scale is being transported.

1913-0609-0M Rev A •SLS Series Owner’s
6
ANIMAL SAFETY
Animal safety is a very serious issue and must be observed when handling any type of animal.
The scale surface may become slippery during use; a build-up of manure on the scale may
reduce traction. It is recommended that you take any necessary precautions to maintain an
acceptable level of animal footing.
WARNING! The Cardinal SLS Single Animal Livestock Scale is not
intended for the transportation of animals or storage of any goods.
The weighing platform must be empty when the scale is transported.
Failure to observe this warning may result in severe injury and/or
premature component failure and will void the warranty!

1913-0609-0M Rev A •SLS Series Owner’s
7
LIFTING AND UNLOADING THE SCALE
The Cardinal SLS single animal livestock scale can be lifted and transported to any firm surface
that is relatively smooth and flat using a forklift.
WARNING! Make sure the forklift forks are long enough to go all the way through
under the scale so that the scale rests securely on the forks.
Evenly space forks under
scale to maintain balance.
Ensure the forks are
completely under the scale.
Carefully lift the scale and
proceed to new location.
IMPORTANT! Make sure both scale gates are closed and
both latches are in the locked position when lifting, loading,
and transporting the scale.
Lift the Scale
1. Adjust the forks of the forklift to make sure each fork is the same distance from the center
of the scale so the scale stays balanced.
2. Carefully approach the scale inserting the forks under the scale.
3. Make sure the forks are completely through under the scale before attempting to lift.
4. Carefully lift the scale and proceed to the selected location for the operation. Note that the
scale can be used on any firm surface that is relatively smooth and flat.
5. When not using the scale, it should be stored on the same type of surface.
DANGER! The SLS scale is very heavy. Make sure the forks on the forklift used
for lifting the scale are adequate and that the scale is resting on them securely
before transporting the scale.
Make sure that everyone is clear of the scale (not under, on, or around the scale)
when lifting and transporting the scale to the selected location.
Gate latch shown
i
n “locked” position.

1913-0609-0M Rev A •SLS Series Owner’s
8
INSTALLATION
The following section outlines procedures for installing your scale.
1. Choose a location for the scale that is a firm surface, relatively smooth, flat, and free of debris.
2. Do not push or slide the scale once it is on the ground, damage to the load cells may result.
3. With the scale in its selected location, remove the shipping brackets before lowering the scale
completely to the ground. Once the scale is on the ground, adjust the feet to evenly support
the scale, and make certain the weight is evenly distributed over the four corners of the scale.
4. Remove the weight indicator from the packing box and connect the cable from the scale to the
weight indicator, following the instructions provided in the weight indicator manual.
5. After the connection has been made, power up and zero the weight indicator according to the
weight indicator manual directions.
Removing the Shipping Brackets
Before placing the scale in its selected location, the
shipping brackets must be removed.
1. At the selected location for the scale, lower it to
approximately 6-8 inches above the ground.
2. Remove the four 1/4-20 hex head screws (two on
the side and two on the end) securing the shipping
bracket to the scale base.
3. Repeat step 2 for each shipping bracket.
4. After the four shipping brackets have been
removed, the scale can be lowered to the ground.
5. Once the scale is on the ground, proceed with
adjusting the support feet.
Adjust the Support Feet
The load cells used on the SLS scale have adjustable
support feet to ensure the scale is evenly supported on
the ground. The scale must be evenly supported to
prevent it from rocking once the weighing operation
has begun. If the scale is rocking during the weighing
operation, the indicator will be unable to repeat the
weight readings and will show unstable weight.
Once you have positioned the scale in its selected
location, check to make sure the scale is not rocking. If
necessary, adjust the support feet to ensure the scale
is evenly supported on the ground (not rocking) and to
make certain the weight is evenly distributed over each
of the four corners of the scale.
If necessary, adjust the support feet
to ensure the scale is evenly
supported on the ground and that
the weight is evenly distributed over
each corner of the scale.
Remove the four 1/4-20 hex head
screws (two on side and two on end)
to remove the shipping bracket.

1913-0609-0M Rev A •SLS Series Owner’s
9
OPERATION
Gate Operation
The gates on the SLS can easily be opened and closed with one hand. Simply grab the large,
ergonomic handle and slide the gate open to allow the animal in and out of the scale pen. Closing
the gate after the animal is in the scale pen is just as easy requiring only one hand to close it.
The gate can easily be opened and
closed with one hand.
The gate is fully opened and ready for
the animal to enter or exit the scale pen.
Securing the Gate Before Weighing the Animal
Once the animal is in the scale pen, close the gate and secure the animal in the scale pen by
rotating the gate latch located on the exterior of the pen.
Latch rotated to closed position.
Both gates closed and latched.

1913-0609-0M Rev A •SLS Series Owner’s
10
TROUBLESHOOTING
If a difficulty is encountered with the operation of the scale a visual check of the scale platform
should be made to make certain operation is not restricted by foreign material, such as rocks,
branches, and other debris.
The following troubleshooting guide should prove useful in isolating and correcting a problem with
the scale. If the problem cannot be resolved with the use of this troubleshooting guide, contact a
qualified scale technician for service.
PROBLEM:
The scale reads accurate weight to a point but will not register beyond that point.
CAUSE:
Obstruction between the ground and bottom of the scale.
SOLUTION:
Check for and remove the obstruction (rocks, branches, or other debris) from under scale.
PROBLEM:
Cannot obtain repeatable readings or weight indicator shows unstable.
CAUSE:
A. Scale is not stable. This is usually due to scale rocking from uneven support feet.
B. Bad or improper wiring
C. Bad load cell
D. Bad trim circuit board
SOLUTION:
A. Adjust support feet until the scale is stable and not rocking.
B. Check wiring & solder connections
C. Replace load cell
D. Replace trim circuit board

1913-0609-0M Rev A •SLS Series Owner’s
11
CALIBRATION PROCEDURE
Your scale was calibrated at the factory. Minor changes in calibration due to shock and vibration
encountered during transporting the scale may necessitate re-calibration.
IMPORTANT! The following procedures require a known accurate test weight.
Place a test weight or weights equal to 10 percent of the scale's capacity on the scale platform.
Record the weight displayed. If the displayed weight does not fall within ± .1% percent of the
value of the test weight, the scale may need to be re-calibrated.
Please check the following before proceeding:
•Make certain proper installation procedures were followed.
•Is there anything near or under the scale (such as rocks, branches, or other debris)
restricting proper scale operation?
IMPORTANT! It is recommended the calibration procedures be performed by a
qualified scale technician.
1. Place a test weight equal to 10 percent of the scale's capacity over each of the four load cells
(the corner of the scale), one at a time.
2. Record the displayed weight of each corner.
3. If the difference in displayed weight exceeds ± .1 percent of the test weight, trimming
adjustments for your load cells must be performed. Refer to the next section, TRIM
ADJUSTMENT for further instruction.
4. If all four weight readings are within the allowable tolerance (± .1 percent of the test weight),
the weight indicator should be re-calibrated per the instructions in the weight indicator manual.
Reference Handbook #44, Table 6, for Accuracy Tolerance.

1913-0609-0M Rev A •SLS Series Owner’s
12
TRIM ADJUSTMENT
The purpose of adjusting trim is so the same weight reading will be displayed regardless of where
the load is placed on the scale deck. All scales are corner trimmed before leaving the factory. In
the event of re-calibration or load cell replacement, follow the instructions below to re-trim the
corners. It is assumed the other three load cells are already corner-sealed to agree with each
other. If not, please refer to the next page for further instructions.
Single Load Cell
1. Remove the junction box cover access plate located on the side of the scale.
2. Remove the junction box access cover.
3. Refer to the figure below for load cell location reference.
4. Turn the trim potentiometer for the load cell needing re-calibration clockwise for 25 turns, or
until a click is heard indicating the end of the potentiometer adjustment.
5. Place a test weight on each corner, one at a time, and record the displayed weight for each
corner.
6. Place a test weight on the corner with the highest reading and adjust the appropriate trim
potentiometer until the weight reading agrees with the lowest reading obtained in Step 5.
7. Repeat Step 6 until all corners have the same weight reading.
8. Replace the screws securing the junction box cover and access plate.
Cable to Indicator


Trim Box
Cell locations are
for reference only!

1913-0609-0M Rev A •SLS Series Owner’s
13
TRIM ADJUSTMENT CONT.
Two or More Load Cells
If two or more load cells must be replaced or the scale needs an overall resealing of each corner,
these procedures should be followed.
1. Remove the junction box access plate located on the side of the scale. Remove the junction
box access cover.
2. Turn all potentiometers clockwise 25 turns or until a click is heard. Now turn all potentiometers
counterclockwise 1 (one) turn.
3. Place a test weight of at least 10 percent of the scale's capacity on each corner, one at a time,
and record each displayed weight.
4. Place a test weight on the corner with the highest displayed weight and adjust the appropriate
trim potentiometer counterclockwise until the corner reading agrees with the lowest weight
reading.
5. Repeat Step No. 4 until all corners are equal.
6. Re-calibrate the weight indicator following the procedures in the indicator manual.
7. Replace the screws securing the junction box cover and access plate.
EXAMPLE
CORNER #
1000# TEST WEIGHT
1
2
3
4
DISPLAYED WEIGHT READING 1020 1016 1017 1021
1. Place a test weight on each corner, one at a time, and record each displayed weight.
2. Place a test weight on corner no. 1 and adjust the no. 1 trim potentiometer to reduce the
displayed weight to the lowest corner reading (No. 2 in the example).
3. Repeat step 2 with corner no. 3 and 4 until all corners are the same.
4. Calibrate the weight indicator following the instructions provided in the indicator manual.

1913-0609-0M Rev A •SLS Series Owner’s
14

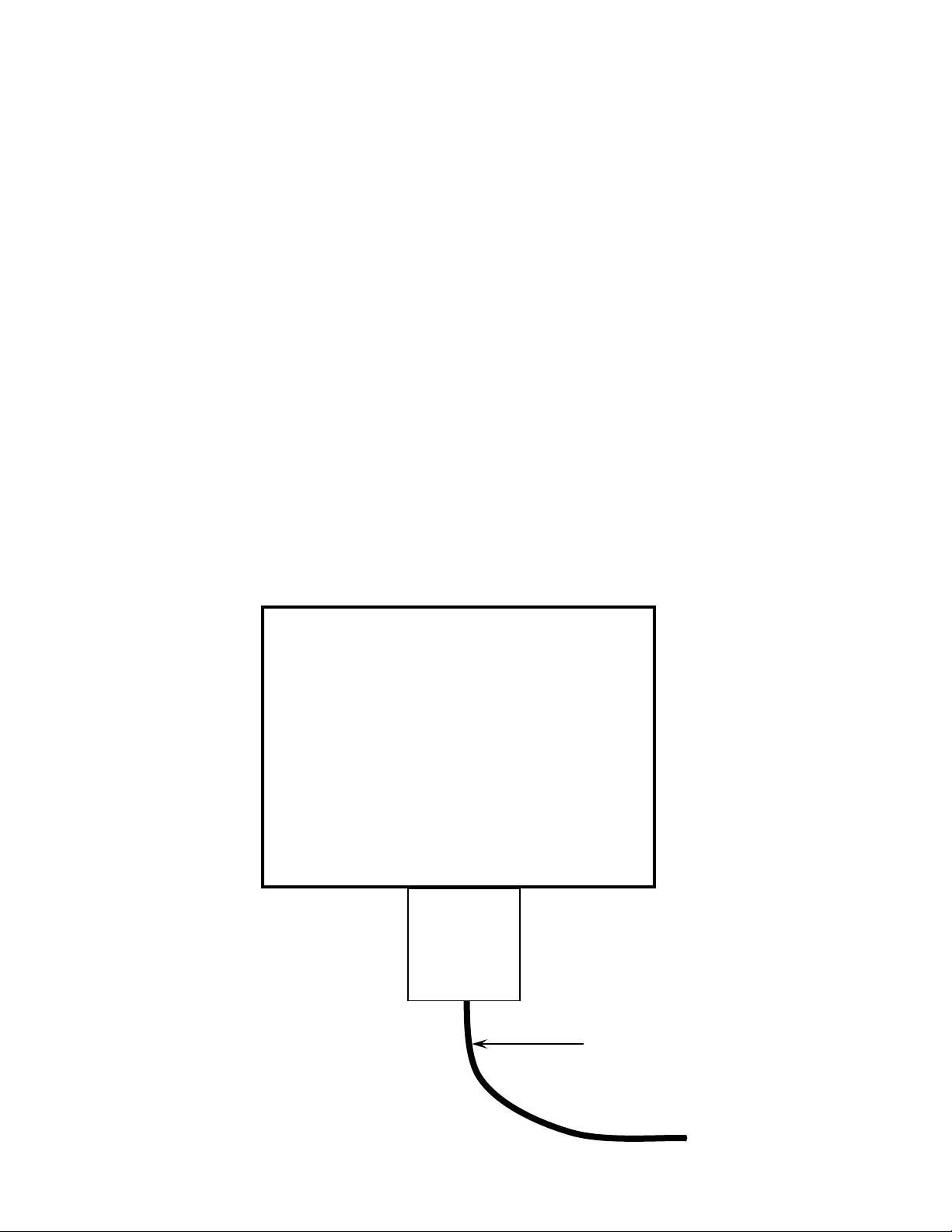

SCALE INTERCONNECTION DIAGRAM

1913-0609-0M Rev A •SLS Series Owner’s
15
PARTS IDENTIFICATION
Livestock Pen and Gate Models
ITEM
QTY
PART NUMBER
DESCRIPTION
1 1 1913-0315-0A BASE ASSY. FOR 2.53096-SLS / 53096-SLS
1
1913-0282-0A
BASE ASSY. FOR 2.53696-SLS / 53696-SLS
1 1913-0443-0A BASE ASSY. FOR 2.536120-SLS / 536120-SLS
1 1913-0331-0A BASE ASSY. FOR 2.54896-SLS / 54896-SLS
1 1913-0357-0A BASE ASSY. FOR 2.548120-SLS / 548120-SLS
2
1
1913-0314-0A
SIDE PANEL ASSY. FOR 2.53096-SLS / 53096-SLS
1 1913-0262-0A SIDE PANEL ASSY. FOR 2.53696-SLS / 53696-SLS
1 1913-0445-0A SIDE PANEL ASSY. FOR 2.536120-SLS / 536120-SLS
1
1913-0330-0A
SIDE PANEL ASSY. FOR 2.54896-SLS / 54896-SLS
1 1913-0354-0A SIDE PANEL ASSY. FOR 2.548120-SLS / 548120-SLS
3 14 6007-0052 BLT HEX HEAD, 3/8-16 x 2 1/2” ZP
4
34
6024-0009
WASHER FLAT, 3/8” ZP
5 1 1913-0313-0A GATE ASSY. FOR 2.53096-SLS / 53096-SLS
1 1913-0258-0A GATE ASSY. FOR 2.53696-SLS, 53696-SLS, 2.536120-SLS,
and 536120-SLS
1 1913-0329-0A GATE ASSY. FOR 2.54896-SLS, 54896-SLS, 2.548120-SLS,
and 548120-SLS
6 1 0145-B393-08 DECAL – DO NOT WELD
7
2
6007-0054
SCW HEX HEAD, 3/8-16 x 2 1/4” ZP
8 8 6021-1239 SCW SHOULDER, 3/8 x 2 1/4” x 5/16-18 Z/P
9 8 6013-0410 NUT ELASTIC STOP, 5/16-18 Z/P
10
16
6013-0070
NUT ELASTIC STOP, 3/8-16 Z/P
11
1
3502-C208-2A
JUNCTION BOX, 2-4 LOAD CELLS, S.S., w/MOUNTING
12 8 6540-1166 WHEEL, 3” DIA x 1 1/4 WIDE 5/16 HOLE
13 2 6980-1067 CONN. CONDUIT
14
1
3502-B397-0A
LOAD CELL CBL 30 FT. 3-PAIR
15 1 1913-0313-1A GATE ASSY. FOR 2.53096-SLS / 53096-SLS
1 1913-0258-1A GATE ASSY. FOR 2.53696-SLS, 53696-SLS, 2.536120-SLS,
and 536120-SLS
1 1913-0329-1A GATE ASSY. FOR 2.54896-SLS, 54896-SLS, 2.548120-SLS,
and 548120-SLS

1913-0609-0M Rev A •SLS Series Owner’s
16

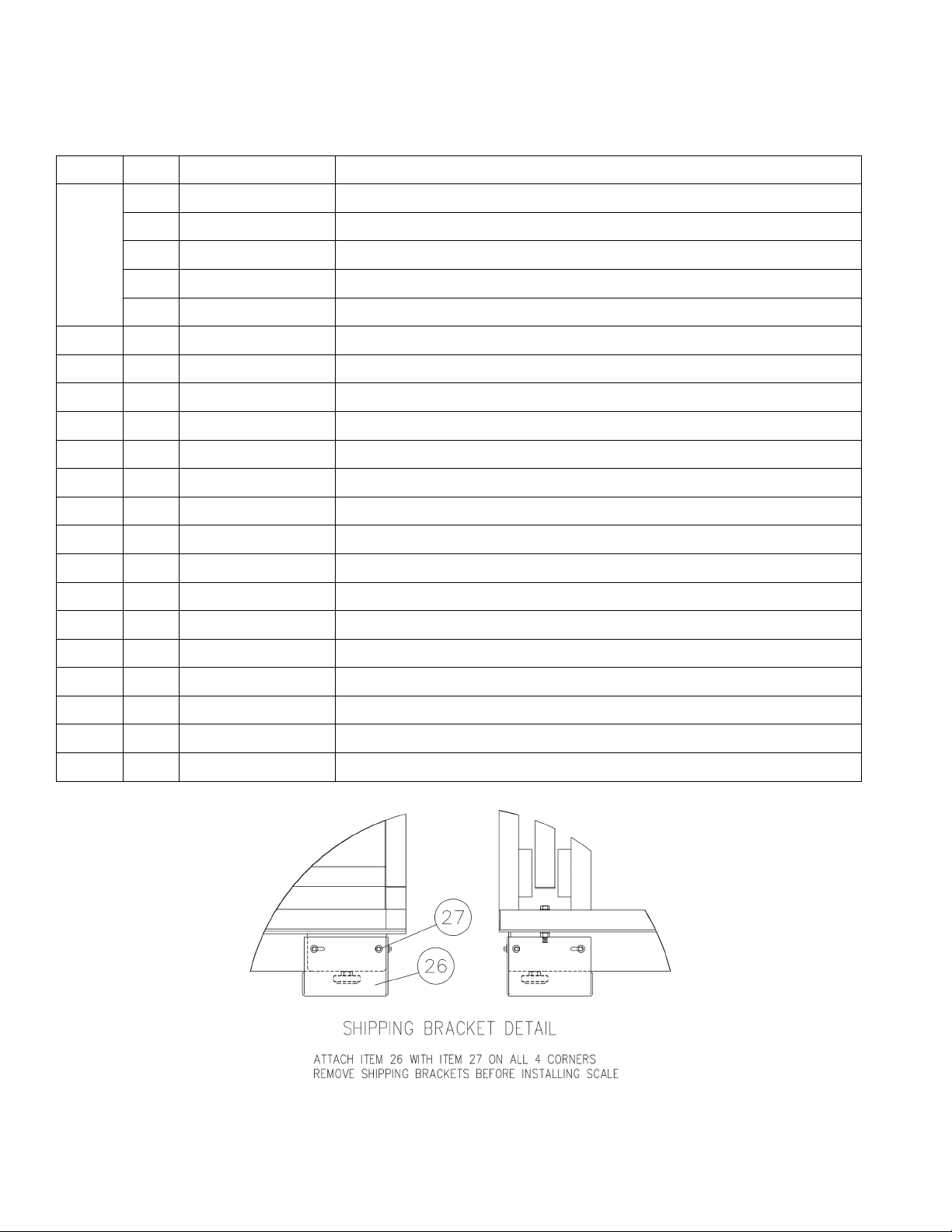

PARTS IDENTIFICATION, CONT.
Livestock Pen and Gate Models, Cont.
ITEM
QTY
PART NUMBER
DESCRIPTION
16 1 1913-0247-08 MAT FOR 2.53096-SLS / 53096-SLS
1
1913-B218-08
MAT FOR 2.53696-SLS / 53696-SLS
1 1913-0447-08 MAT FOR 2.536120-SLS / 536120-SLS
1 1913-0328-08 MAT FOR 2.54896-SLS / 54896-SLS
1 1913-0353-08 MAT FOR 2.548120-SLS / 548120-SLS
17
1
1913-B216-08
CONDUIT HOLDER
18 2ft 6710-0041 CONDUIT
19 REF 190 REFERENCE INDICATOR
20
2
1913-0267-0A
LATCH ASSY.
21 6 6021-1416 SCW HEX/WASHER SHEET-METAL #12X.750
22 1 593M729 SERIAL TAG
23
4
6680-0214
POP RIVET
24 2 5930-0158-08 LABEL, CARDINAL LOGO
26 4 1913-0274-08 SHIPPING BRACKET
27 16 6021-0014 SCW HEX/WASHER/SLOTTED, 1/4-20 x 5/8”, TYPE F, Z/P
28
1
1913-0367-08
RAIN HOOD
29 4 TB-2.5KMP LOAD CELL, BEAM, 2,500 LB, STAINLESS STEEL
30 8 6007-2200 BLT HEX HD, M12 x 1.25 x 45mm, GRADE 8.8 Z/P
31
4
1913-B039-08
LOAD CELL SPACER, SS, TB-XXKMP
32 4 1913-B040-0A FOOT ASSY.
33 8 6013-0084 NUT, M12 x 1.75, HEX NARROW, JAM, ZP
