CARDIOSTRONG CST-TR20-2 User manual

Assembly and operating instructions
TreadmillTR20

Art. No. CST-TR20-2

TR20

2

TR20
3
Dear Customer,
Thankyoufordecidingforahigh-quality training equipment of thebrandcardiostrong,
the brand that makes athlete‘s hearts beat faster. cardiostrong oers a wide range
of home tness equipment like elliptical cross trainers, ergometers, treadmills and
rowing machines. cardiostrong equipment is the optimal equipment for all those who
want to train at home independent of goals and tness level. For further information
please visit www.sport-tiedje.com or www.cardiostrong.de.
SAFETY NOTICE
Please read all of the instructions carefully before assembly and rst
use. These instructions are intended to ensure speedy assembly and
explain safe usage. Make sure that all people exercising with the
equipment (in particular children and persons with limited physical, sensory, mental or
motor capabilities) are informed about these instructions and its content in advance.
In case of doubt, a responsible person must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge. As
far as possible, potential safety hazards which could cause injury have been eliminated.
Make sure to follow the instructions carefully and that all parts are securely in place. If
required, read through the instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The
contract partner cannot be held liable for damage to health, accidents or damage to
the equipment when it is not used in accordance with these instructions.
The equipment is only suitable for use at home. The equipment is not suitable for
semi-professional (e. g., hospitals, clubs, hotels, schools, etc.) and commercial or
professional use (e. g., health clubs).
Retain these instructions in a safe place for future reference, maintenance or when
ordering replacement parts.

TR20

4
CONTENTS
1 GENERAL INFORMATION 6
1.1 Technical data 6
1.2 Personal safety 7
1.3 Electrical safety 8
1.4 Set-up place 9
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE 10
2.1 General instructions 10
2.2 Errors and error diagnosis 11
2.3 Error codes and troubleshooting 12
2.4 Care and maintenance 13
2.5 Maintenance and service calendar 16
3 ASSEMBLY 16
3.1 Package contents 16
3.2 Assembly instructions 18
4 OPERATING INSTRUCTIONS 25
4.1 Console display 25
4.2 Button functions 26
4.3 Programs 27
4.3.1 Pre-set programs 27
4.3.2 MAN. - manual program (pre-set and user-dened) 32
4.3.3 Heart-rate controlled training 33
4.4 Equipment settings 34
5 WORKOUT INSTRUCTIONS 35
5.1 Heart rate measuring 35
5.2 10 tips for eective running training 38
5.3 Designing a workout 39
5.4 Stretching exercises for leg & chest muscles 41
5.5 Workout journal 43
6 WARRANTY INFORMATION 44

TR20
5
7 DISPOSAL 46
8 ORDERING ACCESSORIES 47
9 ORDERING SPARE PARTS 48
9.1 Service hotline 48
9.2 Serial number and model name 48
9.3 Parts list 49
9.4 Exploded drawing 54

TR20

6
1 GENERAL INFORMATION
1.1 Technical data
LED display of
+speed in km/h
+training time in min
+training distance in km
+calories burnt in kcal
+heart rate (when using the hand sensors or a chest strap)
+incline in %
Motor power: 1.75 HP continuous output (DC - motor)
Speed range: 1 - 16 km/h
Speed hot keys: 4
Incline range: 0 - 9 %
Incline hot keys: 4
Total number of training programs: 22
Manual programs: 1
Pre-set programs: 17
Heart rate controlled programs: 2
User dened programs: 2
Running surface size (L x W): 132 x 46 cm
Weight and dimensions:
Article weight (gross, including packaging): 84 kg
Article weight (net, without packaging): 74 kg
Packaging dimensions (L x W x H): approximately 1760 mm x 830 mm x 370 mm
Set-up dimensions (L x W x H): approximately 1680 mm x 790 mm x 1370 mm
Folded dimensions (L x W x H): approximately 940 mm x 790 mm x 1530 mm
Maximum user weight: 125 kg / 275 lbs

TR20
7
1.2 Personal safety
+Before you start using the equipment, you should consult your physician that
this type of exercise is suitable for you from a health perspective. Particularly
aected are persons who: have a hereditary disposition to high blood pressure
or heart disease, are over the age of 45, smoke, have high cholesterol values, are
overweight and/or have not exercised regularly in the past year.
+Please note that working out excessively can seriously damage your health. Please
also be aware that heart rate monitoring systems might be imprecise.
+The equipment may only be used for its intended purpose; that means for running
training by adults.
+Any other usage is prohibited and potentially dangerous. The contract partner
cannot be held liable for damage resulting from improper use.
+The equipment is strictly for use by one person at a time.
+Children should not be allowed unsupervised access to the equipment.
+Before starting your training, make yourself familiar with all of the equipment‘s
functions and setting options. Have an expert explain the correct usage of the
product to you.
+Make sure that nobody is in the range of motion of the equipment while exercising.
+Keep your hands, feet and other body parts, hair, clothing, jewelry and other
objects well clear of moving parts.
+During use, wear suitable sports clothing rather than loose or baggy clothing.
When selecting sports shoes, think about the suitability of the sole – preferably
this should be made of rubber or other non-slip materials. Shoes with heels,
leather soles, studs or spikes are not suitable. Never work out in bare feet.
+It is also important to take note of the information given in the workout instructions
for creating a workout plan.
+At the rst signs of weakness, nausea, dizziness, pain, diculty in breathing or
other abnormal symptoms, stop your workout immediately and, if necessary,
consult your physician.
+Without prior agreement from your authorized contract partner, opening the
equipment is prohibited.
+The equipment has stable steps on the sides that you can stand on in case of an
emergency and leave the equipment.
+The safety key should be inserted during all training.
+The safety key and the power cable should be removed when you are not present
in order to rule out improper usage by third parties.

TR20

8
Safety Key
+The equipment has an EMERGENCY STOP mechanism for your safety. The
equipment may only be operated when the safety key is properly attached to the
contact point of the cockpit. The equipment will automatically stop immediately if
the safety key is no longer on the contact point. That is why you should attach the
safety key string with the clip to your clothing before training. Remove the safety
key from the cockpit with the help of the string if you would like to quickly stop
the treadmill, you can no longer handle the speed or an emergency occurs.
+In order for the safety key to be released from the cockpit contact point in the
event of a fall, the clip of the safety key must be attached (xed) to your clothing!
+An uncontrolled usage of the equipment by third parties can be avoided by
removing and storing the safety key.
+Prevent children from having access to the safety key.
1.3 Electrical safety
+The equipment requires a 220 - 230V / 50 Hertz mains power supply.
+The equipment should be connected directly to a grounded plug socket only by
means of the power cable supplied. The use of multi-socket adapters or similar
is not recommended. Extension leads must comply with local electrical safety
guidelines. Always fully unwind the power cable.
+The outlet should be secured with a fuse with a minimum value of „16 amperes,
slow“.
+In order to reduce the risk of an electric shock, always unplug the equipment from
the mains socket immediately after your workout, before assembly or dismantling,
and before maintenance or cleaning. Do not pull on the cable.
+ When plugged in, do not leave the equipment unattended at any time. To avoid
use by anyone unfamiliar with the usage instructions, the power cable should be
removed when the equipment is not in use.
+Keep the power cable away from heat, oil and sharp edges. Do not route the power
cable underneath the equipment or under a carpet or rug, and do not place any
objects on top of it.
+Make no modications to either the power cable or the mains plug.
+If the power cable or the plug are damaged or defective, contact your authorized
contract partner. Do not use the equipment in the meantime.
+Do not keep electrical devices (e. g., mobile phones) in close proximity to the
console or the control electronics, otherwise display values (e. g., pulse measuring)
could be inaccurate.

TR20
9
1.4 Set-up place
+The equipment should only be used indoors, in a suciently heated and dry area
(ambient temperature between 10°C and 35°C). The equipment should not be
used outdoors or in rooms with high humidity (over 70%) like swimming pools.The
equipment should only be stored in surroundings with an ambient temperature
between 5°C and 45°C.
+The training room should be well ventilated during training and not be exposed to
any draughts.
+Choose a location in which to place the equipment such that there is enough free
space/clearance to the front, the rear and to the sides of the equipment (at least
1.50 m). Furthermore, the equipment should not be set up in main entrances or on
escape routes.
+ Always keep the power cable away from hot surfaces and grounds and make sure
that the cable is not stuck somewhere or becomes a„trip hazard“.
+No objects of any type should be inserted into the openings of the equipment.
+The equipment should be placed on a level and solid surface, any unevenness in
the oor should be leveled out.
+A oor protective mat / equipment underlay can help to protect high-quality oor
coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to
level out slight unevenness..
2

TR20

10
2ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE
2.1 General instructions
+Please check if all parts and tools belonging to the equipment are included in the
delivery and if there is any transport damage. If there are any complaints, please
contact your contract partner directly.
+Some of the nuts and bolts to be used in assembly are already pre-mounted in
order to make set-up as easy as possible.
+ The equipment must be assembled by adults. In case of doubt, ask for assistance
from another person with technical skills.
+Keep children away from the equipment during assembly, because small parts are
included in the delivery and may be swallowed.
+Make sure that you have enough space (at least 1.50 m) in every direction during
assembly.
+Do not leave any tools and packaging materials like plastic sheeting laying around
to avoid danger of suocation for children.
+Assemble the equipment on an underlay mat or on the cardboard packaging in
order to avoid damage to the equipment and to the oor (scratches).
+Before starting assembly, all individual parts should be placed on the oor next to
each other.
+Read the assembly instructions carefully and assemble the equipment according
to the illustrations. Proceed carefully and cautiously.
+First loosen all parts and check for their correct tting. Then tighten the screws
using a tool.
+Modications to the design or improper repairs may pose a hazard to the user and
should not be carried out. The product warranty may be void as a result.
+ Only authorized service technicians are permitted to carry out all servicing and/or
repairs – it excludes maintenance and care.
+Damaged or worn components may impair your safety and the lifespan of
the equipment. You should therefore immediately replace damaged or worn
components. Please contact your contract partner in such a case. The equipment
should no longer be used until it has been repaired. When needed, only use
original cardiostrong spare parts.
+Check the tightness of all screw connections once a month.

TR20
11
+In order to be able to guarantee the constructively dened safety level of this
equipment, we recommend having the equipment regularly maintained (at least
once a year) by specialists (contract partner service technicians).
+The equipment may be cleaned of dust, dirt and sweat using a damp cloth. The
use of solvents should be strictly avoided. Also, make sure that no liquids (e. g.
sweat) get into the openings of the equipment (e. g. console).
2.2 Errors and error diagnosis
The equipment runs through regular quality controls during production. Nevertheless,
errors or malfunctions on the equipment may occur. Individual parts are often the
cause of faults and replacement is usually sucient. Please use the following overview
to see the six most common errors and how to repair them. If the equipment still does
not work properly, please contact your contract partner.
Error Cause Repair
Console only
shows lines
Safety key missing Check if the safety key is inserted
and place it in
Running belt tilted Running belt not
aligned
Align running belt in accordance
with the instructions
Running belt slips
through/stops
Belt tension/lubrication
not ok
Check belt tension/lubrication in
accordance with the instructions
Scraping noises Running belt scrapes,
because it is not aligned
Align running belt in accordance
with the instructions
Display does not
show anything
Check plug connections
(cables)
Mains switch on “on”, make sure
that the safety key is inserted
No pulse display
Sources of interference
in the room
With chest strap
Unsuitable chest strap
Position of the chest
strap incorrect
Batteries empty
Remove sources of interference (e.
g. mobile phone, speakers, etc.)
Use suitable chest strap (see
recommended accessories)
Reposition chest strap and/or
moisten electrodes
Change batteries

TR20

12
2.3 Error codes and troubleshooting
The electronic system from the treadmill does tests continuously. If there are
deviations, an error code is displayed and the normal operation will be stopped for
your safety.
Please contact Sport-Tiedje for technical customer service.
Error codes description:
+ E1 - speed error
+E2 - error reading memory
+E6/E7 - incline error
+E9 - disruption to the connection
Error
code
Troubleshooting
E1 If E1 appears, remove the safety key & insert it again to restart it. If E1 still appears,
check the following:
1. Check all cable connections.
2. The treadmill does not move after START was pressed & shows E1 - check if a part got
stuck.
3. Treadmill ran shortly after START was pressed, but then stopped.
4. Check all cables and the motor.
5. Please contact the customer service if E1 cannot be repaired.
E2 1. Check if the console IC chip is situated correctly. In order to solve the problem,
connect the console IC chip again.
2. Check if the console IC chip is bent or connected correctly. In order to solve the
problem, connect the console IC chip again.
3. Contact customer service.
E6 / E7 Remove & reinsert safety key to restart the treadmill.
1. Reset incline value:
(1) Hold speed & press START for 3 seconds until it beeps twice.
(2) If the incline position is lower than the middle, press MODE & INCLINE up. Hold both
buttons and the incline will increase. Release both buttons as soon as the incline position is
at the middle level.
(3) If the incline position is higher than the middle, press MODE & INCLINE down. Hold both
buttons and the incline will decrease. Release both buttons as son as the incline position is
at the middle level. Try it for a few minutes. If the incline does not move, contact the custo-
mer service. As soon as the incline position is in the middle position, turn o the machine
and restart. If E6/E7 is still shown, contact customer service.
2. Check if the red and white incline cables are correctly connected to the MCB.
3. If the steps above do not help, contact your customer service.

TR20
13
Error
code
Troubleshooting
N/A The LED on the start button glows faintly, other LEDs are not on: The machine is in power
saving mode. Hold the START button for one second.
N/A The console display is uctuating or does not light up: Check if the treadmill is correctly
connected to the power supply. Turn the power switch o and back on. Safety key is plug-
ged in. Check all cable connections for correct connection. If the problem is still occurring,
please contact customer service.
N/A The belt does not run in the middle during usage:
First check if the treadmill has a stable position, then follow the operating manual in regards
to tension and adjusting the belt (the deck).
N/A The motor appears to be overloaded or E1 appears after a few minutes of training:
The silicone applied to the deck and belt has dried out and the deck must be lubricated
again with silicone spray.
N/A The running mat slips during usage. The belt must be tensioned after a certain amount
of usage. Follow the belt tensioning and alignment in this manual.
N/A Heart rate uctuates or is not recorded:
Check to see if your hands are moist, if all connections behind the console are correct and if
any cables are damaged. With a chest strap, check the battery status and make sure that all
electrodes are moist and correctly placed below the chest.
N/A Silicone symbol is illuminated on the console:
Lubricate the machine with 100% pure silicone. Then press speed down and START at the
same time until the symbol goes out.
2.4 Care and maintenance
The most important maintenance measure is taking care of the running belt. This
includes the adjustment, tensioning and lubrication of the running belt. Damage
caused due to a lack of care or negligence will not be covered by the warranty. Thus,
check for maintenance in regular intervals. Be extremely careful when adjusting and
tightening the belt, because a strong over or under tension may lead to damage. The
running mat is set properly in the factory before delivery. However, the running mat
may get out of place during transport.

TR20

14
Adjustment of the running mat
+During training, the running belt should run as centered and straight as possible.
The alignment of the running belt may change depending on the stress and load.
Another reason can be the positioning of the equipment on an uneven surface.
+While adjusting the belt, let the equipment run with a speed of approximately
5km/h. Nobody may be on the equipment during this process.
+If the running belt drifts o to the left, turn the left setting screw on the rear end of
the equipment at most 1/4 rotation clockwise and the right setting screw at most
1/4 rotation counterclockwise (g. C).
+If the running belt drifts o to the right, turn the right setting screw on the rear
end of the equipment at most 1/4 rotation clockwise and the left setting screw at
most 1/4 rotation counterclockwise (g. D).
+Then watch how the belt runs for approximately 30 seconds, because the change
will not be visible immediately.
+Repeat the process until the running belt runs straight again. If the running mat
cannot be adjusted, please contact the contract partner.
+If the running mat (belt) cannot be adjusted, please contact Sport-Tiedje.
Tensioning the running belt again
+If the running belt slips over the rollers during operation (if this is the case, a
noticeable jerking will be noticed while running), the running belt must be
tensioned again. In most cases, the cause for the slipping is a straining of the belt
through usage. This is completely normal.
+It can be tightened through the same setting screws that were used during
adjustment.

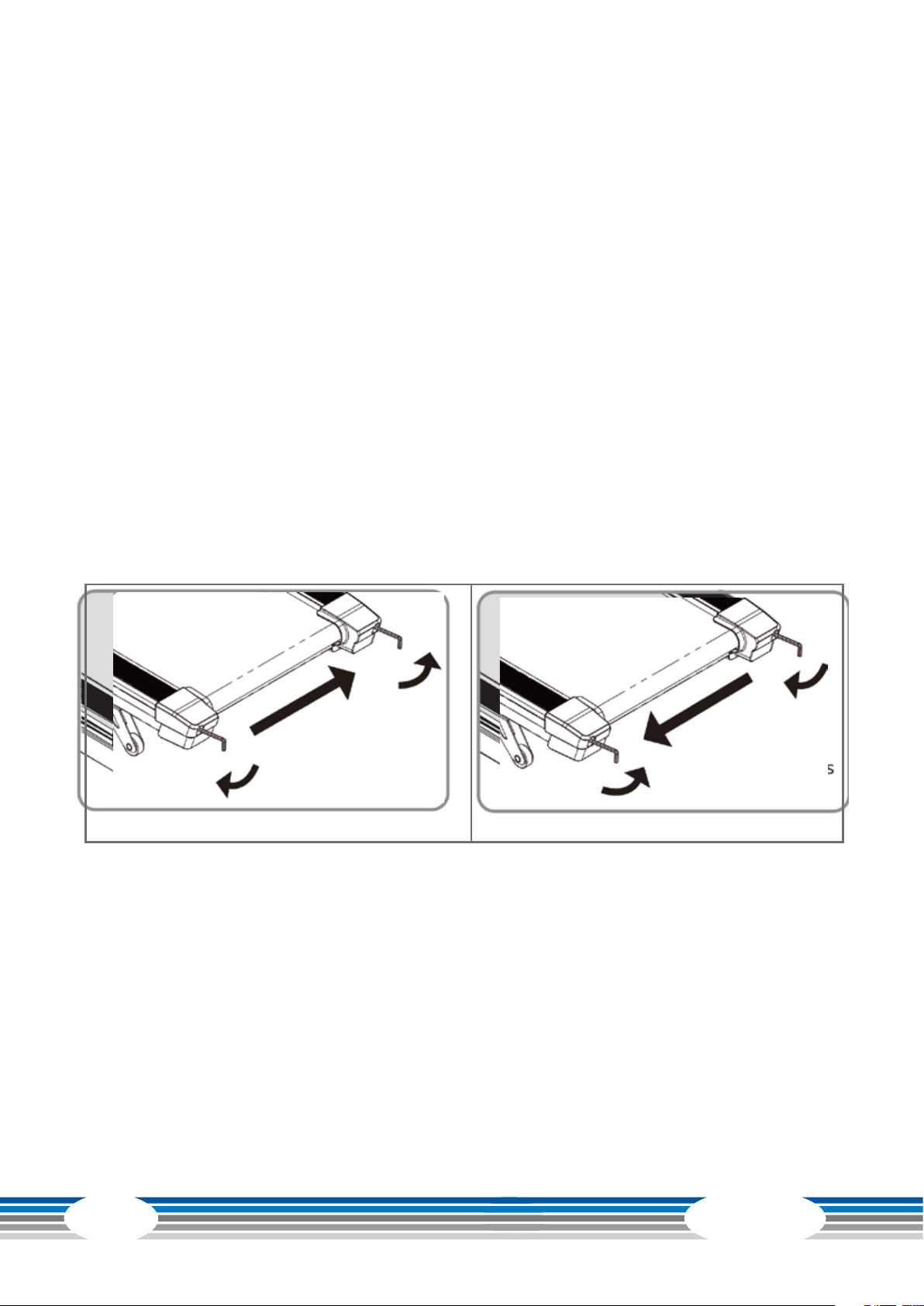

Move the belt to the right Move the belt to the left

TR20
15
+While tightening the belt, let the equipment run at a speed of 5km/h.
+Turn the left and right setting screws directly after each other a max. 1/4 clockwise
rotation.
+Then check if the running belt is still slipping. If this is the case, you must repeat
the described process.
Lubrication of the running belt
+If the running belt is inadequately lubricated, the friction will increase signicantly
and this leads to strong wear of the endless belt, running panel, motor and circuit
board.
+If you feel an increase in friction from the running belt, this is an indicator that you
should lubricate the belt (however, a lubrication should be done at least every 3
months).
+ The treadmill has a reminder for lubricating the treadmill:
A symbol is displayed on the console every 100 operating
hours. The symbol appears on the display for 5 minutes
and then turns o. In order to turn o the symbol
prematurely, press the INCLINE up and INCLINE down
buttons at the same time.
+In order to be able to optimally lubricate
the treadmill, the running belt must be
lifted slightly. Then apply some silicone
spray (free of grease) on the entire
running deck. It is easiest to lubricate
when the treadmill is folded up. Apply
three short (approximately 1 second)
sprays of silicone lubricant between the
belt and the running deck.

TR20

16
3 ASSEMBLY
3.1 Package contents
The package contains the parts represented in the illustration, including a power
cable with mains plug. If one of the illustrated parts is missing, please contact your
contract partner.
+The spraying tube should be held sideways in order to guarantee a moistening of
the entire underside of the belt. Continue to rotate the belt by hand so that the
entire area between the endless belt and running deck is lubricated. Wipe o the
excess lubricant.
+This maintenance must also be done after the equipment has not been used for a
longer period of time.

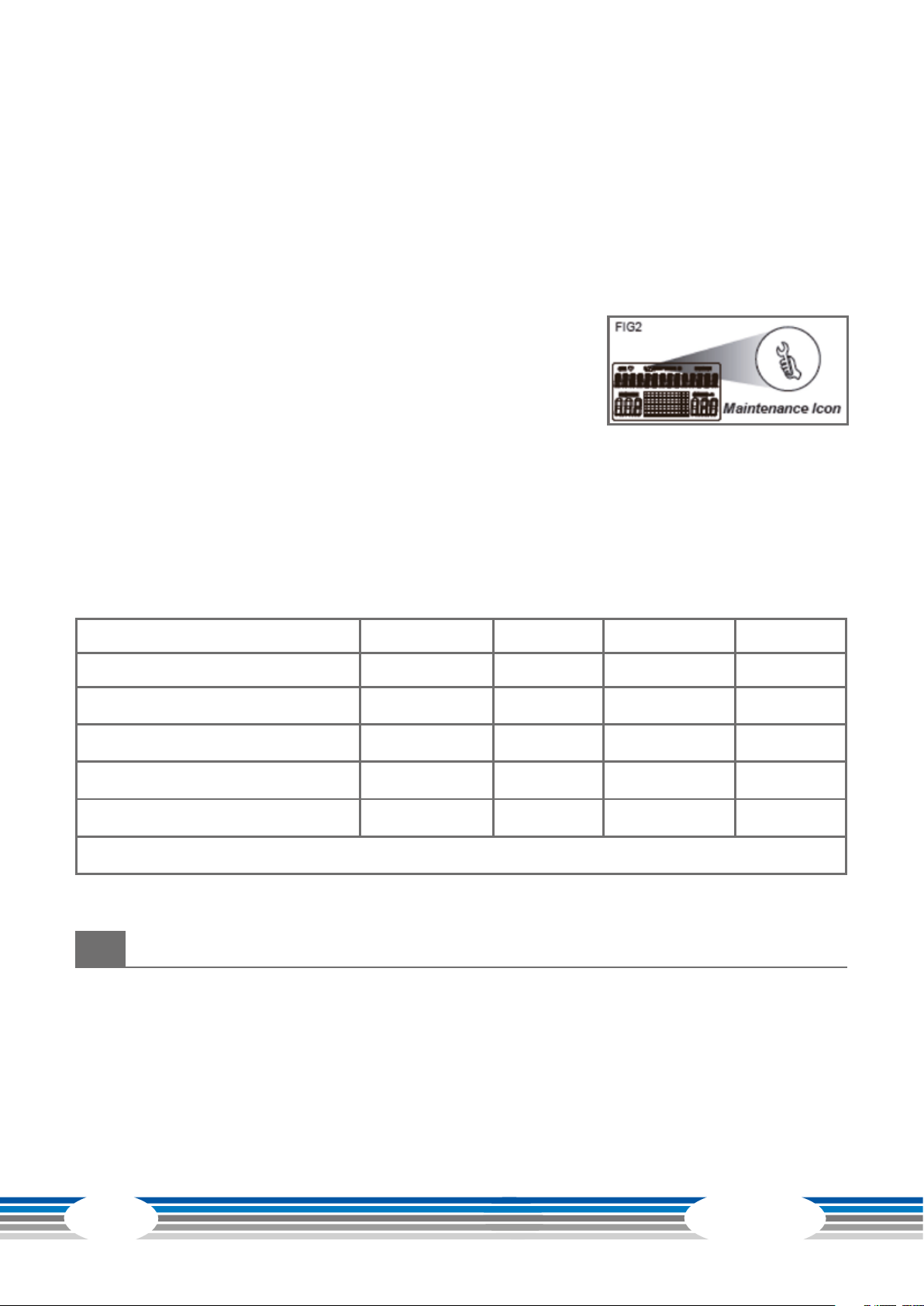

2.5 Maintenance and service calendar
The cockpit, casing, handrails and entire frame must be
cleaned after every training session with a moist towel
(no solvent!) in order to avoid damage caused by sweat.
After 150 hours of operation, the maintenance symbol
reminds you to clean the treadmill. After you have
cleaned the treadmill and checked all components, turn
o the symbol by simultaneously pressing the INCLINE up and INCLINE down buttons.
The following routine work must be done in the specied time intervals:
Part Weekly Monthly 2x annually Annually
Display console C I
Belt tension I
Belt lubrication I
Plastic covers C I
Screws & cable connections I
Legends: C = cleaning; I = inspect

TR20
17

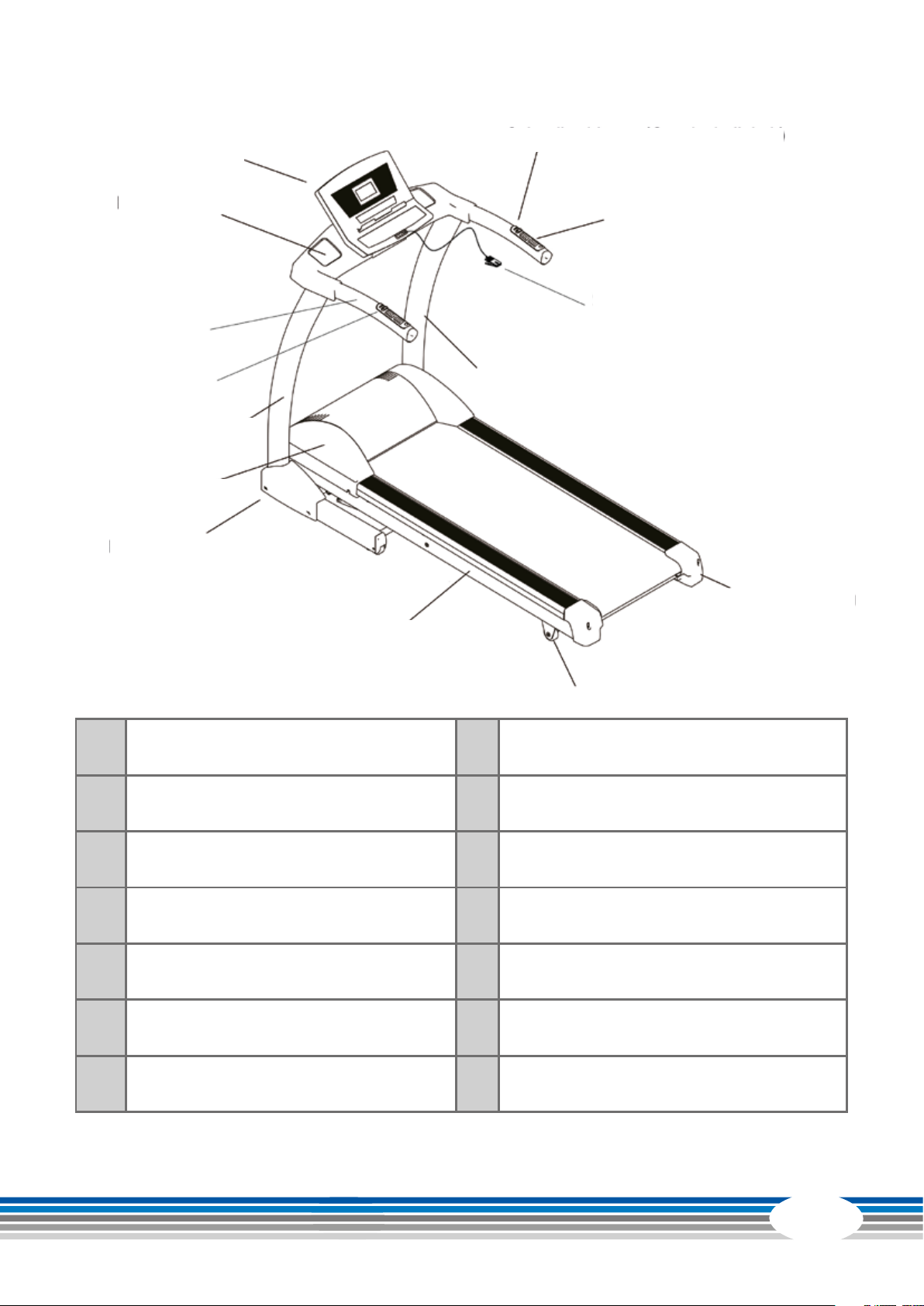

1 Console 8 Frame
2 Bottle holder 9 Rear transport wheel
3 Handle 10 Rear cover
4 Hot key (incline) 11 Safety key
5 Console mast 12 Pulse handle
6 Motor cover 13 Hot key (speed)
7 Height compensation
(1) Console Hot key (speed) (13)
Pulse Handle (12)
Console mast right (5)
Safety key (11)
Rear cover (10)
Rear transport wheel (9)
(8) Frame
(7) Height compensation
(hidden)
(6) Motor cover
(5) Console mast left
(4) Hot key (incline)
(3) Handle
(2) Bottle holder

TR20

18
3.2 Assembly instructions
Check the equipment for possible damage after unpacking. If it is damaged or parts
are missing, please contact our customer service.
1. Since the treadmill is very heavy, we recommend initially removing the upper cover
of the packaging; fold the sides downward. Then you do not have to remove the
treadmill from the box.
2. Remove all parts from the box before you start the assembly. Remove the plastic
and place all parts in front of you on a surface. Keep the oor under the treadmill free
of objects. The rear part of the treadmill may have to be lifted in order to be able to
get under the parts better.
Before assembly, take an exact look at the individual illustrated assembly steps and
execute the assembly following the specied order.
Tool and screw sets
Included in the hardware bag:
Preassembled screws:
(Screws must be removed & attached again during assembly.)
Multi key
4 pieces 8 pieces 6 pieces
2 pieces
4 pieces
4 pieces4 pieces
Allen key 6 mm Allen key 5 mm

TR20
19

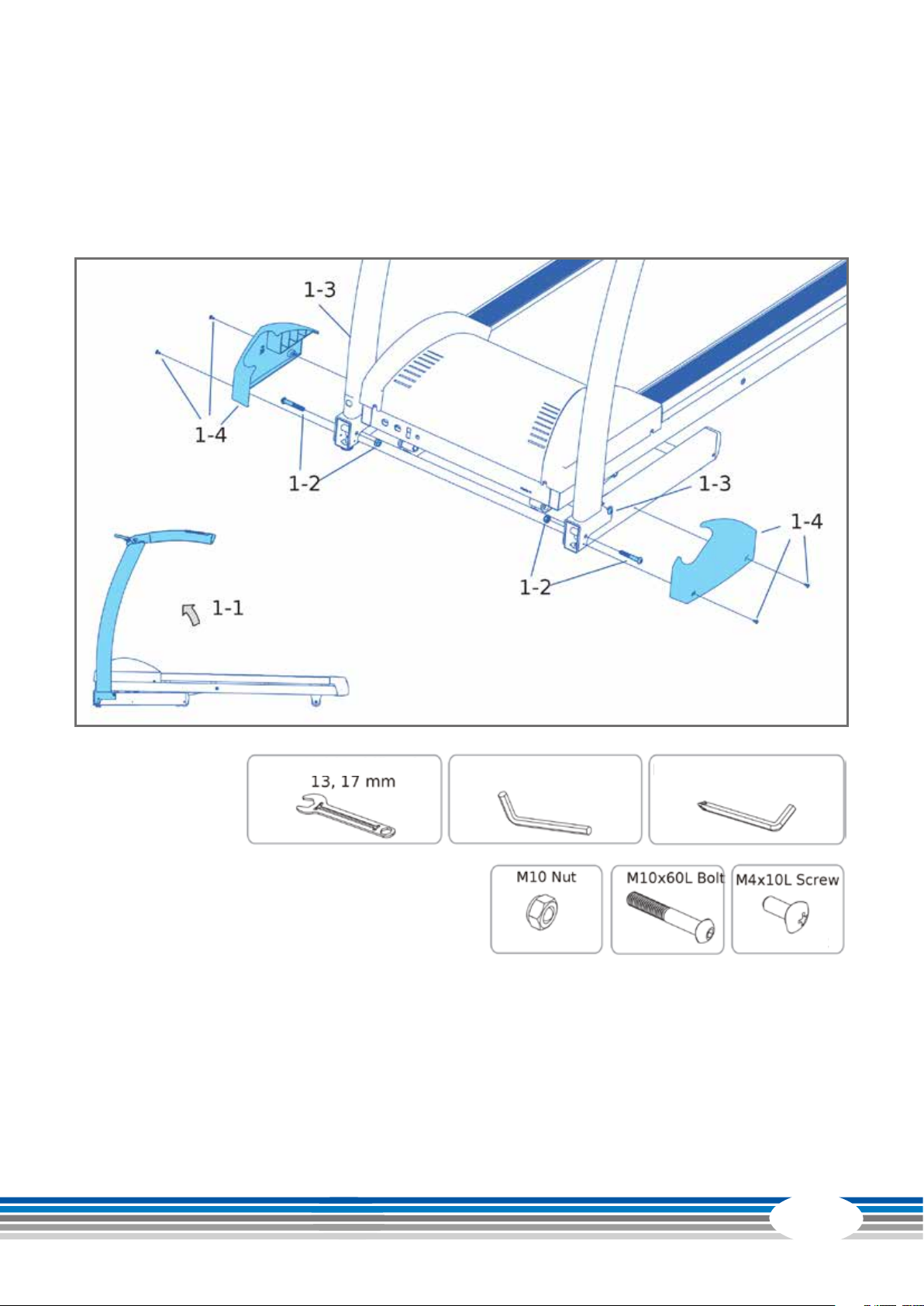

Step 1: Assembly of the console masts
1. Fold up the console mast (1-1).
2. Mount the two M10x60L screws with nuts (1-2).
3. Mount the two M10x60L screws with nuts (1-3).
4. Place the cover on and mount it with four M4x10L screws (1-4).
4
Multi key
4 pieces 4 pieces 4 pieces
Allen key 6 mm Allen key 5 mm

TR20

20
Step 2: Mounting the handrails
1. Align the handrails.
2. Mount the handrails with two M8x70L screws.
2 pcs
Allen key 5 mm
