CARDIOSTRONG TX90 User manual

CSTTX90HD.02.01
TFT10.3PROHD.03.01
max. 160 kg
~ 60 Min.
CM
125 kg
L 218 | B 85 | H 139
Assembly and Operating Instructions
Art. No. CST-TX90-2-HD
L 125 | W 89.5 | H 144.5
TreadmillTX90

2TX90

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 10
2 ASSEMBLY 11
2.1 General Instructions 11
2.2 Scope of Delivery 12
2.3 Assembly 13
3 OPERATING INSTRUCTIONS 17
3.1 Console Display 17
3.2 Button Functions 19
3.3 Programmes 20
3.3.1 Quick Start Programme 20
3.3.2 Target programmes 20
3.3.3 Low-Speed Programme 21
3.3.4 Pre-Set Programmes 21
3.3.5 Pace Programme 26
3.3.6 User-Dened Programmes 26
3.3.7 Heart Rate Controlled Programmes 27
3.4 Fitness test 28
3.5 Media 29
3.6 Bluetooth and Fitness Apps 30
4 STORAGE AND TRANSPORT 31
4.1 General Instructions 31
4.2 Transportation Wheels 31
4.3 Folding Mechanism 31
4.3.1 Folding Up the Treadmill 32
4.3.2 Unfolding the Treadmill 32
5 TROUBLESHOOTING, CARE AND MAINTENANCE 33
5.1 General Instructions 33
5.2 Faults and Fault Diagnosis 33
5.3 Care and Maintenance 34
5.3.1 Adjusting the Running Mat 34
5.3.2 Re-tensioning the Running Mat 35
5.3.3 Lubricating the Running Mat 35
5.4 Maintenance and Inspection Calendar 36

4TX90
6 DISPOSAL 36
7 RECOMMENDED ACCESSORIES 37
8 ORDERING SPARE PARTS 38
8.1 Serial Number and Model Name 38
8.2 Parts List 39
8.3 Exploded Drawing 44
9 WARRANTY 45
10 CONTACT 47

5
Dear customer,
Thank you for choosing a high-quality equipment of the brand cardiostrong®. cardiostrong® oers
sports and tness equipment for the sophisticated home sport and the equipment of tness studios
and business customers. With cardiostrong® tness equipment, the focus is on what sport is all about:
maximum performance! Therefore, the equipment is developed in close consultation with athletes
and sports scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2010 cardiostrong® is a registered brand of the company SportTiedje GmbH. All
rights reserved. Any use of this trademark without the explicit written permission of
Sport-Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional
(e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. tness
studios).

6TX90
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
TFT display of
+ speed in km/h
+ training time in min
+ training distance in km
+ calories burnt in kcal
+ heart rate (when using the hand sensors or a chest strap)
+ incline in %
+ Metabolic equivalent
Motor output: 3.5 HP continuous output (DC motor)
Speed range: 0.8 - 20 km/h
Speed hot keys: 8
Incline range: 0 - 15 %
Incline hot keys: 8
Total number of training programmes: 45
Quick start: 1
Pre-set programmes: 32
Target programmes: 3
User-dened programmes: 4 (one per user)
Heart rate-oriented programmes: 3
Running surface size (L x W): 152 cm x 52 cm
Weight and dimensions:
Article weight (gross, including packaging): 145 kg
Article weight (net, without packaging): 125 kg
Packaging dimensions (L x W x H): 225 cm x 96 cm x (310+430) cm
Set-up dimensions (L x W x H): 205 cm x 89.5 cm x 144.5 cm
Maximum user weight: 160 kg

8TX90
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that heart
rate monitoring systems can be inaccurate. If you notice any signs of weakness, nausea,
dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising immediately
and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing. When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make sure
that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed to prevent improper use by
third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. In the
meantime, the equipment must not be used.
࣑ATTENTION
+ The equipment requires a mains connection of 220-230V with 50 Hertz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of "16 amps, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.

10 TX90
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms (ambient
temperatures between 10°C and 35°C). The equipment should not be used outdoors or in
rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

11
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around, as
otherwise there is a danger of suocation for children. Keep children away from the equipment
during assembly.
⚠WARNING

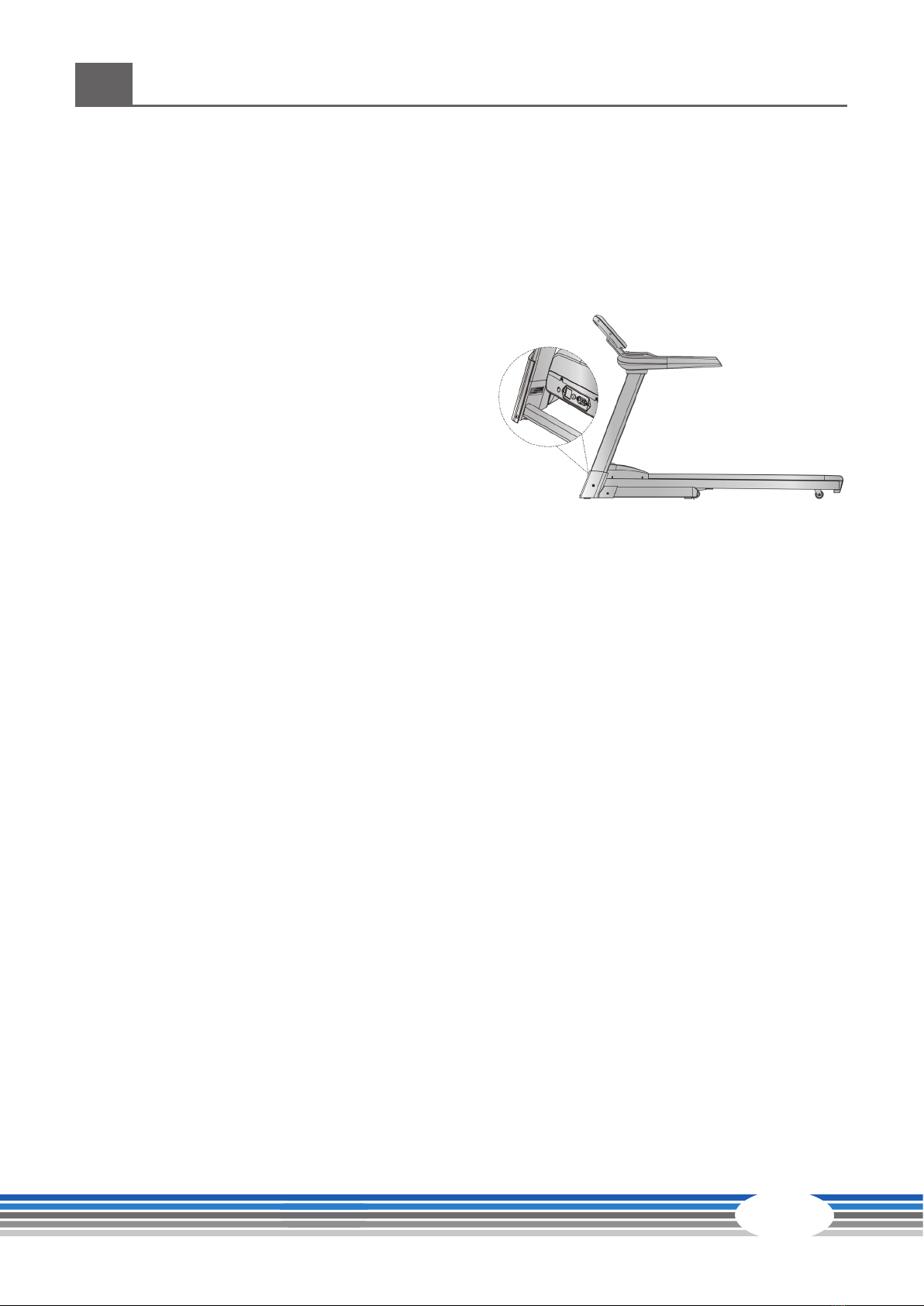

+ The treadmill is equipped with high-pressure
shock absorbers that can cause the treadmill
to suddenly open if handled incorrectly.
To avoid possible personal injuries, never
pull on the areas of the treadmill shown in
the illustration. Never try to lift or move the
treadmill at the marked areas.
+ Pay attention to the instructions attached to
the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek the
help of another technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

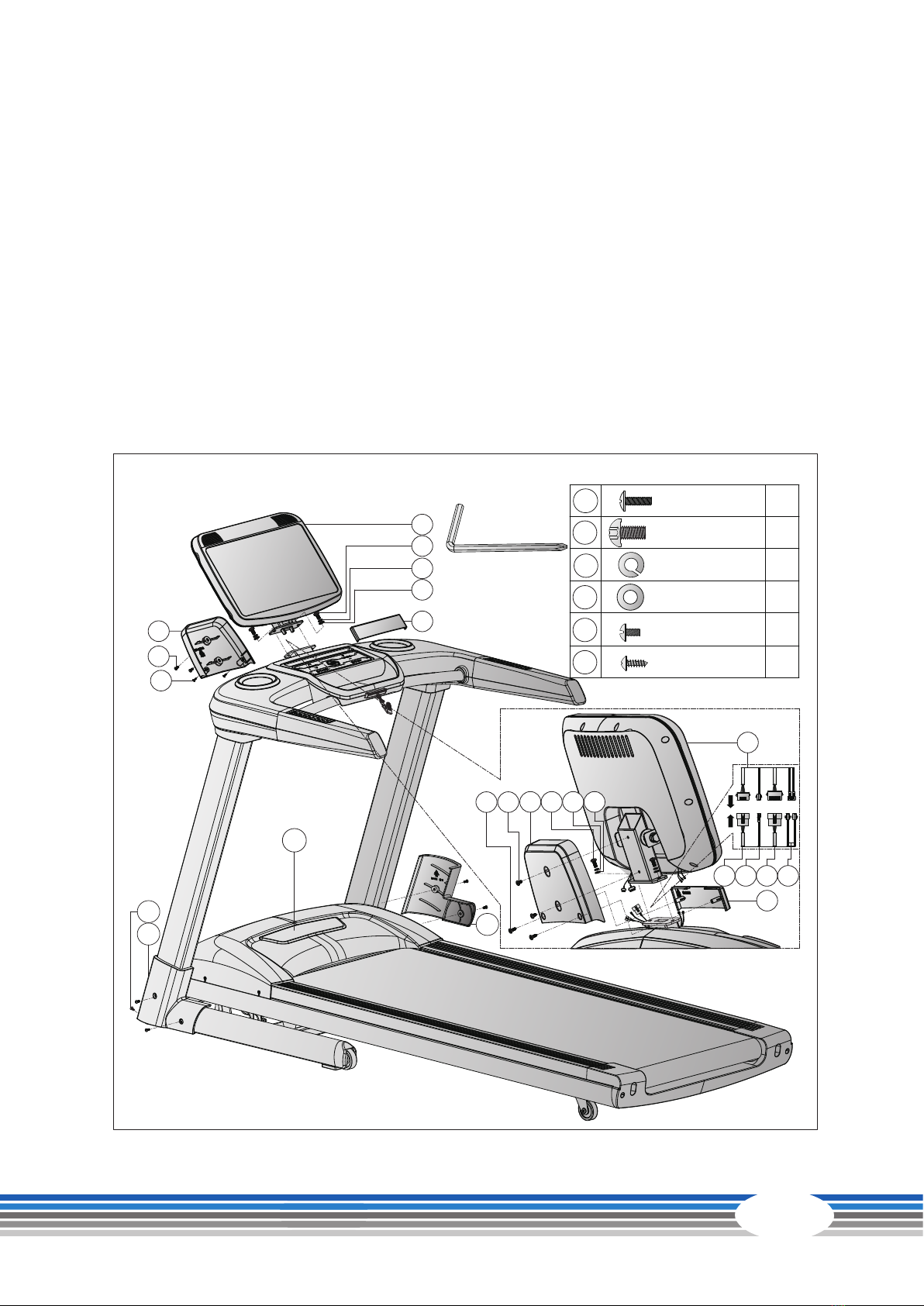

XX
XX

1
2 3
4
52L
x1x1 x1 x1
x1
x1
52R
111
x1
88
x1
89A 89B
x1
(mm)
STEP 1
7 M8*1.25*20L 8PCS
STEP 2
KH-261D8
8 D15.4*D8.2*2T 8PCS
9 D25*D8.5*2T 8PCS
42 M5*0.8*15L 6PCS
8 D15.4*D8.2*2T 4PCS
11 D16*D8.5*1.2L 4PCS
10 M8*1.25*30L 4PCS
13
15
31 M8*1.25*15L 2PCS
8 D15.4*D8.2*2T 2PCS
11 D16*D8.5*1.2L 2PCS
132
M5*0.8*10L 2PCS
25 ST4.2*15L 2PCS
STEP 3
12 TX90
2.2 Scope of Delivery
⚠WARNING
Around the treadmill there is a strap that prevents the treadmill from opening during transport.
This strap must be removed before assembly.
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

M8x1.25x20L
7
8
9
x8
D15.4xD8.2x2T
D25xD8.5x2T
x8
x8
13
15
2
9
8
7
3
1
Step1
116
115
115
13
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Then tighten the screws
using the tool only when you are instructed to do so.
Step 1: Assembly of the console masts
1. Connect the two cables (115 and 116) with one another.
࣑ATTENTION
Be careful not to pinch the cables in the following step.
2. Fix the right and left handlebar post (2and 3) to the main frame (1) with eight allen bolts (7),
eight spring washers (8) and eight at washers (9).

8
11
10
1
Step2
114
115
10
8
11
M8x1.25x30L
D16xD8.5x1.2T
x4
x4
x4
D15.4xD8.2x2T
14 TX90
Step 2: Assembly of the console unit
1. Connect the two cables (114 and 115) with one another.
࣑ATTENTION
Be careful not to pinch the cables in the following step.
2. Fix the handlebar (4) to the handlebar posts (2and 3) with four allen screws (10), four spring
washers (8) and four at washers (11).

M8x1.25x15L
D16xD8.5x1.2T
x2
x2
x2
D15.4xD8.2x2T
ST4.2 x 15L
M5
x0.8 x 10L x2
x2
88
89B
110 114
93
92
89A
132
25 31 8 11
88
89A
89B
25
132
31
8
11
31
8
11
Step3
132
25
1
42
52L
52R
42 M5x0.8x15L
x6
15
Step 3: Assembly of the console
1. Connect the cables (92, 93, 110 and 114) with their counterparts of the console (88).
࣑ATTENTION
Be careful not to pinch the cables in the following step.
2. Fix the console (88) to the handlebar (4) with two allen bolts (31), two at washers (11) and two
spring washers (8).
3. Fix the console cover (89B) to the console (88) with two cross bolts (132).
4. Attach the decorative cover (89A) with two screws (25).
5. Now tighten the bolts (7) from step 1.
6. Attach the two covers for the handlebar post (52L and 52R) with six bolts (42).

16 TX90
Step 4: Alignment of the feet
If the oor is uneven, you can stabilize the treadmill by turning the two setting screws under the
main frame.
⚠WARNING
The treadmill is equipped with high-pressure shock absorbers that can cause the treadmill
to suddenly open if handled incorrectly. For more information, refer to the general assembly
instructions.
1. Lift the treadmill on the desired side and
rotate the setting screws under the main
frame.
2. Rotate the screws clockwise in order to
remove them and to raise the running
surface.
3. Rotate them counterclockwise in order
to lower the running surface.
Step 5: Connecting the device to the mains supply
࣑ATTENTION
The device must not be connected to a multiple socket, otherwise it cannot be guaranteed that
the device will be supplied with sucient power. Technical errors can result.
Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical
safety.
DOWN UP
LIMPORTANT NOTE
To ensure that your treadmill has the latest software version, please perform an update before
using it for the rst time. Proceed as follows:
1. Tap "Settings" in the lower right corner of the screen.
2. Tap "Wireless" and connect your treadmill to the Internet.
3. Return to the settings.
4. Tap "System and Apps" and go to updates.
5. Tap “Update”, to update the software.
Do not use or switch o the treadmill during the update.
Check whether another update is available and carry it out as described above at regular
intervals. If a new version is available, the display shows a white icon. Otherwise the icon will
be grey.

17
3 OPERATING INSTRUCTIONS
LNOTICE
Familiarise yourself with all the functions and setting options of the device before starting
training. Have the proper use of this product explained to you by a specialist.
SAFETY KEY
⚠WARNING
+ For your safety, the device is equipped with an EMERGENCY STOP function. The equipment
can only be operated if the safety key is correctly attached to the contact point of the cockpit.
If the safety key is no longer on the contact point, the equipment automatically stops.
Therefore, the Safety Key cord with the clip must be attached to your clothing before every
training session. If you want to quickly stop the treadmill, if you can no longer control the
speed, or if another emergency occurs, remove the safety key from the cockpit using the cord.
+ To enable the safety key to detach from the contact point of the cockpit in the event of a fall,
the safety key clip must be rmly attached to your clothing!
+ Make sure that the safety key is not accessible to children.
3.1 Console Display

18 TX90
DISPLAY DESCRIPTION
Incline + Dispay of the current incline in %
+ Display range: 0–15
Time + Display of the training time in minutes
+ Display range: 00:00–99:59
Distance + Display of the training distance in km
+ Display range: 0.0–9999
Calories + Display of the calories in kcal
+ Display range: 0–999
Pulse + Display of the current heart rate
+ Display range: 40–220
Speed + Display of the current speed in km/h
+ Display range: 0.5–24
Mets
+ Display of the METS
+ Denition: MET or metabolic equivalent is used to measure
the average metabolic rate for a person. MET describes the
quantity of oxygen that an average person needs when in rest.
1 MET = 3.5 ml/kg/min (The body consumes 3.5 milliliters of oxygen
per kilogram per minute) is the amount of oxygen that the body
needs when in rest.
The more intensively the body works, the more oxygen is
consumed and the higher the MET level. If you train at a level of
seven METS, then you are working approximately 7 times harder
than when in rest. Furthermore, you need 7 times as much oxygen
than when in rest.
+ Training between three to six METs is seen as moderate physical
activity.
+ Training at more than six METs is seen as strong physical activity.

19
3.2 Button Functions
BUTTON DESCRIPTION
START
With this button you can start a training programme.
When you are in the main menu, you can start your training via quick start.
When your training is paused, you can continue with your training by pressing
this button.
STOP With this button you can pause or end your training.
SPEED
With these buttons you can adjust the speed. You can adjust the speed in three
ways:
1. The eight quick keys on the right hand rail (18/16/14/12/10/8/6/4). For
example, when you press on the 14 the treadmill will adjust the speed to
exact 14 km/h.
2. The buttons on the console (+ and -)
3. The buttons on the touch screen.
LNOTE
If you tap on the little icon between the buttons on the touch screen, you will
be able to type in your desired speed.
INCLINE
With these buttons you can adjust the incline. You can adjust the incline in three
ways:
1. The eight quick keys on the left hand rail (15/13/11/9/7/5/3/0). When you
press on the 13 the treadmill will adjust the incline to exact 13%.
2. The arrow buttons on the console.
3. The buttons on the touch screen.
LNOTE
If you tap on the little icon between the buttons on the touch screen, you will
be able to type in your desired incline.
COOL DOWN
With this button you can start the cool down phase at any time. Speed and
incline will be reduced until the treadmill has come to a stop and has returned to
its original position.

20 TX90
3.3 Programmes
This treadmill overs many dierent programmes. This includes: a quick start programme, three target
programmes, one Low-Speed programme, 32 pre-set programmes, one Pace programme, four
user-dened programmes and three heart rate-oriented programmes.
3.3.1 Quick Start Programme
When you are in the main menu, simply press START to start a training session via quick start.
Alternatively you can also tap on “QUICK START” in the main menu.
3.3.2 Target programmes
1. Tap on “GOAL” in the main menu.
2. Choose either time, distance or calories as your target unit.
LNOTICE
You can only choose one unit.
3. Set a value for your desired target unit.
4. Press START to start the programme.
The programme starts with a speed of 0.5 km/h.
The speed and the incline can be adjusted manually during your training.
5. Press STOP to pause your training.
The speed will be reduced slowly until the treadmill comes to a stop. In case an incline level has been set,
the treadmill will remain in that position.
5.1. Press STOP again to end your training. An overview of the collected training data will be
displayed.
5.2. Press START to continue with your training.
Upon completion of the programme the console will start the cool down phase automatically.
