CARDIOSTRONG TX70 User manual

CSTTX70.01.05
max. 150 kg
~ 60 Min.
CM
109 kg
Assembly and Operating Instructions
Art. No. CST-TX70
L 186 | B 89 | H 142
Treadmill TX70

2TX70

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 10
2 ASSEMBLY 11
2.1 General Instructions 11
2.2 Scope of Delivery 12
2.3 Assembly 13
3 OPERATING INSTRUCTIONS 22
3.1 Console Display 23
3.2 Button Functions 24
3.3 Home Screen Buttons 25
3.4 Programmes 26
3.4.1 Quick Start Programme 26
3.4.2 Manual Programme 26
3.4.3 Pre-set Programmes 27
3.4.4 Custom User Programmes 32
3.4.5 Heart Rate Control Programmes 33
3.4.6 Fitness-Test 34
3.5 Mirror Function (Screencasting) 35
3.5.1 Start Mirror Function via the Main Menu 35
3.5.2 Start Mirror Function during Workout 36
3.5.3 End the Mirror Function 36
4 STORAGE AND TRANSPORT 37
4.1 General Instructions 37
4.2 Transportation Wheels 37
4.3 Folding Mechanism 37
4.3.1 Folding Up the Treadmill 38
4.3.2 Unfolding the Treadmill 38

4TX70
5 TROUBLESHOOTING, CARE AND MAINTENANCE 39
5.1 General Instructions 39
5.2 Faults and Fault Diagnosis 39
5.3 Error Codes and Troubleshooting 40
5.4 Care and Maintenance 41
5.4.1 Adjusting the Running Mat 41
5.4.2 Re-tensioning the Running Mat 42
5.4.3 Lubricating the Running Mat 42
5.5 Maintenance and Inspection Calendar 43
6 DISPOSAL 43
7 RECOMMENDED ACCESSORIES 44
8 ORDERING SPARE PARTS 45
8.1 Serial Number and Model Name 45
8.2 Parts List 46
8.3 Exploded Drawing 52
9 WARRANTY 54
10 CONTACT 56

5
Dear customer,
thank you for choosing tness equipment from cardiostrong®. cardiostrong oers high-quality home
tness equipment that is optimally adapted to the conditions at home. Train at home no matter what
the weather or time of the day. cardiostrong tness equipment oers training programmes and a
variety of equipment for all training levels and all training goals. Further information can be found at
www.sport-tiedje.com or www.cardiostrong.de. We hope you enjoy your training!
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2010 cardiostrong® is a registered brand of the company SportTiedje GmbH. All
rights reserved. Any use of this trademark without the explicit written permission of
Sport-Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is only suitable for home use. The equipment is not suitable for semi-professional
(e.g. hospitals, associations, hotels, schools, etc.) and commercial or professional use (e.g. tness
studios).

6TX70
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
Due to ongoing changes and software optimisations, the manual may have to be updated. If
you notice any discrepancies during assembly or use, please refer to the manual uploaded to the
webshop. The latest manual is always available there.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to carefully follow
the instructions and that all parts are securely in place. If required, read through the
instructions again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here.
The contract partner cannot be held liable for damage to health, accidents or
damage to the equipment when it is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
TFT - Display of:
+ Training time
+ Speed
+ Calories
+ Distance
+ Steps
+ Heart rate (when using the hand pulse sensors or a chest strap)
Programmes in total: 23
Manual programme (Quick Start): 1
Target programmes: 1
Pre-set programmes: 17
Heart rate controlled programmes: 2
User-dened programmes: 2
Motor type: DC motor
Motor continuous output: 3.5 HP
Incline: 0–15
Speed: 0.8–20 km/h
Dimensions and weight
Article weight (gross, incl. packaging) approx.: 122 kg
Article weight (net, excl. packaging) approx.: 109 kg
Package dimensions (L x W x H) approx.: 203 cm x 95 cm x 35.3 cm
Set-up dimensions (L x W x H) approx.: 185.8 cm x 88.9 cm x 142.4 cm
Folding dimensions (L x W x H) approx.: 117.7 cm x 88.9 cm x 159.3 cm
Maximum user weight: 150 kg

8TX70
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed from the mains socket to
prevent improper use by third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. Until
repair, the equipment must not be used.
࣑ATTENTION
+ The equipment requires a mains connection of 220-230V with 50Hz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of "16A, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.
+ If your purchased item is equipped with aTFT console, software updates must be carried out
regularly. Follow the instructions on the console to perform the update(s).
+ The software systems on gym equipment with TFT consoles are set up only for the pre-
installed apps. Do not install any additional apps.
LNOTICE
+ Thepre-installedappsonTFTconsolesareproducedandprovidedbyexternalmanufacturers.
Sport-Tiedje does not take any responsibility for the availability, functionality or contents of
these apps.

10 TX70
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ Make sure that there is a safety area behind the treadmill with a length of at least 2 m and a
width at least equal to the width of the treadmill.
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.
Recommended free zone:

XX
XX
11
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING

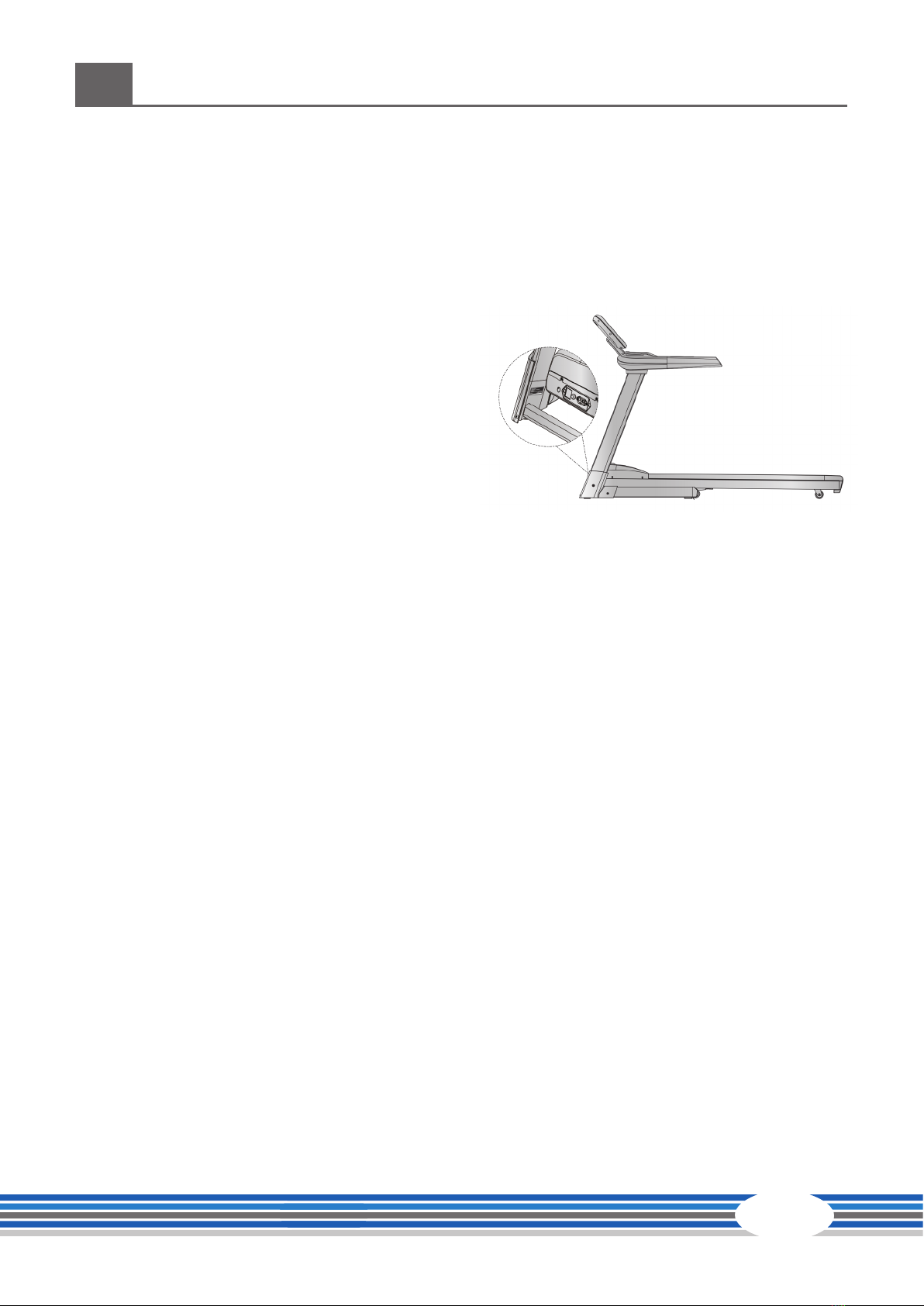

+ The treadmill is equipped with high-
pressure shock absorbers that can cause
the treadmill to suddenly open if handled
incorrectly. To avoid possible personal
injuries, never pull on the areas of the
treadmill shown in the illustration. Never
try to lift or move the treadmill at the
marked areas.
+ Pay attention to the instructions attached
to the equipment in order to reduce the
risk of injuries.
⚠CAUTION
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

12 TX70

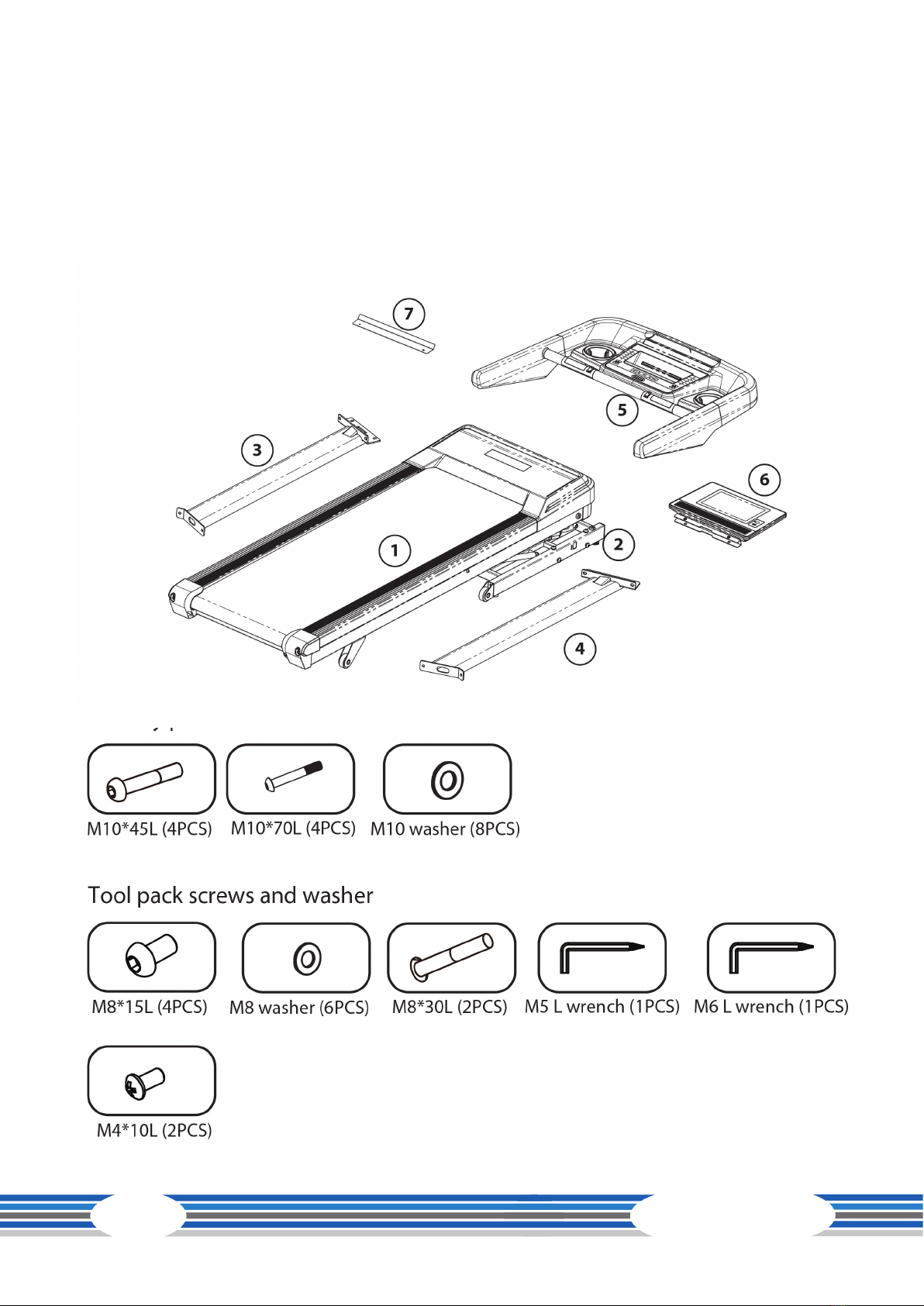

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

13

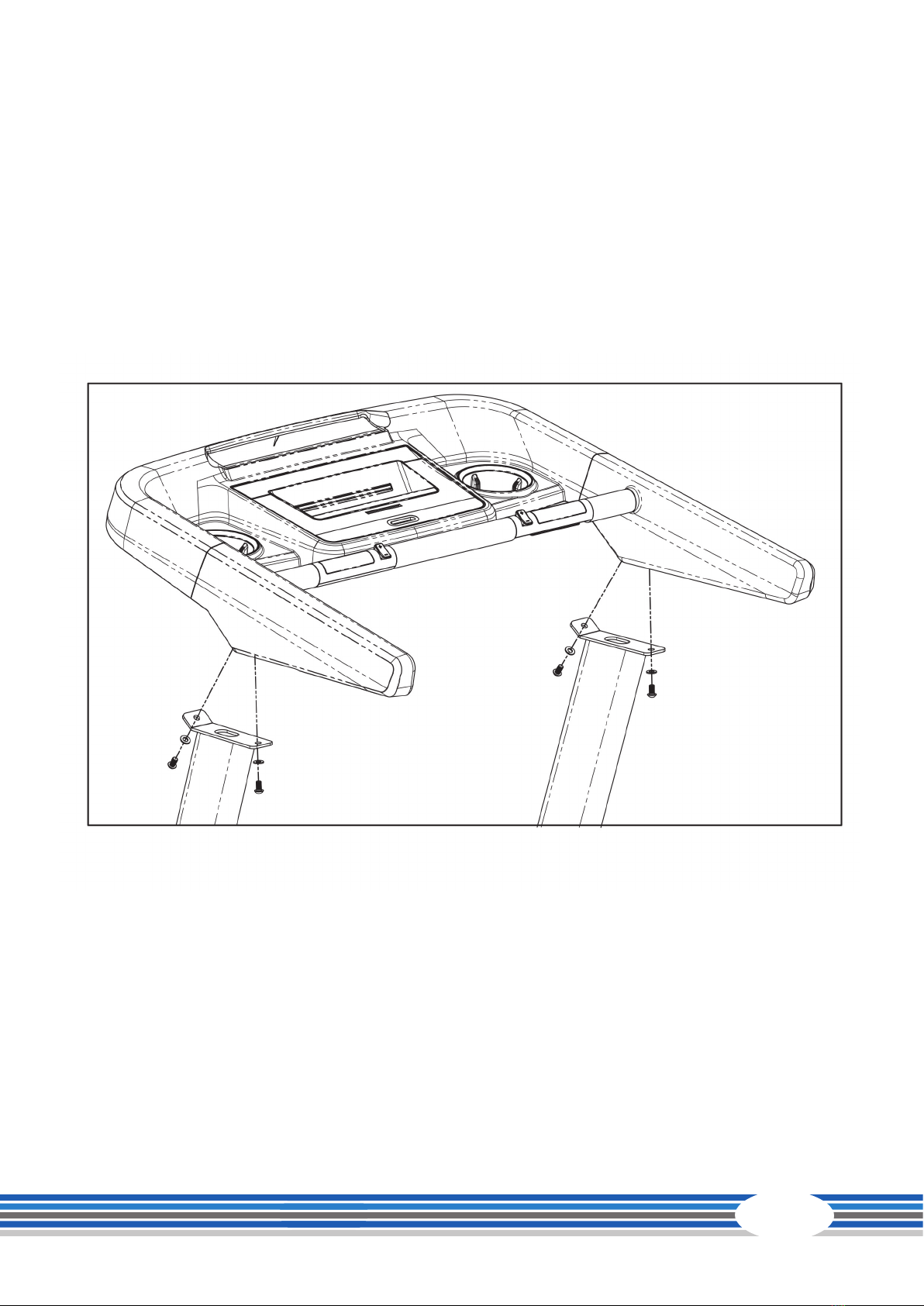

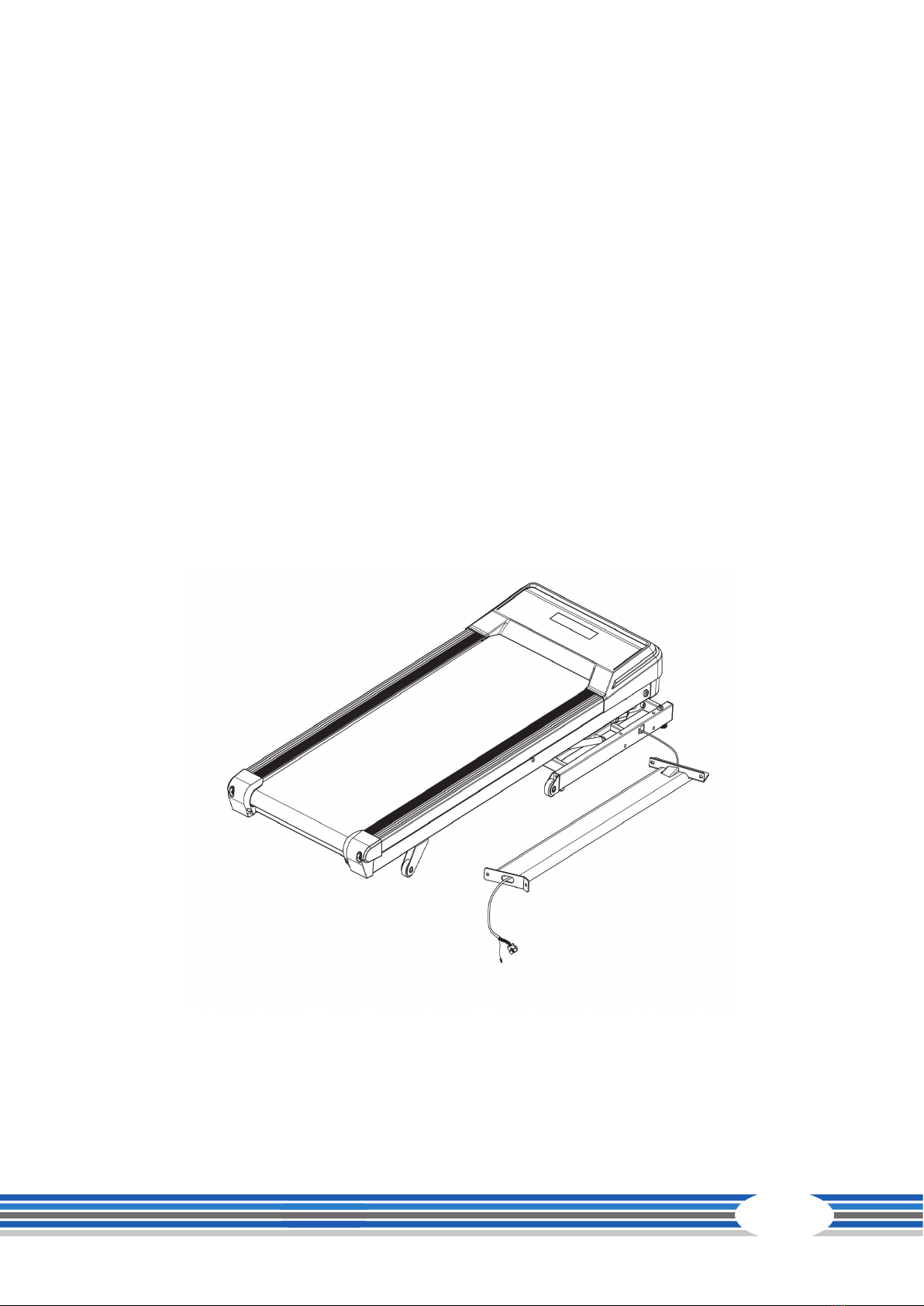

2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
+ First loosely screw all parts together and check that they t properly. Tighten the screws
using the tool only when you are instructed to do so.
+ If you have diculty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer. Please note that the Adobe
Acrobat Reader programme must be installed on your end device in order to open the le.
Step 1: Assembly of the console masts part 1
Connect the cable of the right console mast (4) with the cable of the base frame (2).
࣑ATTENTION
Take care not to pinch the cables in the following step.

14 TX70
Step 2: Mounting the console masts part 2
1. Remove the M10*45 screw (7) and M10*70L screw (8) and the M10 washers (9) from the base
frame (2).
2. Fix the console mast (4) with the screws and washers removed before .
3. Repeat the steps on the left side.
LNOTICE
No wiring is required on the left side.

15
Step 3: Mounting the console unit
1. Connect the cable from the console mast (4) with the cable of the console unit (5).
࣑ATTENTION
Take care not to pinch the cables in the following step.
2. Place the console unit (5) on the two console masts (3 & 4).
3. Fix the console unit (5) on the console masts (3 & 4) with two M8*15L screws (10) and two M8
washers (11) on each side.

16 TX70
Step 4: Mounting the console Part 1
Connect the cables of the console unit (5) with their counterparts on the console (6).
࣑ATTENTION
Take care not to pinch the cables in the following step.

17
Step 5: Mounting the console Part 2
Fix the console (6) with two M8*30L screws (13) and two M8 washers (12).

18 TX70

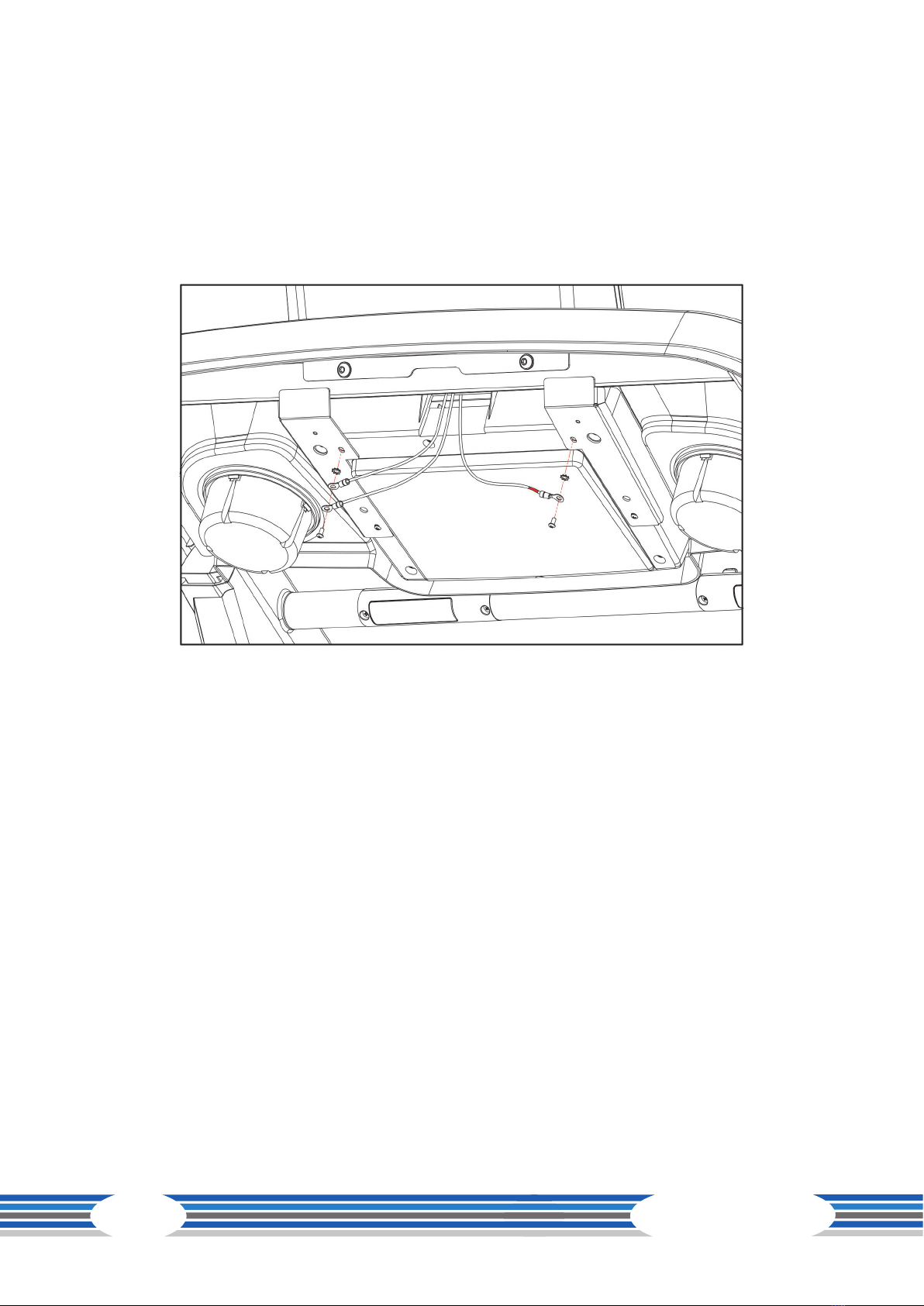

Step 6: Mounting the console Part 3
1. Remove the two screws on the console (6).
2. Fix the red cable on the right side of the console (6) with one of the screws removed before.
3. Fix the two green/yellow cables on the left side of the console (6) with the second screw
removed before.

19
Step 7: Mounting the console Part 4
Fix the cover (7) with a total of two M4*10L screws (14).

20 TX70
Step 8: Removing the transport lock
Remove the fuse by removing the two screws.
࣑NOTICE
Do not dispose of the fuse and its screws. Fasten it if you want to transport the treadmill in the
folded state.
