CARDIOSTRONG TX40e User manual

Assembly and operating instructions
TreadmillTX40e

Art.-Nr. CST-TX40e-2
CSTTX90.01.03
CSTTX40E.02.02
persons)
92.5 kg

2
TX40e


3
TX40e
Dear Customer,
Thank you for deciding for a high-quality training equipment of the brand cardiostrong®, the brand
that makes athlete‘s hearts beat faster. cardiostrong® oers a wide r ange of home tness equipment
like elliptical cross trainers, ergometers, treadmills and rowing machines. cardiostrong® equipment
is the optimal equipment for all those who want to train at home independent of goals and tness
level. For further information please visit www.sport-tiedje.com or www.cardiostrong.com.
SAFETY NOTICE
Please read all of the instructions carefully before assembly and rst use. These inst-
ructions are intended to ensure speedy assembly and explain safe usage. Make sure
that all people exercising with the equipment (in particular children and persons
with limited physical, sensory, mental or motor capabilities) are informed about
these instructions and its content in advance. In case of doubt, a responsible person
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge. As far as possible,
potential safety hazards which could cause injury have been eliminated. Make sure to follow the
instructions carefully and that all parts are securely in place. If required, read through the instructions
again to correct any mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract part-
ner cannot be held liable for damage to health, accidents or damage to the equipment when it is not
used in accordance with these instructions.
The equipment is only suitable for use at home. The equipment is not suitable for semi-professional
(e. g., hospitals, clubs, hotels, schools, etc.) and commercial or professional use (e. g., health clubs).
Retain these instructions in a safe place for future reference, maintenance or when ordering repla-
cement parts.

4
TX40e

CONTENTS
1 GENERAL INFORMATION 5
1.1 Technical data 5
1.2 Personal safety 6
1.3 Electrical safety 7
1.4 Set-up place 8
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE 9
2.1 General information 9
2.2 Errors and error diagnosis 10
2.3 Error codes and troubleshooting 11
2.4 Care and maintenance 12
2.5 Maintenance and service calendar 14
3 ASSEMBLY 15

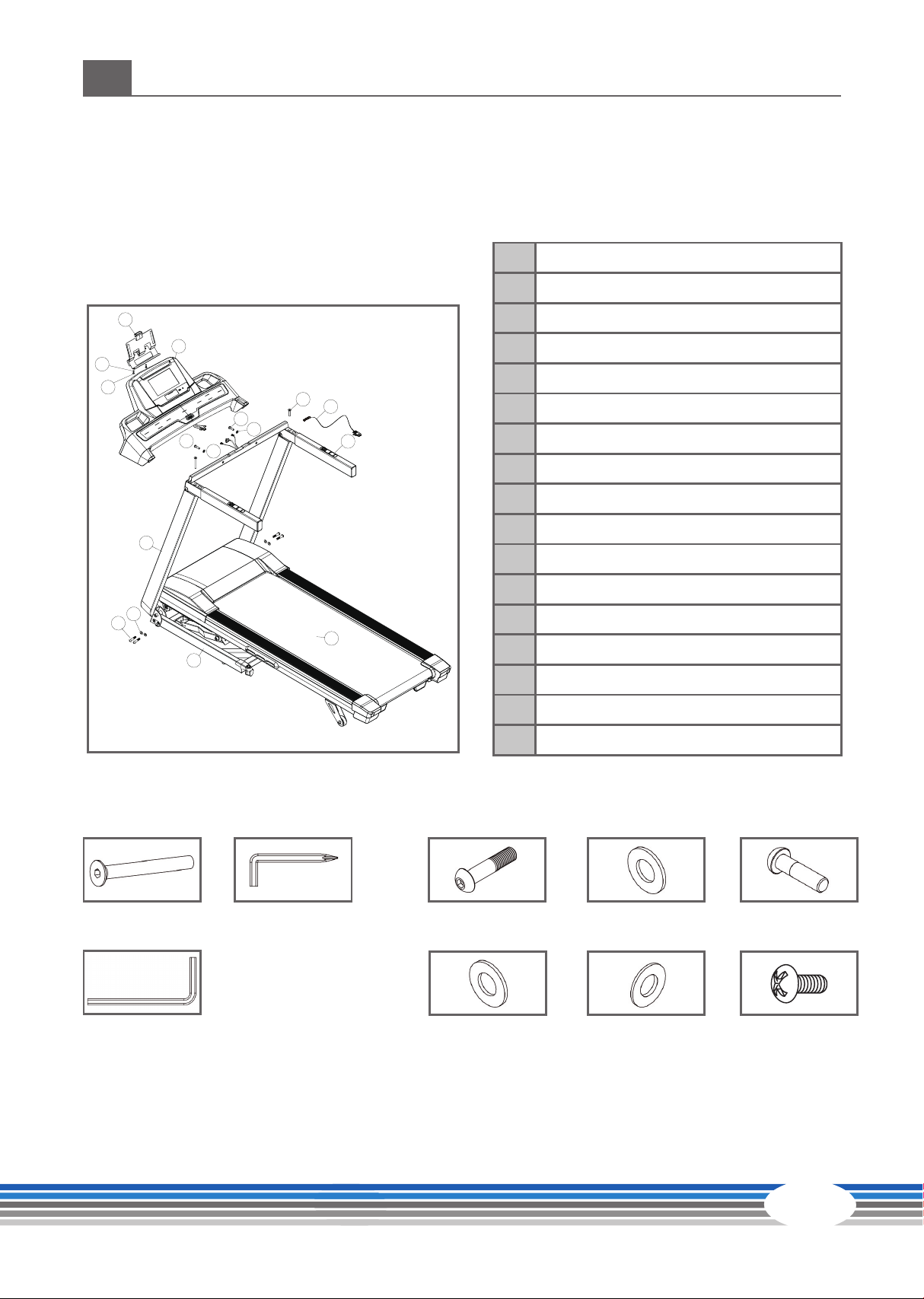

3.1 Package contents 15
3.2 Assembly instructions 16
4 OPERATING INSTRUCTIONS 23
4.1 Console display 23
4.2 Button function 25
4.3 Programmes 26
4.3.1 Pre-set programmes 26
4.3.2 Challenge programmes 30
4.3.3 Customized programme 31
4.3.4 Virtual simulations 32
4.3.5 HRC programmes 33
4.4 User settings 34
4.5 Heart rate measurement 35
5 WARRANTY INFORMATION 37
6DISPOSAL 39
7 ORDERING ACCESSORIES 39
8 ORDERING SPARE PARTS 40
8.1 Service hotline 40
8.2 Serial number and model name 40
8.3 Parts list 41
8.4 Exploded drawing 46

5
TX40e
1 GENERAL INFORMATION
1.1 Technical data
LED display of
+speed in km/h or mph
+training time
+training ditance
+calorie consumption
+heart rate (when using the hand sensors or a chest strap)
+incline in %
Motor output: 2.5 HP continuous output (DC motor)
Speed range: 0.8–20 km/h
Speed hot keys: 6
Incline range: 0–15%
Incline hot keys: 6
Total number of training programmes: 58
Manual programmes: 1
Pre-set programmes: 17
Challenge programmes: 12
Heart rate oriented programmes: 2
Customized Programmes: 20
Virtual simulations: 6
Running surface size (length x width): 142 cm x 51 cm
Weight and dimensions:
Item weight (net, without packaging): 92.5 kg
Package dimensions L x W x H): approx. 1910 mm x 920 mm x 350 mm
Set-up dimensions (L x W x H): approx. 1850 mm x 840 mm x 1350 mm

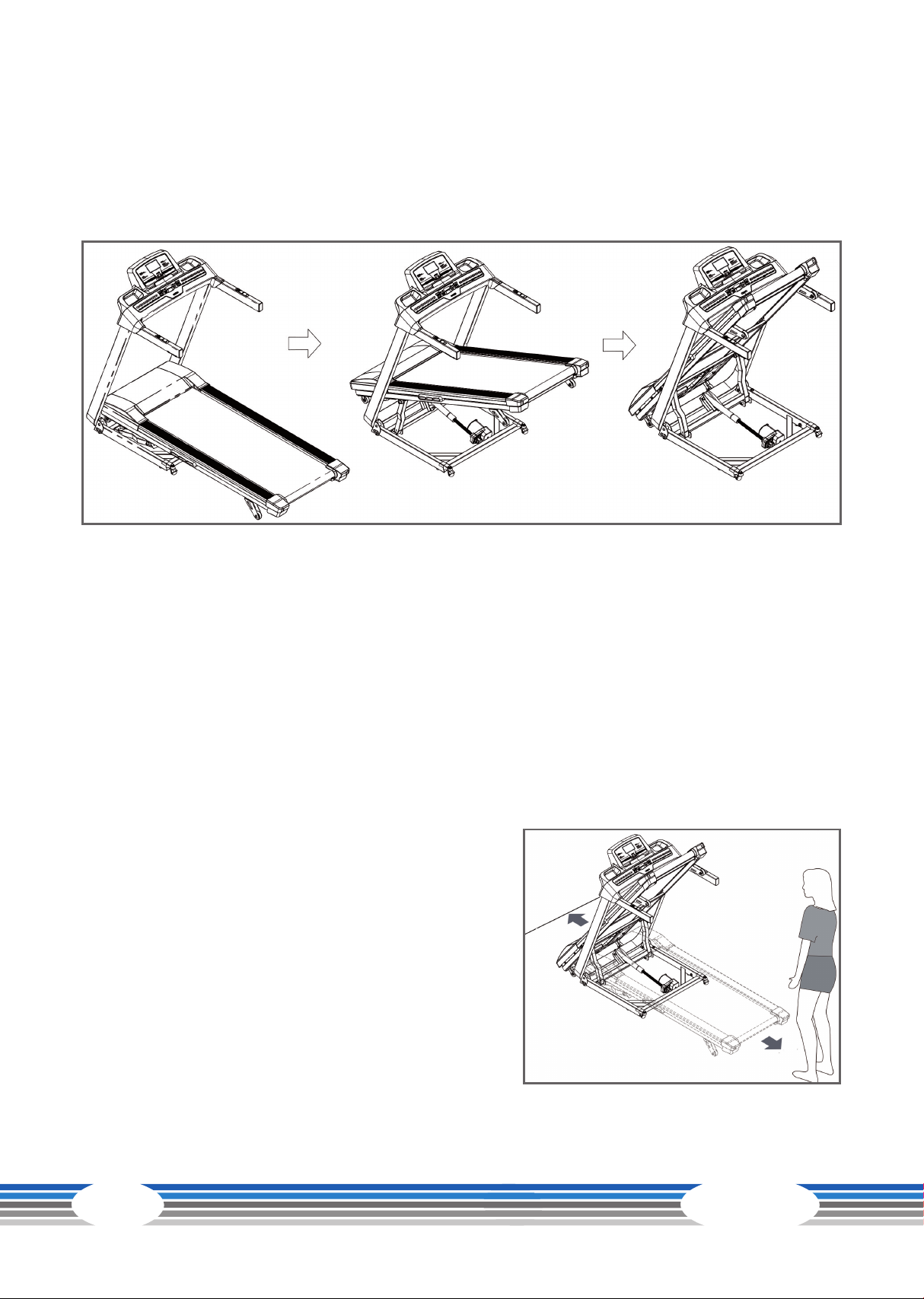

Folded dimensions (L x W x H): approx. 1180 mm x 840 mm x 1500 mm
Maximum user weight: 130 kg

6
TX40e

1.2 Personal safety
+Before you start using the equipment, you should consult your physician that this type of exer-
cise is suitable for you from a health perspective. Particularly aected are persons who: have a
hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke,
have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
+Please note that working out excessively can seriously damage your health. Please also be aware
that heart rate monitoring systems might be imprecise.
+The equipment may only be used for its intended purpose; that means for running training by
adults.
+Any other usage is prohibited and potentially dangerous. The contract partner cannot be held
liable for damage resulting from improper use.
+ The equipment is strictly for use by one person at a time.
+Children should not be allowed unsupervised access to the equipment.
+Before starting your training, make yourself familiar with all of the equipment‘s functions and
setting options. Have an expert explain the correct usage of the product to you.
+ Make sure that nobody is in the range of motion of the equipment while exercising.
+Keep your hands, feet and other body parts, hair, clothing, jewelry and other objects well clear of
moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing. When selecting
sports shoes, think about the suitability of the sole – preferably this should be made of rubber or
other non-slip materials. Shoes with heels, leather soles, studs or spikes are not suitable. Never
work out in bare feet.
+It is also important to take note of the information given in the workout instructions for creating
a workout plan.
+ At the rst signs of weakness, nausea, dizziness, pain, diculty in breathing or other abnormal
symptoms, stop your workout immediately and, if necessary, consult your physician.
+ Without prior agreement from your authorized contract partner, opening the equipment is pro-
hibited.
+ The equipment has stable steps on the sides that you can stand on in case of an emergency and
leave the equipment.
+The safety key should be inserted during all training.
+The safety key and the power cable should be removed when you are not present in order to rule
out improper usage by third parties.
Safety Key
+The equipment has an EMERGENCY STOP mechanism for your safety. The equipment may only
be operated when the safety key is properly attached to the contact point of the cockpit. The
equipment will automatically stop immediately if the safety key is no longer on the contact
point. That is why you should attach the safety key string with the clip to your clothing before
training. Remove the safety key from the cockpit with the help of the string if you would like to
quickly stop the treadmill, you can no longer handle the speed or an emergency occurs.
+In order for the safety key to be released from the cockpit contact point in the event of a fall, the
clip of the safety key must be attached (xed) to your clothing!
+An uncontrolled usage of the equipment by third parties can be avoided by removing and sto-
ring the safety key.
+Prevent children from having access to the safety key.

7
TX40e
1.3 Electrical safety
+The equipment requires a 220 - 230V / 50 Hertz mains power supply.
+The equipment should be connected directly to a grounded plug socket only by means of the
power cable supplied. The use of multi-socket adapters or similar is not recommended. Extension
leads must comply with local electrical safety guidelines. Always fully unwind the power cable.
+The outlet should be secured with a fuse with a minimum value of„16 amperes, slow“.
+When plugged in, do not leave the equipment unattended at any time. To avoid use by anyone
unfamiliar with the operation instructions, the power cable should be removed when the equip-
ment is not in use.
+ Keep the power cable away from heat, oil and sharp edges. Do not route the power cable under-
neath the equipment or under a carpet or rug, and do not place any objects on top of it.
+In order to reduce the risk of an electric shock, always unplug the equipment from the mains so-
cket immediately after your workout, before assembly or dismantling, and before maintenance
or cleaning. Do not pull on the cable.
+Make no modications to either the power cable or the mains plug.
+ If the power cable or the plug are damaged or defective, contact your authorized contract part-
ner. Do not use the equipment in the meantime.
+Do not keep electrical devices (e. g., mobile phones) in close proximity to the console or the
control electronics, otherwise display values (e. g., pulse measuring) could be inaccurate.

8
TX40e

1.4 Set-up place
+The equipment should only be used indoors, in a suciently heated and dry area (ambient tem-
perature between 10°C and 35°C). The equipment should not be used outdoors or in rooms with
high humidity (over 70%) like swimming pools. The equipment should only be stored in surroun-
dings with an ambient temperature between 5°C and 45°C.
+The training room should be well ventilated during training and not be exposed to any draughts.
+Choose a location in which to place the equipment such that there is enough free space/clea-
rance to the front, the rear and to the sides of the equipment (at least 1.50 m). Furthermore, the
equipment should not be set up in main entrances or on escape routes.
+Always keep the power cable away from hot surfaces and grounds and make sure that the cable
is not stuck somewhere or becomes a„trip hazard“.
+No objects of any type should be
inserted into the openings of the equipment.
+The equipment should be placed on a
level and solid surface, any unevenness in the oor should be leveled out.
+A oor protective mat / equipment
underlay can help to protect high-quality oor coverings (parquet, laminate, cork, carpets) from
dents and sweat and can help to level out slight unevenness.2
Mains
connection AC power
switch
Overload
switch

9
TX40e
2 ASSEMBLY INSTRUCTIONS, MAINTENANCE AND CARE
2.1 General instructions
+Please check if all parts and tools belonging to the equipment are included in the delivery and if
there is any transport damage. If there are any complaints, please contact your contract partner
directly.
+Some of the nuts and bolts to be used in assembly are already pre-mounted in order to make
set-up as easy as possible.
+The equipment must be assembled by adults. In case of doubt, ask for assistance from another
person with technical skills.
+Keep children away from the equipment during assembly, because small parts are included in
the delivery and may be swallowed.
+ Make sure that you have enough space (at least 1.50 m) in every direction during assembly.
+Do not leave any tools and packaging materials like plastic sheeting laying around to avoid dan-
ger of suocation for children.
+Assemble the equipment on an underlay mat or on the cardboard packaging in order to avoid
damage to the equipment and to the oor (scratches).
+ Before starting assembly, all individual parts should be placed on the oor next to each other.
+Read the assembly instructions carefully and assemble the equipment according to the illustra-
tions. Proceed carefully and cautiously.
+First loosen all parts and check for their correct tting. Then tighten the screws using a tool.
+Modications to the design or improper repairs may pose a hazard to the user and should not be
carried out. The product warranty may be void as a result.
+Only authorized service technicians are permitted to carry out all servicing and/or repairs – it
excludes maintenance and care.
+Damaged or worn components may impair your safety and the lifespan of the equipment. You
should therefore immediately replace damaged or worn components. Please contact your con-
tract partner in such a case. The equipment should no longer be used until it has been repaired.
When needed, only use original cardiostrong® spare parts.
+Check the tightness of all screw connections once a month.
+In order to be able to guarantee the constructively dened safety level of this equipment, we
recommend having the equipment regularly maintained (at least once a year) by specialists (con-
tract partner service technicians).
+The equipment may be cleaned of dust, dirt and sweat using a damp cloth. The use of solvents
should be strictly avoided. Also, make sure that no liquids (e. g. sweat) get into the openings of
the equipment (e. g. console).

10
TX40e

2.2 Errors and error diagnosis
The equipment runs through regular quality controls during production. Nevertheless, errors or mal-
functions on the equipment may occur. Individual parts are often the cause of faults and replacement
is usually sucient. Please use the following overview to see the six most common errors and how
to repair them. If the equipment still does not work properly, please contact your contract partner.
Error Cause Solution
Console only shows
lines
Safety key missing Check if the safety key is inserted and
place it in
Running belt tilted Running belt not aligned Laufmatte gemäß Anleitung zentrieren
Running belt slips
through/stops
Belt tension/lubrication not ok Check belt tension/lubrication in accor-
dance with the instructions
Scraping noises Running belt scrapes, because
it is not aligned
Align running belt in accordance with
the instructions
Display does not show
anything
Check plug connections
(cables)
Mains switch on “on”, make sure that the
safety key is inserted
No pulse display
Sources of interference in the
room
With chest strap
Unsuitable chest strap
Position of the chest strap
incorrect
Batteries empty
Remove sources of interference (e. g.
mobile phone, speakers, WLAN, mover
robot, vacuum cleaner robot etc.)
Use suitable chest strap (see
recommended accessories)
Reposition chest strap and/or moisten
electrodes
Change batteries

11
TX40e
2.3 Error codes and troubleshooting
The electronics of the treadmill does continuously tests. In case of deviations, an error code is displayed
and the general operation is stopped for reasons of your safety.
Please contact your contract partner for the technical customer service.
ERR 1
1. Check the cable connections between the motor control unit and the display.
2. Turn o the treadmill on the mains plug for a few seconds. When the error is still displayed, please
contact your contract partner to replace the cables.
ERR 2
1. Erratic speed – Check all cable connections of the console and make sure that they are correctly
connected.
2. Check the connections of the console cable and the motor cable.
3. Turn o the treadmill on the mains plug for a few seconds. When the error is still displayed, please
contact your contract partner.
ERR 4 / ERR 9
1. Error of the incline motor – Check all cable connections to the incline motor and make sure that these
are correctly connected.
2. Turn o the treadmill on the mains plug for a few seconds. When the error is still displayed, please
contact your contract partner.
ERR 5 / ERR 6
1. Overloading / Overcharging – Disconnect the treadmill from the power supply for a few seconds and
turn it on again.
2. When the error is still displayed, please lubricate the treadmill.
3. Turn o the treadmill on the mains plug for a few seconds. When the error is still displayed, please
contact your contract partner.
ERR 7
1. Invalid system parameter – Disconnect the treadmill from the power supply for a few seconds and
turn it on again.
2. When the error is still displayed, please contact your contract partner.
ERR 8
1. Check the IC chip (EPROM) of the console and make sure that it is correctly mounted.
2. Check whether the pins of the IC chip might have been bent. Connect correctly the IC chip.
3. Turn o the treadmill on the mains plug for a few seconds. When the error is still displayed, please
contact your contract partner.

12
TX40e

2.4 Care and maintenance
The most important maintenance measure is taking care of the running belt. This includes the adjust-
ment, tensioning and lubrication of the running belt. Damage caused due to a lack of care or negligen-
ce will not be covered by the warranty. Thus, check for maintenance in regular intervals. Be extremely
careful when adjusting and tightening the belt, because a strong over or under tension may lead to
damage. The running mat is set properly in the factory before delivery. However, the running mat may
get out of place during transport.
Adjustment of the running belt
+During training, the running belt should run as centered and straight as possible. The alignment of
the running belt may change depending on the stress and load. Another reason can be the positio-
ning of the equipment on an uneven surface.
+While adjusting the belt, let the equipment run with a speed of approximately 5km/h. Nobody may
be on the equipment during this process.
+If the running belt drifts o to the left, turn the left setting screw on the rear end of the equipment
at most 1/4 rotation clockwise and the right setting screw at most 1/4 rotation counterclockwise
(g. C).
+If the running belt drifts o to the right, turn the right setting screw on the rear end of the equip-
ment at most 1/4 rotation clockwise and the left setting screw at most 1/4 rotation counterclockwi-
se (g. D).
+Then watch how the belt runs for approximately 30 seconds, because the change will not be visible
immediately.
+Repeat the process until the running belt runs straight again. If the running mat cannot be adjusted,
please contact the contract partner.
+If the running mat (belt) cannot be adjusted, please contact your contract partner.
Move the belt to the right Move the belt to the left

13
TX40e
Tensioning the running belt again
+If the running belt slips over the rollers during operation (if this is the case, a noticeable jerking
will be noticed while running), the running belt must be tensioned again. In most cases, the cau-
se for the slipping is a straining of the belt through usage. This is completely normal.
+It can be tightened through the same setting screws that were used during adjustment.
+While tightening the belt, let the equipment run at a speed of 5km/h.
+Turn the left and right setting screws directly after each other a max. 1/4 clockwise rotation.
+Then check if the running belt is still slipping. If this is the case, you must repeat the described
process.

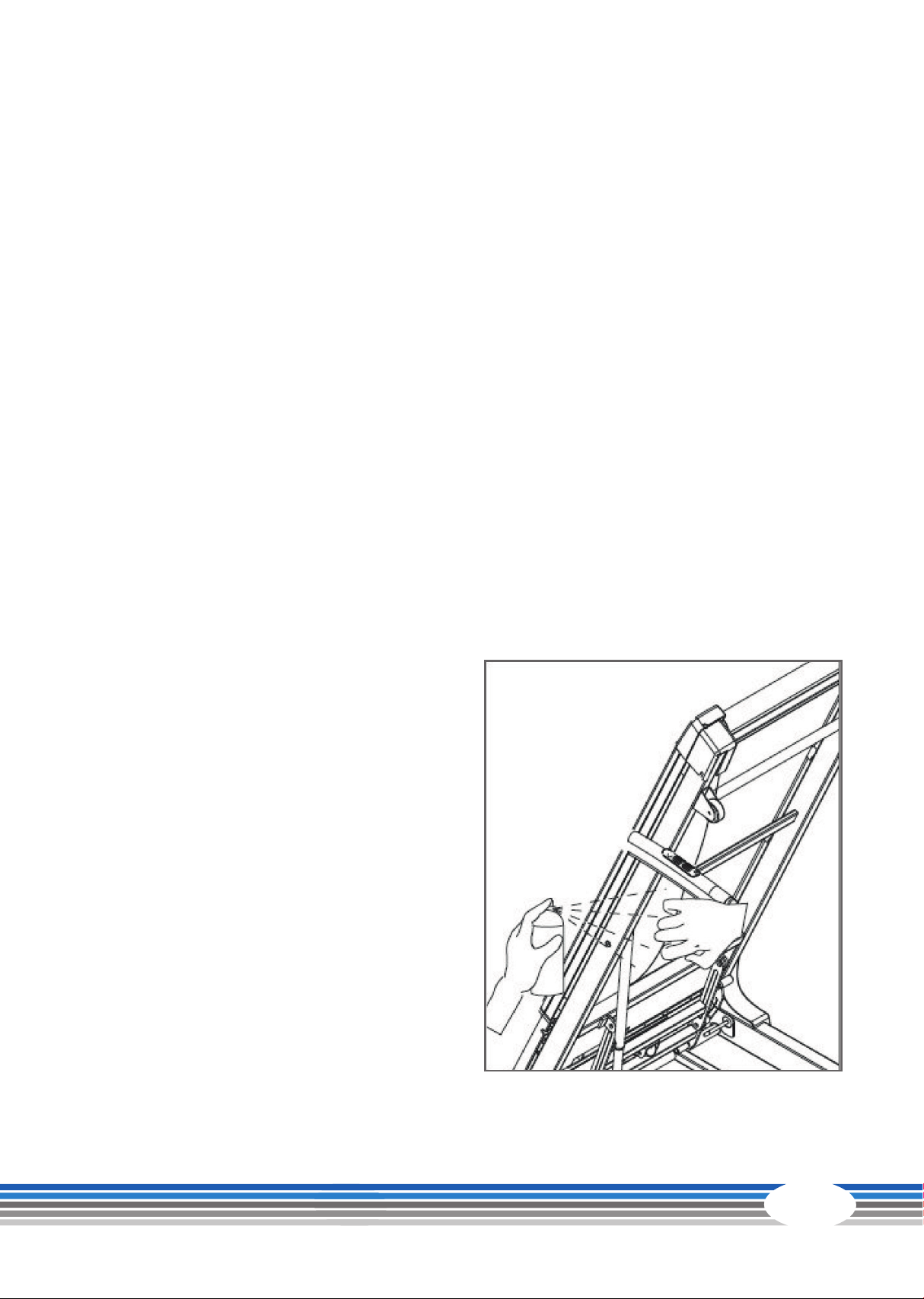

Lubrication of the running belt
+If the running belt is inadequately lubricated, the friction will increase signicantly and this leads
to strong wear of the endless belt, running panel, motor and circuit board.
+If you feel an increase in friction from the running belt, this is an indicator that you should lubri-
cate the belt (however, a lubrication should be done at least every 3 months).
+In order to be able to optimally lubricate the treadmill, the running belt must be lifted slightly.
Then apply some silicone spray (free of grease) on the entire running deck. It is easiest to lubrica-
te when the treadmill is folded up. Apply three short (approximately 1 second) sprays of silicone
lubricant between the belt and the running deck.
+The spraying tube should be held sideways in order to guarantee a moistening of the entire
underside of the belt. Continue to rotate the belt by hand so that the entire area between the
endless belt and running deck is lubricated. Wipe o the excess lubricant.
+ This maintenance must also be done after the equipment has not been used for a longer period
of time.

14
TX40e

2.5 Maintenance and service calendar
The cockpit, casing, handrails and entire frame must be cleaned after every training session with a
moist towel (no solvent!) in order to avoid damage caused by sweat. After 150 hours of operation,
the maintenance symbol reminds you to clean the treadmill. After you have cleaned the treadmill
and checked all components, turn o the symbol by simultaneously pressing the INCLINE up and
INCLINE down buttons.
The following routine work must be done in the specied time intervals:
Part Weekly Monthly 2x a year Anually
Display console C I
Belt tension I
Belt lubrication I
Plastic Covers C I
Screws & cable connections I
Legends: C = cleaning; I = inspect

15
TX40e
3 ASSEMBLY
3.1 Package contents
The scope of supply consists of the components shown in the drawing below, including a power
cabel with mains plug. In case a part is missing or damaged, please consult your contract partner.
4
13
14
15
1
2
3
5
7
6
8a
8b
910
11
12
No. Parts
1 Running belt
2 Frame base
3 Support post
4 Console
5 Handrails
6 Hexagon head screw (M10*50L)
7 Washer (M10)
8a Console and pulse cable - upper part
8b Console and pulse cable - lower part
9 Flat-head screw (M8*70L)
10 Safety key
11 Hexagon head screw (M8*35L)
12 Washer (M8)
13 Holder
14 Washer (M4)
15 Screw (M4x10L)
Tools Pre-assembled
4x Washer (M8)
2x Flat-head screw 1x Allen wrech
1x Allen wrench 2x Washer (M4) 2x Screw (M4*10L)
2x Washer (M10)4x Hexagon head
screw (M10*50L)
2x Hexagon head
screw (M8*35L)

16
TX40e

3.2 Assembly instructions
Step 1
1. Open the cardboard and lay it at on the oor.
2. Take the operating instructions, the hardware
package, and the power cable. Read carefully the
operating instructions before the assembly.
Step 2
1. Lift the rear side of the treadmill.
2. Take the assembly of the console (4) below the
machine by lifting the main frame.
Step 3
1. Remove the plastic foil and the polystyrene. Then
place the main frame carefully on the oor.
2. Loosen two screws (6) and two washers (7) on the
left side of the main frame (2)
3. Loosen two screws (6) and two washers (7) on the
ride side of the main frame (2). Keep all screws and
washers for the further use.
1
3
2
4
2
67
1
2
4
5
1
3
2
4
2
67
1
2
4
5
1
3
2
4
2
67
1
2
4
5

17
TX40e
Step 4
1. Lift the supporting frame (3) and the assembly of the handles (5).
2. Align the supporting frame so that the holes of it correspond to those of the main frame (2).
Step 5
1. Mount two screws (6) and two washers (7) with the
M6 wrench on the supporting frame (3).
Step 6
1. Take two screws (9) and the M5 wrench from the
hardware package.
2. Mount the screws (9) on the assembly of the hand-
les (5).
5
3
1
2
1
1
2
3
5
7
6
3
9
9
5
5
3
1
2
1
1
2
3
5
7
6
3
9
9
5
5
3
1
2
1
1
2
3
5
7
6
3
9
9
5

18
TX40e


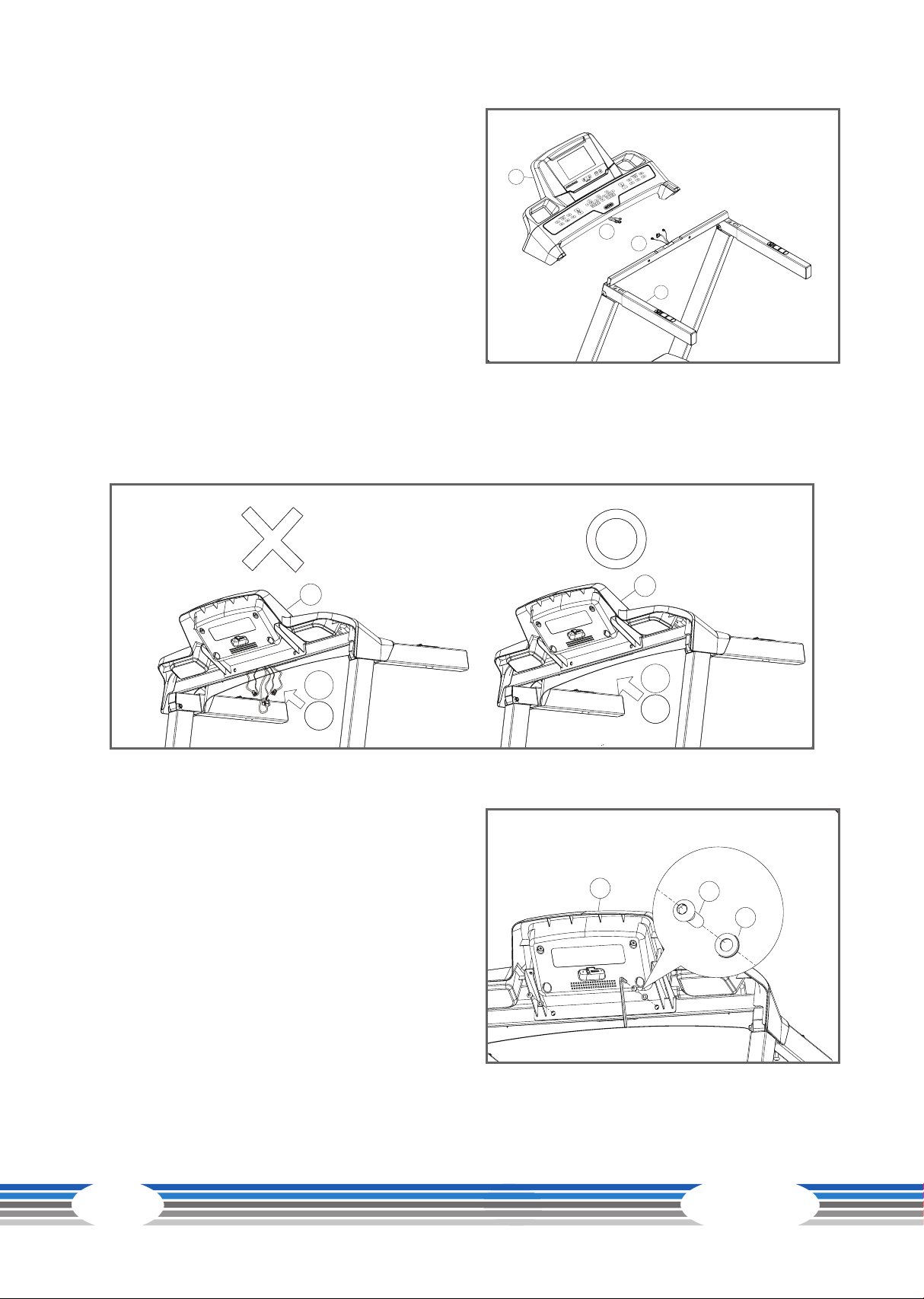

Step 7
1. Connect the console with the pulse cables (8a
and 8b).
2. Place the assembly of the console (4) on the as-
sembly of the handles (5).
Step 8
1. Plug the cables (8a and 8b) at the back in the assembly of the console (4).
Step 9
1. Mount two screws (11) and two washers (12) with
the M5 wrench.
4
8a
8b
5
8a
8b
4
8a
8b
4
411
12
4
8a
8b
5
8a
8b
4
8a
8b
4
411
12
4
8a
8b
5
8a
8b
4
8a
8b
4
411
12

19
TX40e

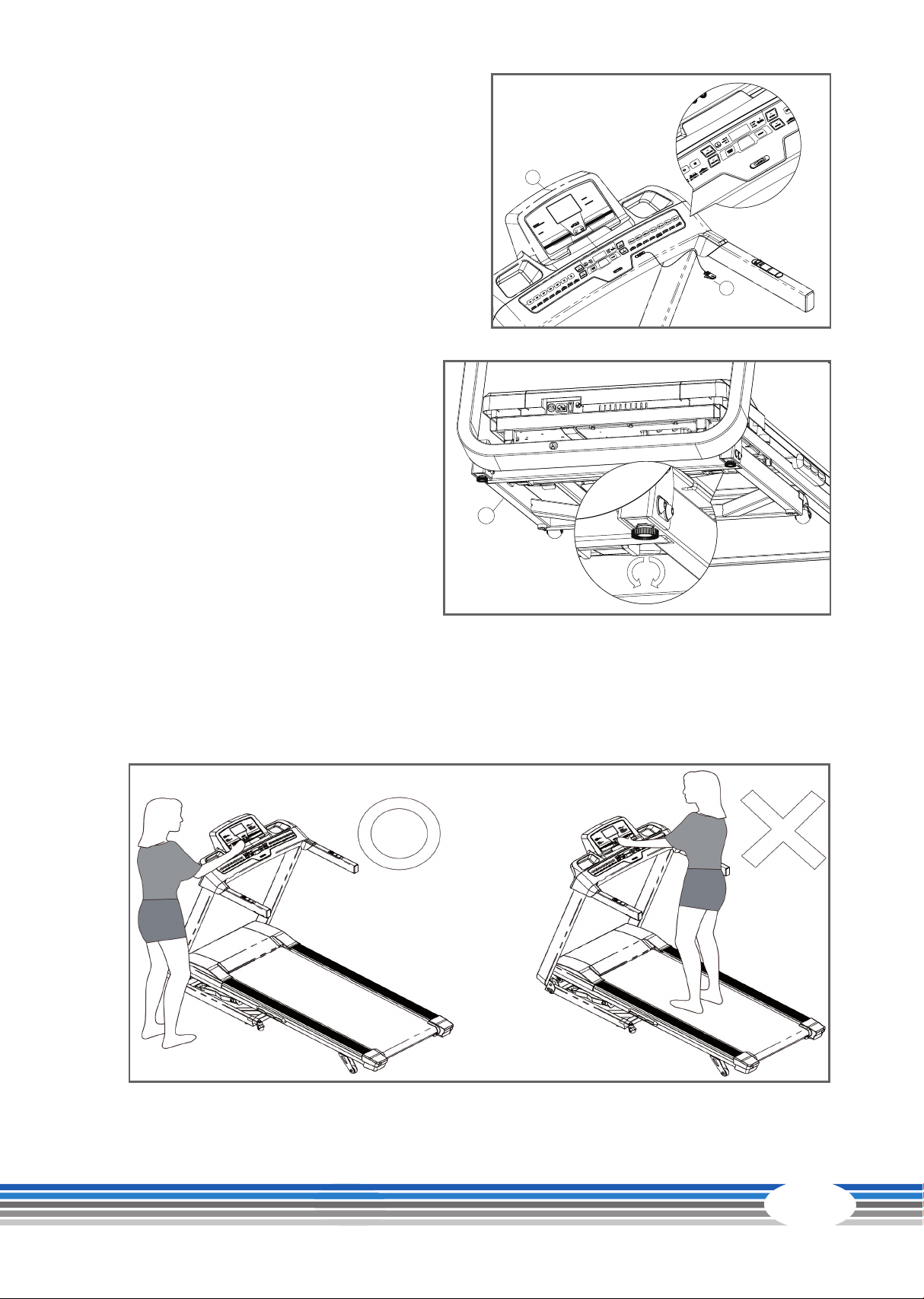

Step 10
1. Insert the safety key (10) in the assembly of the con-
sole.
Step 11
1. Adjust the height by means of the levelling
feet below the machine, so that it stands stable
on the oor.
How to fold the treadmill up and down
1. Do not stand on the treadmill when eFOLD is in use. Please stand at the side of the treadmill
when you are using eFOLD.
10
4
Whilein use of eFold “up” or “down”, makesure no people
orpets are on/underneath the treadmill deck.
Removesafety key when not in use and
storeout of reachof children.
1.Insertsafetykey.
2.Enterprogram using arrows,pressmode.
3.Enterlevel using arrows, press mode.
4.Entertime using arrows,press mode.
5.Enterweight using arrows, press mode.
6.Pressstartto begin workout.
Pressquickkeyto choose speed or incline
afterpressstart.
Riskof injury to person:
Toavoidinjury,stand on the side rails
beforestarting treadmill. Read owner's
manualbeforeusing.
2
10
4
Whilein use of eFold “up” or “down”, makesure no people
orpets are on/underneath the treadmill deck.
Removesafety key when not in use and
storeout of reachof children.
1.Insertsafetykey.
2.Enterprogram using arrows,pressmode.
3.Enterlevel using arrows, press mode.
4.Entertime using arrows,press mode.
5.Enterweight using arrows, press mode.
6.Pressstartto begin workout.
Pressquickkeyto choose speed or incline
afterpressstart.
Riskof injury to person:
Toavoidinjury, stand on the side rails
beforestarting treadmill. Read owner's
manualbeforeusing.
2

20
TX40e

1. Press and hold eFOLD for two to three seconds to fold the treadmill. During this process an acusti-
cal signal will be heard all two to three seconds. This signal will stop once the treadmill is folded up
completely.
2. Press and hold eFOLD for two to three seconds again to fold the treadmill down again. During
this process an acustical signal will be heard all two to three seconds. This signal will stop once the
treadmill is folded down completely.
NOTE:
- eFOLD kann only be used when the treadmill is in standby mode. The motor must not be running.
- During this process an acustical signal will be heard all two to three seconds. This signal will stop
once the treadmill has reached its end position.
- In case there is a power failure while the treadmill is being folded, please restart the treadmill and
start the eFOLD function again.
- If there is an emergency, please press the STOP button or remove the safety key to stop the eFOLD
function immediately.
1. Make sure that there is enough space around the treadmill.
2. The minimum safety distance around the treadmill should be 1m.
