Care of Sweden CuroCell Nova CX13 User manual

User manual
2015-08-10
CuroCell®Nova CX13
CuroCell®Nova CX19
Alternating pressure system


Itemnumberusermanual:95‐001062



























2

Contents
Importantsafetyprecautions3
Introduction4
Productdescription5
Assembly/Installation7
Operation 8
Cleaningandreconditioning19
Storage 12
Maintenance12
Troubleshooting13
Technicaldescription14
Spareparts16
Optionsandaccessories17
Warranty 18
Otherinformation19


3

IMPORTANTSAFETYPRECAUTIONS
Readallinstructionspriortouse












































Warning!Tominimizetheriskoffire,electricshocksorbodilyinjury:

1. Theproductmustonlybeusedforitsintendedpurposeasdescribedinthismanual.
Theproductmaynotbecombined,assembledorrepairedwithotherparts(e.g.pump
andmattress),accessoriesorsparepartsotherthanthosedescribedinthismanualor
otherdocumentationfromCareofSweden.

2. Donotusetheproductinwetroomsorwherethereisariskofthepumpcominginto
contactwithwateroranotherliquid.Neverhandleapumpthathascomeintocontact
withwater/liquid.Pulltheplugoutoftheelectricalsocketimmediatelyandsendthe
producttoanauthorizedservicetechnicianforservicing.

3. DONOTUSEinthevicinityoforincontactwithfiresources/hotsurfaces,suchasfire,
burningcigarettesorhotlamps.Althoughtheproducthasundergonefiretesting,it
couldbecomedamagedifitcomesintocontactwithfiresources.

4. Positionandusetheproductinamannerthatpreventsitfrombecomingtrappedor
damaged.NOTE:Beparticularlyawareoftrappingdamagewhenusingbedrails.

5. Neverusetheproductifthepumppowercordorplugisdefective,thepumpcasingis
damagedoritisnotfunctioningproperly.Contactaservicetechnicianfor
examinationandrepair.

6. Regularlycheckproductfunctionalitythroughahandcheck(seesection4.4).Also
checkthatthecomfortsettingiscorrectasindicatedinthetableonthepump.

7. Continualmonitoringisrequiredwhentheproductisusedforindividualsneeding
specialsupervision,suchaschildren.

8. Themattressareprotectedwithahygienecover;Pleasetrytoavoidthesimultaneous
useofmultiplehygienecoverwiththismattress.Becauseoftheriskvapour
permeablecanbedestroyed.

9. Thehygienecoverdoesnotallowliquidorairtopenetrate,butisvapourpermeable.
Makesurethatthepatientispositionedcorrectlytoavoidtheriskofsuffocation.

10. Preventdamagetothehygienecoverfromsharpobjects.

11. Ifthecoveraresuppliedwithhandlesonthelongsides,theseshandlesareonlytobe
usedforliftingandmovingthemattressitself.Allotherusewillbeatyourown
responsibilityandisnotcoveredbytheproductwarranty.

4

1.Introduction

CuroCell®airmattressesoperateaccordingtothealternatingpressureprinciple,atechnique
thatiswellprovenandbeenusedforalongtime.Alternatingpressureiswhenthepressure
regularlyalternatesbetweenthemattresscellstoreplicatebodymovement.Variablepressure
cyclesaresetupwherethereislittleornopressure.Thisisoptimalforskinimprovementorto
preventskindamage.

Alwaysreadtheusermanualpriortouse.

1.1Generalinformation

ThisCuroCell®mattressisamedicaldeviceinaccordancetoMDD93/42/EEC.Accordingto
statutoryregulationsmadebytheauthoritiesregardingmedicaldevices,themanufactureris
requiredtoreportallaccidentsorincidentsinvolvingthereproducts.Wewouldbevery
gratefulforallinformationinvolvingaccidentsorincidentsrelatingtoourproducts,by
reportingthemimmediatelytous,hereatCareofSweden.Thesystemhasbeentestedand
approvedaccordingtothefollowingstandards:IEC600601‐1,IEC60601‐1‐2,SS‐ENISO12182,
SS‐ENISO14971,SS‐ENISO10993,EN597‐1,EN597‐2,EN14126.

1.2Intendeduse

CuroCell®NovaCXisanalternatingpressuremattresssystemthatcanbeusedinallkindsof
caringenvironmentstopreventpressureulcers,aswellastreatmentuptocategory2(1)
pressureulcers.Itisavailableintwoversions,asanoverlay(CuroCell®NovaCX13)orasa
replacementmattress(CuroCell®NovaCX19).Werecommendthatpositionchangesaremade
regularly.Thetimeintervalmustbeevaluatedbytheresponsiblepersonnel,dependingonthe
patient´sstatusdiagnosisandgeneralcondition.Themattressismeantforuseforpersonsofa
recommendedminimumlengthof120cm.Therecommendeduserweightisupto150kg.

Themattressshouldonlybeusedlyinginthelengthwisedirectiononthe
mattresswiththefeetattheendmarkedwiththefeetsymbol.

Themattressmustalwaysbecleanedbetweenpatients.


5



















(1)NationalPressureUlcerAdvisoryPanel,EuropeanPressureUlcerAdvisoryPanelandPanPacificPressureInjury
Alliance.PreventionandTreatmentofPressureUlcers:QuickReferenceGuide.EmilyHaesler(Ed.).CambridgeMedia:
OsbornePark,WesternAustralia;2014.

1.3Otherinformation

ActionplanPressureulcers
Toachievethebestpossibleresultforthisproductitisrecommendedthatawell‐plannedand
well‐structuredworkingenvironmentbeused.Inourguideline"Actionplan"youwillfind
exampleswhichcanbeappliedandputintopracticewhenusingourproducts.

Mattressguide
Thispracticalguidegivesyouasacaregiver,helpinchoosingthecorrectmattressfromthe
CareofSwedensrange.CuroCell®NovaCX13andCuroCell®NovaCX19aremattressesin
functiongroupC.Thisinformationcanbefoundonourwebsitewww.careofsweden.comor
youcanorderacopyfromourCustomerservicesbysendingyourdetailsto
[email protected].


2.Productdescription

2.1Pumpandmattress

1.Mattress
2.CPR(rapiddeflation)
3.Pumpconnector
4.Pump



NOTE!
Forcertainpatients,suchasamputees,aretherecommendedminimumweightnot
valid.Theseusersmayhoweverhaveotherrequirementsastheentiremattressisnot
beingloaded.Pleaserefertosections4.2and4.3foroperatingcontrol.

Whenusedtogetherwithpositioningpillows,readtheuser’smanualcarefullyto
ensurecorrectpositioningofthepatient.

Ifyouareusingthisproductwithanevacuationsheet,itistheuser’sresponsibilityto
ensurethatitissafetouseforevacuation.

Becarefulwhenusingbedrailsorotherprotectiononthebedsothatthemattress
doesnotbecometrappedordamaged.

Themattressmustnotbeliftedwithapersonlyingonitorusedforanyothertypeof
transportotherthanapossibleevacuationusinganevacuationsheet.

Thismattressisunsuitableforuseduringx‐rayexaminationsbecauseoftheriskof
blurredimages orartefactsthatmayleadtodiagnosticerrors.
23
1
3
C
P
R4

6

3staticheadcells.
3staticheadcells.
Iftheproductisfittedwithventilatedcells,theyarelocatedhere(9cells).
Iftheproductisfittedwithventilatedcells,theyarelocatedhere(9cells).
Foamcore
Tubingsystem

CuroCellNovaCX13







CuroCellNovaCX19withintegratedfoamcoreandtubingsystem







2.2Pump














1Connectiontubes3Powercord5Suspensionhook
2On/Off4Fuses(2)6Filter

2.3Pumpfunctions–controlpanel











/Buttonforswitchingbetweenstatic/alternating(0/1)function.
43
15

C
P
R
6
2

C
P
R

7

 =Mode1=Alternatingmode,everyothercellisinflated(notthethree
staticheadcells).Thepressurechangebetweencells,acycleisten
minutes.Werecommendthatthismodeisusedbydefault.

 =Mode0=Staticmode,thesamepressureinallcells.WhentheStatic
buttonispressed,thealternatingprocessisterminatedandthepressure
betweenthecellsevensout.Thefunctioncanbeusedinassociation
withpatientcare,repositioning/transferringinandoutofbed,orasa
treatmentmode.

Poweroff/on(1/0).

/Suitableairpressureissetwiththecomfortdial(1‐8).Guidelinesbased
onuserweightisgiveninthetableonthepump.NOTE!Inalluses
wheretheheadendofthebedisraised,thepressuremustbeincreased
atleastone(1)step.

Lightswhenthemattressisreadyforuse.

Alarmsforlowpressure.Inordertosolveitseechapter8,
troubleshooting.


3.Assembly/Installation

Whenunpackingthemattress,checkthatnoneofthepartsaredamaged.Intheeventof
damage,contactthemanufactureroryourlocaldealerbeforeusingtheproduct.

1.Placethemattressontheexistingmattressandfastenit
withtheelasticbandsaroundtheunderlyingmattress.
Ifthemattresshasabuilt‐infoampad(CuroCell®Nova
CX19),itcanbeplaceddirectlyonthebedframe.Secure
themattresstothebedbasewithstrapsonthecover.

Note!
•Makethebedwithsheetsforaddedcomfort.

•CheckthattheCPRvalveisclosed.

•Themattressmustbeattachedtothebed'smoving
parts,ifitisheightadjustable(CuroCell®NovaCX19).

•Checkthatallthesnapsineachcellandcoverare
fastenedcorrectly.


8


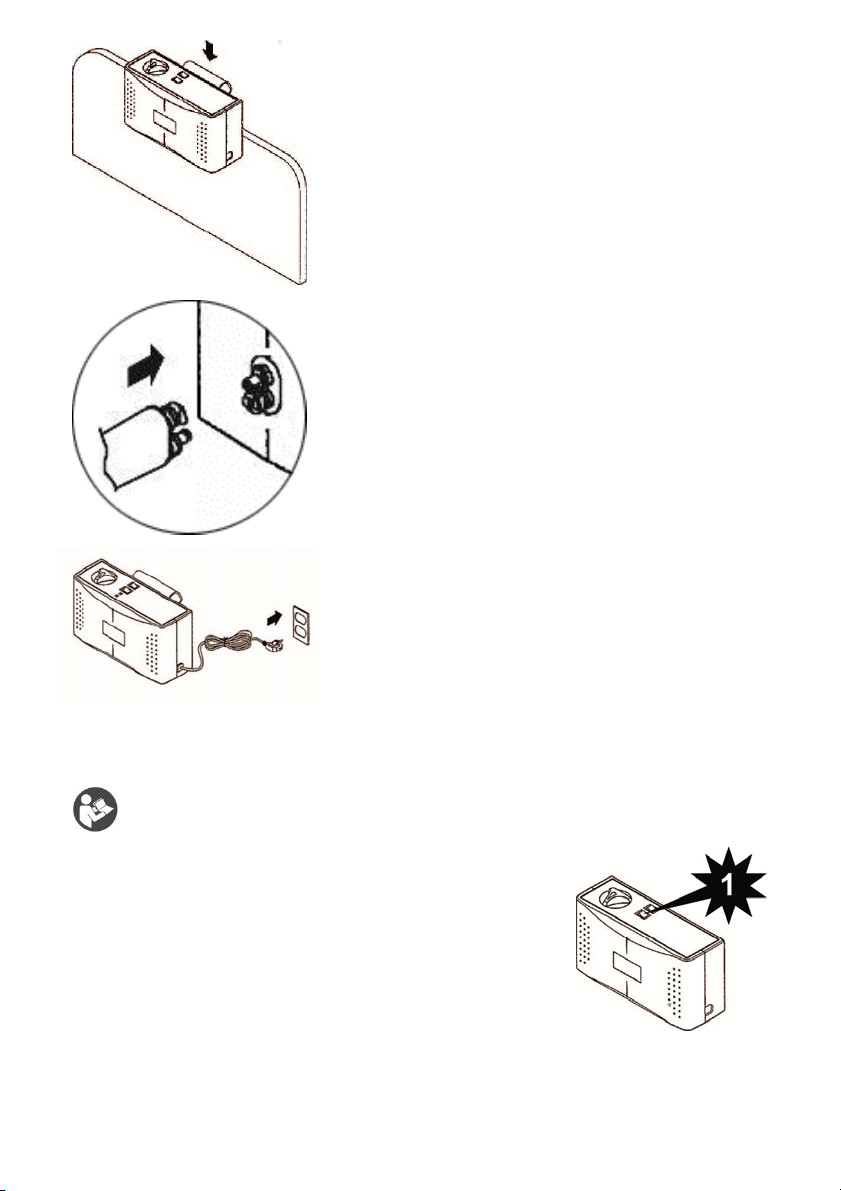

2.Hangthepumpatthefootendofthebedorplaceitona
flat,sturdysurface.

Routethepowercordsothatthereisnoriskofitcausing
someonetotrip,beingrunoverbythebedwheelsor
gettingcrushedwhenthebedisraisedorlowered.

Ifacableholderisused(optional):openthesnaps,
positionthepowercordinthepocketandclosethe
snaps.



3.Connecttheairtubesfromthemattresstothesideofthe
pump.Thereisanaudible"click"soundwhenthe
connectorsareproperlyattached.









4.Checkthattheswitchonthepumpisinthe“0”position
(Off).Connecttheplugtoanapprovedelectricalsocket.
(220V).





4.Operation

Note!Alwaysreadtheusermanualpriortouse.

4.1Start‐up

1.Startthepumpbypressing“1”(On).

2.Airstartstofillupthemattress.Ittakesabout20minutesto
inflatethemattress.

3.Ifnecessarythepatientcanlieonthemattressevenwhennot
inflated,inthiscase,theunderlaywillcarrytheload.When
usingamattresswithanairunderlay,thismustbeinflated.

Note!Werecommendthatthecomfortdialbesettomaxwheninflatingadeflatedmattress.



9

4.2Choiceofprograms

Therearetwodifferentprograms,seesection2.3fordetails.Werecommendalternating
modebydefault.

4.3Comfortsetting/

Theairpressureinthemattresscanbeadjusted
accordingtothepatient´sdesireforcomfort.Always
consulttheprescriberorotherauthorisedpersonnelfor
theappropriatesetting.

1.Usethecomfortdialtosetasuitableairpressure
basedonthetableonthepump.

2.Whenthelamp,thesymbol,litthemattressis
readyforuse.










4.4Handcheck

Handcheckisusedtoensurethatthemattressisproperly
inflated.Thisshouldbedoneregularly,oncepershift,after
changingthepositioninthebedorchangingthecomfort
settings.

Placeaflathandundertheaircellsdirectlyunderneaththe
user’spelvicregionandmakesurethattheuserdoesnotlay
directlyontheunderlyingmattress.Thereshouldbeabout1‐2
fingersmargin.

Ifyoucanfeeltheuser´sbodyrestingonyourhandyouneedtoincreasethecomfortsettings
tonexthigheststep.Wait10minutesandperformanewhandcheck.

4.5CPR

IncaseofanemergencywhereCPR(cardiopulmonary
resuscitation)isnecessary:RapidlypulltheCPRbandonthe
tubesbetweenthepumpandthemattress.Removethetube
connectionsonthesideofthepump,forevenfasterdeflation.

NOTE!MakesurethattheCPRconnectorisproperlyconnected
afteruse.

NOTE!
Iftheheadofthebedisbeingraised,pressuremustbeincreasedatleastone(1)level.

Whenonlypartsofthemattressareunderload,e.g.ifthepatientisanamputee,the
pressureshouldbeincreased1or2levels.

Handcheckthepressureatalltimes.Pleaserefertosection4.4.

Recommendeduserweight:upto150kg.

10

4.6Lowpressure

Atanabnormallylowairpressureinthemattress,theLEDlightsonthesymbol.Thelamp
goesoutwhenthepressurereturnedtonormal.

Pleaserefertochapter8fortroubleshooting.





4.7Transportfunction

Ifthepatientmustbemovedinbed,thetubescanbeconnected
together(detachedfromthepump)andthemattressputin
“transportmode”.Thismodeshouldonlybeusedforshortperiods
oftime.

4.8Heelfunction(withcheckvalves,option)

Thisfeatureallowspressurereliefoftheheels.Disconnectthe
aircellwhichisdirectlyundertheheel.Thisaircellwillthenbe
emptiedforair.Pressthebottom(1)anddisconnecttheplug.
Letthecellremaininitsplaceinthemattress.Theaircellis
activatedbyassemblingtheconnectionagain.








5Cleaningandreconditioning

Itisimportanttofollowtheinstructionsbelowbeforeusingtheproductforanotheruser.
Consultthehygieneresponsibleorthesupplierforhelpandinstructionswhenunsure.

5.1Cleaning

PUMP







Wipeofthepumpwithadampclothandamildcleaningsolutionforthispurposesuch
as:alcoholwithorwithouttensides,Isopropanol70%,oxidatingsolutionsorchlorine
WARNING!
Iftheairpressureremainslow,checkthemattressandtubesfordamage.Repairas
necessaryorcontactCareofSwedenoroneofitsauthorisedrepairtechnicians.
WARNING!
Donotopenthepumphousing–riskofelectricshock.Serviceandmaintenancemustbe
performedbyauthorisedtechnicians.Donotgetthepumpwetorsubmergeitinany
liquid.
1

11

max1%.Ifusingadifferentagent,chooseonethatdoesnotaffecttheplasticofthepump
housing.

MATTRESSCOVER

Coverscanbewipedoffwithamildcleaningsolutionforthispurposesuchas:alcohol
withorwithouttensides,Isopropanol70%,oxidatingsolutionsorchlorinemax1%.
Excrementsandbloodspotsmustberemovedimmediatelywithcoldwater.Carefully
followlocalinstructionsandusageinstructionsforthecleaner.

Multi‐layercoversshouldbedividedbeforewashing.Washwithlikecolors.

Chlorineandphenol‐basedcleanerscouldhaveanegativeimpactonthePUsurface
andshouldbeavoided.Ifchlorineisused,werecommendamixtureofmax.1%.

INNERCOVERANDDISTANCEFABRIC(accessories)


Cleantheaffectedareawithamildcleaningsolutionforthispurposesuchas:alcoholwithor
withouttensides,Isopropanol70%,oxidatingsolutionsorchlorinemax1%.

5.2Reconditioning

PUMP
Seesection5.1forinstructions.

MATTRESS
1.Disconnectthetubesandlettheairout,alsoopentheCPRvalve.

2.Removethecover.Seeinstructionsinchapter5.1forcleaningcovers.Iftheproductis
equippedwithafoamcorethisshouldberemovedandcleanedseparately.

3.Movethemattresstoacleanarea,whichissuitableforcleaning.

4.Wipeoffthecells,alltubesandtheCPRvalvewithamildcleaningsolutionforthispurpose
suchas:alcoholwithorwithouttensides,Isopropanol70%,oxidatingsolutionsorchlorine
max1%.

5.Wipeoffanddisinfectalltheworksurfaceswithanalcohol‐basedcleaningagentintended
forthispurpose.

6.Putthemattresstogether.Ifcellsforanyreasonhaveloosenedfromthetubes,thesemust
bereplacedaccordingtodrawinginchapter2.1.

FOAMCORE

Cleantheaffectedareawithamildcleaningsolutionforthispurposesuchas:alcohol
withorwithouttensides,Isopropanol70%,oxidatingsolutionsorchlorinemax1%.

Pressoutthewatercarefully.Letthefoamcoredryinawarm,ventilatedarea,withoutdirect
exposureofsunlight.Thefoamcoreneedstobecompletelydrybeforeitisusedagain.
 

12








6.Storage

Themattressandpumparebeststoredintheproductbag(optionalextra).Handlethepacked
productwithcare.Donotputanythingheavyontopofit.


7.Maintenance

7.1General

1.Checkthepowercordandplugfordamageandscratches.

2.Checkthatthemattresscoverisintactandthatthecoverandaircellsarecorrectly
assembled.

3.Checkthattheairflowalternatesbetweeneachoutletonthesideofthepump.

4.Checkfordamagedorpinchedtubesandconnectors.

Contactthemanufactureroryourlocaldealerforspareparts.

7.2Changingfuses

1.Pulltheplugoutoftheelectricalsocketbeforereplacingfuses.

2.Removethecoverforthefuseswithascrewdriver.Pullout
 thefuseholder.

3.Fitanewfuseofthesametype(T1AL,250V)andscrew
theprotectivecoverbackinplace.Therearetwofuses.




7.3Changingtheairfilter

1.Loosenthesmallroundcoverplateatthebackofthepump.

2.Leanthepumpbackandthefilterslidesoutofitsholder.

3.Placethenewfilterintheholderandputbackthecoverplate.

Thefiltershouldbecleanedregularlyifthepumpisusedina
verydirtyenvironment.
NOTE!
Checkthehygienecovereachtimetheproductiscleaned.Ifdamaged,itmustbe
replacedorrepaired.Alsocheckthepump,tubeconnectorsandpowercordduring
cleaning.Damagedpartsmustbereplacedorrepaired.

13

8.Troubleshooting



PumpdoesnotstartCheckthatthepowercordisconnectedtothepower
socket.

Checkthefuses.

Noairinheadcells Whenthemattressisinflated,the3staticheadcellsare
filledlast.

Alarmsforlowpressure(light)Checkthattheairtubesareconnectedtothepump.
=mattresslosesair 
CheckthattheCPRvalvesareclosed.

Openthemattressandlookforanyleakage.

PatientisbottomingComfortknobmaybesetup.Adjustthepressureslightly
(“fallsthrough”) andwaitafewminutes.

CheckthattheCPRvalveisclosed.

Checkforleaksfromaircellsortubes.

Checkagainwiththe"handcheck",seesection4.4.

MattressmovesaroundCheckthattheairmattressissecuredtotheunderlying
mattresswiththeelasticstraps.Ifthemattresshasabuilt‐
infoampad,fastenittothebedframewiththestraps.

Somecellshavelessair Thisisnormalsincetheairflowalternatesbetweenevery
othercellforasetcycletime(onecycle=10minutes).

Pumpisnoisy,  Checkhowthepumpishungonthebed.Resonancecan
vibrationsarefelt occurinpartsofthebed.Removethepumpandlistento
seewhetherthismakesadifference.Canberemediedby
puttingthepumponaflat,steadysurfaceorbyplacinga
towelbetweenthepumpandbed.

Ifyourquestionsarenotansweredbytheaboveinformation,pleasecontactCareofSweden
oryourlocaldealerforfurtherassistance.
ProblemSolution

14

9.Technicaldescription

9.1Technicalspecification

PUMP  SPECIFICATIONS
ModelCuroCell®Nova
Voltage220V‐240V,50‐60Hz
Powerconsumption0.05A
Typeoffuse T1AL,250V
Cycleperiods 10min
Dimension(LxWxH) 25x13.5x9.5cm
Weight 1.8kg
SurroundingsTemperatureOperation:10°C˜40°C
Storage:‐15°C˜50°C
Shipping:‐15°C˜70°C
HumidityOperation:10%˜90%non‐condensing
Storage:10%˜90%non‐condensing
Atmosphericpressure700hPa‐1013,25hPa
Classification ClassII,TypeBF,IP2X
MATTRESS  SPECIFICATION
Model CuroCell®NovaCX13/NovaCX19
Dimension(LxWxH) 80/85/90/105/120x200/210x13/19cm
Weight 5.2kg(80x200cm,8.5kgwithbuilt‐infoampad)

NOTE:CareofSwedenretainstherighttomodifytheproductspecificationatanytime.







9.2Labelling

Themattressesarelabelledwithproductiondate,articlenumber,size,careandwash
instructions,EAN‐barcode,aswellasspaceforownlabelling.Theproductalsodisplayswhich
sideisup/downandhead/foot.
WARNING!
Followoperatingandmaintenanceinstructionscarefullytopreventinjury,aswellas
damagetotheproductorotherequipment.

15

9.3SymbolDefinitions










































TypeBF
ClassIIequipment
(DoubleInsulated)
Themattressshouldonlybe
usedlyinginthelengthwise
directiononthemattress
Temperaturerange
DripdryDonottumbledryDonotdryclean
Chlorine
Recycling
Readtheusermanual
Machinewashat70°C
CEmarkedacc.to
MDD93/42/EEC
Machinewashat95°C
Directlyonbedbase
Tumbledry
Placeontopof
existingmattress
Donotiron
RecommendeduserweightPatientinformation
–
category

Wipeoff
Year‐Month‐Day
Counteractshearforce
ArticleNo
XXXX‐XX‐XX
Groupoffunction
Donotwash
Manufacturer
Notindomesticrefuse,
followrecyclinginstructions
Footplacement
IP‐class
(IngressProtectionRating)
Heelfunction

16

10.Spareparts

ForCuroCell®NovaCX13
Art.no.DescriptionSize
295‐080200CoverOlivia,grey,ziponthreesides80x200cm
295‐080210CoverOlivia,grey,ziponthreesides80x210cm
295‐085200CoverOlivia,grey,ziponthreesides85x200cm
295‐085210CoverOlivia,grey,ziponthreesides85x210cm
295‐090200CoverOlivia,grey,ziponthreesides90x200cm
295‐090210CoverOlivia,grey,ziponthreesides90x210cm
295‐105200CoverOlivia,grey,ziponthreesides105x200cm
295‐120200CoverOlivia,grey,ziponthreesides120x200cm

ForCuroCell®NovaCX19(mattresswithbuilt‐infoampad)
Art.no.DescriptionSize
CC‐906010ToppartOlivia,grey80x200cm
CC‐906011ToppartOlivia,grey80x210cm
CC‐906012ToppartOlivia,grey85x200cm
CC‐906013ToppartOlivia,grey85x210cm
CC‐906014ToppartOlivia,grey90x200cm
CC‐906015ToppartOlivia,grey90x210cm
CC‐906016ToppartOlivia,grey105x200cm
CC‐906018ToppartOlivia,grey120x200cm

CC‐905610BottompartCuroCell80x200cm
CC‐905611 BottompartCuroCell80x210cm
CC‐905612 BottompartCuroCell85x200cm
CC‐905613 BottompartCuroCell85x210cm
CC‐905614 BottompartCuroCell90x200cm
CC‐905615 BottompartCuroCell90x210cm
CC‐905616 BottompartCuroCell105x200cm
CC‐905618 BottompartCuroCell120x200cm

Art.no. DescriptionSize
CC‐901001Aircell,PU80x13cm
CC‐901002Aircell,PU85x13cm
CC‐901003Aircell,PU90x13cm
CC‐901004Aircell,PU105x13cm
CC‐901005Aircell,PU120x13cm
Pleasemakeanoteonyourorderwhenorderingventilatingcells.

CC‐8217 Fuse(setof2)
CC‐8202Filter

Ifothersparepartsareneeded,pleasecontactCareofSwedenoryourlocaldealerforfurther
assistance.




17

11.Optionsandaccessories

11.1Options

Comfortfabric(onlyCuroCell®NovaCX19)
Forpatientswhoaresensitiveforthefluctuationsinthemattressapaddedinnercovercanbe
placedovertheaircellstoincreasecomfort.

Heelsection
Optionsavailabletorelievesensitiveheels.Emptyingtheaircellwithreleasevalve.
NOTE!Theseoptionsareonlyavailablewithneworders.

Cableholder(onlyCuroCell®NovaCX19)
Apocketalongonelongsideofthemattressthatholdsthepowercordinplacetominimise
theriskoftrippingoverthecordorthecordbecomingtrappedunderthewheelsofthebed.
NOTE!Thisoptionisonlyavailablewithneworders.

Sturdytransportbag
Transportandstoragebag.

Sheetholder(onlyCuroCell®NovaCX19)
Specialisedclipstowhichthesheetcanbeattached.Sixrequiredpermattress.

Ventilatedcells(Low‐Air‐Loss)
Micro‐ventilationin9ofthecells.

11.2Accessories

ForCuroCell®NovaCX13
Art.no.DescriptionSize
CC‐9093Sturdytransportbag80/85/90cm
CC‐9094Sturdytransportbag105/120cm

ForCuroCell®NovaCX19(mattresswithbuilt‐infoampad)
Art.no.DescriptionSize
CC‐907210CuroCellComfortfabric80x200cm
CC‐907211CuroCellComfortfabric80x210cm
CC‐907212CuroCellComfortfabric85x200cm
CC‐907213CuroCellComfortfabric85x210cm
CC‐907214CuroCellComfortfabric90x200cm
CC‐907215CuroCellComfortfabric90x210cm
CC‐907216CuroCellComfortfabric105x200cm
CC‐907218CuroCellComfortfabric120x200cm

58‐900909Sturdytransportbag80/85/90cm
58‐900905Sturdytransportbag105/120cm

ToppartCuroCellLF(lowfriction)(onlyCuroCell®NovaCX19)‐Toppartwithincreasedsliding
function,canbeusedforheavy,immobilepatients.

Art.no.Description
CC‐9075Sheetholder(oneof)
CC‐900220Heelfunctionwithreleasevalve(4cells)
CC‐900222Heelfunctionwithreleasevalve(3cells)

18

11.3Otheraccessories

Toensurethebestlevelofcomfort,werecommenduseofaccessoriesfromCareofSweden
sinceourproductsaredesignedtoworkwelltogether.PleasecontactCareofSwedenoryour
localdealerforaccessoriesormoreinformationonourproducts.


12.Warranty

12.1Scope

ThisCuroCell®systemiscoveredbya2‐yearwarrantyformanufacturingdefects.Thewarranty
doesnotapplytonormalwearandtearorproductimpairmentordamagestemmingfrom
negligenceorimproperhandling/care.

12.2Serviceandrepairs

ThisCuroCell®mattressisamedicaldevice,inaccordancewithMDD93/42/EEC,thatisused
asanaidinpreventingandtreatingpressureulcers.Forthisreason,werecommendthatthe
pumpberegularlyservicedandinspectedtomaintainfunctionalityandperformance.Like
othertechnicaldevices,apumpthatisproperlycaredforworksbetterandlastslonger.

ServiceandmaintenancemustalwaysbeperformedbyCareofSwedenoroneofits
authorisedtechnicians.OnlyusesparepartsthathavebeenapprovedbyCareofSweden.Use
ofnon‐approvedsparepartsinvalidatesthewarranty.

AwarrantyclaimmustbesubmittedtoCareofSwedenbeforetheproductisreturned.

PleasecontactCareofSwedenoryourlocaldealerifyouhavequestionsregardingwarranty
andservice.

12.3Lifeexpectance

Thisproduct´sexpectedlifeisestimatedtobe3years.




19

13.Otherinformation

13.1Disassemblyandrecycling

Exceptforcertainpartsofthepumps,energyrecoveryispossibleforalmostallmaterialin
CuroCell®productsthroughincinerationinwasteincinerationfacilities.

Pump:
AusedCuroCell®pumpmustnotbedisassembled.Itmustinsteadbetakentoarecycling
centreandsortedaselectronicwaste.

Mattress:
AusedCuroCell®mattressmustbetakentoarecyclingcentreandsortedascombustible
waste.

Formoreinformation,pleasecontactCareofSwedenoryourlocaldealer.

13.2Returnsandcomplaints

Complaintsaretobereportedtothesupplier.Returnofaproductshallfollowthesupplier’s
instructionsandcanonlybedoneafterthecomplainthasbeenreported.Damagesduetothe
transportationshouldbereportedtothetransportationagent.


20









Manufacturedby



Contact: 

Phone:+46771106600
Fax:+4632512840
Email: [email protected]
Internet: www.careofsweden.com

Address:

CareofSwedenAB
P.O.Box146
SE‐51423Tranemo
SWEDEN

Visitaddress:

Fabriksgatan5A
SE‐51433Tranemo
SWEDEN

Cargoaddress:

Bynsväg4A
SE‐51433Tranemo
SWEDEN

Suppliedby










CareofSwedenandCuroCellaretrademarksofCareofSwedenAB
©CareofSwedenAB,2015
