Instruction Manual
Standard Surge Eliminator
Standard 104052/104196 –X
Flushable 104053 - X - X

Service Manual EN

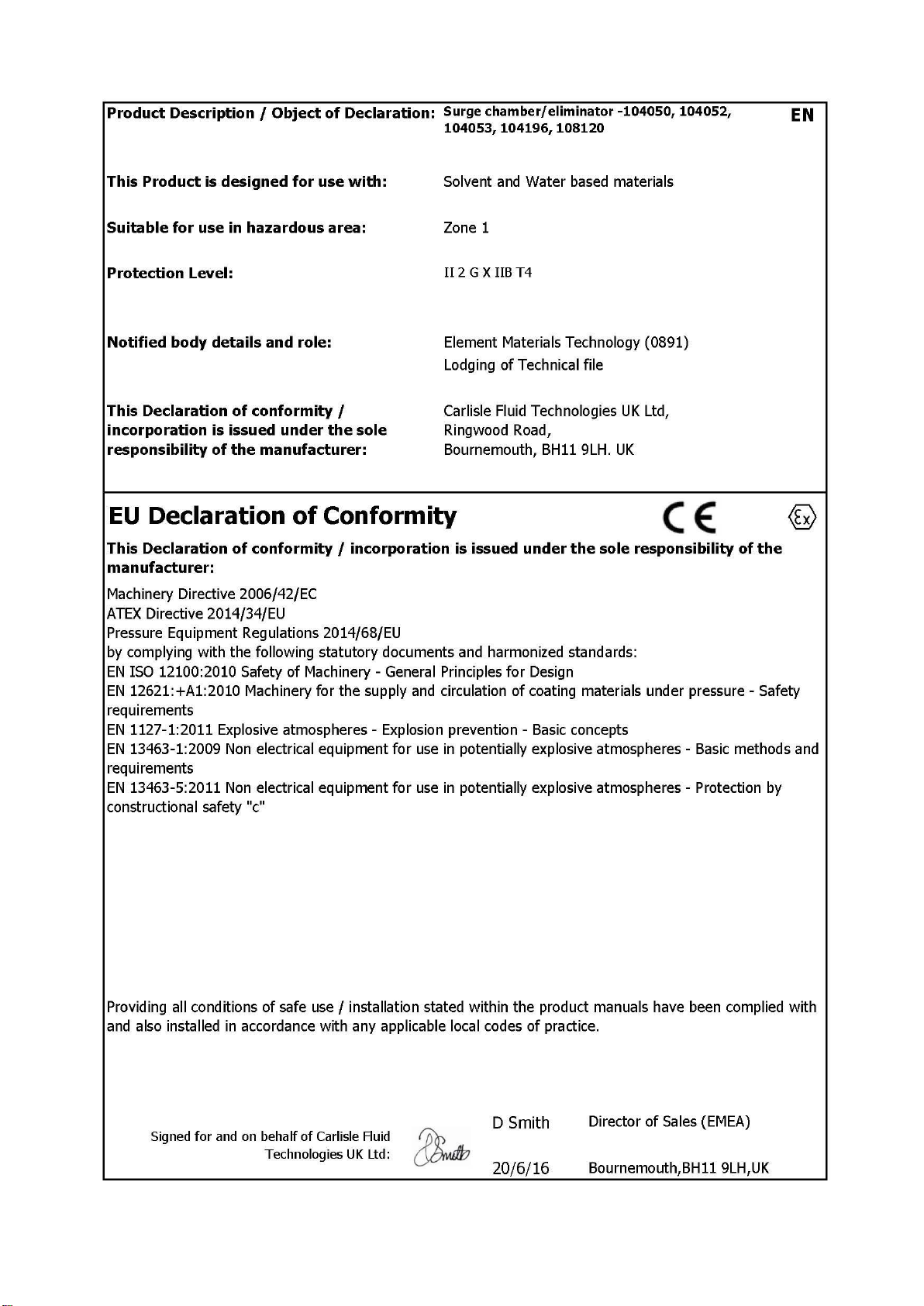

77-3249 R2.6 Page 2 of 17

Service Manual EN
77-3249 R2.6 Page 3 of 17
Index
Section
1.1
General Description
1.2
Operating Principle
1.3
Specification
1.4
Fitting Selection - Standard
1.5
Fitting Selection –104196
1.6
Fitting Selection –Flushable
2.1
Installation –Dimensions
2.2
Installation –General
3.1
Assembly drawing & Parts List –Standard/104196
3.2
Assembly drawing & Parts List - Flushable
3.3
Assembly Procedure
4.1
Important Information
4.2
Maintenance
4.3
Fault Finding
4.4
Spare Parts Lists
5.1
Accessories

Service Manual EN
77-3249 R2.6 Page 4 of 17
General Description –Section 1.1
Introduction
A complete range of Binks surge elimination chambers is available to suit both
technical and commercial requirements.
The surge elimination chamber is designed to counteract fluctuations in fluid
pressure normally seen during a reciprocating pump stroke change over.
The fluid chamber is suitable for use with waterborne and conventional paint types
Both conventional and ‘Active’ units are available with flow through flushable or
single port connections
Surge elimination chambers should be located on the fluid outlet of the circulating
pump for optimum operational performance.
Models are available with a range of standard or customer specified connections,
see selection chart (section 1.4) for variants. The required connections are factory
fitted and not intended for removal in the field.
Conventional Surge Eliminators
Features
Low maintenance only periodic charging with compressed air
Stainless Steel and Aluminium construction
Optional Flow through flushable fluid chamber
Fluid connection options available
Option for direct mounting to the paint pump

Service Manual EN
77-3249 R2.6 Page 5 of 17
Operating Principle –Section 1.2
Surge Eliminators
The surge eliminators consist of a lower fluid and upper air chamber separated by
a flexible diaphragm. The air chamber is charged with compressed air so that the
air pressure is equal to the fluid pressure required.
Fluid is pumped into and around the circulation system pipework filling the lower
chamber.
At the point of pump stroke change over, the fluid pressure and flow momentarily
drops. The diaphragm deflects downwards due to the now higher air pressure in
the upper chamber and applies pressure to the fluid in the lower chamber, thus
compensating for the reduction in fluid pressure and flow.
Specification –Section 1.3
Air Chamber Connections
Air Quality recommended
ISO 8573.1. to 3.6.3
All models (Aluminium - black anodised finish)
¼” BSP H (ball valve)
Fluid Chamber Connections
104052 Standard Model - Fluid Connection Examples (see selection table 1.4)
Model 104052 - S
Inlet –1’’ Sanitary
Model 104052 - T
Inlet –¾” NPT
Model 104052 - U
Inlet –¾” BSPT
104196 Model - Fluid Connection Examples (see selection table 1.5)
Model 104196 - S
Inlet –1’’ Sanitary
Model 104196 - T
Inlet –¾” NPT
Model 104196 - U
Inlet –¾” BSPT
104053 Flushable Model - Fluid Connection Examples (see selection table 1.6)
Model 104053 - B - B
Inlet –2’’ Sanitary
Outlet –2’’ Sanitary
Model 104053 - C - C
Inlet –1 ½”’ Sanitary
Outlet –1 ½”’ Sanitary
Model 104053 - L - L
Inlet –1’’ Sanitary
Outlet –1’’ Sanitary
Maximum Working Pressure
16 Bar *
*As the available air pressure in most mix rooms does not exceed 6 bar it is not practical to
charge the surge eliminator for use at this working pressure. (See ‘set up’ procedure). It is
therefore recommended that ‘Active Surge Eliminators’ are used for working pressure
above 12 bar fluid pressure.

Service Manual EN
77-3249 R2.6 Page 6 of 17
Model Selection - Section 1.4
Standard –Inlet Fitting Selection Table
SUFFIX
PART No
DESCRIPTION
REMARKS
R
192722
FITTING - M28 x 3/4" SANITARY
S
192723
FITTING - M28 x 1" SANITARY
STANDARD
T
192724
FITTING - M28 x 3/4" NPT (FEMALE)
STANDARD
U
192725
FITTING - M28 x 3/4" BSPT (FEMALE)
STANDARD
V
192726
FITTING - M28 x 28MM COMPRESSION COUPLING
W
192727
FITTING - M28 x 3/4" BSP (H)
Example: Inlet fitting 1” Sanitary: - Part Number 104052 - S

Service Manual EN
77-3249 R2.6 Page 7 of 17
Model Selection - Section 1.5
Standard –Inlet Fitting Selection Table
SUFFIX
PART No
DESCRIPTION
REMARKS
R
192722
FITTING - M28 x 3/4" SANITARY
S
192723
FITTING - M28 x 1" SANITARY
STANDARD
T
192724
FITTING - M28 x 3/4" NPT (FEMALE)
STANDARD
U
192725
FITTING - M28 x 3/4" BSPT (FEMALE)
STANDARD
V
192726
FITTING - M28 x 28MM COMPRESSION COUPLING
W
192727
FITTING - M28 x 3/4" BSP (H)
Example: Inlet fitting M28 x 3/4” BSPT (female): - Part No. 104196 - U
3/8” BSP Port
In one location only

Service Manual EN
77-3249 R2.6 Page 8 of 17
Model Selection - Section 1.6
Flushable - Inlet / outlet Fitting Selection Table
SUFFIX
PART No
DESCRIPTION
REMARKS
A
192553
FITTING - M45 x SLIP FLANGE ASSEMBLY
DN 50 BS4504 PN16
B
192554
FITTING - M45 x 2" SANITARY
STANDARD
C
192555
FITTING - M45 x 1 1/2" SANITARY
STANDARD
D
192556
FITTING - M45 x 1 1/2" NPT (FEMALE)
E
192557
FITTING - M45 x 1 1/2" BSPT (FEMALE)
F
192558
FITTING - M45 x 42 MM COMPRESSION COUPLING
DIN 2353
G
192559
FITTING - M45 x 1 1/4" BSP (H)
H
192560
FITTING - M45 x 1 1/2" BSP (H)
L
192564
FITTING - M45 x 1" SANITARY
STANDARD
Example: Inlet / Outlet fitting 2” Sanitary: - Part Number 104053 –B - B
INLET
OUTLET

Service Manual EN
77-3249 R2.6 Page 9 of 17

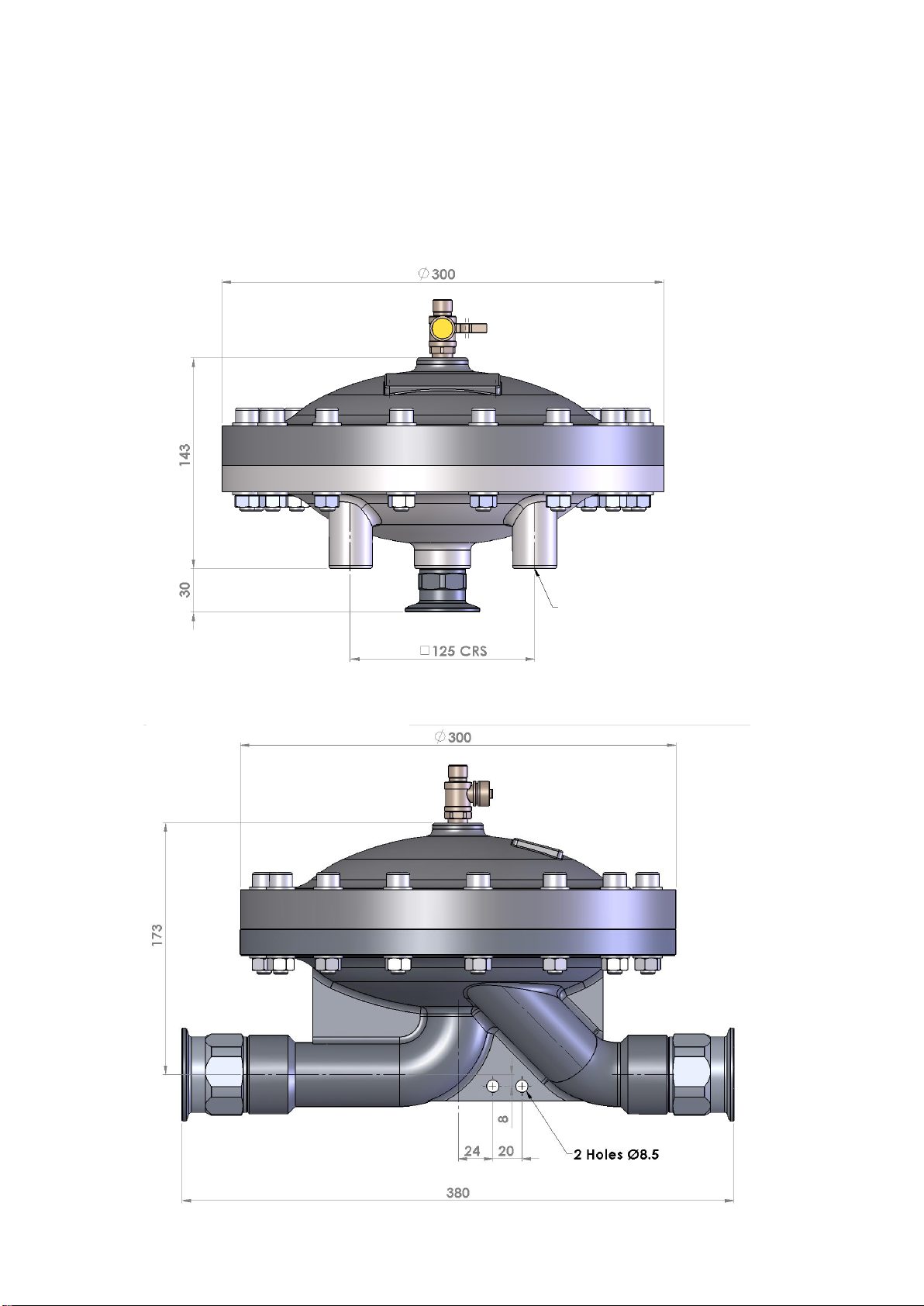

Installation –Section 2.1
104052 - 4no.holes M8 x 13
104196 - 3no. holes M8 x
13 & 1no. 3/8” port.
Model shown 104053 - B - B
(Inlet and Outlet –2” Sanitary)
Model shown 104052 –S –S (Inlet - 1” Sanitary Fitting)
Please note: 104196 is dimensionally the same as 104052,
with the addition of a 3/8” port as noted below.

Service Manual EN
77-3249 R2.6 Page 10 of 17
Installation –Section 2.2
General
The surge eliminator is pressure tested with demineralised water; the fluid
chamber should be flushed with suitable material prior to use.
If any circulating system pressure testing is carried out with the surge eliminator in
position then the fluid pressure should not exceed 24 Bar, the upper chamber
should not be charged with air.
Circulating system flushing can be carried out with the surge eliminator in position;
however, the upper chamber should not be charged with compressed air.
Following pressure testing and flushing procedures, the fluid diaphragm may need
replacing prior to use in production if the flushed system held contaminates that
could impregnate and damage the diaphragm.
Ensure that the unit is correctly grounded to earth to prevent any ‘static’ build up
Mounting
To achieve the best performance from the surge elimination unit the ideal location
is direct mounting on the paint pump outlet connection
A suitable bracket should be used to support the surge eliminator in the event that
the paint pump or connecting pipework is removed for maintenance operations.
Setting
1. Ensure that there is no fluid pressure in the lower chamber.
2. Supply compressed air at ½ the desired fluid pressure + 5% through the
¼ BSP ball valve in the upper chamber.
E.g. Desired fluid 10 bar therefore, 5 bar x 1.05 = 5.25 bar.
(A suitable compressed air supply with an accurate pressure gauge should be
used for this operation)
3. Close the ¼ BSP ball valve and remove the compressed air supply
4. Introduce fluid at the required pressure to the lower chamber (This reduces the
air volume by half and increases the air pressure by a factor of two).

Service Manual EN
77-3249 R2.6 Page 11 of 17

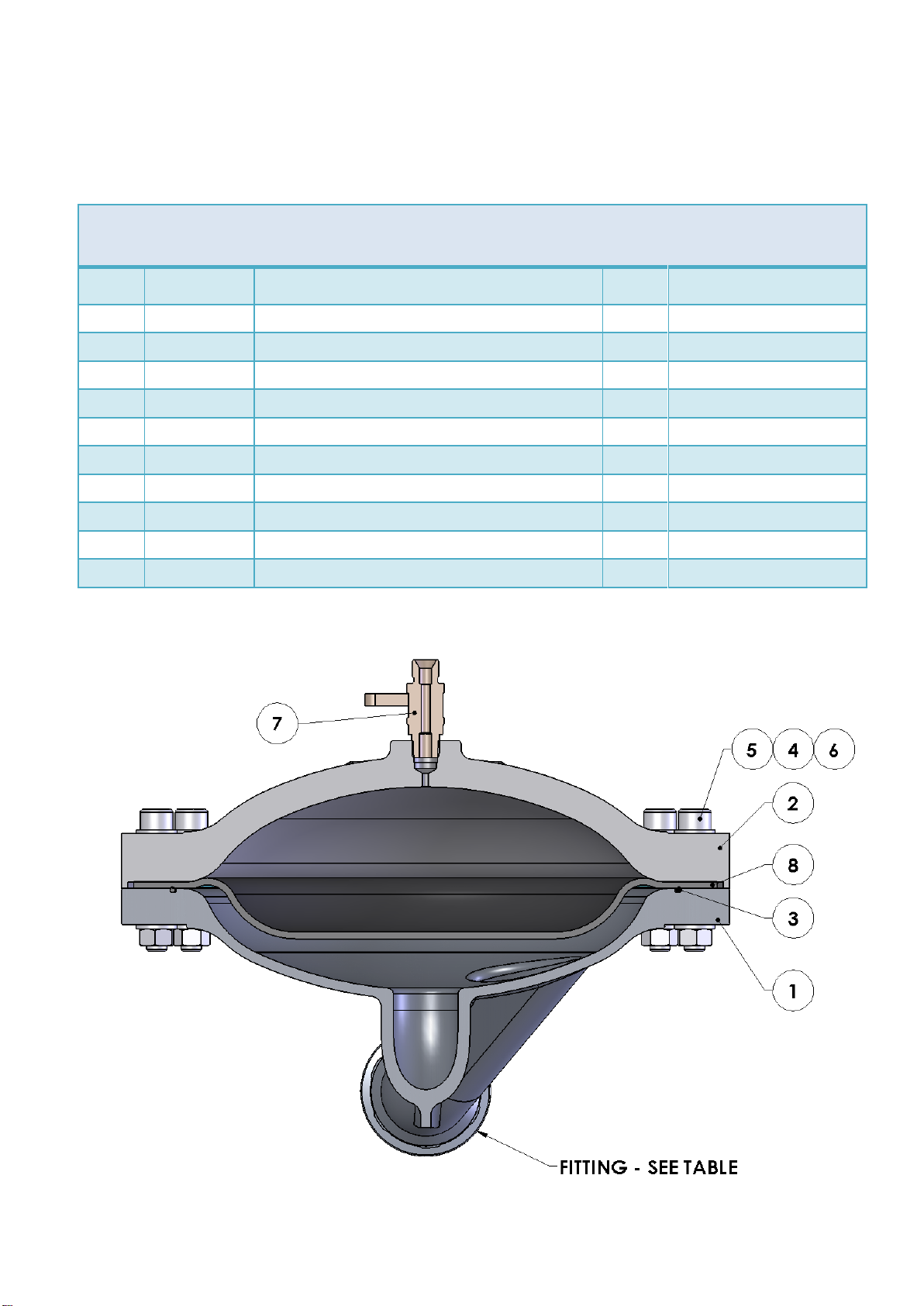

Assembly Drawing –Section 3.1
Parts List - Surge Chamber 104052-X & 104196-X
ITEM
PART No
DESCRIPTION
QTY
REMARKS
1
193182
BOTTOM DISH
1
ASSY 104052
1
193184
BOTTOM DISH (C/W PORT)
1
ASSY 104196
2
193183
TOP DISH
1
3
192232
Ø247 O-RING
1
4
165135
M10 PLAIN WASHER (ST ST)
30
5
165569
M10 x 60 CAP HD SCREW
15
6
163127
M10 HEXAGON NUT
15
7
172027
1/4" BALL VALVE
1
8
192294
COMPOSITE DIAPHRAGM
1
9
161982
Ø19.6 O-RING
1
-
See Table
INLET FITTING
1

Service Manual EN
77-3249 R2.6 Page 12 of 17
Parts Lists –Section 3.2
Parts List - Flushable Surge Chamber 104053 - X - X
ITEM
PART No
DESCRIPTION
QTY
REMARKS
1
204255
BOTTOM DISH
1
2
193183
TOP DISH
1
3
192232
Ø247 O-RING
1
4
165135
M10 PLAIN WASHER (ST ST)
30
5
165569
M10 x 60 CAP HD SCREW
15
6
163127
M10 HEXAGON NUT
15
7
172027
1/4" BALL VALVE
1
8
192294
COMPOSITE DIAPHRAGM
1
9
161981
Ø19.6 O-RING
2
10
See Table
INLET FITTING
2

Service Manual EN
77-3249 R2.6 Page 13 of 17
Assembly Procedure –Section 3.3
Top Dish
1. Fit ¼ BSP ball valve (172027) into the top dish (Apply a suitable quantity
of Loctite 572 thread sealant to the thread)
2. Fit Protective cap (171627) to ball valve (Transportation protection)
Main Assembly
1. Place O-ring (192232) into the groove in the bottom dish.
2. Place the composite diaphragm (192294) onto the bottom dish flange;
ensure that the P.T.F.E side is facing downwards, fluid chamber side.
3. Position the top dish onto the bottom dish; ensure that all holes in the
flanges are correctly aligned.
4. Insert 15 off M10 Cap screws (165569) using washers (165135) top and
bottom and tighten using Hexagon nuts (163127).
5. Tighten opposed bolts to 35 N-M [25 foot-pounds] in stages to maintain
an even clamping force.

Service Manual EN
77-3249 R2.6 Page 14 of 17
Important Information - Section 4.1
Directions for Working Safety
This Product has been constructed according to advanced technological standards and is
operationally reliable. Damage may, however, result if it is used incorrectly by untrained
persons or used for purposes other than those for which it was constructed.
The locally current regulations for safety and prevention of accidents are valid for the
operation of this product under all circumstances.
International, national and company safety regulations are to be observed for the
installation and operation of this product, as well as the procedures involved in
maintenance, repairs and cleaning.
These instructions are intended to be read, understood and observed in all points by
those responsible for this product. These operating and maintenance instructions are
intended to ensure trouble free operation. Therefore, it is recommended to read these
instructions carefully before start-up. Binks cannot be held responsible for damage or
malfunctions resulting from the non-observance of the operating instructions. These
instructions including regulations and technical drawings may not be copied, distributed,
used for commercial purposes or given to others either in full or in part without the consent
of Binks.
We reserve the right to alter drawings and specifications necessary for the technical
improvement of this product without notice.
High Pressure/Electrostatic Warning
High pressure equipment can be dangerous if used incorrectly, serious bodily injury may
occur if the following instructions are ignored. Installation and maintenance should only
be carried out by suitably qualified personnel.
1. Before attempting any work on a high-pressure system ensure material pump,
hydraulics, compressed air motor are isolated where relevant.
2. Relieve all pressure from the system. Note: It is possible for pressure to get locked
into a system, therefore ensure all sections of the system are checked thoroughly for
remaining pressure.
3. Take care when releasing fittings
4. Always replace worn hoses immediately
5. Never plug a leak with your finger, adhesive tape or other stop gap devices
6. Always ensure equipment is suitably earthed before running, to avoid any chance of
electrostatic build up.

Service Manual EN
77-3249 R2.6 Page 15 of 17
Maintenance –Section 4.2
Operational maintenance
A periodic check should be made to ensure that the initial ‘set up’ performance is
maintained.
This can be done by observing the paint system pressure gauge for fluctuations in
pressure.
Note: It is not sufficient to connect a pressure gauge to the top dish and check this
pressure as this does not indicate the diaphragm position and thus that the correct
air volume for damping is available.
Preventative Maintenance
As the unit usually operates continually for 24 hours per day with the paint
circulating system it is recommended to replace the diaphragm on a yearly basis.
Note: Before attempting any maintenance ensure that all relevant directions for
working safety are followed.
Fault Finding –Section 4.3
Problem
Cause
Action
Paint pressure pulsating
Insufficient or lack of air
pressure / volume in the
upper chamber
Recharge the upper
chamber to the correct air
pressure and volume (see
page 9)
Paint pressure pulsating
Diaphragm failure
Dismantle and replace
the defective diaphragm

Service Manual EN
77-3249 R2.6 Page 16 of 17
Spare Parts List –Section 4.4
25 05 76 Diaphragm Replacement Kit for
Standard Unit 104052 & Flushable Unit 104053
Item
Part No.
Description
Qty
Remarks
8
192294
Moulded Composite Diaphragm
1
3
192232
Ø 247 O-Ring
1
Accessories –Section 5.1
Accessories
Part No.
Description
Remarks
250508
Air Charging Kit
All Models
207969
Surge Eliminator Support Stand
For 104053
192027
Surge Eliminator Tube Clamp (2off)
192544
2’’ Sanitary Clamp
192029
2’’ Sanitary Gasket
192009
1½” Sanitary Clamp
192008
1’’ Sanitary Gasket

Service Manual EN
77-3249 R2.6 Page 17 of 17
