USE AND MAINTENANCE MANUAL

2
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
TABLE OF CONTENTS
1 WARNINGS
1.1 SAFETY
1.2 Graphic signs applied to the potato harvester
1.3 Documentation of conformity
2INFORMATION
2.1 Data of the manufacturer and of the potato digger and harvester/onion
harvester mod. Green 650/5L
2.2 Technical data
2.3 Purpose of the machine and expected conditions of use
2.4 Operation
2.5 Machine operation
2.6 Transport.
3INSTALLATION AND USE
3.1 Preparing the machine
3.2 Connection the tractor
3.3 Electrical panel
4ASSEMBLY/DISASSEMBLY/ADJUSTMENT
4.1 Assembly and disassembly of belts
4.2 Plowshare frame assembly and disassembly
4.3 Adjusting the mower discs
4.4 Rear forklift
4.5 Empties frame assembly and disassembly
4.6 Onion equipment
5MAINTENANCE
5.1 Daily maintenance
5.2 Lubrication
5.3 Greasing
5.4 Changing the oil/top up
5.5 Storage
6SAFETY SYSTEMS
6.1 Noise
7REPAIRS
8ELECTRIC/HYDRAULIC SYSTEM

3
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
1WARNINGS
This manual was created to provide all the information necessary to use the equipment correctly
and safely, and to maintain it.
It is essential to read this manual before using the GREEN 650/5 L potato digger and
harvester/onion harvester
Keep this manual even after reading it completely so that it is always available for the clarification
of any uncertainties.
This manual is an integral part of the machine and must be kept with care for the entire
working life of the machine. In case of loss, contact the Manufacturer and request a new
copy.
In case of problems in understanding this manual or parts of it, it is highly recommended to contact
the company Carlotti G.&C. S.n.c.: address, telephone and fax numbers are shown on the cover.
1.1 SAFETY
To avoid an accident it is important to recognise potentially dangerous situations!
1- It is advisable to familiarise yourself with this manual and with the machine before using it.
During reading, it is advisable to pay particular attention to the movements of the mechanisms,
to their adjustment and maintenance.
2- Before and during work, refrain from using alcohol, drugs or other substances that could alter
physical and mental abilities.
3- Before using the machine, carefully check the correct operation of the machine and of the
tractor. Keep unauthorised persons away from the work during use.
4- During use the speed must be adequately limited, and special precautions must be taken during
field entry and exit manoeuvres.
5- During breaks and at the end of processing, before leaving the tractor, the machine must rest on
the ground on the support foot, with the tractor engine off and the keys removed from the
panel.
6- It is advisable to exercise special precautions when connecting the machine to the tractor.
7- Repairs, adjustments, cleaning and maintenance must be carried out with the tractor switched
off and with the keys removed from the panel.
Most of the accidents that occur when working with machines or equipment and during their
maintenance and repair are due to failure to comply with basic safety precautions. Many of
these accidents occur during movement of the tractor - equipment complex on the road and
within the company premises.

4
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
It is therefore strictly forbidden:
•To use the machine without having carefully read the use and maintenance manual.
•To lubricate, adjust or repair the machine when it is connected to the tractor.
•To use the machine or a tractor when they are not fully functional.
•To allow persons who are not competent and therefore not authorised to use the machine
and the tractor.
•To perform sudden inversions, abrupt or imprudent manoeuvres.
•To leave the tractor and the machine in the working position.
•To work on slopes and hills without exercising the necessary precautions.
•To transport persons during the stages of machine transport, for entering and exiting the
field, of transferring, connecting to the tractor, of positioning on the furrow, of adjusting,
repairing, during inversions and manoeuvres, and in any other case where the safety of
operators on board might be endangered.
In any movement of the tractor-machine complex it is always necessary to bear in mind and
carefully follow the rules of the Highway Code.
To improve circulation within the farm it is necessary: to install traffic signs on the internal
roadways to ensure that there is sufficient space in the courtyard area to carry out reversal
without using the reverse gear and to distinguish the transit areas of vehicles from
pedestrian routes with visual signs and signals.
The Manufacturer, Carlotti G. & C. S.n.c. declines all responsibility for damage to persons or
property resulting from improper use of the equipment or from inexperience, imprudence
or negligence and failure to comply with these instructions.
Personnel (see paragraph 2.5 - Operators) who use or operate the equipment must be competent
and must be in perfect physical and mental condition.
They must also be specialised, trained, informed, instructed and qualified in all aspects of use and
maintenance of the equipment.
All other persons are considered unauthorised.
During use, and especially during maintenance and repair, it is essential to use the following work
clothing:
•Work overalls and comfortable clothes, but not too large and bulky in order to prevent
certain parts from becoming caught in moving gears and/or parts.
•Safety shoes.
•Hat and goggles for protection from the sun.
•Protective gloves for hands, where this does not constitute a danger of entanglement or
dragging.
•Glasses or masks for the protection of face and eyes.

5
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
1.2 Safety signs (pictograms) applied to the GREEN 650/5 L machine
It is forbidden to remove, conceal or make illegible the plates and stickers that indicate use of the
controls and that indicate a danger.
Symbol
Description
Before carrying out any maintenance and/or repair work
on the machine, read the use and maintenance manual,
stop the tractor engine and remove the key from the
panel.
Danger of cutting! ATTENTION!!
Respect the safety distance.
Danger of becoming entangled and dragged!
ATTENTION! Respect the safety distance.
Danger of twisting. ATTENTION! Respect the safety
distance and keep hands away from moving parts.
Hooking points for lifting of the machine.
Greasing points where it is necessary to intervene
periodically.
ATTENTION:
-Do not remove the safety devices
-Do not carry out checks, maintenance, repairs, adjustments and greasing operations on moving
parts and with the machine connected to the tractor.
1.3 Documentation of conformity

6
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
The drafting of this manual takes into account the Community directives for the harmonisation of
safety standards for the free circulation of industrial products within the EEC (EEC Council Directive
2006/42/EC and subsequent amendments known as "machine directives").
The purpose of this manual is to provide the operator with the instructions to safely perform use and
maintenance of the GREEN 650/5L potato digger and harvester/onion harvester; in case of
uncertainty, contact the manufacturer CARLOTTI G.&C. directly. S.n.c.
NOTIFICATIONS
In the preparation of this manual particular symbols have been used to attract the reader's
attention from time to time to dangerous conditions and to the safety of persons and property.
2 INFORMATION
DANGER
ATTENTION
WARNINGS

7
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
INTRODUCTION
The manufacturer's and machine's data are provided in this chapter. This information is essential
for all persons authorised to use and maintain the equipment.
2.1 Manufacturer and machine data GREEN 650/5 L
On the side of the machine frame (Fig. 1) the identification plate is provided with the following
data:
•Name and address of the manufacturer
•Model
•CE marking that certifies the conformity of the machine with the directives of the European
Economic Community CEE 2006/42/CE and subsequent modifications
•Serial number for internal identification of the machine
•Weight
•Year of manufacture

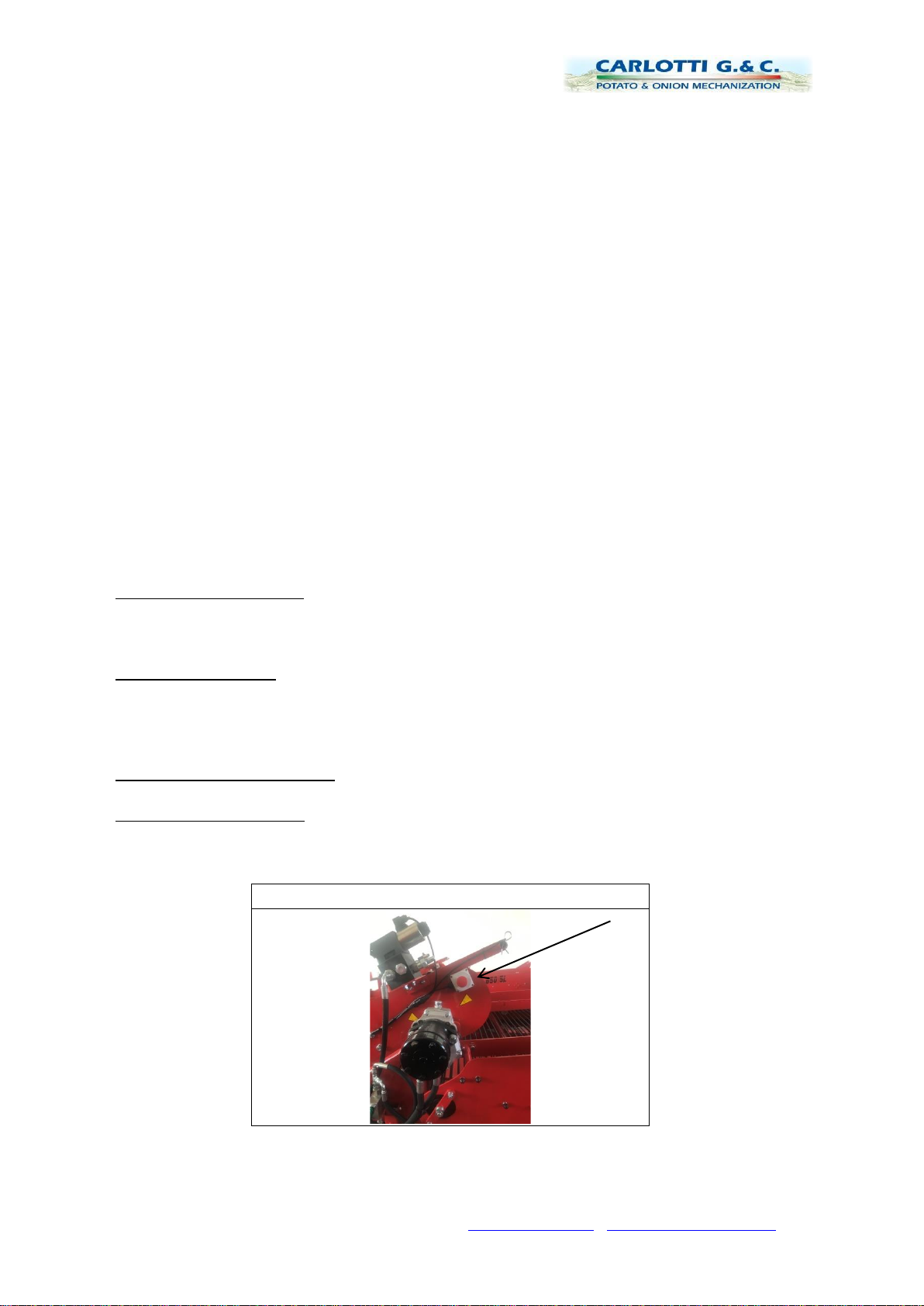

Fig. 1 –Machine Identification Plate
2.2 Technical data
GREEN 650/5 L
Maximum length (with portabins forklift)
mm
6300
Maximum width
mm
2400
Height (with shading canvas)
mm
1500
Peso
Kg
1500
Minimum power required
HP
50
Total quantity of oil
Lt
50
Maximum operating pressure
BAR
6020
Calibration of the maximum valve pressure
BAR
100 cylinders/140 motors
Dual pump
25cc + 3.5 cc
2.3 Purpose of the machine and expected conditions of use

8
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
The GREEN 650/5 L machine was designed, built and supplied to the customer solely for the
purpose of digging and collecting only one row of potatoes or, using a special device supplied by
the manufacturer, to collect onions that have previously been dug up and windrowed.
It is strictly forbidden to modify the machine or parts of it, intended then for a use different
to that envisaged and specified in this manual.
The machine must be connected to the tractor via the drawbar; it receives motion directly from the
power take-off via a pump. Any other connection is to be considered improper.
The machine cannot be used on slopes of more than 15%.
2.4 Operation
After connecting the potato digger and harvester to the tractor (see paragraph 3.2), place it on the
row to be dug/harvested. Adjust the power take-off to a speed of approximately 250 revolutions
per minute, then, operating the electric panel lever, lower the collection structure (consisting of:
front digger part/collection and first belt) and operate the lever to start the belt. Select a low gear
and commence work. After a few meters, check the product on the first belt: if it is damaged or cut,
it is necessary to increase the distance between the front roller and the plowshares via the
adjustment tensioner. If instead too much earth is dug, bring the roller close to the plowshare. (Fig.
2)

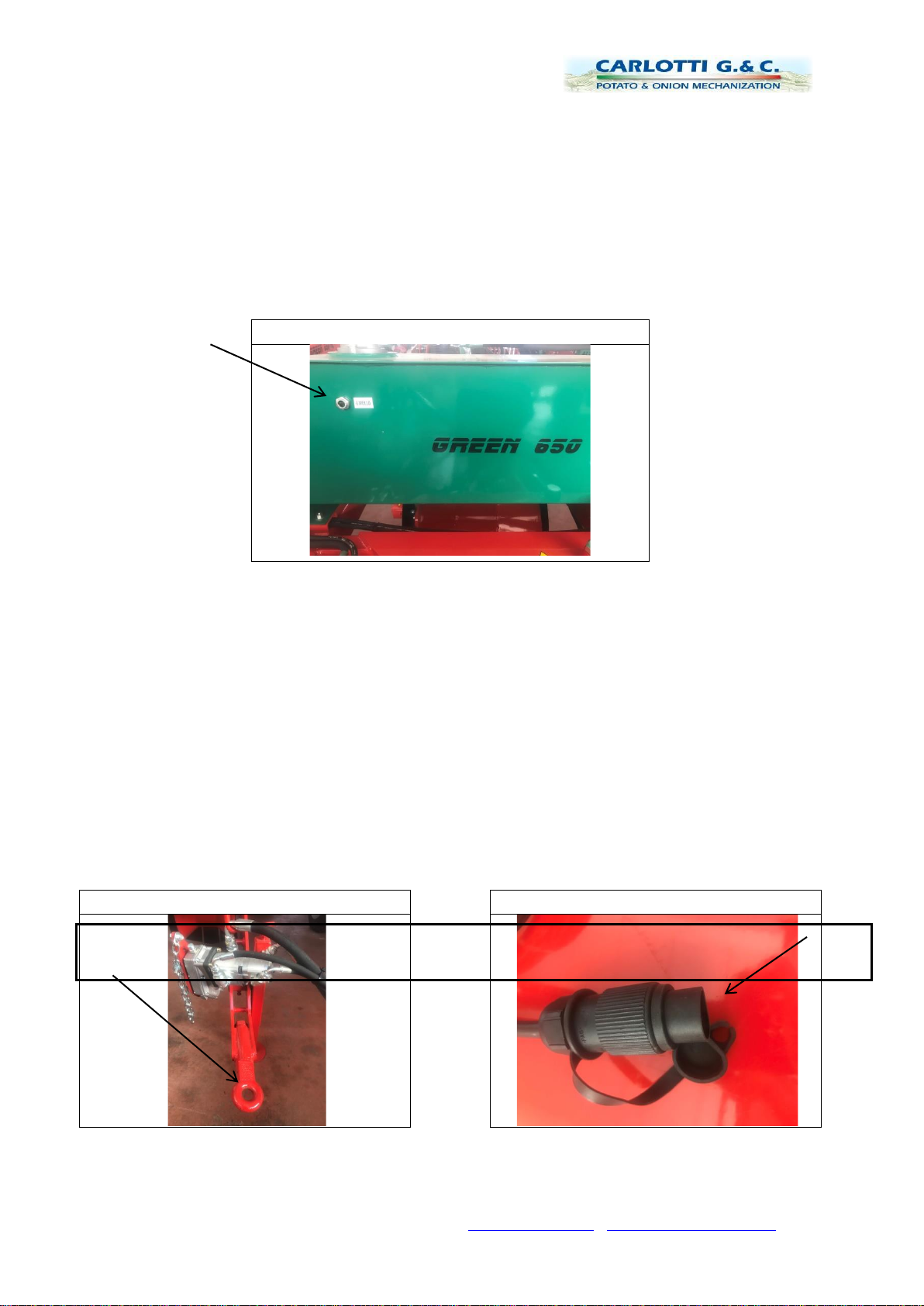

Fig. 2 –Excavation depth adjustment tensioner
Every adjustment, maintenance and checking operation must be carried out with the
machine stopped, the tractor switched off and the keys removed from the panel!
DANGER!!

9
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
The first belt and paddles bring up the product, removing excess soil, and transport it to the second
belt.
The two belts are independent of each other and have adjustable speeds through hydraulic
regulators positioned near the operators. (Fig. 3). Usually the first belt has a speed greater than
30% with respect to that of the second.

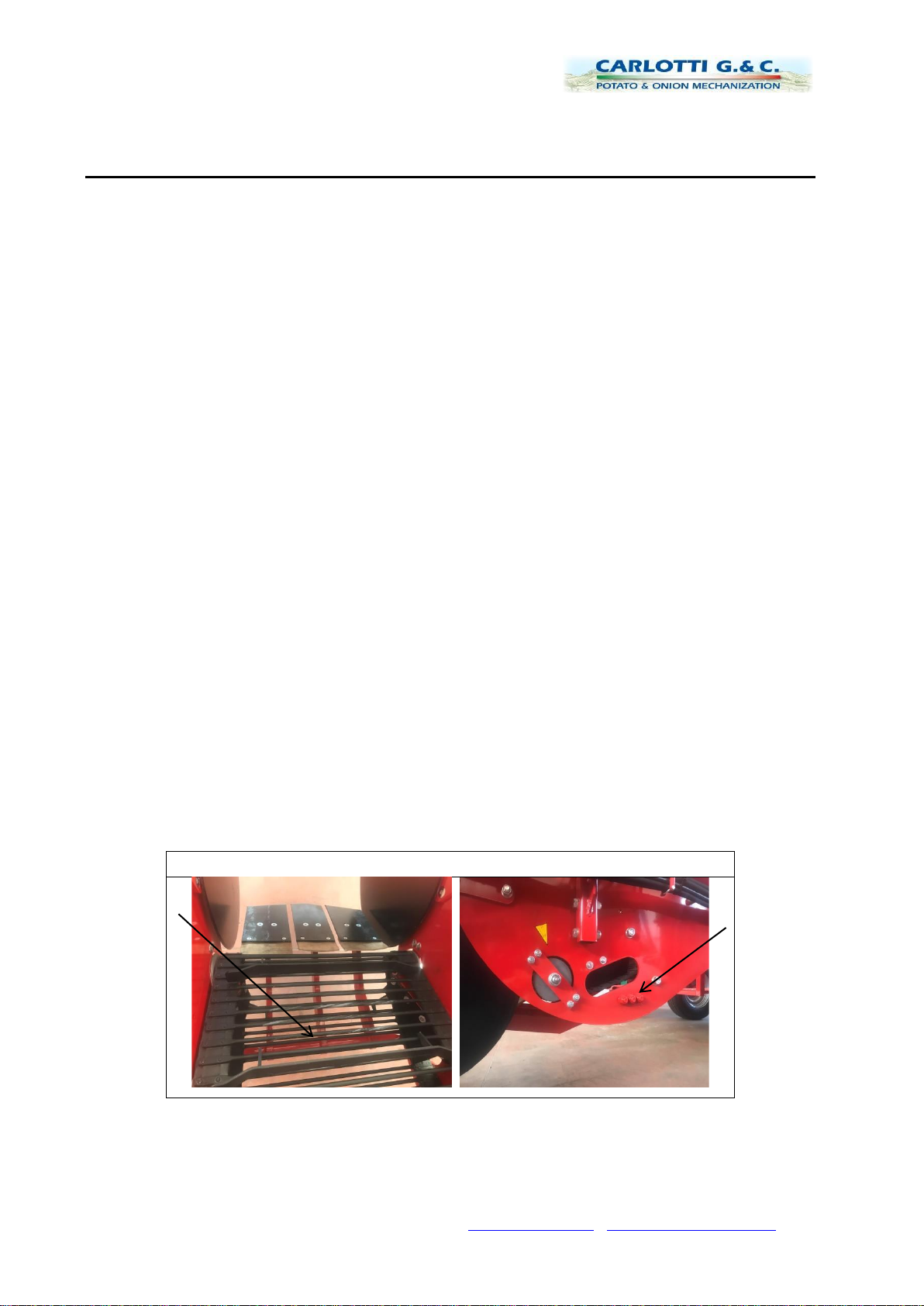

Fig. 3 –Belts/tapes speed regulators
All this depends on the type of soil and the maturity of the product.
To the side of the second belt there are two corridors which transport the product to the rear of the
machine.
With potato equipment:
The excess soil and impurities are discharged to the ground at the end of the second belt, while the
potatoes are manually placed in the side corridors and transported backwards and unloaded into
boxes (max. 50 kg), or crates (max 0.6 m3), depending on the configuration of the machine.
With onion equipment:
The excess soil and impurities are selected by the operators on board and the onions continue in
the central part of the belt until they are unloaded into crates (max. 50kg) or crates (max. 0.6 m3)
depending on the layout.
Unloading filled containers:
Once the containers (boxes or boxes) are full, it is necessary to proceed in this manner:
•Stop the progress of the tractor
•Leave the engine running, and the power take-off engaged
•Stop advancement of the belts by acting on the lever of the electrical panel.
•Always avoid a situation where the personnel assigned to use the machine are at the back of
the machine. A minimum distance greater than 3 meters must be maintained from the range
of action of the machine.
Crates and sacks
•Manually unload the full crates and reposition them empty:
Crates:
•The tractor driver, acting on the lever of the electric panel activates the forklift lowering
cylinders.
•Advance with the tractor for approximately 2 meters, always keeping personnel at a safe
distance.
•Act from the opposite wall with the same lever of the electrical panel to lift the forklift.

10
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
•Stop advancement of the tractor.
•The personnel assigned to positioning of the empty containers will proceed only at this
point to reposition a new crate.
•Proceed with the work.
These operations must be carried out whenever the unloading and consequent loading of
the containers is to be performed.
2.5 Operators of the GREEN 650/5 L machine
The GREEN 750/5 machine was designed to accommodate a maximum of 4 operators on board,
positioned on the sides of the sorting table, 2 on the right platform and 2 on the left platform.
It is absolutely forbidden to increase the number of operators on board.
Every time a manoeuvre must be performed to enter and exit the field, to connected to the tractor,
for positioning on the furrow, for alignment in the field, for maintenance, adjustment, no operators
must be on board and/or near the machine (minimum distance 3 m).
Whenever it is necessary for operators to climb onto and/or leave the machine, the following are
required:
•The machine must be absolutely stationary, in a horizontal position and on level ground
•The operators must wear safety shoes with anti-slip soles
•The platforms and/or steps for ascent and descent must always be clean without mud, snow
or other elements that could make them slippery.
Operators of the GREEN 650/5 L machine:
•No. 4 operators on board. They have the sole and unique function of selecting the product on
the work table (sorting belt) and stopping the machine if requiring using the emergency
mushroom buttons positioned on the 2 sides of the work table (Fig. 4). Any other operation is to
be considered improper and must only be carried out by trained and qualified personnel.
•No. 1 tractor driver. They have the task of operating the machine and controlling its
movements. They must be trained, instructed and informed about the operation of the tractor
and of the tractor - machine complex, and must become familiar with the levers of the electrical
control panel. The tractor driver in fact has the task of moving the levers, giving movement to
the machine and to its parts.
•No. 1/2 unloading personnel. They have the task of unloading the full crates and loading the
empty crates and containers.
•No. 1 qualified technician. They have the task of fine-tuning, adjusting, performing maintenance
on the machine and on its parts. They must be competent, trained, instructed and informed
about the maintenance and adjustment of mechanical parts.
Fig. 4 –Emergency stop pushbuttons

11
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
2.6 Transportation
The dimensions of the machine allow loading onto tractors, trailers, trolleys and into containers of a
min. 20 feet.
The machine loading and unloading operations must be carried out by qualified technical personnel
who are able to operate in a suitable manner and in conditions of full safety in the use of a bridge
crane or of any other towing and/or lifting means.
When the machine is being shipped and/or towed out of the field and/or in any other transfer
phase, the following are:
•Position the machine on the support foot (Fig. 5).
Fig. 5 –Machine support foot
3 INSTALLATION AND USE
All operations of installation, adjustment, connection to the tractor, etc., must be carried out with
the machine completely detached from the tractor (disconnect the pump from the tractor pto, and
the drawbar) and place it on the support foot in a perfectly horizontal position.
Do not carry out this type of operation on slopes or in other places that do not ensure
complete stability of the machine.
Always proceed as follows:
•Wear work gloves, goggles or a protective mask, and safety shoes to protect hands, face, eyes
and feet.
•Follow the personal safety rules presented in the first chapter of this manual.
•Make sure that the machine is perfectly horizontal with respect to the work surface, and
completely detached from the tractor.

12
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
3.1 Preparation of the machine
The machine personnel should proceed as follows, before using it in the field:
•Check the oil levels (gearbox, reducer and tank). (Fig. 6)
•Perform a general inspection of the machine.
•Check the tyre pressure.
•Check the correct operation of the belts.
•Check that all the accident-prevention parts, possibly disassembled for
shipping/transportation requirements, are assembled before connecting the machine to the
tractor.
Fig. 6 –Oil Levels
3.2 Connection to the tractor, coupling to the towing hook
Proceed as follows to connect the drawbar of the machine to the towing hook of the tractor:
•Wear work gloves.
•Make sure the machine is resting on flat ground on its support foot.
•Bring the tractor closer to the machine, so that the hole in the towing hook of the tractor is
aligned with the hole in the towing eye of the machine (Fig. 7).
•Switch off the tractor and remove the keys from the panel.
•Lock the connection by inserting the connection pin (Fig. 8), and securing it at the end with
a split pin.
•Insert the pump of the machine directly into the power take off (pto) of the tractor, and
secure it through the dedicated chain.
Fig. 7 –Towing eye
Fig. 8 –Connection pin

13
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]

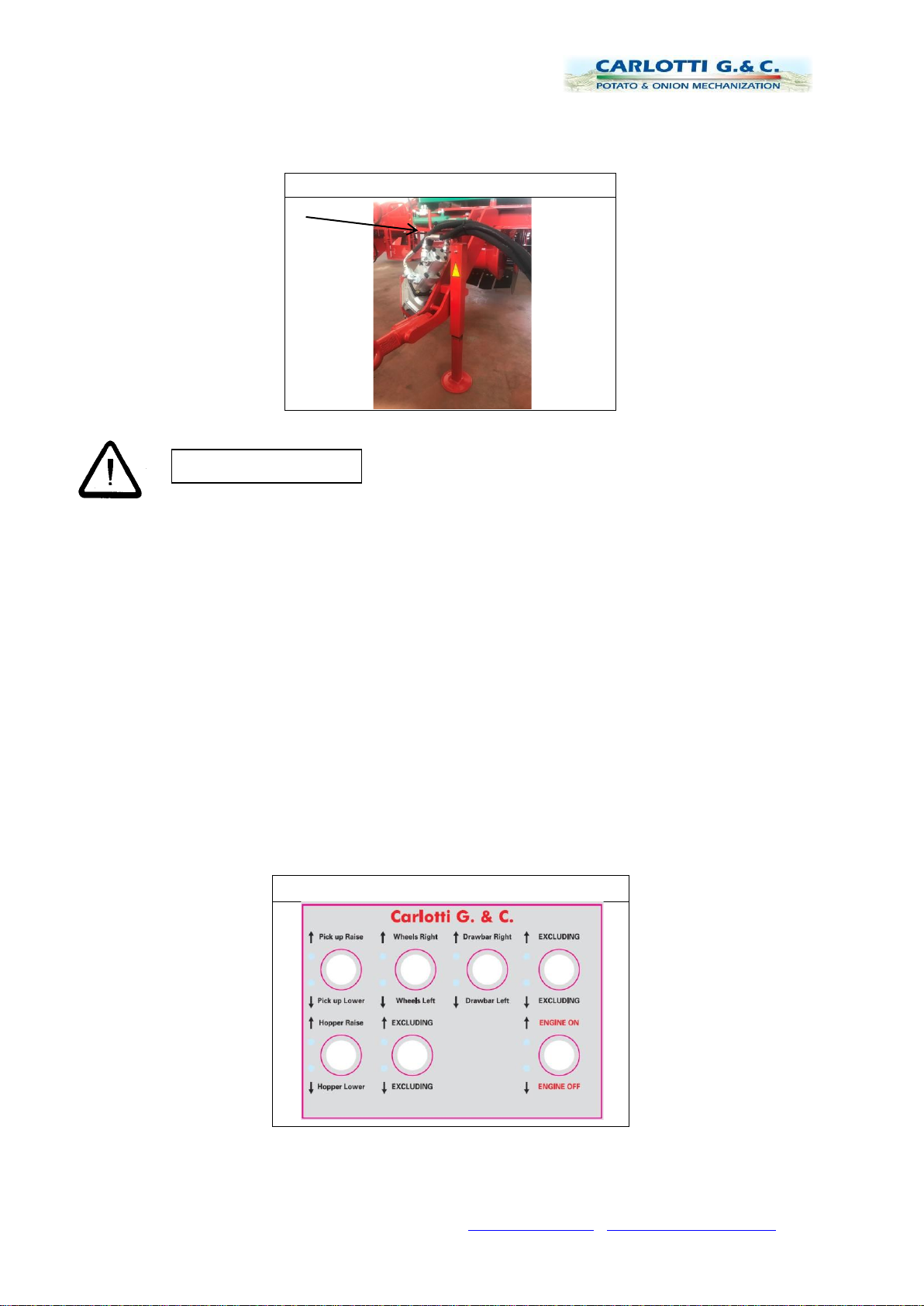

Once the connection phase is complete, manually lift the support foot (Fig. 9) by turning the crank.
The machine must be connected to a tractor with a power take-off at 540 rpm and with
clockwise rotation. Connecting the GREEN 650/5L potato digger and harvester to a PTO at
1000 rpm would irreparably damage the hydraulic system.
•Connect the machine to the tractor and operate it at reduced speed.
During the first activation, particular attention should be paid to efficient functioning of the towing
elements and of the conveyor belts.
3.3 Electrical Control Panel (Fig. 10)
1- Drawbar movement lever (right/left)
2- Wheel movement lever (right/left)
3- Collector movement lever (raise/lower)
4- Forklift movement lever (raise/lower)
5- Motor starting levers (On/Off)
6-Emergency mushroom button
Fig. 9 –Support foot crank
Fig. 10 –Electrical Control Panel
ATTENTION

14
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
It is forbidden to tamper with, modify and/or remove the electric panel control devices.
4 ASSEMBLY - DISASSEMBLY- ADJUSTMENT
All assembly, disassembly and adjustment operations must be carried out with the machine
completely detached from the tractor (disconnect the pump and the drawbar) and place it on the
support foot in a perfectly horizontal position.
Do not carry out this type of operation on slopes or in other places that do not ensure
complete stability of the machine.
Always proceed as follows:
•Wear work gloves, goggles or protective mask, and safety shoes to protect your face, hands,
eyes and feet.
•Follow the rules for personal safety presented in the first chapter of this booklet.
4.1 Assembly and disassembly of belts
In the GREEN 650/5 L machine there are 2 types of different belts:
•Collection belt, straight bars with applied paddles
•Sorting belt, with straight bars
Disassembly of the collection belt and sorting belt:
•Rotate the belt until the coupling point is in an accessible position.
•Approach the two ends with a cord.
•Remove the connecting rod using a screwdriver with a diameter equal to or smaller than
that of the connecting rod. Once removed from one of the two sides, proceed to free the
entire belt, pulling it from the opposite side.
Assembly of belts:
•Approach the two ends of the belt with a cord and proceed to insert the connecting rod,
starting from one of the two sides.
4.2 Plowshare frame assembly and disassembly
•Lock the moving part of the collector upwards, making sure that it does not descend during
the plowshare frame assembly/disassembly phase.
•The plowshare bar is fixed to the 2 sides via 6 screws. (Fig. 11)
Fig. 11 –Plowshare bar

15
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
4.3 Adjusting the mower discs
•Make sure that the machine is perfectly horizontal with respect to the work surface,
completely detached from the tractor. Never perform this type of operation while the
machine is operating. Danger of cutting.
•Lock the moving part of the collector upwards, making sure that it does not descend during
assembly/disassembly/adjustment of the discs.
Adjustment:
To adjust the depth of the discs (Fig. 11), loosen the 3 screws
•Lift or lower the disc manually
•Retighten the 3 fixing screws
The depth of the discs must be minimal to guarantee the simple linearity of penetration of
the collector.
An excessive depth causes will cause malfunctioning of the digging equipment as it does not
maintain a constant depth.
There is also a risk of causing torsions and probable breakages within the support structure of the
disc.
4.4 Rear forklift
The forklift is mounted at the rear of the machine. The pendulum movement allows the container to
be unloaded.
The maximum capacity of the forklift is 800 kg.
The lifting power is very limited: the forklift can at most lift an empty container and bring it to the
filling position under the sorting belt.
Keep personnel at a minimum distance from the machine handling area of 3 meters,
especially during forklift lifting and lowering movements.
4.5 Onion equipment
Fig. 12 –Mower discs
DANGER !

16
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
It is possible to apply the onion harvesting equipment to the GREEN 650/5 L machine, replacing on
the front part the potato digger.
Proceed as follows, always taking into account all the safety regulations presented in this manual:
•Disconnect the machine from the tractor
•Lower the support foot
•Remove the pump unit from the tractor pto
•Remove the safety split pin from the hook
•Remove the hook
•Move the tractor away
•Secure the mobile structure of the collector by assuming the resting position
•Remove the plowshares bar (see paragraph 4.2)
•Remove the discs and the feeler roller.
•Place the disassembled parts on a pallet, clean them, cover them and protect them from the
action of weathering.
•Fix the sponge roller by means of the pin and the 2 slides where the mower discs were
previously fitted. (Fig. 13)
•Adjust the conveying slides creating an angle of 5° from the ground (the front part of the
bracket must remain slightly raised).
•Remove the central discharge of the sorting belt, and replace it with a slide for direct
discharge. (Fig. 14)
5ORDINARY MAINTENANCE
Fig. 13 –Onion equipment (sponge roller)
Fig. 14 –Direct central discharge

17
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
All the maintenance, adjustment and lubrication operations must be carried out with the
machine stationary, not connected to the tractor and resting on the support foot on level
ground. Do not perform this type of operation on slopes or in other places that do not ensure
total stability of the machine.
5.1 Daily maintenance
Every day, after using the GREEN 650/5 L machine:
•Clean the machine from residues of earth, dust and leaves.
•Perform a general service of the machine paying particular attention to the oil level (in the
tank in the gearbox and in the reducer) and top up if necessary; check the rollers, belts and
front plowshares.
•Damaged items must be immediately replaced or repaired.
5.2 Lubrication
•Always read the warnings and precautions indicated on the lubricant packs.
•Always use gloves for hand protection.
•Before lubricating, it is necessary to carefully clean the grease nipples to prevent mud, dust
or other foreign bodies from mixing with the grease, decreasing or even cancelling the effect
of lubrication.
•Avoid any contact with the skin.
•Wash hands thoroughly after use.
For lubrication, use only the recommended products:
•Hydraulic oil: HYDRAULIC OIL 46 to fill up the tank
•Oil for changing: 80W90 to fill up the gearbox and reducer
•Grease: GRIS 30 for the supports/rollers
5.3 Greasing
•Daily grease both guide rollers of the collecting belt (Fig. 15)
•Grease the supports daily in moderation (Fig. 16)
5.4 Changing the oil/top up
•Make changes only inside the workshop, if any, or in specifically designated places. In any
case, the flooring should be waterproof.
Fig. 15 Guide rollers
Fig. 16 –Supports

18
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
•Replacement of the used oil or the top-up operations must be carried out under conditions
of maximum safety and hygiene to avoid a situation whereby approximate operations or
unsuitable technical means produce spills on the ground and in the water.
•The used oil must be stored, before being transferred to the company responsible for
collection, in suitable containers to store it in suitable conditions, eliminating the risks of
breakage and spillage.
1- TOPPING UP THE TANK:
Before topping up the tank, the operator must:
•Place the machine on the ground on perfectly level ground.
•Disconnect the machine from the tractor.
•Top up until the level indicator is reached
Never exceed the maximum permitted level
Usually the oil temperature in continuous working conditions is between 50°C and 60°C, if the
value should change dramatically, contact the service centre, local distributor or directly the
company CARLOTTI G C S.n.c.
2- TOPPING UP THE GEARBOX:
Before topping up the gearbox, the operator must:
•Place the machine on the ground on perfectly level ground.
•Disconnect the machine from the tractor.
•Top up until the aluminium visual indicator light shows the level.
Never exceed the maximum permitted level
Do not disperse the used oil !! This is a serious form of environmental pollution !!
Used oil damages the environment and can be harmful to health so it must be stored in special
containers and for subsequent disposal through appropriate collection centres, recording all
movements and transportation (as required by the specific legislation)
5.5 Storage
During periods of non-use, the GREEN 650/5 L must be stored in an enclosed area, protected from
the action of weathering. It is advisable to position it in such a way that it is not dangerous for
property or persons.
It must be placed securely from a static point of view, to avoid tipping, overturning and to facilitate
hooking and unhooking operations.
After the working season, the qualified technician assigned to the machine must:
•Clean it from soil debris, dust and other impurities;
•Proceed with a technical service and repair any damage;
•Lubricate each point as indicated in paragraph 5.2 and 5.3;
•Clean the unpainted metal parts, wash them with kerosene and cover them with anti-
corrosive grease or other protective agents;
•Loosen the tension of the tracks and belts;
ATTENTION

19
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
•Disassemble and clean the hydraulic oil filter located in the main tank with oil and then dry
it with compressed air;
•Reduce wheel pressure.
After the storage period, it is necessary to prepare the machine:
•Perform the mandatory servicing
•Check the oil levels and top up if necessary
•Connect the machine to the tractor, taking into account the safety regulations presented in
the manual.
6SAFETY SYSTEMS
Safety systems and devices have been adopted to make use and maintenance of the machine safer.
IT IS STRICTLY FORBIDDEN TO PERFORM MAINTENANCE ON AND/OR REMOVE ANY SAFETY
DEVICE.
1- Emergency mushroom buttons positioned on the 2 sides of the work table for emergency
machine stop.
2- Fixing chain of the gear box group when the latter is connected to the tractor pto.
3- Steps and platforms with non-slip surface.
4- Protection of the collection belt discharge complete with rubber for product retention, product
guidance and access impediment to careless operators.
6.1 Noise
During the continuous work phase, the GREEN 650/5 L machine produces a noise level of no more
than 30 dB.
In the non-work phase (vacuum activation), the GREEN 650/5 L machine produces a noise no
higher than 40 dB.
7REPAIRS

20
CARLOTTI G.&C. Snc
VIA GHIARADINO 2 –40054 VEDRANA DI BUDRIO (BO) ITALIA
TEL: [phone] FAX: [phone] www.carlotti-g.it - [e-mail]
It is strictly forbidden to intervene on the GREEN 650/5 L machine when it is moving and/or
connected to the tractor.
To repair/replace parts on the machine, proceed as follows:
1- Lay the machine on the ground on a perfectly horizontal plane
2- Respect all safety regulations to protect yourself from accidents: wear work overalls, gloves and
safety shoes
3- Perform repair/replacement using only original parts, supplied by the distributor, authorised
service centre or the manufacturer
4- Before starting work again, perform a few tests to ensure that assembly has been carried out
correctly
IN CASE OF DOUBT OR UNCERTAINTIES, OR FOR ANY OTHER INTERVENTION, CONTACT THE
RETAILER, AUTHORISED SERVICE CENTRE OR DIRECTLY TO MANUFACTURER.
7.1 Ordering spare parts
To order any spare parts, refer to the spare parts catalogue.
It is mandatory to always use original spare parts, supplied directly by the manufacturer, or
dealer or service centre.
The orders must be placed with the authorised dealer or service centre, or directly with the
Manufacturer, and must always be accompanied by the following indications:
•Type of machine
•Serial number
•Code of part being requested. In the absence of such a code, quote the number of the table in
which it is represented and the corresponding reference
•Name of the part and quantity requested
Orders must be made directly to the parts warehouse manager in writing by fax/letter/e-mail, ...
The manufacturer declines all responsibility for orders placed only by telephone with the
procedure not being respected.
8ELECTRIC/HYDRAULIC SYSTEM (Fig. 17)
DANGER!!
