User Manual
Refrigerated
Beverage
Dispensers
12/2022
3 Gallon Bowl:
#382RBD3G1
#382RBD3G2
#382RBD3G3
5 Gallon Bowl:
#382RBD5G1
#382RBD5G2
#382RBD5G3

2
[e-mail] |CarnivalKingSupplies.com
Refrigerated Beverage Dispensers
User Manual
Refrigerated Beverage Dispensers
User Manual
Table of Contents
Safety
Safety .................................2
Features & Controls ....................3
Main Controls..........................3
Installation.............................4
Positioning ............................4
Electrical Connection...................4
Operation .............................5
Cleaning...............................6
Servicing ..............................6
Disposal ...............................6
Troubleshooting........................ 7
Electrical Diagram......................8
Parts Diagram .........................9
-This instruction manual is an integral part of the machine and must be kept for any further consultation.
-This machine is a cold drink dispenser.
-This machine should be used only for the purpose for which it was designed. Any other use is
inappropriate and therefore dangerous.
-The manufacturer will not be held responsible for any damage caused by improper use.
-Before installing and operating the machine read this instruction manual carefully.
Basic safety rules:
- DO NOT touch the machine when hands or feet are wet.
- DO NOT use the machine when barefoot.
- This appliance should only be used by persons who have the knowledge, experience, and capability to
operate it in a safe way.
- DO NOT allow children to play with the appliance.
- DO NOT allow the machine to be used by children or untrained persons.
- DO NOT leave the machine outdoors.
- DO NOT pull on the electrical cord to unplug the machine.
The company reserves the right to modify the construction or appearance without notice.
Prop 65 Warning
WARNING: This product can expose you to chemicals including lead, which are known to
the State of California to cause cancer, birth defects, or other reproductive harm. For more
information, go to www.p65warnings.ca.gov
! !
5018325 5018325

3
[e-mail] |CarnivalKingSupplies.com
Refrigerated Beverage Dispensers
User Manual
Refrigerated Beverage Dispensers
User Manual

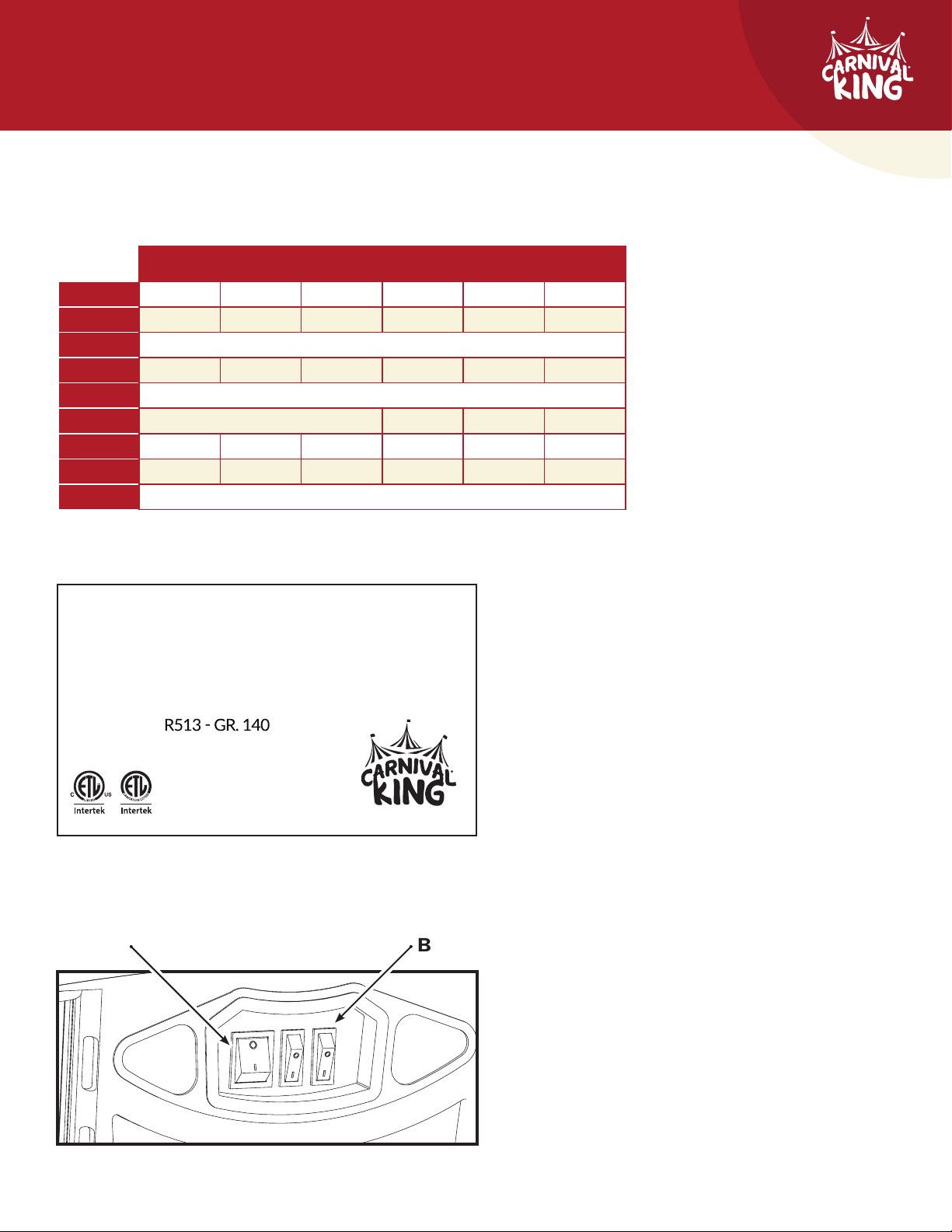

Technical Features
BA
Serial Plate
The technical features of the machine are reported on the serial plate attached on the frame.
Positioned on the right side of the machine.
A - Main Power Switch
0: Machine is OFF
I: Machine is ON
B - Mixing System Switch(es) -
One for Each Bowl
0: Mixer is OFF
I: Mixer is ON
Main Controls
ITEM: 382RBD3G1
MODEL: COLDREAM 1M
DESCRIPTION: REFRIGERATED
BEVERAGE DISPENSER
VOLTAGE: 120V WATTS: 275W
GAS/Q. TY:
SERIAL #:
MADE IN ITALY
5018325 5018325
RBD3G1 RBD3G2 RBD3G3 RBD5G1 RBD5G2 RBD5G3
Bowls 1 2 3 1 2 3
Capacity 1 x 3 Gal 2 x 3 Gal 3 x 3 Gal 1 x 5 Gal 2 x 5 Gal 3 x 5 Gal
Gas R134a
Width 7.9 in 14.7 in 23.6 in 8.2 in 16.3 in 24.2 in
Depth 16.9 in
Height 30 in 28.9 in 28.9 in 28.9 in
Weight 42 lb 59.5 lb 84 lb 45 lb 70 lb 132 lb
Power 275W 325W 395W 260W 550W 710W
Voltage 120V

4
[e-mail] |CarnivalKingSupplies.com
Refrigerated Beverage Dispensers
User Manual
Refrigerated Beverage Dispensers
User Manual

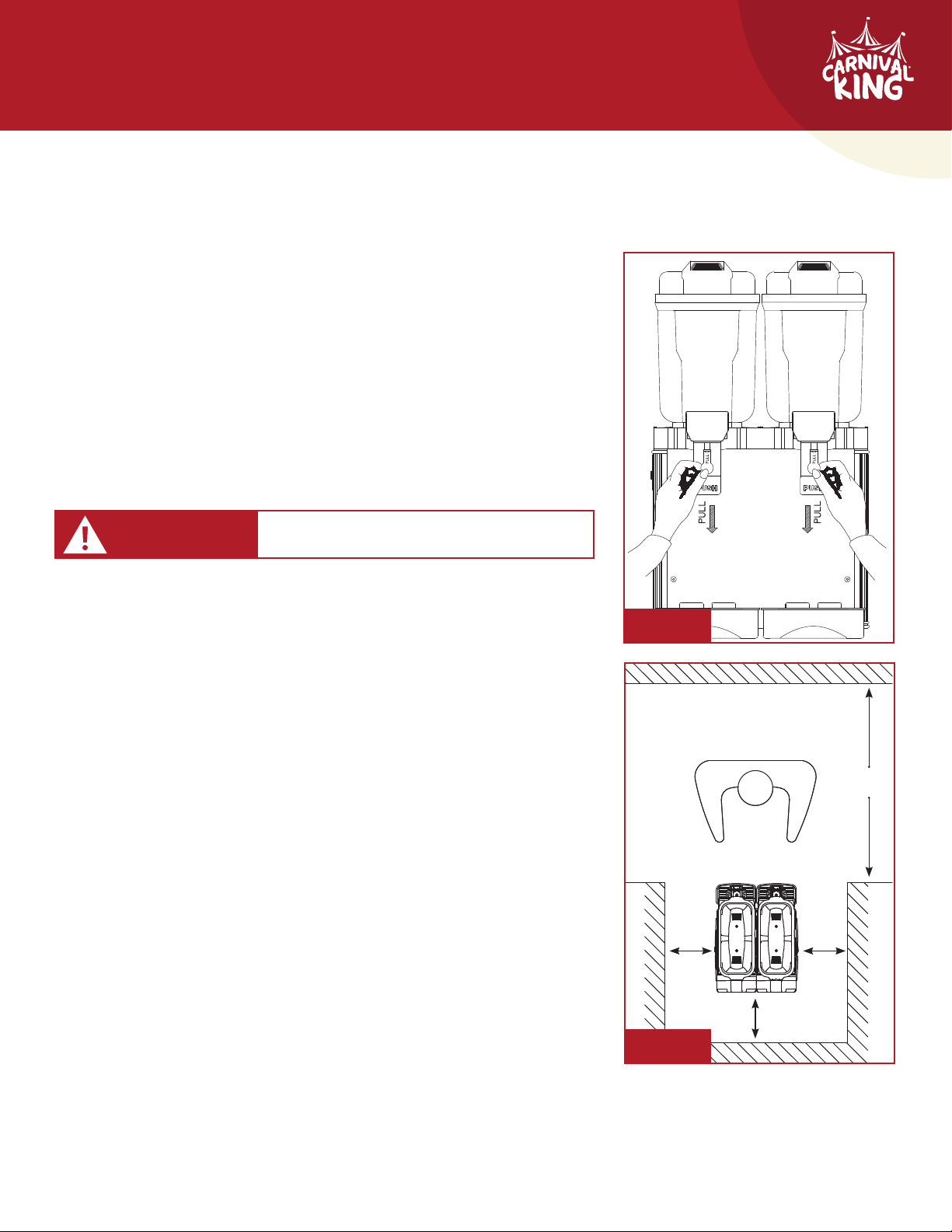

Unpacking
Positioning
Electrical Connection
1. Remove cardboard and plastic covering.
2. Check the unit to make sure it is not damaged or missing any parts.
3. Remove the plastic film from all the stainless steel panels.
4. Before operating, remove the green plastic plug(s) from the tap(s).
(Fig. 1)
1. Place the machine on a sturdy horizontal surface.
2. For improved ventilation, maintain a distance of 6 in. between
the unit and walls or other obstacles. Increase the distance if
the unit is placed near a heating source. (Fig. 2)
3. Leave 60 in. of free space in front of the machine to allow for
easy use and maintenance. (Fig. 2)
4. Leave 10 in. of free space above the machine to allow for
removal of lids. (Fig. 2)
5. When the machine is in place, adjust the rubber legs to level.
1. Make sure that the machine is properly connected to an
eicient grounding system.
2. Make sure that the voltage is in accordance with what is
indicated on the serial plate tag applied on the chassis.
3. Make sure that the current available is suicient for the
maximum required by the machine.
4. If needed, use only approved multiple outlets, in compliance
with current safety standards.
5. If in doubt, consult only specialized technicians.
If in doubt, consult a specialized electrical technician. Before
inserting the plug into the electrical outlet, carefully read the
following precautions:
In order to prevent the oil contained in the air-tight compressor
from flowing into the cooling circuit, it is necessary to always
carry, store, and handle the machine in a vertical position,
following the instructions found on the packaging.
If the machine was accidentally or purposely placed in a non-
vertical position during transport, before operating the machine
it should be kept in a straight position for approximately 30
minutes to allow the oil to flow back into the compressor.
Installation
Dispose of packaging materials correctly.
Do not leave within reach of children.
CAUTION
Fig. 1
6"6"
6"
60"
Fig. 2

5
[e-mail] |CarnivalKingSupplies.com
Refrigerated Beverage Dispensers
User Manual
Refrigerated Beverage Dispensers
User Manual

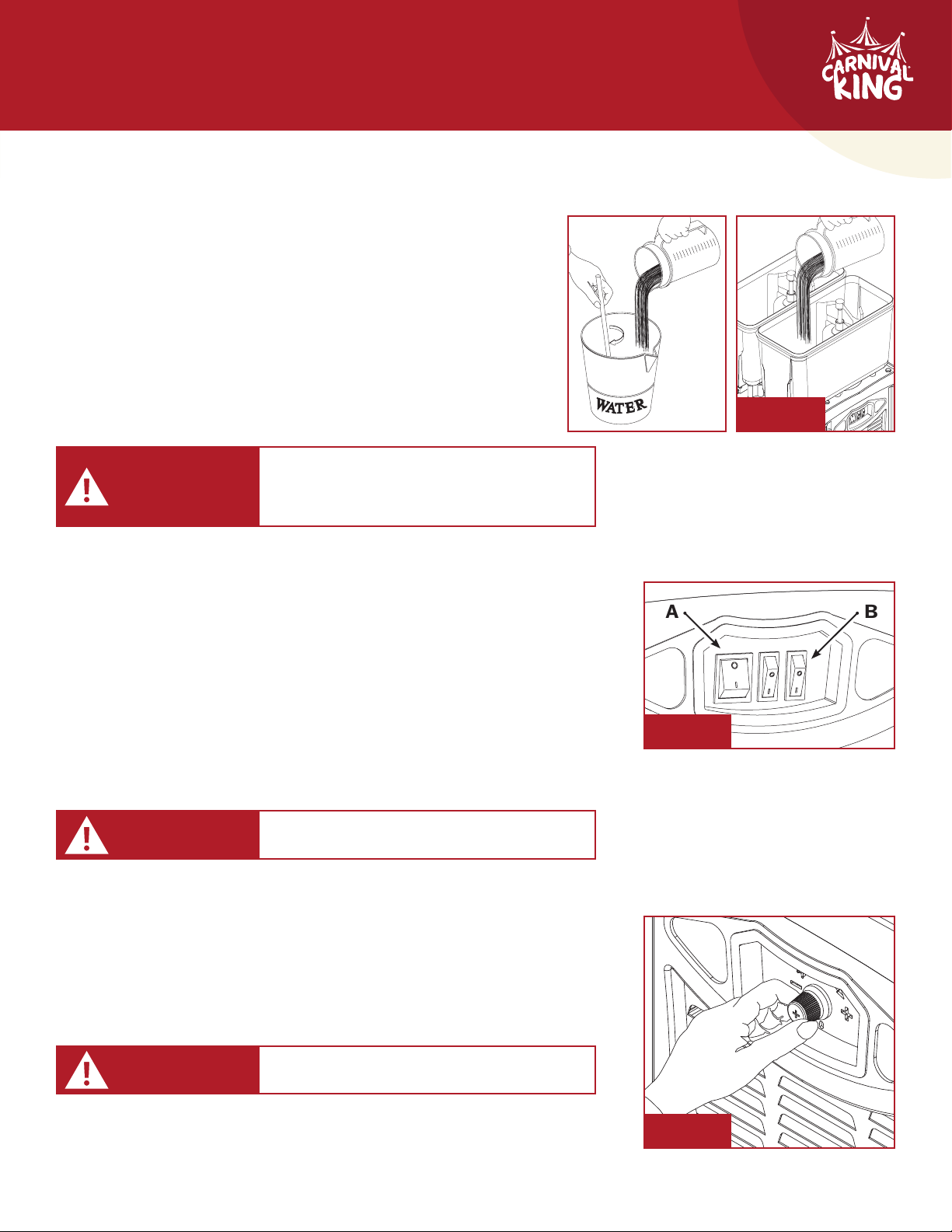

Operation
Preparing The Product
Cold Drinks
Beverage Temperature Regulator
Concentrate
In order to obtain a homogeneous mix, the product will
need to be pre-mixed before being added to the machine.
Follow the manufacturer’s recommendations for mixing.
Ready-to-Use & Pre-Mixed Concentrates
1. Turn the machine OFF and unplug from power supply.
2. Pour liquid into the bowl. (Fig. 3)
3. DO NOT pour below the MIN Level. (3-4 L)
4. DO NOT pour above the MAX Level.
1. Make sure that the main switch (A) is in the [OFF] position and
plug in the machine. (Fig. 4)
2. Before starting the machine ensure that the bowls are properly
closed with their covers.
3. Turn the main switch (A) to [ON] position; the refrigerant group
unit will automatically start. (Fig. 4)
4. To start the mixing action, turn the mixing system switch (B) to
[ON] position. There is a switch for each Bowl. (Fig. 4)
5. To dispense your beverage, press glass/cup lightly against the
lever.
1. Every dispenser has been tested and the thermostat has been
set at c.a. +5°C temperature.
2. To adjust the temperature, Turn the thermostat knob on the side
of the unit. Rotate clockwise to increase the temperature and
counter clockwise to decrease.
Prepare the product separately before proceeding.
Fig. 3
Fig. 6
Fig. 4
BA
DO NOT run the pump without liquid.
CAUTION
Remove power plug before adjusting
temperature.
CAUTION
Before using the machine, all food contact
surfaces and components must be cleaned
and sanitized in accordance to the Washing
& Sanitizing section of this manual.
CAUTION

6
[e-mail] |CarnivalKingSupplies.com
Refrigerated Beverage Dispensers
User Manual
Refrigerated Beverage Dispensers
User Manual

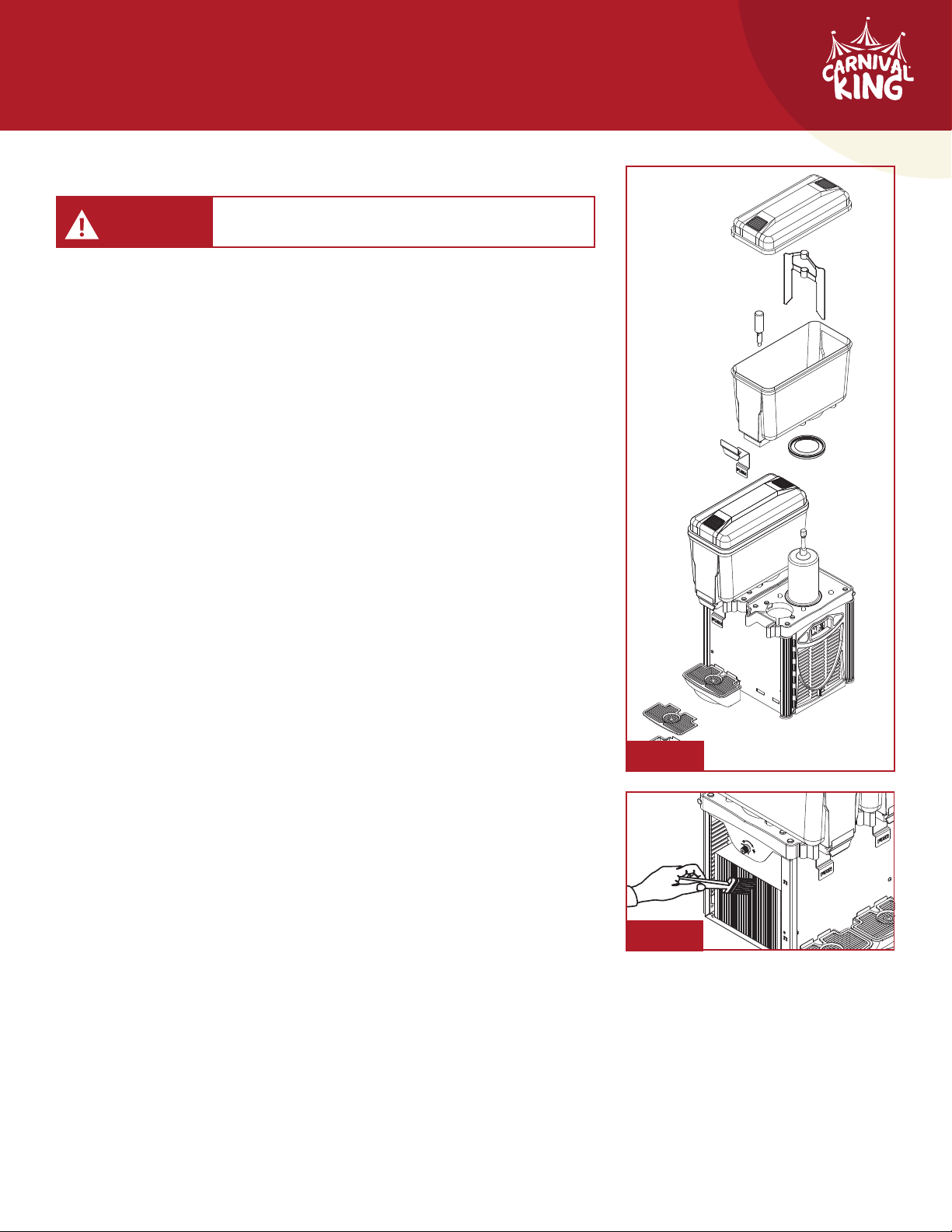

Cleaning
Servicing
Disassembly (Fig. 7)
Empty The Bowl
Cleaning
Sanitizing
1. Gently lift the lid off of the unit.
2. Extract the mixer.
3. Gently lift the bowl off of the unit. Should you have diiculty, it
may be necessary to dampen steel refrigerator and gasket, then
repeat the operation.
4. Lift the bowl gasket off of the unit.
5. Unhook the drip tray by pulling up and lifting away from the
machine.
6. To reassemble the unit, repeat the above operations in reverse.
1. Use the tap lever to empty any remaining liquid into a container.
2. DO NOT Proceed without emptying the bowl.
1. Fill a basin with lukewarm water and a neutral detergent.
2. Wash all components (except the lid) in the basin.
3. Wash the lid with a wet, soft cloth.
4. If the dispenser is out of use for a long period of time, remove
the power plug and clean all parts carefully; keep the dispenser
away from dust and cover it with a plastic sheet.
5. Dry all parts with a soft cloth.
1. Follow washing instructions.
2. Make a solution of 2% sodium hypochlorite (bleach) in lukewarm
water.
3. Use a soft cloth or brush to apply the solution to all
components.
4. Rinse all parts carefully with clean lukewarm water to remove
any residual solution.
5. Dry all parts with a soft cloth.
1. Aer disconnecting the dispenser, remove panels and clean inside parts, especially condenser fins,
with a brush (Fig. 8).
2. Dust reduces the performance of the machine, so clean it at least once a month.
3. The dispenser does not require oiling.
Any necessary repairs on the machine should be undertaken exclusively by a certified technician, using
original replacement parts. The electrical cord should not be replaced by the user.
Do not use abrasive powders which might impair the container and
lid’s shine.
Sanitizing must be done before the initial use of the machine or if
it is not used for an extended period of time.
Disposal
When the machine is no longer of use, dispose of it properly. Or if still operational, sell o through an
authorized organization or company.
The machine must be turned OFF and unplugged
from the power source before cleaning.
CAUTION
Fig. 7
Fig. 8

7
[e-mail] |CarnivalKingSupplies.com
Refrigerated Beverage Dispensers
User Manual
Refrigerated Beverage Dispensers
User Manual
Troubleshooting
PROBLEM CAUSE SOLUTION
The machine does
not turn ON
The Main Switch is not set to I Set the Main Switch to I
The machine is not plugged in Plug the machine into the outlet
Electric cable defective Replace the electric cable
The Main Switch is defective Replace the switch
The machine is
not cooling
Compressor does not start See "Compressor does not start" section below
Gas leak into the cooling circuit Find leak, filter it out & re-charge cooling circuit
Condenser is clogged Clean the condenser (see Fig. 8)
Fan motor is burnt out Replace the fan motor
Lack of air flow Increase the distance between the machine and other
obstacles/heating sources (see Fig. 2)
Compressor does
not start
Main Switch is broken Replace Main Switch
Compressor protector is broken Replace compressor protector
Compressor relay is broken Replace compressor relay
Compressor motor is broken Replace motor
One bowl is not
cooling
Gas leak into the cooling circuit Find leak, filter it out & re-charge cooling circuit
Condenser is clogged Clean the condenser (see Fig. 8)
Lack of air flow Increase the distance between the machine and other obstacles/
heating sources (see Fig. 2)
Tube of the cooling circuit is clogged Cut the tube, eliminate clog, re-charge the cooling circuit
Filter is clogged Replace the filter
Stirring paddles not
working
The gearbox is broken Replace the gearbox, taking care to assemble it in
the correct position
The gearbox switch is broken Replace the gearbox switch
The pump is not
working
The pump motor is broken Replace the pump motor
The pump switch is broken Replace the pump switch
Problems marked with this symbol must be handled by a specialized technician.
CAUTION

8
[e-mail] |CarnivalKingSupplies.com
Refrigerated Beverage Dispensers
User Manual
Refrigerated Beverage Dispensers
User Manual
Electrical Diagram - G///, G///
c Compressor
S Exchanger
F Fan motor
Bc Boiler collector
E 1,2,3 Evaporator
D Distributor
Ca Capillary
1 Drain Line
2 Liquid Line
3 Suction Line
T Thermostat

9
[e-mail] |CarnivalKingSupplies.com
Refrigerated Beverage Dispensers
User Manual
Refrigerated Beverage Dispensers
User Manual
NO. DESCRIPTION
1 Lid
2 Mixer Paddle
3 S/S Piston
4 O-R for Stainless Steel Tap
5 Bowl
6Stainless Steel Tap Assembly
7 Push Lever
8 Bowl Gasket
9 Mixer Guiding Sha
10 Gearbox 110V
Gearbox 220V
11 Thermostat
12 Red Switch
13 Black Switch
14 Side Panel Grey
Side Panel Red
Side Panel Blue
15 Compressor 220V
Compressor 110V
Compressor 220V
Compressor 110V
Compressor 220V/50
Compressor 220V/60
Compressor 110V
16 Drip Tray
17 Fan Motor 220V
Fan Motor 110V
Fan Motor 220V
Fan Motor 110V
Fan Motor 220V
Fan Motor 110V
18 Rubber Leg
Parts Diagram - 3G/1/2/3, 5G/1/2/3
