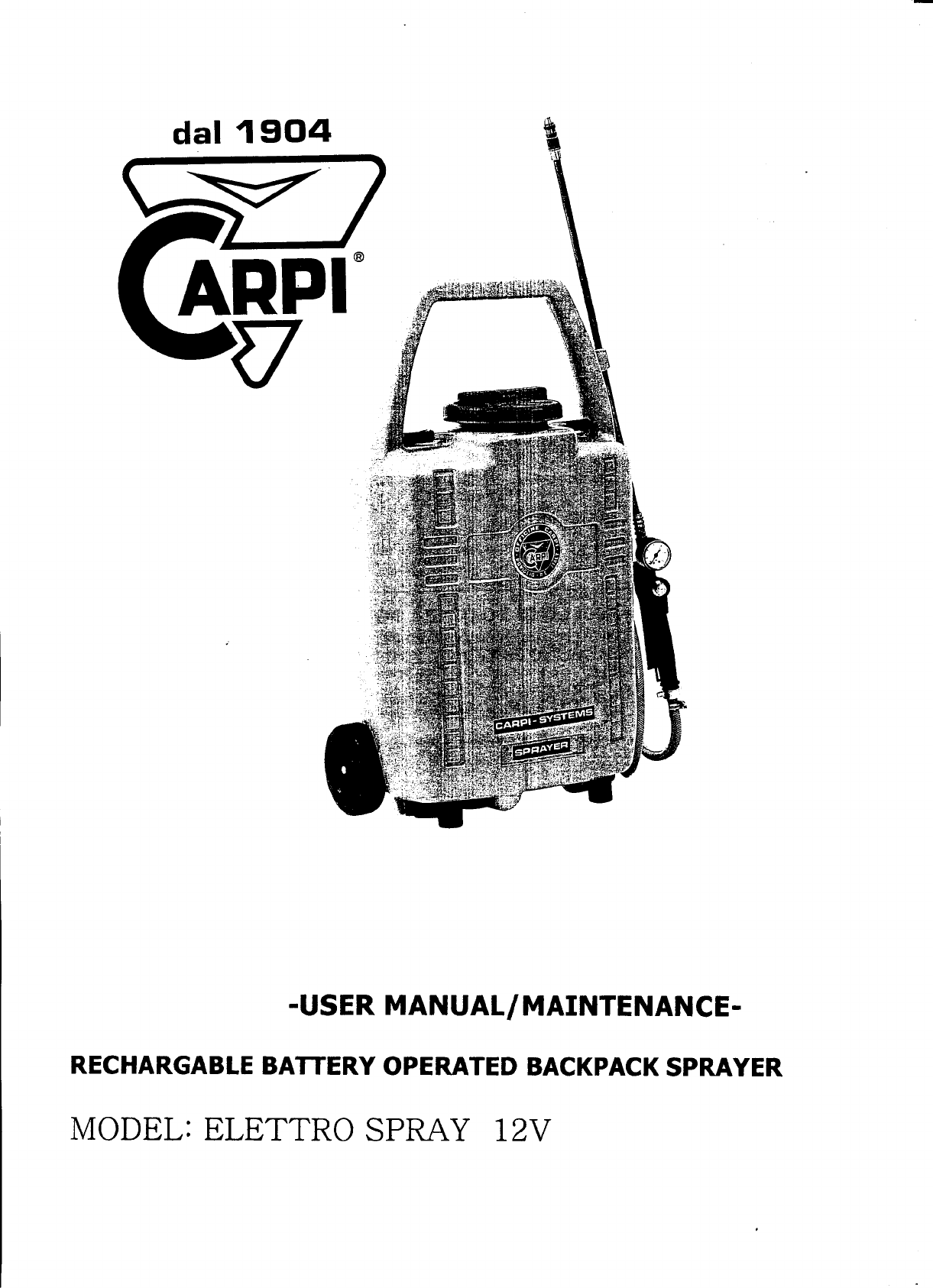

CARPI ELETTRO SPRAY 12V User manual

-
dal 1904 \cl
@
-USER MANUALI MAINTENANCE-
RECHARGABLE BATTERV OPERATED BACKPACK SPRAVER
MODEL: ELETTRO SPRAY 12V

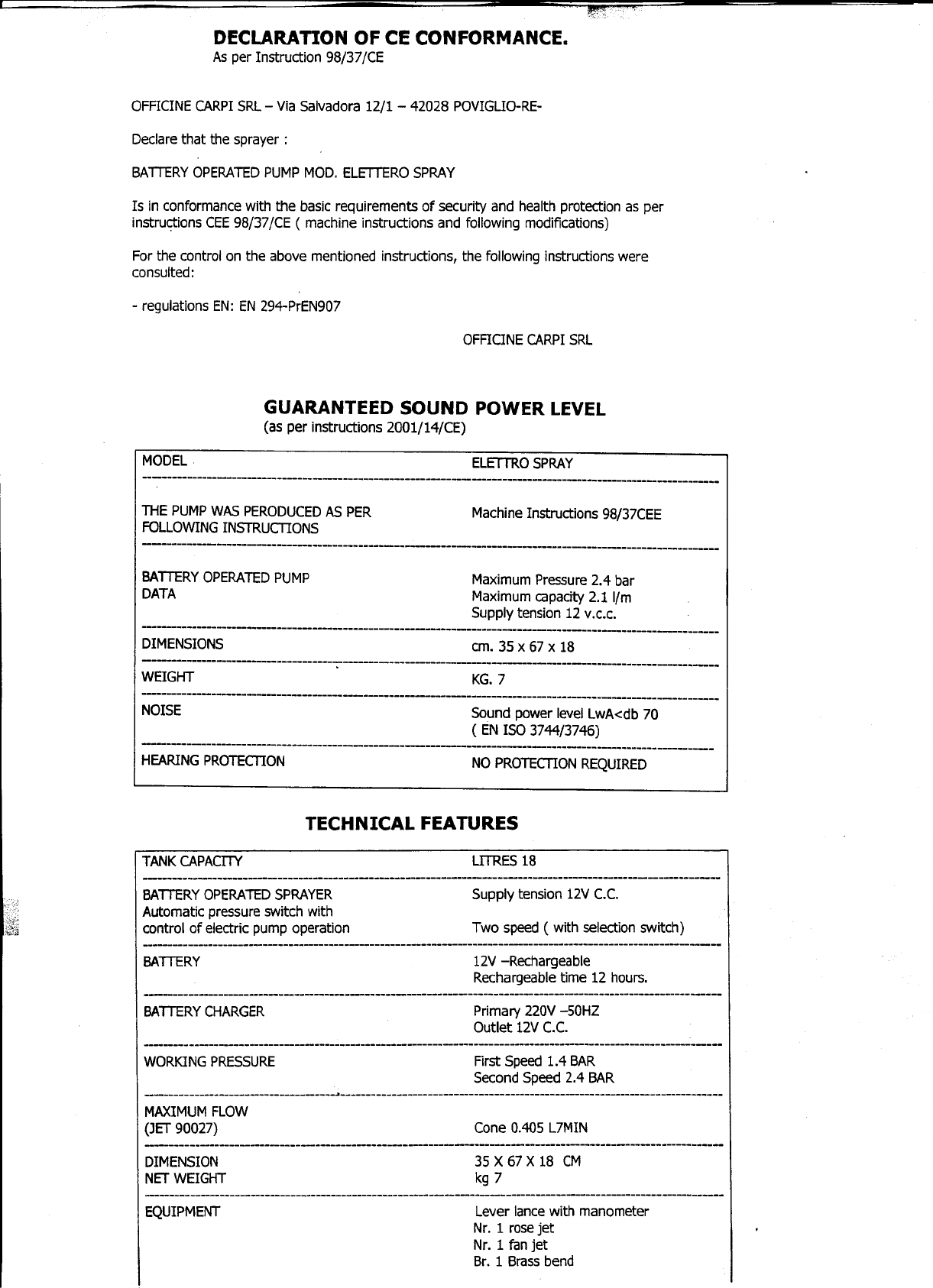

DECLARAnON OF CE CONFORMANCE.
AsperInstruction98/37/CE
OFFICINECARPISRL- ViaSalvadora12/1-42028POVIGUO-RE-
Declarethatthesprayer:
BAlTERYOPERATEDPUMPMOD. ELElTERO SPRAY
15in conformance with the basic requirements of security and health protection as per
instruçtions CEE98/37/CE ( machine instructions and following modifications)
Far the contrai on the above mentioned instructions, the following instructions were
consulted:
-regulations EN: EN294-PrEN907
OFFICINECARPISRL
GUARANTEED SOUND POWER LEVEL
(asperinstructions2001/14/CE)
MODEL ELETTRO SPRAY
THE PUMPWASPERODUCEDASPER MachineInstructions98/37CEE
FOLLOWINGINSTRUmONS
BATTERYOPERATEDPUMP Maximum Pressure2.4bar
DATA Maximum capacity 2.1 l/m
Supply tension 12 V.c.c.
DIMENSIONS cm. 35 x 67 x 18
:WEIGHT KG.7
NOISE SoundpowerlevelLwA<db70
( ENISO 3744/3746)
HEARINGPROTEcnON NOPROTEmON REQUIRED
TECHNICALFEATURES
TANKCAPACrTY LfTRES18
BATTERY OPERATED SPRAYER Supply tension 12VC.C.
Automatic pressureswitch wìth
contrai of electric pump operation Twospeed( with selection switch)
BATTERY 12V-Rechargeable
Rechargeabletime12 hours.
BATTERYCHARGER Primary220V-50HZ
Outlet12VC.C.
WORKINGPRESSURE First Speed1.4 BAR
SecondSpeed2.4 BAR
MAXIMUM FLOW
(JET90027) Cane0.405 L7MIN
DIMENSION 35X 67X 18 CM
NETWEIGHT kg7
EQUIPMENT Leverlancewith manometer
Nr. 1 rosejet .
Nr. 1 fanjet
Br. 1 Brassbend

~

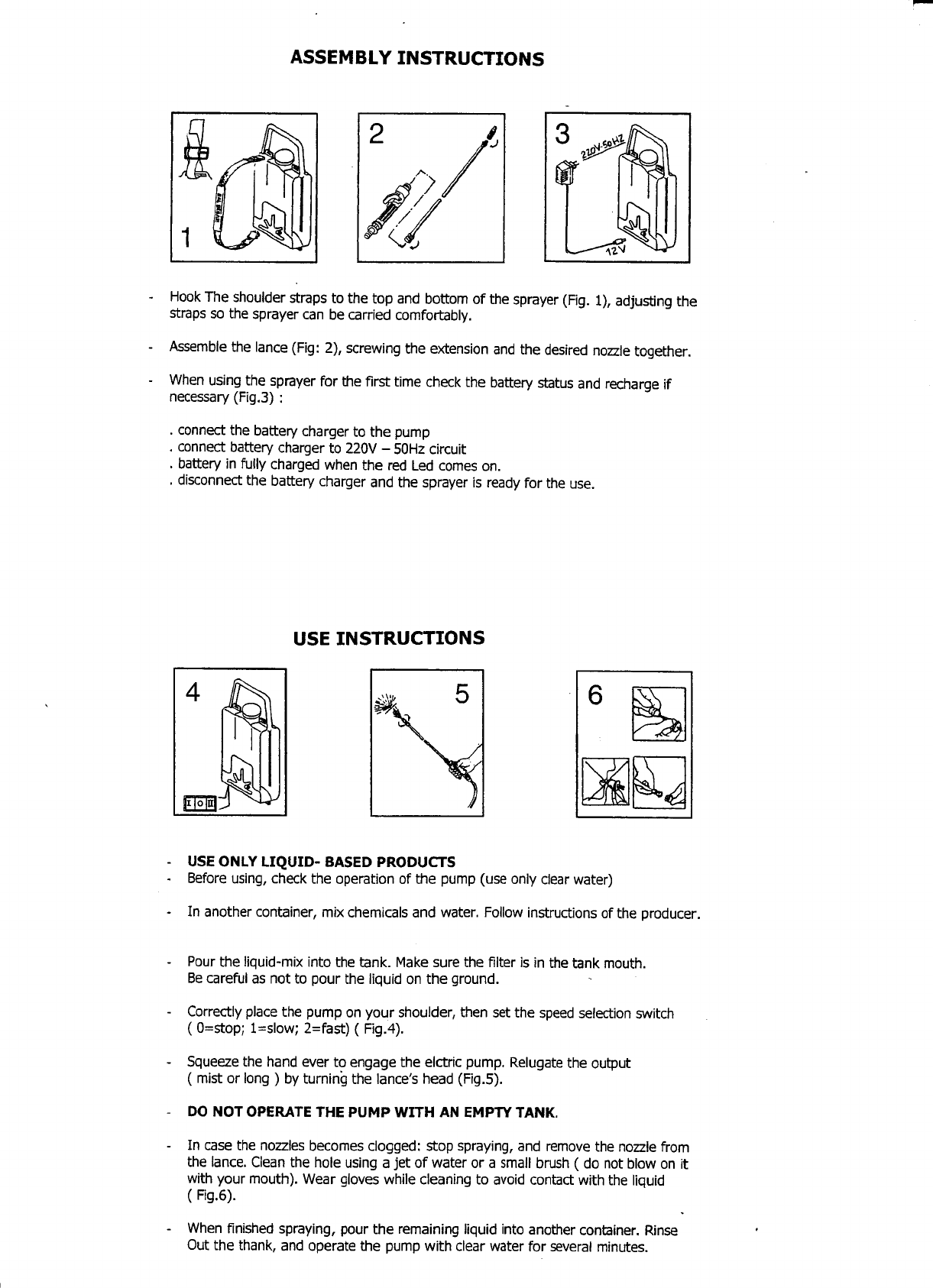

ASSEMBLYINSTRUCTIONS
fL 2 ~
~ l') /
1 1(1
- HookThe shoulder straps to the top and bottomof the sprayer (Fig. 1), adjusting the
straps so the sprayer can be carried comfortably.
- Assemblethe lance (Fig: 2), screwing the extension and the desired nozzletogether.
- When using the sprayer far the first time check the battery status and recharge if
necessary(Fig.3) :
. connect the battery charger to the pump
.connect battery charger to 220V - 50Hz circuit
.battery in fully charged when the red Led comes on.
. disconnectthe battery charger and the sprayer is ready far the use.
USEINSTRUCTIONS
4 ~,w~ 5 6 ~
~, ~
[I§!I ~~
- USEONLY LIQUID- BASED PRODUCTS
- Beforeusing, check the operation of the pump (use only clearwater)
- In another container, mix chemicals and water. Follow instructions of the producer.
- Pourthe liquid-mix into the tank. Make sure the filter is in the tank mouth.
Becareful as not to pour the liquid on the ground.
- Correctlypiacethe pump on your shoulder, then set the speedselectionswitch
( O=stop; l=slow; 2=fast) ( Fig.4).
- Squeezethe hand ever to engage the elctric pump. Relugatethe output
( mist or long) by turning the lance's head (Fig.5).
- DO NOT OPERATE THE PUMP WITH AH EMPTY TANK.
- In case the nozzlesbecomesclogged: stop spraying, and remove the nozzlefrom
the lance. Cleanthe hole using a jet of water or a small brush ( do not blow on it
with your mouth). Wear gloves while cleaning to avoid contact with the liquid
( Fig.6).
- When finished spraying, pour the remaining liquid into another container. Rinse .
Out the thank, and operate the pump with clear water far severaI minutes.

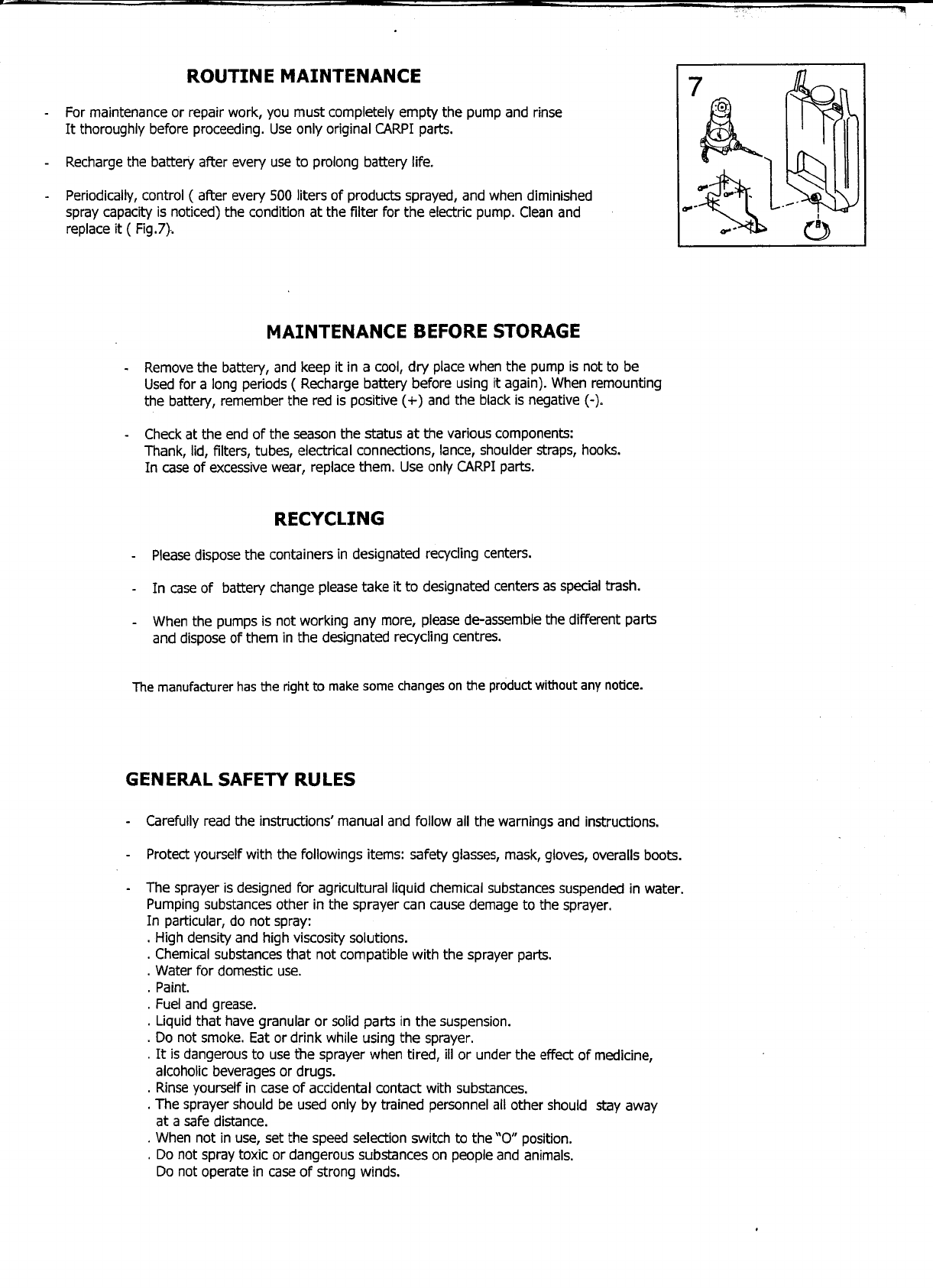

ROUTINE MAINTENANCE 7
- For maintenance or repair work, you must completely empty the pump and rinse ~
It thoroughly before proceeding. Useonly originai CARPIparts. ~
- Rechargethe batter'{ after every useto prolong battery life. l- Periodically,contrai (after every 500 liters of products sprayed, and when diminished ~. - _:~
spray capacity is noticed) the condition at the filter far the electric pump. Cleanand 00- . I
replaceit (Fig.?).. ~- O
MAINTENANCE BEFORE STORAGE
- Removethe battery, and keep it in a caDI,dry piacewhen the pump is not to be
Used far a long periods ( Recharge battery before using it again). When remounting
the battery, remember the red is positive (+) and the black is negative (-).
- Check at the end of the season the status at the various components:
Thank, lid, filters, tubes, electrical connections, lance, shoulder straps, hooks.
In case of excessive wear, replace them. Use only CARPI parts.
RECYCLING
- Pleasedisposethe containers in designated recycling centers.
- In caseof battery change pleasetake it to designated centers asspecialtrash.
- When the pumps is not working any more, pleasede-assemblethe different parts
and disposeof them in the designated recycling centres.
Themanufacturerhasthe rightto makesomechangesontheproductwithoutanynotice.
GENERAL SAFETY RULES
- Carefully read the instructions' manual andfollow ali the warnings and instructions.
- Protect yourself with the followings items: safety glasses, mask, gloves, overalls boots.
- The sprayer is designed far agriculturalliquid chemical substancessuspended in water.
Pumping substancesother in the sprayer can cause demage to the sprayer.
In particular, do not spray:
.High density and high viscosity solutions.
. Chemicalsubstancesthat not compatible with the sprayer parts.
. Water far domestic use.
. Paint.
. Fueland grease.
. Liquid that have granular or solid parts in the suspension.
. Do not smoke. Eat or drink while using the sprayer.
. It is dangerousto usetne sprayer when tired, ill or under the effect of medicine,
alcoholic beveragesor drugs.
. Rinseyourself in case of accidental contact with substances.
. The sprayer should be used only by trained personnel ali other should Stayaway
at a safe distance.
. When not in use, set the speed selection switch to the "O" position.
. Do not spray toxic or dangerous substances on people and animals.
Do not operate in caseof strong winds.
.
