Carron Phoenix PILLAR LEVER User manual

AFTER CARE:
To maintain the appearance of this tap, ensure that it is regularly cleaned only
using a clean, soft damp cloth. A solution of warm water and a mild liquid
detergent may be used where necessary, and then the fitting rinsed thoroughly
and wiped dry. Abrasive cleaners, scouring cleaners and acid cleaners must not
be used under any circumstances. All bath cleaning powders and liquids will
damage the surface of your fitting even the non-scratch cleaners.
Avoid contact with all solvents and any harsh household chemicals. You will
damage the plated finish and void your guarantee.
GUARANTEE AND LIABILITY
In the unlikely event that you should experience any defect in the material or workmanship
of your mixer tap within 5 years of purchase, we will replace the faulty part free of charge.
Decorative surface finishes and valves are guaranteed for one year from the date of
purchase provided that our advise concerning care has been observed and no scouring
agents have been used. This is provided that the mixer or tap has been used for normal
domestic purposes in the UK and that the care, installation and maintenance instructions
have been observed.
Scuff and scratches caused by normal wear and tear, improper installation or accidental
damage are excluded from this guarantee.
You should retain a copy of your dated invoice as proof of purchase to validate any claims
under this guarantee.
No other warranties, express or implied, are made, including merchantability or fitness for a
particular purpose.
SPARE PARTS AND SERVICE
Contact CARRON PHOENIX
Phone [phone]
Fax [phone]
e-mail sal[email protected]
web-site www.carron.com
PILLAR LEVER
Fitting Instructions
& Contents List
Please keep these instructions for future reference and request of replacement
parts.

In the unlikely event you find a part missing please contact our Customer Service Help line
on 01324-638321 for immediate dispatch of part.
Maintenance:
If the fitting begins to drip:
1) Turn off the water supply
2) Loosen grub screw under handle lever, remove handle and valve
3) Carefully clean seating, rubber washer and ceramic disc.
4) Replace valve and handle, then turn on the water supply.
5) If problem persist contact our help line quoting the product code.
Remember:
Maximum water supply pressure: 75 PSI (5 bar)
Maximum hot-water supply temperature: 70 °C
Recommended hot-water supply temperature: 65 °C
If these temperatures or water pressure are exceeded damage to the tap can
result. A pressure reducing valve may be required to be fitted in high water
pressure situations.

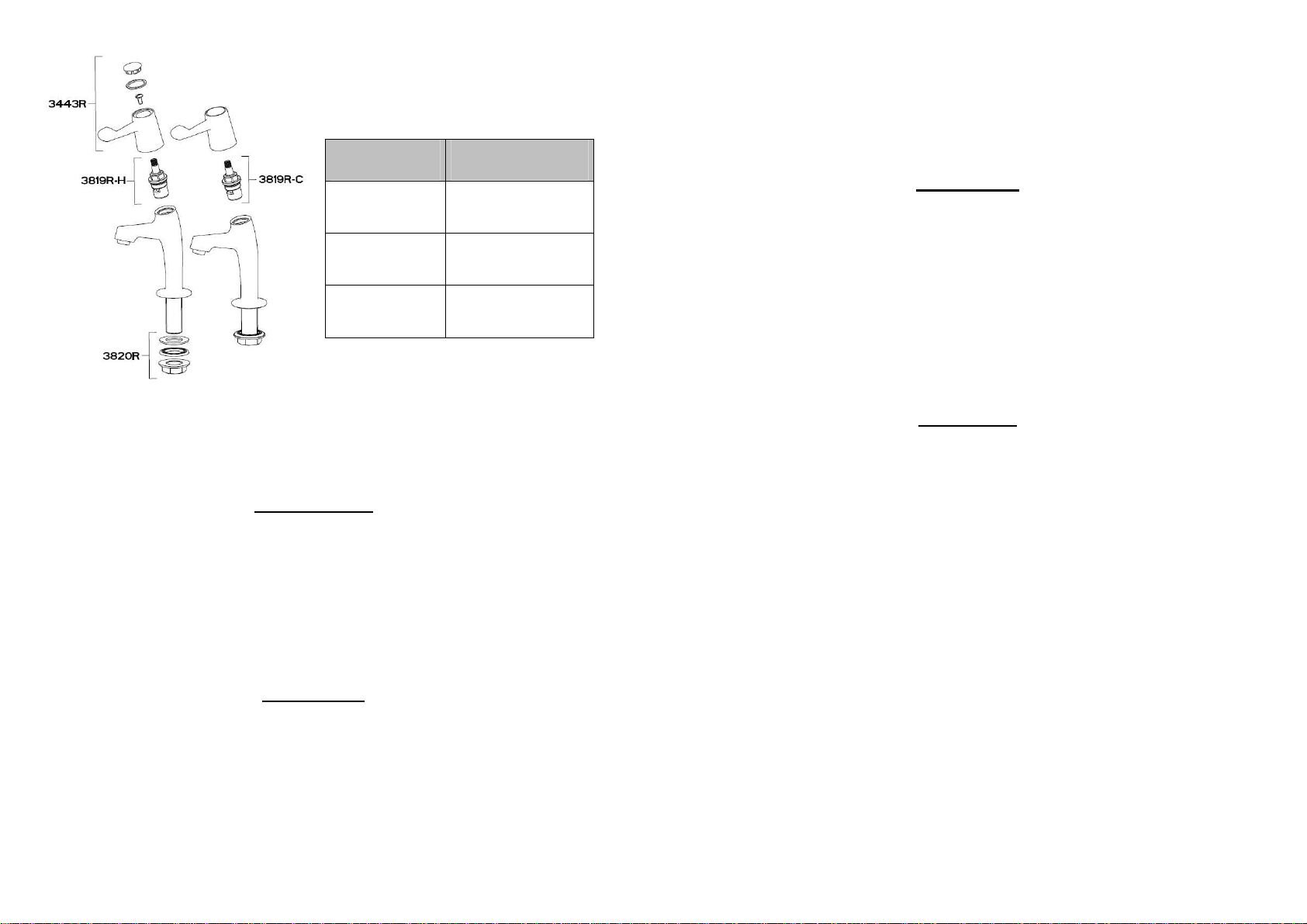

CODE DESCRIPTION
3443R+color
Handle
3819R+H (Hot) / C
(Cold) Valve
3820R
Fixing Kit
Please read these instructions before you install and use the tap. All
designs, descriptions and dimensions are subject to change without notice.
Preparation
Flush the plumbing system before installing the mixer tap. This is to avoid
plumbing residues clogging the mesh of the aerated outlet, or possibly
damaging the valve’s washers. This is especially important where extensive
plumbing work has been carried out.
First shut off your water heating system then, with your mains stop cock closed,
open the lowest hot and cold taps in the house and allow to run until the cold
storage tank and pipes are empty. (The hot water storage cylinder always
remains full).
Installation
•Remove the fixing nut from the tail pipe.
•Pass the rubber washer over the tail.
•Insert the tail into the hole on the sink top from above and place the tap
in position on the sink.
•Replace the fixing nut and secure the tap, screwing the fixing nut finger
tight.
•Check the tap is correctly positioned and fully tighten the fixing nut.
•Connect the tap to the water supply.
•The Hot water pillar tap should be connected on the left hand side
when viewed from the front.
