CARRYGOLF COCOTAL User manual
carrygolf
carrygolf.net
1
INSTRUCTION MANUAL:
COCOTAL
carrygolf
carrygolf.net
2
INSTRUCTION MANUAL: CARRYGOLF - COCOTAL
Please read and follow these instructions carefully and your cart will be ready to
run in minutes.

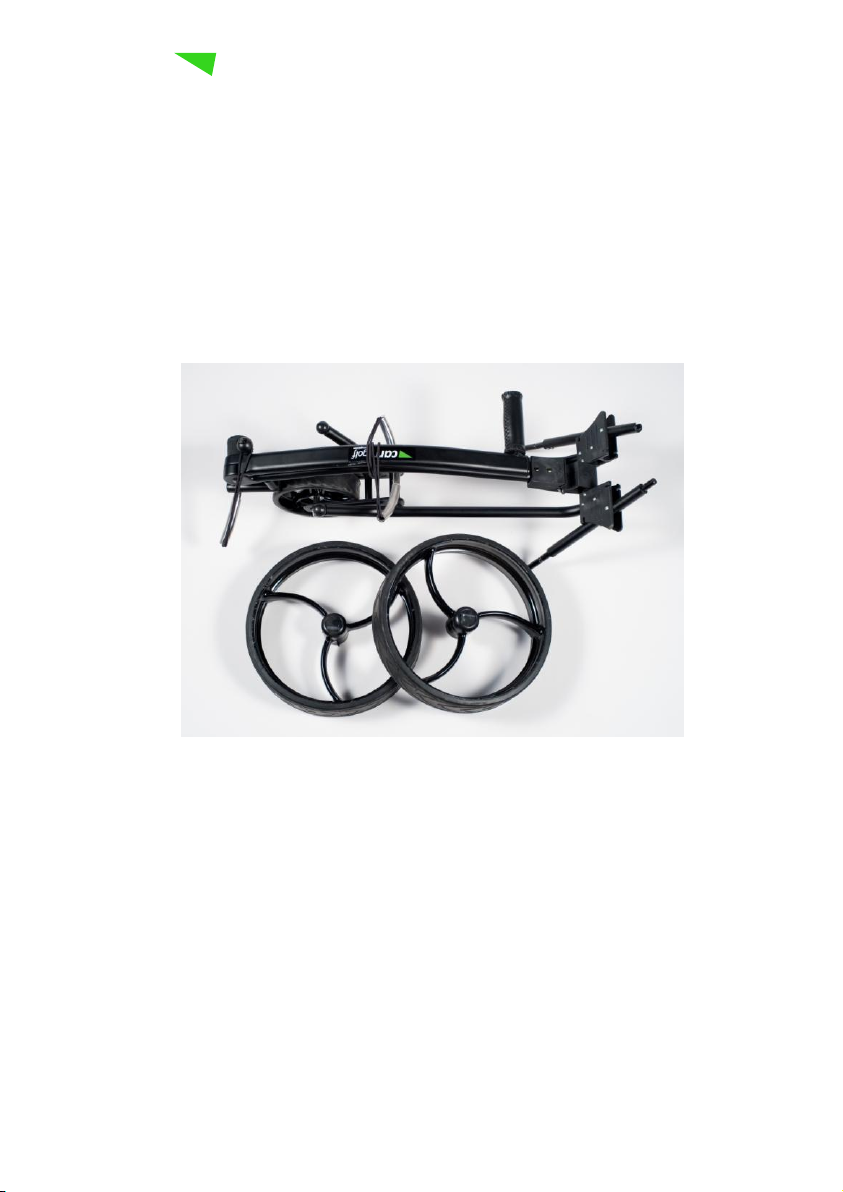

BOX CONTENTS
a) Metal frame .
b) 2 rear wheels, rims and rear tires .
c) Quick clamping gums.
carrygolf
carrygolf.net
3

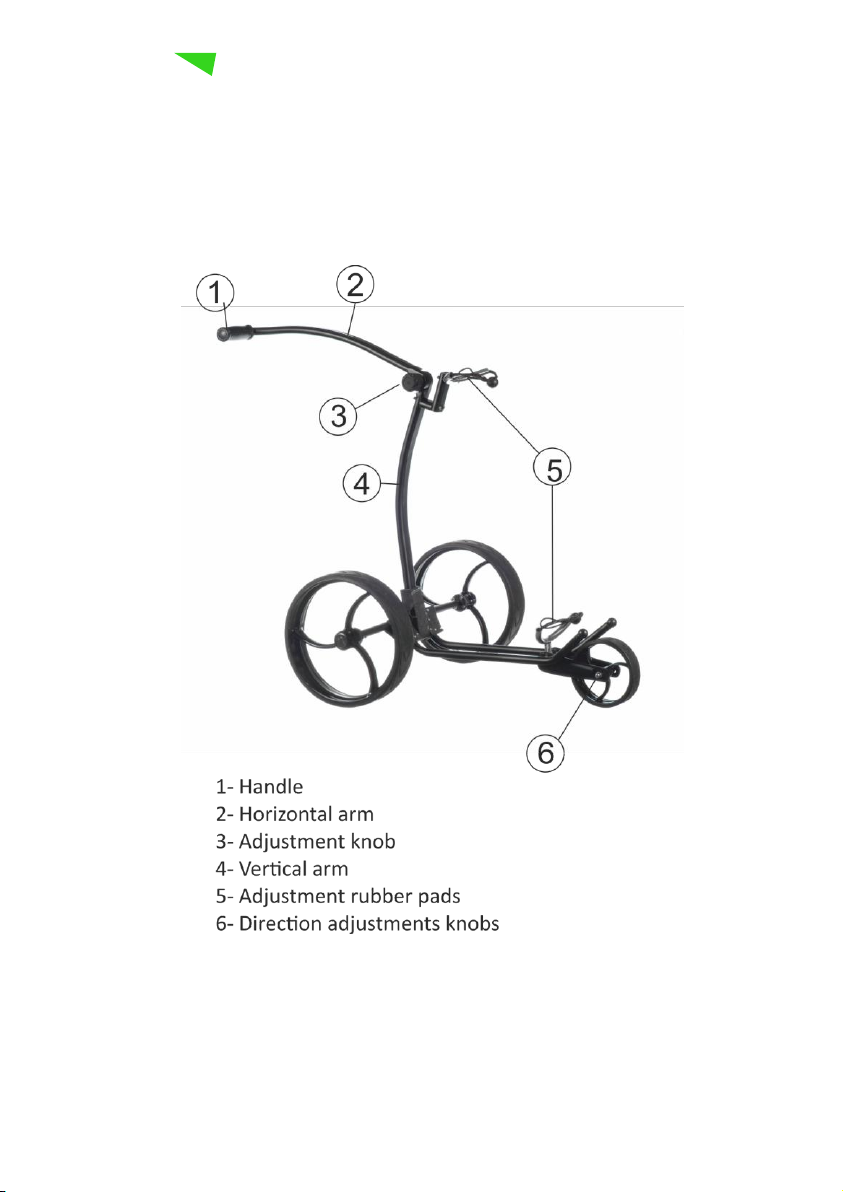

Figure 1
carrygolf
carrygolf.net
4
ASSEMBLY INSTRUCTIONS
Unpack all components carefully and keep the package for a reasonable time.
(Essential in case of refund)

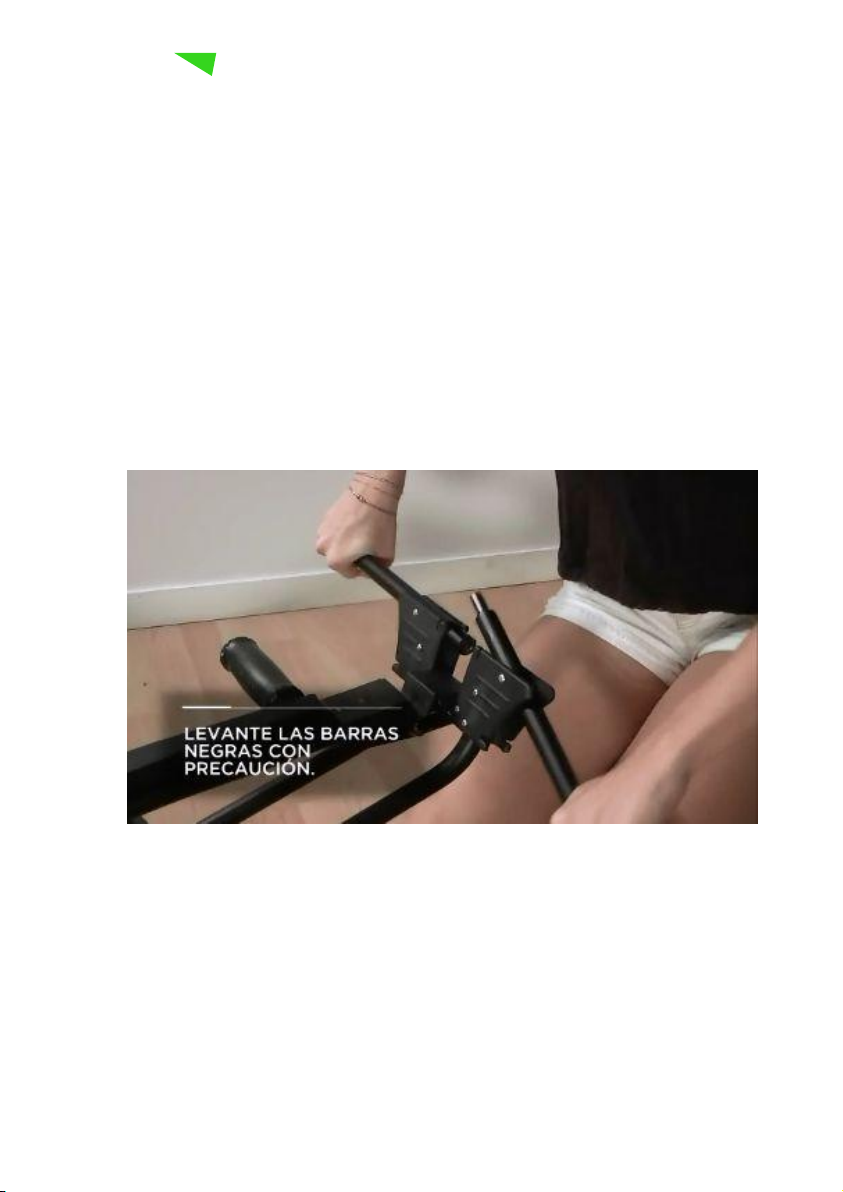

1) Deploy and insert to each other the arms that make the wheels axis.
Lift the black bars with caution!
carrygolf
carrygolf.net
5

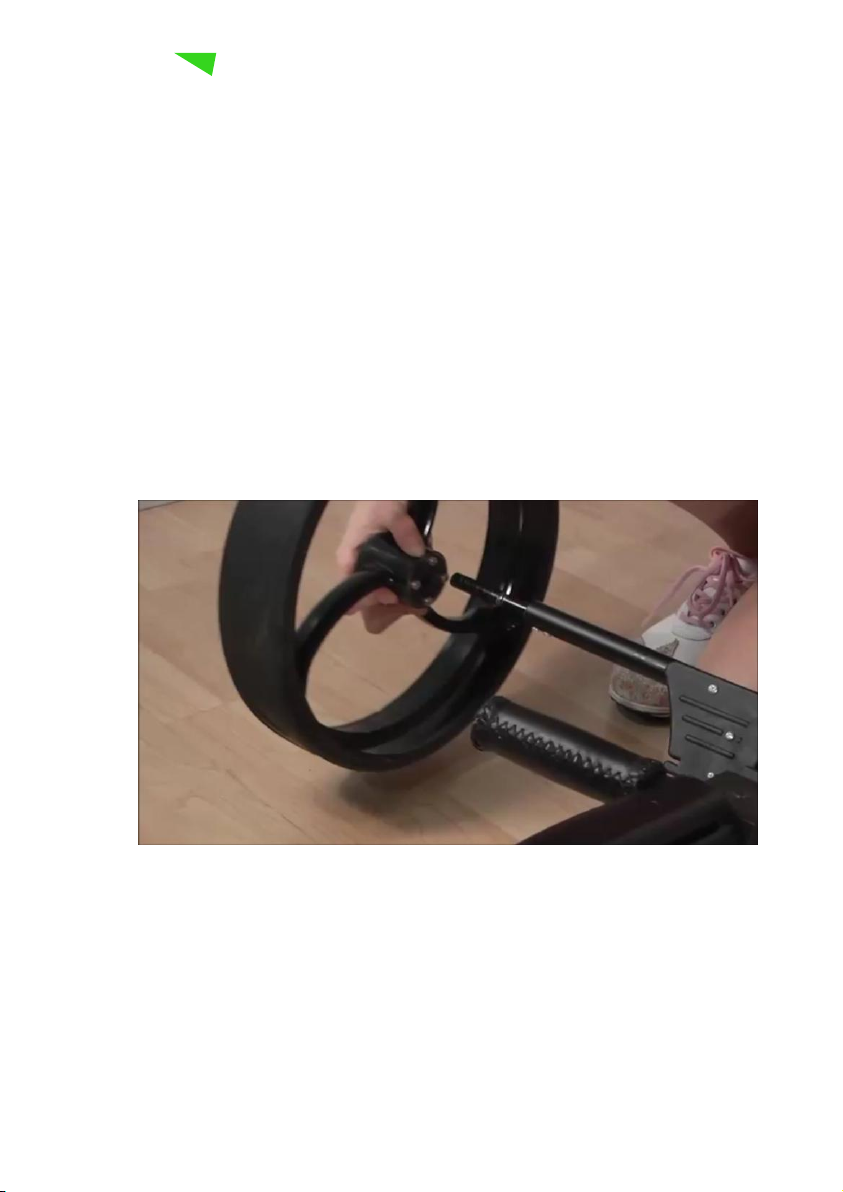

2) Mount the wheels checking the tire tread and still points in the direction of
travel. Take as reference the tire tread of the front wheel. The wheels have
left –right position.
Insert each wheel in axis, pressing the pivot located on the same wheel.
carrygolf
carrygolf.net
6

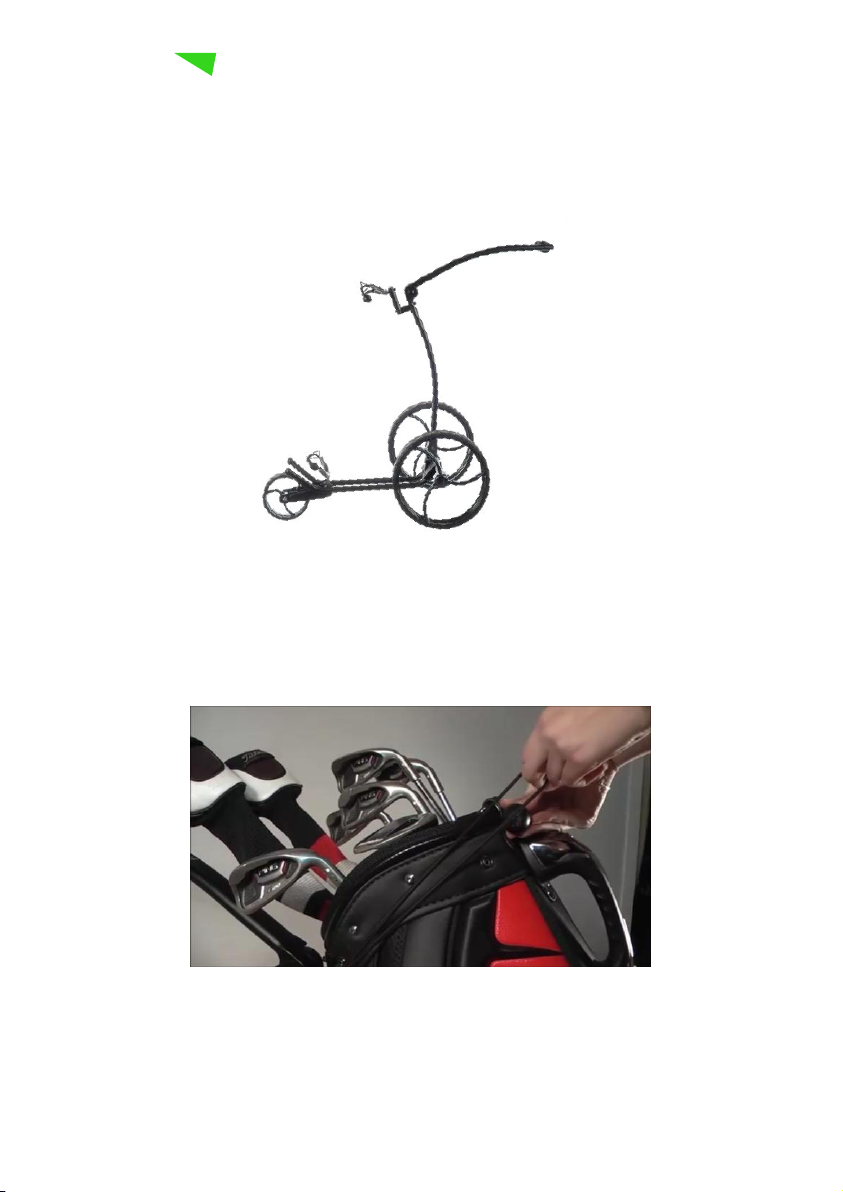

3) Position and fix the horizontal arm at the desired position.
Now the cart is ready to receive and fix the golf clubs bag, using the quick
clamping pads.
carrygolf
carrygolf.net
7
MAINTENANCE
Your Carrygolf has minimal maintenance. Here we detail various aspects to
consider:
1) Cleaning
To keep clean your cart, use a cloth dampened with water.
Do not use water or other liquids around control panel in the upper handle.
Do not use cleaning machines or pressure water hoses.
2) Grease
Grease periodically spraying the front wheel bearing, both rear axles where
the wheels are placed. (Remember to keep the left / right position of the
rear wheels, as they are not interchangeable).
3) Various
Keeping your tires in good condition will give greater grip on the field. When
worn, you can find parts in our store and website.
carrygolf
carrygolf.net
8

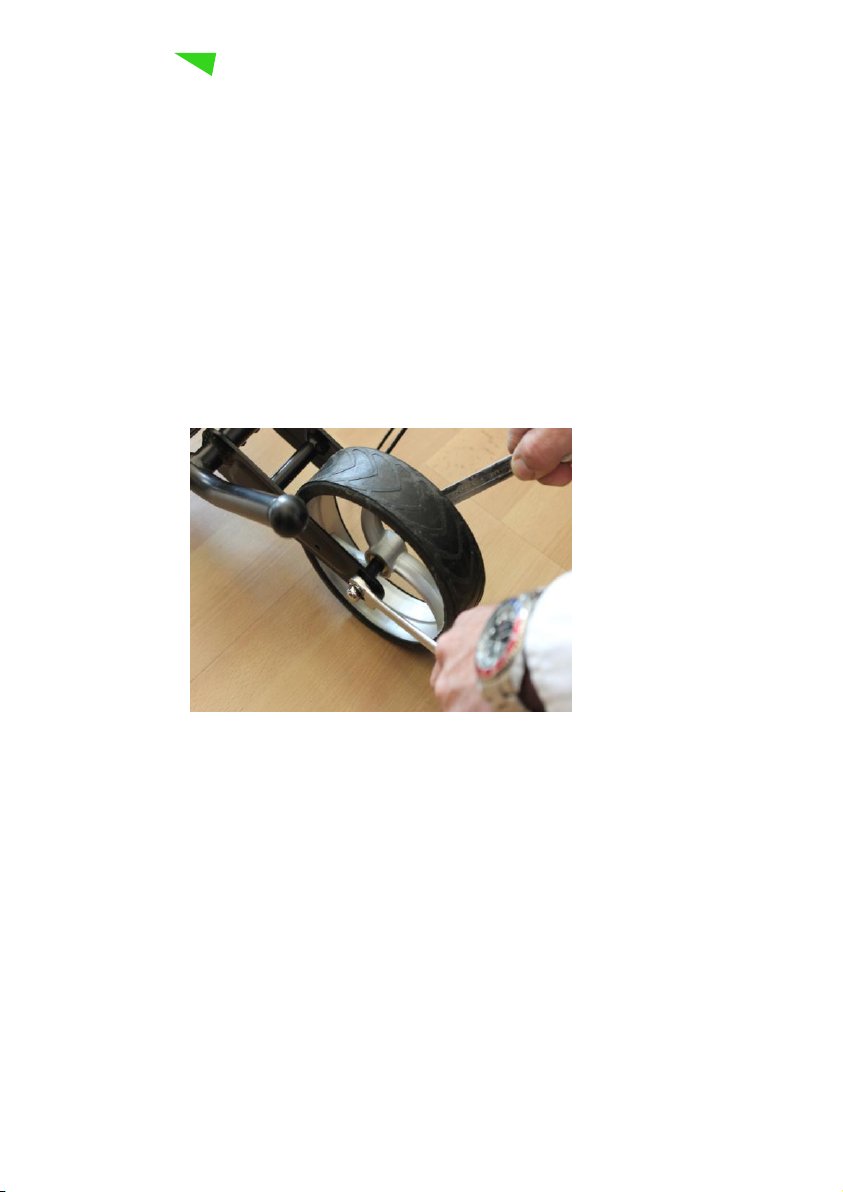

4) Adjustment, front wheel alignment.
It is an easy task, although it seems not.
The front wheel alignment is important to ensure that the car is traveling
in a straight line. If necessary, adjust the direction using two wrenches of
number 14.
Loosen the nut opposite to the direction you want to correct. For example,
if our cart is going to the right, with the help of the two wrenches, loosen
the left nut. Then with the help of a nylon hammer move the axis forward
with small hits onto it.
Repeat if you have not got a perfect alignment.
carrygolf
carrygolf.net
9
TRANSPORT THE CART
Carrying your golf cart is convenient and easy. The folding system reduces the
size of COCOTAL for you to carry it in any small space in your vehicle.
3 rubber grommets are provided to stop the car, once folded, unfold while
carrying by hand or in your car.
Adjust to the desired size for rubber, with a simple knot.
With your Carrygolf, you may buy, two caps for axes.
Their functions are:
-Prevent grease stains inside of your vehicle or your golf cloths as we proceed to
place or remove the wheels.
-Prevent the shaft ends, tear any fabric during transport .
carrygolf
carrygolf.net
10
OFFICIAL TECHNICAL SERVICE:
CARRYGOLF, SL
Crtra. Sils C-63, Km 23
Santa Coloma de Farners 17430
Tel 972 843 084
WARRANTY
Conditions and terms
These products are warranted for CARRYGOLF, SL. the legal guarantee covered by
Royal Legislative Decree 1/2007 November 16, revised text of the General Law for
the Defence of Consumers and Users and other complementary laws.
To access the security is essential to prove the purchase of the product by
presenting of a bill or proof of purchase, and this warranty certificate.
The warranty is extended to all countries where the product is distributed by
Carrygolf SL. . This warranty is subject to the laws in force in Spain.
Warranty Coverage
1 -. The warranty is for a period of 2 years from the time of delivery, except for
the battery, that is for a period of 1 YEAR.
2.-conformity of the product according to the use for which it is intended
guaranteed.
. 3 - Within the period of warranty, we will repair, free of charge, any malfunction
of the device due to its manufacturing, either by repairing, replacing parts or the
whole cart , provided that the chosen option is economically feasible and in
accordance with our criterion. To qualify for repairing, the owner must send the
cart to our authorized service point.
4 -. Repairing period will suspend the warranty period referred to in paragraph 1
above. The suspension period will start from the moment we receive the cart,
until we deliver it to the buyer. Consequently, the warranty will be extended,
during repairing time.
carrygolf
carrygolf.net
11
Invalidation of warranty
This warranty is void in cases of: misuse, improper use, tempting to repair it by
unauthorized person, by the deterioration of the product due to external agents
such as lime or other harmful, chemical, or obstructive corrosive due to
inadequate maintenance, lack of cleaning or the use of non-original spare parts
for the brand. Also not covered under this warranty any damage or failure caused
by operating voltages and incorrect electrical installations.
This warranty does not include: plastic or aesthetic pieces that are claimed by
break after the first use.
Also does not cover normal wear and tear or maintenance or replacement of
parts such as wheels and tires.
This product has been designed to sole and exclusive personal use and therefore
the warranty does not cover professional use such as, rent, or use for unintended
functionality.
This warranty does not affect the rights available to the operator pursuant to the
provisions of Royal Decree 1/2007 of November 16, which approves the revised
text of the General Law for the Defence of Consumers and Users
For any questions or need assistance in the maintenance and / or operation of
your Carrygolf, visit our website or contact us.
