C3 SERIES OEM MULTIMEDIA INTEGRATION
CARPLAY ANDROID AUTO MIRRORING
®
Manual Ver. 1.3
Date Jun 30, 2021

HIGHLIGHTS ................................................................................................. 4
MAIN INTERFACE.......................................................................................... 5
APPLE CARPLAY ............................................................................................ 6
Connect USB cable CarPlay ................................................................... 6
Connect wireless CarPlay ...................................................................... 6
Disconnect wireless CarPlay.................................................................. 8
ANDROID AUTO............................................................................................ 9
MIRRORING.................................................................................................. 9
Mirroring on iPhone.............................................................................. 9
Mirroring on Android smartphone .......................................................10
USB MULTIMEDIA........................................................................................11
SETTINGS.....................................................................................................11
Audio Settings .....................................................................................12
WiFi CarPlay Settings ...........................................................................13
Bluetooth Settings ...............................................................................14
Advanced Features ..............................................................................15
UI Settings ...........................................................................................16
Language .............................................................................................16
Information .........................................................................................17
CONTENTS
3

4
To protect the driving safety of yourself and other road users, and to avoid breaking the traffic
law in your respective country; please DO NOT operate the interface while driving. USB Video
Playback is only to be used whilst stationary and NOT whilst driving a vehicle.
The reversing surveillance function is used in reversing assistance only. Please check the entire
surroundings while reversing.
All steps of installation should be done by a well-trained specialist and professional.
During installation, the ignition key should be turned off. After installation is completed, connect
the power cable last.
Please DO NOT plug or pull the connected cables when the power is on, this is to avoid
damaging the monitor or accessory.
Install wiring in a way that cables will not encounter metal parts. The wiring may be damaged by
contact with metal parts, resulting in fire and shocks. Avoid all contact with hot surfaces when
wiring the main unit. High temperatures may damage wiring, causing shorts and fires.
Please DO NOT put the product in a damp environment or directly in water, to avoid electric
shock, damage and fire accident caused by a short circuit.
Kindly check all components are in the box when receiving the product. If anything is missing,
inform the supplier/manufacturer.
Start the engine before loading, and check the interface to see if the function display, key
control and screen is correct. If this is not up to standard, please give feedback to the supplier/
manufacturer.
Please keep the disassembled automotive components neat during the installation process, to
avoid scratching the instrument panel. Any leftover connecting cables should not be left in the
car. The connecting plug must be insulated to short circuit.
Make sure the cables are connected properly and neatly, as the vehicle installation space
confined, so reduce space usage as much as possible. You should plan how you are going to
connect the wires before installing, to avoid affecting the active component as this controls the
steering wheel movement, throttle and brake pedal. Make sure the cables are fastened correctly.
WARNING

5
Integrated 3 in 1 module supports wireless Apple CarPlay, wired Android Auto and
screen mirroring
Quick wireless CarPlay connection without any pairing code
Auto switch CarPlay appearance (light or dark) depending on car headlights
Supports USB HD video (up to 1080P) and lossless music (APE, WAV, FLAC, MP3,
WMA, etc) playback
Integrate DSP module and support audio EQ settings
Multi-adjustable volume including navi, multimedia, in call, ringer, voice assistant
Support AHD/CVBS front and rear view cameras
Auto enable front view after exiting reversing and easy setup its duration on menu
settings (10s max.)
Adjustable dynamic parking guideline
One A/V input: RCA input and 720P HDMI input are alternatives (only for C3+
series)
Compatible with factory microphone and speakers
Integrate CAN-Bus reader for quick trouble shooting
One-button (original steering wheel) press and hold to reset the interface
Mobile phone charging
Further software update via USB
HIGHLIGHTS

iOS: Wireless & wired Apple CarPlay
Android: Wireless & wired Android Auto
Mirroring: Wired screen mirroring for iPhone, iPad & Android smartphone
USB Media: USB flash drive multimedia playback (music, video, picture)
AV in: RCA audio & video input
HDMI: 720P HDMI input
Front View: Front camera input
Exit: Back to factory infotainment system
Settings: More settings including connection, equalizer, volume, language,
system version, factory mode, etc.
AV in
MAIN INTERFACE
Alternative
6

APPLE CARPLAY
Connect USB cable CarPlay
Plug in an iPhone with lightning USB cable, select "iOS" icon of interface to enter
USB cable CarPlay function. Tap "Allow" on the iPhone pop-up notification. And
tap "Use USB Only" if you just want to use wired Apple CarPlay.
Connect wireless CarPlay
I. (recommended)
Make sure turn on iPhone's WiFi (it doesn't matter connected some SSID or
not) and Bluetooth (allow new connections). Then plug in iPhone with lightning
USB cable, select "iOS" icon of interface to enter USB cable CarPlay function.
Tap "Allow" and "Enable Wireless CarPlay" on the iPhone pop-up notification.
Unplug the USB cable after about 10s, then it will switch to wireless Apple
CarPlay automatically. It will keep wireless mode in the next time until turn off
the iPhone's WiFi and Bluetooth.
7

II.
a. Select "Settings" icon of interface >>> "WiFi CarPlay Settings" >>> "Discover
and connect devices", and stay in the waiting menu.
b. Turn on iPhone's WiFi and Bluetooth, and search BT name "CARPLAY_BT_
xxxx" then connect it with Bluetooth.
c. Tap "Pair - Allow - Use CarPlay" on the following pop-up notifications of
iPhone.
d. It will connect wireless CarPlay after a few seconds.
8

Disconnect wireless CarPlay
a. Select "Settings" icon of interface >>> "WiFi CarPlay Settings" >>> "Paired
Device List".
b. Select and tap the device name that you want to disconnect, then it
will disconnect this device. (Note! Tapping the device name again after
disconnecting will delete this device connection history)
c. Go to "Online Device List" and select the device will re-connect wireless
CarPlay with this device.
9

ANDROID AUTO
MIRRORING
Before using Android Auto, please make sure the latest Android Auto app is installed
on your smartphone.
C3 interfaces support wired & wireless Android Auto. To use wired Android Auto
please plug in the Android smartphone then select "ANDROID" icon on interface.
Unplug the USB cable after about 10s and keep WiFi and Bluetooth on, it will switch
to wireless Android Auto. Or you could also pair your smartphone to interface's BT
(refer to page 8) to connect to wireless Android Auto.
Note. Android Auto is supported on 1. Any Android smartphone running Android 11
or newer with 5GHz Wi-Fi built-in; 2. A Google phone or 3. Some Samsung Galaxy
phones.
Select "Mirroring" icon of interface, then plug in an iPhone with lightning USB
cable. Tap "Trust" on the iPhone pop-up notification. Then enter your iPhone
unlock screen passcode.
Mirroring on iPhone
10

Mirroring on Android smartphone
a. Select "Mirroring" icon of interface, and plug in a smartphone with USB cable.
b. Tap "View" and "Download" on Android smartphone's pop-up notifications
to download and install the app: Autolink.
c. After the installation finish, disconnect and reconnect the USB cable.
d. Tick "Always open Autolink when Autolink is connected" and tap "OK"
e. Always tap "Allow" on the next 3 notifications. Then tick "Don't show again"
and tap "Start now"
f. Tap "OK" on Bluetooth pairing request menu. Done!
Search & install "AUTOLINK" on
Google Play Store.
Select "Mirroring" icon of
interface, plug in the smartphone
with USB cable.
Follow the "d, e, f" steps above.
①
③
②
④
11
I.
II.

USB MULTIMEDIA
Insert a USB flash drive, select "USB Media" icon of interface to play music, video,
pictures.
Now Playing
Video
Audio
SETTINGS
12

Audio Settings
Volume: all kinds of separate volume adjustments including main
multimedia, navigation, in call, ringer, and voice assistant volume.
MIC Sensitivity: microphone's volume levels (Low/Medium/High, and
Medium is default)
EQ: equalization settings in music playback, includes standard, soft, pop,
electronica, jazz, rock, classical, custom, etc.
Main Volume: volume level control for music, video playback, etc.
Navi Volume: volume level control for navigation apps
In Call Volume: volume level control for phone talking
Ringer Volume: volume level control for ringtone
Voice Assistant Volume: volume level control for Siri, Google Assistant, etc.
13

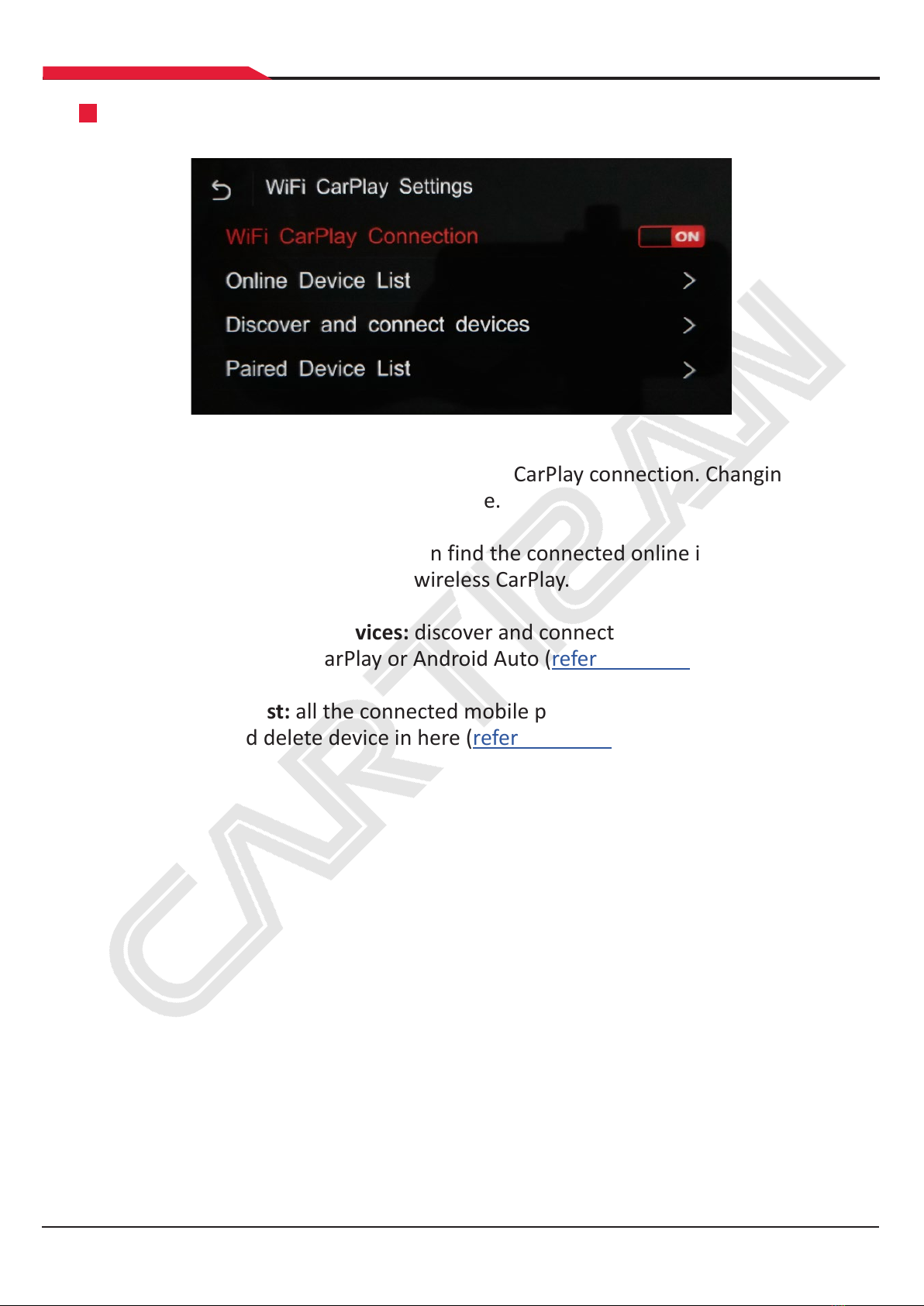

WiFi CarPlay Connection: enable wireless CarPlay connection. Changing status
from OFF to ON will restart the interface.
Online Device List: in here you can find the connected online iPhone list, and
easy to select which one to use wireless CarPlay.
Discover and Connect Devices: discover and connect a new mobile phone for
using wireless Apple CarPlay or Android Auto (refer to page 8).
Paired Device List: all the connected mobile phone history list. You can
disconnect and delete device in here (refer to page 9).
WiFi CarPlay Settings
14

Bluetooth Settings
Connection: ON/OFF button for Bluetooth connection.
Pairing: connect to a new Android device by manual (normally, BT will auto-
connect after plugging in Android smartphone with USB cable).
Clear Records: delete all paired BT history.
BT Paired Device List: check the paired device.
15

Parking Guideline: enable dynamic parking guideline on aftermarket rear view
system.
Park Distance Control: enable parking distance control on aftermarket rear view
system.
Factory USB Switch: N/A. Set "OFF" by default.
Rear Camera Type: option for rear camera type (aftermarket and original).
Aftermarket means install an add-on reverse camera. Original means factory
reverse camera or none camera.
AHD Camera Type: option for AHD cameras (30fps or 25fps). The screen will be
black when reversing if the option differs from your AHD camera.
360 Panoramic: use factory 360 panoramic system.
Front-view Display Time: set front view camera duration after shifting from R
gear. 10s max and 0 means disable front view.
Advanced Features
16

UI Settings
Driver Position: Left/Right layout on Apple CarPlay mode.
Wallpaper: setup for interface's background wallpaper.
Support importing a new picture from USB flash drive: insert a USB stick and
select the +icon to choose the picture. Note! Only the last wallpaper can be
replaced each time.
Language
Left Right
17

About Version: hardware and software version.
Reset: clear cache. This will clear BT and WiFi connection history.
Factory Reset: reset the interface to its factory default settings. This will erase all
data/settings.
Information
18
