Cartizan VI-BWM-14C User manual

Total Solution for Car Audio & Video Interface
Cartizan Technology | www.icartizan.com
Instruction Manual

Total Solution for Car Audio & Video Interface
Cartizan Technology | www.icartizan.com
item
VI-BWM-14C
Latest firmware date
C6
Manual version
A0
Language
English

Total Solution for Car Audio & Video Interface
Cartizan Technology | www.icartizan.com
Catalog
1.Packing Lists.......................................................................................................................................................................... 3
2. Wiring Diagram .......................................................................................................................................................4
3. The description of dip switcher................................................................................................................................5
4. Operation Instructions.............................................................................................................................................6
5. Safety Considerations............................................................................................................................................12

Total Solution for Car Audio & Video Interface
3 / 14
Cartizan Technology | www.icartizan.com
1. Packing Lists
Video Interface Power Wires
LVDS Cables Audio&Video Cables

Total Solution for Car Audio & Video Interface
4 / 14
Cartizan Technology | www.icartizan.com

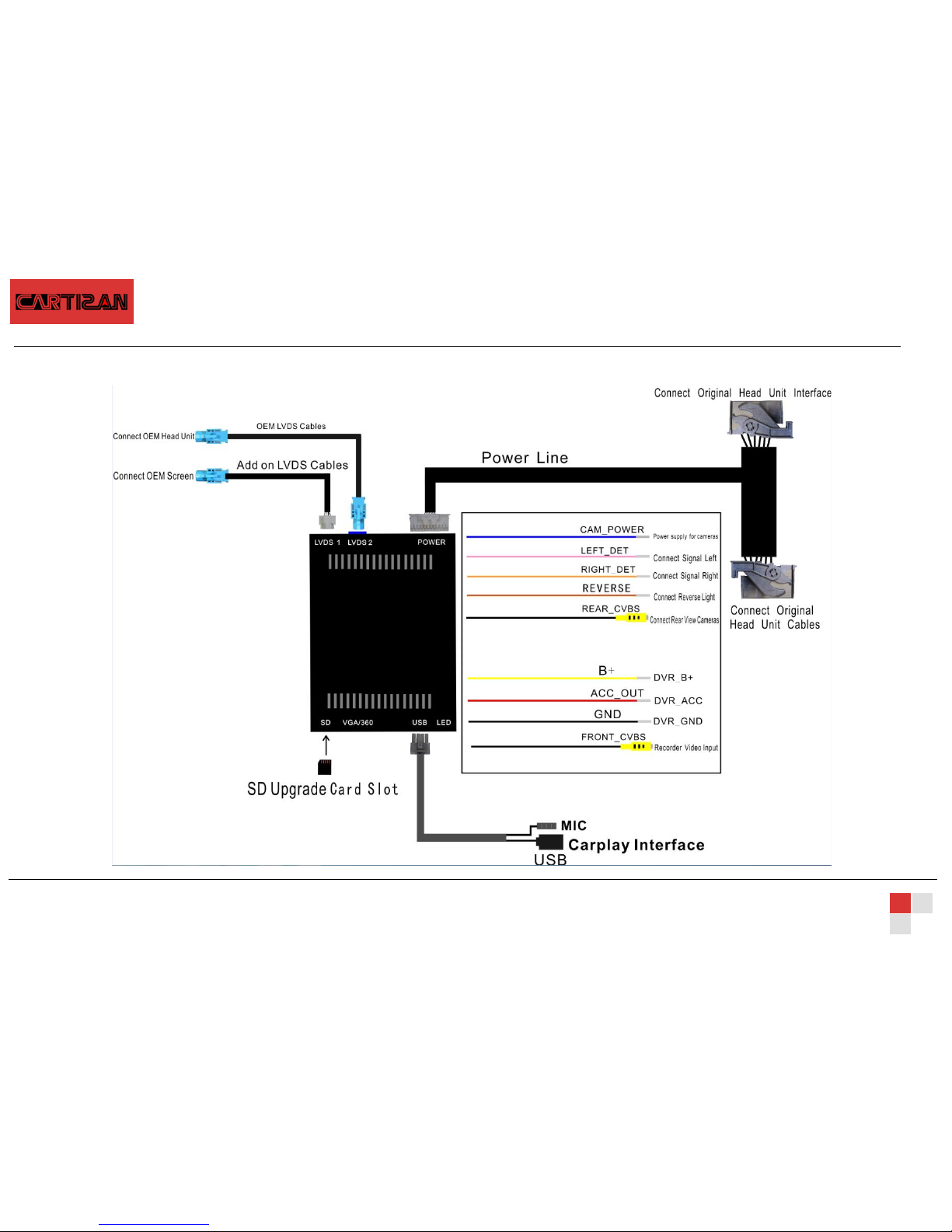

2. Wiring Diagram

Total Solution for Car Audio & Video Interface
5 / 14
Cartizan Technology | www.icartizan.com
3.The description of dip switcher
Dial Switch
Number
Status of the
dial switch
Function Selection
Dial Switch Number
Car Model
1
OFF
IPAS on
3
4
5
ON
IPAS off
OFF
OFF
ON
1-5 Series/MINI/X3(2013-2016 6.5” screen)
2016 X1（6.5” screen）
VGA
2
OFF
360 on
ON
OFF
ON
1-5 series/MINI/X3(2013-2016 6.5” screen)
2016 X1（6.5” screen）
CVBS
ON
360 off
OFF
OFF
OFF
MINI/1-3series/X3/X4(2013-2015 8.8” screen)
5 Series/X5/X6(2013-2016 10.25”screen)
7 Series（2013-2015 10.25” screen）
VGA
6
Reserved
ON
OFF
OFF
MINI/1-3 Series/X3/X4(2013-2015 8.8” screen)
5 Series/X5/X6(2013-2016 10.25” screen)
7 Series（2013-2015 10.25”screen）
CVBS
OFF
ON
OFF
MINI/1-3 Series/X3/X4(2016 8.8”screen)
VGA
7
OFF
Add on Rear Camera
ON
ON
OFF
2017 1Series 6.5”screen
CVBS
ON
OEM Rear Camera
OFF
OFF
ON
2017 1Series 6.5”screen
VGA
8
OFF
OEM Microphone
Remarks：2016 X1//X3/X4 8.8” screen can’t support add on rear view for the time being

Total Solution for Car Audio & Video Interface
6 / 14
Cartizan Technology | www.icartizan.com
ON
Add on Microphone

Total Solution for Car Audio & Video Interface
7 / 14
Cartizan Technology | www.icartizan.com
3. Operation Instructions
Turn off your phones BT function to place phone calls via CarPlay retrofit.
3.1 Switching Operation
1. After installing the video interface correctly, long press the MENU button enter into the interface menu
.
Long press MENU button Add on Interface

Total Solution for Car Audio & Video Interface
8 / 14
Cartizan Technology | www.icartizan.com
4.2.1 Carplay Function
1.Connect CarPlay with mobile, open the CARPLAY function. 2.Waiting connection, after connect successfully then to
use

Total Solution for Car Audio & Video Interface
9 / 14
Cartizan Technology | www.icartizan.com
4.2.2 Android auto（Need download Android auto APP in the Google Store）
1. After connection with mobile, enter into Android auto 2.After connect successfully, then it can be used. Android auto
function, waiting for connection.can set up to OK Google voice wake-up in Google, then voice
operation function can be used.

Total Solution for Car Audio & Video Interface
10 / 14
Cartizan Technology | www.icartizan.com
4.2.3 Mirrorlink Function（the following demo mobile phone is IPHONE.）
1.Mobile phone connect CarPlay interface,enter into 2.Waiting for connection,after connect MirrorLink successfully
MirrorLink function. then use.

Total Solution for Car Audio & Video Interface
11 / 14
Cartizan Technology | www.icartizan.com
4.2.4 USB Function
1.USB insert CarPlay interface, enter USB function. 2.After entering, video and picture of USB can be read.

Total Solution for Car Audio & Video Interface
12 / 14
Cartizan Technology | www.icartizan.com
4.3 Other function description
1.Rear View 2. DVR: After connect cables correctly, the switch order will
become long press the MENU button, Vehicle
-CarPlay-DVR and so on.

Total Solution for Car Audio & Video Interface
13 / 14
Cartizan Technology | www.icartizan.com
5.Safety Considerations
1. In order to protect driving safety and avoid break the traffic law, please do not watch the program or use this product when you’re driving.
2. Please do not put the product in the damp environment or water, in order to avoid electric shock，damaged and fire accident caused by short circuit.
3. The reversing surveillance function just is used in reversing assistance. Once happened reversing accident does not concern us. And hint of fault
message need to be confirmed by professional maintenance Center.
4. In order to safety and ensure the use of product, the installation please leave it to the professional. Do not unload by yourself in order to avoid caused
damaged or accident.
5. Start the engine before loading, check the interface whether have function displayed, key control whether correct, the vehicle interface whether have
scratch. Please give the feedback to customers if there has any questions.
6. Please note that put the disassembled automotive components in a good way on the installation process, avoid scratching the instrument panel, the
leftovers of connect cables need to handle and do not leave it in the car. The connecting plug must be insulated in order to short circuit.
7. The cables should be connected in a good way, the vehicle installation space is a little small, so reduce space usage as far as possible, and it will easy
installation for monitor. There should be a good plan about connect cables, avoid affecting the active component of connecting, such as control
components of turning steering wheel, throttle and brake pedal. There need to be fasten after connecting cables in case of drop.
8. Please do not plug or pull the connected cables in the state of power-on, in order to avoid damaged monitor or accessory.
