CARVIN SX50C User manual

SX50C
SX200H
CARVIN ENGINEERING DATA OPERATING MANUAL
SX100C
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
SX200C
RECEIVING INSPECTION—read before getting started
INSPECT YOUR AMP FOR ANY DAMAGE which may have occurred during ship-
ping. If any damage is found, please notify the shipping company and CARVIN
immediately.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship
your unit, always use the original carton and packing material. This will provide the
best possible protection during shipment. CARVIN and the shipping company are not
liable for any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the
future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped
separately. Please allow several days for the rest of your order to arrive before
inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this
manual for your records. Keep your portion of the card and return the portion
with your name and comments to us.
SX50C, SX100C, SX200C & SX200H
GUITAR AMPS
SX SERIES SPECIFICATIONS:
Speakers: SX50C, SX100C, SX200C: Celestion SEVENTY 80 RMS
Power: SX50C: 50 watts @ 8Ω
SX100C: 100 watts @ 8Ω
SX200C/SX200H: 100 watts @ 4, 8, 16Ω
Output Impedance: 4-16 ohms switchable
Power Amp: THD: Less than 1%
Input Impedance: 100k ohms
Channels: 2—switching
Tone Controls: BASS: 80Hz
Drive Channel MID: 600Hz
TREBLE: 8k Hz
PRESENCE: 11k Hz (SX200 only)
Clean Channel BASS: 90Hz
MID: 575Hz
TREBLE: 9k Hz
PRESENCE: 8-11k Hz (SX200 only)
Ch 1 Sensitivity: 1mV for clipping, dynamic range 72dB
Ch 2 Sensitivity: 75mV for full output
Line Out: 1.5 VAC @ full power
Power: SX50C/SX100C: 90-250VAC, 50-60Hz, 125VA
SX200C/SX200H: 120V or 240V model
Fuse: 5 amp 250V internal
Cabinet Size: SX50C/SX100C: 19.5W x 10.25D x 17.5”H
SX200C: 26W x 10.25D x 17.5”H
SX200H: 24.5W x 9.5D x 10.5”H
Cabinet: Plywood–no particle board
Net Weight: SX50C/SX100C: 30 lbs, SX200C: 44 lbs, SX200H: 24 lbs
Warranty: One Year
Options: FS22 footswitch,
CV211 cover SX100 & SX50
CV3212 cover SX200
CV3200 cover SX200H
SC212E two 12” 200w 4Ωextension cabinet
SC412T/B four 12” 200w 8Ωextension cabinet
76-10205C 0705
SX SERIES Classic Tube Emulation, awesome digital effects, rich black vinyl
covering and the brass red jewel light continue to make the AMERICAN MADE SX
Series one of the hottest amps on the market today!
EMULATION OR MODELING? Unlike other “modeling” amps, the SX
doesn’t just copy the sounds of other amplifiers – it actually emulates 12AX7 tube
circuitry. The SX waveforms successfully “emulates” real tube waveforms that
breathe and express warmth from a mild soft-clip to a full power soaked sustain.
Pro players and industry gurus have stated that the SX Tube Emulator actually
sounds better than many tube amps!
TWO CHANNELS – Clean and Distortion. Each channel has its own inde-
pendent volume control for setting up equal levels quickly and easily. The SX200C
and SX200H adds true “DUAL CHANNEL 1 & 2” capabilities allowing both chan-
nels to be played at the same time.
ACTIVE TONE CONTROLS All models feature BASS, MID and TREBLE
controls on both channels. The SX200C and SX200H goes even further by adding
a PRESENCE control to each channel for more high-end.
24-BIT EFFECTS Once you have your tone, add in just the right amount of
lush REVERBS, rich CHORUSES, thick textured FLANGING and pristine ECHOES
using fully adjustable parameters for damping, decay, depth, speed, time and regen-
eration–up to 256 24-BIT effects. The SX200C and SX200H adds a second digital
processor dedicated to creating a lush, concert-hall reverb at the push of a button.
SX MODELS The 50 watt SX50C with one heavy-duty Celestion SEVENTY 80
speaker is perfect for any venue. The SX100C, SX200C and SX200H feature a full
100 watts RMS – plenty for most situations. All combos & stacks feature the
heavy-duty Celestion SEVENTY 80 speaker that provides awesome guitar repro-
duction – from clean to blues to scream’n metal. The SX200C features two 12”
speakers for an even bigger sound. The SX200H head can be paired with either a
4x12 half stack or 8x12 full stack.
REAR PANEL CONNECTIONS All back panels feature a voiced LINE
OUT for recording or running a slave amp, HEADPHONE jack, EXTENSION
SPEAKER jack and a FOOT SWITCH jack for the optional FS22 (for remotely
changing channels and turning on/off the effects). The extra dedicated
reverb on the SX200C & SX200H is controlled by a front panel switch. The
SX200C & SX200H also adds SEND/RETURN jacks for your own external
effects. A 4, 8, 16Ωimpedance switch is featured for matching speakers.
RUGGED CONSTRUCTION SMT surface mount electronics
ensure consistent, reliable performance and are nearly impervious to
bumps and vibrations. Strong, lightweight plywood cabinet (not particle
board), aluminum chassis, steel grille and corners deliver one of the light-
est, yet most rugged amps available.

VOLUME DRIVE TREBLE TRVOLUME BASS MIDMIDBASS
CHANNEL 2CHANNEL 1 1
PRESENCE
2
1/2 2
INPUT
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
4
3
2
BLUES
GETTING STARTED QUICKLY
If you are like most players, you probably want to plug in your new amp and get start-
ed playing right away. You can read the rest of the manual later to learn the finer points
of operating your amp. In order to get started you will need your SX AMP, a 120 or 230
AC grounded power outlet, your instrument, and a standard guitar cord. With the amp
turned off, you may now plug it into the proper AC voltage.
Now turn all the volume and overdrive controls off and set tone controls at their mid center
position. If you have purchased the FS22 foot switch, plug it into the rear foot switch jack
for switching the channels and effects. Note: The CH SELECT
SWITCH must be in the OUT
position (CH 1) for the FS22 to function (only CH 2 will function if it’s in the wrong position).
Now, turn the POWER SWITCH ON. Gradually raise the volume and overdrive controls.
Check the BLUES SWITCH setting before adjusting the tone controls.
FRONT PANEL
1. INPUT 1 (INPUT 1/2 ON SX200C & SX200H)
Connect a 1/4” guitar cable to this input. The 1/2 CH SELECT SWITCH will toggle
between channel 1 and 2. Use a professional quality 1/4” plug shielded guitar cord
(Carvin SH25) no longer than 25 feet. A long cable will reduce the overall treble response
from your pickups. Note: For remote footswitching leave the 1/2 CH SELECT SWITCH
in the “out” (CH 1) position when connecting the FS22 footswitch.
2. INPUT 2 (DUAL CHANNELS SX200C & SX200H ONLY)
To use the true dual channel feature of the SX200 and SX200H, plug a second guitar into
INPUT 2. When a guitar is plugged into both inputs, the channels become independent
of each other and can be played simultaneously.
3. CHANNEL SELECT
Set the channel switch to the desired channel. The LED’s next to the CHANNEL 1/2 will
let you see which channel is functioning. Use CH 1 for overdrive/lead. Use CH 2 for clean
playing. For the FS22 footswitch to function, set the CH SELECT to the “ OUT” or “CH 1”
position.
CHANNEL 1 DRIVE
4. CHANNEL 1 INDICATOR
The RED LED will illuminate when the OVERDRIVE channel is selected.
5. CHANNEL 1 VOLUME
The volume of the drive channel is to be used as a master level control. For partial clean
output, set the VOLUME control to 10 and turn the DRIVE nearly off.
6. CHANNEL 1 DRIVE
The drive channel delivers 12AX7 tube saturation and EL34 power tube compression.
This channel incorporates a dual section lead DRIVE control with a 72 dB dynamic range
so you can get shimmering clean, a fabulous blues tone or soft clipping to full blown over-
drive with total tube warmth. For mild 12AX7 tube emulation, set the DRIVE control
between 2 & 3. For some of the best saturation, set the control between 4 & 6. For full
blown drive, set the control between 6 and 10 (your guitar volume should be turned all
the way up). Because the SX AMP has a lot of gain in the DRIVE control, you can get
guitar feedback. If feedback is a problem, reduce the amount of DRIVE or move the gui-
tar away from the speakers.
7. BLUES SWITCH
The exclusive BLUES SWITCH adds the critical mid tones in the 525 Hz range that is so
important to great sounding blues-rock tone. However, when the BLUES SWITCH is not
used (OUT), the SX delivers a great “scooped” sound for hard rock metal players. It is
important that you pre-select this switch for your style of playing before adjusting the
tone controls.
8. CHANNEL 1 BASS, MID & TREBLE
These active tone controls develop the heart of your sound. It is important that you start
at the mid point (5) on each control. The total range of these controls are a substantial 20
dB (±10 dB) with a center frequency at 80 Hz for BASS, 600 Hz for MIDS and 8k Hz for the
TREBLE. These controls are very powerful in their effect so take time with the different set-
tings for your ultimate sound.
9. CHANNEL 1 PRESENCE (SX200C/H ONLY)
Channel 1 features its own PRESENCE for added treble. It’s frequency range is at the
very high end of the guitar spectrum (11k Hz) for shimmering, glassy harmonics. If your
sound is too bright with single coil pickups, you may want to adjust the PRESENCE con-
trol and TREBLE control.
CHANNEL 2 CLEAN
10. CHANNEL 2 CLEAN INDICATOR
The GREEN LED will illuminate when the CLEAN channel is selected.
11. CHANNEL 2 CLEAN VOLUME
Channel switching from the Drive channel into CHANNEL 2 gives you crisps, clean sounds.
Thanks to special mud-cutting circuits that work between the frequencies of 550 and 700 Hz,
your guitar tones will be full and vibrant.
12. CHANNEL 2 BASS, MID & TREBLE CONTROLS
To start, set the BASS, MID & TREBLE controls at their center (5) position. These con-
trols are most likely to be set according to the type of pickups used (dual or single coil).
Most musicians like to reduce the MIDs deeper bass and crisper highs.
13. CHANNEL 2 CLEAN PRESENCE (SX200C/H ONLY)
For added clarity, the CH 2 PRESENCE control increases the highest guitar harmonics in the
8-11k Hz range. A normal bright switch works only in the 3-5k Hz range leaving your sound
somewhat flat. Single or dual coil pickups will determine the level of this control.

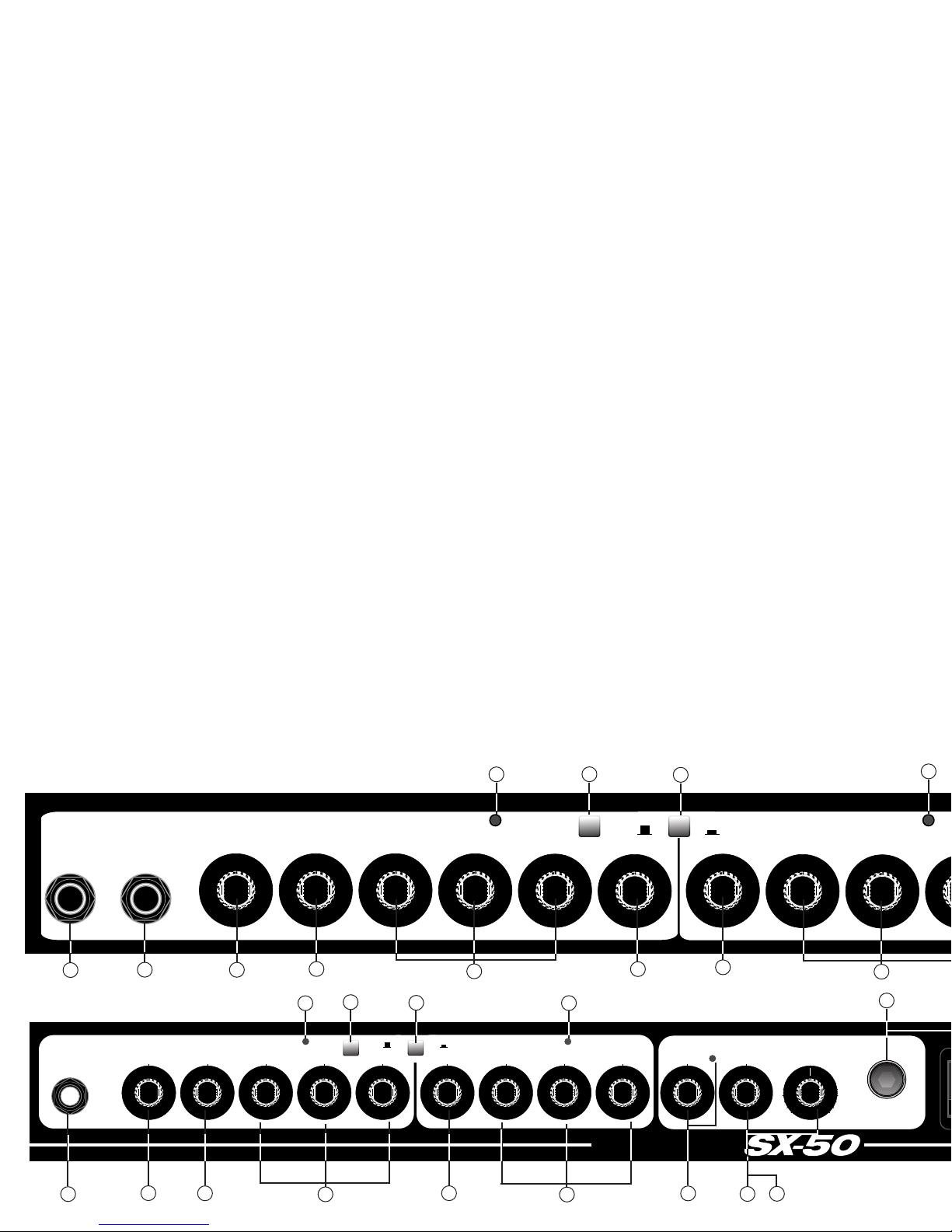

SX50C, SX100C, SX200C & SX200H FRONT & REAR PANEL CON-
12
4
6
58911
10
12
73
VOLUME DRIVE TREBLEVOLUME BASSMIDBASS
CHANNEL 2 CHANNEL 1
1
EFFECTS
ADJUST
2
INPUT MIDTREBLE
BLUES
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
1
0
10
9
8
7
6
5
4
3
2
E
C
H
O
C
H
O
R
U
S
F
L
A
N
G
E
R
E
V
E
R
B
SELECT
15611 17 14 15
812
18
73
410

DSP EFFECTS SECTION
14. SMART EFFECTS™ ADJUST (PARAMETER) CONTROLS
The 24-BIT processor provides a host of great sounding effects including FLANGE,
REVERB, ECHO, & CHORUS. Turn up the LEVEL control to 5 as a starting position. Turn the
LEVEL higher if more effect signal is desired. Use the SELECT and the ADJUST controls to
get the desired effect. Each channel now has its own effects. Move the EFFECTS ADJUST
and SELECT controls to the desired effect for each channel. Smart Effects™ will auto-
matically store your last selected effect settings for each channel and will recall them
when you switch between channels. As you select each channel, notice that the 1 /2 LED
next to the LEVEL control changes color to match the channel LED color to indicate that
the effects has been changed. The settings are stored in memory even when the amp has
been turned off. To change the stored effect, simply select a new effect. Note: The
SELECT and the ADJUST controls do not rotate to their stored settings. Make note of your
favorite effect settings.
15. EFFECT PARAMETERS
Each of the four effects has a variable parameter that can be easily adjusted. Each “SELECT” &
“PARAMETER” is described below.
A) ECHO: SELECT the amount of the regeneration (repeating). Now select the ADJUST con-
trol for the shortest or longest delay time between the original signal and the echo.
B) REVERB: SELECT the amount of presence (high frequencies) in the reverb. Now turn the
ADJUST control to provide the minimum or maximum decay.
C) CHORUS: SELECT the amount of reverb with your chorus. Now turn the ADJUST control
to increase the depth.
D) FLANGE: SELECT the amount of speed with your flange (phasing effect). Now turn the
ADJUST control to increase the depth.
16. SX200C & SX200H ALTERNATE REVERB SYSTEM
The SX200C & SX200H also features an alternate reverb system that is independent from
the Smart Effects™ system. By pushing in the REVERB SWITCH, you have a modest
amount of reverb added to both channels to enhance your sound. The FS22 footswitch
does not externally control this reverb, which allows you to have reverb on at all times
whether Smart Effects™ are ON or OFF.
17. EFFECTS OUTPUT LEVEL CONTROL
The effects LEVEL control is used to set the amount of effects you want blended into your
guitar. This control affects the overall effect levels including the alternate reverb system
featured on the SX200C. Note: The effects level is not controlled by the Smart Effects™
memory so you must manually change it if you need different levels between channels.
18. POWER ON/OFF SWITCH & PILOT LIGHT
The front power switch will turn on the power to the amplifier. The brass jeweled red
pilot light illuminates when the amp is powered on.
REAR PANEL
19. FOOTSWITCH
Carvin’s FS22 dual footswitch is recommended for remote channel switching and DSP
effects ON/OFF switching. Most foot pedals with 2 switches featuring a stereo plug will
work. For channel switching, be sure that the 1/2 CHANNEL select switch between the
channels is in the “OUT” position. If only CH 2 works, the 1/2 channel select switch is in
the wrong position.
20. HEADPHONE
The stereo HEADPHONE 1/4” jack is “CABINET VOICED” to prevent excessive highs. This
greatly reduces ear fatigue.
21. CABINET VOICED LINE OUT OUTPUT
The voiced 1/4” LINE OUT gives the same response as if you were micing the speaker. Special
equalization reduces the harsh highs that are normally associated with a line out signal.
22. SPEAKER OUTPUT
A 1/4” SPEAKER OUTPUT is featured to operate an extension speaker system. The min-
imum impedance of an extention speaker for the SX50C, SX100C is 8Ω. The SX200C and
SX200H has a switchable impedance of 4, 8 and 16 ohms. Set this accordingly when
adding additional speakers. IMPORTANT: TO INSURE THAT THE SX200 DOES NOT SHUT
OFF (PROTECTION MODE), PLEASE SELECTED THE PROPER SPEAKER IMPEDANCE ON
THE REAR. IF YOUR SX200/H TURNS OFF DURING A PERFORMANCE, SET THE IMPED-
ANCE TO 4Ω.
Speaker Switch Setting
1x 4Ω-4Ω
2x 8Ω-4Ω
1x 8Ω-8Ω
2x 16Ω-8Ω
1x 16Ω-16Ω
The following are settings to be used with Carvin cabinets loaded with Celestion speakers.
Note: these settings may not be suitable for cabinets with different speakers.
AMP MODEL CABINET SWITCH SETTING
SX200C Combo 2x12 8Ω
SX200C 2x12 ext. cabinet (total 4x12) 4Ω
SX200H 4x12 8Ω
SX200H 8x12 4Ω
23. EFFECTS LOOP (SEND & RETURN) (SX200C/H ONLY)
Although the SX200C has built-in effects, you may want to use its separate effects loop. For
the lowest noise from a pedal effect, use this effects loop instead of plugging the guitar into the
effects and then into the amp. To use the
EFFECTS LOOP , plug the input of your effects into
the SEND jack and the output of your effects into the RETURN jack. Use shielded cables.
24. AC POWER & FUSE
The AC POWER CORD is designed to operate with any voltage from 90-250VAC, 50-
60Hz. Plug the cord into a grounded “3” prong” power source. No attempt should ever
be made to defeat or use the amp without the ground connected.
The internal FUSE is located inside the chassis. This is not user serviceable. Contact
Carvin’s Service Department at 800-854-2235 or carvin.com
