CASHIDO 10 Second Purifier OH8100-XN2 Series User manual

User Manual 10 Second Purier
OH8100-XN2/XD2 Series
10 秒淨水機櫥下型 安裝使用手冊

Nomenclature
10 Second Purifier
Filter Body
Drinking Water
Output
Operation
Interface
Base
Tap Water Input
3/8" PVC Soft Hose
Ozone Output DC Input Jack
External Power
Supply
Air Input
Rubber Pad
PVC Soft
Hose
Silica Tube
Adapter
Wire
PVC Soft
Hose
Silica Tube
Adapter
Wire
1st Purifier
2nd Purifier
Air Vents (2)
Water Drain
3/8" PVC Soft Hose

Nomenclature
10 Second Purifier
Filter Body
Drinking Water
Output
Operation
Interface
Base
Tap Water Input
3/8" PVC Soft Hose
Ozone Output DC Input Jack
External Power
Supply
Air Input
Rubber Pad
PVC Soft
Hose
Silica Tube
Adapter
Wire
PVC Soft
Hose
Silica Tube
Adapter
Wire
1st Purifier
2nd Purifier
Air Vents (2)
Water Drain
3/8" PVC Soft Hose
1

Specification
Filter Specification
10 Second Purifier
Name：10 Second Purifier
Model：with faucet：OH-8100 XD2, OH-8100 XN2
Input Voltage：DC12V
Adapter：Input AC100-240V/50-60Hz,Output DC12V/1A
Power Consumption：6.5W (Max.)
Standby Consumption：0.3W
O3 Output：100 mg/hr
Weight：3.8 kg
Dimension：348 × 220 × 420 mm
Water Requirement：Tap Water
1st Filter: Ion-Resin Exchange
Place of Production：Taiwan
Supplier：Cashido Corporation
Model：RE-01M
Material：Gel polystyrene crosslinked with DVB
Maximum Water Pressure：120 PSI (8.43Kg/cm
2
)
Temperature：25°C ~ 40°C
Expected Life Time：3 Months
※Actual life time varies based on regional water quantity and quality.
Certification：
1.Gel polystyrene
crosslinked with DVB,
NSF/ANS-61
Certificaiton：
1.NSF42, NSF53
2nd Filter：High Precision Activated Carbon
Place of Production：U.S.A.
Supplier：Cashido Corporation
Model：CFS9812X
Material：0.5μm High
Maximum Water Quantity：5.7 L/MIN
Maximum Water Pressure：125 PSI (8.78Kg/cm
2
)
Temperature：5°C ~ 38°C
Expected Life Time：1 Year/ 33,000L
※Actual life time varies based on regional water quantity and quality.
Nomenclature
Faucets
Other Accessories
O
3
Drinking Water Faucet*1 UnitCashido’s Patented O3 Faucet*1 Unit
Indicator
Power Line
Cold Water Pipe Hot Water Pipe
Silica
Tube
Drinking Water Faucet
O3 Switch/
Indicator (On/Off)
3
/8" PVC Soft Hose/2M*1 PCS RO Hose/1.5M*1PCS
1/4"PE Soft Hose/2.5M*1 PCS RO Hose/1M*1PCS
Adapter*1 Unit
Tie*1 PCS
Accessories*1 Bag
‧1/2" Run Tee
‧1/2"*3/8" Quick Connect Fitting
‧3/8"*3/8" Ball Valve
‧3/8"*1/4" Ball Valve
‧Drain Valve Sticker
‧Filter
‧1/4" * 1/4" Quick Connect Fitting
‧RO Hose Plug
‧Check Valve
2

Specification
Filter Specification
10 Second Purifier
Name：10 Second Purifier
Model：with faucet：OH-8100 XD2, OH-8100 XN2
Input Voltage：DC12V
Adapter：Input AC100-240V/50-60Hz,Output DC12V/1A
Power Consumption：6.5W (Max.)
Standby Consumption：0.3W
O3 Output：100 mg/hr
Weight：3.8 kg
Dimension：348 × 220 × 420 mm
Water Requirement：Tap Water
1st Filter: Ion-Resin Exchange
Place of Production：Taiwan
Supplier：Cashido Corporation
Model：RE-01M
Material：Gel polystyrene crosslinked with DVB
Maximum Water Pressure：120 PSI (8.43Kg/cm
2
)
Temperature：25°C ~ 40°C
Expected Life Time：3 Months
※Actual life time varies based on regional water quantity and quality.
Certification：
1.Gel polystyrene
crosslinked with DVB,
NSF/ANS-61
Certificaiton：
1.NSF42, NSF53
2nd Filter：High Precision Activated Carbon
Place of Production：U.S.A.
Supplier：Cashido Corporation
Model：CFS9812X
Material：0.5μm High
Maximum Water Quantity：5.7 L/MIN
Maximum Water Pressure：125 PSI (8.78Kg/cm
2
)
Temperature：5°C ~ 38°C
Expected Life Time：1 Year/ 33,000L
※Actual life time varies based on regional water quantity and quality.
Nomenclature
Faucets
Other Accessories
O
3
Drinking Water Faucet*1 UnitCashido’s Patented O3 Faucet*1 Unit
Indicator
Power Line
Cold Water Pipe Hot Water Pipe
Silica
Tube
Drinking Water Faucet
O3 Switch/
Indicator (On/Off)
3/8" PVC Soft Hose/2M*1 PCS RO Hose/1.5M*1PCS
1/4"PE Soft Hose/2.5M*1 PCS RO Hose/1M*1PCS
Adapter*1 Unit
Tie*1 PCS
Accessories*1 Bag
‧1/2" Run Tee
‧1/2"*3/8" Quick Connect Fitting
‧3/8"*3/8" Ball Valve
‧3/8"*1/4" Ball Valve
‧Drain Valve Sticker
‧Filter
‧1/4" * 1/4" Quick Connect Fitting
‧RO Hose Plug
‧Check Valve
3

Installation Instructions
Step 2: Assemble the faucet and secure 10 Second Purifier
1. Install Anti-bacterial Washing Faucet and Drinking Water Faucet
1. Confirm the diameter of the sink hole is 35 mm.
2. Drill holes to install the faucets (O3 faucet/drinking water faucet).
2. Secure 10 Second Purifier
1. Place the 10 Second Purifier on a flat surface in the kitchen cabinet.
2. Ensure there is power supply near the 10 Second Purifier.
O
3
O
3
Step 1: Install Filters
2.
3.
4.
Installation Instructions
1. Insert 1st and 2nd
filters into the base.
1 2
To avoid damaging
the system, use only
Cashido-supplied
filters.
12
FASTENLOOSEN
Apply moderate
downward pressure
and rotate the filters
clockwise to fasten
them in place.
Remove the filters
by rotating them
counter-clockwise.
10 Seconds Purifier
Reminder:
To install or change
2nd filter, please
first press it down,
and then rotate the
filter.
4

Installation Instructions
Step 2: Assemble the faucet and secure 10 Second Purifier
1. Install Anti-bacterial Washing Faucet and Drinking Water Faucet
1. Confirm the diameter of the sink hole is 35 mm.
2. Drill holes to install the faucets (O3 faucet/drinking water faucet).
2. Secure 10 Second Purifier
1. Place the 10 Second Purifier on a flat surface in the kitchen cabinet.
2. Ensure there is power supply near the 10 Second Purifier.
O
3
O
3
Step 1: Install Filters
2.
3.
4.
Installation Instructions
1. Insert 1st and 2nd
filters into the base.
1 2
To avoid damaging
the system, use only
Cashido-supplied
filters.
12
FASTENLOOSEN
Apply moderate
downward pressure
and rotate the filters
clockwise to fasten
them in place.
Remove the filters
by rotating them
counter-clockwise.
10 Seconds Purifier
Reminder:
To install or change
2nd filter, please
first press it down,
and then rotate the
filter.
5

Operation Instructions
Check Before Use
LCD Monitor
Power
Reset Filter
Turn On/Off
Operation Interface
1. Turn on the cold and hot water
water shutoff valves.
2. Ensure there are no leaks
and connect the power.
LED Indicator
1. Press “Power” for 3 seconds to turn it on/off.
2. 10 Second Purifier will be in washing mode.
3. Run washing water for 10 minutes to activate the filters.
O
3
O3 Indicator
Handle of the
O3 faucet
Handle of the
drinking water
faucet
Installation Directions
Step 3: Piping and Power Connection for 10 Second Purifier
Power
100~240V/50-60Hz
OUT
IN
Hot
Water
Valve
Cold
Water
Valve
➁
➇
Order
➀ ➁ ➂ ➃ ➄ ➅
Order
➇ ➈ ➉
⑪ ⑫
Instructions Instructions
Connect the 1/2" run tee to the cold
water input
Connect the O3 faucet cold water input the the run tee. Connect the 1/2"*3/8" quick connect
fitting to the run tee.
3/8"*3/8" ball valve Connect 3/8"PVC soft hose to 4,5 and the tap water input of the machine
Place check valve with the arrow facing the faucet
With ball valves installed, confirm the “flow direction”.
Insert to the
drain pipe
Part Names and Connections
O3
➀
➂
➃
➄
➅
OUT
IN
➆
➈
➉
⑪
⑬
⑭
Connect the hot water pipe of the O3 faucet to hot water valve.
Connect silica tube to the machine, ⑫
check valve and O3 faucet.
➆3/8"*1/4" ball valve
Connect the 3/8"PVC soft hose to the drain valve ➆. Connect 1/4"PE tube to ➆and drain hole in
the cabinet.
Connect 1/4"PE tube to drinking water ball valve and drinking water faucet.
⑫
⑭Connect the adapter to the machine and
socket
⑬Connect power indicator line to the machine
and O3 faucet.
6

Operation Instructions
Check Before Use
LCD Monitor
Power
Reset Filter
Turn On/Off
Operation Interface
1. Turn on the cold and hot water
water shutoff valves.
2. Ensure there are no leaks
and connect the power.
LED Indicator
1. Press “Power” for 3 seconds to turn it on/off.
2. 10 Second Purifier will be in washing mode.
3. Run washing water for 10 minutes to activate the filters.
O
3
O3 Indicator
Handle of the
O3 faucet
Handle of the
drinking water
faucet
Installation Directions
Step 3: Piping and Power Connection for 10 Second Purifier
Power
100~240V/50-60Hz
OUT
IN
Hot
Water
Valve
Cold
Water
Valve
➁
➇
Order
➀ ➁ ➂ ➃ ➄ ➅
Order
➇ ➈ ➉
⑪ ⑫
Instructions Instructions
Connect the 1/2" run tee to the cold
water input
Connect the O3 faucet cold water input the the run tee. Connect the 1/2"*3/8" quick connect
fitting to the run tee.
3/8"*3/8" ball valve Connect 3/8"PVC soft hose to 4,5 and the tap water input of the machine
Place check valve with the arrow facing the faucet
With ball valves installed, confirm the “flow direction”.
Insert to the
drain pipe
Part Names and Connections
O3
➀
➂
➃
➄
➅
OUT
IN
➆
➈
➉
⑪
⑬
⑭
Connect the hot water pipe of the O3 faucet to hot water valve.
Connect silica tube to the machine, ⑫
check valve and O3 faucet.
➆3/8"*1/4" ball valve
Connect the 3/8"PVC soft hose to the drain valve ➆. Connect 1/4"PE tube to ➆and drain hole in
the cabinet.
Connect 1/4"PE tube to drinking water ball valve and drinking water faucet.
⑫
⑭Connect the adapter to the machine and
socket
⑬Connect power indicator line to the machine
and O3 faucet.
7

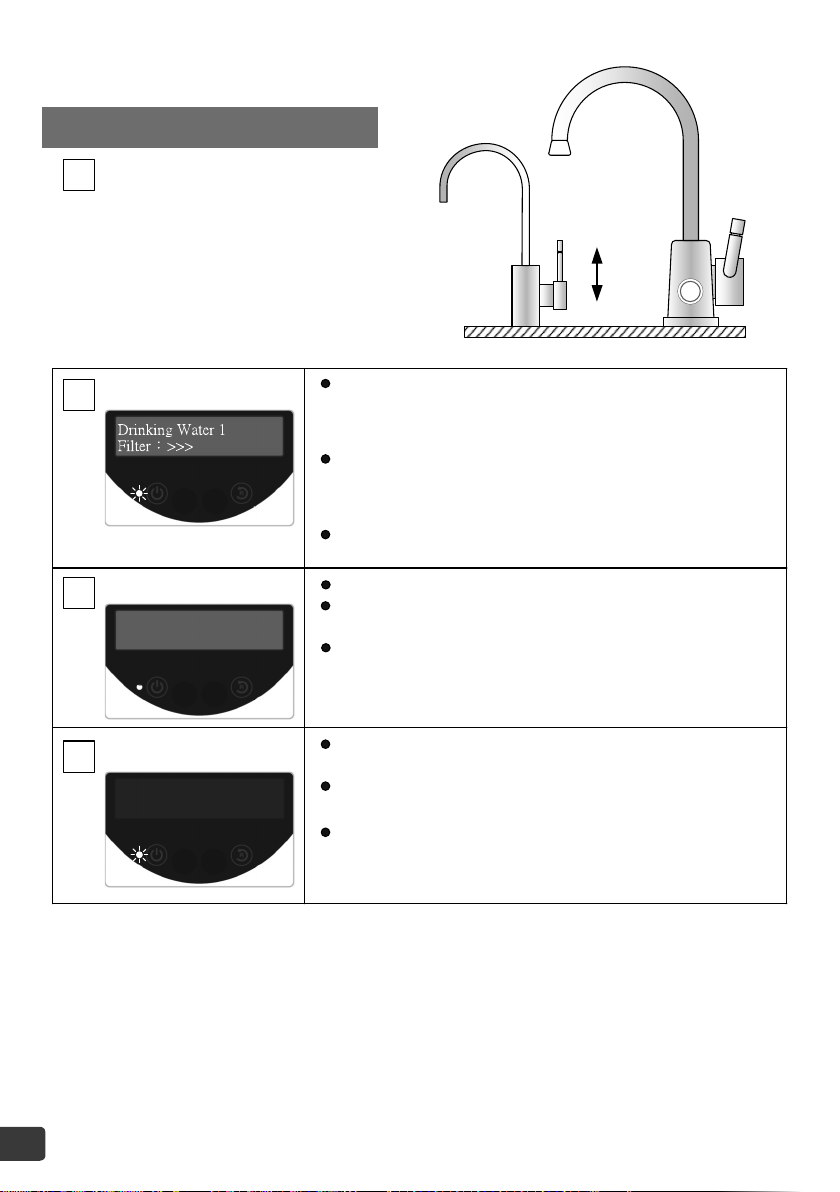

Ozonized Washing Water
2.
Press the O3 switch,
and turn on the O3 faucet.
Press “O3 switch”, and the indicator turns on to start
ozone washing mode.
Turn on the O3 faucet, and the machine will switch to
washing water mode, generating O3 with the word “O3”
shown on the monitor. Meanwhile, the O3 indicator on
the faucet will turn on as well.
After use, turn off the O3 faucet to switch back to
standby mode.
Press “O3 switch” again to turn off the washing water
and the indicator will turn off. It will also automatically
turn off after 10 seconds.
3.
1.
O3 Water Output
Resume, Standby, Wake Up
Operation Instructions
O3
O
3
Handle of the
O3 faucet
Handle of the
drinking water
faucet
Washing Water
Dispensing
10 Second Purifier will turn to standby mode after 60
seconds of inactivity.
The monitor will turn off, and the red indicator will blink
every two seconds.
Press any button, use washing water or drinking water
to wake up the machine.
ON
OFF
※Cashido does not advise directly drinking ozonized water.
※Ozonized water is drinkable after boiling.
O3
Indicator/
Switch
Drinkable Tap Water-OH8100-XD2
Ozonized Washing Water
2.
Turn on the O3 faucet.
Turn on the O3 faucet, the machine will switch to ozone
washing mode, generating O3 with the word “O3”
shown on the monitor. The O3 indicator on the faucet
will blink.
After use, turn off the O3 faucet to switch the machine
to standby mode.
3.
1.
O3 Water Output
Resume, Standby, Wake Up
Operation Instructions
O3
O
3
Handle of the
O3 faucet
Handle of the
drinking water
faucet
Washing Water
Dispensing
10 Second Purifier will turn to standby mode after 60
seconds of inactivity.
The monitor will turn off, and the red indicator will blink
every two seconds.
Press any button, use washing water or drinking water
to wake up the machine.
ON
OFF
Non-drinkable Tap Water-OH8100-XN2
8

Ozonized Washing Water
2.
Press the O3 switch,
and turn on the O3 faucet.
Press “O3 switch”, and the indicator turns on to start
ozone washing mode.
Turn on the O3 faucet, and the machine will switch to
washing water mode, generating O3 with the word “O3”
shown on the monitor. Meanwhile, the O3 indicator on
the faucet will turn on as well.
After use, turn off the O3 faucet to switch back to
standby mode.
Press “O3 switch” again to turn off the washing water
and the indicator will turn off. It will also automatically
turn off after 10 seconds.
3.
1.
O3 Water Output
Resume, Standby, Wake Up
Operation Instructions
O3
O
3
Handle of the
O3 faucet
Handle of the
drinking water
faucet
Washing Water
Dispensing
10 Second Purifier will turn to standby mode after 60
seconds of inactivity.
The monitor will turn off, and the red indicator will blink
every two seconds.
Press any button, use washing water or drinking water
to wake up the machine.
ON
OFF
※Cashido does not advise directly drinking ozonized water.
※Ozonized water is drinkable after boiling.
O3
Indicator/
Switch
Drinkable Tap Water-OH8100-XD2
Ozonized Washing Water
2.
Turn on the O3 faucet.
Turn on the O3 faucet, the machine will switch to ozone
washing mode, generating O3 with the word “O3”
shown on the monitor. The O3 indicator on the faucet
will blink.
After use, turn off the O3 faucet to switch the machine
to standby mode.
3.
1.
O3 Water Output
Resume, Standby, Wake Up
Operation Instructions
O3
O
3
Handle of the
O3 faucet
Handle of the
drinking water
faucet
Washing Water
Dispensing
10 Second Purifier will turn to standby mode after 60
seconds of inactivity.
The monitor will turn off, and the red indicator will blink
every two seconds.
Press any button, use washing water or drinking water
to wake up the machine.
ON
OFF
Non-drinkable Tap Water-OH8100-XN2
9

Filter Change and Reset
2.
Close 3/8"*3/8" I type ball valve
to stop the water flow.
3.
1.
Please refer to page 4 for the instructions on how to
remove the filter and replace it with a new filter.
Change Filter
Operation Instructions
12
FASTEN
LOOSEN
10 Seconds Purifier
4.
Press and hole the Reset Filter button to switch the
monitor to the replacement mode.
Press and hold the Reset Filter button for 5 seconds
(Ensure the red indicator turns on), the sign “>” will
show up which means the setup is finished.
Close ➆3/8"*1/4" ball valve.
Open ➄3/8"*3/8" water input ball valve, and the setup
is finished. Run drinking water for 10 minutes to
activate the filters.
Set up the Filter
O
3
Handle of the
O3 faucet
Handle of the
drinking water
faucet
ON
OFF
OUT
IN
➆
Please refer to page 6 for piping instructions.
Close ➄3/8"*3/8" ball valve to stop the water supply.
Open ➆3/8"*1/4" ball valve to drain the residual water
from the filter to the drain pipe.
Turn on the drinking water faucet to drain the residual
water.
➄
Drain
Pipe
Water
In
Drinking
Water
IN
OUT
Drinking Water
2.
Turn on the drinking water
faucet.
1.
3.
4.
Switch to Drinking Water
Operation Instructions
Turn on the drinking water faucet, the machine will
switch to drinking water mode, dispensing drinking
water from the drinking water faucet with the red
indicator on.
The monitor will show the life time of the 1st and 2nd
filters in turn while the drinking water is on, and the sign
“>” will blink. The machine will remind you when to
change filters.
After use, turn off the drinking washing faucet to switch
the machine to standby mode.
Filter Change Reminder
O
3
Handle of the
O3 faucet
Handle of the
drinking water
faucet
ON
OFF
1st and 2nd filters are for drinking water.
When it’s time to change a filter, the monitor will show
“CHANGE!” and blink as a reminder.
When the reminder shows up, please change filters to
ensure optimal water quality.
Resume, Standby, Wake UP
10 Second Purifier will turn to standby mode after 60
seconds of inactivity.
The monitor will turn off, and the red indicator will blink
every two seconds.
Press any button, use washing water or drinking water
to wake up the machine.
Drinking Water 1
CHANGE FILTER
10

Filter Change and Reset
2.
Close 3/8"*3/8" I type ball valve
to stop the water flow.
3.
1.
Please refer to page 4 for the instructions on how to
remove the filter and replace it with a new filter.
Change Filter
Operation Instructions
12
FASTEN
LOOSEN
10 Seconds Purifier
4.
Press and hole the Reset Filter button to switch the
monitor to the replacement mode.
Press and hold the Reset Filter button for 5 seconds
(Ensure the red indicator turns on), the sign “>” will
show up which means the setup is finished.
Close ➆3/8"*1/4" ball valve.
Open ➄3/8"*3/8" water input ball valve, and the setup
is finished. Run drinking water for 10 minutes to
activate the filters.
Set up the Filter
O
3
Handle of the
O3 faucet
Handle of the
drinking water
faucet
ON
OFF
OUT
IN
➆
Please refer to page 6 for piping instructions.
Close ➄3/8"*3/8" ball valve to stop the water supply.
Open ➆3/8"*1/4" ball valve to drain the residual water
from the filter to the drain pipe.
Turn on the drinking water faucet to drain the residual
water.
➄
Drain
Pipe
Water
In
Drinking
Water
IN
OUT
Drinking Water
2.
Turn on the drinking water
faucet.
1.
3.
4.
Switch to Drinking Water
Operation Instructions
Turn on the drinking water faucet, the machine will
switch to drinking water mode, dispensing drinking
water from the drinking water faucet with the red
indicator on.
The monitor will show the life time of the 1st and 2nd
filters in turn while the drinking water is on, and the sign
“>” will blink. The machine will remind you when to
change filters.
After use, turn off the drinking washing faucet to switch
the machine to standby mode.
Filter Change Reminder
O
3
Handle of the
O3 faucet
Handle of the
drinking water
faucet
ON
OFF
1st and 2nd filters are for drinking water.
When it’s time to change a filter, the monitor will show
“CHANGE!” and blink as a reminder.
When the reminder shows up, please change filters to
ensure optimal water quality.
Resume, Standby, Wake UP
10 Second Purifier will turn to standby mode after 60
seconds of inactivity.
The monitor will turn off, and the red indicator will blink
every two seconds.
Press any button, use washing water or drinking water
to wake up the machine.
Drinking Water 1
CHANGE FILTER
11

產品與配件
水龍頭組件
其他配件
3/8" PVC軟管/2M*1條RO管/1.5M*1條
1/4"PE軟管/2.5M*1條RO管/1M*1條
電源轉接器*1個
整線帶*1條
O
3
飲用水龍頭*1組華仕德專利臭氧水龍頭*1組
指示燈
電源線 冷水管 熱水管
矽膠管
配件包*1包
‧1/2"三通接頭
‧1/2"*3/8" 內牙快速接頭
‧3/8"*3/8" 快接球閥
‧3/8"*1/4" 快接球閥
‧排水閥貼紙
‧空氣濾網
‧1/4" *1/4"快速接頭
‧RO管塞
‧止逆閥
飲用水水龍頭
指示燈
(開關)
產品與配件
10 秒淨水機主體
外觀
飲用水出口
操作介面
底座
自來水接口
3/8" PVC軟管
臭氧出口 DC輸入插座
外接電源
空氣入口
橡膠腳墊
PVC軟管通道
矽膠管通道
電源線通道
PVC軟管通道
矽膠管通道
電源線通道
第一道濾心
第二道濾心
透氣孔*2個
洩壓排水口
3/8" PVC軟管
12

產品與配件
水龍頭組件
其他配件
3/8" PVC軟管/2M*1條RO管/1.5M*1條
1/4"PE軟管/2.5M*1條RO管/1M*1條
電源轉接器*1個
整線帶*1條
O
3
飲用水龍頭*1組華仕德專利臭氧水龍頭*1組
指示燈
電源線 冷水管 熱水管
矽膠管
配件包*1包
‧1/2"三通接頭
‧1/2"*3/8" 內牙快速接頭
‧3/8"*3/8" 快接球閥
‧3/8"*1/4" 快接球閥
‧排水閥貼紙
‧空氣濾網
‧1/4" *1/4"快速接頭
‧RO管塞
‧止逆閥
飲用水水龍頭
指示燈
(開關)
產品與配件
10 秒淨水機主體
外觀
飲用水出口
操作介面
底座
自來水接口
3/8" PVC軟管
臭氧出口 DC輸入插座
外接電源
空氣入口
橡膠腳墊
PVC軟管通道
矽膠管通道
電源線通道
PVC軟管通道
矽膠管通道
電源線通道
第一道濾心
第二道濾心
透氣孔*2個
洩壓排水口
3/8" PVC軟管
13

步驟一：濾心安裝
2.
3.
4.
產品安裝
1. 將第①道濾心，及第
②道濾心，分別插入
濾心座中 1 2
濾心座，只能插入合
適的濾心，切勿使用
不相符合的濾心強制
安裝，以免造成濾心
及濾心座損壞
12
旋緊轉開
順時針旋轉可將濾心
旋緊
逆時針旋轉可將濾心
旋開
10 Seconds Purifier
提醒:
安裝及更換第②道
濾心時，請先下壓
濾心後再旋轉濾
心。
產品規格
濾心
10秒淨水機
產品名稱：10秒淨水機
型號：櫥下型：OH-8100 XD2, OH-8100 XN2
電源：DC12V
變
壓 器：輸入AC100-240V/50-60Hz,輸出DC12V/1A
消耗功率：6.5瓦(Max.)
待機功率：0.3瓦
臭氧輸出：100 mg/hr
重量：3.8 kg
尺寸：348 × 220 × 420 mm
水源條件：自來水
第➀道濾心:陽離子交換樹脂
產地：台灣
供應商：華仕德科技股份有限公司
濾心型號：RE-01M
濾心材質：Gel polystyrene crosslinked
with DVB
最大水壓：120 PSI (8.43Kg/cm
2
)
適用水溫：25°C ~ 40°C
濾心壽命：3個月
※實際濾心壽命將依當地水質條件而定
認證：
1.Gel polystyrene crosslinked with
DVB, NSF/ANS-61
認證：
1.NSF42, NSF53
第➁道濾心：精密活性碳
產地：美國
供應商：華仕德科技
濾心型號：CFS9812X
濾心材質：0.5μm 專利高效能活性碳
最大流量：5.7 L/MIN
最大水壓：125 PSI (8.78Kg/cm
2
)
適用水溫：5°C ~ 38°C
濾心壽命：1年/ 33,000公升
※實際濾心壽命將依當地水質條件而定
14

步驟一：濾心安裝
2.
3.
4.
產品安裝
1. 將第①道濾心，及第
②道濾心，分別插入
濾心座中 1 2
濾心座，只能插入合
適的濾心，切勿使用
不相符合的濾心強制
安裝，以免造成濾心
及濾心座損壞
12
旋緊轉開
順時針旋轉可將濾心
旋緊
逆時針旋轉可將濾心
旋開
10 Seconds Purifier
提醒:
安裝及更換第②道
濾心時，請先下壓
濾心後再旋轉濾
心。
產品規格
濾心
10秒淨水機
產品名稱：10秒淨水機
型號：櫥下型：OH-8100 XD2, OH-8100 XN2
電源：DC12V
變
壓 器：輸入AC100-240V/50-60Hz,輸出DC12V/1A
消耗功率：6.5瓦(Max.)
待機功率：0.3瓦
臭氧輸出：100 mg/hr
重量：3.8 kg
尺寸：348 × 220 × 420 mm
水源條件：自來水
第➀道濾心:陽離子交換樹脂
產地：台灣
供應商：華仕德科技股份有限公司
濾心型號：RE-01M
濾心材質：Gel polystyrene crosslinked
with DVB
最大水壓：120 PSI (8.43Kg/cm
2
)
適用水溫：25°C ~ 40°C
濾心壽命：3個月
※實際濾心壽命將依當地水質條件而定
認證：
1.Gel polystyrene crosslinked with
DVB, NSF/ANS-61
認證：
1.NSF42, NSF53
第➁道濾心：精密活性碳
產地：美國
供應商：華仕德科技
濾心型號：CFS9812X
濾心材質：0.5μm 專利高效能活性碳
最大流量：5.7 L/MIN
最大水壓：125 PSI (8.78Kg/cm
2
)
適用水溫：5°C ~ 38°C
濾心壽命：1年/ 33,000公升
※實際濾心壽命將依當地水質條件而定
15

產品安裝
步驟二：水龍頭安裝，固定10秒淨水機
1. 殺菌龍頭、飲用水龍頭安裝
1.確認流理台殺菌龍頭開孔直徑為35mm
2.單溫飲用水龍頭，或雙溫飲用水龍頭，依實際尺寸需要進行開孔。
2. 10秒淨水機固定
1.將櫥下型10秒淨水機，放置於流理台櫥櫃內平穩的位置
2.10秒淨水機附近必須要有電源
O
3
O
3
16

產品安裝
步驟二：水龍頭安裝，固定10秒淨水機
1. 殺菌龍頭、飲用水龍頭安裝
1.確認流理台殺菌龍頭開孔直徑為35mm
2.單溫飲用水龍頭，或雙溫飲用水龍頭，依實際尺寸需要進行開孔。
2. 10秒淨水機固定
1.將櫥下型10秒淨水機，放置於流理台櫥櫃內平穩的位置
2.10秒淨水機附近必須要有電源
O
3
O
3
產品安裝
步驟三:10秒淨水機配管、電源連接
電源
100~240V/50-60Hz
OUT
IN
熱水閥冷水閥
➁
➇
順序
➀ ➁ ➂ ➃ ➄ ➅
順序
➇ ➈ ➉
⑪ ⑫
說明 說明
1/2"三通接頭，將螺帽接在冷水閥 殺菌龍頭冷水管，連接於三通接頭一端 1/2"*3/8"內牙快速接頭，連接於三通接頭
一端
3/8"*3/8" 快接球閥 3/8"PVC軟管，連接於4,5及淨水機自來 水接口
止逆閥，箭頭朝向水龍頭
快接球閥安裝時， 請確認“水流方
向”。
插入排水孔
各部位名稱及淨水機配管說明圖
O3
➀
➂
➃
➄
➅
OUT
IN
➆
➈
➉
⑪
⑬
⑭
殺菌龍頭熱水管，連接於熱水閥
矽膠管，連接淨水機、⑫止逆閥至殺菌龍頭
➆3/8"*1/4" 快接球閥
3/8"PVC軟管，連接➆及淨水機洩壓排水口 1/4"PE管，連接➆至櫥櫃排水孔 1/4"PE管，連接飲用水球閥至飲用水龍頭
⑫
⑭電源轉接器，連接電源插座與淨水機 ⑬指示燈電源線，接連淨水機至殺菌龍頭
17

臭氧水清洗功能
2.
開啟(ON)殺菌龍頭
開啟(ON)殺菌龍頭，機器會自動切換至臭氧洗滌水模
式，產生臭氧，紅色指示燈亮起，螢幕出現「O3」符
號，水龍頭「O3」指示燈同步閃爍，輸出臭氧洗滌水。
使用完畢，將水龍頭關閉(OFF)，回到待機狀態。
3.
1.
臭氧水輸出
回復、休眠、叫醒
產品使用方法
O3
O
3
殺菌龍頭
把手
飲用水
龍頭把手
60秒鐘，未按下任何按鍵、使用殺菌龍頭或飲用水龍
頭，微電腦自動進入休眠模式。
螢幕背光熄滅，紅色指示燈每2秒閃爍1次。
休眠時按下任一按鍵，或直接使用殺菌龍頭或飲用水龍
頭，即恢復工作模式(叫醒)。
ON
OFF
適用於飲用水非生飲國家
產品型號:OH8100-XN2
產品使用方法
產品使用前之確認
LCD 顯示螢幕
電源鍵
濾心更換設定鍵
開機與關機
操作介面
1.打開冷、熱水閥讓機器處於供水的狀態
2.確定配管沒有漏水，再連接電源供應器
LED動作指示燈
1.第一次送電自動開機，之後可按壓(長按3秒)「電源」鍵，進行開、關機
2.開機時顯示螢幕將出現開機畫面，然後進入「臭氧洗滌水模式」待機
3.濾心第一次使用時，開啟飲用水，排水10分鐘，以活化濾心
O
3
殺菌指示燈
殺菌龍頭
把手
飲用水
龍頭把手
18
