Introduction
Thank you for purchasing the W62CA.
Before using it for the first time, be sure to read the Basic Manual (this PDF manual) so as
to know how to use it correctly. After you finish reading this manual, store it and the printed
materials that come with the phone in a safe place for future reference.
Printed Manuals for the W62CA (Japanese)
The W62CA comes with a Basic Manual and an Instruction Manual.
The following information is also available on the au website.
• To download the Basic Manual or Instruction Manual
(http://www.au.kddi.com/torisetsu/index.html)
• To access a keyword searchable au On-Line Manual
(http://www.au.kddi.com/manual/index.html)
You can also access the au On-Line Manual using EZweb.
EZweb Access
au one Top
→auお客さまサポート (au Customer Support)
→調べる (Information)
→オンラインマニュアル (On-Line Manual)
For information about basic
operation
Basic Manual
Refer to this English
PDF manual.
Instruction Manual
English version not
available.
For detailed information
about each function
◎All mentions of “the W62CA” in this manual refer to “the G’zOne W62CA.”
◎The typeface, fonts, and colors of the texts on the screens shown in this
manual may differ from the actual contents. Also, certain icons and the
scroll bars may be omitted.
◎
The typeface, screens, icons shown in this manual and explanations are
made on the initial settings of main unit color “Sparkling Green.”

1
Mind your manners!
A cellphone always emits weak radio waves while it is turned on.
Enjoy operation of your cellphone without forgetting to be considerate
of those around you.
Cellphone Etiquette
Some locations do not allow the use of
cellphones.
■Using a cellphone while driving is dangerous and
prohibited by the Traffic Control Law.
■Using a cellphone inside of an aircraft is prohibited
by the law. Be sure to turn off your cellphone before
takeoff.
Watch out where you use your cellphone,
and keep your voice down.
■Do not make calls at cinemas, theaters, museums,
libraries, or other similar locations. Turn off the
cellphone or use Manner Mode to ensure that the
ringtone does not disturb others.
■When in public, move to a location where you will
not be blocking traffic.
■On the Shinkansen, in a hotel lobby, or in other similar locations, move
to a location where you will not disturb others.
■Take care to avoid talking on the phone in a loud voice.
■Before taking the picture of others, be sure to obtain permissions first.
Cellphone radio waves may interfere with
electrical medical equipment.
■On a train or in other crowded locations, there is
always the possibility that someone nearby may be
wearing a pacemaker. Turn off your cellphone when
you are in a crowded area.
■Follow the rules of hospitals and other medical
facilities prohibiting the use or possession of cellphones.

2
Features
Camera EZ FeliCa
Use the cellphone for
shopping by using
electronic money, or
use it as member’s
cards, point cards,
and so on.
Security Setup
Select either “Safety
Buzzer” or “HOT DIAL”
as reliable setting
function.
EZ Navi
EZ Navi Walk,
Passenger Seat Navi,
Evacuate Navi and
Security Navi allow you
to get various kinds of
location information.
They are all built-in
functions.
Mail
Send mail messages
to other cellphones or
to PCs.
Shoot photos and
record movies, and
send them by e-mail.
Water & Shock Resistance
W62CA provides
water and shock
resistance against the
rain and strenuous
motions/shocks
arisen in your daily
life.
G’zGEAR
Six tools with GPS
and direction/
temperature/
acceleration sensor
functionalities that
assist your outdoor
activities are available.
au Media Tuner
Enjoy using
Television (1Seg)
and EZ Channel-Plus.
Page 75
Page 82
48
Page
EZweb
Download “Chaku-
Uta
®
”/other data or
access sites.
64
Page
59
Page
Page 72
Cellphone Basics
For other useful functions, see page 82.

3
Manner Mode and Answer Memo
Manner Mode
Use Manner Mode to turn off the
ringtone so as not to bother
others around you.
Answer Memo
If you cannot answer a call,
Answer Memo plays an
answering message and records
the caller’s message.
While the standby
screen is displayed,
hold down (for
at least one second.
While the standby
screen is displayed,
hold down Cfor
at least one second.
Page 35 Page 36
Checking Power, Signal
Strength, and Battery Level
Normally leave the phone turned on.
The phone needs to be turned on to make and receive
calls.
Hold down Ffor at least 2.5 seconds to turn on W62CA.
After a while, W62CA turns on with tone and the standby
screen appears.
Keep an eye on the battery level.
You cannot talk on the phone
if it is unable to receive a signal.
The phone may not function properly if battery
power is low.
indicates the current battery level.
Signal strength is low in some areas, even if
they are within the service area.
indicates the current signal strength.
Page 14
Page 14
Page 14

4
Never use your cellphone while
driving!
Do not use the cellphone while driving a car/motorcycle/bicycle.
It may cause a traffic accident. Use of the cellphone while driving
a car/motorcycle is forbidden by the law. Use of the cellphone
while driving a bicycle may be punished by the law too.
×Reading mail or looking
at the display.
×Holding a cellphone in
your hand to talk.
Turn off your cellphone or use Drive Mode while
driving.
Drive Mode
In Drive Mode, the phone will play the message “ただいま移動中で
すので電話に出ることができません。・・・” (I am traveling and unable to
answer the phone right now…), and then ask the caller to leave a
message using Answer Memo.
While the standby screen is displayed, press
( , and press 2 (Drive) to turn on Drive
Mode.


5
Beware of spam and One-ring
Calls!
If you get spam
You can set up mail filters to block
specific mail or spoof mail.
The following are the main features your
cellphone uses to block spam.
・Blocking of “未承諾広告※”
(unsolicited advertisement) mail
・Blocking of specific mail
・Blocking of spoof mail
Beware of One-ring Calls!
A “One-ring Call” (wan-giri in Japanese) rings your phone only
once, in an attempt to make you call back to a service that
automatically bills you very high charges.
If W62CA received a “ One-ring Call, ” the
icon appears at the head of an incoming
history.
Page 55
Page 31





6
Disaster Message Board Service
Registering
the safety
information
◆When a major disaster strikes, you can use your au
cellphone to access the “災害用伝言板” (Disaster Message
Board) on EZweb and register your current condition,
comments, and other information about your well-being.
◆After you register information, it can be sent by mail to
family, friends, and other individuals you have registered as
a recipient of your Disaster Message Board information.
R  au one Top  災害用伝言板
(Disaster Message Board)
◆Disaster Message Board information can be accessed by
inputting the phone number of an individual over EZweb or
the Internet.
※
※Disaster Message Board information can be accessed
from cellphone of other manufacturer’s, PHS, or PC at
http://dengon.ezweb.ne.jp/.
Disaster Message Board
The Disaster Message Board lets you use EZweb to register
information about your well-being in case of a major disaster. The
information you register can be accessed from anywhere in Japan
over EZweb or the Internet.
Checking
the safety
information
Access
method http://dengon.ezweb.ne.jp/
O
K
.
I
’
m

7
※Registration contents are retained for up to 72 hours.
※You can register up to 10 entries per phone number. Registering a new entry while there are already 10
registered entries, automatically overwrites the oldest entry.
※You can view a Disaster Message Board demonstration at:
R→ auoneTop→auお客さまサポート →災害用伝言板（デモ版）
(au Customer Support) (Disaster Message Board (Demo))
※To view the Disaster Message Board in English, select the “English” option on the Disaster Message Board
top screen.
Registration
Access
Disaster Message
Board top screen
Information screen
Information registration
screen

8
Cellphone Etiquette 1
Mind your manners! ......................................1
Cellphone Basics 2
Features........................................................2
Manner Mode and Answer Memo .................3
Checking Power, Signal Strength, and
Battery Level...............................................3
Never use your cellphone while driving!........4
Beware of spam and One-ring Calls! ............5
Disaster Message Board Service..................6
Contents 8
Ready 10
Checking the Contents of the Package.......10
Names of Parts ...........................................11
Charging the Battery Pack ..........................12
Turning On Power .......................................14
Initial Values ................................................14
Security Code and Passwords....................15
Selecting English as the Display Language
.................................................................16
Operation Basics.........................................18
Display Indicators........................................19
Main Menu ..................................................20
Initializing E-mail and EZweb......................24
Looking Up Your Current Phone Number
and E-mail Address ..................................25
Changing Your E-mail Address ...................26
Phone Call 28
Making a Call ..............................................28
Making an International Call .......................29
Answering a Call .........................................30
Redialing (Outgoing Histories/Incoming
Histories) ..................................................31
One-ring Calls .............................................31
Changing the Ringtone................................32
Adjusting the Ringtone Volume ...................34
Adjusting the Earpiece Volume during a
Call ...........................................................35
Turning On Manner Mode............................35
Turning On Answer Memo...........................36
Playing an Answer Memo ...........................37
Inputting Characters 38
Inputting an E-mail Address........................39
Inputting Pictograms ...................................40
Address Book 41
Registering an Address Book .....................41
Editing an Address Book Record ................43
Adding Outgoing or Incoming History
Data to the Address Book.........................44
Dialing from the Address Book ...................45
Pair Function 46
Registering a Pair Partner...........................46
Making a Phone Call or Sending Mail to a
Pair Partner...............................................47
Mail 48
Using E-mail................................................48
Using C-mail ...............................................49
Creating and Sending E-mail Messages.....50
Reading Received E-mail Messages ..........52
Reading an E-mail Message with an
Attached Photo .........................................53
Replying to a Received E-mail Message ....54
Avoiding Spam ............................................55
Creating and Sending C-mail Messages ....56
Reading Received C-mail Messages..........58
Contents

Contents
9
Camera 59
Using the Camera .......................................59
Shooting a Photo ........................................61
Viewing Photos ...........................................62
Attaching a Photo to an E-mail Message....63
EZweb 64
Using EZweb...............................................64
Displaying the au one Top...........................65
Bookmarking Sites You Frequently Access
.................................................................66
Viewing a Bookmarked Site ........................67
Checking Charges ......................................67
Downloading Chaku-Uta®/Chaku-Uta-Full®
.................................................................68
EZ News Flash/au one Gadget 70
EZ News Flash/au one Gadget Features....70
Setting EZ News Flash service ...................71
EZ Navi 72
EZ Navi Features ........................................72
au Media Tuner 75
au Media Tuner Features ............................75
Configuring au Media Tuner Initial Settings
.................................................................77
Using Television (1Seg)...............................79
Exiting au Media Tuner................................81
Other Functions 82
Security Setup Features .............................82
Troubleshooting 84
If you lose your W62CA ..............................85
Index 88

10
Before using the W62CA, check the contents
of the package coming with your W62CA.
You should also familiarize yourself with
basic operations, like how to charge the
battery, how to turn the power on, etc.
All
set?
Ready
Checking the Contents of the Package
●
Battery pack
(62CAUAA)
●
Desktop holder
(62CAPUA)
●
Casio round-type
earphone jack
conversion adaptor
03 (03CAQNA)
●
Casio USB cable 03 (MiniB)
(03CAHUA)
●
Warranty (Japanese)
●
Osaifu-Keitai® Basic
Manual (Japanese)
●
LISMO Installation
Guide (Japanese)
●
Basic Manual (Japanese)
●
Operating Precautions
(Japanese)
●
Global Passport mobile
rental service Owner’s Guide
(Japanese)
●
Promotional Fliers (Japanese)
●
Instruction Manual (Japanese)
●
CD-ROM
●
W62CA
●
SONY MDR-E0921
(sample)
◎The microSDTM memory card is not included.
◎An AC adaptor is not included. It is up to you to purchase a common AC
adaptor 01/02 (option).
●
Lock driver (sample)

11
Ready
Names of Parts
■Back
FeliCa mark
Camera start indicator
Photo light/
Pocket light
Camera lens
Infrared port
Screw type battery
lock
microSD™ memory
card slot
au IC-Card※
Clear/Memo key
Optical sensor
Temperature
sensor
EZ key
Application key
End/Power key
Built-in antenna※2
※Do not take out this card if not necessary as your
number is recorded on it.
Attach/remove au IC-Card or microSD™ memory card
after turning the phone off and uninstalling the battery
pack.
※1During a call, do not cover the
microphone with your hands or your
chin.
※2Take care to avoid covering the
built-in antenna with your hand when
making a call, using EZweb, using PC
Site Viewer and when accessing GPS
information.
※3Take care to avoid covering the
built-in TV antenna with your hand
when viewing with Television (1Seg).
Cursor key
Number keys
Mail key
Answer/Pair key
Address book key
Microphone※1
Main display
Earpiece
Speaker
Center key
Built-in TV antenna※3
LED indicator
Battery pack/cover
Bumper B
Sub display
Bumper A
■Front
■Side
Flat-t
yp
e ear
p
hone-micro
p
hone
j
ack
Up/Down key (side)
External connection
j
ack
External connection jack cover
Flat-type earphone-microphone jack cover
Manner key
Strap eyelet Charging terminals
Multi key

12

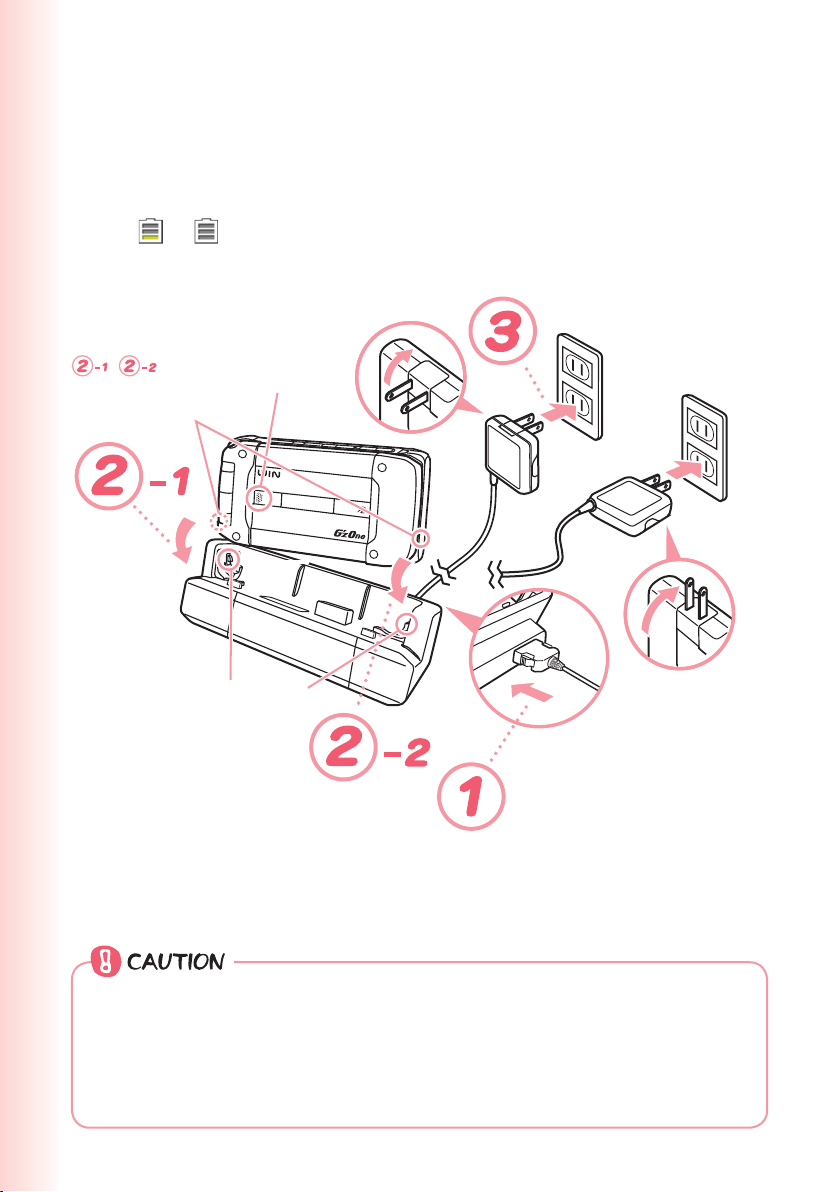

Charging the Battery Pack
The battery pack that comes with the phone is not fully charged when
you purchase it. Be sure to charge the battery pack before using the
W62CA for the first time. Charging takes about 140 minutes.
You should recharge the battery pack whenever the battery level icon
shows or .
Locking tab
LED indicator
Slot
Check the shape of connectors before
connecting, and ensure that you plug
them in as far as they will go.
Aligning the locking tabs of the
desktop holder with the slots on the
sides of the phone, attach the phone
to the holder in the sequence
, .
You can also
use the plug by
extending the
prongs like this.
◎You must purchase a common AC adaptor 01/02 (option) for charging.
Note that the configuration of the AC adaptor may be different from that
shown in the illustration above.
◎Whenever connecting or disconnecting the common AC adaptor 01/02
(option) to the desktop holder, make sure the connector on the back of
the desktop holder is positioned horizontally.

13
Ready
Connect the common AC adaptor 01/02 (option) to
the desktop holder.
Check the shape of the connectors to ensure they are aligned correctly before
you connect.
Trying to force a connection may damage the connectors.
Attach the closed phone to the desktop holder in the
sequence , , aligning the locking tabs of the
holder with the slots on the sides of the phone.
Fold out the power plug of the common AC adaptor 01/02
(option), and then plug it into a 100V AC power outlet.
This will cause the W62CA LED indicator to light red, and (charging battery
icon) to display. When charging is completed, the LED indicator will go out.
To remove the W62CA from the desktop holder, hold the holder by hand and
remove W62CA.
※You can connect the common AC adaptor 01/02 (option) to the W62CA directly to
charge the battery pack.
Fully open the external connection jack cover, check
the shape of connectors and insert it horizontally.

14
Turning On Power
Hold down Ffor at least
2.5 seconds.
The message “Now Loading...” will appear
on the display for a short while, followed
by the standby screen.
Standby screen
Icon
Signal
Strength Strong Medium Weak Very Weak
Out of
Range
Icon
Battery
Level High
Medium Low Fully
Discharged Charging
• Communication is not possible while the signal
strength icon is (Out of Range).
• Communication may not be possible while the
signal strength icon is (Very Weak).
■Turning off power
Hold down Ffor at least 1.5 seconds.
Initial Values
The following are the initial settings of the phone.
Lock No. 1234 Font Size Input Size Slightly Large
Caller ID ON Mail Display Medium
Incm Caller Disp Display EZweb Display Medium
Profile Blank Address Book Slightly Large
History Slightly Large
Phone No. Slightly Large

15
Ready
Security Code and Passwords
The W62CA lets you use the numbers and passwords described
below. Be sure to take steps so you do not to forget your numbers and
passwords. You will need them to perform various operations and to
access subscription services.
Security Code
Usage Examples
aFor remote operation of the Answering Service (Voice Mail) and Call
Transfer from a standard phone
bFor inquiries, applications, and service modifications using au
Customer Service Center voice guidance, au website, and EZweb
cFor changing e-mail settings
Initial Value 4-digit number you entered on your subscription contract
Lock No.
Usage Examples For modifying various phone settings
Initial Value 1234
EZ Password
Usage Examples For entering and canceling subscriptions for EZweb fee-based content
Initial Value
4-digit number you entered on your subscription contract
Premium EZ Password
Usage Examples
a
For entering and canceling subscriptions for EZweb fee-based content
paid for using “まとめてau支払い” (au Collective Payment Service)
b
For purchasing products from EZweb sites that use “まとめてau支払い”
( au Collective Payment Service )
Initial Value
4-digit number you entered on your subscription contract

16
Selecting English as the Display
Language
While the standby screen
is displayed, press c.
Use jto select “機能”
(Function), and then press
c(選択) (Select).
Press 3(画面表示)
(Screen Display).

17
Ready
Press 4(Set Language).
Press 2(English).
This selects English as the display
language.
Even if English is selected as the display language, schedule and other
dates are displayed in the format year/month/day. Folder names inside of
the Data Folder are also displayed in year/month/day format.

18
Operation Basics
■Key functions
•Displays incoming histories.
•Selects an item.
l
•Displays the main menu.
•Applies an item.
c
•E-mail
•C-mail (hold down for at
least one second)
L
•Dials/answers a phone call.
•Displays the Pair Function.
N
•Memo
•Toggles Answer Memo on
and off (hold down for at
least one second).
•Deletes a character.
•Returns to the previous
menu screen.
C
•Selects EZ News Flash
telop/window or au one
Gadget.
•Displays the standby
shortcut icon.
•Selects an item.
j
•Displays outgoing histories.
•Selects an item.
r
•Displays the address book.
•Creates a new address
book (hold down for at least
one second).
&
0〜9*#
•Inputs phone number.
•Inputs text character.
•Displays the EZweb menu.
R
•Power on (hold down for at
least 2.5 seconds).
•Power off (hold down for at
least 1.5 seconds).
•Hangs up.
•Terminates a function.
•Returns to the standby
screen (hold down).
F
•Displays the EZ apps menu.
%
■Side key functions
◎If you lose track of where you are or if you make a mistake:
Press
Cto scroll back to the previous screen.
Hold down
Fto return to the standby screen.
◎When is displayed in the lower right corner of the photo screen
etc., pressing 5will display key help.
◎Holding down cfor at least one second toggles side key’s disabling
feature on and off while W62CA is folded.
•
Toggles Manner Mode on and off
(hold down for at least one second).
•While the standby screen is displayed, hold down ffor at least
one second to light the pocket light and hold down gfor at least
one second to start au Media Tuner.
•Page scroll at browser display.
•Displays Multi Play Window.
gf
(v
