Casio 3482 Service manual

Quick Reference Manual 3482
E-9B
Training Function
You can use the Training Function of this watch to make your running and other
workouts more efficient and enjoyable.
xKeep track of your distance and pace.
You can also use the G-SHOCK MOVE phone app for this watch to perform the
types of training described below.
xIntuitive analysis of daily training
xCreation of personalized training plans in line with your goals
For information about installing the application, refer to the Operation Guide at the
CASIO website.
E-8
9. Use Aand Cto select [MANUAL], and then press
B.
10. Use Aand Cto select the hour digits, and then
press B.
11. Repeat step 10 to set the minute, year, month, and
day.
xThis causes [SAVE & EXIT?] to appear.
xYou can advance to step 12 by pressing Dduring
step 10 or 11.
12. Use Aand Cto select [YES], and then press B.
xThis causes [SETTING COMPLETED] to appear.
13. Press Dtwice.
xThis returns to the Timekeeping Mode.
E-7
4. Use Aand Cto select a city that is in the same time zone as the one where
you are currently located, and then press B.
xThis displays the [CITY] and [DST] selection screen.
xIf you select UTC for the city setting, steps 5 and 6 are not required.
5. Use Aand Cto select [DST], and then press B.
6. Use Aand Cto select the summer time setting you want, and then press B.
xThis displays the [CITY] and [DST] selection screen.
7. Press D.
8. Use Aand Cto select [TIME ADJUSTMENT], and then press B.
E-6
Adjusting the Time Setting
Using a Phone to Configure Time Settings
For details visit the website below.
https://world.casio.com/manual/wat/
Using Watch Operations Only to Adjust the Time Setting
To ensure accurate timekeeping, use of a phone for time adjustment is
recommended.
1. In the Timekeeping Mode, hold down Afor at least
two seconds.
2. Use Aand Cto select [HOME TIME], and then
press B.
xThis displays the [CITY] and [DST] selection screen.
3. Use Aand Cto select [CITY], and then press B.
E-5
Each press of Ccycles through the modes as shown below.
Timekeeping Stopwatch
C
C
Timer
C
Notification
C
Training Log
C
xYou can also return directly to the Timekeeping Mode by holding down Cfor at
least one second.
xIn the Timekeeping Mode, press Dto cycle through available displays to view the
Tide level, Moon age, Moon phase, sunrise time, or sunset time. To return to the
display you started from, press A.
xFor details, refer to the Operation Guide at the CASIO website.
E-4

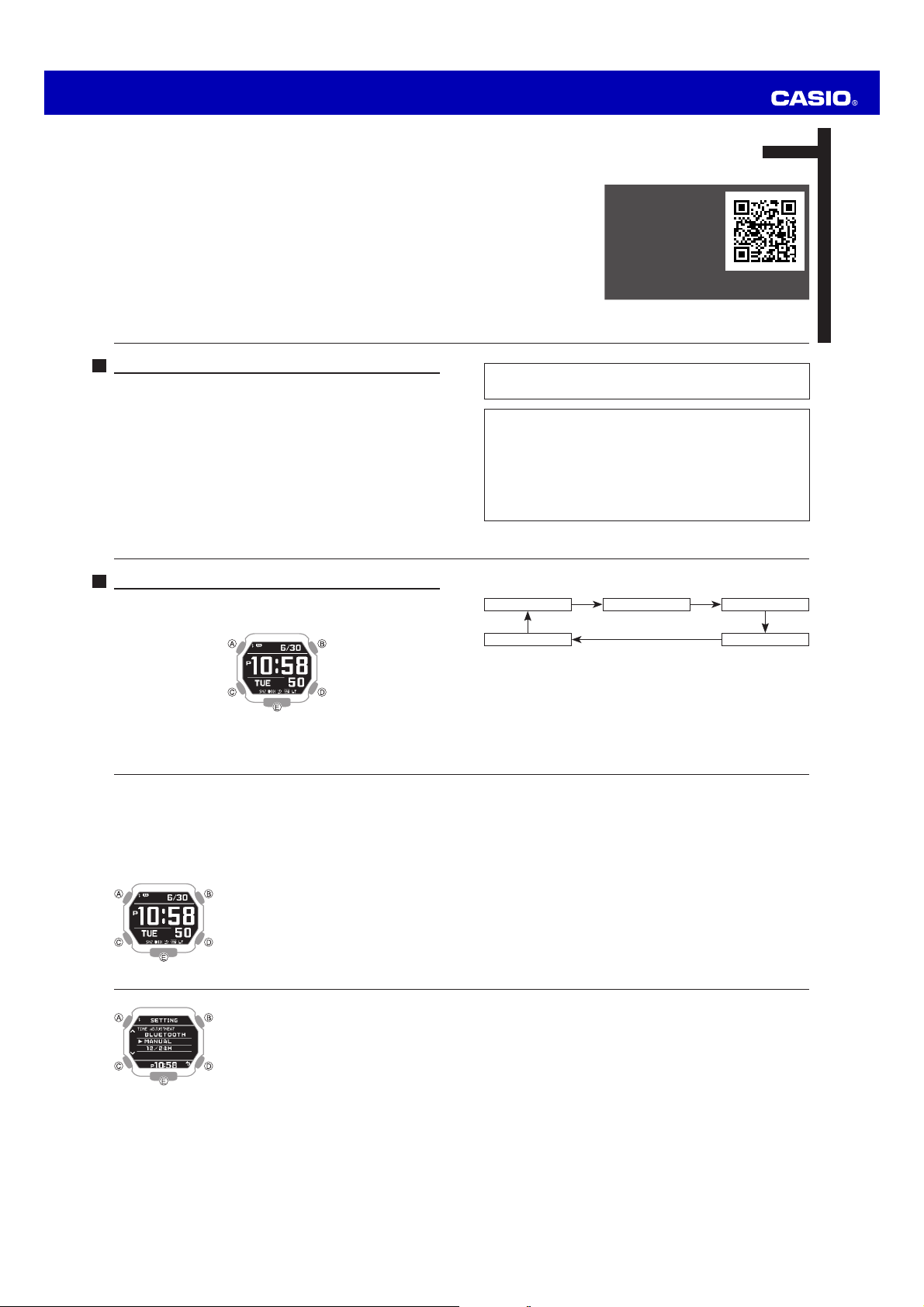

Using the Watch
Navigating Between Modes
Timekeeping Mode
Display screen navigation Training Function start
Illumination on
Mode switch Display switch
(Tide level, Moon age,
Moon phase, sunrise time,
sunset time)
E-3
The Bluetooth®word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by CASIO COMPUTER CO., LTD.
is under license.
This product has a Mobile Link function that lets it communicate with a
Bluetooth®capable phone to perform automatic time adjustment and other
operations.
xThis product complies with or has received approval under radio laws in various
countries and geographic areas. Use of this product in an area where it does not
conform to or where it has not been approved under applicable radio laws may
be punishable under local laws. For details, visit
https://world.casio.com/ce/BLE/.
xUse of this product inside of an aircraft is restricted by the aviation laws of each
country. Be sure to obey instructions provided by flight personnel concerning
use of devices such as this product.
E-2
Contents
Using the Watch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-4
Navigating Between Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-4
Adjusting the Time Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-6
Training Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-9
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-10
Operating Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-16
User Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-27
E-1
ENGLISH
Congratulations upon your selection of this CASIO watch.
To ensure that this watch
provides you with the years
of service for which it is
designed, carefully read and
follow the instructions in
this manual, especially the
information under “Operating
Precautions” and “User
Maintenance”.
Be sure to keep all user
documentation handy for
future reference.
For a full Operation Guide
and Q&A information about
this product, go to the
website below.
https://world.casio.com/manual/wat/
MA2003-EC © 2020 CASIO COMPUTER CO., LTD.

Quick Reference Manual 3482
E-15
Power Supply: One lithium battery (CR2032)
Battery life: Approximately 2 years
Conditions:
xBluetooth linking: 12 hours/day
xTraining Function: 2 hours/week
xMail and other alerts: 20 times/day
xIllumination: Once (1.5 seconds)/day
xAlarm: Once (10 seconds)/day
xStep count: 12 hours/day
xDisplay operation: 21 hours/day
Usage conditions can shorten battery life.
Specifications are subjected to change without notice.
