Casio 4359 User manual

Module No. 4359

E-1
Getting Acquainted
Congratulations upon your selection of this CASIO watch. To get the most out of your
purchase, be sure to read this manual carefully.
•Be sure to keep all user documentation handy for future reference.
Keep the watch exposed to bright light
The electricity generated by the solar cell of the watch is
stored by a built-in battery. Leaving or using the watch where
it is not exposed to light causes the battery to run down.
Make sure the watch is exposed to light as much as possible.
• When you are not wearing the watch on your wrist,
position the face so it is pointed at a source of bright light.
•You should try to keep the watch outside of your sleeve
as much as possible. Charging is reduced significantly if
the face is even only partially covered.
l
l
l
l
l
l
l
l
l
l
l
Bright Light
Solar cell

E-2
Battery charges in the light. Battery discharges in the dark.
All
functions
enabled
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
Charge
Rechargeable battery
Bright Light
Electrical
energy
Solar cell
(Converts light to
electrical power.)
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 4
Some or all
functions
disabled
Dis-
charge
•The watch continues to operate, even when it is not exposed to light. Leaving the
watch in the dark can cause the battery to run down, which will result in some watch
functions to be disabled. If the battery goes dead, you will have to re-configure watch
settings after recharging. To ensure normal watch operation, be sure to keep it
exposed to light as much as possible.

E-3
•The actual level at which some functions are disabled depends on the watch model.
•Frequent display illumination can run down the battery quickly and require charging.
The following guidelines give an idea of the charging time required to recover from a
single illumination operation.
Approximately 5 minutes exposure to bright sunlight coming in through a window
Approximately 50 minutes exposure to indoor fluorescent lighting
•Be sure to read “Power Supply” (page E-48) for important information you
need to know when exposing the watch to bright light.
If the display of the watch is blank...
If the display of the watch is blank, it means that the Power Saving has turned off the
display to conserve power.
•See “Power Saving” (page E-55) for more information.
Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage
or loss suffered by you or any third party arising through the use of this product or
its malfunction.

E-4

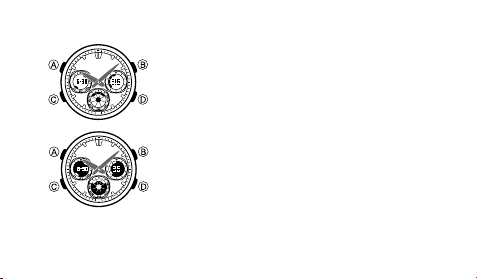

About This Manual
•Depending on the model of your watch, display text
appears either as dark figures on a light background, or
light figures on a dark background. All sample displays
in this manual are shown using dark figures on a light
background.
•Button operations are indicated using the letters shown
in the illustration.
•Most of the display examples in this manual show only
the digital display, without the analog hands.
•Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the “Reference” section.
•To ensure that this watch provides you with the years of
service for which it is designed, be sure to carefully read
and follow the instructions under “Operating
Precautions” and “User Maintenance”.

E-5
Contents
General Guide ......................................................................................................... E-8
Radio-controlled Timekeeping ............................................................................. E-10
World Time ............................................................................................................. E-28
Countdown Timer .................................................................................................. E-31
Stopwatch .............................................................................................................. E-33
Alarm ...................................................................................................................... E-35
Illumination ............................................................................................................ E-38
Timekeeping .......................................................................................................... E-39
Power Supply ........................................................................................................ E-48
Reference .............................................................................................................. E-55
Specifications ....................................................................................................... E-64
Operating Precautions ......................................................................................... E-66
User Maintenance ................................................................................................. E-75

E-6
Procedure Lookup
The following is a handy reference list of all the operational procedures contained in
this manual.
To specify your Home City ................................................................................... E-12
To display the digital time .................................................................................... E-13
To display the last signal screen ......................................................................... E-14
To perform manual receive .................................................................................. E-23
To toggle auto receive on or off .......................................................................... E-24
To view the time in another city ........................................................................... E-29
To select standard time or Daylight Saving Time for a World Time City .......... E-29
To set the countdown start time .......................................................................... E-32
To use the countdown timer ................................................................................ E-32

E-7
To measure times with the stopwatch ................................................................ E-34
To set the alarm time ............................................................................................ E-36
To test the alarm ................................................................................................... E-36
To turn the Daily alarm and the Hourly Time Signal on and off ........................ E-37
To turn on illumination ......................................................................................... E-38
To set the current digital time and date manually ............................................. E-40
To change the Daylight Saving Time (summer time) setting ............................ E-44
To adjust the analog time ..................................................................................... E-46
To recover from the sleep state ........................................................................... E-56
To turn Power Saving on and off ......................................................................... E-57

E-8
Timekeeping Mode Press C.
▲
▲
World Time Mode
General Guide
•Press Cto change from mode to mode.
•In any mode (except a setting mode), press Bto illuminate the face of the watch.
NYCNYC
NYCNYC
NYC

E-9
▲
▲
▲
Stopwatch ModeCountdown Timer Mode
Alarm Mode
▲
Hand Setting Mode

E-10
Radio-controlled Timekeeping
This watch receives a time calibration signal and updates
its time setting accordingly. The time calibration signal
includes both Standard Time and Daylight Saving Time
(summer time) data.
•This watch is designed to pick up the time calibration
transmitted in Japan (Fukuoka/Saga and Fukushima)
and the United States (Fort Collins, Colorado).
•See the information under “Signal Receive
Troubleshooting”(page E-26) if you experience problems
with time calibration signal reception.
Seconds
Minute hand
Hour hand
Month – Day

E-11
Current Time Setting
This watch adjusts its time setting automatically in accordance with a time calibration
signal. You also can perform a manual procedure to set the time and date, when
necessary.
•The first thing you should do after purchasing this watch is to specify your
Home City (the city where you normally will use the watch). For more
information, see “To specify your Home City”on page E-12.
•When using the watch outside the areas covered by the time signal transmitters, you
will have to adjust the current time setting manually as required. See
“To set the
current digital time and date manually”(page E-40) for more information about manual
time settings.
•The U.S. time calibration signal can be picked up by the watch while in North
America. The term “North America”in this manual refers to the area that consists of
Canada, the continental United States, and Mexico.

E-12
l
l
l
l
l
l
l
l
l
l
l
l
l
l

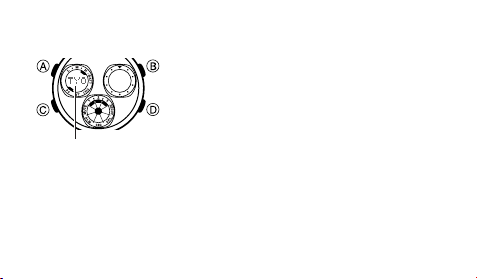

To specify your Home City
1. In the Timekeeping Mode, hold down Auntil the
currently set city code starts to flash in the upper left
display. This is the Home City setting mode.
2. Use D(eastward) and B(westward) to scroll through
the city codes until the one you want is displayed.
SEL,TYO : Seoul, Tokyo
YVR,LAX : Vancouver, Los Angeles
YEA,DEN : Edmonton, Denver
MEX,YWG,CHI : Mexico City, Winnipeg, Chicago
MIA,YTO,NYC : Miami, Toronto, New York
YHZ : Halifax
YYT : St. Johns
3. Press Ato exit the setting mode.
City code

E-13
•Normally, your watch should show the correct time as soon as you select your Home
City Code. If it does not, it should adjust automatically after the next auto receive (in
the middle of the night). You also can perform manual receive (page E-23) or you
can set the time manually (page E-40).
•If you are in an area that does not use Daylight Saving Time (summer time), turn off
the DST setting (page E-44).
To display the digital time
•In the Timekeeping Mode, press Ato cycle the contents of the upper left display as
shown below.
▲
Press A.
Hour : Minutes
Day of week PM indicator
▲
Press A.
Month –Day

E-14

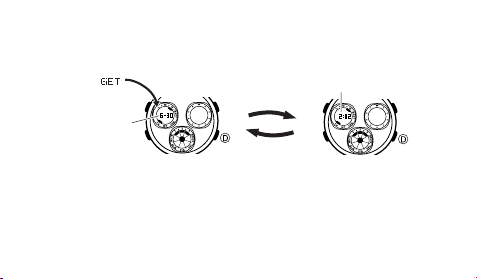

To display the last signal screen
•In the Timekeeping Mode, press Dto toggle the upper left display between the last
signal information shown below. These screens show the time and date of the last
successful time calibration signal reception.
Last Signal
Screen
Reception date
Reception time

E-15
Time Calibration Signal Reception
There are two different methods you can use to receive the time calibration signal:
auto receive and manual receive.
•Auto Receive
With auto receive, the watch receives the time calibration signal automatically six
times a day. When any auto receive is successful, remaining auto receive
operations are not performed. For more information, see “About Auto Receive”
(page E-20).
•Manual Receive
Manual receive lets you start a time calibration signal reception with the press of a
button. For more information, see “To perform manual receive”on page E-23.

E-16
Important!
•When getting ready to receive the time calibration signal, position the watch as
shown in the nearby illustration, with its 12 o’clock side pointing towards a window.
This watch is designed to receive a time calibration signal late at night. Because of
this, you should place the watch near a window as shown in the illustration when you
take it off at night. Make sure there are no metal objects nearby.
12 o’clock
or
•Make sure the watch is facing the right way.

E-17
•Proper signal reception can be difficult or even impossible under the conditions listed
below.
•Signal reception normally is better at night than during the day.
•Time calibration signal reception takes from two to seven minutes, but in some
cases it can take as long as 14 minutes.Take care that you do not perform any
button operations or move the watch during this time.
Inside or
among
buildings
Inside a
vehicle
Near
household
appliances,
office
equipment,
or a mobile
phone
Near a
construction
site, airport, or
other sources
of electrical
noise
Near high-
tension
power lines
Among or
behind
mountains

E-18
•The time calibration signal the watch will attempt to pick up depends on its current
Home City code setting as shown below.
Home City Code
SEL,TYO
YVR,LAX,YEA,DEN,
MEX,YWG,CHI,MIA,
YTO,NYC,YHZ,YYT
Frequency
40.0 kHz
60.0 kHz
60.0 kHz
Transmitter
Fukushima (Japan)
Fukuoka/Saga (Japan)
Fort Collins, Colorado
(the United States)
•Calibration signal reception is disabled while a countdown timer operation is in
progress.

E-19
Approximate Reception Ranges
2,000 miles
(3,000 kilometers)
U.S. Signal
Fort Collins
600 miles
(1,000 kilometers)
Japan Signals
1,000 kilometers
1,000 kilometers
Fukuoka/Saga
500 kilometers
500 kilometers
Fukushima
