Operation Guide 5011 (W3)
1
MA0804-EB
Before using the watch...
Expose the watch to light.
Your watch runs on electrical power generated from light, which is
stored by a chargeable battery. Long-term storage of the watch can
cause the battery to run low, so be sure to expose the watch to light
before using it for the first time. See “Solar Charging” for more
information.
Low Battery Alert
When secondary battery power is low, the second hand of the watch
will start to jump at 2-second intervals to let you know that charging
is required.
•See “Solar Charging” for more information.
30
30
Jumps at 2-second
intervals.
Power Saving
Power Saving causes the watch to enter a sleep state automatically
and stop movement of the analog hands in order to save power
whenever the watch is left in the dark.
The watch will exit the sleep state if you expose it to light or perform
any button operation.
•Though the hands are stopped, the watch continues to keep time
internally.
•Note that the watch also may enter the sleep state and stop if the
solar panel is blocked from light by your sleeve.
Sleep Level 1
Sleep Level 1 is triggered whenever the watch is left in the dark for
about one hour any time between the hours of 10 p.m. and 6 a.m.
In Sleep Level 1:
•The second hand is stopped.
•The hour hand, 24-hour hand, minute hand, and day indicator
continue to operate normally.
•Auto Receive is performed normally.
•Alarms and the hourly time signal continue to operate normally.
Sleep Level 2
Sleep Level 2 is triggered whenever the watch is left in the dark
while in Sleep Level 1 for six or seven days.
In Sleep Level 2:
•The hour hand, 24-hour hand, and minute hand are stopped.
•If the watch reaches Sleep Level 2 while in the World Time Mode,
the hands will move to 12 o’clock and stop when the Home City
time (kept internally) reaches midnight.
•Auto Receive is disabled.
•Alarms and the hourly time signal are disabled.
•The day indicator continues to operate normally.
Timekeeping Mode Stopwatch Mode
30 30
Minute
hand
Second hand
button
buttonbutton
button
Day
(While reset.)
Second hand
24-hour
hand
Hour hand Minute hand
Day of the week
hand
Indicator hand
For more information, see “How a Radio-controlled
Watch Works”.
1/20-second hand
1/20-second timing is performed only for the first minute
after you start or restart an elapsed time measurement.
•You also can start a stopwatch elapsed time
operation from the Timekeeping Mode by pressing
the button.
•Start
•Stop
•Reset
World Time ModeAlarm Mode
Timekeeping Mode
30
3030
City code“AL”indicated.
Modes and Indicators
•To enter the Stopwatch Mode, press the Dbutton.
•Use the Cbutton to enter any other mode besides the Stopwatch
Mode. Each press of the Cbutton cycles between modes as
shown in the illustration to the left.
•About 1.5 seconds after you enter a mode, the watch’s hands will
start to move to the time setting for that mode. Note that the only
operation you can perform while the hands are moving is
changing to another mode.
•If you do not perform any operation for about two or three
minutes, the watch will revert automatically to the Timekeeping
Mode.
The shape and markings of the face depend on the watch
model.

Operation Guide 5011 (W3)
2
Solar Charging
Your watch runs on electrical power generated from light, which is
stored by a chargeable battery.
To ensure stable operation, make sure that the watch is exposed to
light as much as possible.
•Whenever you are not wearing the watch on your wrist, position it
so the face (solar cell) is pointed in the direction of a source of
bright light.
Light
Solar cell
Leave the watch under fluorescent lighting, near a window, etc.
•When wearing the watch, try to keep your clothing from blocking
its face, where the solar cell is located.
Charging efficiency is reduced significantly even if the face of the
watch is covered only partially by your sleeve.
While the watch is exposed to light...
30
Light
Power supplied to watch
Solar cell
(Light charges
the battery.)
Electrical energy
Rechargeable
Battery
Charge
While the watch is not exposed to light...
30
Power supplied to watch
Rechargeable
Battery
Discharge
Your watch continues to operate even when it is not exposed to light.
Leaving the watch in the dark can run down its battery and cause
functions to become disabled.
Recover Mode
If you use the alarm, calibration signal receive, or any other function
that puts a large load on the battery, the hands will stop. At this time
the following operations are disabled in order to allow battery power
to recover.
•Stopwatch elapsed timekeeping
•Alarm beeper
•Time calibration signal reception
Normal operation will return after the battery recovers.
Low Battery Alert
When secondary battery power is low, the second hand of the watch
will jump at 2-second intervals to let you know that charging is
required.
•Even if the battery level drops to the point that timekeeping stops,
you still will be able to recharge the battery and use the watch
again.
•When you recharge the battery after it drops to a level where
timekeeping stops, the hands will move automatically to the
current time setting.
•Try to keep the watch exposed to light as much as possible during
normal use.
Charging Precautions
Avoid charging the watch in the following locations, and
anywhere else where it may become very hot.
•On the dashboard of an automobile parked in the sun
•Very close to an incandescent light source or other sources
of heat
•In a location exposed to direct sunlight for long periods
Depending on the light source you are using, the case of the
watch may become quite hot when charging. Take care to
guard against burn injury after charging.
Charging Guide
••
••
•The tables in this section provide some guidelines about the
amount of time required each day to ensure stable operation
of the watch.
•The values in this section are based on six minutes of signal
reception and 10 seconds of alarm operation per day.
Charging Time
8 minutes
30 minutes
48 minutes
8 hours
Exposure Level (Brightness)
Outdoor Sunlight (50,000 lux)
Sunlight Through a Window (10,000 lux)
Daylight Through a Window on an
Overcast Day (5,000 lux)
Indoor Fluorescent Lighting (500 lux)
•Stable operation is enabled by frequent charging.
••
••
•Approximate Charge Times Required to Advance to a Higher
Level
Exposure Level
(Brightness)
Outdoor Sunlight
(50,000 lux)
Sunlight Through a
Window (10,000 lux)
Daylight Through a
Window on an Overcast
Day (5,000 lux)
Indoor Fluorescent
Lighting (500 lux)
Charging Time
Until Hand Movement Restarts
Until Full Charge
–––
–––
1 hour
2 hours
4 hours
37 hours
20 hours
76 hours
•Note that the above charging times are for reference only. Actual
charging time depends on a variety of environmental factors.
30
1
1
1
30
Jumps at
2-second
intervals.
Home Position
Disabled state
Low battery alert
Jumps at
1-second
intervals.
Normal operation
Hands stop at 12 o’clock.
Important!
The following functions are
disabled when battery power is
low.
•Auto receive and manual
receive
•Alarm beeper
At midnight, the day
indicator will change to 1
(which is the home position).
The second hand, hour hand,
24-hour hand, and minute
hand all stop at 12 o’clock.
When battery runs low
If power drops even more...

Operation Guide 5011 (W3)
3
How a Radio-controlled Watch Works
What is a radio-controlled watch?
A radio-controlled watch is designed to receive a time calibration
signal that contains standard time data and adjust its current time
setting accordingly.
Cesium
atomic clock
Transmitter Long-wave time
Watch
After the watch receives the Standard Time signal, it performs
internal calculations to determine the current time. Because of
this, there may be an error of up to one second in the
displayed time.
Calibration Signal
•The Japanese calibration signal (Call Sign: JJY) is maintained by
the National Institute of Information and Communications
Technology (NICT). It is transmitted 24 hours a day from the Mt.
Otakadoya transmitter (40 kHz) located in Tamura-gun,
Fukushima Prefecture, and from the Mt. Hagane transmitter (60
kHz) located on the border between Saga Prefecture and
Fukuoka Prefecture.
•The U.S. calibration signal (Call Sign: WWVB) is transmitted by
the National Institute of Standards and technology from Fort
Collins, Colorado.
•The U.K. calibration signal (Call Sign: MSF) is transmitted by the
National Physical Laboratory (NPL) from Anthorn, which is located
near Anthorn, Cumbria.
•The German calibration signal (Call Sign: DCF77) is transmitted
by Physikalisch - Technische Bundesanstalt (PTB) in Mainflingen,
which is located southeast of Frankfurt.
•Time calibration signal frequencies and transmitter locations are
subject to change.
The time data of the Japanese calibration signal (Call Sign:
JJY) is maintained by the Japan Standard Time Group of the
National Institute of Information and Communications
Technology (NICT).
Note that transmission of the calibration signal may be
interrupted occasionally due to maintenance, lightning, etc.
For more information, visit the website of the Japan Standard
Time Group of the National Institute of Information and
Communications Technology (NICT) at the following URL.
http://jjy.nict.go.jp
•Note that the above URL is subject to change.
Reception Ranges
The table below shows the time calibration signal that the watch
receives when a particular city code is selected as your Home City.
••
••
•For information about Home City settings, see “Configuring
Home City Settings”. See the “City Code List” for information
about city codes.
Home City
(Supports signal reception) Receivable Transmitter
Japan (JJY)
United States (WWVB)
HNL, ANC, LAX,
DEN, CHI, NYC
U.K. (MSF) and
Germany (DCF77)
LON, PAR, ATH
TYO, HKG
•Signal reception is possible in the time zones represented by
HKG (Hong Kong), HNL (Honolulu), and ANC (Anchorage) when
reception conditions are good.
•Certain conditions can make reception impossible even when the
watch is within one of the reception ranges shown above. Signals
become weaker outside of the smaller circles indicated by dashed
lines in the nearby maps, so the reception environment has a
greater effect on signal reception.
•The following also can affect signal reception: geographic
contours, structures, weather, climate, time of day (afternoon,
evening), noise.
Reception Time
A receive operation can take anywhere from about two to seven
minutes.
•Under certain conditions, a receive operation can take as long as
13 minutes.
Positioning the Watch for Best
Reception
Remove the watch from your wrist and place it somewhere so its top
(12 o’clock side, where the antenna is located) is facing
approximately in the direction of the signal transmitter. Keep the
watch away from metal objects.
Resin band
Metal band
•Orienting the watch so it is sideways to the transmitter makes it
more difficult for the watch to receive the signal.
•Do not move the watch while it is receiving the calibration signal.
Important!
Reception is difficult and may even be impossible in the locations
described below. Avoid such locations when performing signal
reception.
•You should think of your watch as operating like a radio or TV
when it is receiving the calibration signal.
If you are experiencing problems with reception, move away
from the types of locations described above to a location with
better reception, and try again.
Receiving a Calibration Signal
There are two methods you can use in order to receive the time
calibration signal.
•Auto Receive up to six times per day
•Manual Receive where you hold down the Abutton in the
Timekeeping Mode.
Among or near
buildings
Near high-voltage
lines
Inside an automobile,
train, plane, or other
vehicle
Next to a TV,
speaker, fax,
computer, cellphone,
or other household
appliances or office
equipment
At a construction
site, airport, or other
location where there
is radio interference
Near mountains
Auto Receive
Getting Ready for Auto Receive
You will need to perform the operations described below in order to
use Auto Receive.
•Configure the Home City setting of the Timekeeping Mode so it
matches your current location. The Home City must be in a time
zone where calibration signal reception is supported. See:
“Reception Ranges”and “Configuring Home City Settings”.
•Put the watch into the Timekeeping Mode or World Time Mode.
See: “Modes and Indicators”.
•During the Auto Receive times, position the watch correctly for
best reception. See: “Auto Receive Start Times”(below) and
“Positioning the Watch for Best Reception”.
How Auto Receive Works
Calibration signal reception will start automatically whenever the
current time in the Timekeeping Mode reaches one of the Auto
Receive Start Times listed below. Auto receive can be performed up
to six times a day, but any time a signal receive operation is
successful, no more auto receive operations are performed that day.
Note that the Auto Receive Start Times differ according to the
current Home City setting and the summer time setting.
•Summer time, or Daylight Saving Time (DST) as it is called in
some countries, calls for setting clocks ahead one hour from
standard time during the summer season.
•Note that the start and end of summer time, and whether summer
time is used at all depends on each country.
Auto Receive Start Times
3
2:00 a.m.
2:00 a.m.
3:00 a.m.
4:00 a.m.
4:00 a.m.
5:00 a.m.
5:00 a.m.
Midnight*
4
3:00 a.m.
3:00 a.m.
4:00 a.m.
5:00 a.m.
5:00 a.m.
Midnight*
Midnight*
1:00 a.m.*
5
4:00 a.m.
4:00 a.m.
5:00 a.m.
Midnight*
Midnight*
1:00 a.m.*
1:00 a.m.*
2:00 a.m.*
6
5:00 a.m.
5:00 a.m.
Midnight*
1:00 a.m.*
1:00 a.m.*
2:00 a.m.*
2:00 a.m.*
3:00 a.m.*
TYO, HKG
HNL, ANC, LAX,
DEN, CHI, NYC
LON
PAR
ATH
Standard Time
Standard Time
Summer Time
Standard Time
Summer Time
Standard Time
Summer Time
Standard Time
Summer Time
2
1:00 a.m.
1:00 a.m.
2:00 a.m.
2:00 a.m.
3:00 a.m.
4:00 a.m.
4:00 a.m.
5:00 a.m.
1
Midnight
Midnight
1:00 a.m.
2:00 a.m.
2:00 a.m.
3:00 a.m.
3:00 a.m.
4:00 a.m.
Auto Receive Start TimesAuto Receive Start Times
Home City
* Following day
1000km
Mt. Hagane
(60kHz)
Mt. Otakadoya
(40kHz)
500km
1000km
500km
Transmitter Locations
Japan (JJY)
3000km
1000km
Fort Collins
United States (WWVB)
U.K. (MSF), Germany (DCF77)
1500km
500km
Mainflingen
Anthorn
The signal transmitted
out of Anthorn may be
receivable within this
range.

Operation Guide 5011 (W3)
4
When reception is successful
After a receive operation is complete, the watch returns to the
Timekeeping Mode, which shows the newly adjusted time.
When reception fails
The watch will return to the Timekeeping Mode without adjusting the
time setting.
Manual Receive
You will need to perform the operations described below in order to
use Manual Receive.
•Configure the Home City setting of the Timekeeping Mode so it
matches your current location. The Home City must be in a time
zone where calibration signal reception is supported. See:
“Reception Ranges”and “Configuring Home City Settings”.
•Put the watch into the Timekeeping Mode. See: “Modes and
Indicators”.
•Position the watch correctly (see “Positioning the Watch for Best
Reception”).
■To start a Manual Receive operation
In the Timekeeping Mode, hold
down the AA
AA
Abutton for about
two seconds until the
indicator hand moves to the
last signal reception result
(“Y”or “N”), and then to
“READY”(“R”for some
models).
•The hour hand, 24-hour hand,
and minute hand continue to
operate normally.
•The second hand will stop at “0”.
While reception is in progress...
•The indicator hand moves to
“WORK”(or “W”for some
models).
•The hour hand, 24-hour hand,
and minute hand will continue to
operate normally.
•Do not perform any watch
operations while signal reception
is in progress (indicator hand at
“WORK”or “W”).
•Under some reception conditions,
the indicator hand may cycle
between “READY”(or “R”) and
“WORK”(or “W”) until reception
stabilizes.
When reception is complete...
•If reception was successful, the
hands will move to the correct
time. After that, the indicator hand
moves to “Y”(or “YES”for some
models). Then after about five
seconds the watch will resume
regular timekeeping.
•If the receive operation fails, the
indicator hand will move to “N”(or
“NO”for some models) and the
hands will move to the unadjusted
time. Then after about five
seconds the watch will resume
regular timekeeping.
■To cancel a manual receive operation
Press any button.
■To check the result of the last receive
operation
In the Timekeeping Mode, press the AA
AA
Abutton.
•The indicator hand will move to “Y”(or “YES”) if the last receive
operation was successful or to “N”(or “NO”) if the last receive
operation was unsuccessful.
•Press the Abutton once to return to normal timekeeping.
•If you do not perform any operation for about five seconds, the
watch will revert automatically to normal timekeeping.
30
N (or NO) when not successful
Y (or YES) when successful
The last receive status changes each time a new time
calibration signal reception operation is performed.
Calibration Signal Reception Precautions
•Auto Receive is not performed while the watch is in the Stopwatch
Mode or Alarm Mode.
•Operating any button while Auto Receive is in progress will cause
the watch to beep and then exit the receive operation.
•Make sure you are within the range of a calibration signal
transmitter before performing the receive operation. Remember
that geographic contours, nearby buildings, the season, or the
time of day can make reception impossible even when you are
within range of the transmitter.
•Proper reception may be impossible if there is something blocking
the signal. If reception is unsuccessful, try again.
•This watch is designed to adjust its current time setting in
accordance with the calibration signals transmitted in Japan, the
United States, the U.K., and Germany. Note that you will need to
make your own adjustments when using this watch outside of the
range of the time calibration signal transmitters.
•When the watch is unable to adjust its time using the calibration
signal for some reason, timekeeping accuracy is within ±15
seconds per month.
•Strong electrostatic charge can cause timekeeping error.
•Receive is cancelled if an alarm operation starts while it is being
performed.
•The watch’s calendar shows dates up to the year 2099.
Attempting a receive operation after that causes an error.
Troubleshooting
1. The watch cannot receive the time calibration signal.
•Is there something in the immediate area that may be interfering
with reception?
Even if you are within the reception range of a transmitter,
electrical noise or objects between you and the transmitter can
interfere with reception. Avoid such areas (see “Positioning the
Watch for Best Reception”) during signal reception.
•Are you within the reception range of a transmitter?
See “Reception Ranges”for information about areas where the
watch can receive the signal.
•Are your Home Time settings configured correctly?
See “Configuring Home City Settings”.
•Is the signal being transmitted?
Transmission of time calibration signals may be interrupted
occasionally due to maintenance, lightning, etc.
2. Time calibration signal reception is successful, but the
hourly time signal and current time are slightly off.
•After the watch receives the time calibration signal, it performs an
internal decoding process before updating its time setting.
Because of this, the time setting may be off slightly (within one
second).
3. Time calibration signal reception is successful, but the
current time setting is wrong.
•Are your Home Time settings configured correctly?
See “Configuring Home City Settings”.
•If you cannot receive the calibration signal or if the time setting is
incorrect after signal reception, check the setup of the watch.
•The following are the watch’s factory default settings, which are
configured automatically whenever you have the battery of the
watch replaced.
Home City
Summer Time
Tokyo
Auto
(according to signal data)
TYO
AT (AUTO)
30
READY (or R)
30
WORK (or W)
30
N (or NO)
Y (or YES)

Operation Guide 5011 (W3)
5
Using the Stopwatch
The stopwatch measures elapsed time in units of 1/20 second up to
59 minutes, 59.95 seconds (60 minutes). When the maximum limit is
reached, the elapsed time returns to zero automatically and timing
continues from there.
Stopwatch Reset
The stopwatch is “reset”when all of
the three conditions exist.
•Elapsed time measurement
operation not in progress
•Elapsed time measurement
operation not paused
•Minute hand, second hand, and
1/20-second hand in their
12 o’clock positions (not
indicating measurement result)
■To reset the stopwatch
While an elapsed time measurement operation is in progress or
paused, or while the hands are indicating an elapsed time
measurement operation result, press the Dbutton. This will reset
the stopwatch and switch to the Timekeeping Mode (normal
timekeeping).
Entering the Stopwatch Mode
There are two ways to enter the Stopwatch Mode from the
Timekeeping mode: pressing the Dbutton or the Bbutton, as
described below.
■To enter the Stopwatch Mode with the
DD
DD
Dbutton
1. In the Timekeeping Mode, press the Dbutton.
•
This will enter the Stopwatch Mode, with its hands reset.
3030
The second
hand counts
seconds.
Timekeeping Mode Stopwatch Mode
Day of the week hand moves to “0”.
•The day of the week hand functions as a
minute hand in the Stopwatch Mode.
•The indicator hand functions as a
second hand in the Stopwatch Mode.
Indicator hand makes one revolution.
Second hand moves to “0”(“60”for some models).
•The second hand functions as a 1/20-second
hand in the Stopwatch Mode.
2. Press the Bbutton to start an elapsed time operation.
■To enter the Stopwatch Mode with the
BB
BB
Bbutton
In the Timekeeping Mode, press the Bbutton.
•This enters the Stopwatch Mode and immediately starts an
elapsed time operation.
•An elapsed time operation started by pressing the Bbutton the
Timekeeping Mode cannot be stopped within the first second after
it is started.
•The watch will not enter the Stopwatch Mode and start an elapsed
time measurement operation if you press the Bbutton during
either of the following in the Timekeeping Mode.
•During the period when a date change in progress (from 23:59:59
until the date change operation is complete)
•During the period from two seconds before an alarm time is
reached until the point that the alarm stops sounding.
3030
Timekeeping Mode Stopwatch Mode
The second hand
counts seconds.
Functions as a 1/20-second hand
in the Stopwatch Mode.
■To switch to the Timekeeping Mode
from the Stopwatch Mode
While the Stopwatch Mode is reset, press the Dbutton.
30
30
Functions as a second hand
in the Timekeeping Mode.
Minute hand:
12 o’clock
Second hand:
12 o’clock
1/20-second hand: 12 o’clock (0 position)
Stopwatch Mode (Reset) Timekeeping Mode
Using the Alarm
The watch beeps for 10 seconds when the Timekeeping Mode time
reaches the currently set alarm time.
•The alarm will sound when the current time in the Timekeeping
Mode matches the alarm time.
•If you do not perform any operation for about two or three minutes
in the Alarm Mode, the watch will revert automatically to the
Timekeeping Mode.
•When you enter the Alarm Mode, the hands move to indicate the
current alarm setting. The only button operation you will be able to
perform while the hands are moving is pressing the Cbutton to
change to another mode.
30
“AL”indicated.
“ON”or “OFF”indicated.
Alarm Mode
■To set the alarm time
1.
Hold down the AA
AA
Abutton
for about three seconds
until the indicator hand
moves to “ON”and the
second hand moves to “0”
(“60”for some models).
•The alarm also turns on
automatically at this time.
•The watch will return to
normal timekeeping
automatically if you do not
perform any operation for
about two or three minutes.
Any changes you have made
to settings up to that point will
be saved.
Use the CC
CC
Cbutton to enter the Alarm Mode as shown under
“Modes and Indicators”.
2.
Use the DD
DD
D(+) and BB
BB
B(–)
buttons to change the
alarm setting in one-
minute increments.
•Holding down either button
will cause the hands to move
at high speed. Once started,
high-speed hand movement
will continue even if you
release the button. To stop
high-speed hand movement,
press any button.
•Check the 24-hour hand to make sure that the time is set
properly (1:00 a.m. = 1 o’clock, 1:00 p.m. = 13 o’clock).
3.
When everything is the
way you want, press the
AA
AA
Abutton.
■To turn the alarm on or off
In the Alarm Mode, press the AA
AA
Abutton to toggle the alarm
on and off.
3030
ON OFF
■To stop the alarm
Pressing any button while the alarm is sounding will stop it.
30
Second hand
Minute hand
1/20-second hand
■To start or stop an elapsed time
operation
In the Timekeeping Mode or Stopwatch Mode, perform the
operations shown below.
30
•Start
•Stop
Second hand
Minute hand
1/20-second hand
•Reset
Start Stop Reset
•1/20-second timing is performed only for the first minute after you
start or restart an elapsed time measurement operation. The 1/20-
second hand also jumps to the elapsed time position when you
stop an elapsed time measurement operation.
•The stopwatch also will reset if you press Dwhile elapsed time
measurement is in progress.
Cumulative Time Measurement
Pressing the Bbutton to restart the stopwatch without resetting it
will resume elapsed time measurement from where it was last
stopped.
30
ON 0 position
30
(–)
(+)
24-hour hand
30

Operation Guide 5011 (W3)
6
Using World Time Use the CC
CC
Cbutton to enter the World Time Mode as shown
under “Modes and Indicators”.
World time lets you display the current time in any one of 27 cities
(29 time zones) around the world.
30
City code
Indicates the summer
time setting.
Important!
If the current time is not correct, check your current Home City
settings and make adjustments as necessary.
•See “Configuring Home City Settings”.
■To search for a city
In the World Time Mode, press
the DD
DD
Dbutton to move the
indicator hand (which is
pointing at the currently
selected city code) clockwise.
•About one second after you
release the Dbutton, the hands
of the watch will move to the
current time in the zone of the city
at which the indicator hand is
pointing. Note that it can take as
long as two minutes for the hands
to move to the applicable time.
•The only button operation you will
be able to perform while the
hands are moving is pressing the
Cbutton to change to another
mode.
Home City Alert
If the city code that the indicator hand moves to when you press the
Cbutton is your currently select Home City, the watch will beep.
Using Summer Time
Summer time, or Daylight Saving Time (DST) as it is known in some
countries, calls for setting clocks ahead one hour from standard time
during the summer season.
•Note that the start and end of summer time, and whether summer
time is used at all depends on each country.
••
••
•ON
This setting turns on summer time and advances standard
time by one hour.
••
••
•OFF
Turns off summer time and returns to standard time.
■To check the current summer time on/
off setting for a city
In the World Time Mode, select the
city you want to check.
■To turn summer time on or off
1.
In the World Time Mode, use the DD
DD
Dbutton to select the
city whose summer time setting you want to change.
2.
Hold down the AA
AA
Abutton for about three seconds to
toggle summer time on or off.
•You can turn summer time on or off individually for each
World Time City. Note, however, that you cannot change the
summer time setting for the “GMT”zone. Also note that you
cannot use the World Time mode to change the summer time
setting of your currently selected Home City. See “To select
your Home City and change its summer time setting”for
information about changing the summer time setting of your
Home City.
3030
(3 seconds)
Swapping the Home City and
World Time City
Use the procedure below to swap the city you currently have
selected in the World Time Mode with your Home City. This will
make your old World Time City your new Home City, and your old
Home City your new World Time City.
Example: To swap your Home City of New York (NYC) to Tokyo
(TYO)
World Time City
Tokyo (TYO)
New York (NYC)
Home City
New York (NYC)
Tokyo (TYO)
Before swapping
After swapping Tokyo (TYO)
1.
In the World Time Mode,
use the DD
DD
Dbutton to select
the city you want to use as
your new Home City.
2.
Hold down the BB
BB
Bbutton
for about three seconds
until the watch beeps.
•This will make the World
Time City you selected in
step 1 your new Home City.
•Your previous Home City
(New York in this example)
will be your new World Time
City.
Important!
If you are using the watch in Japan, be sure to select TYO (Tokyo)
as your Home City.
Selecting another city code will make it impossible to receive the
time calibration signal, which will cause the watch’s time setting to
be off.
City Code List
GMT
LON
PAR
ATH
JED
THR
DXB
KBL
KHI
DEL
DAC
RGN
BKK
HKG
TYO
Greenwich Mean Time
London
Paris
Athens
Jeddah
Teheran
Dubai
Kabul
Karachi
Delhi
Dhaka
Yangon
Bangkok
Hong Kong
Tokyo
+0.0
+0.0
+1.0
+2.0
+3.0
+3.5
+4.0
+4.5
+5.0
+5.5
+6.0
+6.5
+7.0
+8.0
+9.0
ADL
SYD
NOU
WLG
PPG
HNL
ANC
LAX
DEN
CHI
NYC
CCS
RIO
–2.0
–1.0
Adelaide
Sydney
Noumea
Wellington
Pago Pago
Honolulu
Anchorage
Los Angeles
Denver
Chicago
New York
Caracas
Rio de Janeiro
+9.5
+10.0
+11.0
+12.0
–11.0
–10.0
–9.0
–8.0
–7.0
–6.0
–5.0
–4.0
–3.0
City
Code City Name
UTC
Offset
City
Code City Name
UTC
Offset
*
•Based on data as of June 2007.
•The rules governing global times (GMT differential and UTC
offset) and summer time are determined by each individual
country.
*In December 2007, Venezuela changed its offset from –4.0 to
–4.5. Note, however, that this watch displays an offset of –4.0 (the
old offset) for the CCS (Caracas, Venezuela) city code.
30
(–)
30
“ON”or “OFF”indicated.
30
TYO selected
30
30
Indicator hand
moves to “NYC”.

Operation Guide 5011 (W3)
7
Configuring Home City Settings
Use the procedures in this section to configure Home City settings,
including selecting a region and city code, setting the time and date,
etc. You also can use the procedures in this section to adjust the
time and date when the watch is unable to receive a time calibration
signal for some reason.
•Always use the Timekeeping Mode to configure and adjust Home
Time settings.
•Each press of the Cbutton cycles through available settings in
the sequence shown below.
Month
•Home City
•Summer time Hour and minute Year
Day
■To select your Home City and change its
summer time setting
1.
In the Timekeeping Mode,
keep the AA
AA
Abutton
depressed (for about five
seconds) as the indicator
hand goes through the
following sequence.
•The indicator hand will move
to the last signal reception
result (“Y”or “N”), then to
“READY”(or “R”for some
models), and then the city
code of the currently selected
Home City. Next, the second
hand will move to “0”(“60”for
some models).
•The watch will return to normal timekeeping automatically if
you do not perform any operation for about two or three
minutes. Any changes you have made to settings up to that
point will be saved.
2.
Press the DD
DD
Dbutton to
move the indicator hand
clockwise.
3.
Press the BB
BB
Bbutton to
cycle through the summer
time (DST) settings
described below.
••
••
•AT (AUTO)
This setting enables the auto summer time setting, which
turns summer time on or off in accordance with the received
time calibration signal.
This is the factory default setting for the following city codes:
LON, PAR, ATH, TYO, ANC, LAX, DEN, CHI, NYC.
•This setting is available for the following city codes only:
LON, PAR, ATH, HKG, TYO, HNL, ANC, LAX, DEN, CHI,
NYC.
••
••
•ON
This setting turns on summer time and advances the current
time by one hour from standard time.
••
••
•OFF
This setting turns off summer time and displays standard time.
•Signal reception is possible in the time zones represented by
HKG (Hong Kong), HNL (Honolulu), and ANC (Anchorage) when
reception conditions are good.
•If you want to proceed with adjusting the current time and date
setting, continue from step 2 under “To adjust the current time and
date setting manually.”
4.
When everything is the way you want, press the AA
AA
A
button.
•This will apply your settings and return to normal timekeeping.
The second hand will move to and start timekeeping from the
appropriate seconds count in accordance with the watch’s
internal timekeeping.
■To adjust the current time and date
setting manually
1.
In the Timekeeping Mode,
keep the AA
AA
Abutton
depressed (for about five
seconds) as the indicator
hand goes through the
following sequence.
•The indicator hand will move
to the last signal reception
result (“Y”or “N”), then to
“READY”(or “R”for some
models), and then the city
code of the currently selected
Home City.
•At this time the second hand will move to “0”(“60”for some
models).
•The watch will return to normal timekeeping automatically if
you do not perform any operation for about two or three
minutes. Any changes you have made to settings up to that
point will be saved.
2.
Press the CC
CC
Cbutton.
•The indicator hand will move
to 12 o’clock, and the day of
the week hand will move to
“0”(“60”for some models).
3.
Use the DD
DD
D(+) and BB
BB
B(–)
buttons to change the
time setting in one-minute
increments.
•Holding down either button
will cause the hands to move
at high speed. Once started,
high-speed hand movement
will continue even if you
release the button. To stop
high-speed hand movement,
press any button.
•Check the 24-hour hand to make sure that the time is set
properly (1:00 a.m. = 1 o’clock, 1:00 p.m. = 13 o’clock).
4.
Press CC
CC
Cto change to the
year setting.
5.
Use the DD
DD
Dbutton to move
the units digit hand
clockwise and the BB
BB
B
button to move the tens
digit hand clockwise.
20X0
20X5
20X4
20X3
20X2
20X120X9
20X8
20X7
20X6
•Use the Bbutton to move the tens digit (indicator) hand
clockwise.
200X
20X6
20X1
20X2
20X8
20X7 20X5
20X4
20X9 20X3
6.
Press CC
CC
Cto change to the
month setting.
30
Second hand
Indicator hand
30
(+)
30
30
Second hand
Indicator hand
30
30
(–)
(+)
24-hour hand
30
Tens digit
Units digit
30
30
Moves to the current
month setting.

Operation Guide 5011 (W3)
8
7.
Press the DD
DD
Dbutton to
move the indicator hand
clockwise one month.
Dec
Jun
Jan
Feb
Nov
Aug
Oct
Jul May
Apr
Sep Mar
8.
Press CC
CC
Cto change to the
day setting.
9.
Use the DD
DD
D(+) and BB
BB
B(–)
buttons to change the day
setting in one-day
increments.
10.
When everything is the
way you want, press the
AA
AA
Abutton.
•This will exit the setting
procedure and reset the
seconds count to zero.
•Press Ato restart
timekeeping on a time signal
on the TV or radio.
•The day of the week is
calculated automatically.
In areas where date data can be received with the calibration
signal, the watch will adjust automatically for leap years and
months of different lengths. In areas where reception of a time
calibration is not possible you will need to adjust the date
manually for leap years and months of different length.
30
30
30
(–)
(+)
Day
30

Operation Guide 5011 (W3)
9
Home Position Adjustment
If the time setting of your watch is not correct even though
time calibration signal reception is being performed normally,
use the procedure in this section to check the home positions
of the hands and make adjustments as required.
Note that you do not need to perform the following operation if
your watch is showing the correct time.
1.
In the Timekeeping Mode,
hold down the AA
AA
Abutton
and then the CC
CC
Cbutton for
about three seconds.
•The watch will beep, and then
the indicator hand and the
second hand will move their
home positions.
Home Positions
Indicator Hand: 12 o’clock
Second hand: 0 (60 on some
models)
•If the indicator hand and second hand are both at their proper
home positions, advance to step 3.
•The watch will return to normal timekeeping automatically if you
do not perform any operation for about two or three minutes. Any
changes you have made to settings up to that point will be saved.
If the indicator hand or second hand is not at
its proper home position
2.
Adjust the applicable
hand to its home
position.
•Use the Bbutton to
adjust the indicator
hand.
•Use the Dbutton to
adjust the second hand.
•The hands move
clockwise only. Keep
pressing a button until
the applicable hand is at
its proper home position.
3.
Press the CC
CC
Cbutton.
•This will cause the hour hand,
minute hand, and 24-hour
hand to move to their home
positions.
Home Positions
Hour hand: 12 o’clock
Minute hand: 12 o’clock
24-hour hand: 24:00
•If the hour, minute, and 24-nour hands all are at their proper home
positions, advance to step 5.
If the hour and minute hands are not at their
proper home positions
4.
Use the DD
DD
D(+) and BB
BB
B
(–) buttons to adjust
the hand positions.
•Holding down either
button will cause the
hands to move at high
speed. Once started,
high-speed hand
movement will continue
even if you release the
button. To stop high-
speed hand movement,
press any button.
•The 24-hour hand is synchronized with the hour and
minute hands, so separate adjustment is not required.
5.
Press the CC
CC
Cbutton.
•This causes the day of the
week hand to move to its
home position.
Home Position
Day of the week hand: 60
•If the day of the week hand is at its proper home position,
advance to step 7.
If the day of the week hand is not at its proper
home position
6.
Use the DD
DD
D(+) and BB
BB
B
(–) buttons to adjust
the day of the week
hand.
•Holding down either
button will cause the
hand to move at high
speed. Once started,
high-speed hand
movement will continue
even if you release the
button. To stop high-
speed hand movement,
press any button.
7.
Press the CC
CC
Cbutton.
•This causes the day to move
to its home position.
Home Position
Day: 1
•If the day hand is at its proper home position, advance to step 9.
If the day is not at its proper home position
8.
Use the DD
DD
D(+) and BB
BB
B
(–) buttons to adjust
the day.
•Holding down either
button will cause the
hands to move at high
speed. Once started,
high-speed hand
movement will continue
even if you release the
button. To stop high-
speed hand movement,
press any button.
9.
Press the AA
AA
Abutton to exit
home position adjustment
and return to normal
timekeeping.
•If you press the Cbutton
instead of the Abutton, the
watch will return to step 1
(indicator hand and second
hand home position
adjustment) of this procedure.
After completing home position adjustment, place the watch in
a location where signal reception is good and perform Manual
Receive.
•For details about the manual receive procedure, see
“Manual Receive”.
30
Second hand
Indicator hand
30
(Second hand)
(Indicator hand)
30
24-hour hand Hour hand
Minute hand
30
(–)
(+)
30
Day of the week hand
30
(–)
(+)
1
Day
1
(–)
(+)
30
Table of contents
Other Casio Watch manuals

Casio
Casio 5130 (OC) User manual

Casio

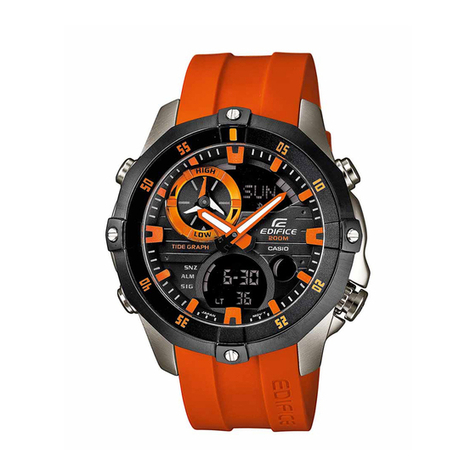

Casio 5299 User manual

Casio
Casio STG-110 Troubleshooting guide

Casio
Casio 3028 User manual

Casio
Casio 3178 User manual

Casio
Casio GXW GX-56 User manual

Casio
Casio 5081 User manual

Casio
Casio 3452 Service manual

Casio
Casio 3423 Service manual

Casio
Casio GW3500B-1A User manual

Casio
Casio Analog (MAC) 5125 User manual

Casio
Casio 2610 User manual

Casio
Casio 1998 Configuration guide

Casio
Casio 5057 User manual

Casio
Casio 3443 User manual

Casio
Casio Forester FT500WV-5BV User manual

Casio
Casio 5132 User manual

Casio
Casio 3406 User manual

Casio
Casio 5070 User manual

Casio
Casio 210 User manual
