Quick Reference Manual 5413
MA1704-ED © 2014 CASIO COMPUTER CO., LTD.
Specifications
Accuracy
at normal
temperature
: ± 15 seconds a month
Analog
Timekeeping
: Hour, minutes (hand moves every 20 seconds)
Digital
Timekeeping
: Hour, minutes, seconds; a.m. (A)/p.m. (P); 12/24-hour timekeeping
format; Month, day, day of the week; Full auto calendar (2000 to 2099);
Summer time setting
World Time : Current time in 100 cities (35 time zones) + UTC (Universal Coordinated
Time) time display; Summer time setting; user-added city (one city can
be added to the 100 built-in cities)
Alarms and
Hourly Time
Signal
: Alarms
5 alarms (daily or one-time), with 1 snooze alarm
Setting units: Hour, minute
Beep, or flash and beep alert: 10 seconds
Hourly time signal
Beep, or flash and beep every hour on the hour
Stopwatch : Measuring unit: 1/100 second
Measuring capacity: 999:59'59.99" (1000 hours)
Measuring accuracy: ±0.0006%
Measurement functions: Elapsed time, split times
Countdown
Timer
: Countdown unit: 1/10 second
Countdown range: 100 hours
Measuring accuracy: ±0.0006%
Setting unit: 1 second
Beep, or flash and beep for 10 seconds
Mobile Link
Functions
: Auto Time Correction
Time setting adjusted automatically at preset time.
Music control function
Music player control from the watch
Song Search
Search for song title from the watch
Phone finder
Watch operation sounds the alert sound of the mobile phone.
Hand position adjustment
Data Communication Specifications
Bluetooth®
Frequency Band: 2440MHz-2480MHz
Maximum Transmission: 0 dBm (1 mW)
Communication range: 2 meters max. (depends on environment)
Other : Low battery alert; Auto return to Timekeeping Mode; Beep and flash
alert; High-brightness LED light; Selectable illumination duration;
Operation tone on/off; hand shift; Airplane Mode (disables data
communication)
Battery : Two lithium batteries (Type: SR927W)
Approximate
Battery Life
: 2 years
Usage Conditions
•Mobile Link operation: 2 hours/day
•Illumination: Once (1.5 seconds)/day
•Alarm: Once (tone only for 10 seconds)/day
Approximate battery life can be shortened by usage conditions and
settings.
For details about battery replacement, see the Operation Guide website.
Congratulations upon your selection of this CASIO watch.
To ensure that this watch provides you with the years of service for which it is designed,
carefully read and follow the instructions in this manual, especially the information under
“Operating Precautions” and “User Maintenance”.
Be sure to keep all user documentation handy for future reference.
Bluetooth®is a registered trademark or trademark of Bluetooth SIG, Inc. of the United
States.
Your watch has a Mobile Link function that allows it to communicate with a Bluetooth®
SMART mobile phone and adjust its time settings to match those of the mobile phone.
•This product complies with or has received approval under radio laws in various
countries and geographic areas. Use of this product in an area where it does not
conform to or where it has not been approved under applicable radio laws may be
punishable under local laws. For details, visit http://world.casio.com/ce/BLE/.
•Use of this product inside of an aircraft is restricted by the aviation laws of each
country. Be sure to obey instructions provided by flight personnel concerning use of
devices such as this product.
For detailed information, go to the URL below
and select the site for your area.
http://world.g-shock.com/ble/guide/

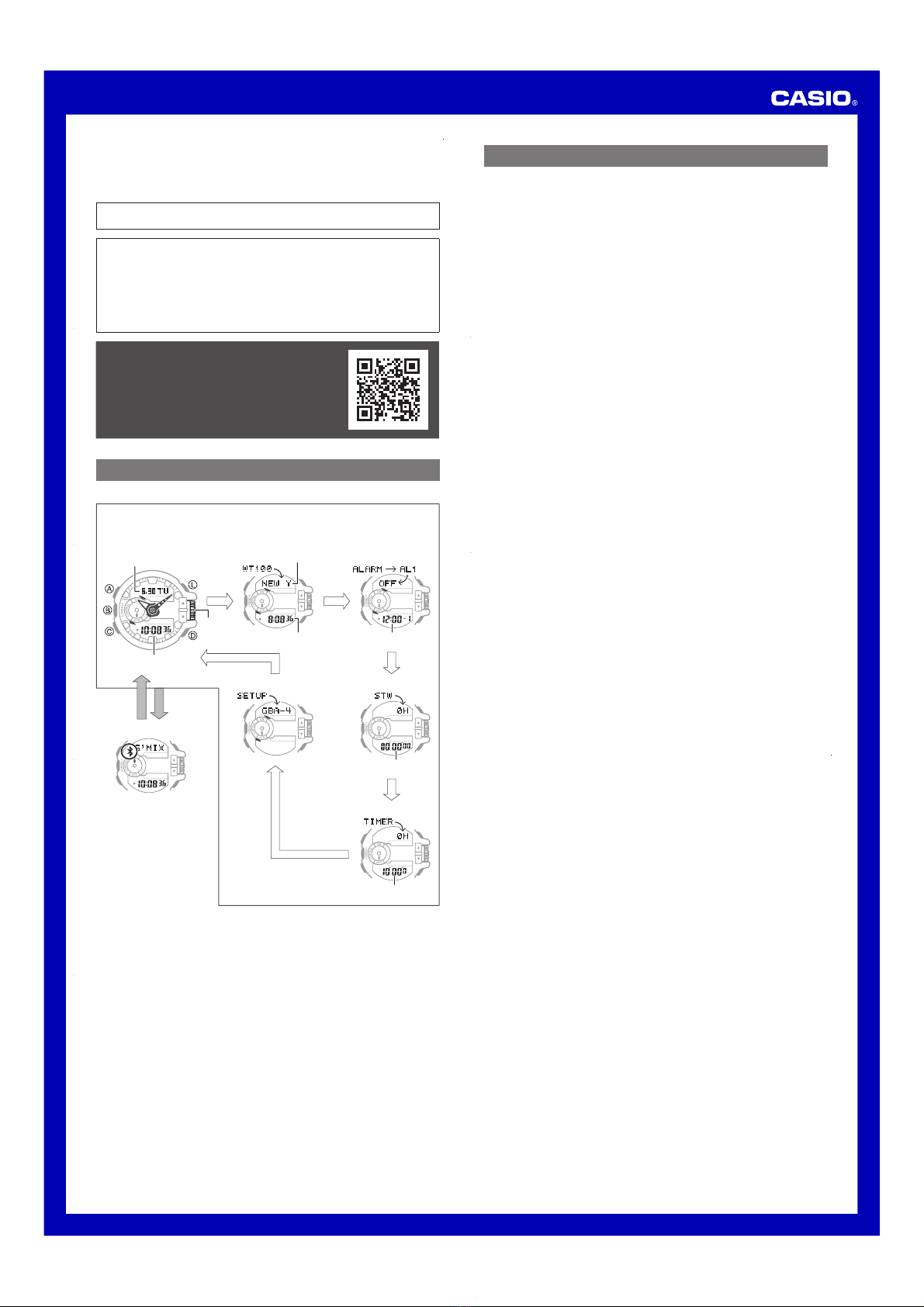

Using the Watch
Use the buttons below to navigate between modes.
B*
Control Mode
Alarm Mode
Stopwatch Mode
Timer Mode
Setup Mode
C
Timekeeping Mode World Time Mode
C
C
C
C
C
B*
Current time
World Time Alarm time
Elapsed time
Countdown time
World Time City
Current month, day,
day of the week
(Connected with a mobile phone)
•Hold down Cabout two seconds to return to the Timekeeping Mode.
Rotary
switch
*Hold down Babout 0.5 seconds to connect by Bluetooth.
Adjusting the Time and Date Settings
1. Timekeeping Mode: Hold down Aabout two seconds.
2. Use Cto select an item.
•Rotate the rotary switch to change the setting.
3. Press Ato complete.
