User’s Guide 5636 (MTG)
E-7
Mode Reference Guide
Each press of Ccycles between modes as shown below.
xHold down Cfor at least one second to enter the Calendar Mode.
30
30
30
30
CC
C
C
Calendar Mode Stopwatch Mode
Alarm Mode Timer Mode
xFor details, refer to the Operation Guide available at the CASIO website.
https://world.casio.com/manual/wat/
E-6
● Timekeeping is kept accurate using information provided by a time calibration signal and by
communication with a mobile phone.
xTime calibration signals can be received using Auto Receive or Manual Receive (page E-11).
xTo set the current time and day, normally use the procedure under “Time Calibration Signal Auto
Receive” (page E-12).
xFor information about how to adjust time using a phone, refer to the Operation Guide available at
the website below.
https://world.casio.com/manual/wat/
xTime calibration signal auto receive is not performed while the watch is able to connect with a
phone to adjust the watch time setting. Signal reception is performed whenever the watch is
unable to connect with a phone for time adjustment for more than one day.
xIf you are in an area where a time calibration signal cannot be received or if you cannot connect
with a phone for some reason, adjust time and date settings manually (page E-16).
Important!
xIn order to make it possible for the current time setting to be adjusted correctly based on time
calibration signal reception, you need to specify the time zone where you are using the watch (pages
E-14 and L-2).
xIf you feel that the current time and/or day indicator are not in the correct positions, you can adjust
their alignment. For details, see the Operation Guide available at the CASIO website.
xTime calibration signal reception is normally possible in the areas below.
Japan, China, North America, Europe
For details, see the Operation Guide available at the CASIO website.
Timekeeping (Current Time and Day Adjustment)
E-5
Charging the Watch
xWhen you are not wearing the watch, leave it where its face (solar panel) is
exposed to bright light for charging.
xTo help ensure stable operation, expose the face of the watch to about a half
day of direct sunlight each month to charge it.
xWhile wearing the watch, take care so your sleeve does not block its face
(solar panel) from light. Charging efficiency may be reduced if the face (solar
panel) is blocked from light, even partially.
Caution
xThe case of the watch may become extremely hot when charging. Guard against burn injury.
Power Saving
xLeaving the watch in a dark location for about one hour between the hours of 9p.m. and 6a.m. will
cause the second hand to stop at 12o’clock.
xLeaving the watch in a dark location for about one week will cause all hands to stop.
Battery Alerts
xLow Battery
Second hand jumps every two seconds (Low Battery Alert).
xDead Battery
All hands stopped.
E-4
Contents
Features .............................................................................................................................................. E-2
Charging the Watch............................................................................................................................ E-5
Timekeeping (Current Time and Day Adjustment) ............................................................................. E-6
Mode Reference Guide....................................................................................................................... E-7
Using the Watch in a Medical Facility or Aircraft ............................................................................ E-8
General Guide.............................................................................................................................. E-9
Timekeeping (Based on a Time Calibration Signal) ......................................................................... E-11
Appropriate Signal Reception Location (Time Calibration Signal).................................................. E-11
Time Calibration Signal Auto Receive.......................................................................................... E-12
Time Calibration Signal Manual Receive...................................................................................... E-13
Crown Operations and Configuring Settings ................................................................................... E-14
Home City (Time Zone) Setting ................................................................................................... E-14
Dual Time City (Time Zone) Setting ............................................................................................. E-15
Configuring Time and Date Settings Manually ............................................................................. E-16
Specifications ................................................................................................................................... E-17
Operating Precautions...................................................................................................................... E-20
User Maintenance............................................................................................................................. E-26
E-3
The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by CASIO COMPUTER CO., LTD. is under license.
This product has a Mobile Link function that lets it communicate with a Bluetooth®capable phone to
perform automatic time adjustment and other operations.
xThis product complies with or has received approval under radio laws in various countries and
geographic areas. Use of this product in an area where it does not conform to or where it has not
been approved under applicable radio laws may be punishable under local laws. For details, visit
https://world.casio.com/ce/BLE/.
xUse of this product inside of an aircraft is restricted by the aviation laws of each country. Be sure to
obey instructions provided by flight personnel concerning use of devices such as this product.
E-2
Features
Your watch provides you with the features and functions described below.
◆Solar powered operation........................................................................................Page E-5
The watch generates electrical power from sunlight and other types of light, and uses it to charge a
battery that powers operation.
◆Accurate timekeeping.............................................................................................Page E-6
Timekeeping is kept accurate using information provided by receipt of a time calibration signal and by
communication with a phone.
◆Dual time.................................................................................................................. Page E-7
You can view the current time in your current location and in one more time zone.
◆Stopwatch................................................................................................................Page E-7
The stopwatch measures elapsed time up to 24 hours in one-second increments.
◆Timer ........................................................................................................................Page E-7
The timer counts down from a preset start time, and the watch sounds a tone when the countdown
reaches zero.
◆Alarms......................................................................................................................Page E-7
The watch can be configured to sound a tone when the preset alarm time is reached.
E-1
ENGLISH
Congratulations upon your selection of this CASIO watch.
To ensure that this watch provides you with the
years of service for which it is designed, carefully
read and follow the instructions in this manual,
especially the information under “Operating
Precautions” and “User Maintenance”.
Be sure to keep all user documentation handy
for future reference.
xKeep the watch’s face exposed to light as
much as possible (page E-5).
Important!
xFor details about how to adjust the current
time zone, time, and day settings, see
“Timekeeping (Current Time and Day
Adjustment)” (page E-6).
For details about how to use this watch and for
troubleshooting information, go to the website
below.
https://world.casio.com/manual/wat/
MA2006-EA © 2020 CASIO COMPUTER CO., LTD.

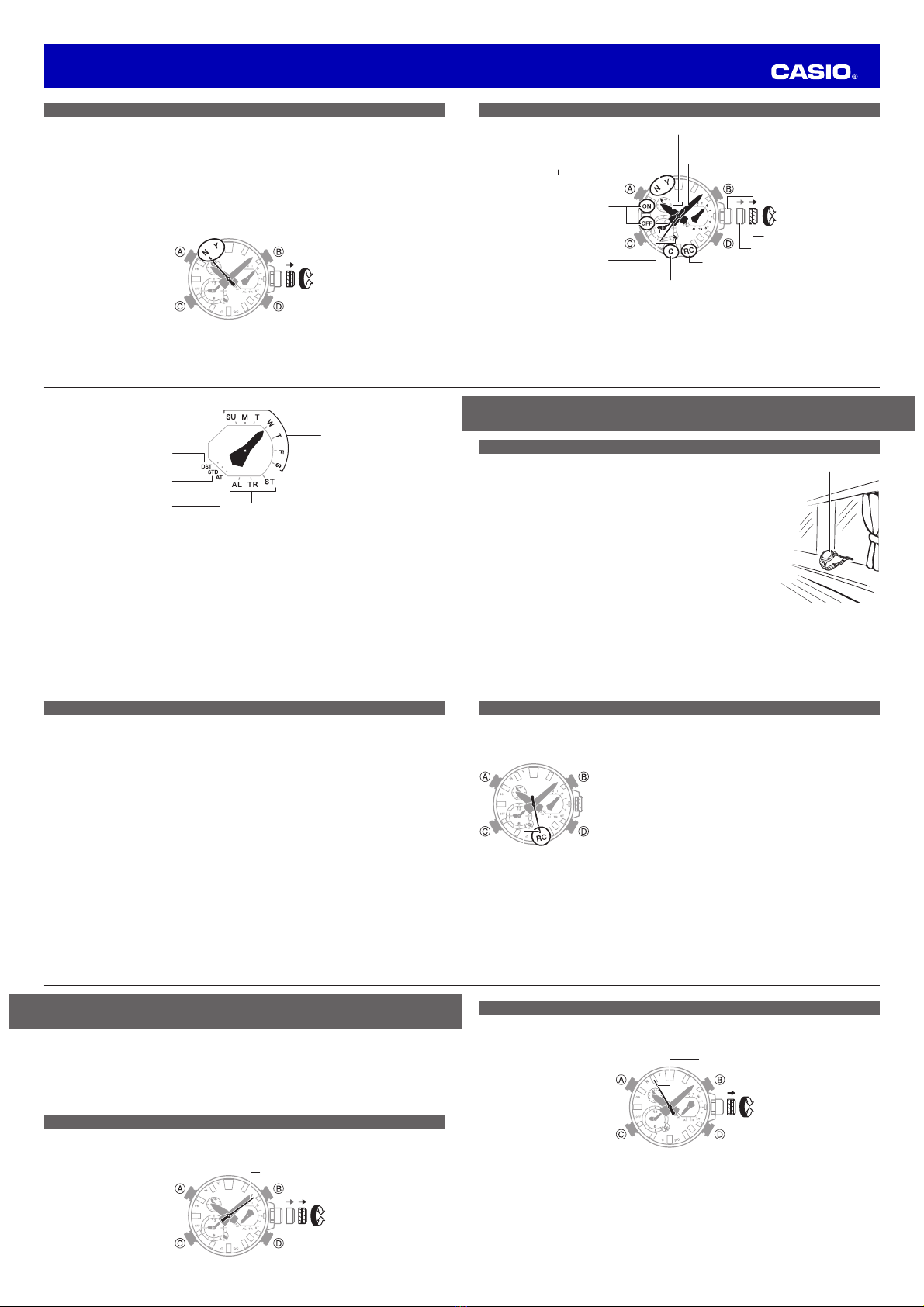

User’s Guide 5636 (MTG)
E-15
Dual Time City (Time Zone) Setting
1. In the Calendar Mode, pull the crown out to the first click.
xRotate the crown to move the second hand to the time zone whose date and time you want to view.
Time zone setting (–)
Time zone setting (+)
New York (–5 offset)
30
Time zone (55 position)
E-14
Crown Operations and Configuring Settings
xBefore performing a crown operation, rotate it towards you to unlock (unscrew) it.
Important!
xIn order to prevent loss of water resistance and damage due to impact, make sure that the crown is
fully pushed in to its normal position after operating it.
xOperation details: Operation Guide available at the CASIO website.
https://world.casio.com/manual/wat/
Home City (Time Zone) Setting
1. In the Calendar Mode, pull the crown out to the second click.
xRotate the crown to move the second hand to the time zone you want to select.
Time zone setting (–)
Time zone setting (+)
Tokyo (+9 offset)
30
Time zone (9 position)
E-13
Time Calibration Signal Manual Receive
xIf the watch is currently paired with a phone, perform the required watch operations to unpair them.
For details, see the Operation Guide available at the CASIO website.
https://world.casio.com/manual/wat/
1. Hold down Dfor at least 0.5 seconds until the second hand moves
to R (RC). If the second hand is a position other than R (RC), keep D
depressed until it moves to R (RC).
2. Place the watch near a window.
xThe time setting will be adjusted automatically when a signal receive
operation is successful.
xCalibration signal reception normally takes anywhere from about two
to 10 minutes. It can take as long as 20 minutes.
xBest reception is in the middle of the night.
Second hand
30
E-12
Time Calibration Signal Auto Receive
● Leave the watch in a location that is appropriate for time calibration signal reception between
the hours of midnight and 5:00 a.m. See “Appropriate Signal Reception Location (Time
Calibration Signal)” (page E-11).
xThe second hand will point to R (RC) while time calibration signal reception is in progress.
xReception normally takes anywhere from about two to ten minutes, but it can take as long as
20minutes.
xWhen the receive operation is successful, the time and day settings will be adjusted automatically.
xYou can disable auto receive if you want. See “Using the Watch in a Medical Facility or Aircraft”
(page E-8).
E-11
Timekeeping (Based on a Time Calibration Signal)
Appropriate Signal Reception Location (Time Calibration Signal)
xKeep the watch away from metal and position it so its 12 o’clock side is
facing a window. Avoid moving the watch as much as possible and do
not perform any watch operations while a signal receive operation is in
progress.
● You may experience time calibration signal reception problems in
the areas described below.
-Among or near buildings
-While riding in a vehicle
-Near household appliances, office machines, mobile phones, etc.
-On a construction site, in an airport, or any other location where radio
wave interference occurs
-Near high-voltage lines
-In mountainous areas or behind a mountain
xAlways check the time setting on the day there should be a switch
between standard time and summer time (DST). If the setting is not
correct (due to signal reception failure), turn DST on or off manually as
required.
12 o’clock
E-10
Day of the week:
SU, M, T, W, T, F, S
Mode: ST (Stopwatch), TR (Timer),
AL (Alarm)
Summer time: DST
Auto summer time: AT
Standard time: STD
E-9
General Guide
30
Hour and minute hands: Current time
Bluetooth connection: C *
• Auto adjust:
Enabled (Y)/Disabled (N)
• Auto adjust:
Successful (Y)/Failed (N)
Crown
Click 1
Click 2
Alarm status: ON, OFF
Time signal reception in progress
24-hour hand: Current time
Dual Time dial
* Hold down Dfor at least 2.5 seconds to establish a Bluetooth connection with a phone.
E-8
Using the Watch in a Medical Facility or Aircraft
xDisable auto time adjustment whenever you are in a medical facility, and aircraft, in any other area
where radio wave reception and connection with a phone are prohibited or restricted.
xDisabling auto time adjustment disables time calibration signal auto receive and auto connection with
a phone.
xBefore using the crown, be sure to first read the “Crown Operations and Configuring Settings” (page
E-14).
xIn the Calendar Mode, press Donce and then pull out the crown to the first click. The second hand
will move to Y (YES) (auto receive enabled) or N (NO) (auto receive disabled). To disable auto time
adjustment, rotate the crown to move the second hand to N (NO). To enable auto time adjustment,
rotate the crown to move the second hand to Y (YES). After the setting is the way you want, push the
crown back in to its normal position.
30

User’s Guide 5636 (MTG)
E-19
Battery Operating Time:
Approximately 5 months
Conditions
Not exposed to light under the conditions below.
xBluetooth connection time: 10 hours/day
xAlarm: Once (10 seconds)/day
xIllumination: Once (3 seconds)/day
xSecond hand sleep: 6 hours/day
Note that battery operating time is reduced by illumination conditions and Bluetooth connection time.
Specifications are subject to change without notice.
E-18
Mobile Link Functions:
Auto Time Correction
Phone finder
Watch operation sounds the alert sound of the mobile phone.
World Time
Current time for approximately 300 cities selected for the watch
Home Time/World Time swapping
Auto summer time switching
Automatic switching between standard time and summer time
Timer Setting
Alarm Setting
Hand position correction
Data Communication Specifications
Bluetooth®
Frequency Band: 2400MHz-2480MHz
Maximum Transmission: 0 dBm (1 mW)
Communication range: 2 meters max. (depends on environment)
Other: Power Saving, LED light (Super Illuminator, afterglow), Auto Correction of Hand Home Positions,
Hand Shift
Power Supply: Solar panel and 1 rechargeable battery
E-17
Specifications
Accuracy at Normal Temperature: ±15 seconds a month
Timekeeping : Hour, minute (hands move at 5-second intervals), second; date, day of the week
Calendar system: Full-auto calendar from 2000 to 2099
Others: Dual time (hour, minute, 24-hour timekeeping, 27 time zones, auto summer time setting,
Home Time/Dual Time swapping)
Signal Receive Function:
Auto receive, manual receive
Auto transmitter selection (for JJY, MSF/DCF77)
Receivable call signs: JJY (40kHz/60kHz), BPC (68.5kHz), WWVB (60kHz), MSF (60kHz),
DCF77 (77.5kHz)
Stopwatch:
Measuring unit: 1 second
Measuring capacity: 23:59'59" (24 hours)
Countdown Timer:
Countdown unit: 1 second
Countdown range: 24 hours
Setting unit: 1 minute
Time up: 10-second beeper
Alarm:
Setting units: Hour, minute
Beeper: 10 seconds
E-16
Configuring Time and Date Settings Manually
● Pull out the crown to the second click, hold down Cfor at least one second, and then perform
the operations below to adjust the time and date settings.
30
30
30
C
(Example: Setting to June 30, 2021)
Current time and
date setting (+)
Current time and
date setting (–)
(Month)(Day) (Year 1’s digit)
CC C
(Hour, minute)
(Year 10’s digit)
00
60
90 30
20
10
80 40
70 50
0
6
93
2
1
84
75
12
6
93
2
1
84
75
10
11
(At least
1 second)
C
(Hour)
C
xOperation details: Operation Guide available at the CASIO website.
https://world.casio.com/manual/wat/
L-3
Time offset Second Hand Position Representative City Receivable Transmitter
–9 51 Anchorage, Nome –
–8* 52 Los Angeles, Vancouver
WWVB
–7* 53 Denver, Edmonton
–6* 54 Chicago, Mexico City
–5* 55 New York, Montreal
–4* 56 Halifax, Caracas
–3 57 Rio de Janeiro, Buenos Aries –
–2 58 Fernando de Noronha –
–1 59 Praia –
* Time zones where time calibration signal reception is possible.
xBased on data as of January 2020.
xFor details about city (time zone), and summer time settings, refer to the Operation Guide available at
the CASIO website.
https://world.casio.com/manual/wat/
L-2

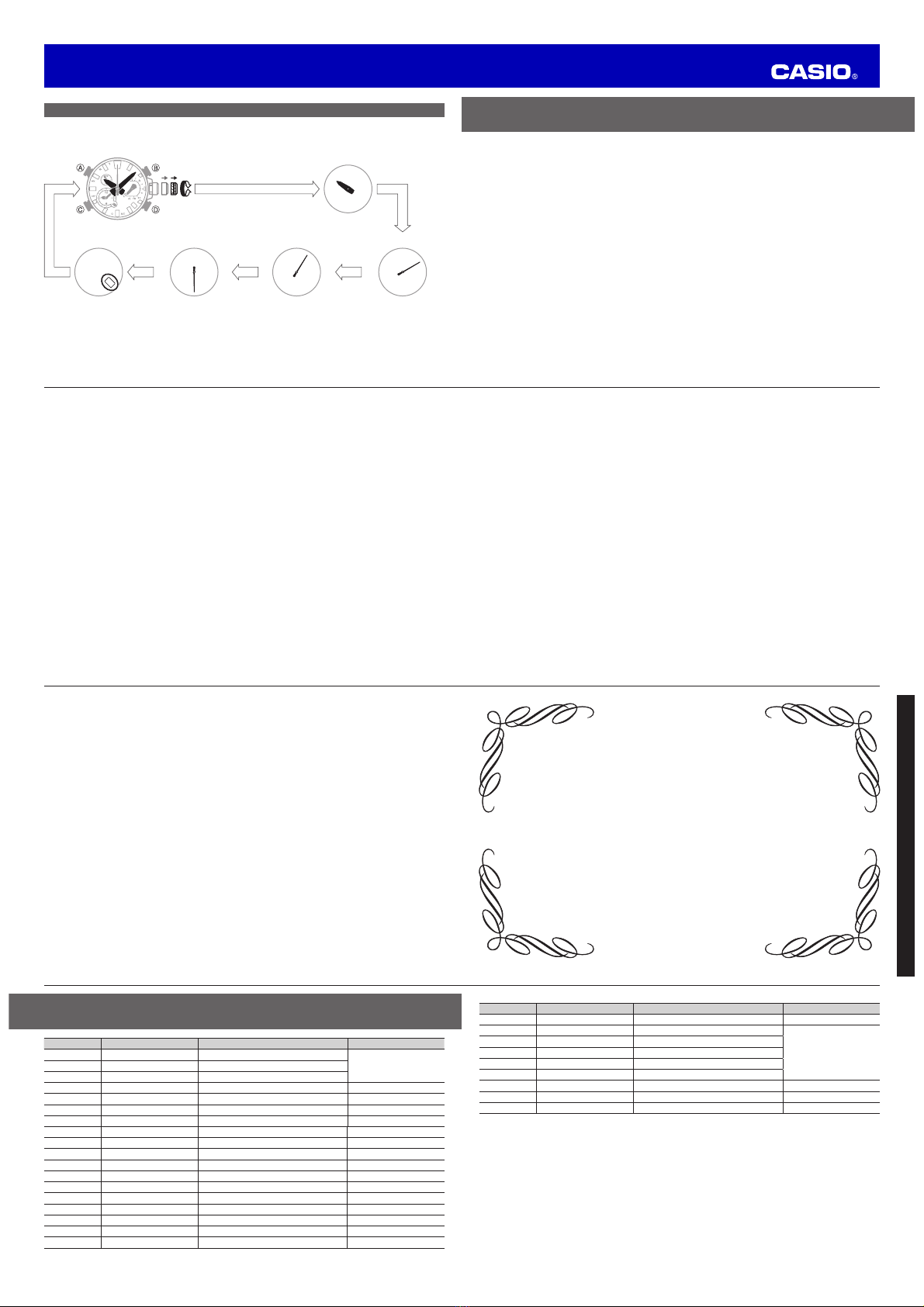

City (Time Zone) List
Time offset Second Hand Position Representative City Receivable Transmitter
±0* 0 London, Dublin
MSF, DCF77+1* 1 Paris, Rome
+2* 2 Athens, Cairo
+3 3 Jeddah, Moscow –
+4 4 Dubai, Abu Dhabi –
+5 5 Karachi –
+6 6 Dhaka –
+7 7 Bangkok, Jakarta –
+8* 8 Hong Kong, Singapore BPC
+9* 9 Tokyo, Seoul JJY
+10 10 Sydney, Guam –
+11 11 Noumea, Port Vila –
+12 12 Wellington, Christchurch –
+13 13 Nuku’alofa –
+14 14 Kiritimati –
–12 48 Baker Island –
–11 49 Pago Pago –
–10 50 Honolulu, Papeete –
L-1
City (Time Zone) List
