CASTLE Euro mini Owner's manual

EN50131-1
Grade 2 Compliance
2x
Programming Manual
RINS1210-6
EN50131-1
Grade 2 Compliance
2x

Quick Find Guide
Main Menu Item Description Page
Software
Revision Control panel version number 10
Wiring Choice Double Pole, DEOL 4K7,2K2 or 4K7, 4K7. 10
Change Inputs Inputs types, part sets, attributes and input names 11
Assign Keypads/
Readers Keypad and reader addresses and keypad names 12
System Displays Sign on message and ‘Display when set’ function. 13
Change Timers Entry, Exit, Siren Time, Re-arm no, Fire Siren Time 13
Set Date & Time Year, Month, Day, Hours and Minutes 14
Exit Modes Timed, Final Door, Timed/Final 14
Change Codes Master Manager Code, Engineers Code 15
Volume Control Entry, Exit, Alarm, Fire, 24hr, Chime, Intelligent Set,
E/E Keypads Only option. 16
Alarm Response First Alarms for each level set 17
Change Outputs Bell, Strobe, PGM, and XPGMs outputs 17
Intelligent Set Intelligent set 18
Site Options Strobe at Set and 2 Key Hold Up 18
Review Logs The control panel logs 19
Engineer Tests Walk Test, Test Siren and Test Outputs 20
Diagnostics View PSU’s, View Inputs and Calibration 22
Clean Start Resetting the panel back to default 23

Castle Care-Tech Page:3
Contents Page
Contents Page 3
Introduction 4
Descriptions 5
The Contemporary Keypad 6
The Contemporary Keypad 7
Entering the Keypad Menu 7
Powering Up 8
Addressing Keypads 8
Engineering Menu 9
Entering the Engineering Menu 9
Exiting the Engineering Menu 9
Software Revision 10
Wiring Choice 10
Change Inputs 11
Assign Keypads/Readers 12
System Displays 13
Change Timers 13
Set Date and Time 14
Exit Modes 14
Change Codes 15
Change Codes Continued... 16
Volume Control 16
Alarm Responses 17
Change Outputs 17
Change Outputs continued... 18
Intelligent Set 18
Site Options 18
Site Options continued... 19
Review Logs 19
Engineer Tests 20
Engineer Tests Continued... 21
Diagnostics 22
Clean Start 23
Appendix A 24
Input Types 24
Input Attributes 24
Appendix B 25
Output Types 25
Appendix C 26
Defaults 26
Appendix D 27
Fault Codes 27

Page:4 Castle Care-Tech
Introduction
The EURO mini offers the reassurance and peace of mind for protecting your
customer’s property whilst meeting all the relevant standards.
Programming of the EURO mini is the same as EURO MERiDIAN panels so this is
the perfect alternative for your smaller installations.
The slim contemporary LCD keypad with full English text operates the EURO mini
and up to 4 of these keypads can be connected to a system.
Castle Care-Tech Limited is a UK based designer of high technology control
equipment for intruder alarms and as a leading innovator, Castle has won
numerous awards for products and innovation in recent years.
The EURO mini consists of:
4 level sets
10 End of Line/9 Double Pole Zones
Up to 4 keypads/3 readers can be connected
8 Outputs (Bell, Strobe, Speaker, Programmable, and 4 Shared with Inputs)
4 Fuses (Bell, Aux, RS485 and Battery)
Case Tamper and SAB Tamper
500 Mandatory and 200 Optional log events
32 Codes (30 User, 1 Master Manager and 1 Engineer)
Different alarm responses may be programmed
Keypad Prox/Prox reader may be connected.

Castle Care-Tech Page:5
Descriptions
This chapter outlines the features and functionality the EURO mini can offer:
Level Set System:
The EURO mini can operate up to 4 part sets: A, B, C, and D. An example of how
these can be programmed are as follows:
Part Set A: (All) All house is set.
Part Set B: (Bedtime) Downstairs is set, Upstairs is unset
Part Set C: (Pet) Kitchen unset (for a pet), rest of house is set.
Part Set D: (Garage Only) Garage set, rest of house unset.
These are programmed in the function ‘Change Inputs’, and user codes may also
be programmed in different part sets. Please see the user manual for this.
Note: After a code is entered, once the nal door or exit time has expired, a settle
time of 10 seconds will take place before the system is nally set.
Flexi Set
Flexi set can be selected for each individual user code which is used so the user
selects which part sets to set/unset (depending on the part sets the codes are
assigned to). If Flexi-set is set as ‘No’ then once a code is entered, the EURO mini
will automatically set the assigned part set. Please note that user codes can only
be programmed in the master manager menu (see the user manual).
Emergency Alarms
The emergency buttons for the EURO mini consist of 2 buttons being pressed
simultaneously. These are buttons 1 and 7. At default, these are disabled, they will
have to be enabled in the function ‘Site Options’.
Automatic Re-arming
When the bell time expires (default is 4 minutes), the EURO mini will automatically
rearm, and omit any circuits that are in open at that point. The number of times it
will re-arm after an alarm is programmable in ‘Change Timers’.
Inputs and Outputs
The EURO mini consists of 10 inputs (or zones) that are fully programmable for
detectors, door contacts, re alarms, etc. Each input may be programmed as
normally open, or with a chime, or the input can be programmed as omittable so
the user has control on whether or not the input needs to be active.
Inputs 7 to 10 can be used as outputs (instead of inputs), thus giving the total of
7 outputs on the system. Outputs are used to connect to external devices such as
signalling equipment or sirens. If inputs 7 to 10 are all used as outputs then only
a total of 6 inputs can be used. For all programming please see either ‘Change
Inputs’ or ‘Change Outputs’.
Faults
If any faults occur on the EURO mini, it will be shown on the LCD keypad with a
short description of the problem. For more information please see page: 26.

Page:6 Castle Care-Tech
The Contemporary Keypad Functionality
The Contemporary Keypad has a 32 character LCD display, with encapsulated
backlit keys and 5 status LEDs.
The operation of each key are described below:
Keys Description
Numerical Used to enter codes and program names for
inputs,keypads,display etc.
YES Selects menus, and any attributes in the menus. Used to set the
panel if exi-set is enabled (see the master manager menu).
NO Moves forward to the next main menu item, clears any faults,
and resets the control panel after an alarm.
AUsed to exit Engineering Menu (from a main menu) and to select
part set A when setting.
BMoves backwards in the main menu and sub menus and used to
select part set B when setting.
CSelects chime on/off, displays additional information in the log,
and used to select part set C when setting.
D
Moves forwards in the main menu, toggles between menu choic-
es, enters the master manager menu, and used to select part set
D when setting. Enters the keypad menu.
The status LEDs are as follows (left to right)
LED Description
Alert Orange. Used to indicate any alerts on the system.
Alarm Indicates that an alarm condition has occurred
Tamper Indicates a tamper has occurred
Fault Indicates a fault has occurred
Unset Illuminates briey after the system has been unset
NOTE: If a EUR-068 has been purchased, the keypad has the prox enabled which
allows arming/disarming via card/tag.
EuroMini 10V6.e
Time 10:01 c

Castle Care-Tech Page:7
Text Programming
Text may be programmed for input names, for the ‘sign-on’ message, and to
identify the level set / unset. Each keypad key is allocated characters as shown
below:
Press the relevant key the appropriate number of times - e.g. for the letter ‘k’
press the 5 key twice, or for the letter ‘s’ press the 7key four times.
Other operations of each key are as follows:
Keys Description
AMakes the character into a capital
BMoves the cursor to the left
CDeletes the letter
DMoves cursor to the right
0Adds a space
1Adds punctuation
Press and hold the D key until ‘SECURITY CODE’ is displayed. Enter ‘2000’.
Menu Description
Address Address of the keypad
Language Language of the keypad
Keyclick Volume 0 = Silent, 7 = Loudest
Tag Volume 0 = Silent, 7 = Loudest
Master Volume 0 = Silent, 7 = Loudest (overall volume for keypad)
Tag ID Present a tag for the id (only applicable to EUR-068)
Factory Reset Enter ‘2000’ to reset all keypad functions to default
Backlight Force 0 = Backlight off (until key pressed/entry route active)
1 = Backlight on all time
PA/Fire Timer How many seconds keys 1 and 7 must be held for a PA to
activate.
The Contemporary Keypad
Entering the Keypad Menu

Page:8 Castle Care-Tech

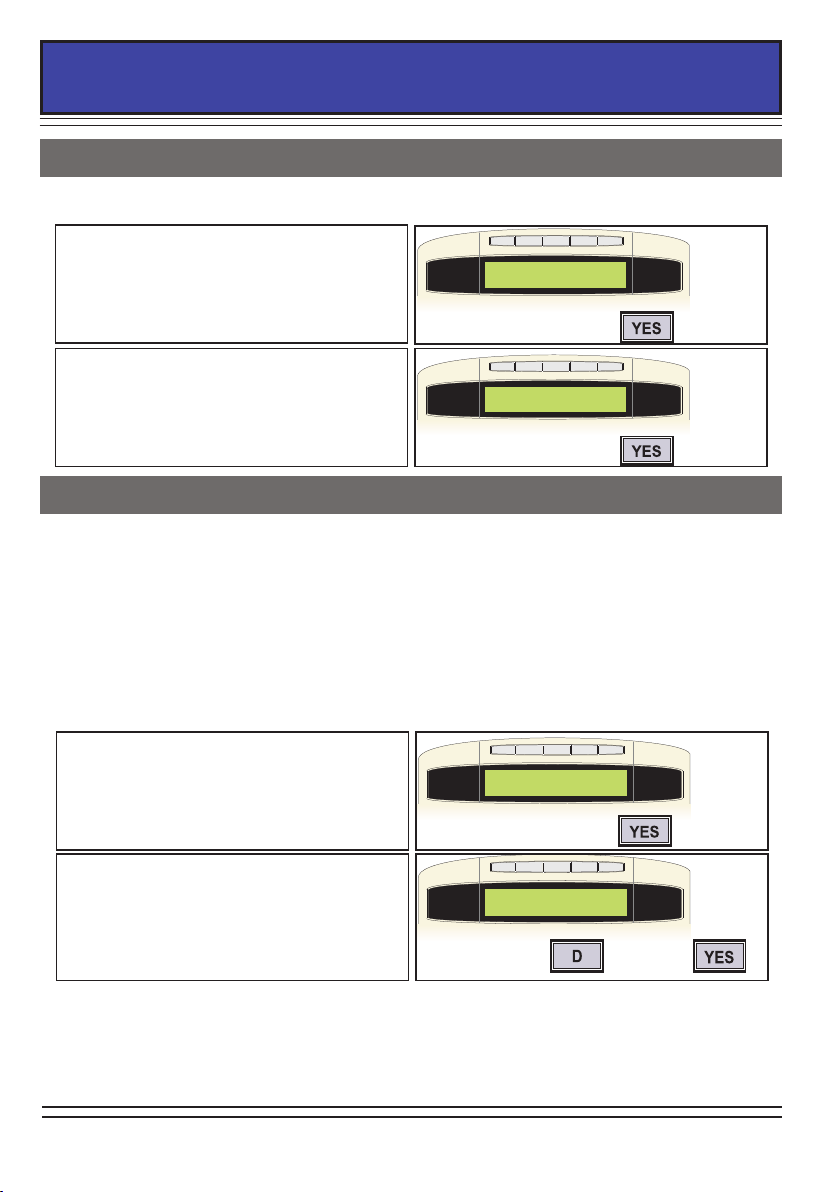

Powering Up Initial State
After inital power up, the following
will rst be displayed (may differ
depending on version numbers)
EURO KEYPAD
V5.03 10.10/2005
ADDRESS
[--]
LANGUAGE
English [00]
KEYCLICK VOLUME
[7]
EuroMini 10V6.e
Time
EURO KEYPAD
V5.03 10.10/2005
ADDRESS
[--]
LANGUAGE
English [00]
KEYCLICK VOLUME
[7]
EuroMini 10V6.e
Time
After a couple of seconds, the EURO
mini will ask for the address of the
rst keypad. Enter ‘00’ and press the
‘YES’ key.
Once everything is connected to the EURO mini (see the installation manual),
power up the EURO mini.
EURO KEYPAD
V5.03 10.10/2005
ADDRESS
[--]
LANGUAGE
English [00]
KEYCLICK VOLUME
[7]
EuroMini 10V6.e
Time
Use the ‘YES’ key to scroll through
the different options (Keyclick
volume, master volume etc)
EURO KEYPAD
V5.03 10.10/2005
ADDRESS
[--]
LANGUAGE
English [00]
KEYCLICK VOLUME
[7]
EuroMini 10V6.e
Time
Once all options have been chosen,
press the ‘A’ key to ‘Activate’ the
keypad.
EURO KEYPAD
V5.03 10.10/2005
ADDRESS
[--]
LANGUAGE
English [00]
KEYCLICK VOLUME
[7]
EuroMini 10V6.e
Time
The ‘day’ screen will be shown.
To address further keypads on the system, press and hold the ‘D’ key until
‘KEYPAD CODE’ is displayed. Enter ‘2000’. This will take you to the keypad
screens described above.
Any keypad that is new to the EURO mini must rst be initialised with this
function, and then enabled in the Engineering menu on the master keypad
(address 00). The function to do this is ‘Assign Keypads’.
Addressing Keypads

Castle Care-Tech Page:9
Engineering Menu Entering and Exiting
Entering the Engineering Menu
When the time is displayed on the
main screen, enter the Engineers
code (default is 1111)
EuroMini 10V6.e
Time 10:01 c
SET / UNSET
SYSTEM?
SOFTWARE
REVISION?
CHANGE OUTPUTS?
EXIT ENGINEERS
MENU?
EuroMini 10V6.e
Time 10:01 c
SET / UNSET
SYSTEM?
SOFTWARE
REVISION?
CHANGE OUTPUTS?
EXIT ENGINEERS
MENU?
EuroMini 10V6.e
Time 10:01 c
SET / UNSET
SYSTEM?
SOFTWARE
REVISION?
CHANGE OUTPUTS?
EXIT ENGINEERS
MENU?
‘SET/UNSET SYSTEM?’ will be
displayed, this can be used to set/
unset the EURO mini without a user
code. Press the NO key.
‘SOFTWARE REVISION?’ will be
displayed, and the panel is now in
the Engineering Menu. Use the ‘NO’
and ‘B’ keys to scroll forward and
backward through the menu.
To Enter the Engineering Menu:
Exiting the Engineering Menu
EuroMini 10V6.e
Time 10:01 c
SET / UNSET
SYSTEM?
SOFTWARE
REVISION?
CHANGE OUTPUTS?
EXIT ENGINEERS
MENU?
When a main menu item is displayed
in Engineers (capital letters), press
the ‘A’ key to exit the Engineering
Menu.
EuroMini 10V6.e
Time 10:01 c
SET / UNSET
SYSTEM?
SOFTWARE
REVISION?
CHANGE OUTPUTS?
EXIT ENGINEERS
MENU?
Using the ‘B’ or ‘NO’ keys, scroll to
‘EXIT Engineering Menu’. Press the
‘YES’ key.
OR
Please note that all Fire and Hold Up alarms are suppressed in the
Engineering Menu.

Page:10 Castle Care-Tech
Engineering Menu Software Revision
Wiring Choice
Software Revision
Use the ‘B’ and ‘NO’ keys to scroll
to ‘SOFTWARE REVISION’. Press the
‘YES’ key.
SOFTWARE
REVISION?
Rev V1.00e
EuroMini
WIRING CHOICE?
Detection Mode
DEOL 2K2/4K7 [1]
Detection Mode
DEOL 2K2/4K7 [1]
SOFTWARE
REVISION?
Rev V1.00e
EuroMini
WIRING CHOICE?
Detection Mode
DEOL 2K2/4K7 [1]
Detection Mode
DEOL 2K2/4K7 [1]
The Software Revision will be
displayed. Press ‘YES’ to exit.
Software Revision identies the software version number, this is may be asked for
by the Castle Care-Tech Customer Support team.
Wiring Choice
Selects the EURO mini to perform as a double pole system, or a double end of line
system (either 4K7 alarm, 2K2 tamper, or 4K7 alarm, 4K7 tamper). All wiring
diagrams can be found in the installation manual.
PLEASE NOTE: If Double Pole has been selected the jumper above input
1 on the printed circuit board must be removed, or if resistors are used,
the jumper must be present. Please see the installation manual for more
information
Use the ‘B’ and ‘NO’ keys to scroll to
‘WIRING CHOICE’. Press the ‘YES’
key.
SOFTWARE
REVISION?
Rev V1.00e
EuroMini
WIRING CHOICE?
Detection Mode
DEOL 2K2/4K7 [1]
Detection Mode
DEOL 2K2/4K7 [1]
SOFTWARE
REVISION?
Rev V1.00e
EuroMini
WIRING CHOICE?
Detection Mode
DEOL 2K2/4K7 [1]
Detection Mode
DEOL 2K2/4K7 [1]
Use the ‘D’ key to select:
0 = Double Pole
1 = DEOL 4K7 Alarm, 2K2 Tamper
2 = DEOL 4K7 Alarm, 4K7 Tamper
Once the relevant wiring choice has
been selected, press the ‘YES’ key.
SOFTWARE
REVISION?
Rev V1.00e
EuroMini
WIRING CHOICE?
Detection Mode
DEOL 2K2/4K7 [1]
Detection Mode
DEOL 2K2/4K7 [1]

Castle Care-Tech Page:11
Engineering Menu Change Inputs
Change Inputs
Use the ‘B’ and ‘NO’ keys to scroll to
‘CHANGE INPUTS’. Press the ‘YES’
key.
CHANGE INPUTS?
Input Number
[01]
Input Type [07]
Final Exit
Input Active In
[A ]
Input Attributes?
Chime
No [0]
Input Name?
OR THEN
OR THEN
TO CHOOSE THEN
THEN
CHANGE INPUTS?
Input Number
[01]
Input Type [07]
Final Exit
Input Active In
[A ]
Input Attributes?
Chime
No [0]
Input Name?
OR THEN
OR THEN
TO CHOOSE THEN
THEN
Use the ‘B’ or ‘D’ keys to choose the
input number. Press the ‘YES’ key.
Select the input type using the ‘B’
and ‘D’ keys. Press the ‘YES’ key.
For a full list of the inputs and
descriptions please see page 23.
CHANGE INPUTS?
Input Number
[01]
Input Type [07]
Final Exit
Input Active In
[A ]
Input Attributes?
Chime
No [0]
Input Name?
OR THEN
OR THEN
TO CHOOSE THEN
THEN
‘Change Inputs’ programs all 10 inputs. For all descriptions of input types and
attributes please see page 23. If ‘Input is used as an output’ is shown on inputs 7
to 10, then an output is already programmed (see Change Outputs page 17).
CHANGE INPUTS?
Input Number
[01]
Input Type [07]
Final Exit
Input Active In
[A ]
Input Attributes?
Chime
No [0]
Input Name?
OR THEN
OR THEN
TO CHOOSE THEN
THEN
CHANGE INPUTS?
Input Number
[01]
Input Type [07]
Final Exit
Input Active In
[A ]
Input Attributes?
Chime
No [0]
Input Name?
OR THEN
OR THEN
TO CHOOSE THEN
THEN
CHANGE INPUTS?
Input Number
[01]
Input Type [07]
Final Exit
Input Active In
[A ]
Input Attributes?
Chime
No [0]
Input Name?
OR THEN
OR THEN
TO CHOOSE THEN
THEN
CHANGE INPUTS?
Input Number
[01]
Input Type [07]
Final Exit
Input Active In
[A ]
Input Attributes?
Chime
No [0]
Input Name?
OR THEN
OR THEN
TO CHOOSE THEN
THEN
Select the level set that the input
will be in. There are four level sets
to choose from: A, B, C, D. Press the
‘YES’ key.
Press the ‘YES’ key to go into Input
Attributes.
Chime, Omittable, Double Knock,
and Normally Open. Select ‘Yes’ or
‘No’ to each attribute by using the ‘D’
key. Press the ‘YES’ key.
To create an Input name, press the
‘YES’ key and use the letters on the
buttons to create a name. Press the
‘YES’ key.

Page:12 Castle Care-Tech
Engineering Menu Assign Keypads
Assign Keypads/Readers
Use the ‘B’ and ‘NO’ keys to scroll to
‘ASSIGN KEYPADS’. Press the ‘YES’
key.
ASSIGN KEYPADS/
READERS?
Address
[0]
Type
Keypad [0]
Keypad Location
[A ]
Keypad Name?
Keypad Name
Keypad 0
OR THEN
TO CHOOSE THEN
THEN
ASSIGN KEYPADS/
READERS?
Address
[0]
Type
Keypad [0]
Keypad Location
[A ]
Keypad Name?
Keypad Name
Keypad 0
OR THEN
TO CHOOSE THEN
THEN
Use the ‘B’ or ‘D’ keys to select the
address of the keypad (0-3)
Keypads can be allocated to different part sets and up to four keypads can be
added to the EURO mini.
For Example, if 2 keypads are installed on the system (one upstairs, one down-
stairs), the location of the keypad downstairs will be A (for a full set), and the
location of the keypad upstairs will be B (for a part set).
ASSIGN KEYPADS/
READERS?
Address
[0]
Type
Keypad [0]
Keypad Location
[A ]
Keypad Name?
Keypad Name
Keypad 0
OR THEN
TO CHOOSE THEN
THEN
To install the keypad press ‘1’. To
install a reader press ‘2’
Press the ‘YES’ key.
ASSIGN KEYPADS/
READERS?
Address
[0]
Type
Keypad [0]
Keypad Location
[A ]
Keypad Name?
Keypad Name
Keypad 0
OR THEN
TO CHOOSE THEN
THEN
Select the location of the keypad/
reader - i.e. level set A, B, C or D
(the default is A). Press the ‘YES’
key.
ASSIGN KEYPADS/
READERS?
Address
[0]
Type
Keypad [0]
Keypad Location
[A ]
Keypad Name?
Keypad Name
Keypad 0
OR THEN
TO CHOOSE THEN
THEN
To create a name for the keypad,
press the ‘YES’ key.
ASSIGN KEYPADS/
READERS?
Address
[0]
Type
Keypad [0]
Keypad Location
[A ]
Keypad Name?
Keypad Name
Keypad 0
OR THEN
TO CHOOSE THEN
THEN
Use the letters on the buttons to
create a name. Press the YES key.

Castle Care-Tech Page:13
Engineering Menu System Displays
Change Timers
System Displays
Use the ‘B’ and ‘NO’ keys to scroll to
‘SYSTEM DISPLAYS’. Press the ‘YES’
key.
SYSTEM DISPLAYS?
Sign On Message
EuroMini 10V6.e
Display When Set
No [0]
CHANGE TIMERS?
A Entry Time
[030]
TO CHOOSE THEN
SYSTEM DISPLAYS?
Sign On Message
EuroMini 10V6.e
Display When Set
No [0]
CHANGE TIMERS?
A Entry Time
[030]
TO CHOOSE THEN
Enter the Sign On Message for the
main display. Press the ‘YES’ key.
The text string on the keypad that is displayed when you exit the Engineering
Menu can be changed within ‘System Displays’. The function ‘Display When Set’
will display which part set is set on the keypad.
SYSTEM DISPLAYS?
Sign On Message
EuroMini 10V6.e
Display When Set
No [0]
CHANGE TIMERS?
A Entry Time
[030]
TO CHOOSE THEN
If the part set that is set needs to be
shown when the system is set, press
the ‘D’ key to scroll to ‘yes’.
Press the ‘YES’ key.
SYSTEM DISPLAYS?
Sign On Message
EuroMini 10V6.e
Display When Set
No [0]
CHANGE TIMERS?
A Entry Time
[030]
TO CHOOSE THEN
Use the ‘B’ and ‘NO’ keys to scroll to
‘CHANGE TIMERS’. Press the ‘YES’
key.
SYSTEM DISPLAYS?
Sign On Message
EuroMini 10V6.e
Display When Set
No [0]
CHANGE TIMERS?
A Entry Time
[030]
TO CHOOSE THEN
Enter the desired choice for each of
the entry, exit and siren times for
each level set. Then enter the re-arm
number and the re siren time. To
move through each option, press the
‘YES’ key.
Change Timers
The following timers can be changed:
Entry Time/Exit Time: 0-255 seconds.
Siren Time (Cut off time for a siren): 2-15 minutes.
Fire Siren Time (Cut off time for a re alarm): 1-99 Minutes:
Re-arm Numbers (automatic rearming after an alarm): 0-9 (9 means always)
Double Knock (Length of time between lter period of inputs): 0 - 75 seconds

Page:14 Castle Care-Tech
Engineering Menu Set Date & Time
Exit Modes
Set Date and Time
Use the ‘B’ and ‘NO’ keys to scroll to
‘SET DATE & TIME’. Press the ‘YES’
key.
SET DATE & TIME?
Year (00-99)
[07]
EXIT MODES?
A Exit Mode
Timed [0]
TO CHOOSE THEN
SET DATE & TIME?
Year (00-99)
[07]
EXIT MODES?
A Exit Mode
Timed [0]
TO CHOOSE THEN
Enter the Year, Month, Day, Hours
and Minutes. Press the ‘YES’ key.
Sets the date and time for the EURO mini.
Use the ‘B’ and ‘NO’ keys to scroll to
‘EXIT MODES’. Press the ‘YES’ key.
SET DATE & TIME?
Year (00-99)
[07]
EXIT MODES?
A Exit Mode
Timed [0]
TO CHOOSE THEN
Exit Modes
Timed, Final Door or Timed/Final Door can be selected for the Exit procedure of
all level sets.
Timed: The EURO mini will set when the exit time expires (programmed in
‘Change Timers’)
Final Door: The EURO mini will set when the nal exit door has been opened and
closed.
Timed/Final: The EURO mini will set either when the nal exit door has been
opened and closed, or the exit time has expired (Final Exit overrides Timed)
Use the ‘D’ key to select:
0 = Timed
1 = Final Door
2 = Timed/Final (nal will override
timed). Press the ‘YES’ key.
SET DATE & TIME?
Year (00-99)
[07]
EXIT MODES?
A Exit Mode
Timed [0]
TO CHOOSE THEN

Castle Care-Tech Page:15
Engineering Menu Change Codes
Change Codes
Use the ‘B’ and ‘NO’ keys to scroll
to ‘CHANGE CODES’. Press the ‘YES’
key.
CHANGE CODES?
Change Master
Manager Code?
Master Manager
Code [******]
User Controls
[ABCD]
User Set Options
Unset / Set [0]
Flexi Set
Yes [1]
User Name?
TO CHOOSE THEN
TO CHOOSE THEN
THEN
CHANGE CODES?
Change Master
Manager Code?
Master Manager
Code [******]
User Controls
[ABCD]
User Set Options
Unset / Set [0]
Flexi Set
Yes [1]
User Name?
TO CHOOSE THEN
TO CHOOSE THEN
THEN
Press the ‘YES’ key to change the
master manager code.
Press the ‘C’ key to clear the existing
code and enter the new one using
the numeric keys. Press the ‘YES’
key.
CHANGE CODES?
Change Master
Manager Code?
Master Manager
Code [******]
User Controls
[ABCD]
User Set Options
Unset / Set [0]
Flexi Set
Yes [1]
User Name?
TO CHOOSE THEN
TO CHOOSE THEN
THEN
The master manager code and the engineer code can be changed here. User
codes can only be changed from the master manager mode - please see the user
manual.
CHANGE CODES?
Change Master
Manager Code?
Master Manager
Code [******]
User Controls
[ABCD]
User Set Options
Unset / Set [0]
Flexi Set
Yes [1]
User Name?
TO CHOOSE THEN
TO CHOOSE THEN
THEN
CHANGE CODES?
Change Master
Manager Code?
Master Manager
Code [******]
User Controls
[ABCD]
User Set Options
Unset / Set [0]
Flexi Set
Yes [1]
User Name?
TO CHOOSE THEN
TO CHOOSE THEN
THEN
CHANGE CODES?
Change Master
Manager Code?
Master Manager
Code [******]
User Controls
[ABCD]
User Set Options
Unset / Set [0]
Flexi Set
Yes [1]
User Name?
TO CHOOSE THEN
TO CHOOSE THEN
THEN
CHANGE CODES?
Change Master
Manager Code?
Master Manager
Code [******]
User Controls
[ABCD]
User Set Options
Unset / Set [0]
Flexi Set
Yes [1]
User Name?
TO CHOOSE THEN
TO CHOOSE THEN
THEN
Select the level set that the master
manager code will be able to
operate. There are four level sets to
choose from: A, B, C, D.
Select the master manager code to:
0=Unset/Set
1=Unset Only
2=Set Only
If Flexi-set is disabled, the EURO
mini will automatically set the level
set which the code is assigned to. If
enabled, the level set needs to be
selected. Use the ‘D’ key to select
yes or no, press ‘YES’ key.
To create an user name, enter the
text using the letters on the keypad.
Press the ‘YES’ key.

Page:16 Castle Care-Tech
Engineering Menu Change Codes continued....
Volume Control
Change Codes Continued...
Press the ‘YES’ key to change the
engineer code.
Change Engineer
Code?
Engineer Code
[******]
VOLUME CONTROL?
A Entry
[4]
E/E Keypads Only
No [0]
TO CHOOSE THEN
Change Engineer
Code?
Engineer Code
[******]
VOLUME CONTROL?
A Entry
[4]
E/E Keypads Only
No [0]
TO CHOOSE THEN
Press the ‘C’ key to clear the existing
code and enter the new one using
the numeric keys. Press the ‘YES’
key.
Use the ‘B’ and ‘NO’ keys to scroll to
‘VOLUME CONTROL’. Press the ‘YES’
key.
Change Engineer
Code?
Engineer Code
[******]
VOLUME CONTROL?
A Entry
[4]
E/E Keypads Only
No [0]
TO CHOOSE THEN
Change Engineer
Code?
Engineer Code
[******]
VOLUME CONTROL?
A Entry
[4]
E/E Keypads Only
No [0]
TO CHOOSE THEN
Enter a number between 0 (for
silent) and 7 (loudest) and press
the ‘YES’ key to go to the next
option. After the volume options ‘EE
Keypads’ will be displayed.
Volume Control
Sets the volume of the entry and exit tones for each level set, and the Fire, 24
hour, Chime, and Intelligent Set. E/E Keypads is an option that sounds all the
entry/exit tones from the keypad only and not any internal speakers connected to
the SPK terminals.
Note: Volume level 1 is silent, but sounds a beep when the system is set
Change Engineer
Code?
Engineer Code
[******]
VOLUME CONTROL?
A Entry
[4]
E/E Keypads Only
No [0]
TO CHOOSE THEN
If ‘EE/Keypads Only’ is enabled, all
entry/exit sounds will be heard from
the keypad only. Use the ‘D’ key to
toggle the option. Press the ‘YES’
key.

Castle Care-Tech Page:17
Alarm Responses
Use the ‘B’ and ‘NO’ keys to scroll to
‘ALARM RESPONSES’. Press the ‘YES’
key.
ALARM RESPONSES?
A First Alarm
Full Alarm [3]
Fire Starts At
Full Alarm [3]
Fire Stops At
Full Alarm [3]
TO CHOOSE THEN
TO CHOOSE THEN
TO CHOOSE THEN
Each level set can be programmed
differently. Use the ‘D’ key to change
the alarm response for each level
set, and press the ‘YES’ key once you
have chosen it.
ALARM RESPONSES?
A First Alarm
Full Alarm [3]
Fire Starts At
Full Alarm [3]
Fire Stops At
Full Alarm [3]
TO CHOOSE THEN
TO CHOOSE THEN
TO CHOOSE THEN
False alarms can be something of an occurrence in some ‘unstable’ environments.
The EURO mini incorporates a feature where ‘First Alarms’ can be controlled. The
different alarm responses are silent, keypad, internal sounders and full alarm,
and each response waits 15 seconds before moving onto the next response.
For example. If “A: First Alarm” was selected as Silent [0]. The control panel
would operate as follows:
First to Alarm = No sounds.
After 15 Secs = Keypad sounds.
After 15 secs = Internal sounders.
After 15 secs = Full alarms.
Any second alarm that activates during the rst alarm, will activate all sirens/
bells regardless.
Fire and Hold Up Alarms will signal both on full alarm (this cannot be changed).
Engineering Menu Alarm Responses
Change Outputs
Use the ‘B’ and ‘NO’ keys to scroll to
‘CHANGE OUTPUTS’. Press the ‘YES’
key.
CHANGE OUTPUTS?
BELL O/P [14]
Siren Any
XPGM1 O/P [00]
Unused
OR THEN
OR THEN
There are a total of 7 programmable outputs on the EURO mini. 4 outputs are
used in conjunction with 4 inputs (Inputs 7 to 10) and are labelled ‘XPGM O/P’ in
the keypad.
If Inputs 7 to 10 are used, then ‘O/P is an input’ will be displayed on the output
type and that output cannot be used until the input is made ‘unused’.
For a full list and descriptions of the outputs please see page 24. p

Page:18 Castle Care-Tech
Engineering Menu Change Outputs continued
Intelligent Set
Site Options
CHANGE OUTPUTS?
BELL O/P [14]
Siren Any
XPGM1 O/P [00]
Unused
OR THEN
OR THEN
Use the ‘B’ and ‘D’ keys to scroll
through the different outputs. Once
chosen, press the ‘YES’ key to move
onto the next output.
If ‘O/P is an input’ is displayed on
the XPGMs then the output cannot
be used as an input is already
programmed. If not, select the
relevant output types and press ‘YES’
CHANGE OUTPUTS?
BELL O/P [14]
Siren Any
XPGM1 O/P [00]
Unused
OR THEN
OR THEN
Intelligent Set
When intelligent set is enabled, then level set B will start to set (if the user
code is enabled in level set B). Then if a Final Exit input is activated which
is programmed in level set A during the exit time, then the EURO mini will
automatically ‘quick set’ in level set A.
Use the ‘B’ and ‘NO’ keys to scroll to
‘INTELLIGENT SET’. Press the ‘YES’
key.
INTELLIGENT SET?
Intelligent
Yes [1]
TO CHOOSE THEN
Use the ‘D’ key to enable/disable
Intelligent Set, and press the ‘YES’
key.
INTELLIGENT SET?
Intelligent
Yes [1]
TO CHOOSE THEN
Site Options
Site Options contain 2 functions that may be necessary for the user:
Strobe at Set: If enabled, any output that is programmed as ‘Strobe Any’ will
activate for 5 seconds when the system sets.
2 Key Hold Up: Can be either enabled, silent or full alarm. Keys 1 and 7 on the
keypad activate the Hold Up alarm.
Simple Set: Enables the ‘simple set’ functionality which allows a user to set the
system by pressing the ‘YES’ key and the level set.
Change Outputs continued...

Castle Care-Tech Page:19
Engineering Menu Site Options continued
Review logs
Site Options continued...
Use the ‘B’ and ‘NO’ keys to scroll to
‘SITE OPTIONS’. Press the ‘YES’ key.
Use the ‘D’ key to enable/disable
‘Strobe At Set’ option. Press the
‘YES’ key.
SITE OPTIONS?
Strobe At Set
No [0]
2 Key Hold Up
Full Alarm [1]
Simple Set
No [0]
TO CHOOSE THEN
TO CHOOSE THEN
TO CHOOSE THEN
SITE OPTIONS?
Strobe At Set
No [0]
2 Key Hold Up
Full Alarm [1]
Simple Set
No [0]
TO CHOOSE THEN
TO CHOOSE THEN
TO CHOOSE THEN
SITE OPTIONS?
Strobe At Set
No [0]
2 Key Hold Up
Full Alarm [1]
Simple Set
No [0]
TO CHOOSE THEN
TO CHOOSE THEN
TO CHOOSE THEN
Use the ‘D’ key to select:
0=None. 1=Full Alarm. 2=Silent.
Press the ‘YES’ key.
Use the ‘D’ key to select:
0=No. 1=Yes
Press the ‘YES’ key.
SITE OPTIONS?
Strobe At Set
No [0]
2 Key Hold Up
Full Alarm [1]
Simple Set
No [0]
TO CHOOSE THEN
TO CHOOSE THEN
TO CHOOSE THEN
Review Logs
Use the ‘B’ and ‘NO’ keys to scroll to
‘REVIEW LOGS’. Press the ‘YES’ key.
‘Panel Log’ will be displayed, press
the ‘YES’ key.
REVIEW LOGS?
26/10 15:41:52
Final Set
OR OR THEN
Use the ‘B’ and ‘D’ keys to scroll
back and forth through the log. If
more information is required about
an event, press the ‘C’ key. When
nished, press the ‘NO’ Key to exit.
REVIEW LOGS?
26/10 15:41:52
Final Set
OR OR THEN
All set, unset, alarm events, system faults and details of engineer access are
recorded and logged in the option ‘Review Logs’, each being time and date
stamped.

Page:20 Castle Care-Tech
Engineer Tests
Use the ‘B’ and ‘NO’ keys to scroll to
‘ENGINEER TESTS’. Press the ‘YES’
key.
ENGINEER TESTS?
Walk Test?
Walk Test Areas
[ABCD]
Walk Test Inputs
Input 02
Walk Test
Complete!
THEN
ENGINEER TESTS?
Walk Test?
Walk Test Areas
[ABCD]
Walk Test Inputs
Input 02
Walk Test
Complete!
THEN
‘Walk Test’ will be displayed, Press
the ‘YES’ key to walk test the inputs.
Enter the part sets that are to be
tested and press the ‘YES’ key.
ENGINEER TESTS?
Walk Test?
Walk Test Areas
[ABCD]
Walk Test Inputs
Input 02
Walk Test
Complete!
THEN
The Engineer Test function allows the testing of inputs, sirens and outputs.
Walk Test: Tests each input and each part set of the system. The walk test scrolls
through all the inputs of the system, until they are walk tested. Once all are
completed, ‘Walk Test Complete’ will be displayed.
Soak Control: Any input may be placed on ‘soak test’ to prevent it from
generating an alarm. If the input on soak triggers whilst the system is set, it will
enter the details in the system log. The initial test and number of days left of the
soak can also be entered (after this time period the detector will become live)
Test Siren: Tests both the siren and strobe outputs (programmed as siren any
and strobe any) on the system.
Test Outputs: Tests all output types. For example if output 1 was programmed
as ‘re’, enter ‘01’ for the Fire output type and press ‘YES’. Output 1 will activate
until the NO key is pressed.
ENGINEER TESTS?
Walk Test?
Walk Test Areas
[ABCD]
Walk Test Inputs
Input 02
Walk Test
Complete!
THEN
ENGINEER TESTS?
Walk Test?
Walk Test Areas
[ABCD]
Walk Test Inputs
Input 02
Walk Test
Complete!
THEN
The keypad will show all inputs on
the system (in that part set). Once
these are walk tested the inputs will
be taken off the list.
Once all inputs have been walk
tested successfully ‘Walk Test
Complete’ will be displayed. Press
the ‘YES’ key.
Engineering Menu Engineer Tests
