CASTLE Euro mini User manual

EN50131-1
Grade 2 Compliance
2x
Installation Manual
RINS1211-9
EN50131-1
Grade 2 Compliance
2x

Castle Page:3
Contents Page
System Overview 4
Technical Specication 5
Overview 6
The Control Panel 6
The Printed Circuit Board 7
The Tamper Spring and Connections 8
Connections 9
Transformer / Battery Connection 9
Keypad Connection 10
Reader Connection 11
External Reader Connection 12
Double Pole - Alarm Connections 13
Double Pole - Tamper Connections 13
DEOL: 4K7 Alarm, 2K2 Tamper 14
DEOL: 4K7 Alarm, 4K7 Tamper 14
Siren Connection 15
Speaker Connection 15
Output Connection/Example 16
Compliance Statement and Warranty 17
Compliance Statement 17
Warranty 17
Input Table Appendix 18

Page:4 Castle
System Overview
Inputs on main
control panel
10 fully programmable inputs
Input conguration Double end of line (4K7 Alarm, 2K2 Tamper)
Double end of line (4K7 Alarm, 4K7 Tamper)
Double Pole
Input Types Unused, Fire, Hold Up, 24 Hour, Intruder, Final
Exit, Entry Route, ER (FX in part), FX (ER in part),
Keyswitch Latched, Keyswitch Pulsed
Programmable
Outputs
PGM, Bell, Strobe + 4 Outputs on Inputs 7,8,9 and 10
(programmed either as an input or output)
Output Types Not Used, Fire, Hold Up Any, Intruder Any, Tamper Any,
Set Fail, Entry Deviation, Siren Any, Strobe Any, Exit
Starts Any, Final Set Any, Strobe Set Fail, Keyswitch
Unset, Entry/Exit, Lights, Restore 1, Restore 2, PIR
Latch 1, PIR Latch 2, Mains Good, Detr Indn Enable,
Follow Test, Off During Test, Detr Walk Test, Mains Fail,
Battery Fault, Low Volts, Global Fault 1, Global Fault 2,
Engineer Access
Keypad Contemporary LCD Keypad 32 Character
Number of Keypads 4
Arming Options Timed, Final Door, Timed/Final
User Codes 30 user codes, 1 Master Manager, 1 Engineer
Logs 500 Mandatory, 200 Optional
Fuses AUX, Bell, RS485 Bus, Battery
Tampers Case Tamper and Siren Tamper

Castle Page:5
Technical Specication
Electrical Specication
Supply Voltage (A.C.) 18VAC Nominal (+-20%), 50Hz (+-10%)
Supply Voltage (D.C.) 12VDC Nominal (10-15 Volt DC Range)
Power Supply 1A Regulated
Supply Current <80mA Quiescent (DC supply, no active outputs)
Internal battery charger 800mA continous, 13.68V nominal (fold-back
current limited)
Battery supply protection Reverse polarity protected
Battery nal disconnect
voltage 10.5V
Zone inputs 0-20V, normally closed, normally open, double
balanced circuits
PGM/SAB outputs Switched negative 1Ah (max)
Shared PGM outputs Switched negative 50mA (max)
SAB/AUX supply fuses 800mA quick-blow
Battery reverse
protection fuse 1.6A slow-blow
Mains Fuse Mains Fuse - Anti-Surge 315mA
Physical/Mechanical Specication
Dimensions 250 x 297 x 82mm
Weight 3.07 kilos
Environmental Specication
Operational temperature
range -20°C to +60°C
Storage temperature
range -20°C to +60°C
Battery recommend 3Ah or 7Ah (Max)

Page:6 Castle
Overview Control Panel
The EURO mini is already fully assembled in a metal case. The diagram below
shows a basic overview of the different components.
The Control Panel

Castle Page:7
Overview Printed Circuit Board
The Printed Circuit Board
BELL
BUS
BATTERY
AUX
Remove for DP
PGM AUX+ SPK STB BELL TR B- B+
Fuses
Fuses
Power LED
(flashes)
Double Pole
Link
The Z1 and Z2 GND terminal cannot be used as 0V
Z1 COM Z2 0V +12V Z3 COM Z4 Z5 COM Z6 0V +12V Z7 COM Z8 Z9 COM Z10 D1- D2+ D3 D4 - BAT + GND
PGM Output 1 Z6 Input 6
AUX+ +12V Supply 0V 0V/Common
SPK Speaker Output +12V +12V Supply
STB Output 2 Z7 Input 7 / Output 4
BELL Output 3 COM 0V/Common
TR Siren Tamper Return Z8 Input 8 / Output 5
B- 0V Z9 Input 9 / Output 6
B+ +12V Supply COM 0V/Common
Z1 Input 1 Z10 Input 10 / Output 7
COM Common Only D1- RS485 Bus: 0V
Z2 Input 2 D2+ RS485 Bus: +12V
0V 0V/Common D3 RS485 Bus: Data A
+12V +12V Supply D4 RS485 Bus: Data B
Z3 Input 3 -BAT Battery Negative
COM 0V/Common BAT+ Battery Positive
Z4 Input 4 GND Earth
Z5 Input 5 ~ 17V Input
COM 0V/Common ~ 17V Input
The EURO mini printed circuit board is as follows:

Page:8 Castle
Overview Tamper Connections
The Tamper Spring and Connections
BELL
BUS
BATTERY
AUX
Remove for DP
PGM AUX+ SPK STB BELL TR B- B+
Tamper
Connection
Tamper
Spring
Z1 COM Z2 0V +12V Z3 COM Z4 Z5 COM Z6 0V +12V Z7 COM Z8 Z9 COM Z10 D1- D2+ D3 D4 - BAT + GND
The EURO mini printed circuit board is protected by a metal casing. The lid is
tampered by a spring that is connected to the printed circuit board.
To disable the tamper spring, simply link out the tamper connections shown
below.

Castle Page:9
Connections Transformer
Battery
BELL
BUS
BATTERY
AUX
PGM AUX+ SPK STB BELL TR B- B+
Transformer
Battery 12V
To Earth terminal
of mains block
Remove for DP
Transformer / Battery Connection
The transformer will be factory tted to the connections shown below on the
EURO mini.
It is recommended that a 3Ah or 7Ah battery should be used on the EURO mini.
This connects to the Battery positive and negative terminals.

Page:10 Castle
Connections Contemporary
Keypad
D1- D2+ D3 D4
BELL
BUS
BATTERY
AUX
PGM AUX+ SPK STB BELL TR B- B+
Remove for DP
Keypad Connection
A maximum of 4 keypads may be installed to the EURO mini. Each keypad
(EUR-068 or EUR-069) connects to the RS485 terminal: D1-, D2+, D3 and D4.
Each keypad must be individually addressed, starting with 00. To do this, press
and hold the ‘D’ key, until ‘KEYPAD CODE’ is displayed. Enter ‘2000’ and select the
appropriate address. Press the ‘YES’ key to change any other required options, and
the ‘A’ key to save the data.

Castle Page:11
Connections Internal Tag
Reader
D1- D2+ D3 D4
BELL
BUS
BATTERY
AUX
PGM AUX+ SPK STB BELL TR B- B+
Remove for DP
Reader Connection
A maximum of 3 readers may be installed to the EURO mini if the EUR-068 is
installed. Each connect to the RS485 terminal: D1-, D2+, D3 and D4.
Each reader must be individually addressed, starting with 01. To do this, there are
dip switches on the back of the reader.
To address the reader as 02 for example, dip switch “2”
must be selected to the right (towards the address number)
To address the reader as 01 for example, dip switch “1”
must be selected to the right (towards the address number)
32
16
8
4
2
1
Address
ON
1 2 3 4 5 6

Page:12 Castle
Connections External Tag
Reader
BELL
BUS
BATTERY
AUX
PGM AUX+ SPK STB BELL TR B- B+
Remove for DP
Red
Black
Yellow
Blue
External Reader Connection
A maximum of 3 readers may be installed to the EURO mini if the EUR-068 is
installed. Each connect to the RS485 terminal: D1-, D2+, D3 and D4.
Each reader must be individually addressed, starting with 01. To do this, certain
cables need to connected to a negative:
Address Brown Cable Orange Cable Green Cable
1 GND (0V) GND (0V) Not Used
2 GND (0V) GND (0V) GND (0V)
3 GND (0V) Not Used Not Used

Castle Page:13
Connections Double Pole
Input Wiring

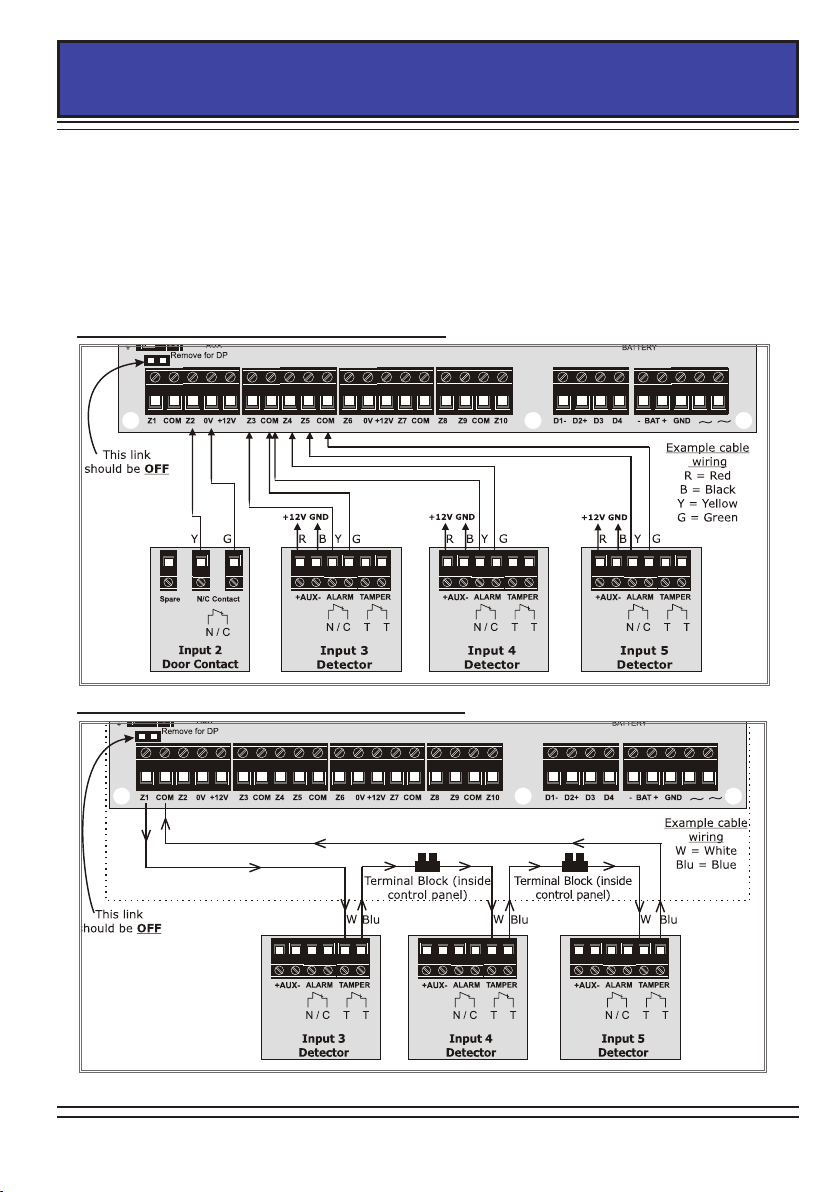

If double pole is used, the link above input 1 (shown below) needs to be open.
Double pole requires no resistors, but it requires a dedicated tamper circuit
(When a clean start 2002 is performed, input 1 is defaulted as tamper).
The rst diagram below shows the connection of door contacts/detectors to the
EURO mini, the second diagram shows how the tamper circuits of each detector
should be connected. The diagrams are split for clearer wiring connections.
Please note that any ‘terminal blocks’ used should be located inside the control
panel.
PLEASE NOTE:
The Z1 COM terminal
cannot be used for
input 2 when using
double pole. See the
installation manual for
more details
Double Pole - Alarm Connections
Double Pole - Tamper Connections

Page:14 Castle
Connections Resistor
Input Wiring
ALARM TAMPER
+AUX-
Input 2
Detector
BELL
BUS
BATTERY
AUX
+12V GND
PGM AUX+ SPK STB BELL TR B- B
+
4
K
7
4
K
7
Spare N/C Contact
Input 1
Door Contact
4
K
7
4
K
7
Remove for DP
ALARM TAMPER
+AUX-
Input 2
Detector
BELL
BUS
BATTERY
+12V GND
AUX
PGM AUX+ SPK STB BELL TR B- B+
4
K
7
2
K
2
Spare N/C Contact
Input 1
Door Contact
2
K
2
4
K
7
Remove for DP
This link
should be ON
This link
should be ON
If double end of line is used, the link above input 1 (shown below) needs to
be closed, and specic resistors need to be used depending on which mode is
selected (see Choose Mode in the programming manual). There are 2 choices:
ALARM TAMPER
+AUX-
Input 2
Detector
BELL
BUS
BATTERY
AUX
+12V GND
PGM AUX+ SPK STB BELL TR B- B+
4
K
7
4
K
7
Spare N/C Contact
Input 1
Door Contact
4
K
7
4
K
7
Remove for DP
ALARM TAMPER
+AUX-
Input 2
Detector
BELL
BUS
BATTERY
+12V GND
AUX
PGM AUX+ SPK STB BELL TR B- B+
4
K
7
2
K
2
Spare N/C Contact
Input 1
Door Contact
2
K
2
4
K
7
Remove for DP
This link
should be ON
This link
should be ON
DEOL: 4K7 Alarm, 2K2 Tamper
DEOL: 4K7 Alarm, 4K7 Tamper

Castle Page:15
Connections Siren Connection
Speaker Connection
Siren
+12V Supply
0V
Bell Tamper
Bell Trigger
Strobe Trigger
BELL
BUS
BATTERY
AUX
1 or 2 16ohm
speakers may
be wired in
parallel
PGM AUX+ SPK STB BELL TR B- B+
Remove for DP
BELL
BUS
BATTERY
AUX
PGM AUX+ SPK STB BELL TR B- B+
Remove for DP
Siren
+12V Supply
0V
Bell Tamper
Bell Trigger
Strobe Trigger
BELL
BUS
BATTERY
AUX
1 or 2 16ohm
speakers may
be wired in
parallel
PGM AUX+ SPK STB BELL TR B- B+
Remove for DP
BELL
BUS
BATTERY
AUX
PGM AUX+ SPK STB BELL TR B- B+
Remove for DP
The connections for a +12V Siren are described below, at default all outputs are
negative applied and this cannot be altered.
There is also a connection for 1 or 2 16ohm speakers, which will follow the
keypad sounds.
Siren Connection
Speaker Connection

Page:16 Castle
Connections Output
Connections
The EURO mini supports up to 7 outputs. 4 of the outputs are shared with inputs
on the system, therefore if the outputs are used (see Change Outputs in the
programming manual), inputs 7 to 10 become disabled. All outputs on the
system are negative applied and cannot be altered.
The example below shows how to connect a typical 12V dialler.
BELL
BUS
BATTERY
AUX
+12V
GND
PGM AUX+ SPK STB BELL TR B- B+
1 2 3 4 5 0v +12V
Example
Auto Dialler
Inputs Auxillary
In this example the inputs
are programmed as outputs
See ‘Change Outputs’ section
in the Programming manual.
All outputs are negative applied
Remove for DP
Output Connection/Example

Castle Page:17
Compliance Statement and Warranty
EN50131-1
Grade 2 Compliance
2x
The EURO mini complies with the requirements of the EMC Directive (2004/108/
EC) and the Low Voltage Directive (2006/95/EC).
The EURO mini complies with EN50131-3:2009
Suitable for use in systems installed to PD6662:2010 at security grade 1 or 2X
and environmental class 2.
This product is sold subject to our standard warranty conditions and is warranted
against defects in workmanship for a period of 2 years. In the interest of
continuing improvement of quality, customer care and design, Pyronix Ltd
reserves the right to amend specications without giving prior notice.
For electrical products sold within the European
Community. At the end of the electrical
products life, it should not be disposed of
with household waste. Please recycle where
facilities exist. Check with your Local Authority
or retailer for recycling advice in your country.
EN50131-3:2009
EN50131-1:2006+A1:2009
PD6662:2010
Security Grade 2x
Environmental Class 2
Compliance Statement
Warranty

Page:18 Castle
Input Table Appendix
Input
Number
Input Type Input Areas Description
1
2
3
4
5
6
7
8
9
10

Castle Page:19

Contact Details
Castle
Secure House
Braithwell Way
Hellaby
Rotherham
S66 8QY
Customer Support:
[phone] (local rate)
Or telephone: [phone]
Opening Hours:
8.00am - 6.30pm
Monday to Friday
E-mail:
[email protected]
Website:
www.castle-caretech.com
