Casual Home 600-4X User manual

Assembly Instruction
Item# 600-4X
Medium Pet Crate End Table

Page 2/6
Parts List
(A)
(B)
(C)
(D)
(E)
(F)
1 Pc.
1 Pc.
1 Pc.
1 Pc.
1 Pc.
1 Pc.
Top Panel
Bottom Panel
Left Panel
Right Panel
Back Panel
Door
x 18 x 2
x 2 x 2
x 6 x 6 x 1
Hardware
F6 x 5/8"
RF10004
Pin Metal
RF40009
Spring
RF40002
Washer
RF44013
JCB M6 x 40
RF10041
L-Bracket
RF50003
Allen Key
RF40103
A
B
CF
E
D

Page 3/6
Left Panels
Diagram 1.
C
D
x 2
RF50003
x 4
RF10004
x 4
RF10004
x 2
RF50003
Right Panels
Back Panels
x 4
RF10004
x 2
RF50003
Step 1.
Attach 6 L-Bracket (RF50003) into the pre-drilled holes on the
Left Panel (C), Right Panel (D) and Back Panel (E) using
12 screws (RF10004) as per Diag. 1.
E

Page 4/6
Step 2.
Attach Back Panel (D) into the Top Panel (A) by using
2 screws (RF10004) as per diagram 2.
A
E
Diagram 2.
Diagram 3.
x 2
RF10004
x 2
RF10004
E
D
A
E
C
D
A
x 2
RF10004
Step 3.
Attach Left and Right Panel (C&D) into the pre drilled holes on the Top Panel (A)
using 6 screws (RF10004) as per diagram 3.

Page 5/6
Step 4.
Attach Bottom Panel (B) into the unit by using 6 screws (RF10041)
as per diagram 4.
Diagram 4.
E
A
B
D
C
x 6
RF10041
Tip: - is the adjustment point
for the balance of Bottom Panel (B).
14
Loosen
Tighten
1
2
3
4

Page 6/6
Diagram 5.
D
C
A
F
B
Tip: Carefully hold the pins
to prevent it from bouncing o
x 2
x 2
x 2
RF40002
RF40009
RF44013

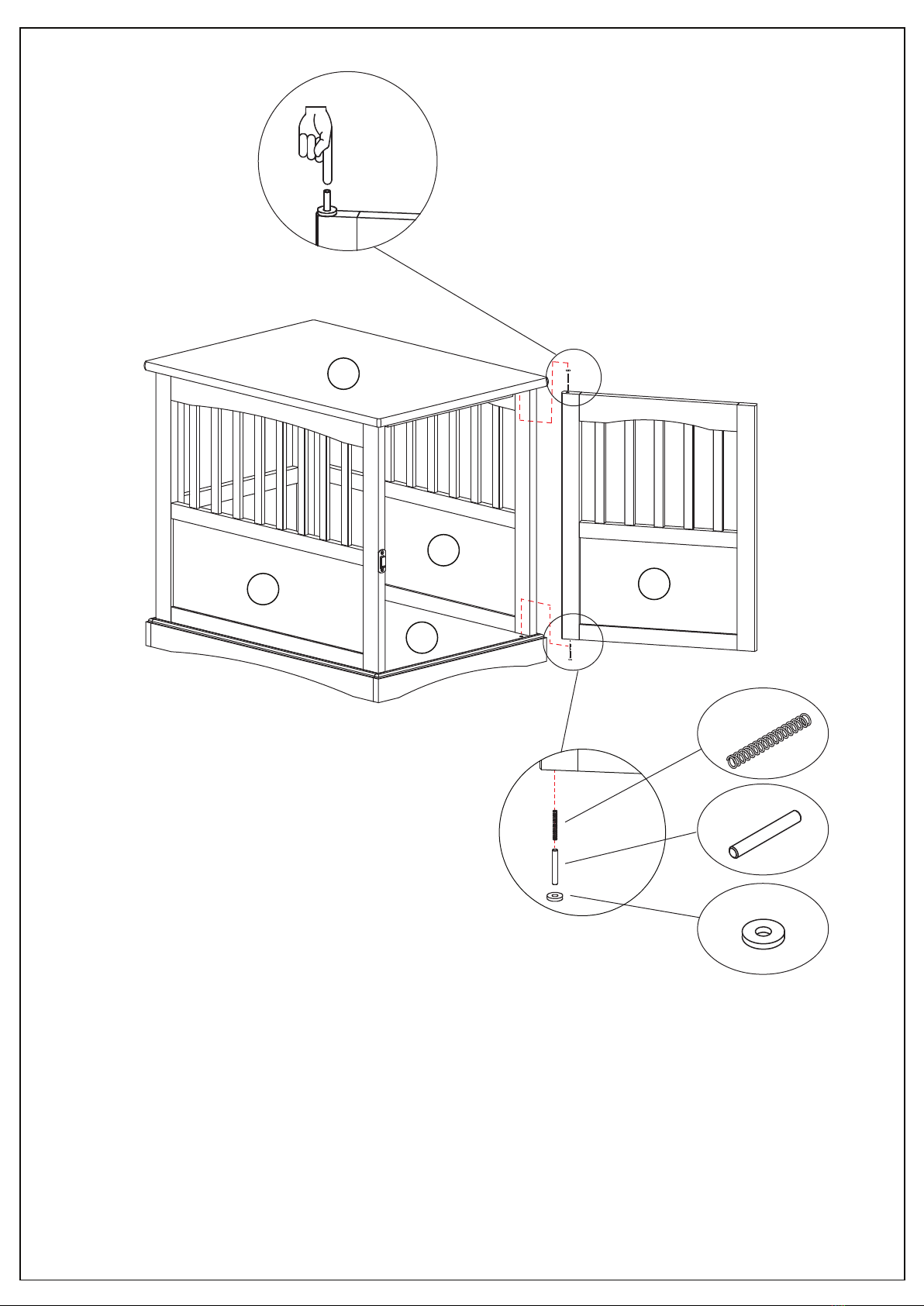

Step 5.
Assemble the Door (F); Place Spring (RF40002), Door Pin (RF40009)
and Washer (RF44013) into pre-drilled holes on the Door (F)
as per diagram. Align the pin on top of Door (F) to the hole
underneath the Top Panel (A), then align the pin in bottom
of Door (F) to Bottom Panel (B). Ensure the top and bottom pins
on Door (F) are inserted into the holes on Bottom Panel (B)
as per diagram 5.
