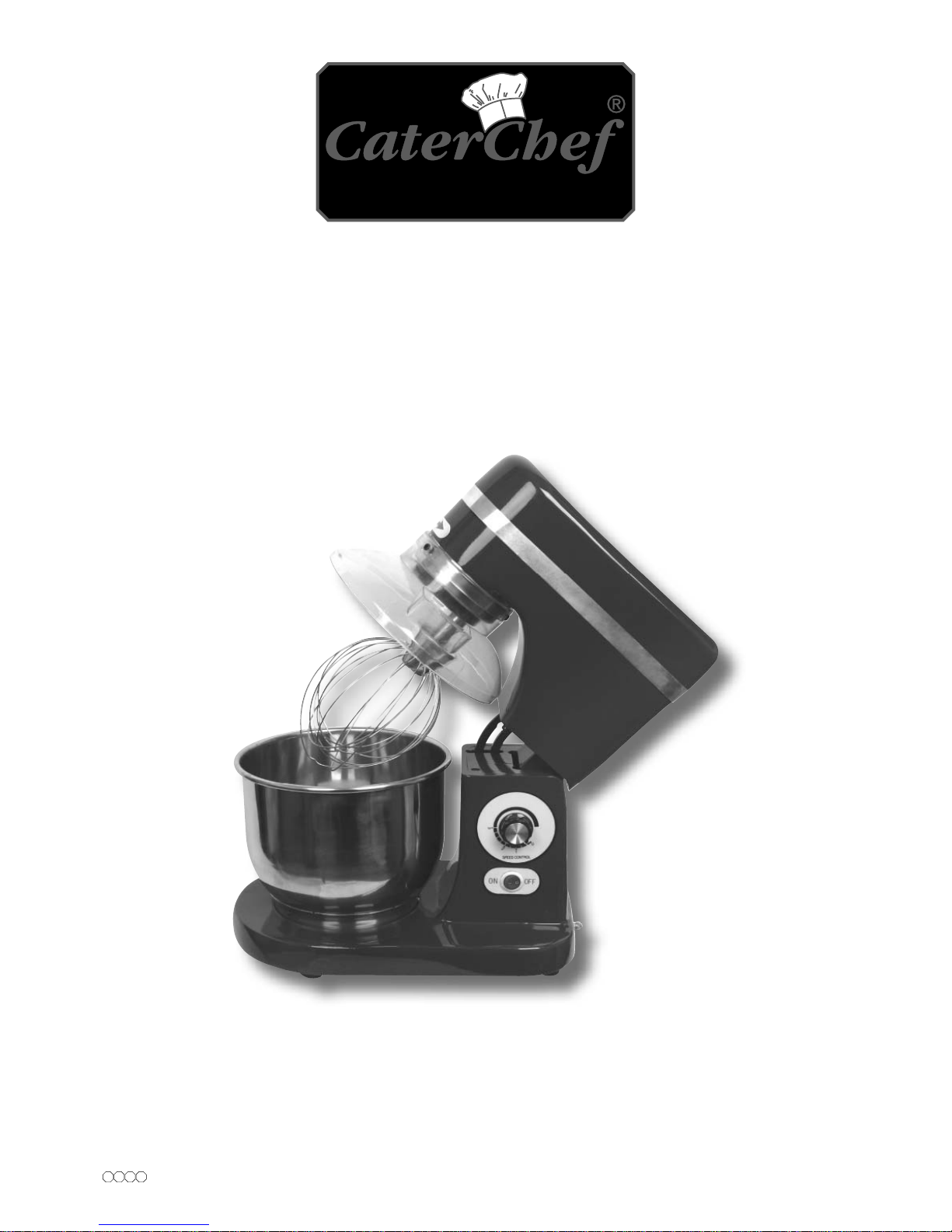

Cater Chef *537.015 User manual

537015 en ma 2011
5L MIXER
Operation Manual
Professional Supplies
MIXER/KNEADER
Modelnr.: *537.015

537015 en ma 2011
1. Function Features
As the mixer has used infinitely variable speed and planetary gear technologies, so it has a large
speed range, easy to operate. It can mix dough, dumpling stuffing, circumrotates eggs and cream
mixing. It is very good for using in west food kitchen, bread-room, bar, restaurant and home.
2. Assembly
2.1 It is better put the mixer on horizontal and stable plane. The best height of the plane is between
650mm-750mm. Please leave 150mm-space distance at front, rear, 300mm at left and right.
2.2 It is necessary to invite electricians to connect the machine to power.
2.3 The power must be used a separating electronic socket with fuse device protecting.
Rated voltage is 220V~ and Frequency is 50Hz.
2.4 The electronic socket should have ground connection. The resistance must be less than 0.1-ohm.
2.5 There is a ground connection point at bottom of the mixer. The resistance must be less than 0.1-ohm.
3. Operation
Operating parts is in Drawing 1
3.1 Assemble and disassemble
Shutting off the machine, turn the handle in clockwise direction to horizontal position by left hand. The
head of machine will rise an angle automatically. Then release the handle rising the head ”A” to 45°,
the head will be locked and the handle will leap back to vertical position.
Along a key of the mixer axle, insert the mixing agitator ”D” to a hole in axle of mixer ”C” lightly,
turn left to ”stop point” to assemble the mixing agitator. Reverse the process to disassembly the mixing
agitator.
Rotating the handle to horizontal by left hand, the head will fall down, push the head down to lock.
It is a working position. The handle will leap back to horizontal position.
Drawing 1

537015 en ma 2011
3.2 Making choice for a suitable mixing agitator
There are three kinds of shape mixing agitator for choice.
3.2.1 Hook shape mixing agitator is for sticking and large things such as dough, etc.
3.2.2 Racket shape mixing agitator is for bulking things such as meat dumpling stuffing, etc.
3.2.3 Netted shape mixing agitator is for unstuck or just a little stockless thing such as eggs and creams.
Note: Don’t select the mixing agitator wantonly. Otherwise the machine will not be working,
even will be broken. Please according to the viscidity of mixing thing to make a choice.
3.3 How to assemble and disassemble the Bowl.
Shutting off the machine, rise the head of the mixer ”A”. Hold tight stainless steel body with two hands,
following the hour hand revolve to halt point, it will be fix.
Reverse the process to disassemble the bowl. Repeat the step 3.1, push the head down to lock and the
handle ”e” will be at vertical position.

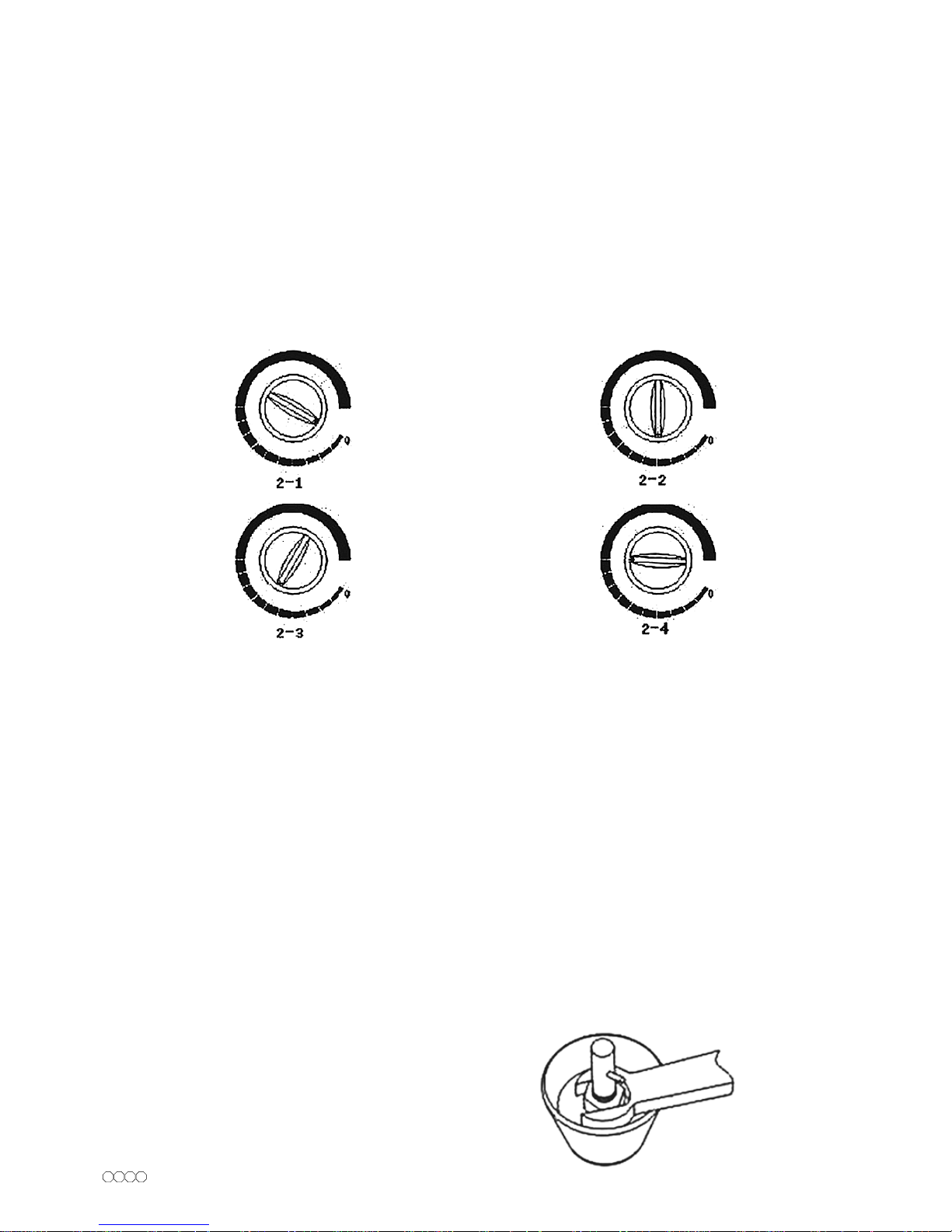

Drawing 2
3.4 Speed adjusting
Setting the speed button to “O” position (Drawing2-1), connect the electronic power, indicator light will
be on. Start the machine in clockwise direction, then turn the button to adjust the speed according to
property of mixing thing and the mixing agitator. The speed will increase while the button turning from
left to right.
When the arrow indicates to drawing 2-2, the mixer is low speed, it is good for dough.
When the arrow indicates to drawing 2-3, the mixer is middle speed, it is good for meat dumpling stuf-
fing.
When the arrow indicates to drawing 2-4, the mixer is high speed, it is good for eggs.
This mixer is infinitely variable speed, user can choice bests-peed for you job.
Note: Don’t against the speed choice law above. Otherwise the machine’s working efficiency will be
reduced. Sometime even broken.
3.5 How to adjust the height of mixing agitator
Sometimes, the interval between bottom of mixing agitator to bowl is too close and sometimes it is too
big, adjust the height of mixing agitator is necessary. Details are as follows (drawing3)
a. shutting off power first.
b. Using a wrench to release the nut of mixing agitator.
c. Adjust the interval.
d. Tighten up the nut.
Drawing 3

537015 en ma 2011
3.6 Every step is finished, please return back the speed button to “O” position,
then turn off the machine, and cut off the power.
4. Safety Caution
4.1 Before remove the machine, cut off the power first. When disassemble the mixing agitator,
mixing bowl machine must be turned off.
4.2 Don’t use your wet fingers to operate the machine.
4.3 Don’t water the machine, don’t put it in water.
4.4 If any parts are broken or under abnormal conditions, the machine must be stoped,
call technician to fix.
4.5 Don’t put fingers in bowl while it is working.
4.6 Under age persons please keep away from the machine.
4.7 When it is working or the head is raising, the handle ”e” must be at vertical position.
4.8 When the head is raising, don’t put any fingers on link parts between head and stand of
machine to avoid injury.
4.9 There is a ground point (Mark)in back of stands, please keep them in original position
after each maintenance.
5. Maintenance:
5.1 It is food machine, so all parts that contact with food have to remove and wash clear every day
after working. Don’t use cleaning pharmaceutical that may be injury persons.
5.2 Don’t turn on if there is nothing in bowl.
5.3 When mixing agitator beat bowl, stop working immediately, correct the space or change
the agitator or bowl if necessary.
5.4 After one year used, please contact with supplier for technicians to maintain the machine.
6. Trouble and Solution:
Trouble Reason Solution
Turn on, But don’t working
1. No power
2. The speed button is not on ”O”
position
1. Check the power plug and socket.
2. Turn the button to “O” then start the
machine.
Temperature of motor is
increasing and speed is
decreasing
1. Voltage is too lower.
2. Load is too large.
3. Mixing head is not suitable.
4. Belt is worn out.
1. Check the electronic Voltage.
2. Reduce quantity of mixing (table2)
3. Choose suitable agitator.
4. Change a new belt.
Suddenly stop while working
1. Load is too large.
2. Voltage undulate too large.
3. Fuse is broken.
4. Continue working time is too long
1. Reduce quantity of mixing (table2).
2. Check the voltage.
3. Change a new fuse.
4. Waiting a few minutes then restart
again.
Speed button is out of order
The speed button is loose.
The button is broken after long time
work.
Tighten up the crew of speed button.
Make a Call for maintenance.
Mixing head beat the barrel The head position is correct According to the item 5.5 to adjust.
Note: Please change the carbon brush of electronic motor when it stops working for a long time.

537015 en ma 2011
7. Te c h n i c a l S p e c i fi cation:
Description Unit Parameter
Volume of Mixing barrel L 5
Speed of mixing mandrel r/min Revolution:40-260
Rotation:131-852
Rated voltage V 220/230/240/110~
Rated Frequency Hz 50/60
Input Power W 300
Electronic Current A 2.5
Max. Eggs Weight G 750
Max. Dough Mixing G 500(Dry flour)
Working Environment Indoor
Net Weight Kg 20.8
Dimension mm 350×230×400

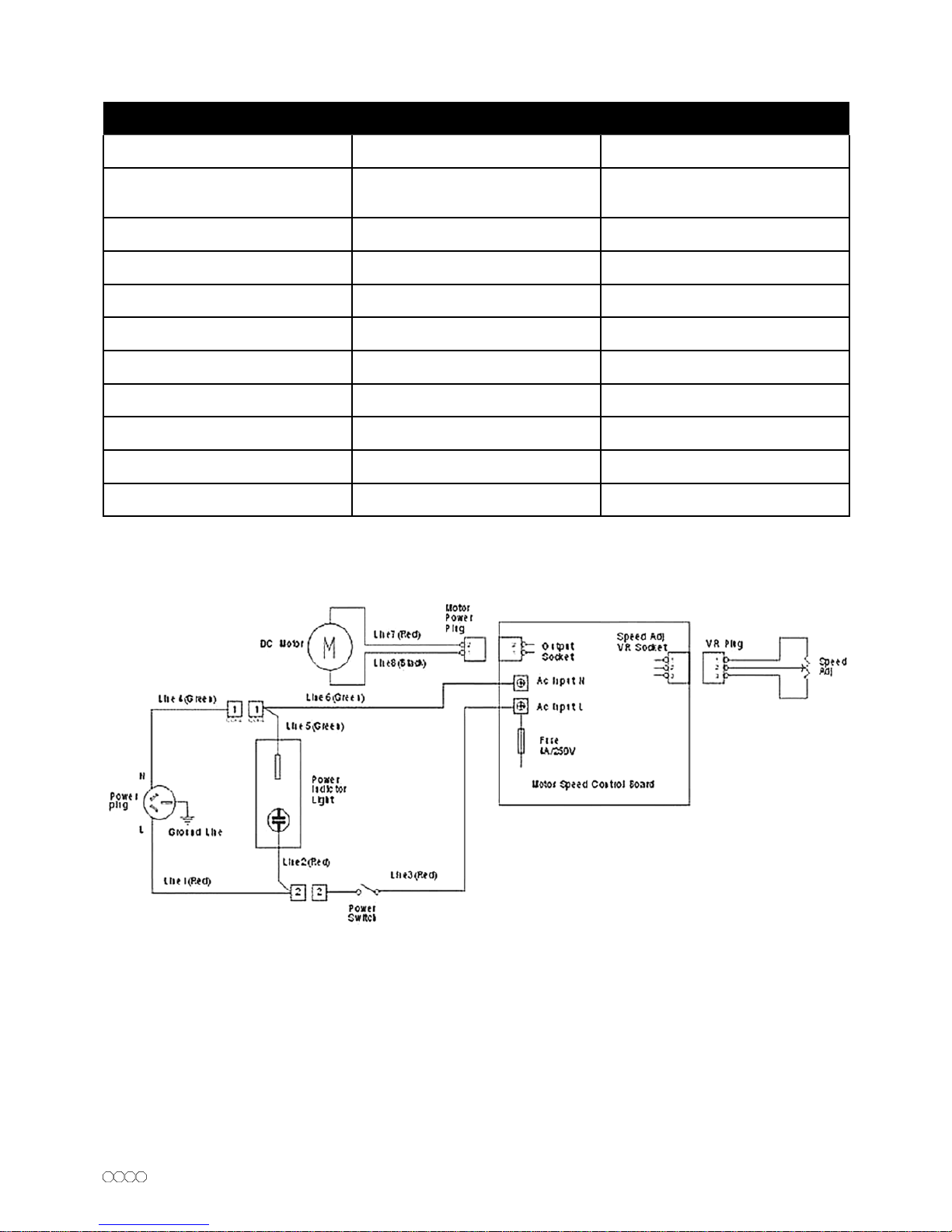

8. Electronic Drawing:
