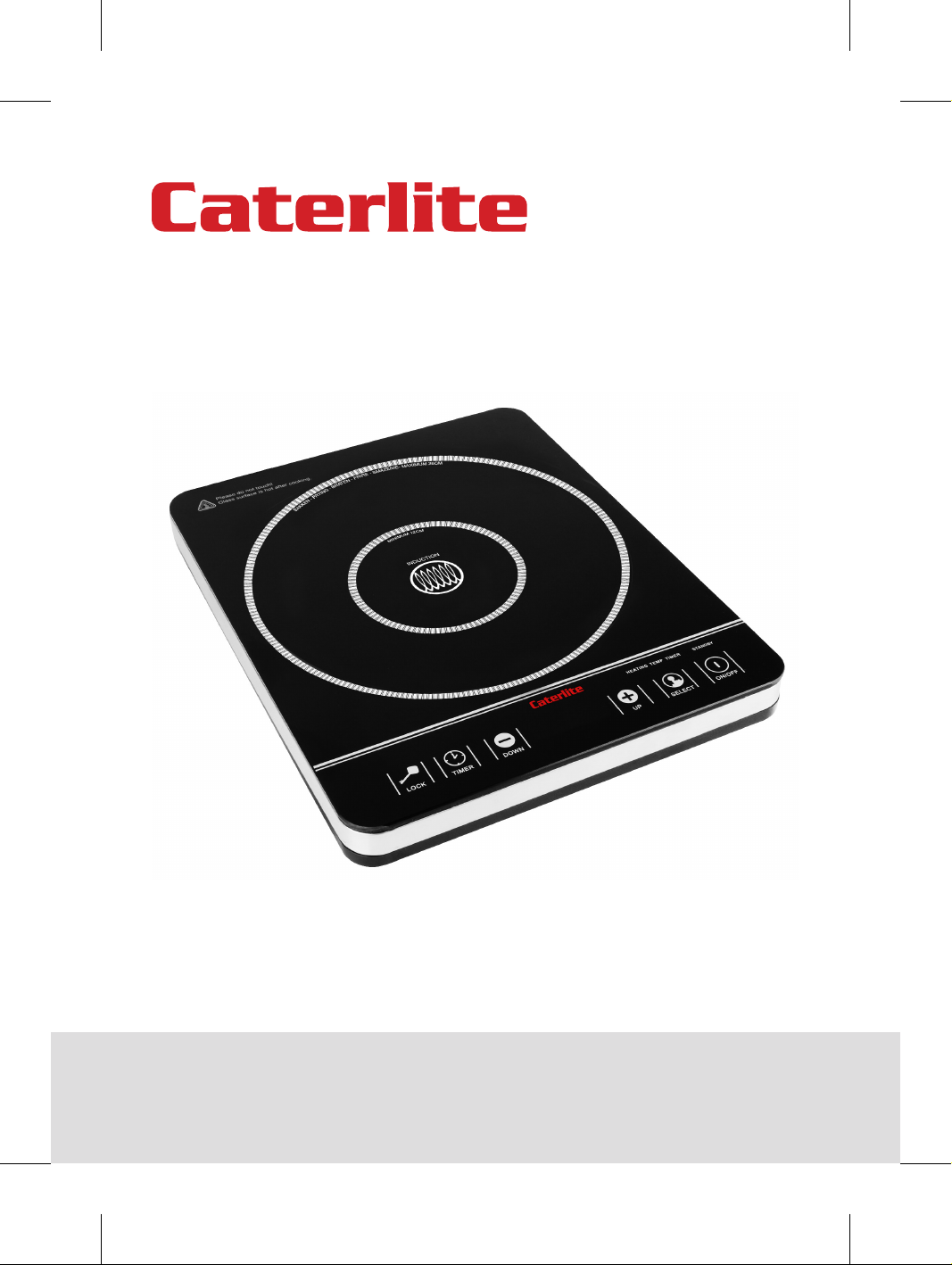

Caterlite CM352-A User manual

Model
CM352-A
Induction
Cooker
Instruction manual
CM352-A_A5_v3_20181219.indb 1 2018/12/19 14:52

2
AU Telephone Helpline: 1300225960
Safety Tips
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- Fire Precautions
- Wiring Regulations
- Building Regulations
• Caution! Hot surface!
• DO NOT immerse the appliance in water.
• DO NOT leave the appliance unattended during operation.
• DO NOT move the appliance during cooking or with hot
cookware on top of it.
• DO NOT use cookware with a diameter less than 12cm.
• DO NOT place empty cookware on the appliance.
• DO NOT place any magnetic objects on the glass surface
during operation.
• DO NOT place metal objects/utensils on the appliance as they
may become hot during operation.
• People with a pacemaker fitted should not use the appliance
and keep a minimum of 60cm from the appliance during
operation.
• Always switch off and disconnect the power supply to the
appliance when not in use.
• Not suitable for outdoor use.
• If the glass surface is cracked disconnect from the power
supply and consult your Caterlite agent or recommended
qualified technician.
CM352-A_A5_v3_20181219.indb 2 2018/12/19 14:52

3
AU
Telephone Helpline: 1300225960
• Keep all packaging away from children. Dispose of the
packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a
Caterlite agent or a recommended qualified technician in order
to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Caterlite recommend that this appliance is PAT tested on an
annual basis to ensure the product remains safe.
Introduction
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your Caterlite product.
Pack Contents
The following is included:
• Caterlite Induction Cooker • Instruction manual
Caterlite prides itself on quality and service, ensuring that at the time of packaging the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your Caterlite dealer immediately.
Induction Cooking
Induction cooking is a very efficient method of cooking as it reduces heat loss between the pan and the
atmosphere by as much as 40%. This makes it extremely energy efficient, as well as offering immediate
heat-up, unlike traditional heating methods which require time to get to temperature.
The Induction cooker works by creating a magnetic field within suitable cookware, which causes an
instant build-up of heat to cook the food.
Installation
Maintain a distance of 10cm (5 inches) between the appliance and walls or other objects.
CM352-A_A5_v3_20181219.indb 3 2018/12/19 14:52

4
AU Telephone Helpline: 1300225960
Cookware
Suitable cookware includes:
• All magnetic pans such as Vogue Stainless Steel or
Triwall pans.
• Mild steel or plain steel (black iron) pans
• Enamelled/non-enamelled cast iron and iron pans
Unsuitable cookware includes:
• Cookware with a diameter of less than 12cm
• Ceramic or glass cookware
• Stainless steel, aluminium, bronze or copper
cookware unless marked as suitable for induction
cooking
• Cookware with feet
• Cookware with a rounded bottom (e.g. wok)
Control Panel
Lock
button
Timer
button
Decrease
button
Increase
button
Select
button
On/off
button
LCD display
panel
Operation
1. Connect the appliance to the mains power supply.
2. Place suitable cookware on to the centre of the glass plate.
3. Standby’ light will flash. Press On/Off button and ‘Heating’ light will flash. Press Select button and
your appliance will start to work.
The Induction Hob will work by either running at a Power level or a
Temperature. When running at a fixed temperature, the power to the pan will
reduce as the pan heats up.
4. Press the Select button to cycle between the Power and Temperature functions.
5. Press the Increase or Decrease button to change the level of each function.
Function Level Increments Default
Power 500w to 2000w 200w/300w 1200w
Temperature 60°C to 240°C 20°C 180°C
Timer 0 to 180min 5min 0min
CM352-A_A5_v3_20181219.indb 4 2018/12/19 14:52

5
AU
Telephone Helpline: 1300225960
NOTE: If unsuitable cookware or no cookware is present the induction cooker
will display ‘E0’ for 30 seconds before switching off.
• To use the timer press the timer button. The LCD display will switch to Timer and the Timer indicator
will illuminate and flash. Press the Increase or Decrease button to change the timer. The Timer
indicator will flash while the timer is in use. When the timer finishes the hob will switch off.
• To lock the control panel, press the Lock button. To unlock, press and hold the lock button.
• This appliance has an overheat protection function. If the pan becomes too hot the appliance will
switch off, a buzzer will sound and the display will show “E2”. Should this happen, wait for 10 minutes
to allow the appliance to cool before restarting, as above.
• Fan will continue to run while the glass surface temperature is over 80°C.
Cleaning, Care & Maintenance
Disconnect from the power supply and allow the appliance to cool before
cleaning.
• Use warm, soapy water and a damp cloth to clean the appliance.
• DO NOT use abrasive cleaners or pads.
• Dry thoroughly after cleaning.
• A CATERLITE dealer or qualified technician should carry out repairs if required.
Troubleshooting
If your Caterlite appliance develops a fault, please check the following table before making a call to the
Helpline
Fault Probable Cause Solution
The unit is not working The unit is not switched on Check the unit is plugged in correctly and
switched on
Plug and lead are damaged Call Caterlite agent or qualified technician
Fuse in the plug has blown Replace the plug fuse
Power supply Check power supply
Unsuitable cookware / no
cookware
Replace with suitable cookware
“E2” on Display Appliance has overheated Allow to cool for 10 minutes before restarting
Technical Specifications
Model Voltage Power
(max.) Current Power range
Temperature
range
Dimensions
h x w x d (mm) Weight
CM352-A 220-240V
50/60Hz 2000W 8A 500-2000W 60-240°C 45 x 295 x 370 2.6 kg
CM352-A_A5_v3_20181219.indb 5 2018/12/19 14:52

6
AU Telephone Helpline: 1300225960
Electrical Wiring
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The product must not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and environmentally safe
recycling process. For further information on how to dispose of this product correctly, contact the product
supplier, or the local authority responsible for waste disposal in your area.
Caterlite parts have undergone strict product testing in order to comply with regulatory standards and
specifications set by international, independent, and federal authorities.
Caterlite products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of Caterlite.
Every effort is made to ensure all details are correct at the time of going to press, however, Caterlite reserves the right to
change specifications without notice.
CM352-A_A5_v3_20181219.indb 6 2018/12/19 14:52

DECLARATION OF CONFORMITY
Equipment Type
Induction Cooker - 2000watt
Model
CM352-A
Legislation
Electrical Safety
Electromagnetic Compatibility
Standards
EN60335-1:2012 +A11:2014
EN60335-2-9:2003 +A1:2004 +A2:2006 +A12:2007 +A13:2010
EN62233:2008
EN55014-1:2006 +A1:2009 +A2:2011
EN55014-2:1997 +A2:2008
EN61000-3-2:2014
EN61000-3-3:2013
Producer Name
Caterlite
Producer Address
15 Badgally Road,
Campbelltown,
NSW 2560
I, the undersigned, hereby declare that the equipment specified above conforms to the above Legislation and Standard(s).
Date
4th May 2017
Signature
Full Name
Ashley Hooper
Position
Technical & Quality Manager/ Responsible Supplier
