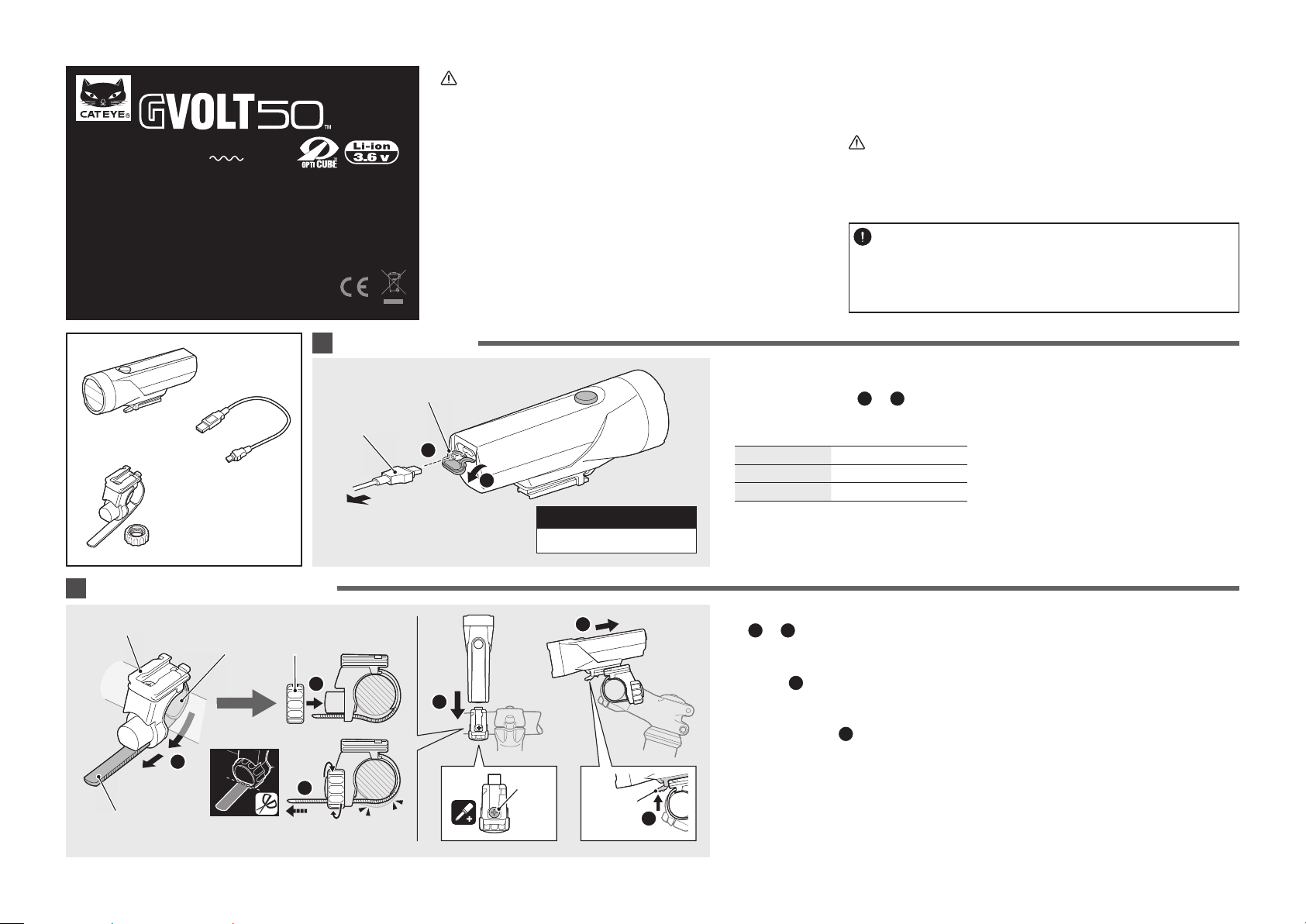

Cateye GVOLT 50 HL-EL550G RC User manual

RECHARGEABLE HEADLIGHT
HL-EL550G RC
K 1190
Manual
USB cable
Charge jack cover
To PC or USB battery charger
HOW TO CHARGE
1
PRECAUTIONS ON USE
• Before your trip, please make sure the light is firmly mount-
ed to the bracket, it lights up, and the light is not blocked by
baggage, etc.
• Do not place it within children’s reach.
• Mounting the light unit too close to a wireless computer
may adversely affect the reading of the computer.
• In preparation for unexpected battery shutoff, we recom-
mend you carry a spare light.
• This product is water-resistant under normal daily use and
can be used in the rain. However, do not intentionally sub-
merge it in water.
• If the light unit or parts become dirty with mud, etc., clean
with a soft cloth which is moistened with mild soap. Never
apply paint thinner, benzine or alcohol; damage will result.
PRECAUTIONS ON DISPOSAL
When disposing of the light unit, remove the internal re-
chargeable battery and dispose of it according to local regu-
lations.
Before Initial Use
This unit is shipped with a small charge to check the light.
Be sure to charge it before use, according to the instructions
“HOW TO CHARGE”.
HOW TO MOUNT TO A BICYCLE
2
Design Pat. Pending
Copyright© 2016 CATEYE Co., Ltd.
HLEL550GRC-160614 3
Before using the light, please read this manual and
the included separate sheet “LITHIUM-ION / LITH-
IUM-ION POLYMER BATTERIES” thoroughly, and
keep them for future reference.
1. Connect the light unit to your PC or
a commercial USB battery charger us-
ing the USB cable. ( 1– 2).
The switch indicator turns on and
charging starts.
Indicator light State
On Charging
Off Charging is completed
* When your PC is in sleep state, the
unit cannot be charged.
* We recommend using 500+mAh
(USB 2.0) USB battery charger.
* If the indicator flashes rapidly, there
is a charging error. Remove the
cable and try again.
2. After charging is completed, remove
the USB cable, and install the charge
jack cover.
* Charging and lighting times are ap-
proximate values, and will vary by
environmental and user conditions.
Light unit
FlexTight™ bracket
(H-34N)
USB cable
(MICRO USB)
1. Mount the bracket to the handlebar.
(
1
–
3
)
2. Insert the light unit into the bracket
until it clicks, and adjust the beam
angle. ( 4)
3. To remove the light unit, pull out it
forward while pressing down on the
release button ( 5).
* To re-adjust the beam angle, loosen
the dial enough to move the bracket,
and firmly tighten it after adjustment.
* The light can be mounted under the
handlebar.
CAUTION!:
• Be sure to tighten the dial by hand.
When you tighten it too hard with
a tool, the screw thread may be
stripped.
• Check the dial and screw (*1) on the
bracket periodically, and use them
without any loosening.
• Round off the cut edge of the bracket
strap to prevent injury.
DialRubber pad
Bracket
Strap
Screw
*1
Release
button
Standard charging time
Approx. 6 h
2
1
2
1
3
4
5
4
ENG

Switch
(indicator)
OFF ON*2
Click
Hi Low
Press and hold
Approx. 3.5 h Approx. 19 h
The ON/OFF and lighting modes are selected using a switch.
*2 When you turn the light on, etc., it lights up in the last lighting mode
used. (Mode memory function)
Remaining battery capacity
When the switch (indicator) lights up, the remaining battery power is 20%
or less. Please charge as soon as possible.
SWITCH OPERATION (SWITCHING THE LIGHTING MODE)
3
SPECIFICATIONS LIMITED WARRANTY
2-year Warranty: Light unit only (excludes battery deterioration)
CatEye products are warranted to be free of defects from materials and workmanship for
a period of 2 years from original purchase. If the product fails to work during normal use,
CatEye will repair or replace the defect at no charge. Service must be performed by CatEye
or an authorized retailer. To return the product, pack it carefully and enclose the warranty
certificate (proof of purchase) with instruction for repair. Please write or type your name
and address clearly on the warranty certificate. Insurance, handling and transportation
charges to CatEye shall be borne by person desiring service.
For UK and REPUBLIC OF IRELAND consumers, please return to the place of purchase.
This does not affect your statutory rights.
Please register your CatEye product on the website.
http://www.cateye.com/en/support/regist/
SPARE/OPTIONAL PARTS
CO., LTD.
2-8-25, Kuwazu, Higashi Sumiyoshi-ku, Osaka 546-0041 Japan
Attn : CATEYE Customer Service Section
Phone : [phone]
Fax : [phone]
E-mail : [email protected]
URL : http://www.cateye.com
Light source High-intensity LED x 1
Battery Li-ion 3.6v 2200 mAH
Charge Micro USB plug
Operating time
Hi : Approx. 3.5 hours
Low : Approx. 19 hours
* Average runtime at 20˚C.
Standard charging time Approx. 6 hours
Temperature range Charging : 41˚F – 104˚F (5˚C – 40˚C)
Operating : 14˚F – 104˚F (-10˚C – 40˚C)
Recharge/discharge
number of times
About 300 times
(until the rated capacity drops to 70%)
Dimensions/weight 1-27/64” x 4-11/64” x 1-47/64”
(36 x 106 x 44 mm) / 3.25 oz (92 g)
* The specifications and design are subject to change without
notice.
5338827N
FlexTight™
bracket
5341831N
Helmet mount
5342730
USB cable
(H-34N)
(MICRO USB)
5342440
Center fork bracket
(CFB-100)
