1 Introduction
1.1 Product Overview
NVP are network video encoder and decoder series, which are specialized for high definition real-time
video streaming applications. It provides flexible streaming for low-bandwidth transmission applications
using H.264 video and AAC audio encoding, supporting FLV over RTMP streaming output, thus seamlessly
connecting to streaming media server. The third generation NVP series encoder –NVP-903, support 3
encoding streams output for multi-screen application. Moreover, NVP-903 integrates H.264 decoding
functions with HDMI output, to form a versatile media delivery solution over IP network.
Integrated with Caton leading R2TP technology, NVP-903 and NVP decoders can also realize high
quality live video contribution and distribution over Open Internet.
1.2 Product Features
Support 1080P@60 FULL-HD H.264 encoding/decoding
Support HD-SDI, HDMI, Analog AV for video & audio input
Support 1 channel encoding with 3 encoding streams output, with different bit rate/resolution for
multi-screen application
Support RTMP PUSH, TS over HTTP, TS over UDP IP output, seamlessly connecting to streaming
media server
Support high bit rate file recording into SD card
Integrated with H.264 decoding function with HDMI output
Support Caton proprietary R2TP protocol for contribution and distribution over Open Internet
Internal hot-spot, support web UI control via PC/Android/iOS
Compact design: 200.0 x 44.5 x 153.0mm, 900g

NVP-903 User Manual
4
Tips:
If Data indicators keep red when you have plugged in the video source, check video/audio input
settings via web control. Make sure the video/audio type in input setting and the video source type to
be the same.
2 Panel Design
2.1 Front Panel
Figure2.1 NVP-903 Front Panel
NVP-903 Front Panel consists of an E Ink screen and 3 indicators: Power, Data and Stream.
E Ink: Displays device basic info. The info in E Ink will not be vanished after powered down.
Work Mode: Current device work mode: NVP-903-E (Encoder Mode) or NVP-903-D (Decoder
Mode)
SSID: Device serial number / SSID of NVP-903 internal hot-spot(AP)
Password: Password of NVP-903 internal hot-spot(AP)
Stream IP: Device IP address for streaming and web control
Indicators: Displays current running status
Power: [Blue] Device is powered up now
Data: [Green] Device recognizes the input source successfully. [Red] Device does not recognize
the input source now
Stream: [Green] Device is connected to target server/decoder and pushing/pulling stream to it;
[Red] Device is not pushing/pulling stream to target server/decoder.

NVP-903 User Manual
5
2.2 Rear Panel
Figure2.2 NVP-903 Rear Panel
NVP-903 Rear Panel consists of power interface, video/audio interface, network interface and SD card
slot.
Power (XLR): Connect NVP-903 power adapter to power up the device
SDI:
Encoder Mode: HD/SD-SDI video/audio source input
Video:
Encoder Mode: Analog video source input
Audio (L&R):
Encoder Mode: Analog audio source input
HDMI IN:
Encoder Mode: HDMI video/audio source input
HDMI OUT:
Encoder Mode: HDMI video/audio source loop-out
Decoder Mode: HDMI video/audio output
ETH: Network interface for streaming and device web control
USB: USB2.0 for Wi-Fi dongle function (In developing)
SD Card: Insert SD card for video recording (In developing)

NVP-903 User Manual
6
Tips:
SSID of NVP-903 internal hotspot (AP) will be displayed in the E-Ink of device front panel.
3 Web Control [Encoder Mode]
3.1 Log In
NVP-903 supports PC web control via Ethernet port, it also supports PC/Smartphone/Pad wireless web
control via NVP-903 internal hotspot.
3.1.1 Log in via Ethernet
1) Prepare a computer with Ethernet port and Internet web browser.
2) Connect your PC to the NVP-903 ETH port via Ethernet.
3) Configure computer IP address, make sure that NVP-903 and the computer IP are in the same
network segment
4) Input the device IP address in the web browser, it will displays the Log in page, as follows:
(Default IP Address: 202.0.0.138)
Figure3.1 Log in
5) Type in the Account and Password to login.
(Equipment factory, the account password is empty, add account after the account management page to
open the web page to enter account password options.)
3.1.2 Log in via Wi-Fi
1) Prepare a PC/Pad/Smartphone with Wi-Fi function and Internet web browser.
2) Search Wi-Fi SSID of NVP-903 internal hotspot(AP) and connect your PC/Pad/Smartphone to it.
(Default AP Password: 87654321)
3) Input the device IP address in the web browser, it will displays the Log in page, as in Figure 3.1
4) Type in the Account and Password to login.
(Default Account: admin; Default Password: admin)

NVP-903 User Manual
7

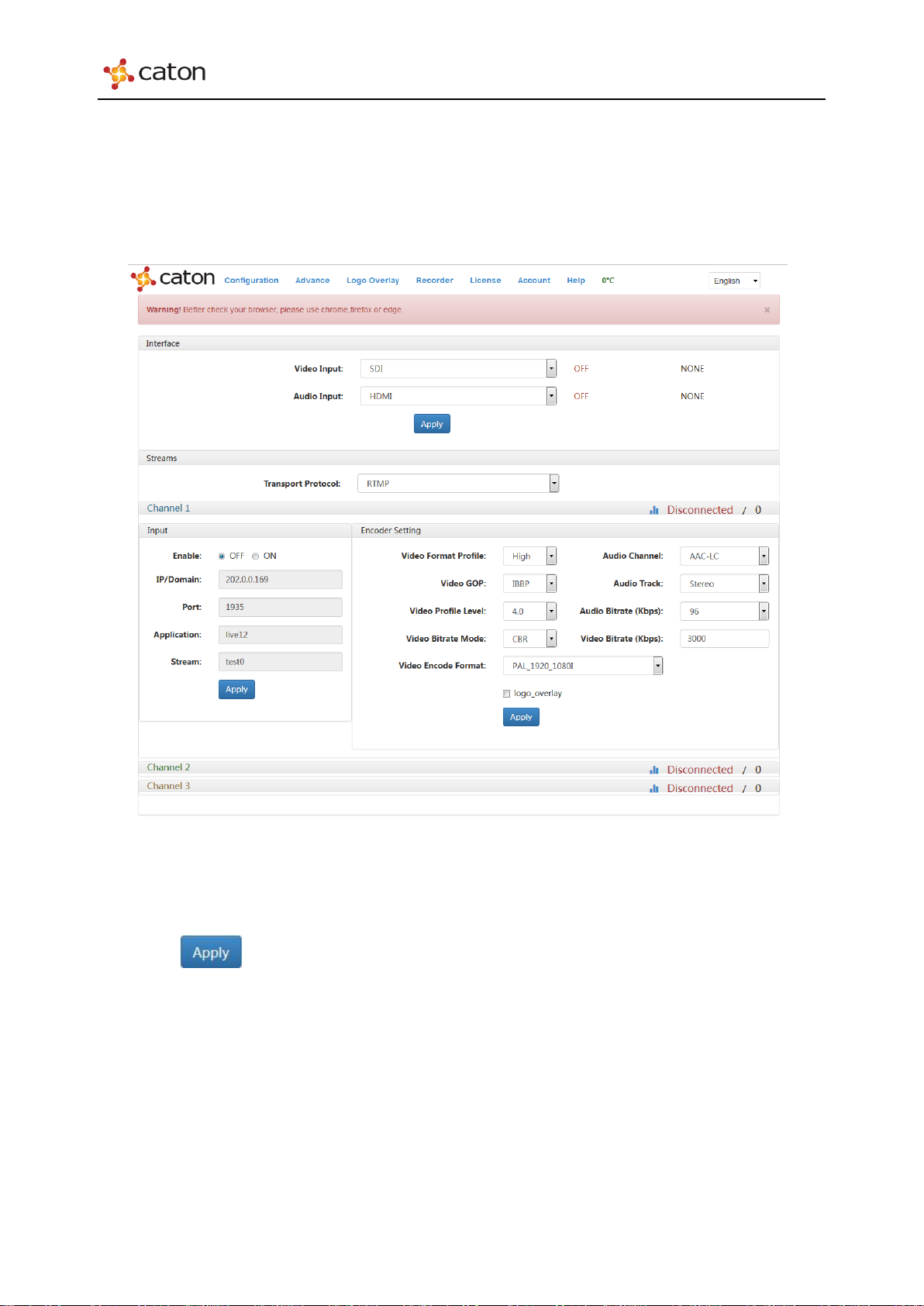

3.2 Configuration
Click Configuration in main menu to enter the basic setting page, as follows:
Figure3.2 Configuration
In Configuration page, users can configure basic settings of video/audio source, transport protocol and
encoder setting.
Click to save the configuration.

NVP-903 User Manual
8
3.2.1 Interface
Select the video/audio source type to encode.
Figure3.3 Interface
Video
Video Input: Video type of video source setting
Active: Video source status. ON: Device has recognized this type of video source; OFF: Device
has not recognized this type of video source
Input Format: Format of video input source
Audio
Audio Input: Audio type of audio source setting
Active: Audio source status. ON: Device has recognized this type of audio source; OFF: Device
has not recognized this type of audio source
Sample Freq(HZ): Sampling rate of audio input source
Table3-1 Interface
Menu Name
Range
Interface
Video Input Source
SDI
HDMI
CVBS
ColorBar (Internal Source)
BlackField (Internal Source)
Audio Input Source
SDI-Ch1/2
SDI-Ch3/4
SDI-Ch5/6
SDI-Ch7/8

NVP-903 User Manual
9
HDMI
Analog
1KHz (Internal Source)
Silence (Internal Source)
3.2.2 Streams
NVP-903 support 1 channel video/audio source input with 3 channel encoding streams output. The
encoding streams can be configured with different target address.
Transport Protocol: Current transport protocol for 3 encoding streams
Transmitting: NVP-903 is transmitting the stream to target device now, and it will displays
real-time transmitting bit rate
Connecting: NVP-903 is trying to connect to target device now
Disconnected: NVP-903 does not transmit the stream to target device.
1) UDP
Figure3.4 UDP
Enable: Enable current encoding streams to transmit. ON: Enable the transmitting; OFF: Disable the
transmitting
IP/Domain: IP address of target device to receive UDP streams.
Port: Transport port for UDP transmission. Range: 1024~65535
2) HTTP (TS over HTTP)

NVP-903 User Manual
10
Figure3.5 HTTP
For HTTP transmission, NVP-903 will generate a stream URL for each encoding channel (e.g.
http://202.0.0.139:50101/channel1.ts). Configure target decoder/server with this stream URL to pull the
stream for NVP-903.
3) RTMP
Figure3.6 RTMP
For RTMP transmission, the stream URL is generated by target RTMP streaming server. Configure
NVP-903 with this stream URL to push the stream to RTMP streaming server.
Enable: Enable current encoding streams to transmit. ON: Enable the transmitting; OFF: Disable the
transmitting
IP/Domain: IP address of target RTMP streaming server
Port: Transport port for RTMP transmission. Default: 1935
Application: The Application info in the stream URL
Stream: The Stream ID in the stream URL

NVP-903 User Manual
11
Tips:
R2TP is the proprietary transport protocol of Caton Technology. For R2TP transmission,
please make sure the decoder device support R2TP protocol.
4) R2TP
Figure3.7 R2TP
Enable: Enable current encoding streams to transmit. ON: Enable the transmitting; OFF: Disable the
transmitting、
IP/Domain: IP address of target decoder device.
Port: Transport port for R2TP transmission. Range: 1024~65535. Please make sure R2TP port of
NVP-903 and target decoder device to be the same.
5) R2TP-S
Figure3.8 R2TP-S
Enable: Enable current encoding streams to transmit. ON: Enable the transmitting; OFF: Disable the
transmitting
IP/Domain: IP address of target R2TP Relay Server
Port: Transport port for R2TP-S transmission. The R2TP-S port is provided by target R2TP Relay
Server
ID: Transport ID for R2TP-S transmission. The transport ID is provided by target R2TP Relay Server

NVP-903 User Manual
12
3.2.3 Encoder Setting
Figure3.9 Encoder Setting
In the encoder setting page, user can configure the encode settings of 3 encoding streams separately.
Click Channel1/Channel2/Channel3 column to select the encoding channel.
Click to save the configuration.
Table3-2 Encoder Setting
Menu Name
Range
Advance
Video Compress Profile
High
Main
Baseline
Video Compress Level
1.1/1.3/2.0/2.1/2.2/2.3/3.0/3.1/3.2/4.0/4.1/4.2
Video GOP
IP
IBBP
Video Bitrate Mode
CBR
VBR
Video Encode Format
PAL
1920*1080P (Channel1 Only)
1920*1080P_25Hz
1920*1080I
1440*1080P
1440*1080I
960*1080I
1280*720P

NVP-903 User Manual
13
1280*720P_25Hz
720*576P
720*576I
720*576P_25Hz
640*360P
352*288P
NTSC
1920*1080P (Channel1 Only)
1920*1080P_29.97Hz
1920*1080I
1440*1080P
1440*1080I
960*1080I
1280*720P
1280*720P_29.97Hz
720*480P
720*480I
720*480P_29.97Hz
640*360P
352*240P
Video Bitrate (Kbps)
CBR
HD: 650-8000Kbps
SD: 300-8000Kbps
VBR
HD: 650-4000Kbps
SD: 300-4000Kbps
Audio Compress STD
AAC-LC
AAC-HE
MPEG1-Layer2
Audio Track
Stereo
Monaural
DualMono
Audio Bitrate (Kbps)
AAC-LC
96
128
192
256
384

NVP-903 User Manual
14
Tips:
1. For Video Encode Format, Channel1 support up to 1920*1080P_59.94/50Hz, Channel2 &
Channel3 support up to 1920*1080P_29.97/25Hz.
2. NVP-903 support encoding format up-scaler and down-scaler, however it cannot
transform the frequency between PAL and NTSC.
512
AAC-HE
48
64
MPEG1-Layer2
128
192
256
For OSD setting, please refer to Chapter 3.4 Logo Overlay in this manual.

NVP-903 User Manual
15
Tips:
Please do not power off the device during the upgrade or factory reset process. The web page
will refresh automatically which means the process is already finished.
3.3 Advance

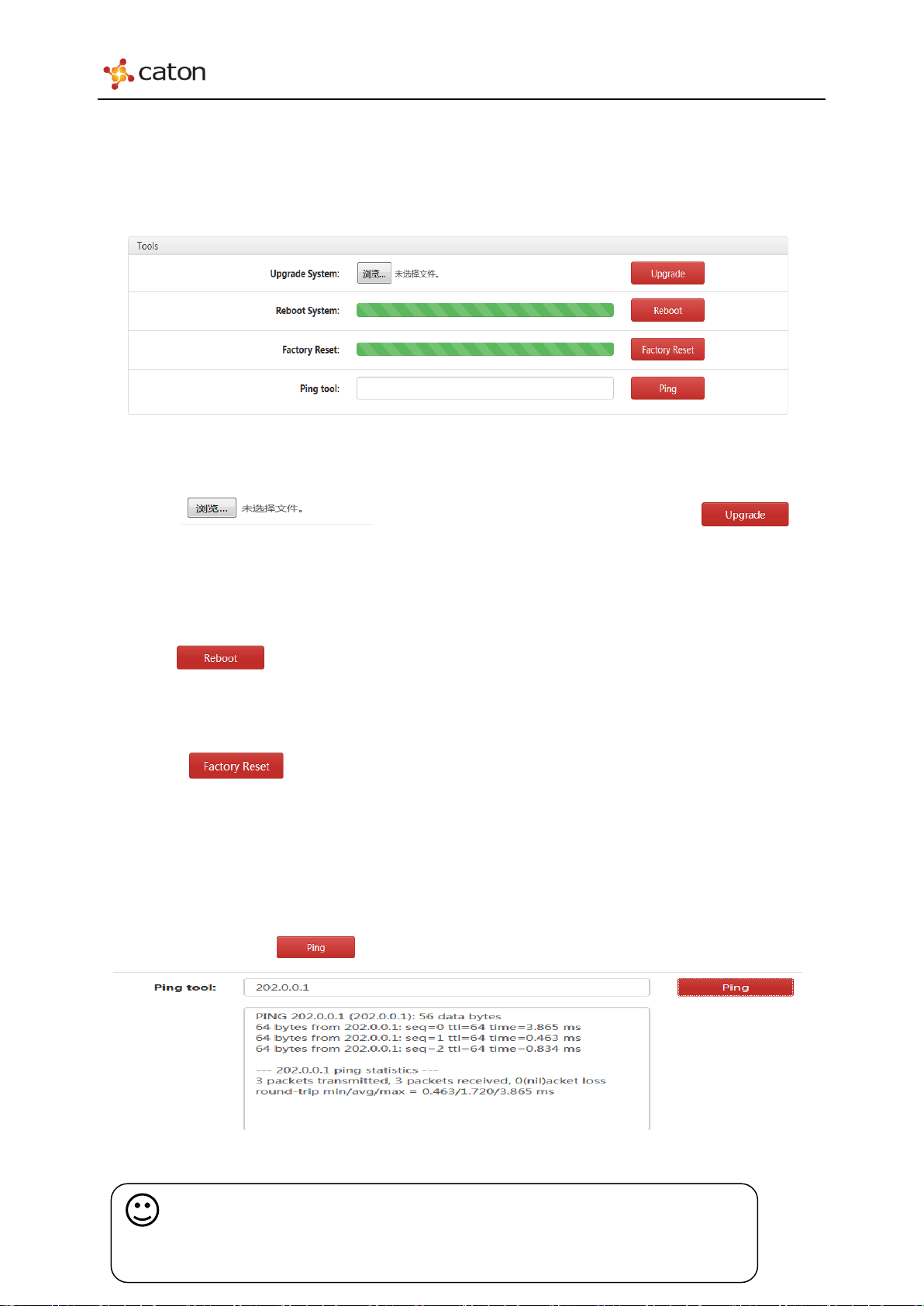

3.3.1 Tools
In Tools column, user can upgrade or reboot the device, reset device to default setting.
Figure3.10 Tools
1) Upgrade System
Click to select the upgrade package in PC, and click
to upgrade. The upgrade process will need about 2 minutes, and device will reboot automatically.
2) Reboot System
Click to reboot the device. The reboot process will need about 1 minute.
3) Factory Reset
Click to recover to the default settings. The reset process will need about 2 minutes,
and device will reboot automatically.
4) Ping
Use the ping tools to confirm the connection status between NVP-903 and target device. Type in the
target IP address and click to get the result.
Figure3.11 Ping

NVP-903 User Manual
16

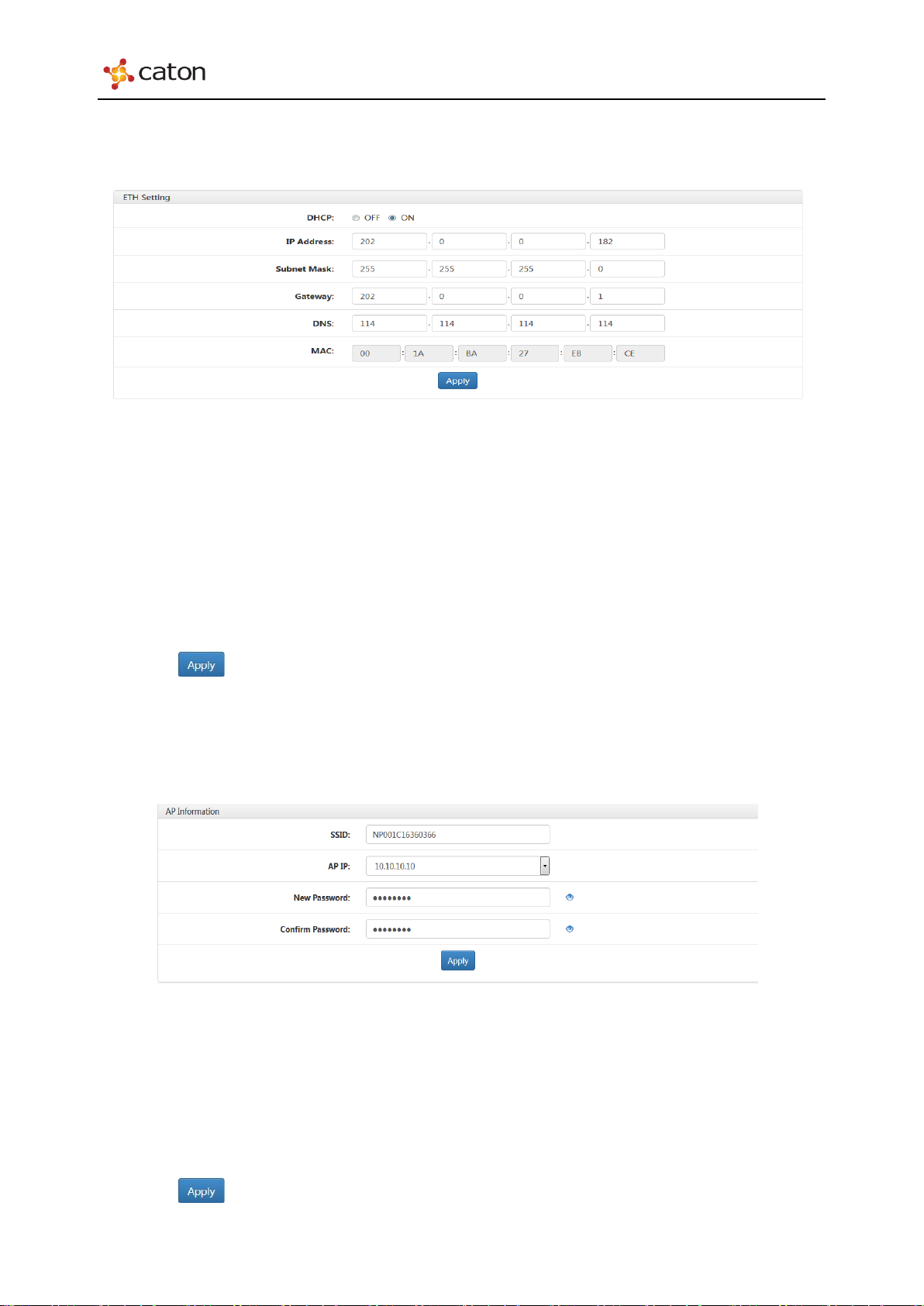

3.3.2 ETH Setting
In ETH Setting column, user can configure device IP address.
Figure3.12 ETH Setting
DHCP: Select IP setting mode. OFF: Manual mode; ON: DHCP mode
Ethernet MAC: Device MAC address
IP Address: Device IP address for video streaming and web control
Sub Mask: Net mask of device IP setting
Gateway: Gateway of device IP setting
DNS: DNS server of device IP setting
Click to save the configuration.
3.3.3 AP Information
In AP Information column, user can change the password of device AP.
Figure3.13 AP Information
SSID: To view SSID of device AP. SSID of AP is the same as device serial number.
AP IP：Set of AP switch.
New Password: To set new password of device AP. Default password: 87654321
Confirm Password: To refill the new password to confirm.
Click to save the configuration.

NVP-903 User Manual
17
Tips:
When the work mode of NVP-903 is changed, device will reboot automatically. Encoder mode
and Decoder mode cannot work in the same time.
3.3.4 Device Information
In Device Information column, user can view device basic info or change the workmode.

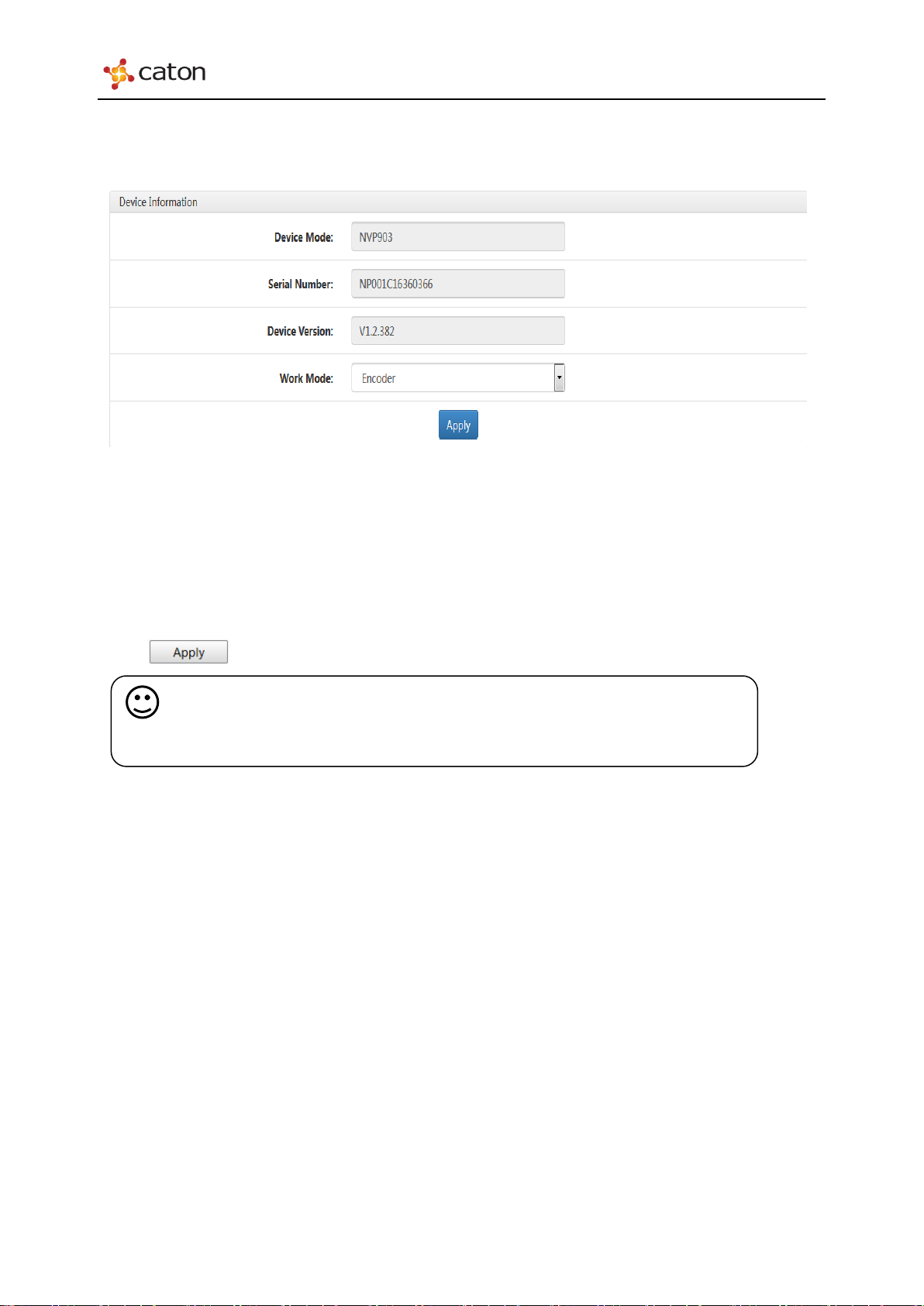

Figure3.15 Device Information
Device Model: To view device model name
Device Version: To view device software & hardware version
Serial Number: To view device serial number
Workmode: To set the work mode of NVP-903: Encoder or Decoder
Click to save the configuration.

NVP-903 User Manual
18
Tips:
1. NVP-903 support uploading up to 3 picture files.
2. The picture format for OSD should be PNG.
3. The width pixel of the picture should be multiple to 128.
4. The picture size should not exceed the size of encoding format

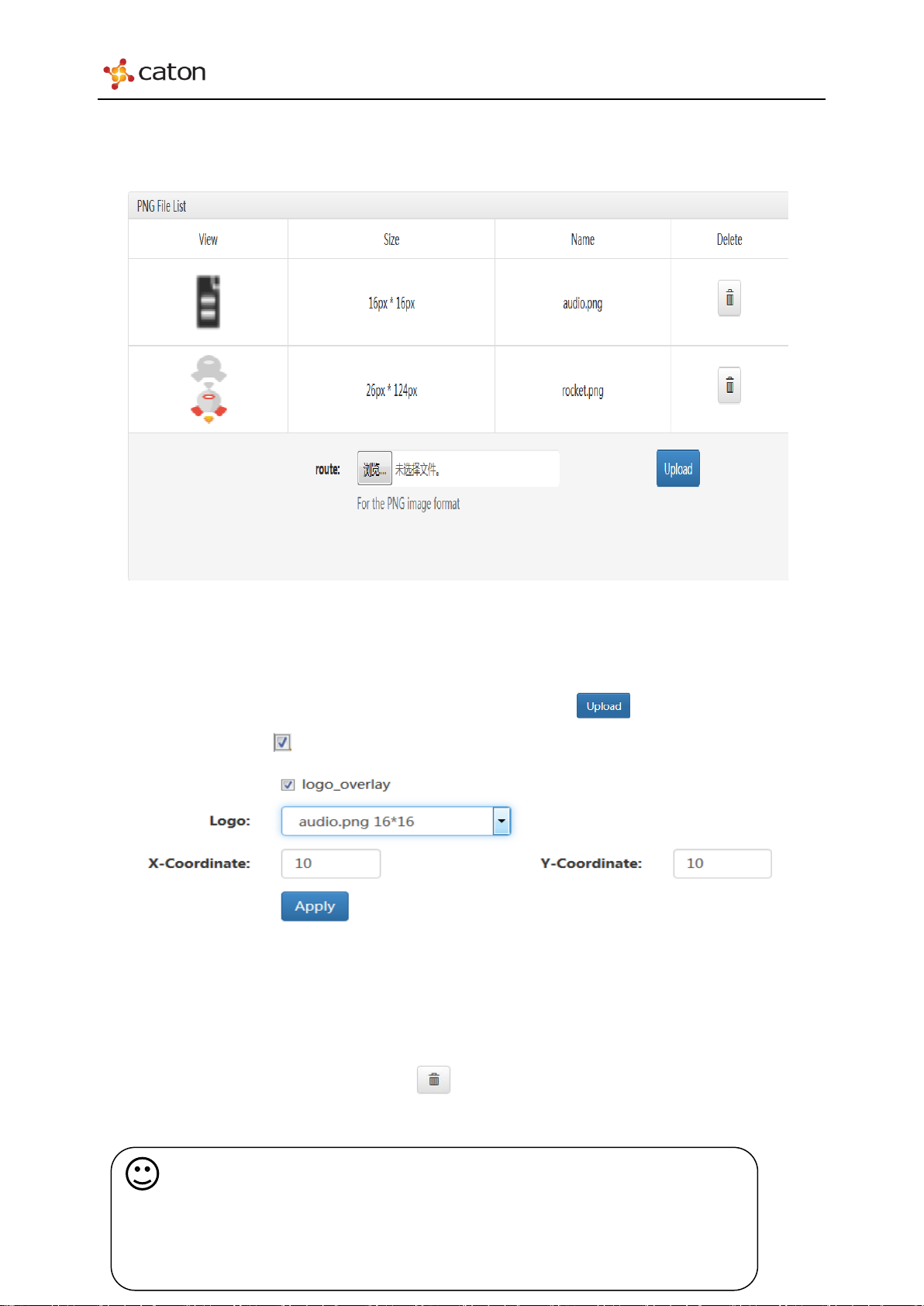

3.4 Logo Overlay
Click Logo Overlay in main menu to enter the Logo Overlay setting page, as follows:
Figure3.16 logo
To use the picture file as logo during encoding, you need to upload the png. file to the file list in logo
page.
1) Click Choose File column to select png. file in your PC and click to upload.
2) Click on OSD button in Configuration page to use the png. file as OSD during encoding.
Select picture file name and set Coordinate X and Coordinate Y to configure the position of OSD. ( Left
front corner is <0, 0>, OSD move to the right for 1 pixel as Coordinate X add 1, and move to the bottom
for 1 pixel as Coordinate Y add 1)
3) To delete picture file in the file list, click .

NVP-903 User Manual
19
3.5 Recoder
Click Recoder in main menu to enter the SD Recoder setting page, as follows:
Figure 3.18 SD recoder
Menu bar above the status bar, display recording channel has a channel 1 and channel 2, channel 3, below the
menu bar bar for documents show, can display the recorded programs in SD.
Used: How much capacity of the SD card has been used
SD Status: Shows the SD card in mount or remove state。
Free: The current SD card how much remaining capacity。
Remove SD: Uninstall the current SD card。
You can delete this article。
click
Warning：When there is no insert SD card，and Will be disabled。
