CCTV S Series User manual

DIGITALVIDEO RECORDER
T Series / S Series / H Series
DVR User Manual

1.1 Notice
2
1. Overview
This User‟s manual provides Information for using DVR such as brief
introduction, part names, functions, connection to other equipment, menu
setup, and the like. You have to keep in mind the following notices:
• Manufacturer retains the copyright on this manual.
• This manual cannot be copied without Manufacturer‟s prior written approval.
• Manufacturer is not liable for any or all losses to the product incurred by
your use of non-standard product or violation of instructions mentioned in
this manual.
• It you want to open the case of your system for checking problems, please
consult the expert from the shop where you bought the product.
• Before installing an additional HDD or connecting an external storage
device (USB memory or USB HDD) to this DVR check the compatibility list.

Please be aware of the following precautions before installing the DVR
• Avoid positioning the DVR in any place where the unit may come into contact
with moisture, dust, or soot.
• Avoid placing in direct sunlight or near heating appliances.
• Keep the product away from electric shock or magnetic substances.
•Avoid temperature extremes (recommended operation temperature is
between 0°C and ~40°C).
• Do not place any conductive material through the ventilation grills.
• Keep the system turned off before installation.
• Ensure enough space is left for cable connections.
•Place the system on a solid surface with sufficient air ventilation. Avoid any
surface that vibrates.
•Placing the system near electronic devices such as radio or TV may cause
breakdown to the product.
• Do not disassemble the product without seeking assistance from
manufacturer.
• Do not place any heavy object on the system.
3

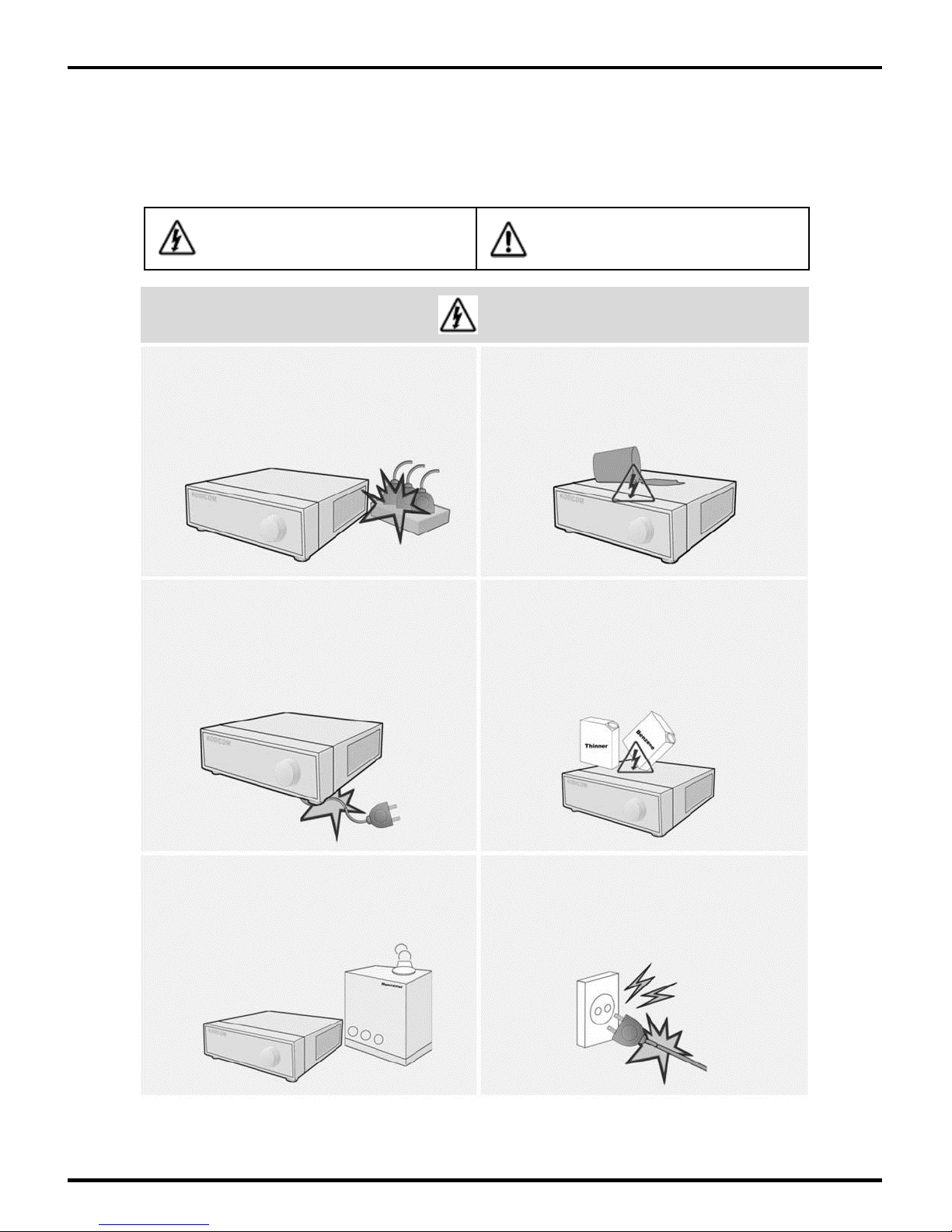

1.2 Caution

Warning and Caution Signs
4
Caution
Warning If you are not aware of this
warning, you may be seriously
injured or be killed
If you are not aware of this
warning, you may be injured
or cause property loss
Warning
Turn off the system before installing the
system. Do not plug in several electric
devices to the same outlet.
This may cause heating, fire, or electric
shock.
Prevent power cable from being severely
bent or pressed by a heavy object.
•This may cause fire.
Avoid any place with moisture, dust, or soot.
•This can cause fire or electric shock.
Do not place any liquid container on the
system, such as water, coffee, or beverage.
•If liquid is poured onto the system, it can
cause a system breakdown or cause fire.
Clean the dust around the system on
regular basis. When cleaning the system,
always use dry cloth. Do not use wet
cloth or other organic solvents.
•This may damage the surface of the
system and can cause system
breakdown or electric shock.
When pulling the power cable from the
plug, do so gently. Do not touch the plug
with wet hands and avoid using the plug
if the holes on the outlet are too loose.
•This may cause fire or electric shock.
1.3 Safety Warnings and Cautions

5

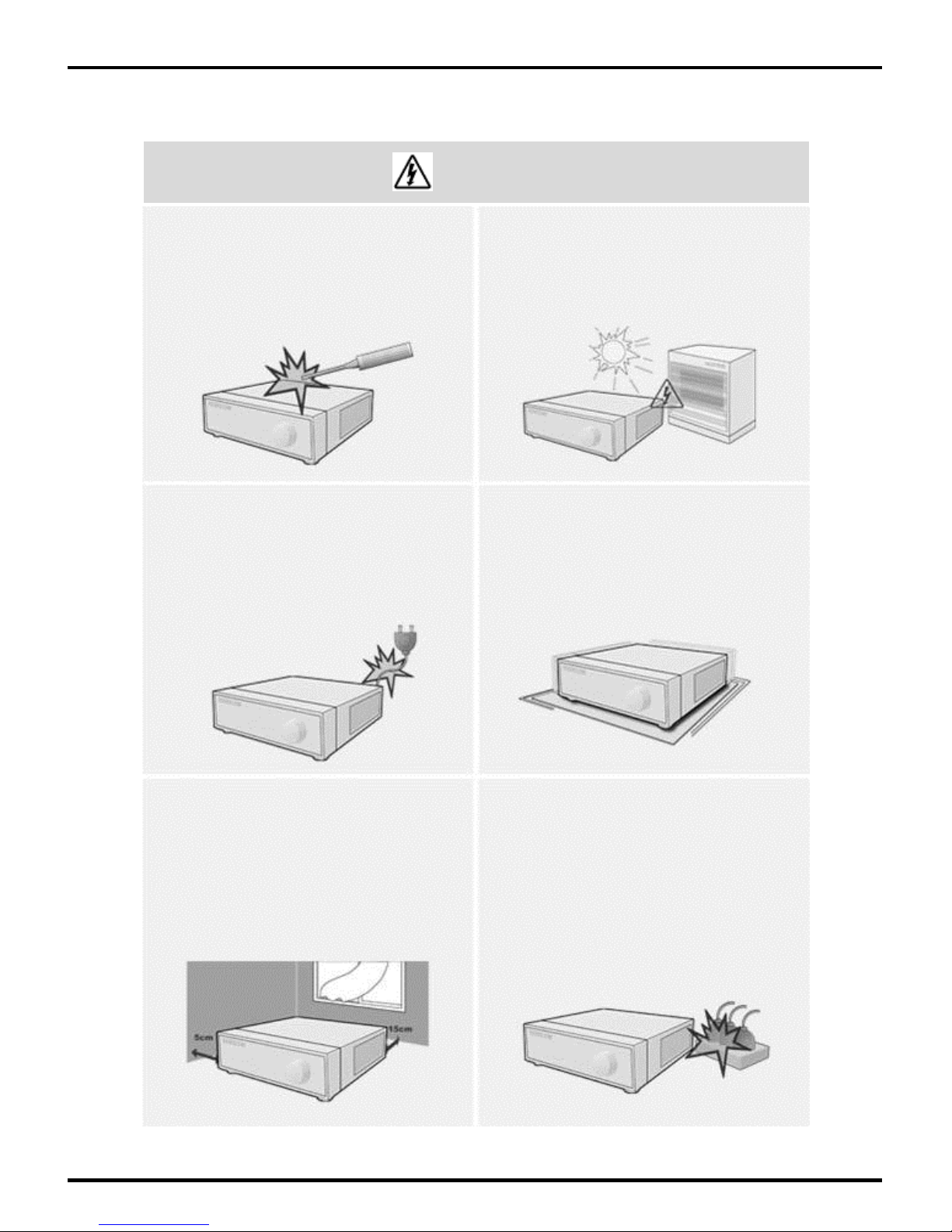

Warning
Do not attempt to disassemble, repair, or
modify the system on your own. It is
extremely dangerous due to high voltage
running through the system.
•This may cause fire, electric shock, or
serious injuries.
Install the system in a cool place without
direct sunlight and always maintain room
temperature. Avoid candle light and
heat-generating devices such as heater.
Keep the system away from places
where many people pass.
•This may cause fire.
Check for any danger signs such as moist
floor, loosened or damaged power cable,
or unstable surface. If you encounter any
problems, ask for assistance from your
dealer.
•This may cause fire or electric shock.
Install the system on a plain surface with
sufficient air ventilation. Do not place the
system on elevated surface.
•This may cause system breakdown or
serious injuries.
Keep at least 15cm between the back of
the system and a wall for the cables
connected into the system. Otherwise,
cables may be bent, damaged, or cut.
•This may cause fire, electric shock, or
injuries.
The power outlet must be placed on a
ground, and the voltage range must be
within 10% of the voltage rate. Do not
use the same outlet with a hair dryer,
iron, refrigerator, or any heating
appliances.
•This may cause fire, heating, an electric
shock.

6
Warning
When the system‟s battery is depleted,
you must change it with the same or
equivalent type of battery specified by
the manufacturer. Depleted batteries
should be discarded according to
manufacturer‟s instructions.
•This may cause an explosion.
If the system‟s HDD has exceeded its life
span, you may not be able to recover any
data stored inside the HDD. If the video on
the system screen appears „damaged‟ while
playing a recording stored inside the
system‟s HDD, it must be replaced with a
new one. Ask for an engineer‟s assistance for
HDD replacement from your dealer.
•Manufacturer is not responsible for deleted
data caused by user‟s mishandling.

7
Caution
Do not install the system in a place with
high magnetic, electric wave, or wireless
devices such as radio or TV.
•Install the system in a place without
magnetic objects, electric frequencies,
or vibration.
Install the system in a place with
appropriate moisture and temperature
level.
•Avoid installing the system with high
(over 40℃) or low (under 0℃)
temperature.
Prevent any substances from being
inserted into the system.
•This may cause system breakdown.
Do not place any heavy object on the
system.
•This may cause system breakdown.
Install the system in a place with sufficient
air ventilation.
•Keep at least 15cm distance between
the back of the system and a wall, and at
least 5cm distance between the side of
the system and a wall.
Install the system on a stable and
leveled surface..
•The system may not operate properly.

8
Caution
The system can be damaged from a
strong impact or vibration. Avoid throwing
objects within the vicinity of the system.
The outlet must be placed on the ground.
Avoid direct sunlight or any heating
appliances. If there is strange sound or smell, unplug
the power cable immediately and contact
the service Center.
•This may cause fire or electric shock.
Ventilate the air inside the system
operation room, and tighten the system
cover firmly.
•System breakdown may be cause by
inappropriate environment.
It is recommended to use AVR (Automatic
Voltage Regulator) for stable power
supply.
It is recommended to coil the core-ferrite
around the connector of the system to
avoid electromagnetic interference.
In order to maintain stable system
performance, have your system checked
regularly by the service Center.
•Manufacturer is not held responsible for
system breakdown caused by user‟s
mishandling.

Please check to make sure the following equipment are included when you
purchased DVR
(The user manual will be included either inside the product software CD or a
quick Manual including important contents.)
9
1.4 Equipment
Remote Control
POWER Cable SATA Data Cable
Mouse
Screw
CD
Battery
Rack Bracket
Remote Control
POWER Cable SATA Data Cable
Mouse
Screw
CD
Battery
Power Adaptor
SATA Power Cable

10
[1. DVD-RW]
[2. Jog Shuttle]
[3. LED Status]
- POWER
- REC
- NETWORK
- KEYLOCK
- AUDIO
[4. Camera Channel]
[5. Split Screen Buttons]
- AUTO SEQ : Automatic channel
sequence
- 4-split : 4-splitscreen
- 9-split : 9-splitscreen
- 16-split : 16-splitscreen
- MENU : Menu screen
[6. Function Buttons]
- PANIC : Panic mode
- KEYLOCK : Keylock mode
- PTZ : PTZ mode
- BACKUP : BACKUP mode
- ESC : Return to previous mode
[7. Playback Control Buttons]
- Rewind playback
- Playback the previous video
- Pauses playback
- playback(Calendar search)
- Playback the next video
- Forward playback
[8. Directional move buttons]
[9. USB port]
- 2 Port
2 4 1
3 5
7 9
86
1.5 Front Panel ( 8CH,16CH Model )

11
[1. Camera Video Input ]
- 1~16 Port
[2. Loop Through Output]
- 1~16 Port
[3. Main Monitor(CVBS)]
[4. Multi-Spot(CVBS)]
[5. Power Connector]
- AC Input
[6. Audio Input]
- 1 ~ 16 Port
[7. Alarm In Port]
- 1~16 Port ( G: Ground )
[8. Alarm Out Port]
- 1 ~ 16 Port ( G: Ground )
[9. RS-485/422]
- RS-485 : A, B, G
- RS-422 : A, B, Y, Z
[10. USB Port]
- 2 Port
[11. E-SATA Port]
[12. Network Port]
[13. HDMI Port]
[14. VGA Port]
[15. Audio Out]
5 6 7 8 9 10 11 12 13
1 2 3 4
14 15
1.6 Rear Panel ( SD Model )

12
[1. Power Connector]
- AC Input
[2. Camera Video Input ]
- 1~16 Port
[3. E-SATA Port]
[4. VGA Port]
[5. HDMI Port]
[6. USB Port]
- 2 Port
[7. Network Port]
[8. Audio Input ]
- 1~16 Port
[9. Alarm In Port]
- 1~16 Port ( G: Ground )
[10. Alarm Out Port]
- 1~16 Port ( G: Ground )
[11. RS 485/422]
- RS-485 : A, B, G
- RS-422 : A, B, Y, Z
[12. Main Monitor(CVBS)]
[13. Audio Out]
1
8 10 11
2 4 5 6
12
3 7
13
9
1.7 Rear Panel ( HD Model - 16Ch )

13
[1. Power Connector]
- AC Input
[2. Camera Video Input ]
- 1~8 Port
[3. E-SATA Port]
[4. VGA Port]
[5. HDMI Port]
[6. USB Port]
- 2 Port
[7. Network Port]
[8. Audio Input ]
- 1~8 Port
[9. Alarm In Port]
- 1~8 Port ( G: Ground )
[10. Alarm Out Port]
- 1~8 Port ( G: Ground )
[11. RS 485/422]
- RS-485 : A, B, G
- RS-422 : A, B, Y, Z
[12. Main Monitor(CVBS)]
[13. Audio Out]
1
8 10 11
2 4 5 6
12
3 7
13
9
1.8 Rear Panel ( HD Model - 8Ch )

14
[1. LED Status]
- POWER
- REC
- NETWORK
- KEYLOCK
- AUDIO
[2. USB port]
- 2 Port
1
2
1.9 Front Panel ( 4 CH Model )

15
6 9
1 2
87
3 4 5
10
[1. Main Monitor(CVBS) ]
[2. Audio Output ]
[3. Audio Input ]
- 1 ~ 4 Port
[4. VGA Port]
[5. Network Port ]
[6. Alarm In Port/Alarm Out / RS-485 ]
- Alarm In : 1 ~ 4 Port, G
( G : Ground )
- Alarm Out : Com, NC, NO
- RS-485 : G, A, B
[7. Camera Video Input ]
- 1 ~ 4 Port
[8. HDMI Port ]
[9. USB Port ]
- 1 Port
[10. Power Connector]
- DC 12V
1.10 Rear Panel ( 4CH Model )

16
[1. Main Monitor(CVBS) ]
[2. Audio Output ]
[3. Audio Input ]
- 1 ~ 4 Port
[4. E-SATA Port]
[5. Network Port ]
[6. Alarm In Port/Alarm Out / RS-485 ]
- Alarm In : 1 ~ 4 Port, G
( G : Ground )
- Alarm Out : Com, NC, NO
- RS-485 : G, A, B
[7. Camera Video Input ]
- 1 ~ 8 Port
[8. VGA Port ]
[9. HDMI Port]
[10. USB Port ]
- 2 Port
[11. Power Connector]
- DC 12V
1 2 3 4 5
6 7 8 9 10 11
1.11 Rear Panel ( 8CH Model )

17
Automatic channel
sequence
[Note]
•Usage of a remote controller is same the front panel keys.
•To select camera or Audio 10~16, press 10+ button followed by the 1 ~ 6 buttons.
•Follow the procedure below when using the remote controller for multi DVRs.
- Check System ID(between 1 and 16) of the DVR that wish to use.
- Holding up the remote controller to face towards the DVR and press the System ID numbers one by
one, while pressing ID button on the remote controller. Note that the System ID is 2-digit number.
Button „10‟ functions the same as „0‟.
Panic System ID
Camera,
Audio Channel
Audio Select
Up, Down, Left,
Right, OK
Menu
ESC
PTZ
PLAYBACK
Rewind playback
,Play, Forward playback
Playback the previous
video, Pause,
Playback the next video 4Division, 9 Division,
16 Division
Backup LOCK
1.12 Remote Controller

Content
1. Overview
1.1 Notice ................................................................................................. 2
1.2 Caution ............................................................................................... 3
1.3 Safety Warnings and Cautions ........................................................... 4
1.4 Equipment .......................................................................................... 9
1.5 Front Panel (8CH, 16 CH Model) ........................................................ 10
1.6 Rear Panel (SD Model) ...................................................................... 11
1.7 Rear Panel (HD Model –16CH) ......................................................... 12
1.8 Rear Panel (HD Model –8CH) ........................................................... 13
1.9 Front Panel (4 CH Model) ................................................................... 14
1.10 Rear Panel (4 CH Model) ................................................................. 15
1.11 Rear Panel (8 CH Model) .................................................................. 16
1.12 Remote Controller ............................................................................ 17
2. Live
2.1 Live Screen ........................................................................................ 25
2.1.1 Live Screen Zoom ..................................................................... 26
2.2 Popup Menu ....................................................................................... 27
2.3 Context Menu ..................................................................................... 28
2.3.1 Playback .................................................................................... 29
2.3.2 Cam Adjust (Only for 960H/SD Models) .................................. 29
2.3.2.1 Color (Only for 960H/SD Models) ................................. 30
2.3.4.2 Camera (Only for 960H/SD Models) ............................. 30
2.3.3 Alarm Out .................................................................................. 31
2.3.4 PTZ ........................................................................................... 32
3. Playback
3.1 Playback ............................................................................................. 33
3.1.1 Play Back Zoom ........................................................................ 34
3.2 Popup Bar .......................................................................................... 34
18

3.3 Context menu ..................................................................................... 35
3.3.1 backup ....................................................................................... 36
3.3.1.1 H264 Backup ................................................................... 36
3.3.1.2 JPG Backup .................................................................... 37
3.3.2 Bookmark Search ...................................................................... 37
3.3.3 Calendar Search........................................................................ 38
3.3.4 Event Search ............................................................................ 39
4. DVR Setup
4.1 Wizard ................................................................................................ 40
4.1.1 All .............................................................................................. 40
4.1.2 Recording ................................................................................. 45
4.1.3 Network ..................................................................................... 48
4.2 System .............................................................................................. 50
4.2.1 General ..................................................................................... 50
4.2.1.1 Date/Time Setting............................................................ 50
4.2.1.2 Video .............................................................................. 51
4.2.1.3 Storage ........................................................................... 52
4.2.1.4 Update ............................................................................ 53
4.2.1.4.1 Firmware Update ................................................ 53
4.2.1.4.2 Kernel Update .................................................... 54
4.2.1.5 Admin .............................................................................. 55
4.2.2 Account ...................................................................................... 56
4.2.2.1 New Group ..................................................................... 56
4.2.2.2 Edit Group ...................................................................... 57
4.2.2.3 New User ....................................................................... 58
4.2.2.4 Edit User ........................................................................ 59
4.2.2.5 Checking ........................................................................ 60
4.2.3 Log ............................................................................................ 61
4.2.3.1 Log ................................................................................. 61
4.2.3.2 Setup .............................................................................. 62
19

4.2.4 Backup ...................................................................................... 63
4.2.4.1 H264 Backup .................................................................. 63
4.2.4.2 JPG Backup .................................................................... 64
4.3 Recording ........................................................................................... 65
4.3.1 Setting ....................................................................................... 65
4.3.1.1 Camera ........................................................................... 65
4.3.1.2 PTZ ................................................................................. 66
4.3.1.3 Keyboard ........................................................................ 67
4.3.1.4 Privacy ............................................................................ 68
4.3.2 Motion ........................................................................................ 69
4.3.2.1 Motion Area Setting ......................................................... 70
4.3.3 Schedule .............................................................................................. 71
4.3.3.1 Schedule ......................................................................... 71
4.3.3.2 Holiday ............................................................................ 72
4.4 Network .............................................................................................. 73
4.4.1 General ...................................................................................... 73
4.4.1.1 Setting ............................................................................ 73
4.4.1.2 NTP ................................................................................ 74
4.4.1.3 UPnP .............................................................................. 75
4.4.2 DDNS ........................................................................................ 75
4.4.3 E-Mail ........................................................................................ 76
4.4.3.1 Receiver ......................................................................... 76
4.4.3.2 Sender ............................................................................ 77
4.4.3.3 Attachment ..................................................................... 78
4.5 Alarm .................................................................................................. 79
4.5.1 Alarm ......................................................................................... 79
4.5.1.1 Alarm In .......................................................................... 79
4.5.1.2 Alarm Out ....................................................................... 80
4.5.2 Motion ....................................................................................... 81
20
