CCTV EASY SERIES H.264 User manual



Website:www.CCTVSecurityPros.com


"EASY SERIES" H.264
Network Digital Video
Recorder w/ Internet and Cell
Phone Viewing, 320gb Hard
Drive and VGA Input
USER MANUAL



Website:www.CCTVSecurityPros.com


CONTENT
1 INTRODUCTION.................................................................................................................. 3
1.1 Main Feature ............................................................................................................................. 3
1.2 Product features.............................................................................................................. 3
1.2.1 Parameter ............................................................................................................................. 3
1.2.2 Basic working parameter ...................................................................................................... 5
1.3 ENTIRONMENT ADAPTABILITY...................................... ......................................................... 5
2 Device operation manual....................................................................................................... …….. 6
2.1 Remote key instruction .......................................................................................................……. 6
2.1.1 Remote control....................................................................................................................... 6
2.1.2 Mouse Operation ................................................................................................................... 7
2.1.3 Menu Tree ............................................................................................................................. 9
2.2 System Operation...........................................................................................................………..1 0
2.2.1 User Login ............................................................................................................................1 0
2.2.2 GUI OPERATION .................................................................................................................1 1

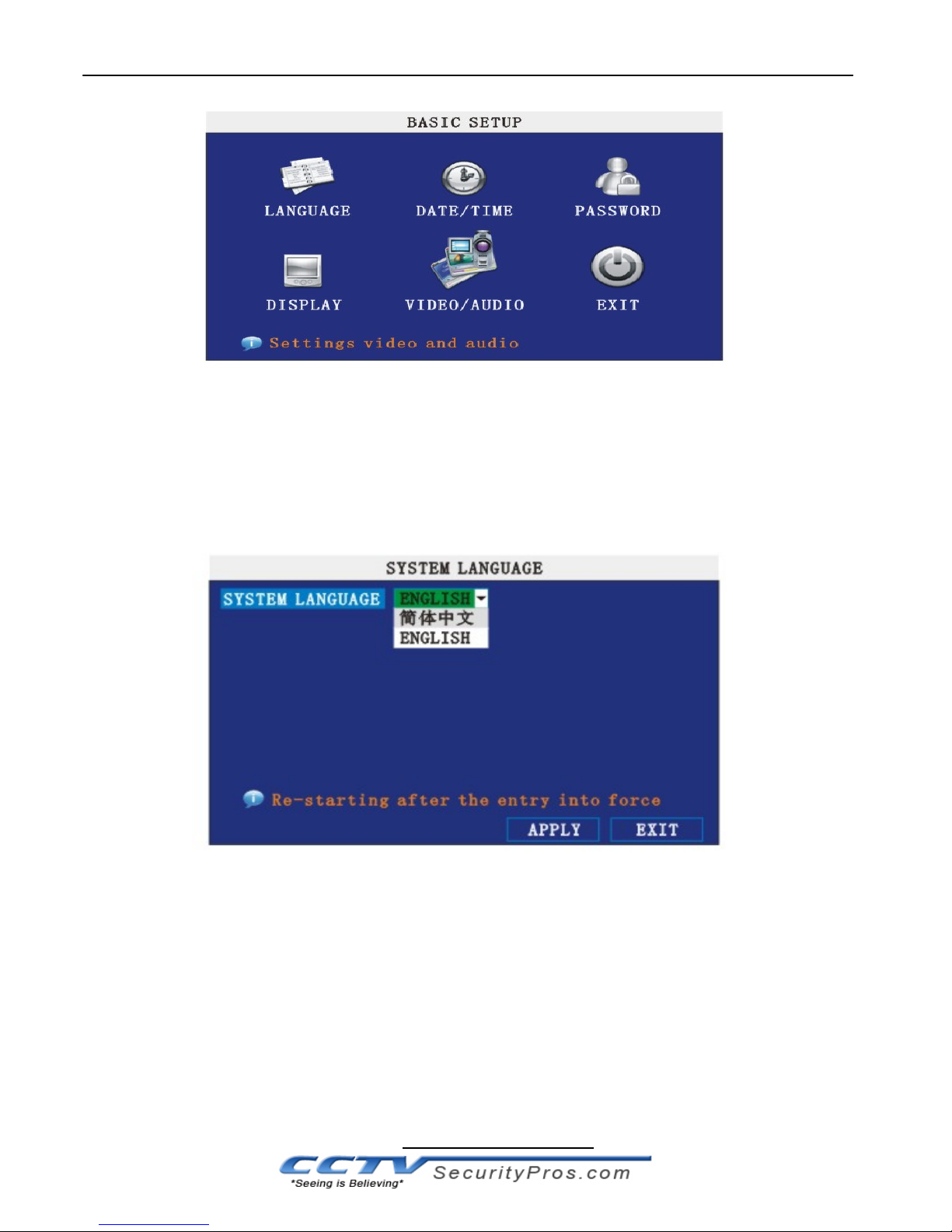

2.2.2.4.1 SYSTEM LANGUAGE SETUP ...........................................................................................1 6
2.2.2.4.2 DATA/TIME SETUP................................................................................................. 16
3 IE OPERATION...................................................................................................................27
3.1 FEATURE...................................................................................................................... 27
3.2 USER LOGIN ................................................................................................................ 27
3.3 OPERATION INTERFACE ........................................................................................................ 2 8
3.3.1 LIVE...................................................................................................................................... 2 8
3.3.1.1 PTZ CONTROL ................................................................................................................ 2 8
3.3.1.1.1 ZOOM............................................................................................................................. 2 9
3.3.1.1.2 PTZ PRESET ................................................................................................................. 29
3.3.1.2 PLAY ................................................................................................................................. 29
3.3.1.3 OTHER OPERATION........................................................................................................ 2 9
3.3.2 REPALY................................................................................................................................ 30
3.3.3 SETUP.................................................................................................................................. 3 2
3.3.3.1 RECORD .......................................................................................................................... 3 2
3.3.3.2 ALARM ............................................................................................................................. 3 3
3.3.3.3 PTZ.................................................................................................................................... 3 4
3.3.3.4 NETWORK ....................................................................................................................... 3 4
3.3.3.5 SETTING .......................................................................................................................... 3 5
3.3.3.6 HOST INFO ...................................................................................................................... 3 6
4 DVR Installation Guideline.............................................................................................................. 3 7
4.1 Product Overview .......................................................................................................... 37
4.2 HDD Installation ......................................................................................................................... 4 2



Website:www.CCTVSecurityPros.com


1 INTRODUCTION
1.1 Main Feature
Our EASY SERIES DVR is developed base on HI3511 hardware platform. EZ SERIES CSP-
EZDVR4 is 4channel CIF resolution digital video recorder and EZ SERIES-EZDVR8 is 8channnel
DVR. Both of them have local recording, playback, support trible code remote network surveillance,
data backup, parameter setting, motion detection, I/O alarm setting, PTZ and USB mouse.
1.2 Product features
H.264 compression
Two USB interface, USB2.0 for data backup, USB1.1 for mouse operation.
3.5” SATA HDD.
Special file system for security.
16 nature translucence GUI, note for menu selected
optimized four channel simultaneously playback, (8ch just support one channel
playback)
double level user management
Support the live view, parameter setting and copy playback video via network.
1.2.1 Parameter
Model: D7704HT / D7708HT
Item Device performance index
System
Language Chinese/English
GUI Graphic menu
password user password, administrator password
Video
Video in
4ch/8ch complex video input 1.0Vp-p
，impedance75Ω，BNC
Video out
2ch complex video output 1.0Vp-p
，impedance75Ω，BNC
Video display 1/4channel switch/8ch 1/4/9 switch
Video standard PAL，25f/s，CCIR625line，50scene
NTSC，30f/s，CCIR525line，60scene
Audio Audio input 4ch/8ch audio input，impedance600Ω，RCA
Audio output 1ch audio output，impedance600Ω，RCA



Website:www.CCTVSecurityPros.com


Basic electricity output Linearity electricity
Record style Audio video recorded
simultanously
Audio compression ADPCM
Picture compression H.264，（VBR）/ (CBR)
Picture resolution CIF/HD1/D1
Streaming style ISO14496-10
proceeding
and store
Audio style Video code
rate
ADPCM CIF: 384~768 Kbps HD1:
512~1024 Kbps D1：512~1024
Kbps
Audio code rate 32KB/s
Data storage
Alarm
Connector
Alarm input Alarm
output Servial
interface Servial
interface Network
interface
4/8 alarm input 1 alarm output
Support 1 RS232 Support 1 RS485
RJ45，10M/100M
USB
Mouse Udisk USB1.1，USB2.0
VGA VGA 1 VGA （select）
Software
Software
upgrade
ohters
PC playback Playback video file Support USB,network
firmware upgrade voltage input AC:110~240V Voltage
output DC：19V@3A Voltage output DC: 12V@1A (For
D7704HT) Power 6W without HDD
Working tempreture -10----60



Website:www.CCTVSecurityPros.com


1.2.2 Basic working parameter
item parameter remark
Voltage input 19V DC 19V。
Voltage outputfor
camera 12V（+/-0.2） 12V，1A(For D7704HT)
Video impedance
input 75Ω75Ωeach channel。
Video output 1Vp-p 1Vp-p CVBS signal
I/O
0—2V Low voltage alarm
5V-30v Hight voltage alarm
RS232 serial port, for extend use
RS485 Connect to PTZ, (Pelco-D，Pelco-P)
SATA HDD One SATA with all capability
1.3 ENTIRONMENT ADAPTABILITY
For the softly using DVR and prolong device life, please pay attention on following detail：
1) When installing device, please comply all the electric product safety criterion；
2) Power and ground：
Do not touch the power and DVR with a wet hand
Do not drop liquid on DVR
Do not put others on DVR
Please using soft dry cloth when clean DVR, do not using chymistimpregnant
When the power line connects with jack, even don’t startup device. There is still have
voltage
If you do not use device for long time, please take the power line away from jack.



Website:www.CCTVSecurityPros.com


2 Device operation manual
In device operation, the enter key on remote control has the same function with mouse left click.
2.1 Remote key instruction

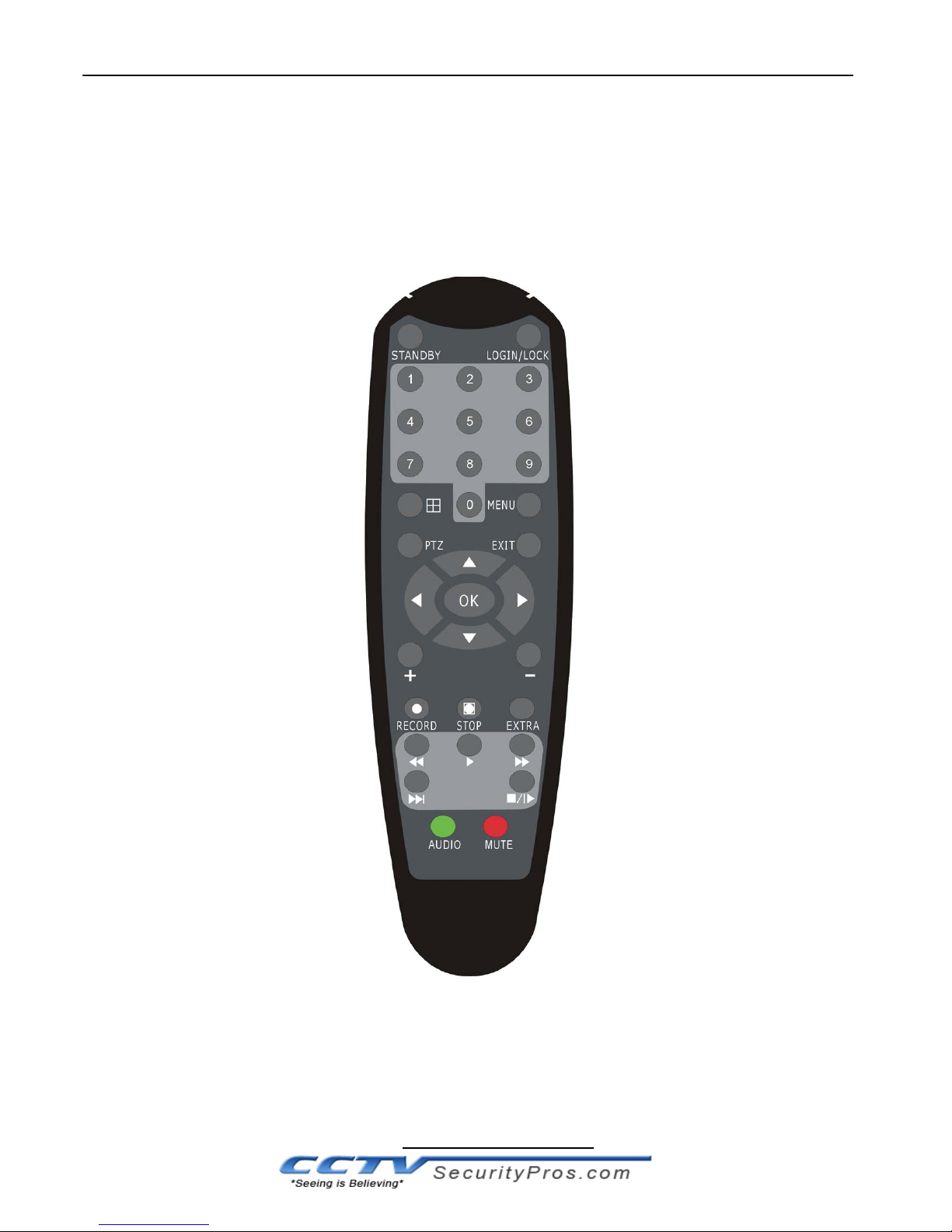

2.1.1 Remote control
Handheld IR Controller Key Functions:
【0－9】keys：During setup, number keys are used to input values. For viewing
channels 1, 2, 3 and 4, use 1, 2, 3 and 4 on numeric keypad
respectively.
【＋】,【－】keys：During setup, plus and minus are used to select next or
previous values.



Website:www.CCTVSecurityPros.com


▲， ： Up, Down directional keys: Move selection up and down in setup menu.
， ：Left, Right directional keys: Move cusor left or right in setup menu.
【Enter】key: During setup, select and save entry During Playback and preview,
displays the channel name, text number, driver name, event sensor
item and time, year/month/date, time, GPRS/GPS info. on the screen.
【PLAY】：Starts/Resumes playback from any other mode (FF, RR, Frame by Frame
etc)
【SLOW】：Reduces playback speed to 1/2X、1/4X、1/8X、1/16X mode. Press
PLAY to return to normal playback speed.
【PAUSE/STEP 】：Freezes playback to single frame and can advance one frame
at a time. To advance the frame press Pause/Step to move
frame by frame. Press EXIT to return to normal playback
speed.
【FWD】: Fast forward the video while playback.X1, X2, X3, X4 modes
available.PressFWD to switch, press【PLAY】to return to normal
speed；
【REV 】: Reverse the video while playback, 1X,2X,3X,4X four modes are
available. Press REW to switch, press 【PLAY 】to return to normal
speed；
【POWER ON 】:Reset the MDVR to Power on and Power off mode. (standby and
start up)；
【LOGIN/LOCK】:If the security is enabled in the setup, use LOGIN/LOCK key to
enter the user setup. It is important to remember the password
due to without restoration function. Log in（to enter into “User ID
select” and “Password” input interface）and lock functions（To
exit setup and operation）
【EXIT 】:Exit to the preview or return to the last menu；
【RECORD 】：Start manual record
【STOP】：Stop manual record
【SETUP】：Enter into setup interface and setup the system parameters
【PTZ】：PTZ control，press this key to enter into PTZ control interface when at
single live view；
【ASISTANT 】for future use
2.1.2 Mouse Operation
You can use mouse to make operation of the menu except IR remote controller. (The operation
usage is the same as PC Windows).Please inserts the mouse into USB1.1.



Website:www.CCTVSecurityPros.com


Click right
key
Enter into main menu: Click the right key on the live view.
Exit the present menu: It won’t save the settings if you click the right key to exit.
Exit the playback interface: Click the right key to exit when you are playback.
Click left
key
Click the left key to enter into the setting interface.
Click the left key to zoom in the window on the live view and playback video.
Double click the left key can exit to the live view and playback multi-window
interface.
1. Volume adjustment, color adjustment, PTZ setting and VGA border operation.It is
for setting the single channel for volume adjustment, PTZ control and color
adjustment.If it is multi-window, please use the left key to select the single window.
2. The remark when click the left key for volume adjustment,color adjustment,VGA
border is as follow: a. There is and on the PTZ setting to adjust parameter, click it
can make the setting for PTZ. b. There is a sticker to show the volume on the
volume adjustment interface.Move the mouse to the corresponding position and
click the left key,The right side of sticker will show the volume ,click “x”to exit; c.
Color adjustment and VGA border operation can refer to the volume adjustment
interface operation.
When there are many options in the option frame,click left key to ball out down-pull
menu.
To click the left key on the playback interface can make >> means forward, <<
means rew, >>I means Slow play, I> means frame play,> means Play, X means
exit.
Click left
or right
key
1. In the input frame, click the left key or right key can activate the keyboard. Click
the right key can make the switch of Chinese and English on the soft keyboard.The
number, symbol, english can be input by clicking the mouse. 2. Pingyin also can be
input by the softkeyboard when enter Chinese, the method is the same as IR
remote controller.You can use the left/right key to turn over the page when check
on Pingyin/Chinese word. 3. When input number, click the right key, the number
soft keyboard will bob up firstly, and then use the left key to select the
corresponding value.Also click the left key to exit the number keyboard.
Mouse
move
1. Press the left key to move the mouse can adjust the parameter on the volume,
color, VGA border interface.And the corresponding parameter will be display at the
same time. 2. In the Motion Detection setting interface, you can use the left key to
drag the frame to set the motion detection area.



Website:www.CCTVSecurityPros.com



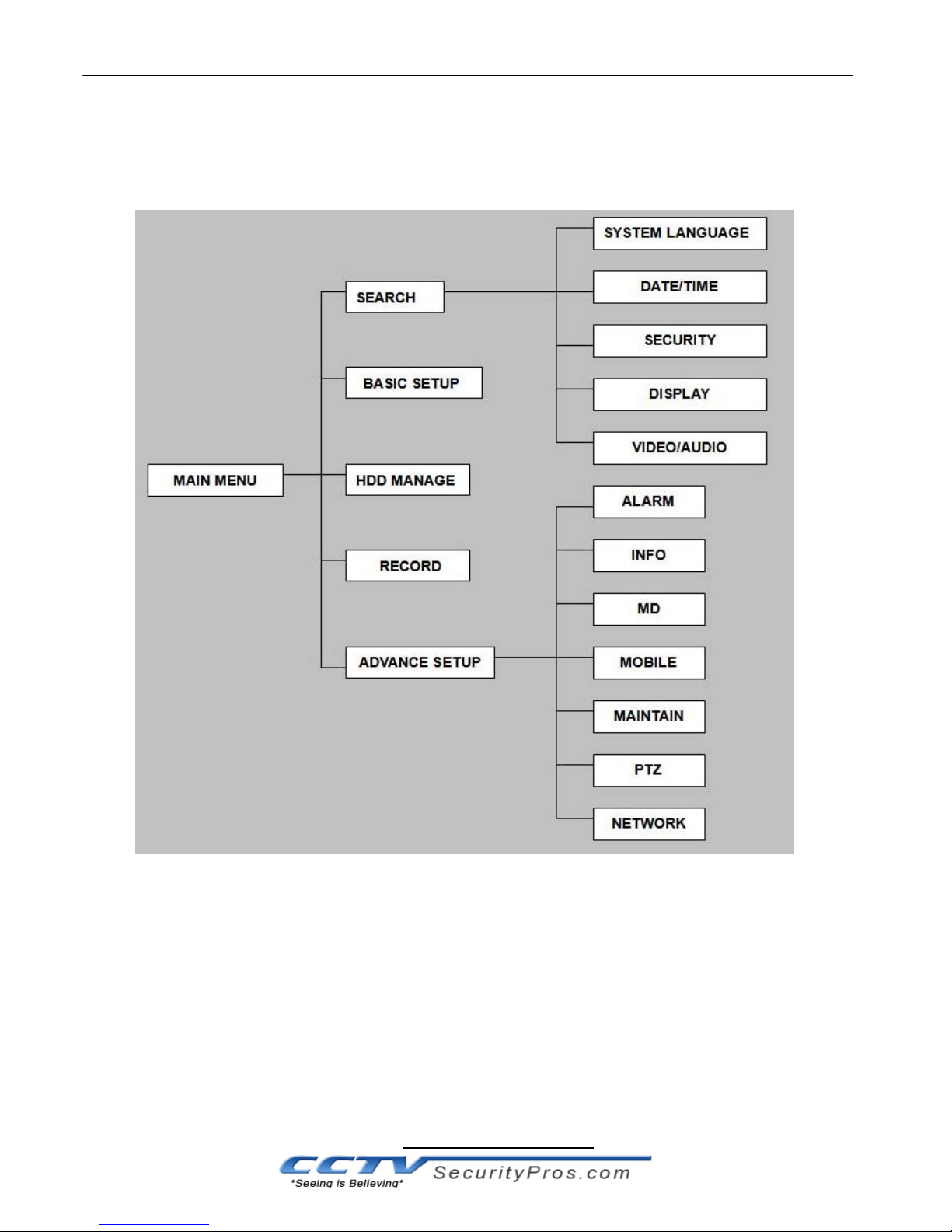

2.1.3 Menu Tree
You can control the DVR by a lot of menu operation. This tree will show you the menu
structure and it will be in details in after chapter.



Website:www.CCTVSecurityPros.com


2.2 System Operation
2.2.1 User Login
1. START-UP
Connect the DC19V/3A adapter to DVR. When start up the DVR, 【POW】LED will be on and
4 images will be display on the screen. If it has setup ignition recording or time recording, the system
will record automatically and the corresponding LED will be on, the system work normally.
Remark: If there is no HDD in device, or device didn’t read the HDD, it will display an 【H】in
live view.

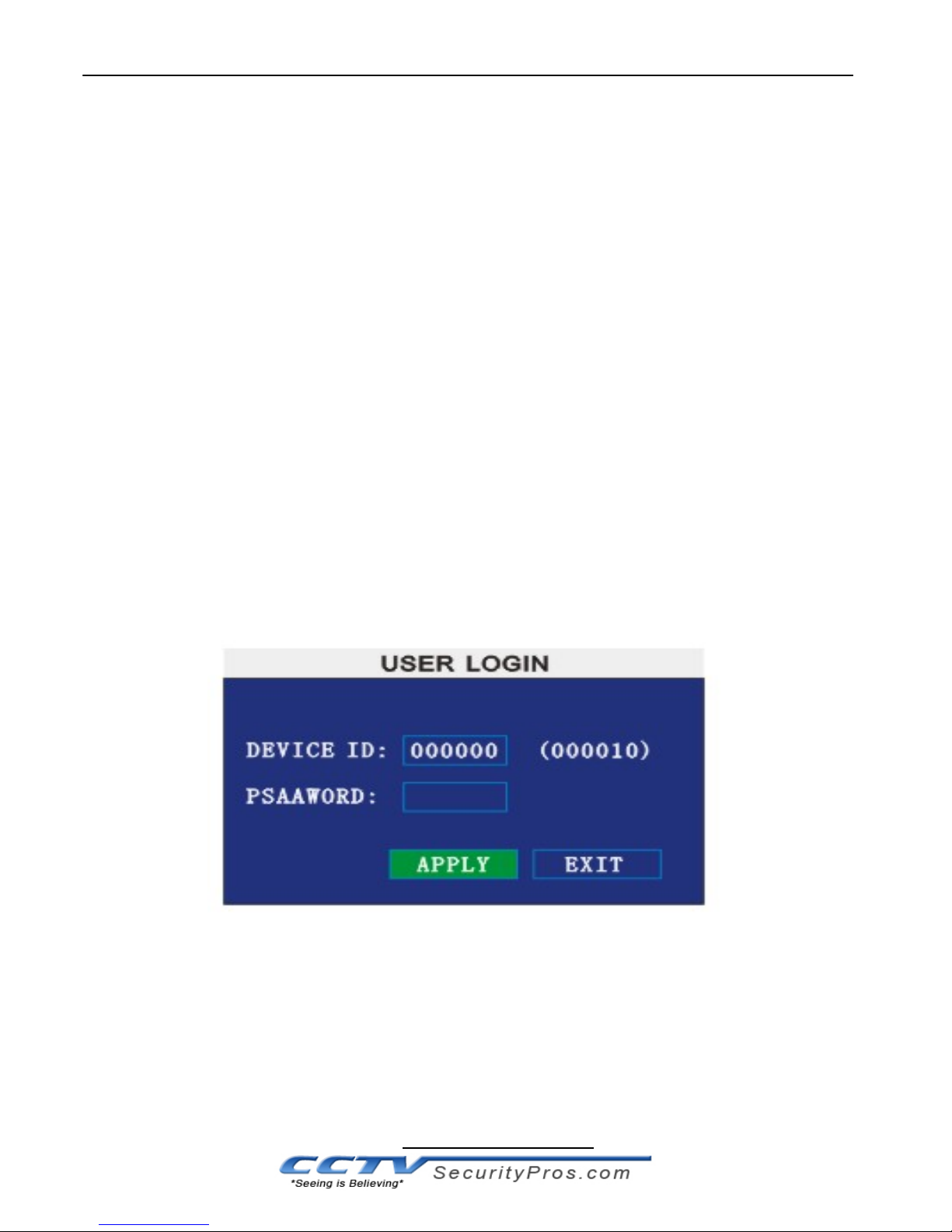

2. SYSTEM LOGIN
When you login, you will find the window as follow if the password is enabled, Input device ID
and user password via numeric key-board, and you access to main menu via press 【Apply】
Remark: default device ID is: 00000, and the password is :user password is oooooo and Admin
password is 020818, in order to manage the device more convenience, please setup the user
password and change the device ID in the base setup. You can setup user and admin password,
Administrator has all authorities, operator has limited authorities who they can only watch, playback,
please change the unit ID and default password in time for system security.
Unit ID: You just need to enter the unit ID as the right frame.
Password: enter the admin password or user password.



Website:www.CCTVSecurityPros.com


2.2.2 GUI OPERATION
The main menu include “SEARCH”,”RECORD”,”HDD”,”BASIC”，“ADVANCE”,and“Exit”.
Remark: You must after pressing “APPLY”to make the setting for submenu valid.It will no use
when exit directly.This DVR have a special feature is: when you move the mouse to everwhere,
there will have the explanation information showed autoly.
2.2.2.1 RECORD SEARCH
Move the cursor to 【RECORD SEARCH】（Icon highlighted when
selected）,press【Enter】to enter into the setting interface. RECORD FILE:You can adjust the
checking date and time,press 【Enter】【+】/【-】or input the number directly to adjust the
year,month,date.After finishing the time setting,move the cursor to “SEARCH” and press”APPLY”,can
see the recording status of this date.As follow:
Intruction:



Website:www.CCTVSecurityPros.com


1.MONTH: It will show all the recording status in this month. Green means normal recording,
Red means alarm recording, Grounding means no recording. Click any date in this frame can search
the recording status of that day,the searching result will be showed in the below date frame.
2. DATE: It will show all the recording status in this day, you can playback the record file in
this period via click the corresponding period.
PLYBACK:You can press 【Enter】【+】【/-】or input number directly to setup playback
time.After setting,move the cursor to “PLAYBACK”, and then press”APLLY”to enter into video
playback of that time.Also you can select any period of time in the video status frame after
searching,press”APLLY”to enter into the video playback of this period.
FILE LIST: Enter into the video file list interface of the selected date.
LOG SEARCH: Enter into the log searching interface.
EXIT: Exit ”video search” to back to the previous menu.
1. FILE LIST
Setup the searching date, after pressing “SERACH”,move the cursor to “FILE LIST” and press
”APPLY” to enter into the video file list of this date.
CHANNEL: There is 1,2,3,4 and all channel, totally 5 options. Press 【Enter 】or【+】【/-】to
select.
TYPE: There are all,normal and alarm,totally 3 options.Press【Enter】or 【+】/【-】to select.
Instruction：
1. 【FILE LIST】，“CHANNEL”is the recording file which belong to which channel, “SIZE” is
display the size of this file（Unit：MB），“TYPE” is display the type of recording file，there are two
types: normal and alarm，press“BACKUP”button can export the selected files to USB storage；
2. After moving the cursor up and down and select the files, and press 【APPLY 】to enter
into playback interface 。If the all channels have recording files, it will playback all windows at the
same time；
3. If setup as “on” in the 【RECORD TIME】in 【BASIC SETUP 】，it will show the
date/time when playback record file；If setup as “off”it will not display time；
4. When playback，can press【SLOW】to play
slowly；press【FORWARD】、【REVERSE 】to speed、reverse play；also can press



Website:www.CCTVSecurityPros.com


【PAUSE/STEP 】to pause and frame by frame play；Press 【Exit】to exit from playback and
return to the former menu；
5. When finished playback files, it will return to the file list interface.
2. BACKUP
You can use USB for backup，should insert USB device into the USB2.0 port before backup files.
And it is support USB OTG.
You can select the recording file by direction keys or 【＋】、【－】, and press【Enter】
means selected OK（There is a “√” at the end of the selected recording files）and press 【Enter】
again the “√” will disappear that means cancel the select, we can start export the recording files
after selecting, and press 【BACKUP】to start to backup, as follow:
Instruction：
1．When the space in backup device less than recording file, the system will prompt “Space no
enough”.
2．You can move USB device directly when backup finished 。
2.2.2.2 RECORD SETUP
Move the cursor to 【RECORD】（Icon highlighted when selected）,press【Enter】to enter
into the setting interface. Press 【Confirm】and enter into the setup interface, and you can use
direction keys and cursor to change the options.



Website:www.CCTVSecurityPros.com


CHANNEL：ON: Means the channel enable for recording.
RESOLUTION：Setup resolution and code rate for recording, there are HIGEST, HIGH, NORMAL
three options, corresponding to D1 、HD1、CIF resolution.
QUALITY ：There are BEST, FINE ANDNORMAL three option, corresponding HIGHEST,
HINGAND NORMAL data stream standard
AUDIO：ON: Means enable the audio recording for all channels, OFF: Means disable audio
recording
REC.MODE：
POWER UP: Means the device will start recording when it startup. TIME: Recording as the
schedule, you can setup the schedule as you want as follow.
CHANNEL：You can select all channel or just one channel（blue means has selected）
WEEKLY：You can select all everyday, weekend, workday or each day(blue means has
selected)
DAILY：There are ALARM, NORMAL, NO REC three modes, if you select this, that means all
the day will record as this mode, and if you don’t want some period to record, you can cancel it
via【Enter】button, grounding means don’t record, different color means different record mode: Red



Website:www.CCTVSecurityPros.com


means alarm record, green means normal record, grounding means no record.
RECORD SIZE：There are 15min, 30min, 45min, 60min four options, that means it will pack as
the mode you selected
Scroll to APPLY and press ENTER to save the new settings.
2.2.2.3 HDD MANAGE
Move the cursor to 【HDD】（Icon highlighted when selected）,press【Enter 】to enter into the
setting interface, and you can use direction keys and cursor to change the options.
HDD STATUS：There are three status available, normal, un-format, No HDD. If HDD can not
runnormally（including unformat and no HDD）, there is a 【H】display on video live view.
OVERWRITE：ENABLE: means when HDD space less than 4G, it will delete HDD earliest recording
file, and it will stop deleting when the space is 10G; DISABLE：means when HDD space less than
500M it will stop recording, and an prompt will display in live view “please
shutdown and replace HDD”
FORMAT：Move cursor there to select device and press【APLLY】to start format
2.2.2.4 BASIC SETUP
Move cursor to select “BASIC SETUP” (The big icon means select ok)and press 【ENTER 】to
enter into the system language setup interface.



Website:www.CCTVSecurityPros.com


Basic setup includes system language, time/date, security, display, video/audio and exit six
options.
2.2.2.4.1 SYSTEM LANGUAGE SETUP
Move cursor to select “system language” (The big icon means select ok)and press
【ENTER】to enter into the system language setup interface.
System language have Chinese and English two options, you can setup the language you want
in here.
Remark: The device will restart when you setup system language success.
2.2.2.4.2 DATA/TIME SETUP
Move cursor to select “date/time” (The big icon means select ok)and press 【ENTER】to enter
into the date/time setup interface.



Website:www.CCTVSecurityPros.com


DATE: Setup system date via numeric key.
DATE FORMAT: Press ENTER to switch between the date patterns, there are YY-MM-DD
and MM/DD/YY two options.
TIME: Setup system time via numeric key.
TIME FORMAT: Press ENTER to switch between the date patterns, there are 12 HOURS
and 24 HOURS two options.
Remark: You must move the cursor to the 【MODIFY TIME AND DATE】and press
【APPLY】to save it, otherwise it won’t save the modify if you exit this interface. DST: haven’t
finished yet.
2.2.2.4.3 SECURITY
Move the cursor to【SECURITY 】（Icon highlighted when selected）, press【Enter】to enter into
the setting interface.
DEVICE ID：Press【+】/【-】or number key to setup the unite ID.



Website:www.CCTVSecurityPros.com


PASSWORD：Press【APPLY 】to start or close user password. If it is “ENABLE”, you must
input password when log in, otherwise, you can enter into main manu directly.
USER PASSWORD：Press 【+】/【-】or numbe keys to setup user password.
ADMIN PASSWORD：Press【+】/【-】or press number keys to setup admin password.
2.2.2.4.4 DISPLAY SETUP
Move the cursor to【DISPLAY SETUP 】（Icon highlighted when selected）, press【Enter 】to
enter into the setting interface.
NAME: press【Enter】to enter into the setting interface.
POSITION:press【Enter】to switch name location,there are 5 options:bottom left, top left, bottom
right, top right and OFF.
COLOR：press 【Enter】to enter into setting interface, as following:
Press 【Enter 】or 【+ 】【-】key or directly drag the cursor to set colors,including
chroma,brightness, contrast and saturation, press 【APPLY】to save the parameters.



Website:www.CCTVSecurityPros.com


PREVIEW：ON: Means the channel is allowed to view the live mode, OFF means not.
PREVIEW TIME: ON: Means insert clock in live view, OFF means not.
RECORD TIME ：ON: Means insert clock in record file, OFF means not.
2.2.2.4.5 VIDOE/AUDIO SETUP
Move the cursor to【VIDEO/AUDIO SETUP】（Icon highlighted when
selected），press【Enter 】to enter into setting interface.
VGA RESOLUTION：press【Enter】key to setup the VGA resolution, there are 1024*768
、800*600 and 600*480 three options.
CAMERA SYSTEM: press【Enter】to switch camera system, has PAL and NTSC two options
VOLUME SETUP：move cursor to 【VOLUME SETUP 】，press 【Enter】to enter into
volume
setup interface, press【+】【-】or number keys or directly drag the cursor to adjust volume.
2.2.2.4.6 EXIT
Move the cursor to【EXIT】（Icon highlighted when selected），press【Enter】to back to
main menu.
2.2.2.5 ADVANCE SETUP
Move the cursor to【ADVANCE SETUP 】（Icon highlighted when selected），press【Enter
】to enter into setting interface.



Website:www.CCTVSecurityPros.com


Advanced Features include Alarm settings, system information, Motion detection, mobile phone
monitoring, system maintenance, PTZ and network setting.
2.2.2.5.1 ALARM SETUP
Move the cursor to【ALARM SETUP 】（Icon highlighted when selected），press【Enter】to
enter into setting interface.
I/O CHANNEL： Each channel corresponds an I/O status, that is, when an alarm triggered, it will
activate the corresponding channel to start alarm recording.
N.O：indicate I / O input level from high to low effective
N.C：indicate I / O input level from low to high effective
HDD LOSS：ON means it will trigger a alarm if there is no HDD, and it will display an 【H】On the
bottom left of channel 1 in the live view
HDD SPACE：ON：If the space less than 500M, there is a remark in live view：No enough space,
please change HDD after shutdown.
VIDEO LOSS：ON：when one channel has no video input, it will display “video loss”in live view.
ALARM MANAGE：There are alarm output, buzzer and post REC three items. OUTPUT：when an
alarm triggered, the alarm output time will be:
