CDA FWV452 Quick start guide

FWV452
FWV601
FWV902
Winecoolers
Installation,useandmaintenance

Important
TheCDAGroupLtdcannotbeheldresponsibleforinjuriesorlosses
causedbyincorrectuseorinstallationofthisproduct.Pleasenotethat
CDAreservethe right to invalidatetheguaranteesupplied with this
product followingincorrectinstallationor misuseoftheapplianceor
useinacommercialenvironment.
Thisapplianceisnotdesigned tobe usedbypeople
(includingchildren)withreduced physical,sensorialor
mental capacity,or who lack experience orknowledge
aboutit, unless they have hadsupervision orinstructions on
howto usethe applianceby someone who is responsible
fortheirsafety.
Under nocircumstances should any externalcovers be
removed forservicing ormaintenance exceptbysuitably
qualifiedpersonnel.
Thisrefrigerationapplaince isintendedforuse asabuiltin
appliance.
Donotusetheapplianceifthe plug,the mainscordorthe
appliance itself isdamaged. If themains cord isdamaged,
youmusthaveit replacedby the manufacturer,oran
authorisedservicecentreorsimilarly qualifiedpersonsin
orderto avoida hazard.
Childrenshouldbesupervisedtoensure thattheydonot
playwiththeappliance. Keepthemains cordout ofthe
reachofchildren. Donotletthemainscordhangoverthe
edgeofthetableorworktoponwhichtheappliancestands.
2

Applianceinformation:
Pleaseenter thedetails ontheappliance ratingplatebelow for
reference,to assist CDACustomerCareintheeventofafaultwith
your appliance andtoregisteryour appliance forguarantee purposes.
ApplianceModel
SerialNumber
DeclarationsofConformity:
Thisappliancehas beenmanufactured tocomplywith allEU&UK
statutoryrequirementsandcomplieswithallapplicablelegislationand
thefollowingEuropeanDirectives:
•
•
•
•
TheLow VoltageDirective2014/35/EU
ElectromagneticCompatibilityDirective2014/30/EU
ErP Directive2009/125/EC
DirectiveRoHS2011/65/EC
Theproduct hasbeenmarked with the
and
symbols.
IMPORTANTINFORMATIONFORCORRECTDISPOSALOFTHE
PRODUCTINACCORDANCEWITHECDIRECTIVE2012/19/EU.
Pleaserendertheapplianceunusablebeforedisposal.Thisincludes
removingtheplugandbreakingthedoorfixingstoprevent children
being trappedinsidetheapplianceduring play,orany otherriskof
injury.
Attheendofitsworkinglife,theproductmustnotbedisposedofas
urbanwaste.Itmustbetakentoaspeciallocalauthority
differentiatedwastecollectioncentreortoadealerprovidingthis
service.
3

Disposingofahousehold applianceseparatelyavoidspossible
negativeconsequencesfortheenvironmentandhealthderivingfrom
inappropriatedisposalandenablestheconstituentmaterialstobe
recoveredtoobtainsignificantsavingsinenergyandresources.Asa
reminderoftheneedto disposeofhouseholdappliancesseparately,
theproductismarkedwithacrossed-outwheeleddustbin.
• ThisapplianceismarkedaccordingtotheEuropeandirec-
tive2012/19/EU on WasteElectricalandElectronicequipment
(WEEE) .
Repairscarriedoutby unqualified personsmayseriously
endangertheapplianceuser.
PursuanttoCommissionRegulation(EU)2019/2019,Theminimum
availability period forspareparts necessarytorepair theappliance
is7or10yearsdependingonthetypeandpurposeofthespare
part.
Thelistofsparepartsandtheorderingprocedureareavailable
onthewebsitesofthemanufacturer,importeroranauthorised
representative.
Theminimumwarrantyperiod fortheappliance offeredbythe
manufacturer,importerorauthorizedrepresentativeisgiveninthe
warrantycard.
Thewarrantyshallbevoidifyoumakeanyindependentadapta-
tionsor alterations,tamperwithsealsor other appliancesafety
devicesoritspartsorinterferewiththeappliancecontraryto
operatinginstructions.
•
•
•
•
•
Formoreinformationabouttheproduct,pleasereferto theEUEPREL
ProductDatabaseathttps://eprel.ec.europea.eu.Alternativelyyou
canuseyourmobiledevicetoscantheQRcodeontheenergylabel
orentertheproductmodellistedontheenergylabelintheEPREL
searchengine.
4

Beforefirstuse
Youmustallowtheappliancetosettleforatleasttwentyfour
hours prior to switchingthe poweron.
Itisrecommendedthatyouremoveallinternaland external
packagingandcleantheinterioroftheappliancepriorto firstuse,
usingasolutionofbicarbonateofsodaandwarmwaterand then
thoroughlydrytheinterior.
Theappliancemayhaveanodourtoitatfirst use. Thiswilldisappear
astheappliancecools.
Pleasenote:
•
Theappliancewill work continuouslyuntilitgetsto thecorrect
temperature.
•
Iftheappliance is switched off,youshould allowfiveminutesbefore
switchingitonagaintopreventthe riskofunnecessarydamageto
thecompressor.
•
TheLEDdisplaymaynotshowtheselectedtemperaturewhilstthe
appliancefirstgetstothecorrecttemperature. Thisisnormal,and
thedisplaywillbe correctedautomaticallyoncetheappliancehas
runforafewhours.
Note:Iftheappliancedoesnot haveafreezercompartment(
)
it isnotsuitablefor freezing foodstuffs.
5

Use
•
•
•
•
Onlystorewine insealedcontainers.
Donotoverloadthecabinet.
Onlyopenthedoorwhennecessary.
Do notcovertheshelveswith aluminiumfoiloranything elsethat
willpreventairfromcirculatingaroundthecabinet.
•
•
•
•
•
To preventdamagetothedoorseal,ensurethedoorisfullyopen
beforeremoving theshelves.
Thisisaself-defrostingappliance. Thecompressorwillnotrun
duringthethirtyminutedefrostcycle.
Donotpulltheshelvesbeyondtheanti-stopposition(approximately
onethirdout)whenfullyloaded.
Thisapplianceis intended to beused exclusively forthestorage of
wine.
Intheeventofapowerfailure,leavethedoorclosedasmuchas
possibletomaintaintheinternalworkingtemperature. Should
thepowerfailurecontinueforaprolongedperiod,youshould
takestepstoprotectthecontentsofthewinecooleragainsta
risein temperature. Thewinecoolerwillremembertheselected
temperaturesettings andrevert tothesesettings oncethepower is
restored.
Thisapplianceis suitable for usein an extendedtemperatureclimate
(ST)and hasanormaloperatingambient temperatureof 16-38°C.
Useoftheappliancebelow 10°Cmaycauseperformanceissuesthat
arenotindicativeofafault. Normaloperationwillresumeoncethe
applianceiswithinthespecifiedrange.
6

Useandcontrols

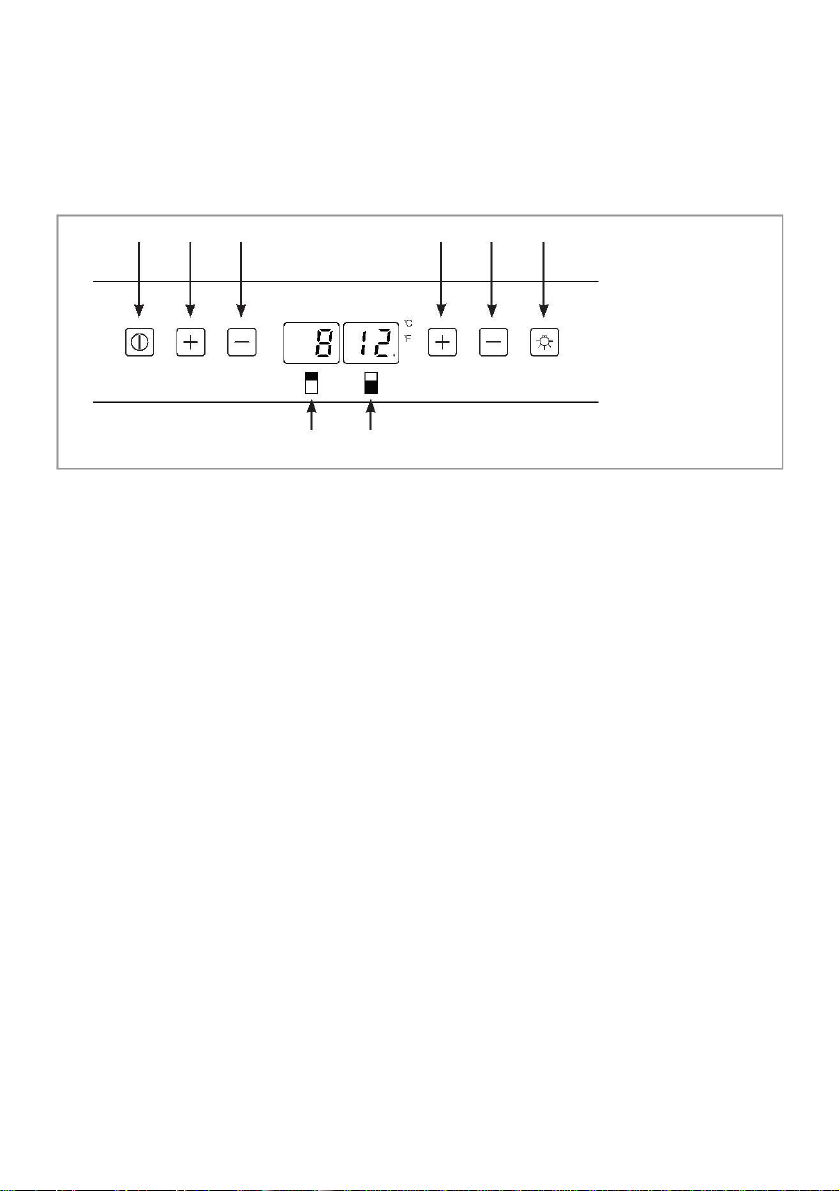

FWV452&FWV601
1
2
3
4
Key:
1
–Powerbutton
2
3
4
–Lightbutton
–Upbutton
–Downbutton
Fig.1
To switchthepoweron/off
•
Pressand holdthepowerbuttonforonesecondto switchthewine
cooleron.
•
Pressand holdthepower button for fivesecondstoswitchthewine
cooleroff.
To changethetemperature
•
Presstheupordownbuttonsuntiltherequiredtemperatureis
shownonthedisplay.
•
•
Thepresettemperatureis 12˚C/54˚F.
To viewtheset temperature,touchtheupordownbuttonatany
timeand theset temperaturewill flashintheLEDdisplayforfive
seconds.
7

•
Thedisplayshowsthecurrentinternaltemperaturewhenthewine
coolerison.
Optimaltemperatureselection
Whilstwineisbeststoredattemperaturesbetween 13°Cand15˚C,
yourwinecanalsobestoredatdrinkingtemperature. Forredwine
thisisbetween15°Cand 17˚C, andforwhitewinebetween12°Cand
1
3˚C.
To usetheinternallight
•
Pressand holdthelightbuttonfor5secondstoswitchthelightonor
off.Theinternal lightindicatorwilllight uporgoouttoconfirmthe
selection.
•
Theinternallightindicator isthedot at thebottomrightofthe display.
8

Useandcontrols

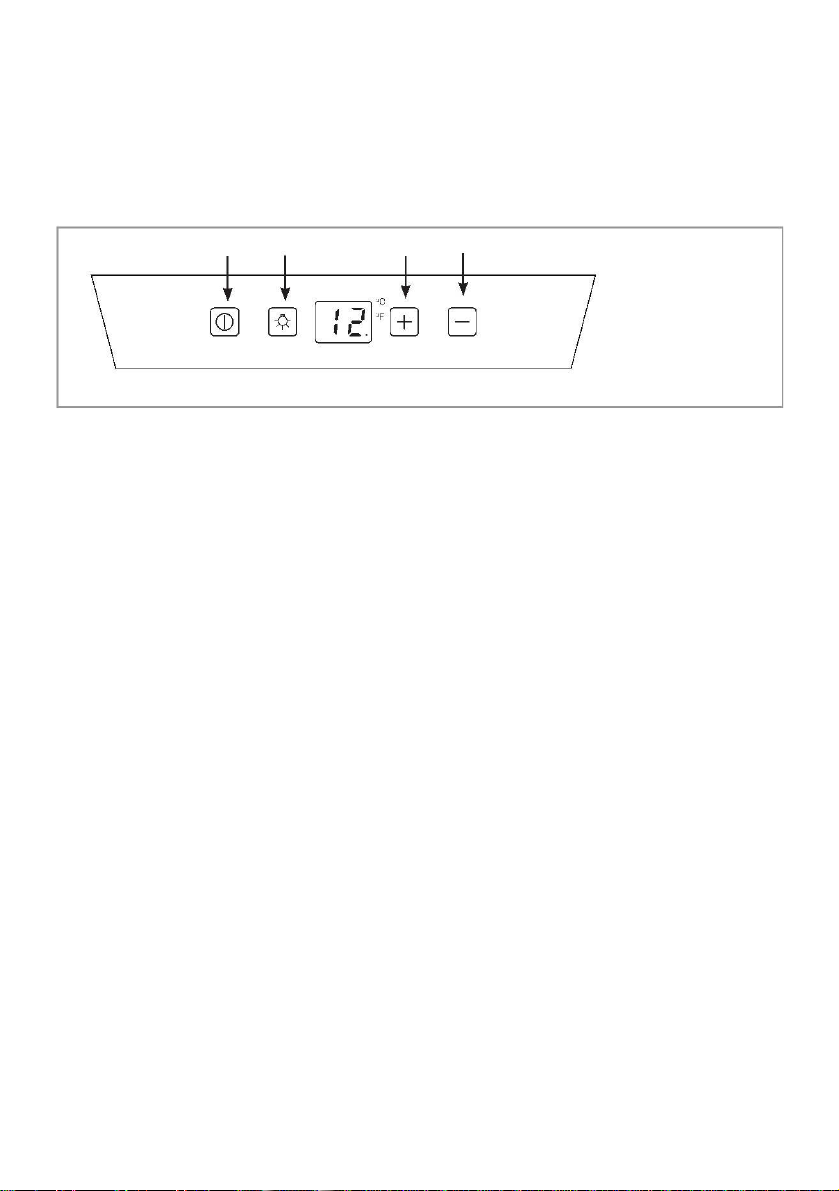

FWV902
1
2
3
4
5
6
Key:
1
–Powerbutton
2
3
–UpperZone,upbutton
–UpperZone,down
button
4
5
–LowerZone,upbutton
–LowerZone,down
button
6
7
8
–Lightbutton
–UpperZone
–LowerZone
7
8
Fig.2
To switchthepoweron/off
•
Pressand holdthepowerbuttonforone secondtoswitchthewine
cooleron.
•
Pressand holdthepower button for fivesecondstoswitchthewine
cooleroff.
To changethetemperature
•
•
•
Pressthe upordownbuttons for theappropriatezoneuntil the
requiredtemperatureisshownonthedisplay.
Thepresettemperatureis 8°C/46°Ffor upperzoneand12°C/54°F
forlowerzone.
To viewthesettemperature,touchtheupordownbuttonatany
timeand theset temperaturewill flashintheLEDdisplayforfive
seconds.
•
Thedisplayshowsthecurrentinternaltemperatureswhenthewine
coolerison.
9

Optimaltemperatureselection
Whilstwineisbest stored attemperaturesbetween 13°Cand15˚C,
your winecanalso bestoredatdrinkingtemperature,forred winethis
isbetween15°Cand 17˚C,andforwhitewinebetween12°Cand 13˚C.
To usetheinternallight
•
Pressandholdthelightbuttonfor5secondstoswitchthelighton oroff.
Theinternallightindicatorwilllightuporgooutto confirmtheselection.
Theinternallightindicatoristhedotatthebottomright of thedisplay.
•
Pleasenote:
Thetemperatureinthelowerzonemustbeseteitherthesameasor
higher thanthetemperatureinthe upper zone.
Use
Settingsmode
Certainsettingsonthewinecoolercanonlybeselectedinsettings
mode.AtthesametimeinsettingsmodeonlytheUPandDOWNkeys
oflowerzonearevalidfordualzoneandthreezoneunits.
•
1
ºF/ºCSelection
. LightlytouchandholdtheUPkeyfor5seconds.
.UsetheUPandDOWNkeystoselectthetemperaturedisplay
settinginFahrenheitorCelsiusdegree.
.TouchthePOWERkeytoconfirmyourselection.
.TouchandholdtheUPkeyfor5secondstoleavesettings mode.
Otherwisetheapplianceexitssettingsmodeautomaticallyafter
approximatelyoneminute.
2
3
4
•
Display Brightness
1
. LightlytouchandholdtheUPkeyfor5secondsandthentouchthe
POWERkeyonce.
2
.UsetheUPandDOWNkeystoselectthebrightnessofthedisplay.The
factorydefaultsettingisd1.
d1:dimmestsetting
d2:mediumsetting
d3:brightestsetting
3
4
.TouchthePOWERkeytoconfirmyourselection.
.TouchandholdtheUPkeyfor5secondstoleavesettingsmode.
Otherwisetheapplianceexitssettings modeautomatically
afterapproximatelyoneminute.
1
0

•
InteriorLighting Brightness
1
. LightlytouchandholdtheUPkeyfor5secondsandthentouchthe
POWERkeytwice.
2
.UsetheUPandDOWNkeystoselectthebrightnessoftheinterior
lighting.Thefactory defaultsettingisL3.
L1:dimmestsetting
L2:mediumsetting
L3:brightestsetting
.TouchthePOWERkeyto confirmyourselection.
.TouchandholdtheUPkeyfor5secondstoleavesettingsmode.
Otherwisetheapplianceexitssettings modeautomatically after
approximatelyoneminute.
3
4
•
FanMode
1
. LightlytouchandholdtheUPkeyfor5secondsandthentouchthePOWER
keythreetimes.
2
.UsetheUPandDOWNkeystoselectthefanmode.Thefactorydefault
settingisF0.
F0:Silentmode–Energysavingmode
F1:Dynamiccoolingmode-halftime
F2:Dynamiccoolingmode-fulltime
.TouchthePOWERkeytoconfirmyourselection.
.TouchandholdtheUPkeyfor5secondstoleavesettingsmode.
Otherwisetheapplianceexitssettingsmodeautomaticallyafter
approximatelyoneminute.
3
4
•
AudibleTones
1
. LightlytouchandholdtheUPkeyfor5secondsandthentouchthePOWER
keyfourtimes.
2
.UsetheUPandDOWNkeystoselecttheaudibletones.Thefactorydefault
settingisS1.
S0:sensortoneON,alarmtoneOFF
S1:sensortoneON,alarmtoneON
S2:sensortoneOFF,alarmtoneOFF
S3:sensortoneOFF,alarmtoneON
.TouchthePOWERkeytoconfirmyourselection.
.TouchandholdtheUPkeyfor5secondstoleavesettingsmode.
Otherwisetheapplianceexitssettingsmodeautomaticallyafter
approximatelyoneminute.
3
4
1
1

Temperaturedisplay
Thetemperaturedisplaywillshowthecurrentinternaltemperature.
Thedisplayflashes:
•
•
Whenadifferenttemperatureis beingset
Iftheinternal temperatureis+/-5˚ away fromtheset temperature.
Thisservesas awarning to prevent damagetothecontentsofthe
applianceshould thetemperaturebetoohigh.
DynamicCoolingandSilentmodes
Theappliancehastwodifferentrunningmodes.InSilentmodeoncethe
required temperatureisreached,theappliancewillrunwithoutthefan.
ThewinecoolerisfactorysettoSilentmode.InDynamiccoolingmode
thefancyclesonandofftocirculatetheairevenaftertherequiredtem-
peratureisreached.Thisensuresconsistenthumidityandtemperature
distributioninthewinecooler,creatingperfectconditionsforlongterm
storage.
UsingtheDynamiccoolingmodeincreasesthelevelofnoiseinoperation.
InternalHumidity
Thewinecoolersareequipped
withahumiditysystemto maintain
optimalhumiditywithinthewine
cooler.
Fig.4
Fill thehumidityreservoir approximately3/4full withwater.
Placethereservoir on therunnersonthetopshelfas showninfig.4.
Ensureit islocatedcorrectly to preventwaterspillage.
Checkthewaterlevel regularlyandrefill ifrequired.
1
2

Sabbathmode
Sabbathmodeisavailablefortheobservanceofcertainreligious
holidays. Thiswillswitchoffthedisplays,interiorlightandaudible
alarms.Thecoolingprocesswillcontinue.
To switchtheSabbathmodeon,touchandholdthepowerandlight
keyssimultaneouslyforfiveseconds.Thedisplalysandinteriorlights
willgo outtoconfirmtheSabbathmodeison.Sabbathmodewillswit-
choffautomaticallyafter48 hours,but to switchtheSabbath mode off
atanytime,touchand holdthepowerand lightkeyssimultaneously
forfiveseconds.
Dooralarm
Thewinecoolerisequippedwithanalarmthatwill soundifthe
door isleftopenfor morethan 60seconds. To switchoffthealarm,
pressanybutton.Ifthetemperaturehasrisenbeyondthesettempe-
rature,the displaywill flashuntilthezonehasreturnedtotherequir-
edtemperature.
Interiorlight
Thewinecoolerhas two optionsfortheinteriorlights. To changefrom
oneoptiontotheother, pressandholdthelightbuttonfor5seconds.
•
Displaymode -Thismodewillleavetheinteriorlighton
constantly,allowingyoutoseethecontentsofthewinecoolerata
glanceatanytime.Thelightindicatorwilllightupindisplaymode.
•
Energysavingmode -Thismodeonlyswitchesontheinterior
light whenthedoorisopened.
1
3

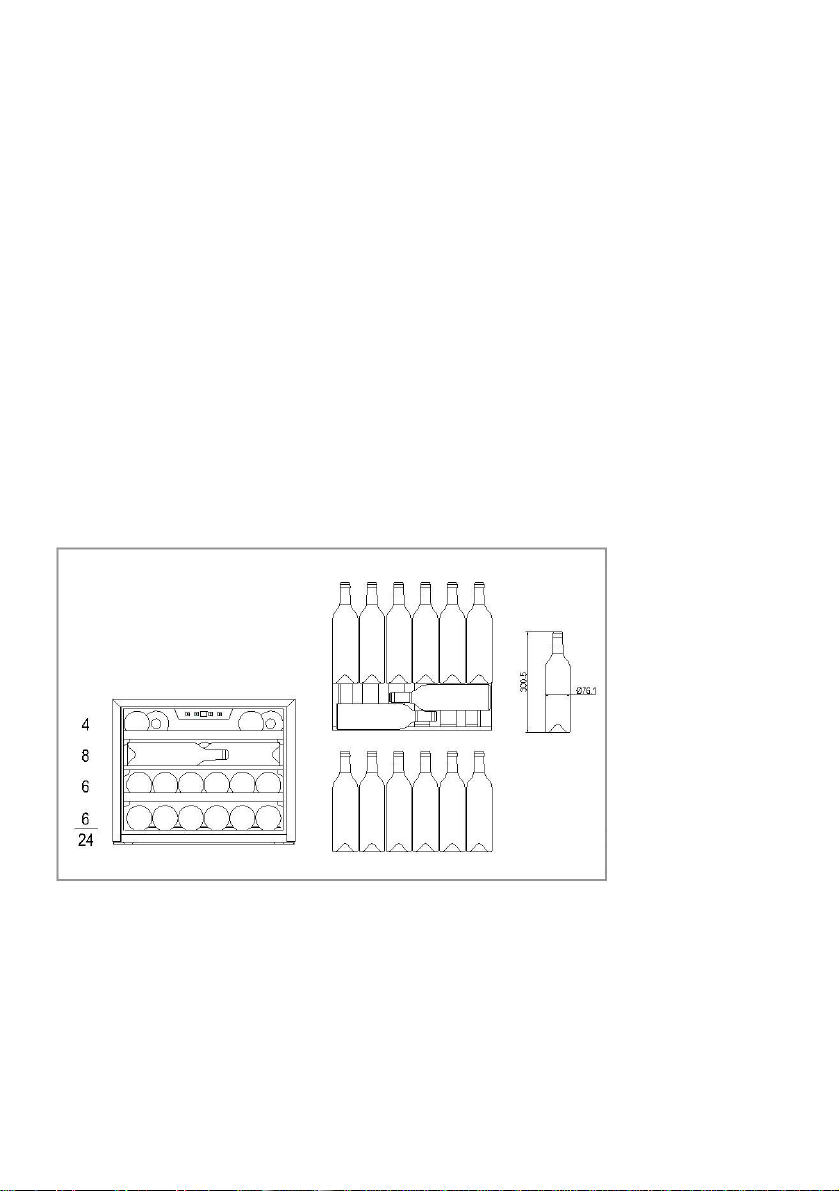

Bottlestorage
To achievethemost effectivepreservationofyourwineforthe
longesttimepossible andavoidingany waste,positionthe products
asshown inthediagramsinthissection. Inaddition, this figure
illustratesthelayoutofdrawers,basketsand shelves,whichallowsthe
mostefficientuseofenergy.
Optimaltemperatureand storageconditionswill extend productshelf
lifeandoptimizeelectricityconsumption.Optimalstoragetemperature
shouldbestatedonthefoodproductpackaging.
FWV452
1
4

1
5

ClimateRange
Theinformation about theclimaterangeof theapplianceis provided
on theratingplate.It indicatesat which ambient temperature(thatis
roomtemperatureinwhichtheapplianceisworking)isoptimalforthe
operationoftheappliance.
Climate class
Allowableambienttemperature
SN
ExtendedTemperate
Thisrefrigerationapplianceisintendedforuse
atanambienttemperaturerangingbetween
1
0°Cand32°C
N
Temperate
SubTropical
Tropical
Thisrefrigerationapplianceisintendedforuse
atanambienttemperaturerangingbetween
1
6°Cand32°C
ST
T
Thisrefrigerationapplianceisintendedforuse
atanambienttemperaturerangingbetween
1
6°Cand38°C
Thisrefrigerationapplianceisintendedforuse
atanambienttemperaturerangingbetween
1
6°Cand43°C
1
6

Careandcleaning
Alwaysdisconnectthe
appliancefromthemains
electricalsupplybeforeany
cleaningormaintenance.
•
Donotuseabrasiveproducts
ordetergents. Afterwashing,
rinseanddrythoroughly.
Fig.4
•
•
•
•
Theexterioroftheapplianceandthedoorsealshouldbecleaned
usingmildsoapywateranddriedthoroughly.
Theinteriorcabinetshouldbecleanedusingasolutionof
bicarbonate ofsodaand lukewarmwater.
Cleantheshelvesseparatelybyhand using soapand water. Donot
puttheminthedishwasher.
Ensurethat theclothis onlymoistwhencleaningthecontrolpanel
andelectricalparts,andthatallwateristhoroughlydried offbefore
reconnectingthe power.
•
•
Oncecleaning iscomplete, reconnectthe mainselectrical supply.
Iftheappliance is nottobeusedforprolongedperiods of time,
unplug andcleantheappliancethoroughly. Thedoorshouldbeleft
slightly ajartopreventtheformation ofodoursor condensation.
1
7

Removingtheshelves
To removeashelffromthewinecooler,first removeallbottlesfrom
theshelf,thenpulltheshelfforwardsuntilthegrooveoneithersideof
theshelfislevelwiththeplasticpegoneithersideofthecabinet(as
showninfig4). Thenlifttheshelfup andpullforwards.
To replace theshelves, followthesteps abovein reverse order.
Temperaturealarm
Ifthetemperaturerisesorfallsoutsidethesettemperaturerange,an
alarmwill soundandthedisplaywill flash.
Thismaybebecause:
•
Thewinecoolerhas not yetreachedthesettemperature(when first
switchedon).
•
•
•
Therehasbeenapowerfailure.
Thewinecoolerhasbeenoverloaded.
Thedoorisnotclosedproperly.
1
8

Troubleshooting
Ifyouhaveanyproblemswithyourappliance,youshouldcheck
the troubleshootingguide priorto calling CDA CustomerCare to
preventunnecessaryservicecallsandpotentialcost.
Iftheapplianceisnotworking,check
•
•
Thereispowertotheappliance
Thehousefusesorcircuitbreakersareintactandthefuseinthe
plug hasnotblown.
•
•
Theplug socketisfunctioningcorrectly. To checkthis,pluganother
electricalapplianceintoseeifthe socketisworking.
Theambienttemperatureisbetween16°Cto 38°C.
Theapplianceisworking,butnotverywell,check
•
•
•
•
•
•
Theapplianceisnotoverloaded.
Thethermostatissettoanappropriatetemperature.
Thedoorisclosing properly.
Thedoorgasketissealingproperly.
Thereisenoughventilationatthesideandrearwalls.
Theambienttemperatureisbetween16°Cto 38°C.
Theapplianceisnoisy,check
•
•
Theapplianceisleveland stable.
Thecoolinggaswill makesomenoise, even whenthecompressor
isnotrunning.
1
9

•
Duringoperation,itis normalforthefanto run,evenwhenthe
compressorisnotrunning.
Thelightdoesnotwork,check
•
•
Thereispowertotheappliance.
Thehousefusesorcircuitbreakersareintactandthefuseinthe
plug hasnotblown.
•
Thelight buttonisnotsetto off.
Pleasenote:
TheLEDlightingcannotbereplacedwithout aservicecall. Ifthelight
fails,contactCDACustomerCare.
Thedoor will notclose properly,check
•
•
Theapplianceisleveland stable.
Ifthedoorhasbeenremoved,itmaynothavebeencorrectly
refitted.
•
•
Thedoorsealisdirty.
Theshelvesarenotpositionedcorrectly.
Thedisplayshow“E1”or“E2”
•Thetemperaturesensorhasfailed.
2
0
