CEJN 09-911-7054
Edition A - 2017.11.03
CEJN AB
Hasslumsvägen 33
S-541 25 Skövde
Sweden
www.cejn.com
Safety Reel
19 911 31XX PUR Hose Reels (Air)
19 911 32XX PUR Hose Reels (Water)
19 911 41XX EPDM rubber Hose Reels (Air/Water)
19 911 61XX Hoseless Reels
User instructions:
www.cejn.com/safetyreel
WARNING!
The products are intended for use by knowledgeable persons having the technical skill necessary to evaluate their suitability
for specic applications. Read all safety instructions carefully before attempting to install, operate, or maintain this product.
Only qualied personnel should undertake the installation, commissioning and maintenance of this product. Before carrying
out maintenance or repair work, always disconnect the hose reel from the air source. If the reel must be disassembled, release
spring tension before further dismantling.
EC Declaration of Conformity – We declare that the products identied below:
Hose Reel Type 19 911 3XXX, 19 911 4XXX and 19 911 6XXX conform to:
2006/42/EG (EN ISO 12100:2010)
Guide
1. Safety
2. Installation
2.1 Assembly
For more detailed information regarding installing and operating of the reel, see our instructions at www.cejn.com/safetyreel
2.2 Hose length
The stop ball is allowed to be moved inwards.
The spring force can be adjusted.
See instructions for further information at
www.cejn.com/safetyreel
0.1- 5.0m
Mounting-positions Arm-positions
127 mm / 5 inch
102 mm / 4 inch
GB

1
2
2
1
2
CEJN 09-911-7054
Marcus Allerbjer
CEJN AB

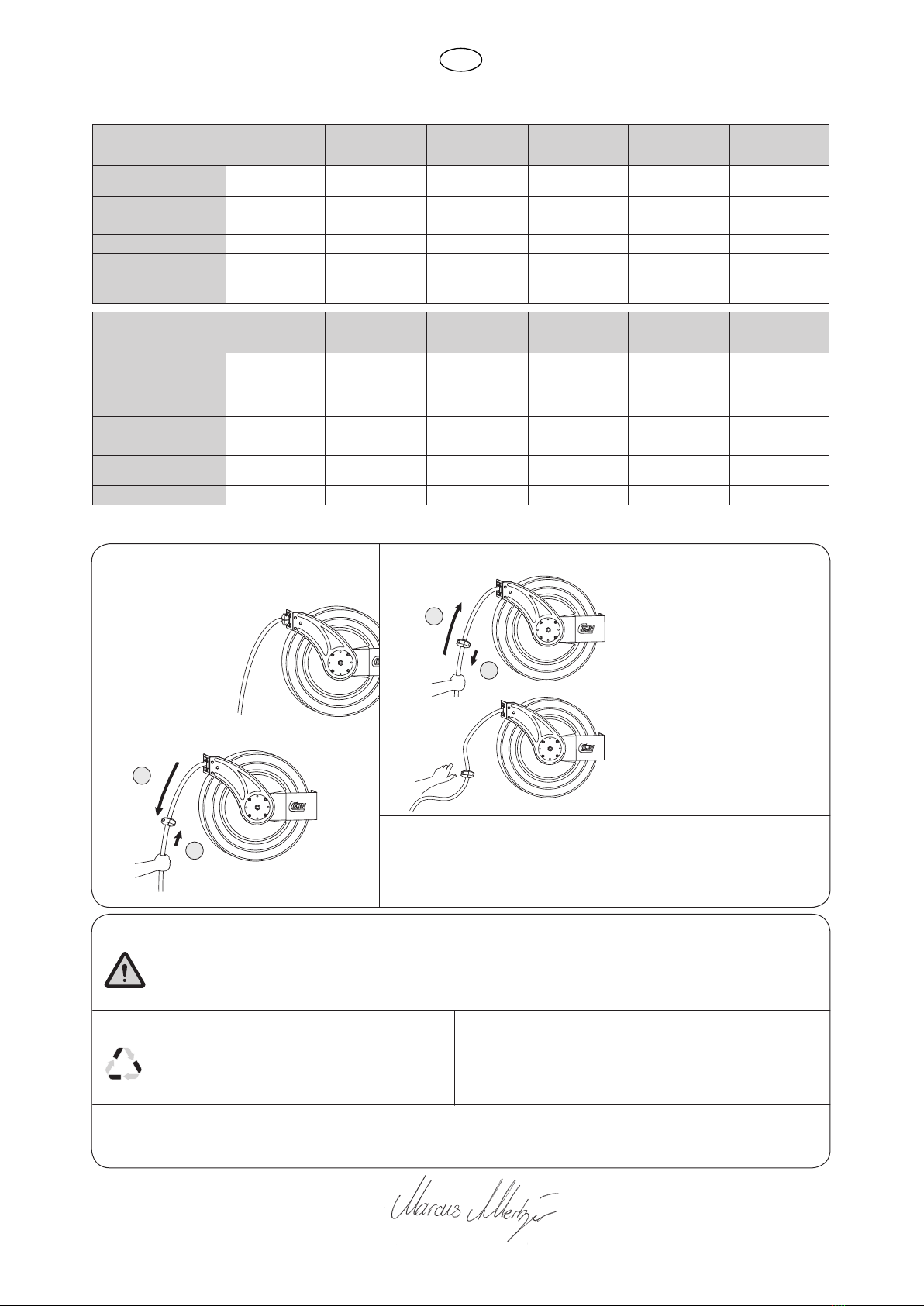

3.1 Pulling out the hose
(1) Pull out the hose to the
required length.
(2) To lock the hose, listening for
the latch to engage with a “click”
while slowly pulling out the hose
a small distance.
2.3 Connecting the hose reel
Connect the reel to the air/water source at the correct working pressure as follows:
199113150/-3152/-
3153/-3155/-3157/-
3158
199113141/-3146/-
3241/-3246
199113162/-3167 199113171/-3176 199113250/-3255/-
3253/-3258
199113271/-3276
Application Compressed air Compressed air /
Water
Compressed air Compressed air Water Water
Hose lenght 15 m, 23 m, 30 m 18 m 23 m 15 m 15 m , 30 m 15 m
Internal diameter of hose Ø 13 mm Ø 9,5 mm Ø 16 mm Ø 19 mm Ø 13 mm Ø 19 mm
Connection 1/2” 3/8” 3/4” 3/4” 1/2” 3/4”
Temperature range -20°C - +60°C -20°C - +60°C (air) /
5°C- +60°C (water)
-20°C - +60°C -20°C - +60°C 5°C - +60°C 5°C - +60°C
Max working pressure 10 bar 10 bar 10 bar 10 bar 10 bar 10 bar
199114152/-4157/
-4153/-4158
199114171/-4176 199116141/-6146 199116150/-6155/-
6151/-6156/-6152/-
6157/-6153/-6158
199116170/-6175/-
6171/-6176
Application Compressed air /
Water
Compressed air /
Water
Compressed air /
Water
Compressed air /
Water
Compressed air /
Water
Hose lenght 23 m, 30 m 15 m 18 m 7 m, 15 m, 23m,
30 m
7 m, 15 m
Internal diameter of hose Ø 1/2” Ø 3/4” Hoseless Hoseless Hoseless
Connection 1/2” 3/4” 3/8” 1/2” 3/4”
Temperature range -20°C - +60°C (air) /
5°C- +60°C (water)
-20°C - +60°C (air) /
5°C- +60°C (water)
-28°C - +100°C -28°C - +100°C -28°C - +100°C
Max working pressure 20 bar 20 bar 20 bar 20 bar 20 bar
3. Operation
3.2 Retracting the hose
To unlock the hose when you have nished
using it, (1) simply pull it out a small distance
and listen for the latch to stop “clicking”.
(2) Then let the hose slowly retract back into
the housing.
Slow retraction
The Safety Reel is equipped with a Safety
Clutch controlled retraction system for up to
80% slower retraction- prevent injury and
easier on equipment.
3.3 The hose cannot be fully retracted
If the hose gets jammed when retracted, simply pull out the hose to its full length and let it retract
freely without assistance. If you experience further problems or other malfunctions, contact your
local distributor for guidance. See instructions at www.cejn.com/safetyreel for more guidance.
- Carry out regular checks that there are no problems with the hose and external parts. For detailed guidance of how to replace the hose,
please see instructions at www.cejn.com/safetyreel
- Any damage or defects must be repaired immediately.
- Repairs and maintenance must be carried out by a qualied technician only.
- Only original spare parts must be used!
4. Maintenance
5. Disposal/Recycling
IMPORTANT!
Help us to take care of the environment. When disposing
of the hose reel, please do so in accordance with local
environmental regulations.
6. Warranty
CEJN AB provides a two (2) year warranty from the date
of manufacture. Contact your retailer concerning warranty
enquiries.
For safety reasons, only original spare parts must be used. For a complete overview of spare parts, see www.cejn.com/safetyreel
7. Spare parts
