863 Ds + infrared ray four will unite as one characteristic:

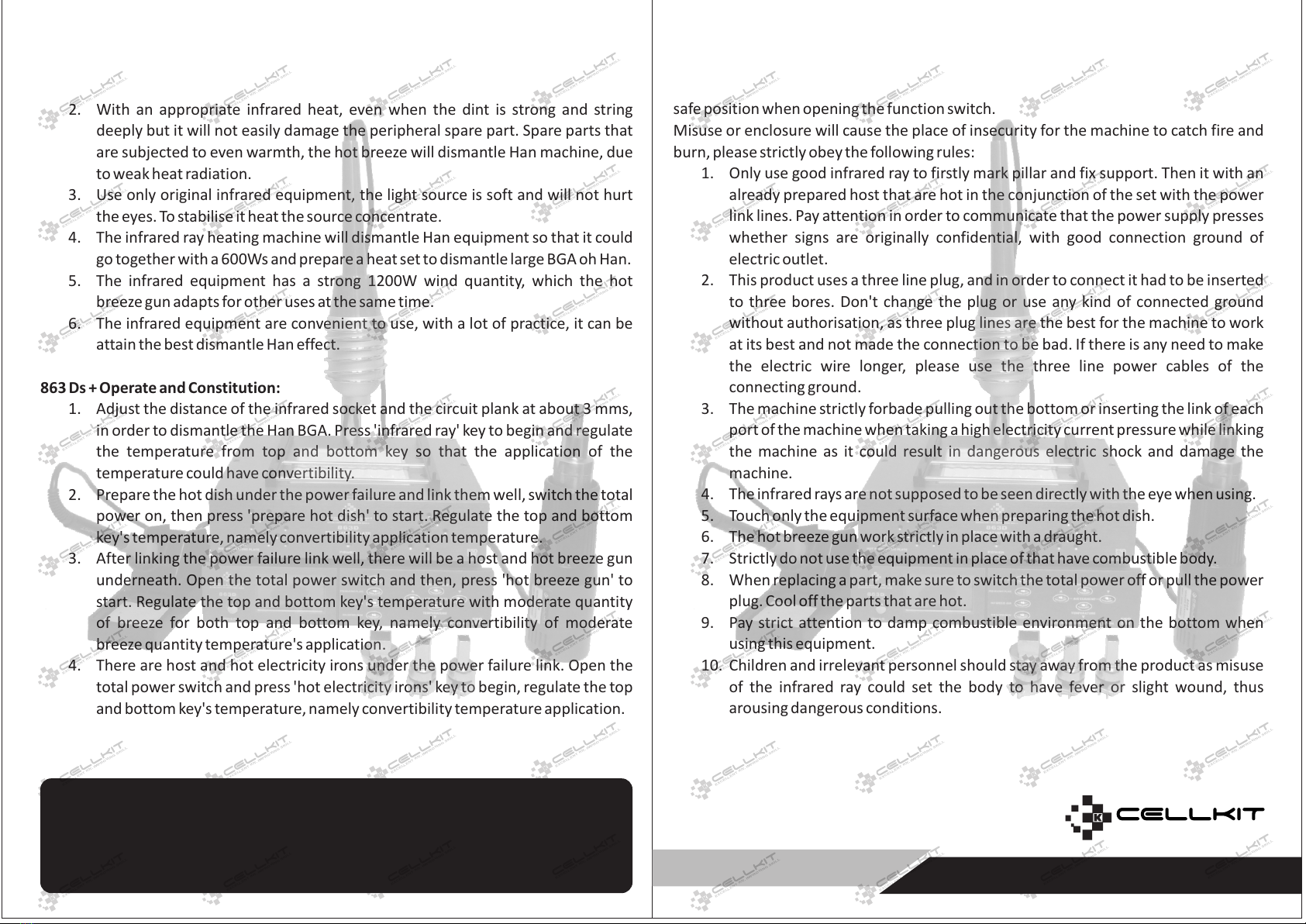

1. Adapting the infrared technique of independent development, 128*64 large
LCD screen will show each function.
2. With an appropriate infrared heat, even when the dint is strong and string
deeply but it will not easily damage the peripheral spare part. Spare parts that
are subjected to even warmth, the hot breeze will dismantle Han machine, due
to weak heat radiation.
3. Use only original infrared equipment, the light source is soft and will not hurt
the eyes. To stabilise it heat the source concentrate.
4. The infrared ray heating machine will dismantle Han equipment so that it could
go together with a 600Ws and prepare a heat set to dismantle large BGA oh Han.
5. The infrared equipment has a strong 1200W wind quantity, which the hot
breeze gun adapts for other uses at the same time.
6. The infrared equipment are convenient to use, with a lot of practice, it can be
attain the best dismantle Han effect.
863 Ds + Operate and Constitution:
1. Adjust the distance of the infrared socket and the circuit plank at about 3 mms,
in order to dismantle the Han BGA. Press 'infrared ray' key to begin and regulate
the temperature from top and bottom key so that the application of the
temperature could have convertibility.
2. Prepare the hot dish under the power failure and link them well, switch the total
power on, then press 'prepare hot dish' to start. Regulate the top and bottom
key's temperature, namely convertibility application temperature.
3. After linking the power failure link well, there will be a host and hot breeze gun
underneath. Open the total power switch and then, press 'hot breeze gun' to
start. Regulate the top and bottom key's temperature with moderate quantity
of breeze for both top and bottom key, namely convertibility of moderate
breeze quantity temperature's application.
4. There are host and hot electricity irons under the power failure link. Open the
total power switch and press 'hot electricity irons' key to begin, regulate the top
and bottom key's temperature, namely convertibility temperature application.
Press “XX” for temperature or breeze measure, press “XX” again to switch it on or off.
Warning
The original 'Warning' and the 'Notice' practical manual are defined as follow:
Warning: Misuse of machine may lead to injuries or even death.
Notice: Misuse of object may lead to severe injure for the user and even break the
machine.
Notice
The moment you connect the power opportune machine that are placed in each
function, changed the status to shut down status. Each enclosure is to be opened in a
safe position when opening the function switch.
Misuse or enclosure will cause the place of insecurity for the machine to catch fire and
burn, please strictly obey the following rules:
1. Only use good infrared ray to firstly mark pillar and fix support. Then it with an
already prepared host that are hot in the conjunction of the set with the power
link lines. Pay attention in order to communicate that the power supply presses
whether signs are originally confidential, with good connection ground of
electric outlet.
2. This product uses a three line plug, and in order to connect it had to be inserted
to three bores. Don't change the plug or use any kind of connected ground
without authorisation, as three plug lines are the best for the machine to work
at its best and not made the connection to be bad. If there is any need to make
the electric wire longer, please use the three line power cables of the
connecting ground.
3. The machine strictly forbade pulling out the bottom or inserting the link of each
port of the machine when taking a high electricity current pressure while linking
the machine as it could result in dangerous electric shock and damage the
machine.
4. The infrared rays are not supposed to be seen directly with the eye when using.
5. Touch only the equipment surface when preparing the hot dish.
6. The hot breeze gun work strictly in place with a draught.
7. Strictly do not use the equipment in place of that have combustible body.
8. When replacing a part, make sure to switch the total power off or pull the power
plug. Cool off the parts that are hot.
9. Pay strict attention to damp combustible environment on the bottom when
using this equipment.
10. Children and irrelevant personnel should stay away from the product as misuse
of the infrared ray could set the body to have fever or slight wound, thus
arousing dangerous conditions.
Don't use the machine continuously for a long period. Switch the product off or unplug it
once the product is used for a long time.
